Presentation Transcript


Slide1 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds


Slide2 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

Formed by glacial scouring, oxbows, filling of craters, uplift blocking a stream, and natural/anthropogenic damming


Slide3 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

Formed by glacial scouring, oxbows, filling of craters, uplift blocking a stream, and natural/anthropogenic damming

The littoral zone is where rooted plants can live; the limnetic zone is deeper water where rooted plants can't live.

profundal


Slide4 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

Formed by glacial scouring, oxbows, filling of craters, uplift blocking a stream, and natural/anthropogenic damming

The littoral zone is where rooted plants can live; the limnetic zone is deeper water where rooted plants can't live.

There is also habitat subdivison by temp; epilimnion, metalimnion (thermocline), and hypolimnion


Slide6 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

Formed by glacial scouring, oxbows, filling of craters, uplift blocking a stream, and natural/anthropogenic damming

The littoral zone is where rooted plants can live; the limnetic zone is deeper water where rooted plants can't live.

There is also habitat subdivison by depth; epilimnion (photic), metalimnion (thermocline), and hypolimnion

Shallow lakes (ponds) have a higher ratio of littoral/limnetic; as such, productivity is high - producing more biomass than the decomposers may be able to breakdown.


Slide7 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

Formed by glacial scouring, oxbows, filling of craters, uplift blocking a stream, and natural/anthropogenic damming

The littoral zone is where rooted plants can live; the limnetic zone is deeper water where rooted plants can't live.

There is also habitat subdivison by depth; epilimnion (photic), metalimnion (thermocline), and hypolimnion

Shallow lakes (ponds) have a higher ratio of littoral/limnetic; as such, productivity is high - producing more biomass than the decomposers may be able to breakdown.

This stimulates decomposition and drives down oxygen concentrations... this excessive productivity distinguishes a eutrophic lake.


Slide9 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

Formed by glacial scouring, oxbows, filling of craters, uplift blocking a stream, and natural/anthropogenic damming

The littoral zone is where rooted plants can live; the limnetic zone is deeper water where rooted plants can't live.

There is also habitat subdivison by depth; epilimnion (photic), metalimnion (thermocline), and hypolimnion

Shallow lakes (ponds) have a higher ratio of littoral/limnetic; as such, productivity is high - producing more biomass than the decomposers may be able to breakdown.

This stimulates decomposition and drives down oxygen concentrations... this excessive productivity distinguishes a eutrophic lake.

These eutrophic conditions can be stimulated by the anthropogenic input of nutrients - stimulating productivity above natural levels. - phosphates often a culprit

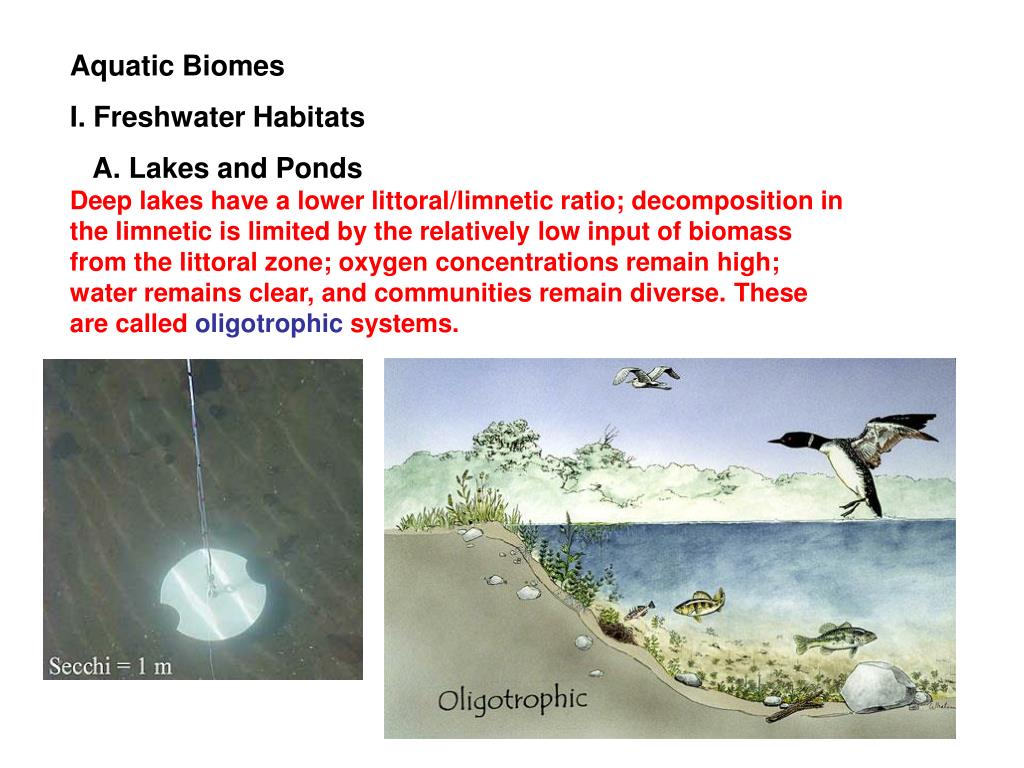

Slide11 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

Deep lakes have a lower littoral/limnetic ratio; decomposition in the limnetic is limited by the relatively low input of biomass from the littoral zone; oxygen concentrations remain high; water remains clear, and communities remain diverse. These are called oligotrophic systems.


Slide12 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

Deep lakes have a lower littoral/limnetic ratio; decomposition in the limnetic is limited by the relatively low input of biomass from the littoral zone; oxygen concentrations remain high; water remains clear, and communities remain diverse. These are called oligotrophic systems.

Deep lakes in the temperate zone proceed through a seasonal change in thermal profile.

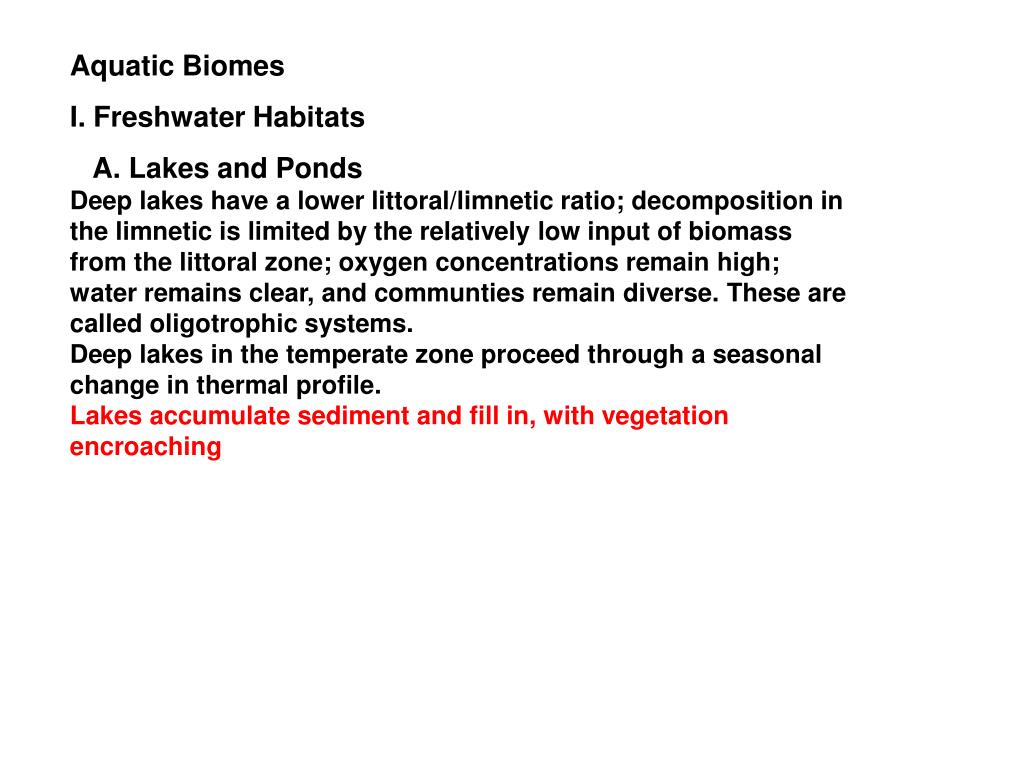

Slide14 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

Deep lakes have a lower littoral/limnetic ratio; decomposition in the limnetic is limited by the relatively low input of biomass from the littoral zone; oxygen concentrations remain high; water remains clear, and communties remain diverse. These are called oligotrophic systems.

Deep lakes in the temperate zone proceed through a seasonal change in thermal profile.

Lakes accumulate sediment and fill in, with vegetation encroaching


Slide16 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

Deep lakes have a lower littoral/limnetic ratio; decomposition in the limnetic is limited by the relatively low input of biomass from the littoral zone; oxygen concentrations remain high; water remains clear, and communties remain diverse. These are called oligotrophic systems.

Deep lakes in the temperate zone proceed through a seasonal change in thermal profile.

Lakes accumulate sediment and fill in, with vegetation encroaching

Rooted plants can draw nutrients from the benthos and remobilize it before it leaves the system; particularly phosphorus that can be limiting in freshwater systems. This remobilization can accelerate the eutrophication of lakes.

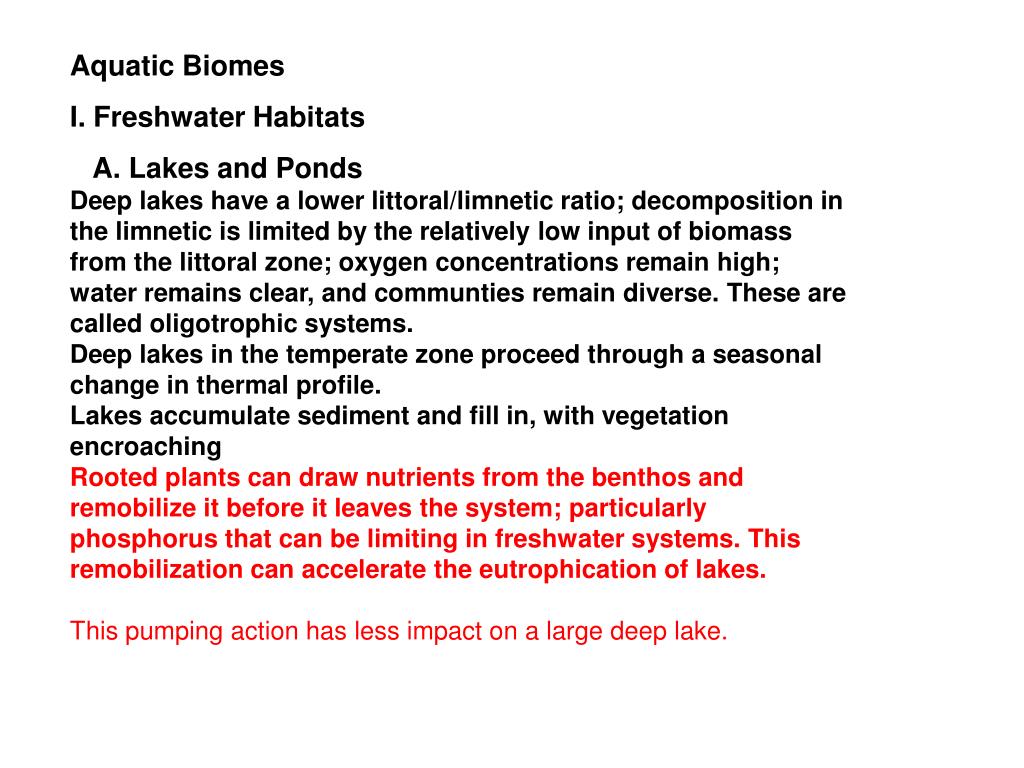

Slide17 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

Deep lakes have a lower littoral/limnetic ratio; decomposition in the limnetic is limited by the relatively low input of biomass from the littoral zone; oxygen concentrations remain high; water remains clear, and communties remain diverse. These are called oligotrophic systems.

Deep lakes in the temperate zone proceed through a seasonal change in thermal profile.

Lakes accumulate sediment and fill in, with vegetation encroaching

Rooted plants can draw nutrients from the benthos and remobilize it before it leaves the system; particularly phosphorus that can be limiting in freshwater systems. This remobilization can accelerate the eutrophication of lakes.

This pumping action has less impact on a large deep lake.

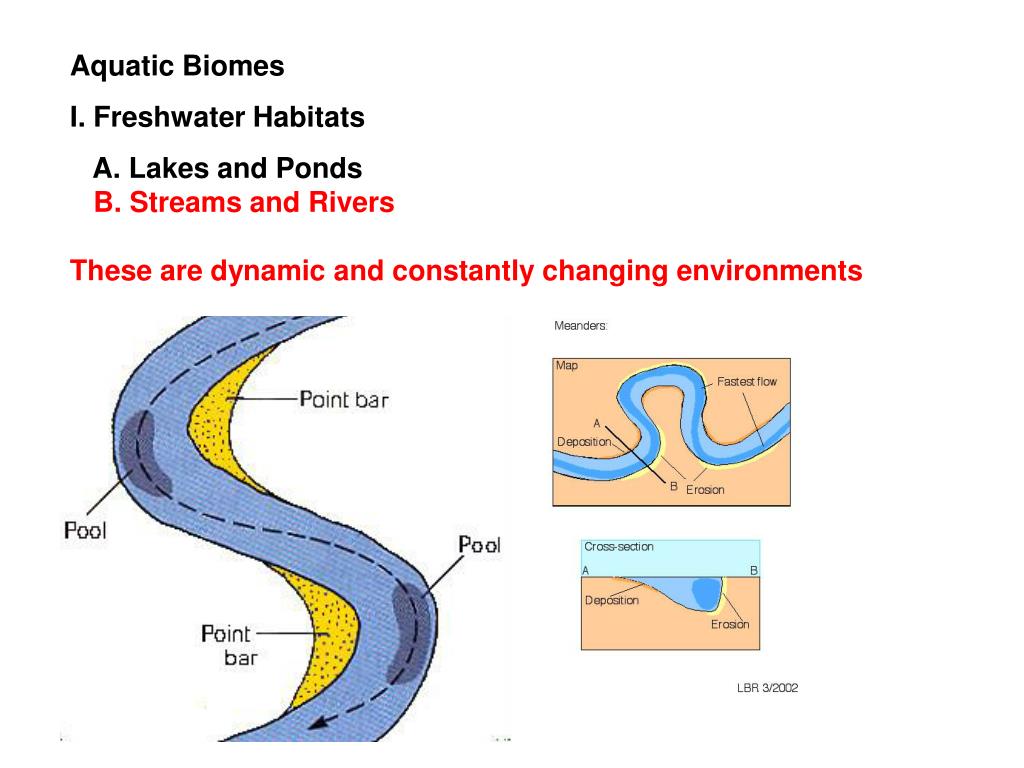

Slide18 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

B. Streams and Rivers

These are dynamic and constantly changing environments


Slide19 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

B. Streams and Rivers

These are dynamic and constantly changing environments


Slide20 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

B. Streams and Rivers

These are dynamic and constantly changing environments

Production and decomposition can be spatially separated...


Slide21 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

B. Streams and Rivers

These are dynamic and constantly changing environments

Production and decomposition can be spatially separated...

decomposition

nutrient transfer

productivity


Slide22 l.jpg

Aquatic Biomes

I. Freshwater Habitats

A. Lakes and Ponds

B. Streams and Rivers

These are dynamic and constantly changing environments

Production and decomposition can be spatially separated...

And we often see downstream succession from "oligotrophic" cold, low productivity streams to "eutrophic", highly productive rivers.


Slide23 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats


Slide24 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- estuaries


Slide25 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- estuaries

- shallow and warm


Slide26 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- estuaries

- shallow and warm

- nutrient rich, from sediment load


Slide27 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- estuaries

- shallow and warm

- nutrient rich, from sediment load

- nutrient rich from decomposition


Slide28 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- estuaries

- shallow and warm

- nutrient rich, from sediment load

- nutrient rich from decomposition

- highly productive


Slide29 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- estuaries

- shallow and warm

- nutrient rich, from sediment load

- nutrient rich from decomposition

- highly productive

- nursery area for oceanic fish


Slide30 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- estuaries

- shallow and warm

- nutrient rich, from sediment load

- nutrient rich from decomposition

- highly productive

- nursery area for oceanic fish

- storm buffer


Slide31 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- estuaries

- shallow and warm

- nutrient rich, from sediment load

- nutrient rich from decomposition

- highly productive

- nursery area for oceanic fish

- storm buffer

- shellfish and benthos are productive


Slide32 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- estuaries

- shallow and warm

- nutrient rich, from sediment load

- nutrient rich from decomposition

- highly productive

- nursery area for oceanic fish

- storm buffer

- shellfish and benthos are productive

- filter water of impurities


Slide33 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- estuaries

- mangroves in the tropics


Slide34 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- estuaries

- salt marsh in temperate


Slide35 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- coral reefs


Slide36 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- coral reefs

- most diverse marine habitat


Slide37 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- coral reefs

- most diverse marine habitat

- dominated by 'reef-building' corals


Slide38 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- coral reefs

- most diverse marine habitat

- dominated by 'reef-building' corals

- nursery area for fish


Slide39 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- coral reefs

- most diverse marine habitat

- dominated by 'reef-building' corals

- nursery area for fish

- storm buffer


Slide40 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- coral reefs

- most diverse marine habitat

- dominated by 'reef-building' corals

- nursery area for fish

- storm buffer

- filter water (a little), but more dependent ON clear water


Slide41 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- coral reefs

- most diverse marine habitat

- dominated by 'reef-building' corals

- nursery area for fish

- storm buffer

- filter water (a little), but more dependent ON clear water


Slide42 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- coral reefs

- most diverse marine habitat

- dominated by 'reef-building' corals

- nursery area for fish

- storm buffer

- filter water (a little), but more dependent ON clear water

- Zooxanthellae are critical here... the water carries few dissolved nutrients - productivity and diversity is dependent upon photosynthetic symbionts in the coral, itself.


Slide43 l.jpg

Aquatic Biomes

I. Freshwater Habitats

II. Marine Habitats

- Upwellings and the open ocean

I mentioned at the end of class that open oceans are "biological deserts" because the source of nutrients (from decomposition at the bottom of the ocean) is a long way from the euphotic zone... so algae are starved of nutrients and productivity is low.

The exception is where, as a consequence of the shape of the ocean basin or surface currents or islands, water from the depths is brought to the surface.... this is called an "upwelling" and it is a local productive area.


Slide44 l.jpg

Equator

30 S

Surface currents are offshore, and deep water comes up along the coast to "fill the gap".

This brings nutrients up, and that's why Peru has the worlds largest and most productive anchovy fishery.


Slide45 l.jpg

Georges Bank - shallow continental shelf, and the offshore Gulf Stream pulling surface waters offshore


Slide46 l.jpg

surface water stripped from island, and deep nutrient-rich water takes its place.

in the photo above, red isn't heat... it is algal productivity.


Slide47 l.jpg

surface water stripped from island, and deep nutrient-rich water takes its place.

so upwellings are a strong indication that surface ocean waters are usually starved of nutrients.
