  1. Overhead Paging Part NumbersManufacturer -Valcom • 2 parts each system Part # (Each made by Valcom) • VAL V-9940 • VAL VP-624B • 1-800-GRAYBAR(472-9227) • Purchase resource for Knology

  2. PagingSystem IAD Network **Valcom Page Adapter** Part #VAL V-9940 Ring Tip 70V Speaker Wire Out Audio + Dip Switches see page 3 Power - Speaker **Valcom- Power Supply** Part # VAL VP-624B

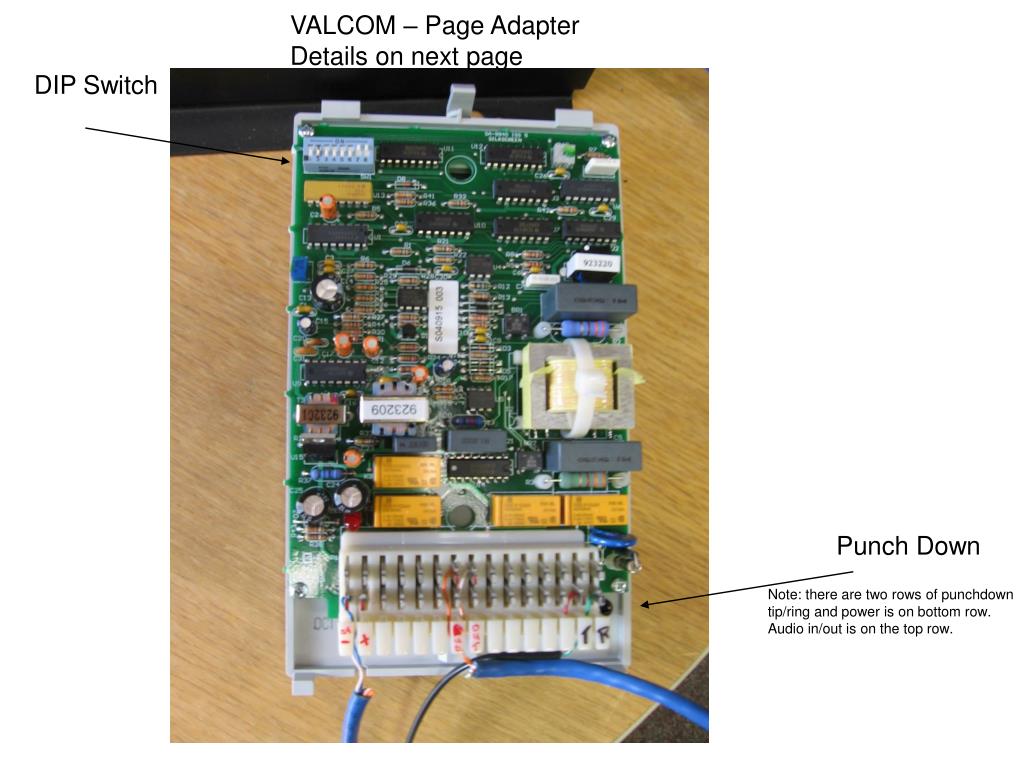

  3. VALCOM – Page AdapterDetails on next page DIP Switch Punch Down Note: there are two rows of punchdowntip/ring and power is on bottom row. Audio in/out is on the top row.

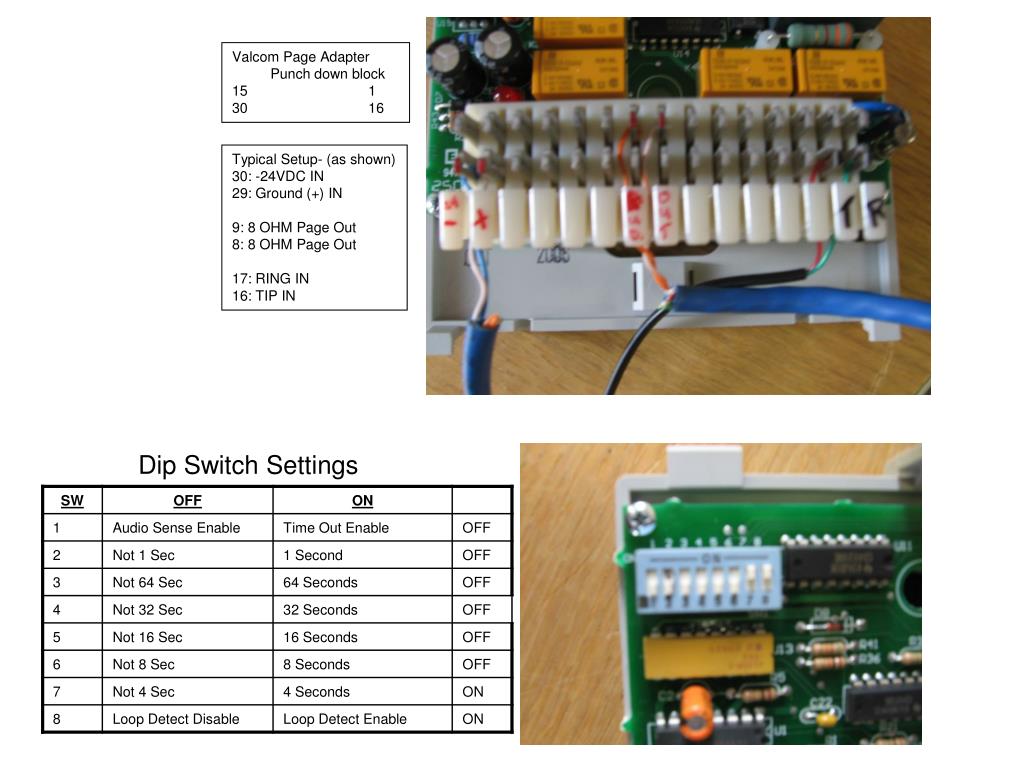

  4. Valcom Page AdapterPunch down block • 1 • 16 Typical Setup- (as shown) 30: -24VDC IN 29: Ground (+) IN 9: 8 OHM Page Out 8: 8 OHM Page Out 17: RING IN 16: TIP IN Dip Switch Settings

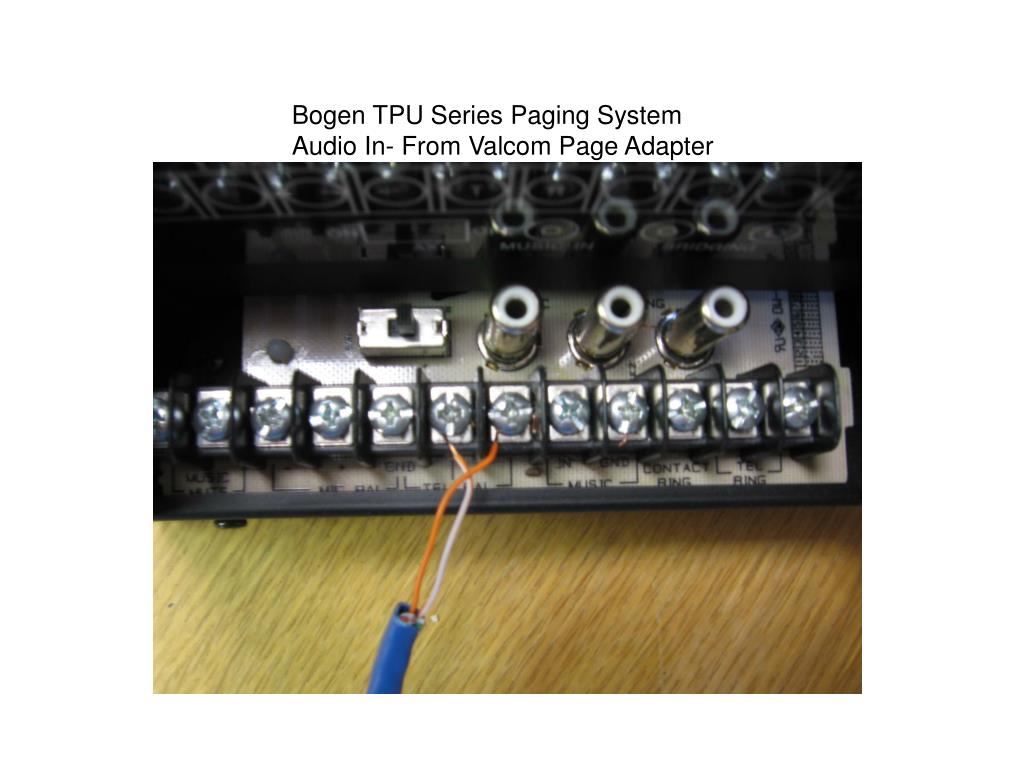

  5. Bogen TPU Series Paging SystemAudio In- From Valcom Page Adapter

  6. Paging System Power Supply Page Adapter To IAD
