  1. Completing the ANOVA From the Summary Statistics

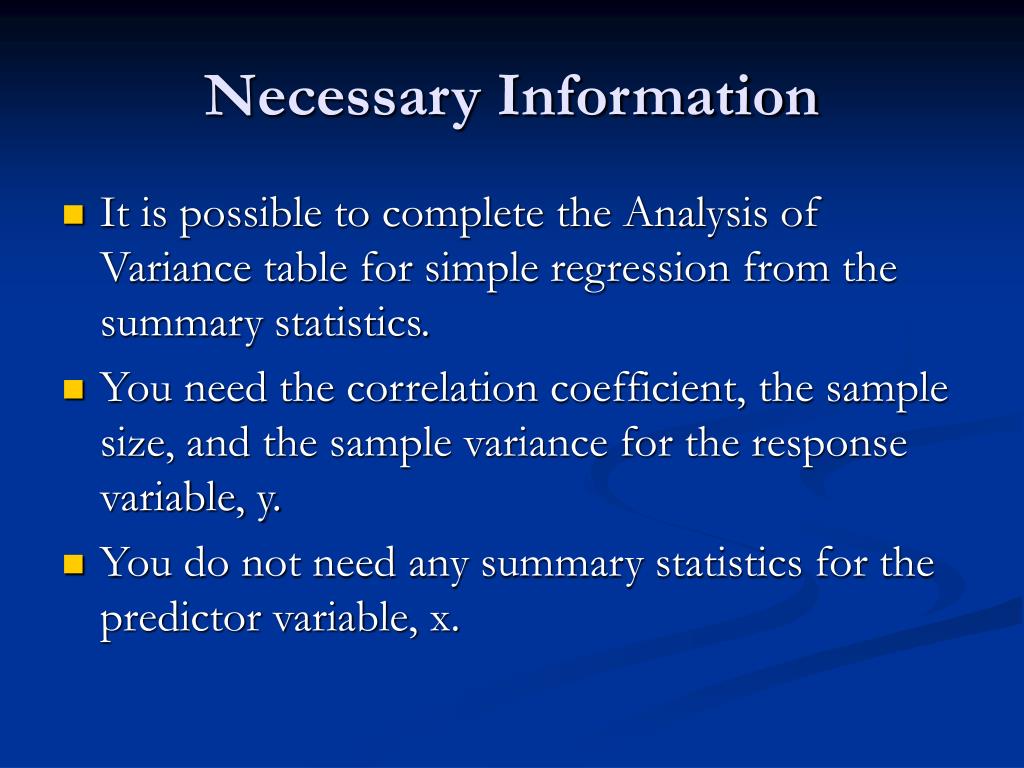

  2. Necessary Information • It is possible to complete the Analysis of Variance table for simple regression from the summary statistics. • You need the correlation coefficient, the sample size, and the sample variance for the response variable, y. • You do not need any summary statistics for the predictor variable, x.

  3. Summary Statistics • This explanation will assume the following values. • Pearson’s correlation coefficient is 0.314 • The sample size is 28 • The variance of the response variable is 20.3401

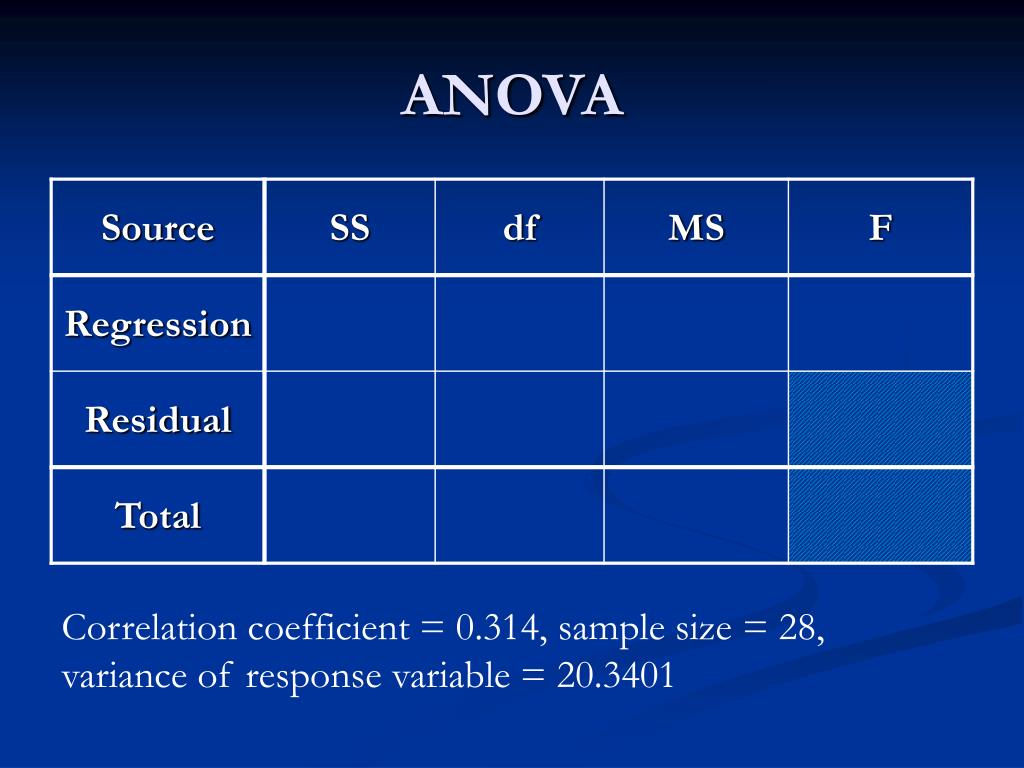

  4. ANOVA Correlation coefficient = 0.314, sample size = 28,variance of response variable = 20.3401

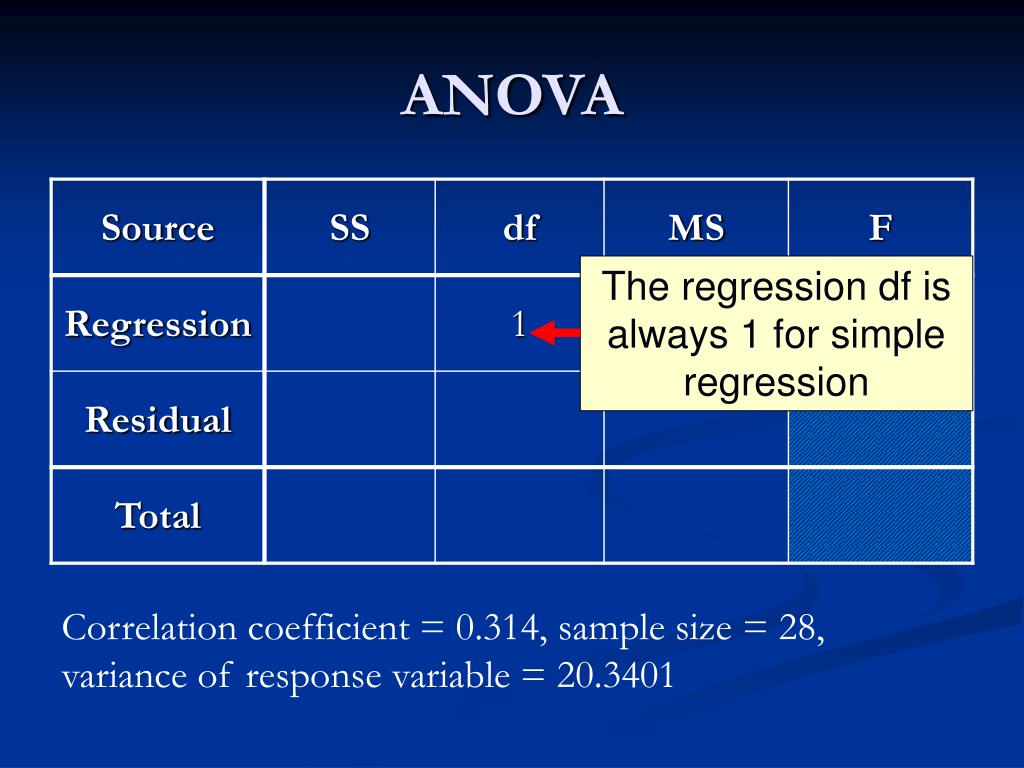

  5. ANOVA The regression df is always 1 for simple regression Correlation coefficient = 0.314, sample size = 28,variance of response variable = 20.3401

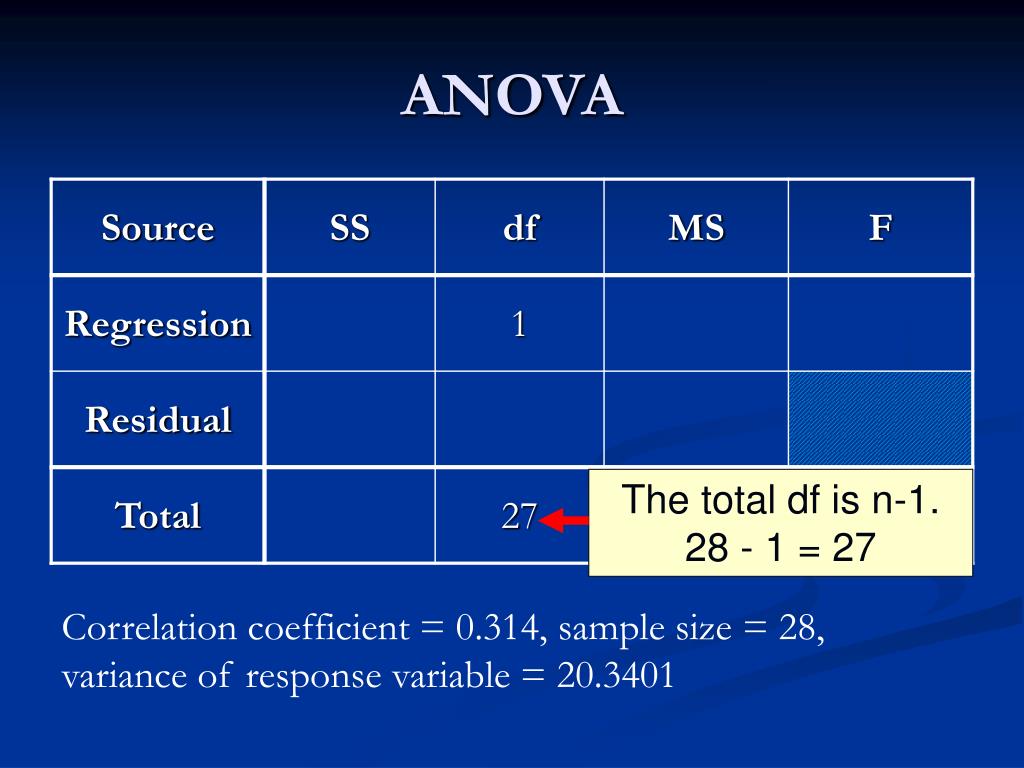

  6. ANOVA The total df is n-1.28 - 1 = 27 Correlation coefficient = 0.314, sample size = 28,variance of response variable = 20.3401

  7. ANOVA Use subtraction to find the residual df27 - 1 = 26 Correlation coefficient = 0.314, sample size = 28,variance of response variable = 20.3401

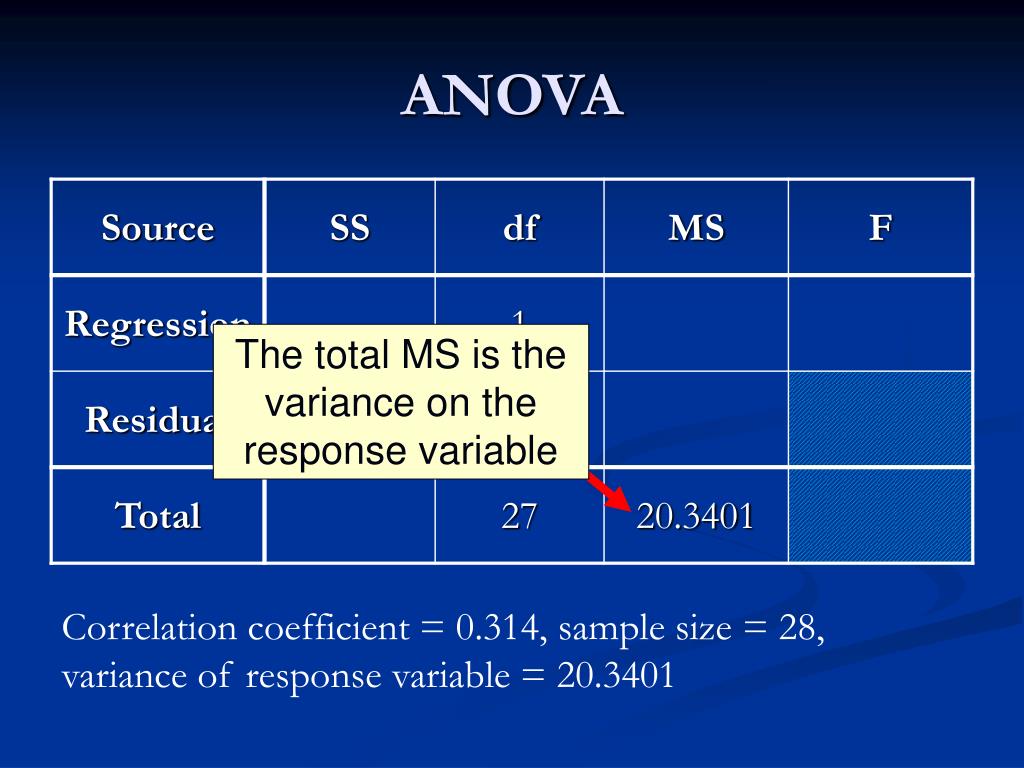

  8. ANOVA The total MS is the variance on the response variable Correlation coefficient = 0.314, sample size = 28,variance of response variable = 20.3401

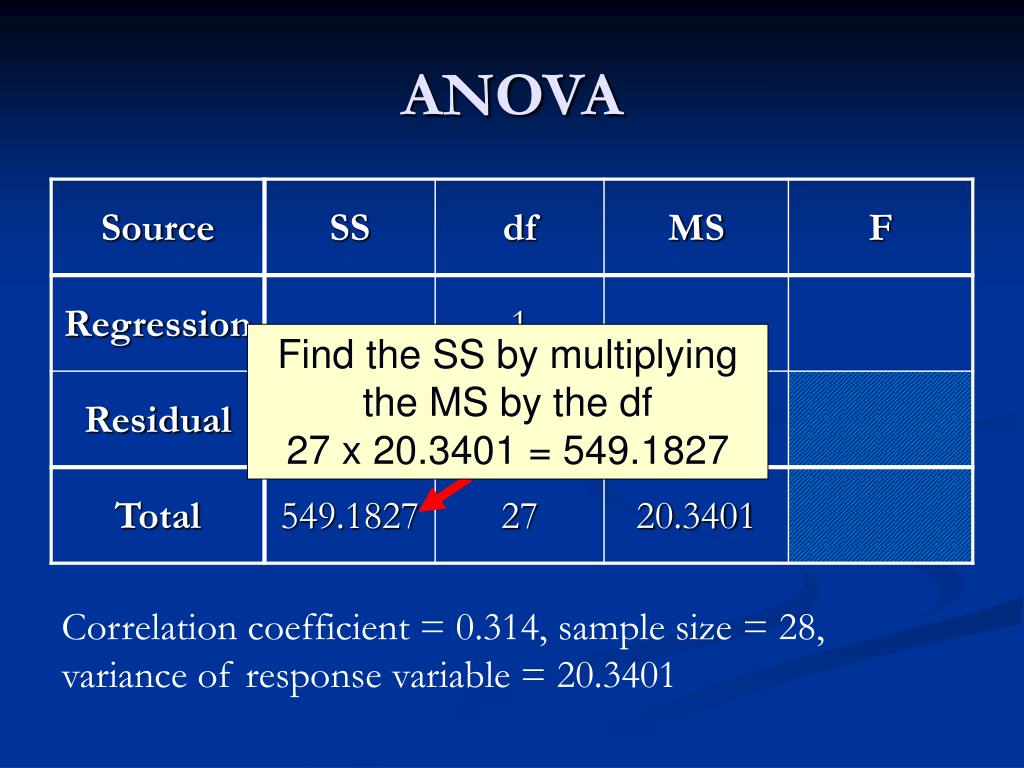

  9. ANOVA Find the SS by multiplying the MS by the df27 x 20.3401 = 549.1827 Correlation coefficient = 0.314, sample size = 28,variance of response variable = 20.3401

  10. ANOVA R2 = SS(Reg) / SS(Total)0.3142 = SS(Reg) / 549.1827SS(Reg) = 0.3142 x 549.1827SS(Reg) = 54.1472 Correlation coefficient = 0.314, sample size = 28,variance of response variable = 20.3401

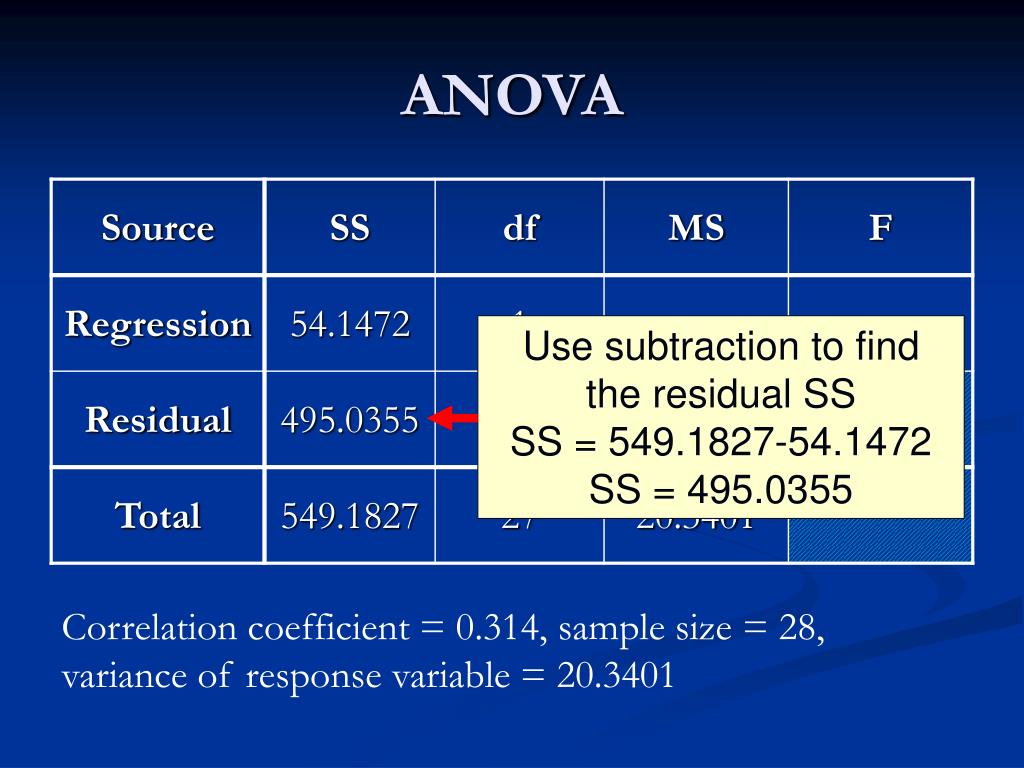

  11. ANOVA Use subtraction to findthe residual SSSS = 549.1827-54.1472SS = 495.0355 Correlation coefficient = 0.314, sample size = 28,variance of response variable = 20.3401

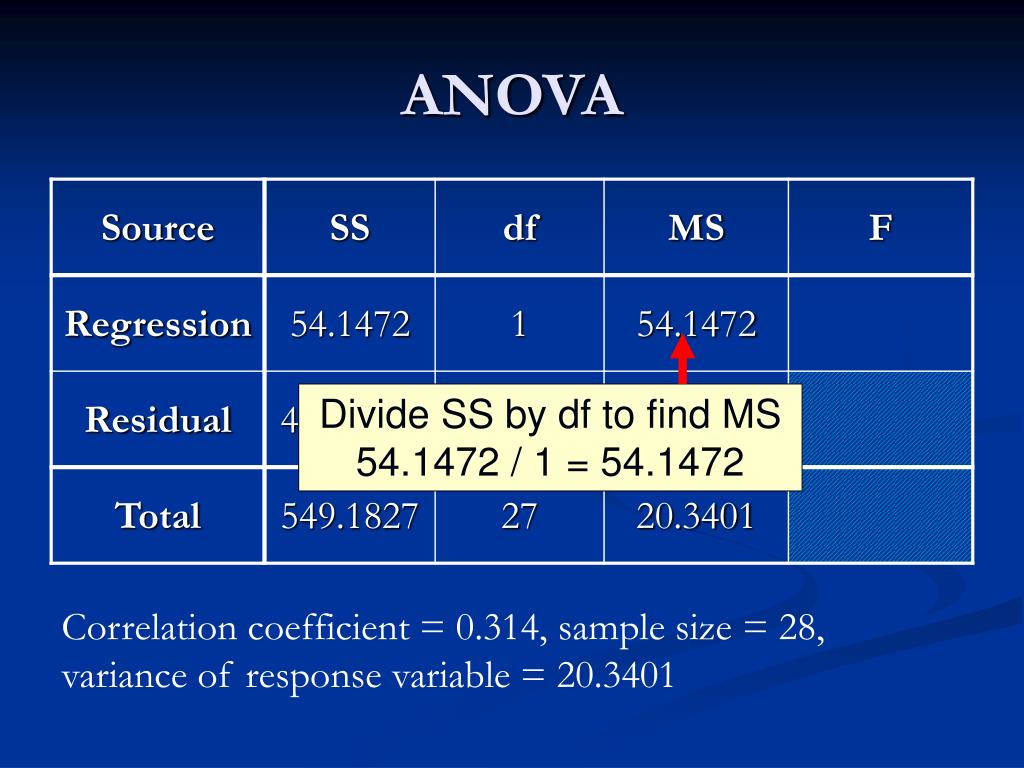

  12. ANOVA Divide SS by df to find MS54.1472 / 1 = 54.1472 Correlation coefficient = 0.314, sample size = 28,variance of response variable = 20.3401

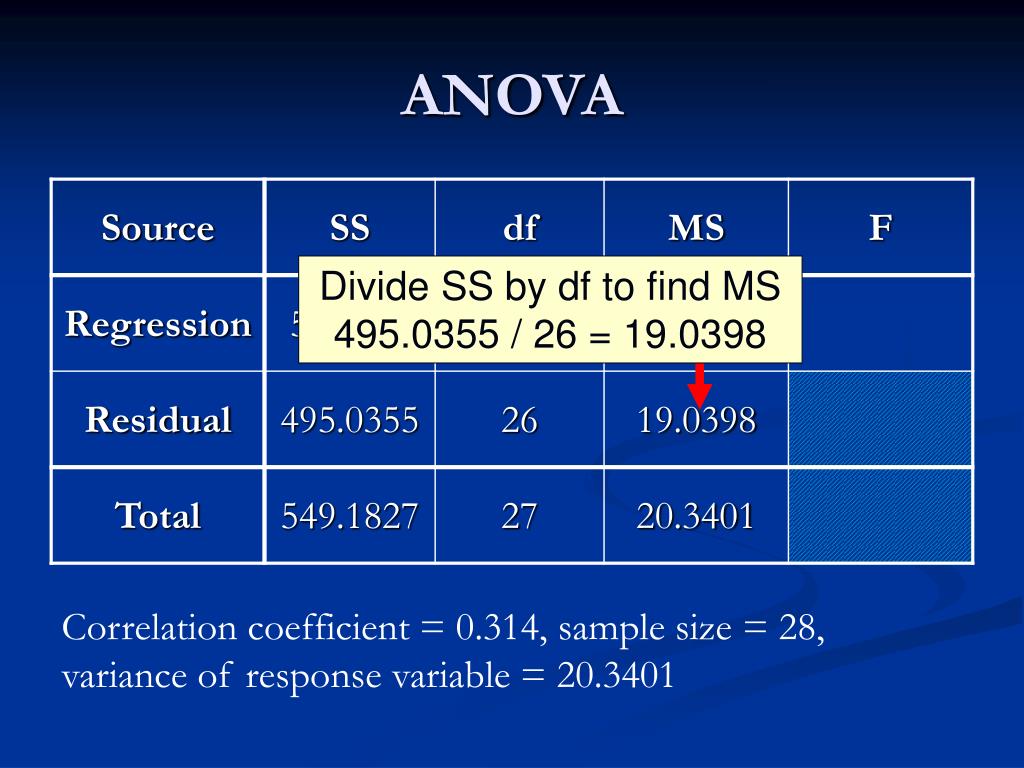

  13. ANOVA Divide SS by df to find MS495.0355 / 26 = 19.0398 Correlation coefficient = 0.314, sample size = 28,variance of response variable = 20.3401

  14. ANOVA F is found by dividing the two variancesF = 54.1472 / 19.0398F = 2.8439 Correlation coefficient = 0.314, sample size = 28,variance of response variable = 20.3401
