HOW IS STREAM FLOW GENERATED?

And can we as humans change this process?


Precipitation

Evaporation

Infiltration

Overland Flow

Runoff


Precipitation

Evaporation

Infiltration

Unsaturated

Saturated

Overland Flow

Runoff

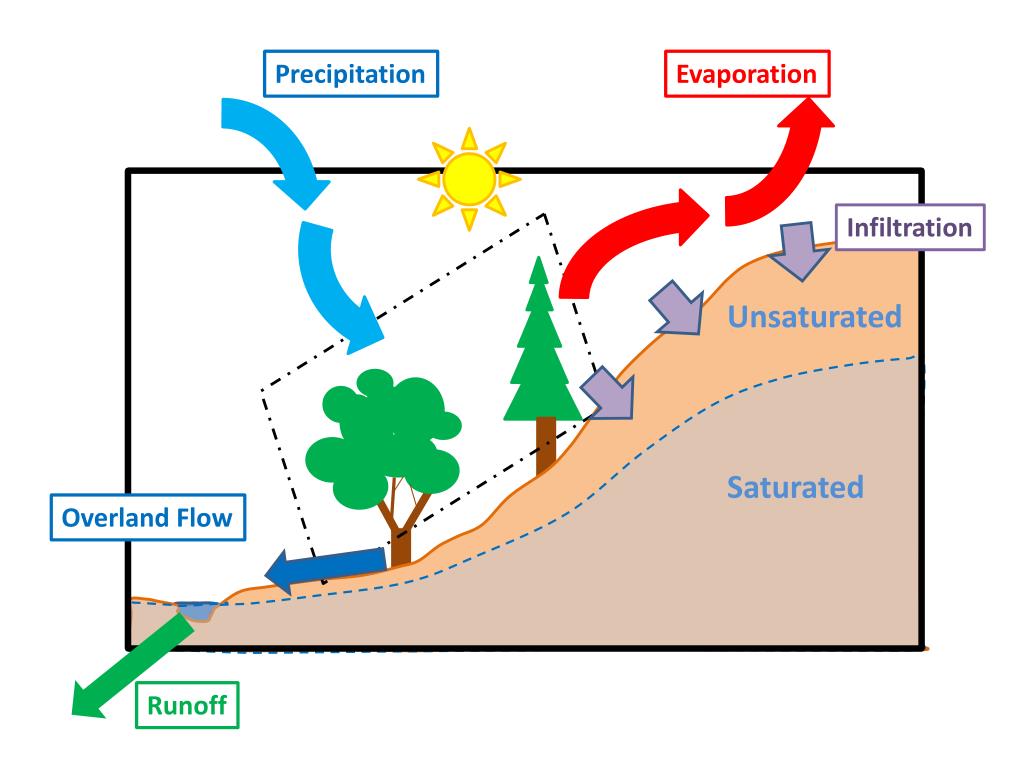

Precipitation

Evaporation

Infiltration

Unsaturated

Water Table

Saturated

Overland Flow

Runoff


Precipitation

Evaporation

Infiltration

Unsaturated

Water Table

Saturated

Overland Flow

Throughflow

Runoff


Precipitation

Evaporation

Infiltration

Unsaturated

Water Table

Saturated

Overland Flow

Throughflow

Groundwater Flow

Runoff


Runoff
RUNOFF

  • Runoff in response to a storm is therefore the sum of the following contributions at any moment in time:

  • Overland Flow (rapid response)

  • Through Flow (intermediate response)

  • Groundwater Flow (slow response)


The graph below displays some measure of water in the river at a particular point of observation as it varies over the course of time, and is generically known as a HYDROGRAPH.


WHAT WILL HAPPEN TO THE at a particular point of observation as it varies over the course of time, and is generically known as a

RATE OF INTERCEPTION

AFTER URBANIZATION?


WHAT WILL HAPPEN TO THE at a particular point of observation as it varies over the course of time, and is generically known as a

INFILTRATION RATE AND

OVERLAND FLOW

AFTER URBANIZATION?


WHAT WILL HAPPEN TO at a particular point of observation as it varies over the course of time, and is generically known as a

SUB-SURFACE FLOWS AFTER

URBANIZATION?


Throughflow at a particular point of observation as it varies over the course of time, and is generically known as a



San Ramón BIGGER EFFECT ON FLOODING?


San Ramón BIGGER EFFECT ON FLOODING?

Costa Rica


HOW IS THIS HANDLED IN BIGGER EFFECT ON FLOODING?

FLORIDA?


RETENTION PONDS BIGGER EFFECT ON FLOODING?


RETENTION PONDS: Water Quantity BIGGER EFFECT ON FLOODING?


RETENTION PONDS: Water Quality BIGGER EFFECT ON FLOODING?
