Warm up

Warm Up

State the converse of (1) and (2):

1. If ∠1 is a right angle, then m∠1 = 90.

2. If m∠1 + m∠2 = 180, then ∠1 and ∠2 are supplementary.

State the hypothesis and conclusion of theorem 3.1.


Homework

41. If I go fishing, I will not have to work.

42. 67

43. 21

44. 70

Homework

33. 130

34. 107

35. 79

36. 73

37. 69

38. 62

39. If an angle is acute, then its measure is 19°.

40. If I go to the park, then you will go with me.


Warm up 3261090

C

B

A

D

F

E

Quiz

One Strategy:

By the LP postulate, the angles are supplementary and therefore add up to 180.

If the angles are equal, they each must be 90.

By the vertical angles theorem, m∠BFD must be 90.

By the angle addition postulate (and substitution), m∠BFC + m∠DFC = 90, and so the angles are complementary.


Warm up 3261090

C

B

A

D

F

E

Quiz

Another Strategy:

If the angles are a linear pair and congruent, then line AD ⊥ line BE (this is theorem 3.1, although most of you took a more roundabout route).

Then all four angles are right angles, by theorem 3.3.

If ∠BFD is a right angle, then its measure is 90.

By angle addition, m∠BFC + m∠DFC = 90, so the two angles are complementary.


How i did it

C

B

A

D

F

E

How I Did It

1. ∠AFE and ∠DFE are a linear pair of congruent angles. (Given)

2. Line BE is perpendicular to line AD. (Theorem 3.1)

3. ∠BFC and ∠DFC are complementary. (Theorem 3.2)


How i graded

How I Graded

UnderstoodConcepts/Theorems/Postulates/Definitions

5 points

Attention to Detail

5 points

Got from the Givens to the Conclusion

5 points


Common understanding errors

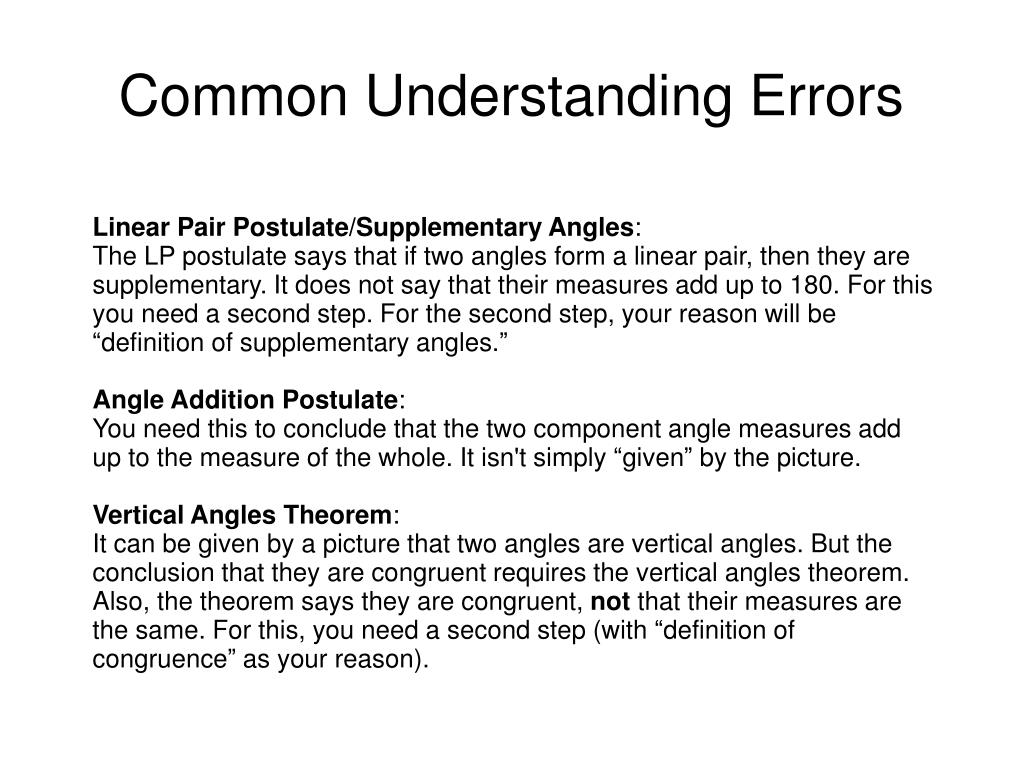

Common Understanding Errors

Linear Pair Postulate/Supplementary Angles:

The LP postulate says that if two angles form a linear pair, then they are supplementary. It does not say that their measures add up to 180. For this you need a second step. For the second step, your reason will be “definition of supplementary angles.”

Angle Addition Postulate:

You need this to conclude that the two component angle measures add up to the measure of the whole. It isn't simply “given” by the picture.

Vertical Angles Theorem:

It can be given by a picture that two angles are vertical angles. But the conclusion that they are congruent requires the vertical angles theorem. Also, the theorem says they are congruent, not that their measures are the same. For this, you need a second step (with “definition of congruence” as your reason).


Little mistakes

“Little” Mistakes

1. Missing m's. Again, there's a difference between an angle and the measure of the angle.

2. Missing Steps: LP postulate, congruence of angles vs. equal measures.


Warm up 3261090

>

>

Corresponding Angles Postulate

Transversal

1

2

3

4

Parallel Lines

5

6

7

8

Corresponding Angles: (4 and 8), (2 and 6), (5 and 1), (7 and 3)

Corresponding Angles Postulate: If two parallel lines are cut a by a transversal, then corresponding angles are congruent.


Warm up 3261090

>

>

Theorems

Transversal

1

2

3

4

Parallel Lines

5

6

7

8

What do you notice about angles 2 and 4?

So what must be true of angles 6 and 4?

Consecutive Interior Angles Theorem: If parallel lines are cut by a transversal, then consecutive interior angles are supplementary.


Warm up 3261090

>

>

Theorems

Transversal

1

2

3

4

Parallel Lines

5

6

7

8

We know that angles 6 and 2 are congruent. What do we know about angles 2 and 3?

So what must be true of angles 6 and 3?

Alternative Interior Angles Theorem: If parallel lines are cut by a transversal, then alternative interior angles are congruent.


Warm up 3261090

>

>

Theorems

Transversal

1

2

3

4

Parallel Lines

5

6

7

8

What do we know about 6 and 8?

So what must be true of angles 4 and 8?

What do we know about 4 and 1?

What do we know about 8 and 1?

Alternative Exterior Angles Theorem: If parallel lines are cut by a transversal, then alternative exterior angles are congruent.


What we ve proved

What We've Proved

Starting with the Corresponding Angles Postulate, we proved:

1. The Consecutive Interior Angles Theorem

2. The Alternative Interior Angles Theorem

3. The Alternative Exterior Angles Theorem

Suppose we only knew that the Alternative Exterior Angles theorem was true.

Could we prove the Corresponding Angles Postulate?


Warm up 3261090

>

>

Transversal

1

2

3

4

Parallel Lines

5

6

7

8

So we know 1 and 8 are congruent. (Alternative Exterior Angles Theorem)

We know 2 is supplementary to 1, and that 6 is supplementary to 8. (Linear pair postulate)

Therefore, 2 and 6 are congruent. (Congruent Supplements Theorem)

And that's the Corresponding Angles Postulate.


What we ve proved1

What We've Proved

Starting with the Corresponding Angles Postulate, we proved:

1. The Consecutive Interior Angles Theorem

2. The Alternative Interior Angles Theorem

3. The Alternative Exterior Angles Theorem

Suppose we only knew that the Alternative Exterior Angles theorem was true.

Could we prove the Corresponding Angles Postulate?

So, yes, we can prove the Corresponding Angles Postulate from the Alternative Exterior Angles Theorem. What we have is a circle of statements. If we assume one of them (as a postulate), we get all the others for free.


Warm up 3261090

>

>

One More Theorem

Transversal

Parallel Lines

Perpendicular Transversal Theorem: If a transversal is perpendicular to one of two parallel lines, then it it perpendicular to the other parallel line.


Exit ticket

>

>

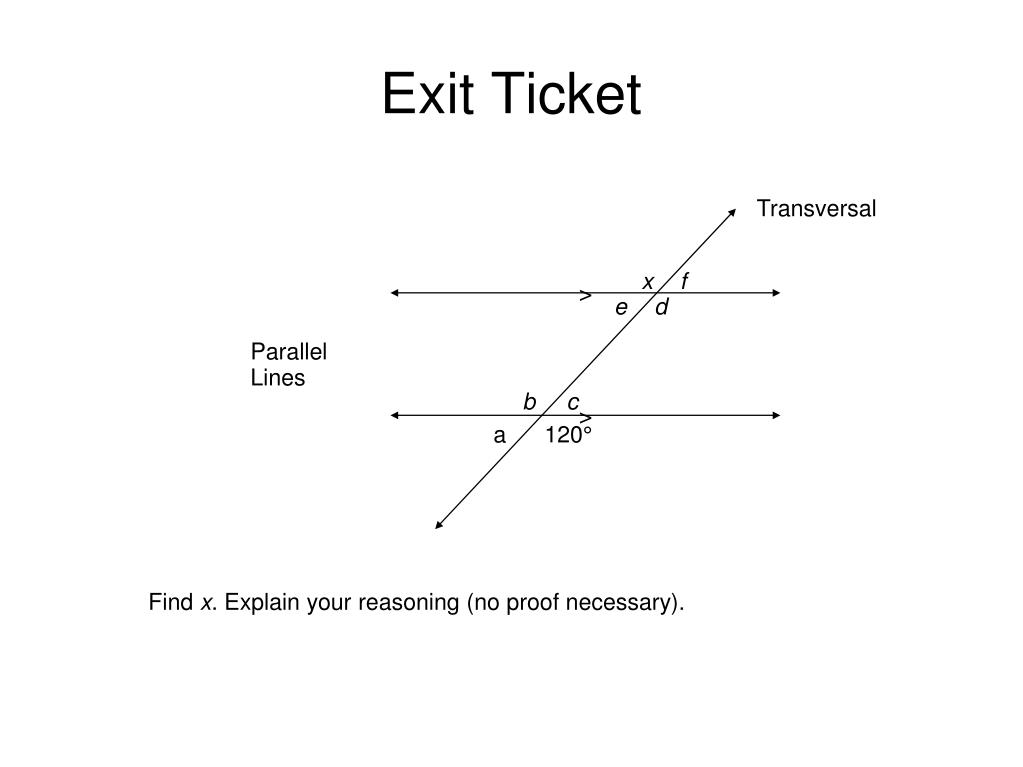

Exit Ticket

Transversal

f

x

e

d

Parallel Lines

b

c

a

120°

Find x. Explain your reasoning (no proof necessary).
