Route choice or trip assignment
Route Choice or Trip Assignment

Trip assignment is the forth step of the FOUR STEP process

It is used to determining how much traffic will use each link of the transportation system

Norman W. Garrick


Route choice or trip assignment in 4 step process
Route Choice or Trip Assignment in 4 Step Process

  • Example

  • Consider two zones

    • Hartford CBD

    • West Hartford Center

  • Four Steps

  • Trip Generation - Determines production from WH Center

  • Trip Distribution - Gives QIJ - Trips from WH Center attracted to Hartford CBD

  • Modal Split - Fraction of QIJ using different modes of travel

  • Trip Assignment - What roads? What bus routes?

Norman W. Garrick


Characterizing road network for trip assignment
Characterizing Road Network for Trip Assignment

In trip assignment the road network is represented by links and nodes

Links - major roads including arterials, expressways and freeways (local roads are not usually included - this can be a problem in places like in WH Center were the local road network is very dense and carry a significant portion of the traffic)

Nodes - typically intersections or interchanges but could be other points that are important to the network

Each node is numbered

Links are specified by the nodes at the end

Each link is associated with an impedance (the impedance might not be the same in each direction

Norman W. Garrick


Example road network for trip assignment
Example Road Network for Trip Assignment

1

2

5

5

3

6

7

8

11

4

9

10

1, 2, 3, 4, 5 are zone centroids

12

14

13

5

Norman W. Garrick


Network b
Network B

2

(3)

(2)

(2)

(4)

(7)

5

1

(8)

4

(6)

(4)

(4)

(5)

3

Norman W. Garrick


Link array network b

2

(3)

(2)

(7)

(2)

(4)

5

1

(6)

(4)

4

(8)

(4)

(5)

3

Link Array Network B

J

I

Norman W. Garrick


Link array network b i 1

2

(3)

(2)

(7)

(2)

(4)

5

1

(6)

(4)

4

(8)

(4)

(5)

3

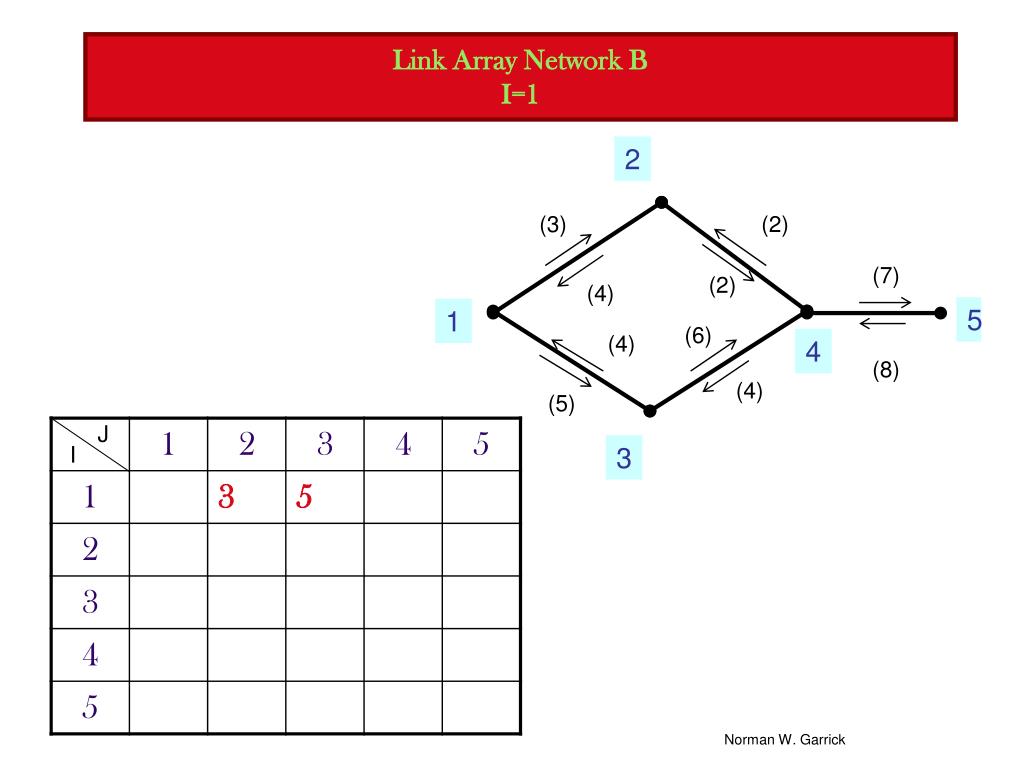

Link Array Network BI=1

J

I

Norman W. Garrick


Link array network b i 2

2

(3)

(2)

(7)

(2)

(4)

5

1

(6)

(4)

4

(8)

(4)

(5)

3

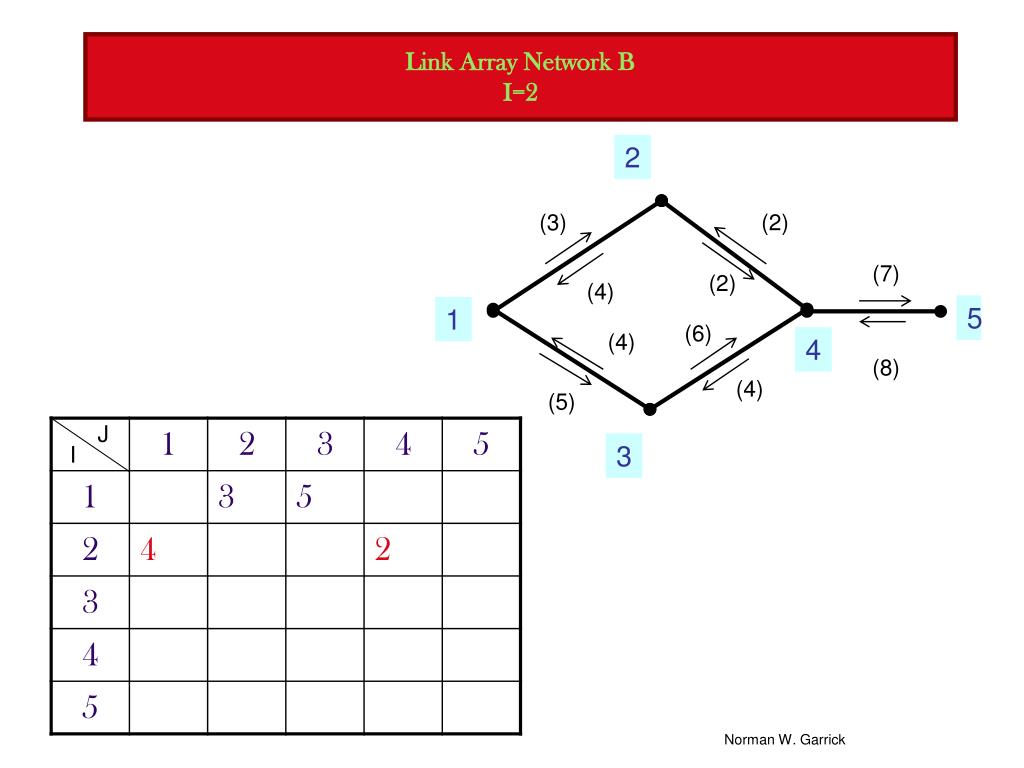

Link Array Network BI=2

J

I

Norman W. Garrick


Link table network b

2

(3)

(2)

(7)

(2)

(4)

5

1

(6)

(4)

4

(8)

(4)

(5)

3

Link Table Network B

Norman W. Garrick


Link table network b1

2

(3)

(2)

(7)

(2)

(4)

5

1

(6)

(4)

4

(8)

(4)

(5)

3

Link Table Network B

Norman W. Garrick


Link table network b2

2

(3)

(2)

(7)

(2)

(4)

5

1

(6)

(4)

4

(8)

(4)

(5)

3

Link Table Network B

Norman W. Garrick


Route choice behavior
Route Choice Behavior

  • Trip assignment is based on one of two assumptions about traveler's behavior

    • User Equilibrium

    • System Equilibrium

  • User Equilibrium

  • Based on the assumption that users try to minimize their individual time of travel by going along the shortest path from origin to destination

  • System Equilibrium

  • Based on the assumption that users try to minimize the TOTAL system cost - that is the cost for all users of the system, not just his or her own cost

  • Route assignment based on user equilibrium require that we determine the ‘minimum path’ between any two zones or the ‘minimum tree’ which is a diagram showing the minimum path from one zone to all other zones

Norman W. Garrick


Network b minimum tree from node 1
Network BMinimum Tree from Node 1

2

(3)

(2)

(2)

(4)

(7)

5

1

(8)

4

(6)

(4)

(4)

(5)

3

Norman W. Garrick


Network b minimum tree from node 4

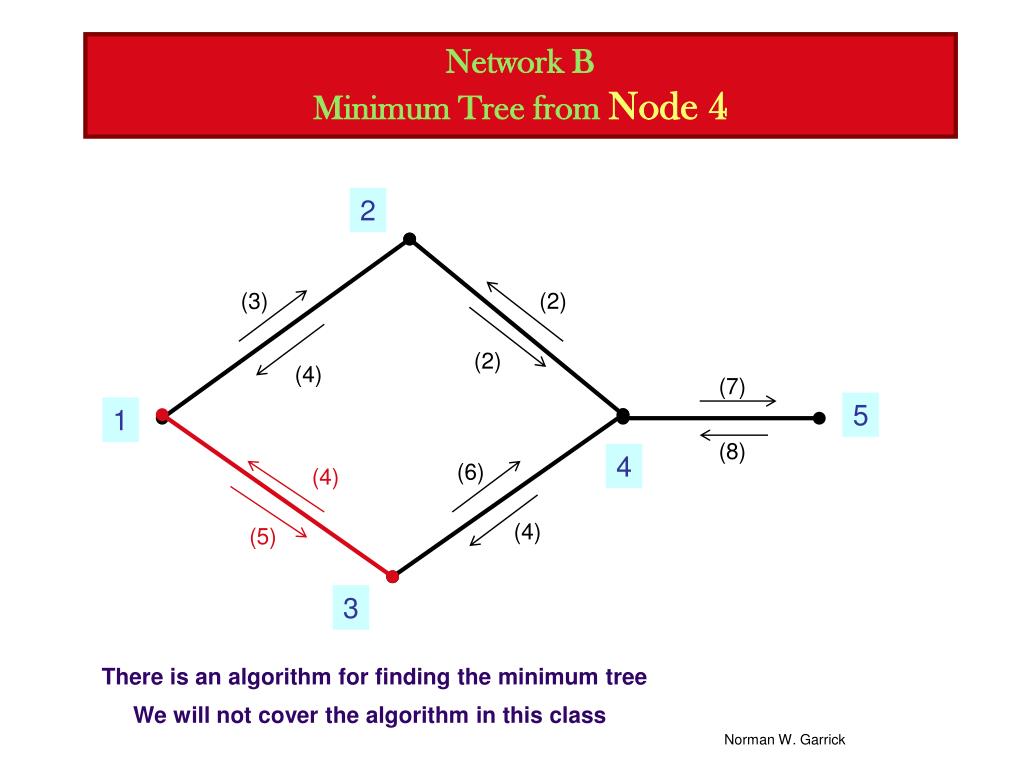

Network BMinimum Tree from Node 4

2

(3)

(2)

(2)

(4)

(7)

5

1

(8)

4

(6)

(4)

(4)

(5)

3

There is an algorithm for finding the minimum tree

We will not cover the algorithm in this class

Norman W. Garrick


Network b tree table from node 4
Network BTree Table from Node 4

2

(3)

(2)

(2)

(7)

(4)

5

1

(6)

4

(8)

(4)

3

Norman W. Garrick


Network b tree table from node 41

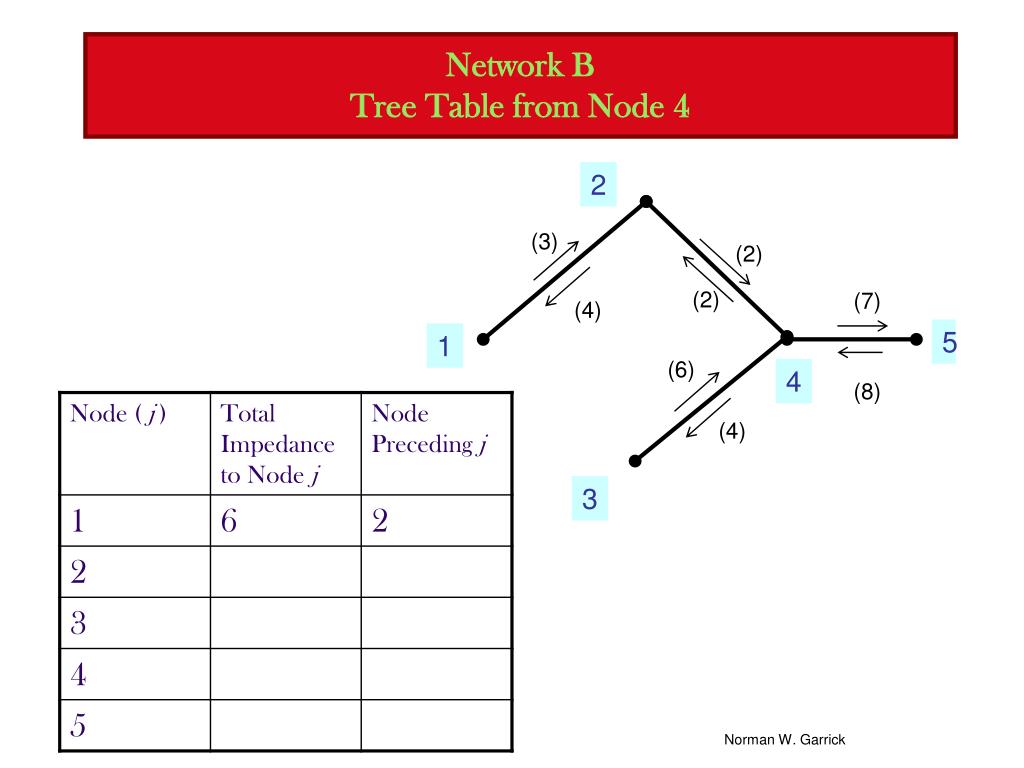

Network BTree Table from Node 4

2

(3)

(2)

(2)

(7)

(4)

5

1

(6)

4

(8)

(4)

3

Norman W. Garrick


Network b tree table from node 42
Network BTree Table from Node 4

2

(3)

(2)

(2)

(7)

(4)

5

1

(6)

4

(8)

(4)

3

Norman W. Garrick


Allocating traffic to individual routes
Allocating Traffic to Individual Routes

Once the MINIMUM PATH is determined between different zones then traffic can be allocated to the various links between the zones

One common approach is the FREE FLOW/ALL-OR-NOTHING TRAFFIC ASSIGNMENT Technique

As the name implies, the technique assumes that all traffic between any two zones will use the minimum path between those two zones. The other big assumption is that the minimum path is calculated based on FREE FLOW conditions. In other ways, it is assumed that the minimum path calculations will not be affected by the amount of traffic using that path.

This is obviously this an unreasonable assumption. Other traffic assignment techniques have been developed which tries to correct for the two big problems with Free Flow/All-or-Nothing Traffic Assignment

Norman W. Garrick


Allocating traffic to individual routes continued
Allocating Traffic to Individual Routes (continued)

FREE Flow/Multipath Traffic Technique

Does not assume that all traffic will use the minimum path - instead traffic is assigned to the various paths between the two zones based on their relative impedance. So for example, the path with the minimum impedance will get the most traffic followed by paths with increasing impedance

This method is still limited by the fact that the impedance is based on free flow assumptions and the impedance value is not changed to reflex the level of traffic loading.

Capacity-Restrained Traffic Assignment Techniques

Accounts for the fact that as the traffic on a link increases, the impedance also increases. Therefore, it is based on an interactive traffic assignment process that re-calculate the impedance to account for the level of traffic assigned to each link. As you can imagine this is a complex and computer intensive process.

Norman W. Garrick


Using free flow all or nothing assignment example

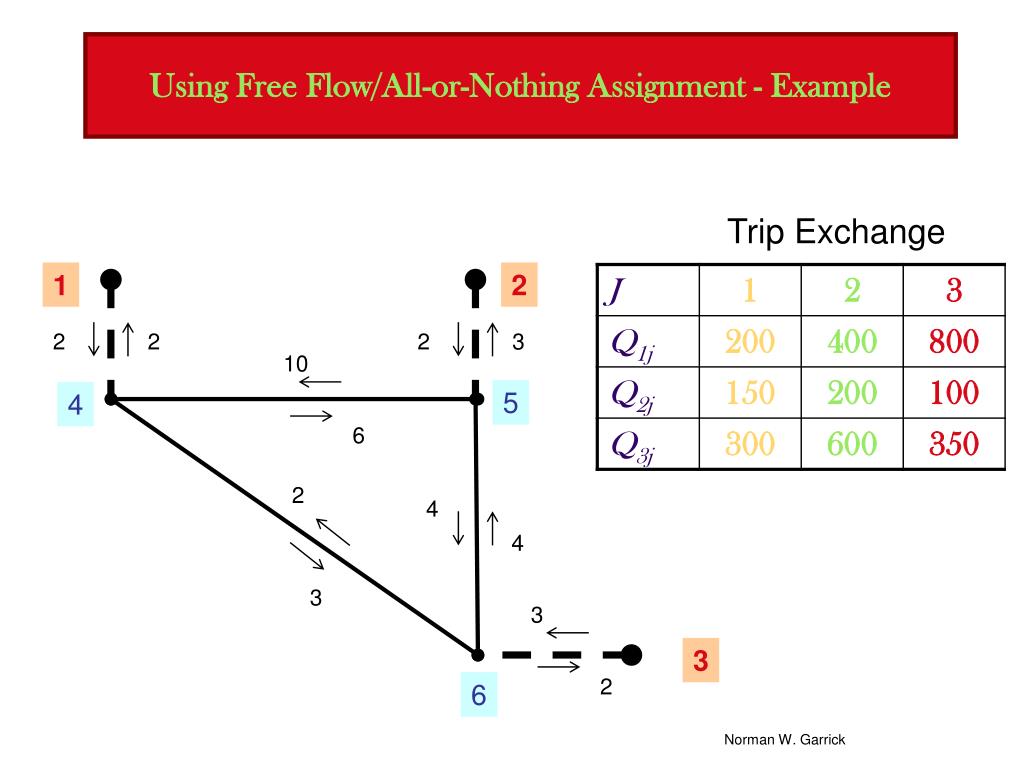

Using Free Flow/All-or-Nothing Assignment - Example
