Section 2-5: Proving Angles Congruent

Section 2-5: Proving Angles Congruent. Goal 2.02: Apply properties, definitions, and theorems of angles and lines to solve problems and write proofs. Essential Questions. How are vertical, complementary, and supplementary angles identified ? What are the theorems about angles ?

ivor-cochran
Download Presentation

Section 2-5: Proving Angles Congruent

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Section 2-5: Proving Angles Congruent Goal 2.02: Apply properties, definitions, and theorems of angles and lines to solve problems and write proofs.

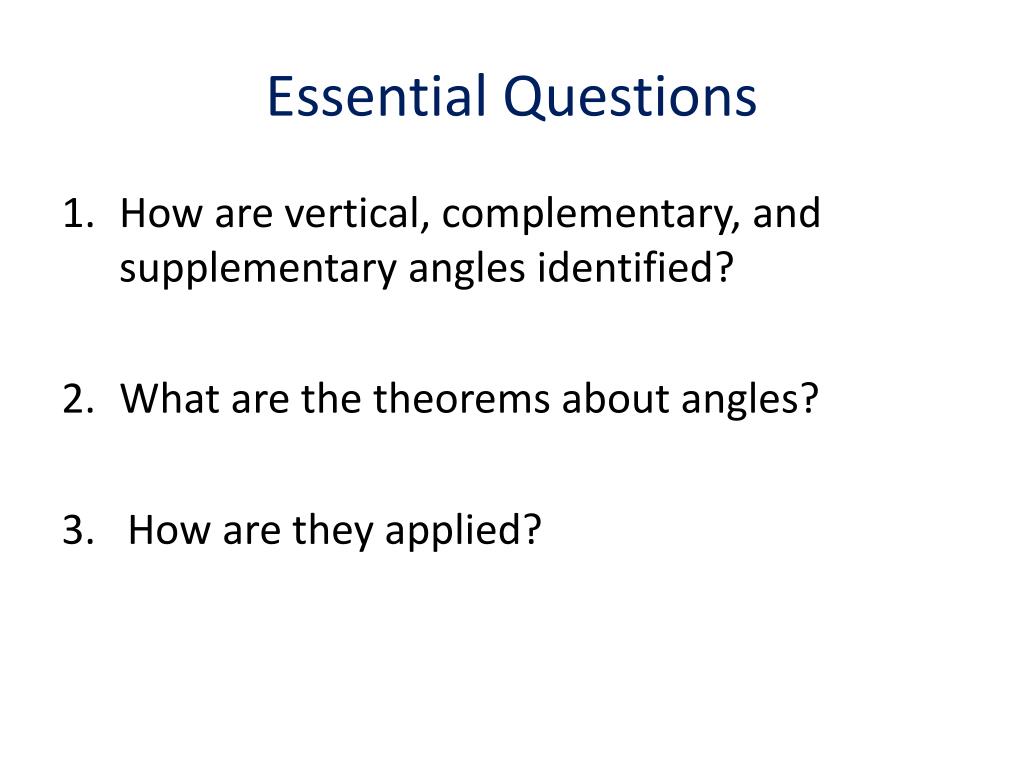

  2. Essential Questions • How are vertical, complementary, and supplementary angles identified? • What are the theorems about angles? 3. How are they applied?

  3. What are adjacent angles? Two angles side by side with a common vertex and common side. ( no common interior points and can’t overlap) ex. 1 ex. 2

  4. Vertical Angles • two angles whose sides form two pairs of opposite rays. • when two lines intersect two pairs of vertical angles are formed.

  5. Complementary Angles two angles whose measures have the sum 90. Each angle is a complement of the other. x = angle 90 – x = complement ex. 1 ex. 2

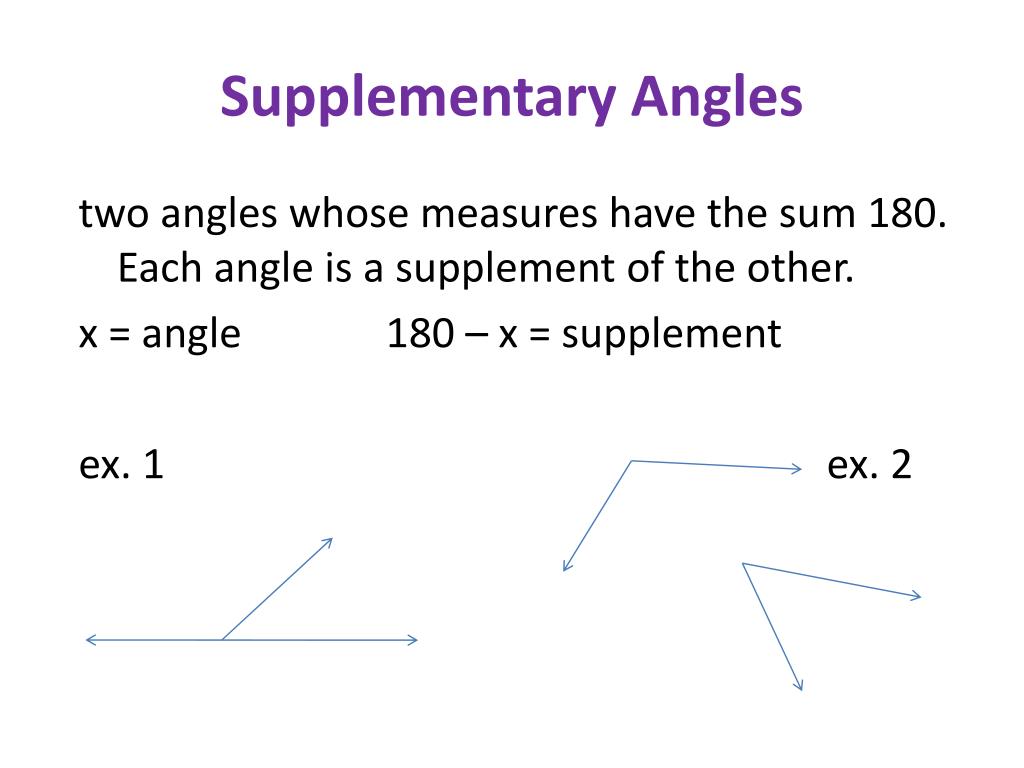

  6. Supplementary Angles two angles whose measures have the sum 180. Each angle is a supplement of the other. x = angle 180 – x = supplement ex. 1 ex. 2

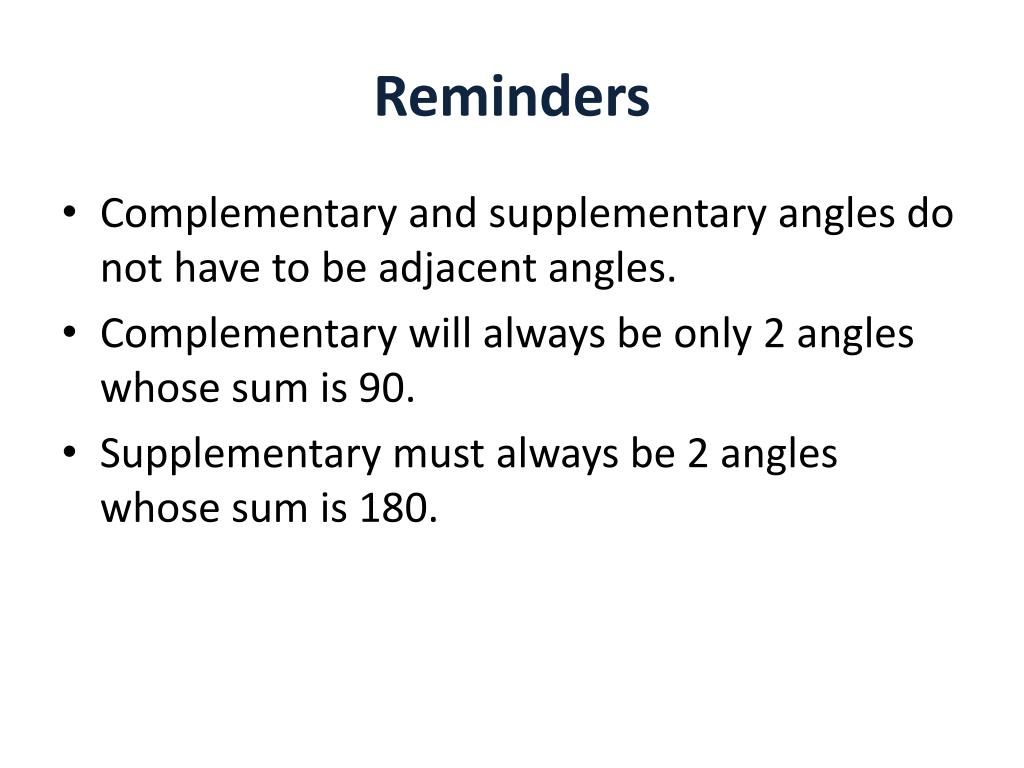

  7. Reminders • Complementary and supplementary angles do not have to be adjacent angles. • Complementary will always be only 2 angles whose sum is 90. • Supplementary must always be 2 angles whose sum is 180.

  8. Examples p 100 (1-5) • Supplementary to  AOD • Adjacent and congruent to AOE • Supplementary to EOA • Complementary to EOD • A pair of vertical angles

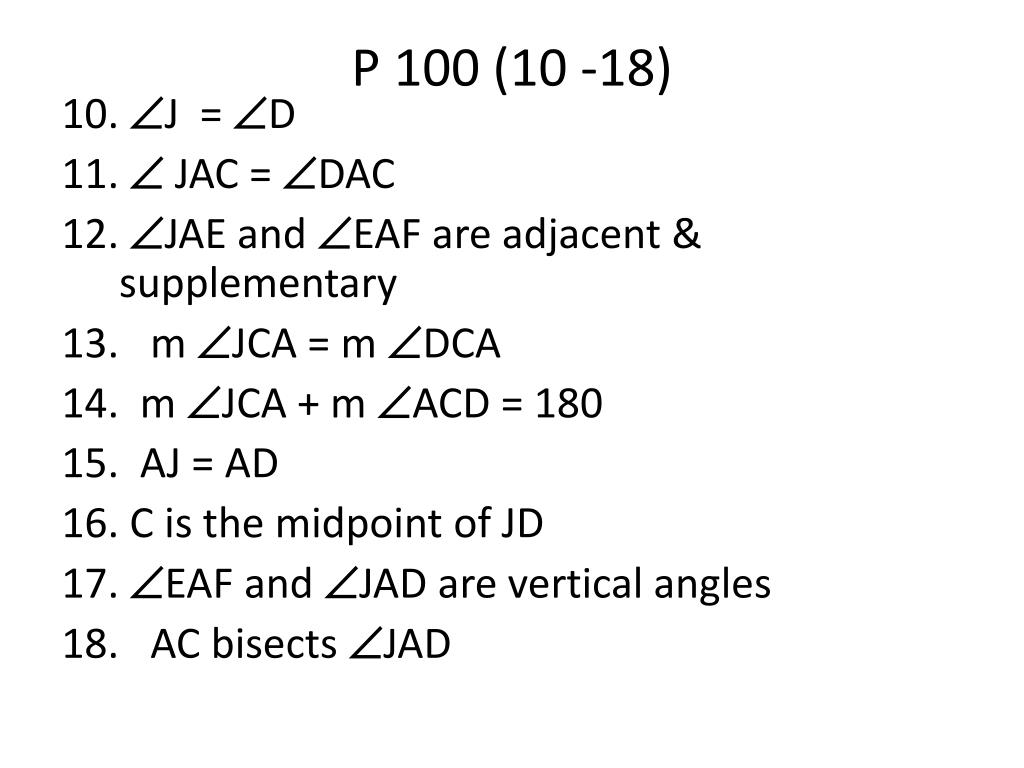

  9. P 100 (10 -18) • J = D •  JAC = DAC • JAE and EAF are adjacent & supplementary • m JCA = m DCA • m JCA + m ACD = 180 • AJ = AD • C is the midpoint of JD • EAF and JAD are vertical angles • AC bisects JAD

  10. Theorems 9. Vertical angles are congruent. 10. If two angles are supplements of the same angle (or of congruent angles), then the two angles are congruent. (Supplements of the same/  angles are .) 11. If two angles are complements of the same angle (or of congruent angles), then the two angles are congruent. (Complements of the same/ angles are .)

  11. All right angles are congruent. • If two lines are perpendicular, then they form congruent, adjacent angles. • If two lines form congruent, adjacent angles, then the lines are perpendicular. • If the exterior sides of two adjacent acute angles are perpendicular, then the angles are complementary.

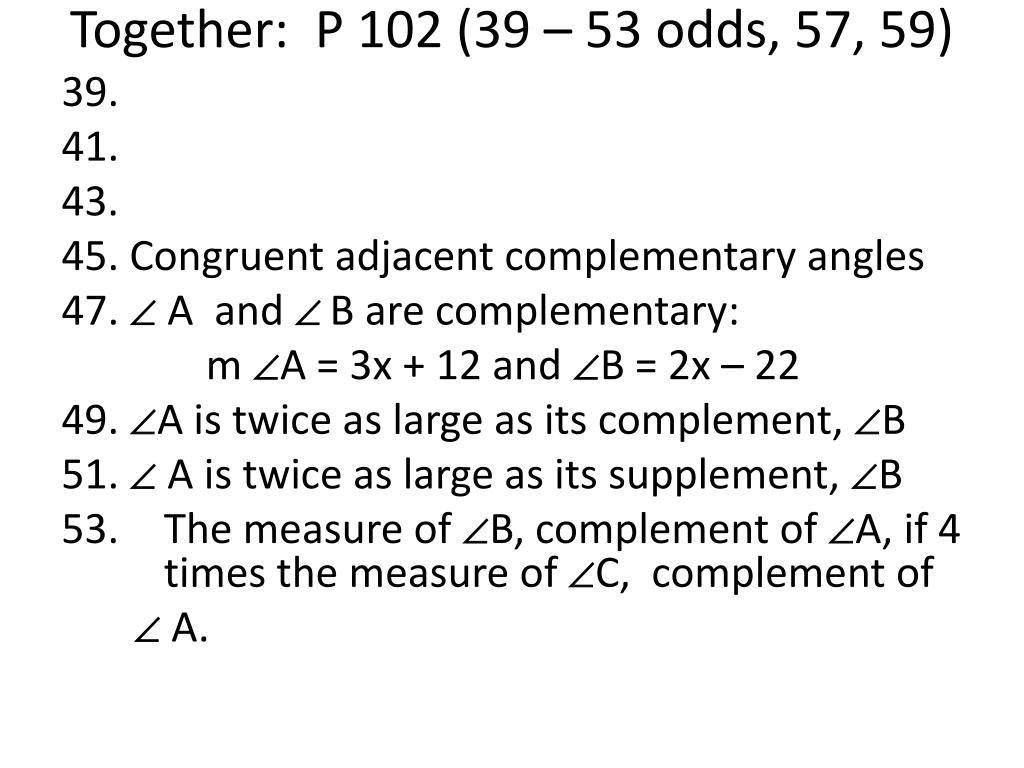

  12. Together: P 102 (39 – 53 odds, 57, 59) 39. 41. 43. 45. Congruent adjacent complementary angles •  A and  B are complementary: m A = 3x + 12 and B = 2x – 22 • A is twice as large as its complement, B •  A is twice as large as its supplement, B • The measure of B, complement of A, if 4 times the measure of C, complement of  A.

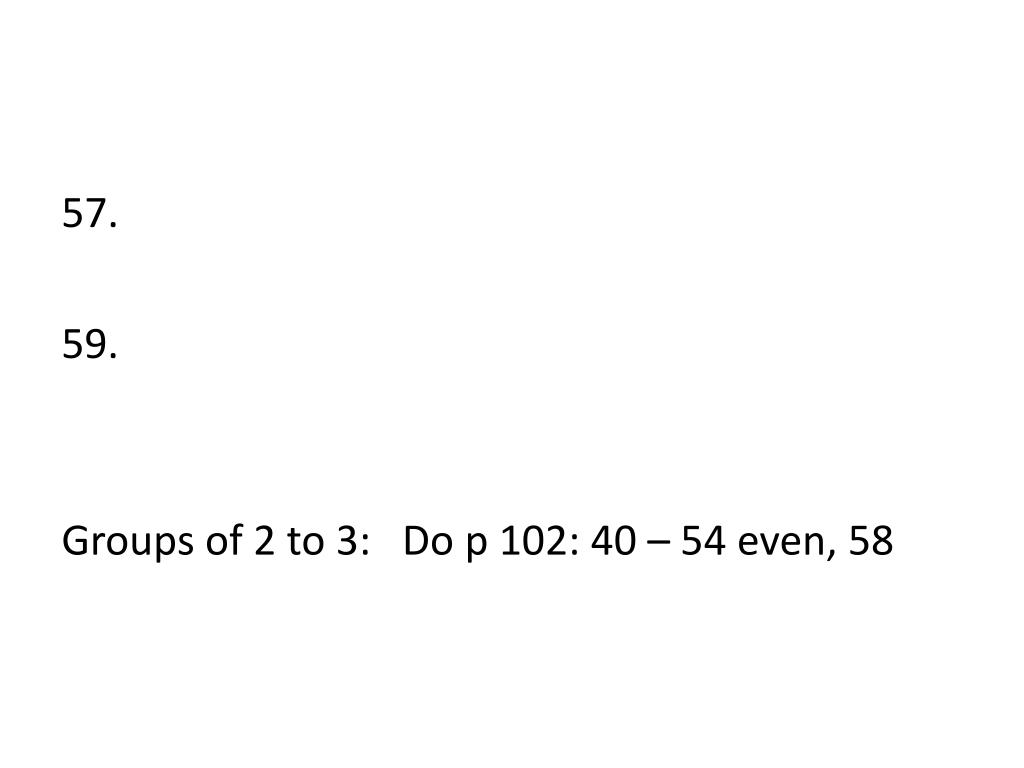

  13. 57. 59. Groups of 2 to 3: Do p 102: 40 – 54 even, 58

  14. Homework • Worksheet: Practice 2-5 • Assessment Standardized Test Prep: p 103 (60 – 66) p 103 Mixed Review (67-74)
