Sensory System

Sensory System. Chapter 17. Olfaction . Sense of smell Olfactory organs in nasal cavity Olfactory epithelium lines the interior portion of the nasal cavity Covered with olfactory receptors(hairs/cilia)

ivi
Download Presentation

Sensory System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Sensory System Chapter 17

  2. Olfaction • Sense of smell • Olfactory organs in nasal cavity • Olfactory epithelium lines the interior portion of the nasal cavity • Covered with olfactory receptors(hairs/cilia) • Underneath, the lamina propria(areolar tissue), contains olfactory glands or Bowman’s glands (olfactory glands) • Secretions that form a thick mucus • Also contain blood vessels and nerves

  3. Olfactory Receptors • Highly modified neurons • Contain odorant binding proteins • Odorants are chemicals that stimulate olfactory receptors • They bind to the proteins which causes the initiation of an action potential to the CNS • Millions of olfactory receptors • Dog has 72x what humans have

  4. Olfactory Pathways • Very sensitive • 4 molecules of odorants can activate an olfactory receptor • Message must be sent to the olfactory cortex within the temporal lobe before you’re aware of it • Odorants stimulate Olfactory Receptors  action potential initiated  pass through the Ethmoid bone to the olfactory bulbs within the cerebrum  message passed to the olfactory nerves  hypothalamus (remember emotions) which trigger emotional/behavior responses • perfumes

  5. Gustation • Taste-provides information about foods/liquids consumed • Gustatory Receptors = taste receptors, on superior surface of tongue • Gustatory Receptors + specialized epithelial cells = taste buds • Approx. 3000 per adult • Contain about approx. 40 gustatory receptors each • Projections or taste hairs that collect chemicals

  6. Lingual Papillae • Lingual papillae (3 types) • Filiform papillae = friction (don’t contain taste buds) • Fungiform papillae = contain 5 or so taste buds • Circumvallate papillae = 100 taste buds—form “V” shape in back of tongue

  7. Gustatory Pathway • Taste buds are controlled by the facial, glossopharyngeal, and vagus nerves. • Conscious perception of taste is processed with other sensory data • Texture of food • Taste • Afferent Neural connection between Olfaction and Gustation • More sensitive to taste when your sense of olfaction is working properly • When your ill, airborne molecules cannot reach the olfactory receptors = meals taste dull

  8. Gustatory Pathway • Dissolved chemicals contact taste hairs  depending upon the chemical, various protein channels will open  initiates an immediate release of neurotransmitter to the postsynaptic cell postsynaptic cell generates action potential  CNS • Primary taste sensations • Sweet • Salt • Sour • Bitter • Umami = amino acids, peptides found in beef/chicken products • Water = in pharynx, hold water in mouth triggers hormone secretion leading to water loss in kidneys

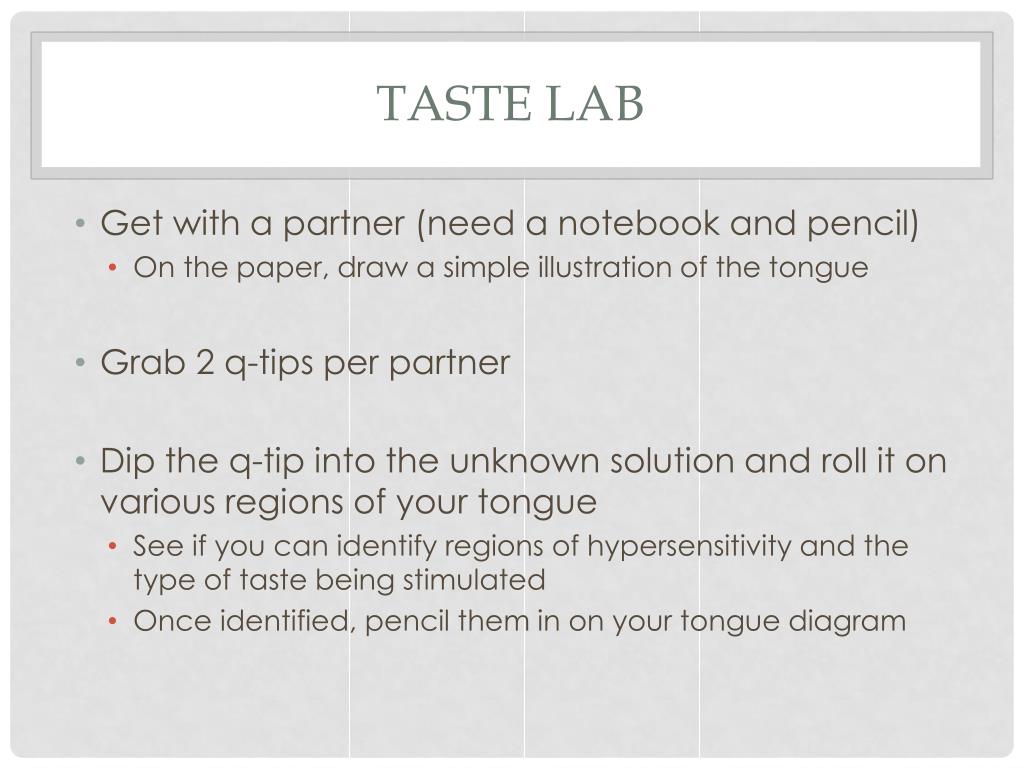

  9. Taste Lab • Get with a partner (need a notebook and pencil) • On the paper, draw a simple illustration of the tongue • Grab 2 q-tips per partner • Dip the q-tip into the unknown solution and roll it on various regions of your tongue • See if you can identify regions of hypersensitivity and the type of taste being stimulated • Once identified, pencil them in on your tongue diagram

  10. Vision/Equilibrium & Hearing Chapter 17

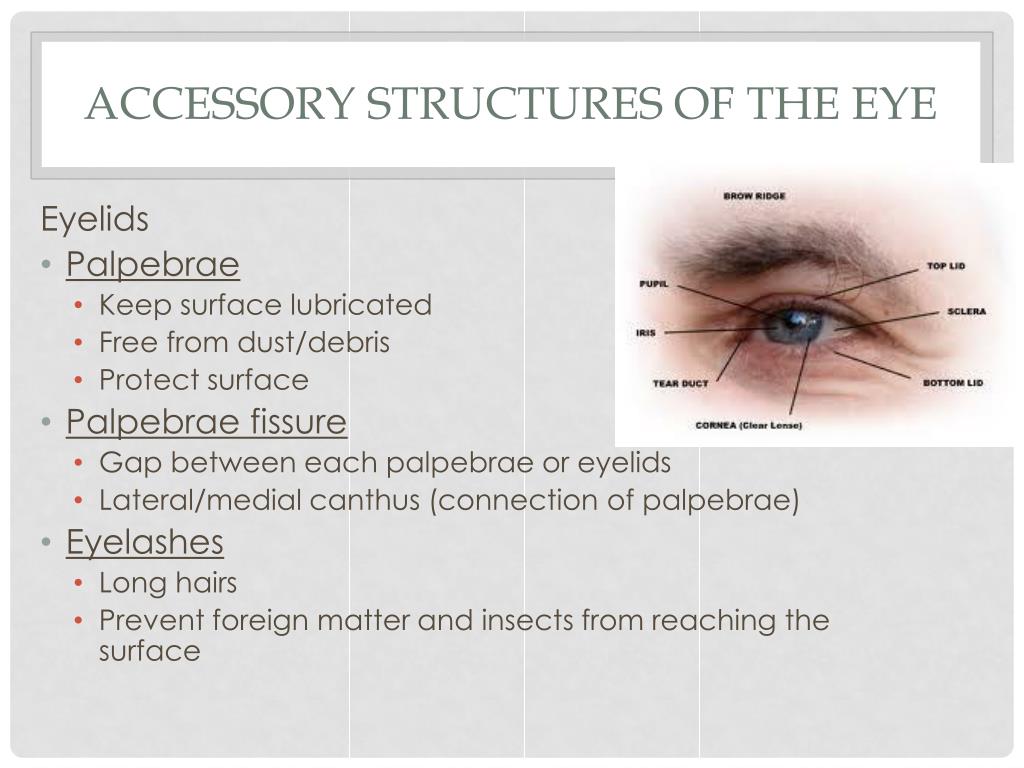

  11. Accessory Structures of the Eye Eyelids • Palpebrae • Keep surface lubricated • Free from dust/debris • Protect surface • Palpebrae fissure • Gap between each palpebrae or eyelids • Lateral/medial canthus (connection of palpebrae) • Eyelashes • Long hairs • Prevent foreign matter and insects from reaching the surface

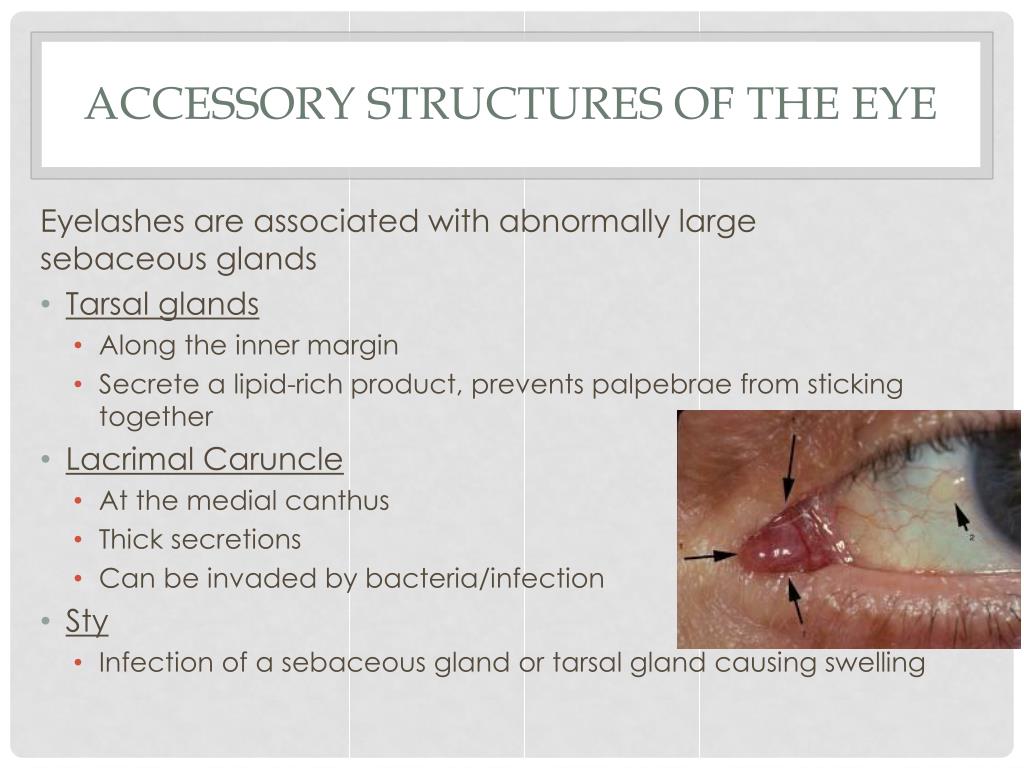

  12. Accessory Structures of the Eye Eyelashes are associated with abnormally large sebaceous glands • Tarsal glands • Along the inner margin • Secrete a lipid-rich product, prevents palpebrae from sticking together • Lacrimal Caruncle • At the medial canthus • Thick secretions • Can be invaded by bacteria/infection • Sty • Infection of a sebaceous gland or tarsal gland causing swelling

  13. Accessory Structures of the Eye • Conjunctiva • Epithelium covering the inner surface of eyelids • Conjunctivitis: “pink eye”, damage, irritation to the conjunctiva • Redding due to blood vessel dilation • Caused by infection

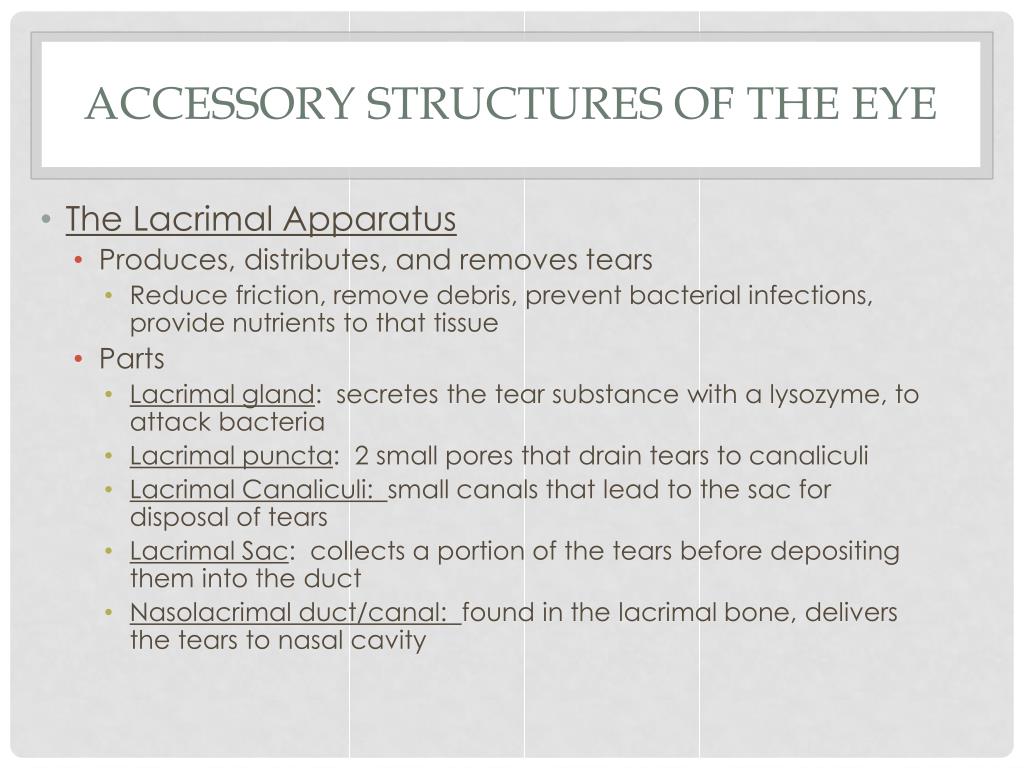

  14. Accessory Structures of the Eye • The Lacrimal Apparatus • Produces, distributes, and removes tears • Reduce friction, remove debris, prevent bacterial infections, provide nutrients to that tissue • Parts • Lacrimal gland: secretes the tear substance with a lysozyme, to attack bacteria • Lacrimal puncta: 2 small pores that drain tears to canaliculi • Lacrimal Canaliculi: small canals that lead to the sac for disposal of tears • Lacrimal Sac: collects a portion of the tears before depositing them into the duct • Nasolacrimal duct/canal: found in the lacrimal bone, delivers the tears to nasal cavity

  15. The Eye • Wall of the eye-3 layers • Fibrous Tunic • Outermost layer • Contains: sclera and cornea • Provides support and protection, attachment for muscles, focusing • Vascular Tunic • Middle layer • Contains: iris, ciliary body, and choroid • Provides route for vessels, regulates amount of light, secreting and reabsorbing the aqueous humor, controls shape • Neural Tunic • Innermost layer • Retina • Contains light receptors

  16. Cornea • Transparent • No blood vessels • Doesn’t interfere with the passageway of light • Has numerous free nerve endings = sensitive

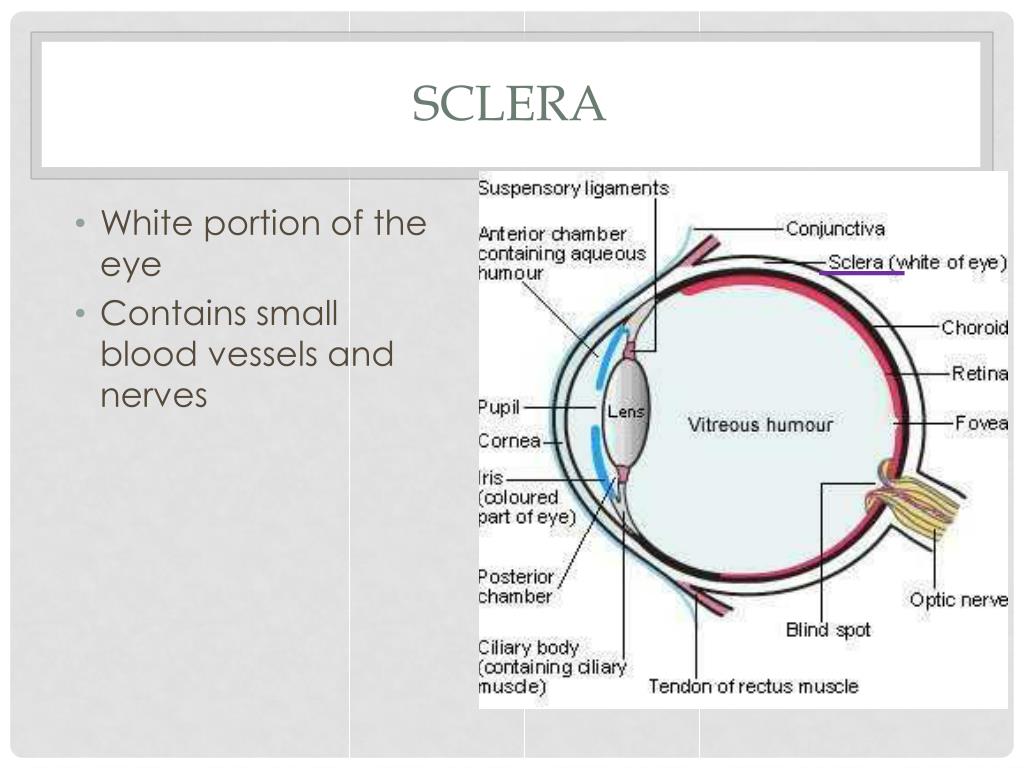

  17. Sclera • White portion of the eye • Contains small blood vessels and nerves

  18. Iris • Contains vessels, pigmented cells, and layers of muscle fibers • Change the shape changes the size of the pupil • Pupillary dilator muscles • Pupillary constrictor muscles • Central opening = pupil • Melanocytes • Density = color

  19. Ciliary Body • Contains ciliary muscle • Change lens shape

  20. Choroid • Delivers oxygen and nutrients to the retina

  21. Retina • Contains photoreceptors • Rods: variations of light, allow to see in low lighting • Cones: color vision, require more light, provide sharper vision • Not evenly distributed • 125 Million Rods along the periphery of retina • 6 Million Cones on retina’s posterior surface • Fovea Centralis, area of sharpest vision, reason why you look directly at something, highest concentration of rods/cones

  22. Optic disc • Region where the Optic nerve enters the eye • No photoreceptors because it is an opening • “blind spot”

  23. Chambers of the Eye • Anterior Cavity • Anterior chamber (cornea to iris) • Posterior chamber (iris to lens) • Filed with aqueous humor : circulating fluid for nutrient/waste transport, and cushion • Posterior Cavity • Everything behind the anterior cavity • Filled with Vitreous Humor: gelatinous mass that stabilizes the shape

  24. The Lens • Posterior to cornea • Held in place by suspensory ligaments that originate from the choroid • Change shape to focus image on photoreceptors due to refraction called accommodation • Lens becomes rounder to focus on a nearby object or flatter for a distant object • Astigmatism: light failing to refract properly due to an misshapen cornea/lens

  25. Visual acuity • Clarity of vision is rated against a normal standard • 20/20 a person can see details at 20 feet as clearly as a normal person should at 20 feet • 20/15 a person can see at 20 feet what a normal person can see at 15 • 20/30 a person can see at 20 feet what a normal person can see at 30 • 20/200 is legally blind • Caused by cataracts, glaucoma, corneal scarring, detachment of retina, accidental injuries or heredity factors.

  26. Sight Lab Groups of 3 • 2 groups  Visual Acuity • 2 groups  Peripheral vision disc • 1 group  Astigmatism/blind spot • 1 group  Page 455 in packet part B • 1 group  study with models

  27. Emotional Tears • proteins carrying hormones found in tears • Prolactin • Hormone in greater levels in women than men • When you have an emotional response, it is due to the onset production of hormones • These hormones are produced in the lacrimal gland which then are released through tears • Prolactin levels increase tremendously during breastfeeding, stimulates lactation • Women have a strong emotional responses while breast feeing

  28. Lasik Surgery • Operation • Patient is awake, given anesthetic eye drops • Step 1: Remove the conjunctiva tissue like a flap • Step 2: Remodel the cornea because the uneven amounts push on the lens causing a change in its shape or excess causes blurred vision • http://www.youtube.com/watch?v=O4kDC4sZ5Jg

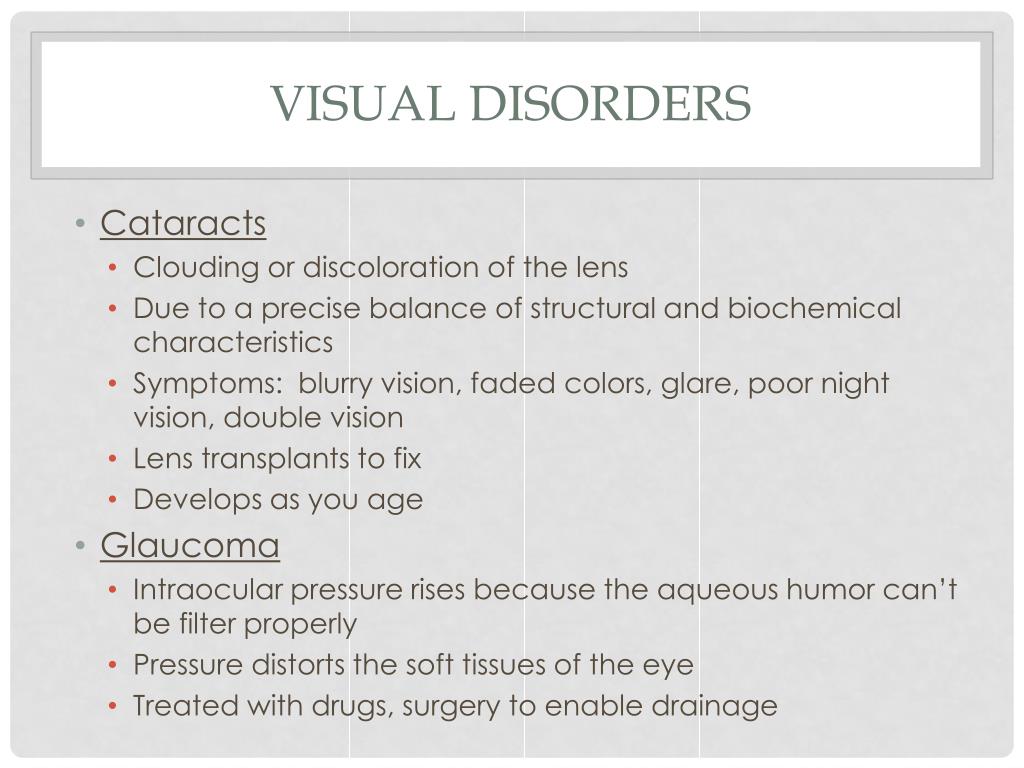

  29. Visual Disorders • Cataracts • Clouding or discoloration of the lens • Due to a precise balance of structural and biochemical characteristics • Symptoms: blurry vision, faded colors, glare, poor night vision, double vision • Lens transplants to fix • Develops as you age • Glaucoma • Intraocular pressure rises because the aqueous humor can’t be filter properly • Pressure distorts the soft tissues of the eye • Treated with drugs, surgery to enable drainage

  30. Color Vision • Anatomy of Rods and cones • Rod/cone refer to the outer segment’s shape • 3 types of cones • Blue Cones (16%) • Green Cones (10%) • Red Cones (74%) • If all 3 are stimulated, you perceive the color white • Combination is what allows us to understand different colors/shades

  31. Color Blindness • Unable to distinguish certain colors • Nonfunctional cones • Absent • Unable to manufacture the necessary pigments • Red-green color blindness • Most common, b/c inherited, other types due to damage • Located on the x chromosome • Remember XY so men have it more often b/c women have XX which both would need to be carriers • Red cones are missing • Red/green looks the same

  32. Cow Eye Dissection

  33. Sound • 2 senses • Equilibrium • Inform us of the position of the head in space • Monitors gravity, acceleration, rotation • Hearing • Detect and interpret sound waves

  34. Anatomy of the Ear • 3 main Regions • External Ear • Visible portion • Collects/directs sound waves and directs them to the middle ear • Middle Ear • Chamber within the temporal bone • Collect sound waves and transmit them to the inner ear • Inner Ear • Contains sensory organs for hearing and equilibrium

  35. External Ear • Auricle or pinna • Fleshy flap of cartilaginous tissue • Surrounds the external auditory canal • Protects the opening • Provides direction of sounds • External Auditory Canal • Passageway for sound waves to travel • Ends at the tympanic membrane • Tympanic Membrane • “ear drum” • Thin, semi-transparent, delicate • Separates external and middle ear • Ceruminous Glands • line the E.A.C., secrete waxy material called cerumen, that Prevents foreign objects from entering

  36. Middle EAR • Filled with air • Communicates with the nasopharynx through the auditory tube or Eustachian tube • Permits equalization of pressures on either sides, opens to pharynx • Can also lead to microorganisms entering the middle ear = ear infections • Auditory ossicles • 3 bones: connect the tympanic membrane with other inner ear structures • Malleus (tympanic membrane), incus (both bones)and stapes (oval window) • Vibrations of tympanic membrane, vibrates the 3 ossicles, oval window  hearing/equilibrium structures

  37. Inner Ear • Membranous Labyrinth: network of canals that holds receptors • Contains endolymph • Bony Labyrinth: dense bone that surrounds and protects the membranous labyrinth • Vestibule: contains membranous sacs called saccule and utricle which hold receptors that respond for balance • 3 Semi-circular Canals: enclose semicircular ducts that can be stimulated by rotation • Cochlea: spiral-shaped, cochlear duct, receptors that respond to hearing • Round Window: separates the perilymph from air of middle ear • Oval Window: moves the stapes which flaps on it causing stimulation • Between them is the perilymph, liquid

  38. Pathway of Sound • Sound waves external auditory canal and make the tympanic membrane vibrate. • Tympanic membrane vibration causes movement of auditory ossicles, sound waves amplified • Stapes moves against oval window, pressure waves generated • Travel from oval window and through the scalavestibuli (area of cochlea) • Hair cells in the cochlea detect movement and convert stimulus into nerve impulse which travels to the cochlear nerve. • Excess waves exit through the round window

  39. Balance • 2 structural and functional components of balance in the inner ear • Stationary Position and Linear Movements of Head • Evaluates position of head relative to gravity • Detects inner acceleration/deceleration • Utricle/Saccule: have hair cells that detect • Rotational Movements of Head • Evaluates movement of head • 3 semicircular canals with hair cells • Static balance: orientation of body relative to the pull of gravity • Kinetic balance: maintenance of body position in response to movement
