Achieving Real-time Pulse-to-pulse PRI Prediction

By Rémi Gauvin

B.A.Sc. Computer Engineering

MC Countermeasures Inc.


Objectives l.jpg
Objectives

  • Radars and Current ECM Overview

  • What is PRI Prediction and its Benefits?

  • How PRI Prediction is Achieved

  • Results Obtained

  • Conclusion and Future Look

Visit us at http://www.mc-cm.com


Introduction on radars l.jpg
Introduction on Radars

  • Pulsed Doppler Illuminator

    • Constant PRI

  • High PRI Pulsed Doppler

    • Constant PRI and Dwell-Shift

  • Medium PRF Pulsed Doppler

    • Staggered PRI (few stagger levels)

  • Low PRI Pulsed Doppler

    • Staggered PRI

  • Low PRF Radars

    • Complex PRI Patterns

Visit us at http://www.mc-cm.com


Pri pattern modulations l.jpg
PRI Pattern Modulations

Visit us at http://www.mc-cm.com


Current ecm noise jamming l.jpg
Current ECM: Noise Jamming

  • Noise masks out the target return

  • Good against older non-coherent radars with wide instantaneous bandwidth

  • Unsuccessful against:

    • Burst-to-burst RF agile radars

    • Coherent processing Radars with narrow bandwidth Doppler filtering

  • Noise jamming with fast tuning oscillator may be ineffective due to low tuning accuracy

Visit us at http://www.mc-cm.com


Current ecm deception using analog delay lines l.jpg
Current ECM: Deception Using Analog Delay Lines

  • Analog delay lines holds the Radar pulse to create a delayed copy

  • Down range false targets only

  • RGPO: Range Gate Pull Out technique

    • Radar’s MTI Filter follows the false target instead of the target return.

  • Noise accumulates quickly in the delay line making the technique limited to only a few s

Visit us at http://www.mc-cm.com


Current ecm deception using drfm s l.jpg
Current ECM: DeceptionUsing DRFM’s

  • Digital Radar Frequency Memory (DRFM)

  • Store the Radar pulse indefinitely

  • False Target Position can be anywhere for constant PRI modulation

  • Range Gate Pull Out and Range Gate Pull In Technique are possible

  • Problem: Non Constant PRI Modulation Limits the False Target Position to Down Range

Visit us at http://www.mc-cm.com


Solution pri prediction l.jpg
Solution: PRI Prediction

  • Pulse Repetition Interval (PRI) Prediction consists of estimating the time of arrival (TOA) of the next Radar pulse

  • Paired with a DRFM based system a PRI Predictor can produce targets over the full PRI range

Visit us at http://www.mc-cm.com


Constant pri l.jpg

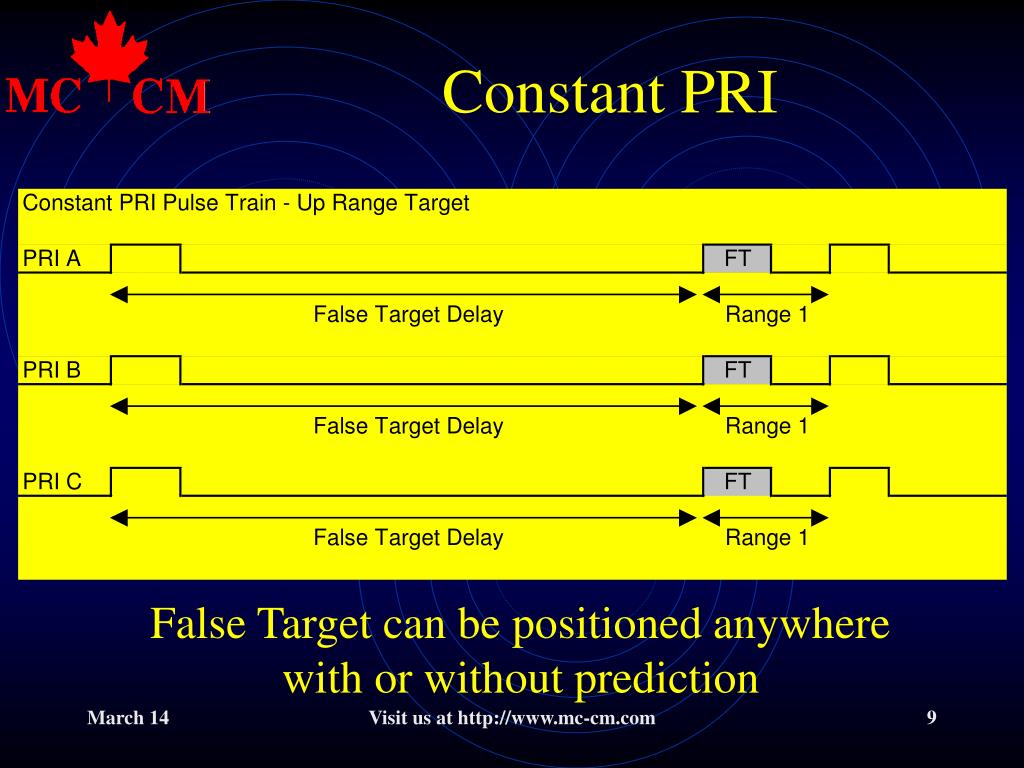

Constant PRI

False Target can be positioned anywhere with or without prediction

Visit us at http://www.mc-cm.com


Non constant pri without prediction l.jpg
Non Constant PRIwithout Prediction

Without prediction the false target position is limited to down range for non-constant pattern modulation

Visit us at http://www.mc-cm.com


Non constant pri with prediction l.jpg
Non Constant PRIwith Prediction

With prediction the false target can now be positioned correctly anywhere regardless of pattern modulation

Visit us at http://www.mc-cm.com


Other advantages of pri prediction fades l.jpg

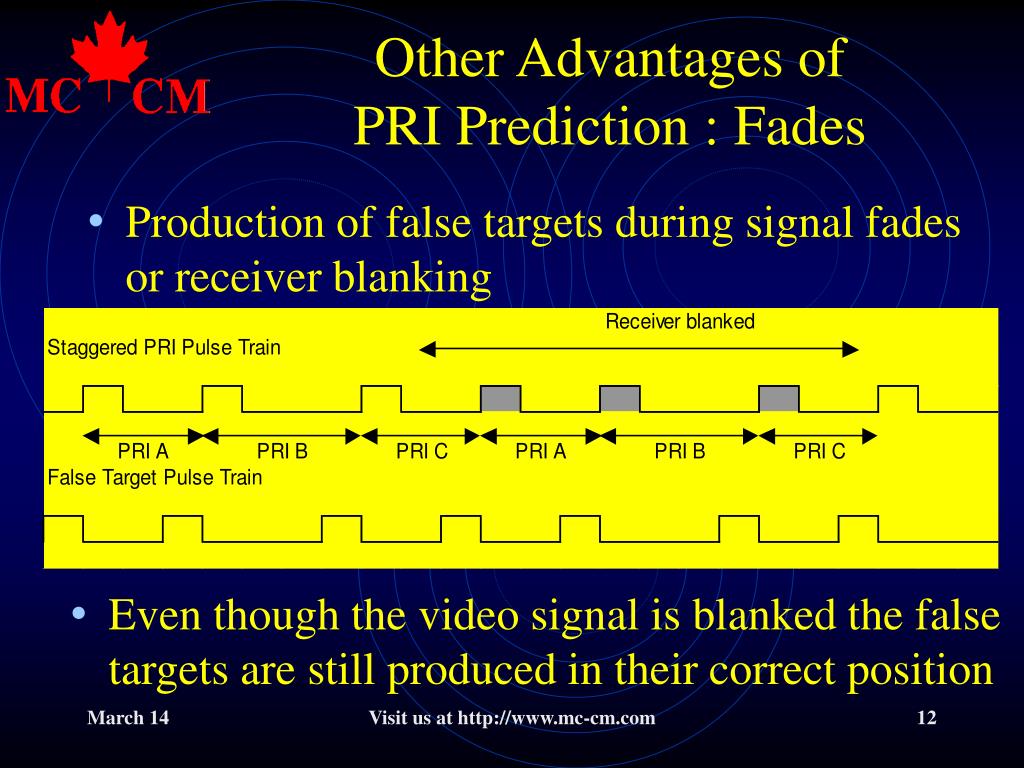

Other Advantages of PRI Prediction : Fades

  • Production of false targets during signal fades or receiver blanking

  • Even though the video signal is blanked the false targets are still produced in their correct position

Visit us at http://www.mc-cm.com


Other advantages of pri prediction filtering l.jpg

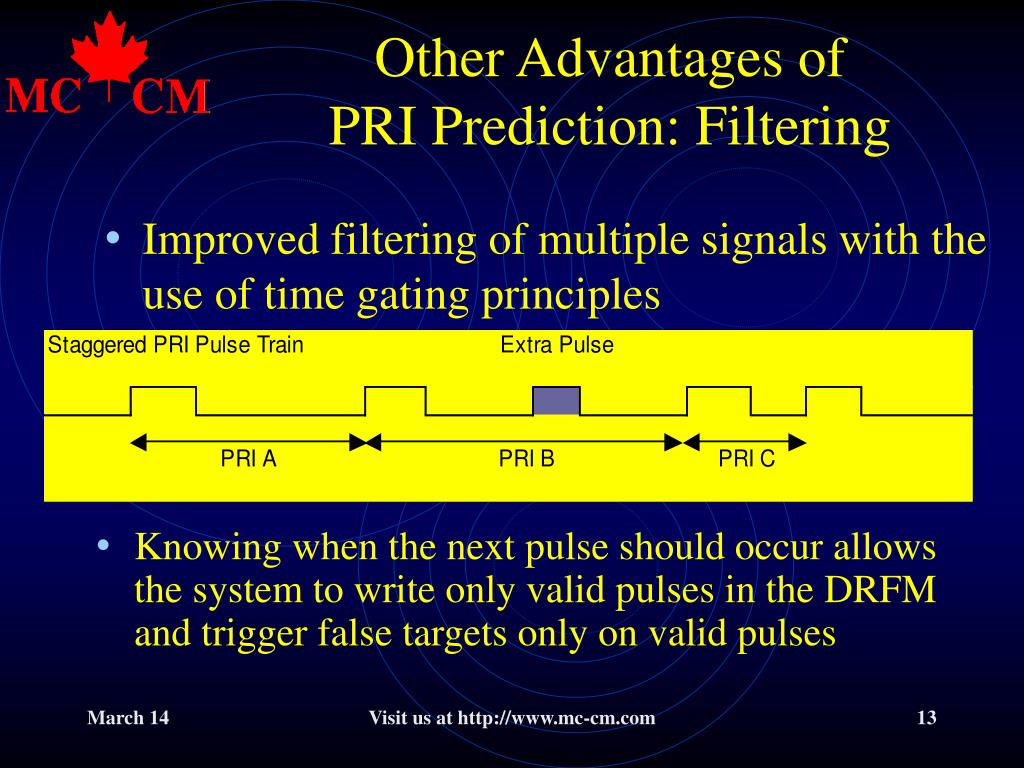

Other Advantages of PRI Prediction: Filtering

  • Knowing when the next pulse should occur allows the system to write only valid pulses in the DRFM and trigger false targets only on valid pulses

  • Improved filtering of multiple signals with the use of time gating principles

Visit us at http://www.mc-cm.com


Difficulties in pri prediction l.jpg
Difficulties in PRI Prediction

  • Data rate (PRI’s range for 2 s to 15 ms)

  • Corrupt data

    • PRI pattern containing extra pulses

    • PRI pattern missing pulses

  • Interleaved patterns

    • Multiple radars in band

    • Noise in band

Visit us at http://www.mc-cm.com


To make pri prediction work l.jpg
To Make PRI Prediction Work

  • A System must:

    • Track various modulation type such as: Constants, Dwell-Shifts, Staggered, Linear-Sliding and Wobulated (Sinusoidal)

    • Base prediction on real-time data

    • Perform real-time pulse-to-pulse analysis and prediction

    • Have minimal sensitivity to spurious and missing pulses

    • Have the ability to keep track through signal fades

Visit us at http://www.mc-cm.com


Multiple thread solution l.jpg
Multiple Thread Solution

  • MC-CM Adaptive Prediction Scheme

    • The system has a Multiple Instruction Single Data (MISD) Structure and runs a variety of predictive algorithms on different threads

    • The algorithms learns the pattern and issues predictions in real-time on pulse-to-pulse basis

Visit us at http://www.mc-cm.com


Typical prediction process l.jpg

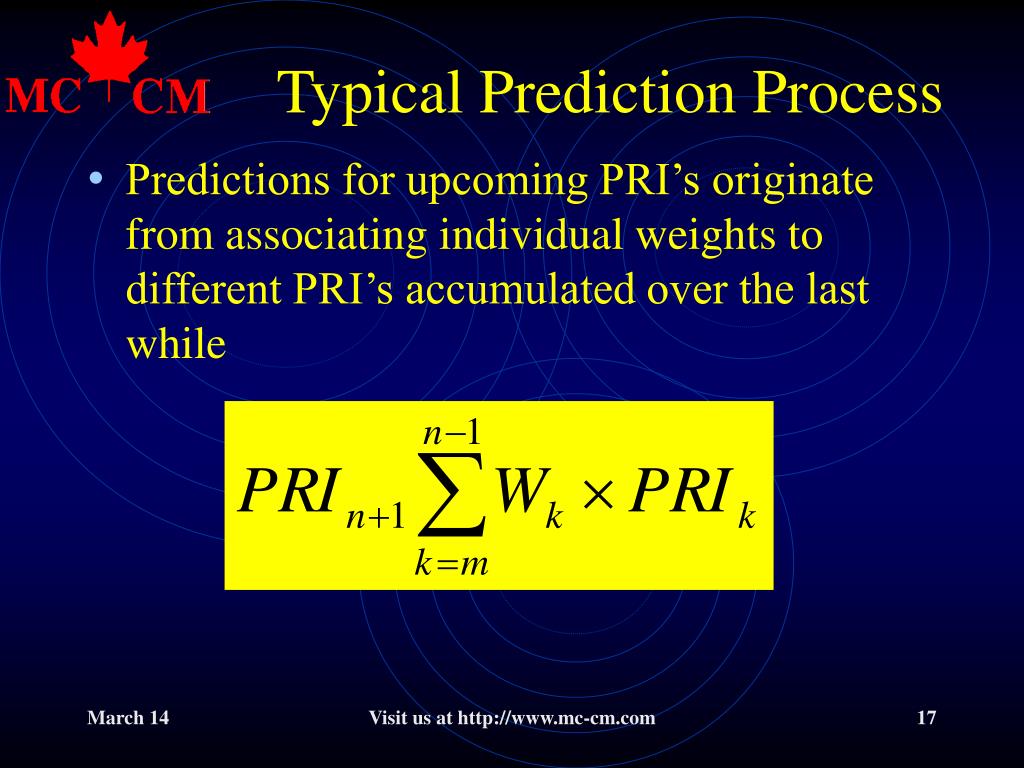

Typical Prediction Process

  • Predictions for upcoming PRI’s originate from associating individual weights to different PRI’s accumulated over the last while

Visit us at http://www.mc-cm.com


Multiple thread solution 2 l.jpg
Multiple Thread Solution (2)

Visit us at http://www.mc-cm.com


Pri prediction system l.jpg
PRI Prediction System

Visit us at http://www.mc-cm.com

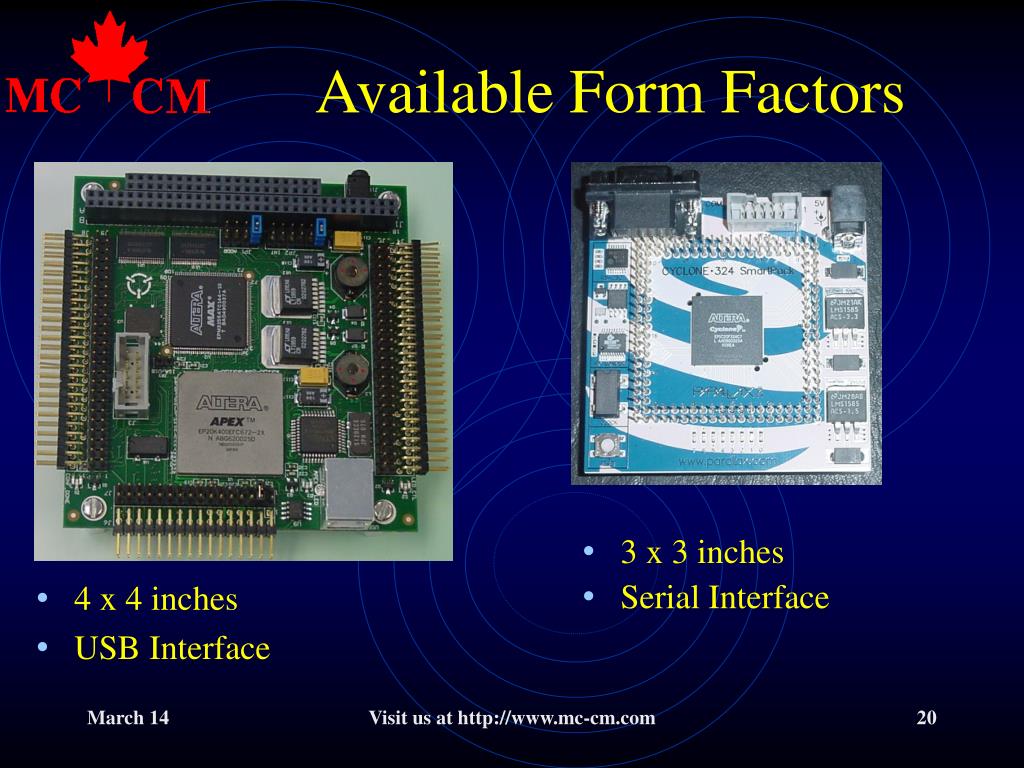

Available form factors l.jpg

4 x 4 inches

USB Interface

3 x 3 inches

Serial Interface

Available Form Factors

Visit us at http://www.mc-cm.com


Performance vs constants dwell shifts and sliding l.jpg
Performance vs. Constants, Dwell-Shifts and Sliding

  • Accurately tracks the PRI after a few pulses

  • PRI can range from 2s to 15 ms

Visit us at http://www.mc-cm.com


Performance vs staggered l.jpg
Performance vs. Staggered

Visit us at http://www.mc-cm.com


Performance vs wobulated l.jpg
Performance vs. Wobulated

  • Tracks after 100 to 150 PRI’s (Typically)

  • Min PRI of 75 us, Max Deviation +/- 50 %

  • As little as 4 PRI per cycle required

Visit us at http://www.mc-cm.com


Random pulse drop outs l.jpg
Random Pulse Drop Outs

Visit us at http://www.mc-cm.com


Conclusion l.jpg

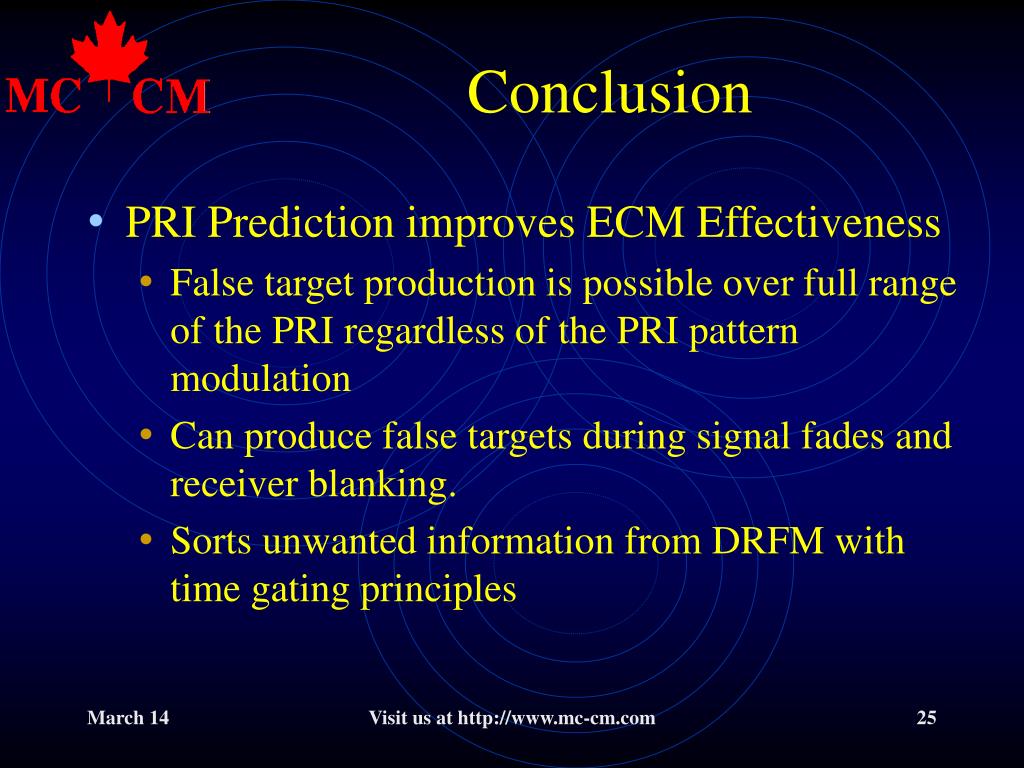

Conclusion

  • PRI Prediction improves ECM Effectiveness

    • False target production is possible over full range of the PRI regardless of the PRI pattern modulation

    • Can produce false targets during signal fades and receiver blanking.

    • Sorts unwanted information from DRFM with time gating principles

Visit us at http://www.mc-cm.com


Future l.jpg

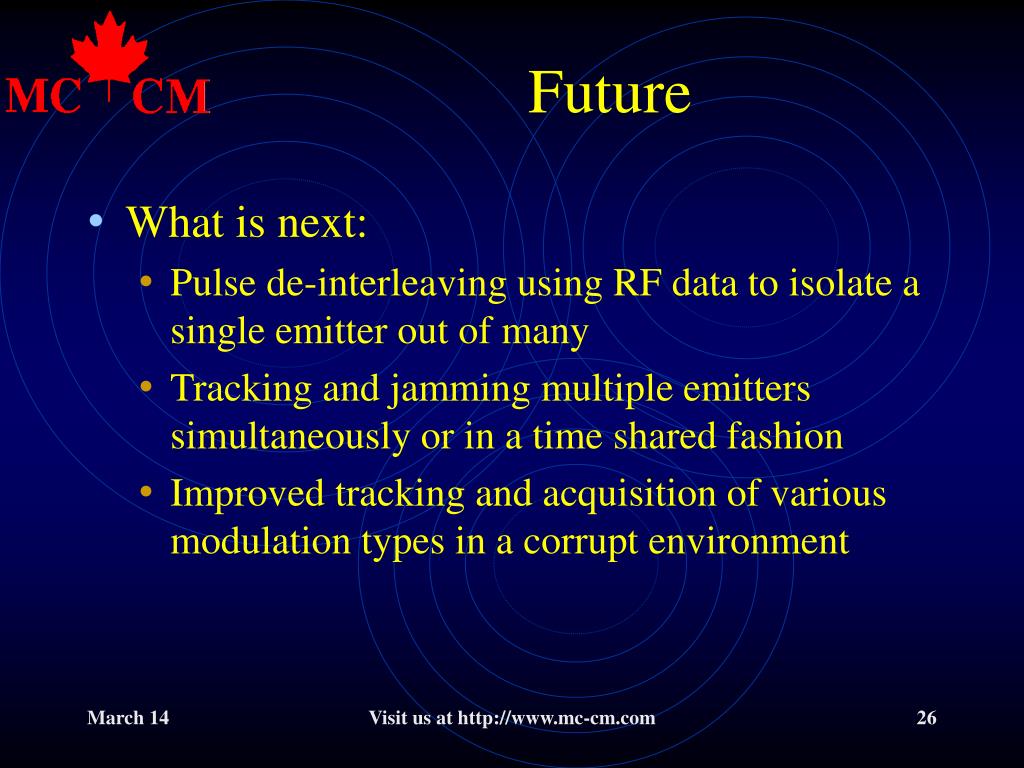

Future

  • What is next:

    • Pulse de-interleaving using RF data to isolate a single emitter out of many

    • Tracking and jamming multiple emitters simultaneously or in a time shared fashion

    • Improved tracking and acquisition of various modulation types in a corrupt environment

Visit us at http://www.mc-cm.com


Acknowledgements l.jpg
Acknowledgements

Special thanks to :

  • Scott McDonald

  • Ken McRitchie

  • Dan Grise

    For information, resources and work performed

    on the PRI Predictor line of systems

Visit us at http://www.mc-cm.com


Questions l.jpg
? Questions ?

For further information, please feel free to contact us at:

MC Countermeasures Inc.

39 Robertson Road, Suite 256

Nepean, Ontario, K2H 8R2 Canada

Tel: +1 (613) 721-1552

Fax: +1 (613) 721-1553

http://www.mc-cm.com

[email protected]

THANK YOU FOR YOUR ATTENTION
