The determination of equilibrium constants

The determination of equilibrium constants. Self-test 7.11 Calculate the solubility constant (the equilibrium constant for reaction Hg 2 Cl 2 (s) ↔ Hg 2 2+ (aq) + 2Cl - (aq)) and the solubility of mercury(I) chloride at 298.15K. The mercury(I) ion is the diatomic species Hg 2 2+ .

ita
Download Presentation

The determination of equilibrium constants

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The determination of equilibrium constants • Self-test 7.11 Calculate the solubility constant (the equilibrium constant for reaction Hg2Cl2(s) ↔ Hg22+(aq) + 2Cl-(aq)) and the solubility of mercury(I) chloride at 298.15K. The mercury(I) ion is the diatomic species Hg22+. • Answer: This chemical process does not involve electron transfer, i.e. is not a redox reaction. Choosing cathode reaction as: Hg2Cl2(s) + 2e → 2Hg(l) + 2Cl-(aq) from reference table 7.2, Eθ = 0.27 V the anode reaction can be obtained through R – Cell Hg22+(aq) + 2e → 2Hg(l) from reference table 7.2, Eθ = 0.79 V Therefore the standard cell potential = 0.27 – 0.79 = -0.52 V

  2. Using equation lnK = Eө*v/25.7mV, here v = 2 lnK = - 40.467 K = 2.62 x 10-18 • K = (aHg(I) * a2cl-)/aHg2cl2 = b*(2b)2/1 = 4*b3 =2.62 x 10-18 therefore b = 8.68 x 10-7 mol/kg

  3. Species-selective electrodes: Measuring pH • The half reaction at a hydrogen electrode: H+(aq) + e- → ½ H2(g) Here v= 1, Q = The potential E(H+/H2) = Eө - E(H+/H2) = - Assuming that the pressure of H2 gas equals 1 bar E(H+/H2) = - = = E(H+/H2) = -

  4. Two electrodes are required to build up an electrochemical cell. This is why we need a reference electrode when measuring the pH of a solution. • A regular reference electrode is calomel (Hg2Cl2(s)). • The hydrogen electrode is used as the right hand electrode, i.e. cathode. • E(cell) = E(H+/H2) - E(ref.) • E(cell) + E(ref) = - • Why do we need to calibrate the pH electrode before its usage?

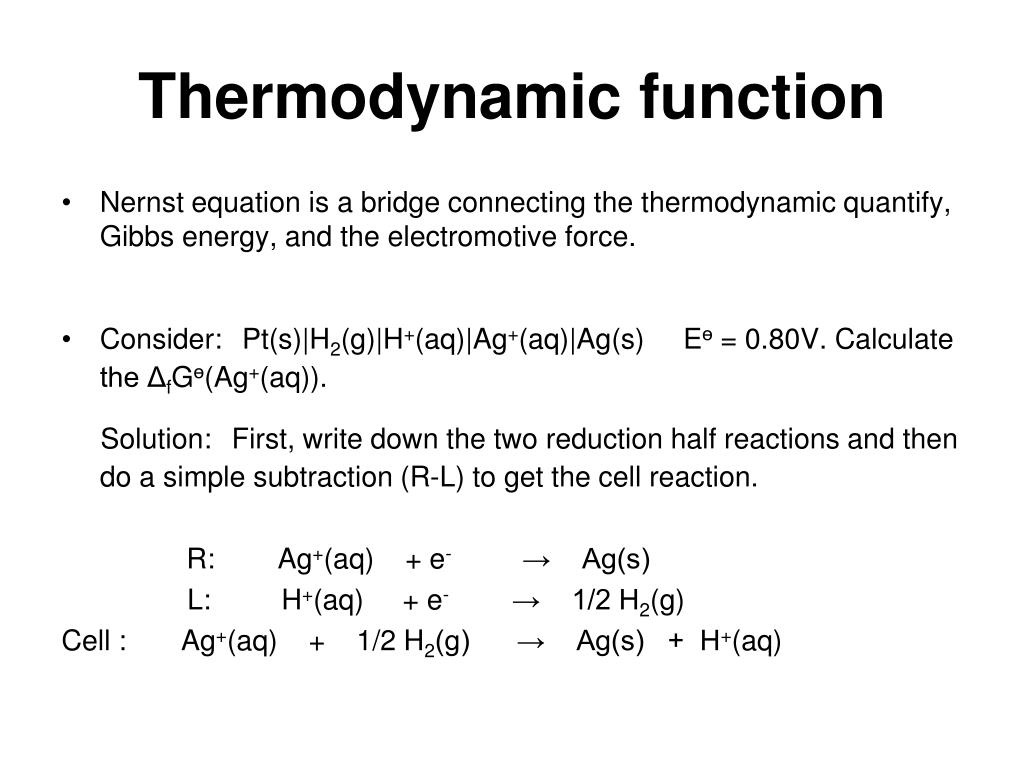

  5. Thermodynamic function • Nernst equation is a bridge connecting the thermodynamic quantify, Gibbs energy, and the electromotive force. • Consider: Pt(s)|H2(g)|H+(aq)|Ag+(aq)|Ag(s) Eө = 0.80V. Calculate the ΔfGө(Ag+(aq)). Solution: First, write down the two reduction half reactions and then do a simple subtraction (R-L) to get the cell reaction. R: Ag+(aq) + e- → Ag(s) L: H+(aq) + e- → 1/2 H2(g) Cell : Ag+(aq) + 1/2 H2(g) → Ag(s) + H+(aq)

  6. Continued ΔrGө = ΔfGө(Ag(s)) + ΔfGө (H+) - ΔfGө (Ag+) - (1/2)ΔfGө(H2(g)) ΔrGө = 0 + 0 - ΔfGө (Ag+) - 0 Since ΔrGө = -νFEө ΔfGө(Ag+) = vFEө = 9.648 x 104 C mol-1 * 0.80V = 7.715 x 104 CV mol-1 = 7.715 x 104 J mol-1 ( 1CV = 1J)

  7. Temperature dependence of emf • ΔrGө = -νFEө take the derivate of temperature for both sides • is called temperature coefficient of standard cell emf. • Because one gets therefore, one can use electrochemical method to obtain reaction entropy and relate them to entropies of ions in solution.

  8. noncalorimetric method of measuring ΔrHө ΔrHө = ΔrGө + TΔrSө = -vFEө + T(vF ) = -vF(Eө - T ) • Example:The standard electromotive force of the cell Pt(s)|H2(g)|H+(aq)||Ag+(aq)|Ag(s) was measured over a broad range of temperatures, and the data were fitted to the following polynomial: Eө/V = 0.07 – 4.11x10-4(T/K – 298) – 3.2x10-6(T/K -298)2 Evaluate the standard reaction Gibbs energy, enthalpy, and entropy at 298K. Solution: The standard reaction Gibbs energy can be calculated once we know the standard emf of the above cell: At 298K, Eө/V = 0.07- 4.11x10-4(298K/K – 298) – 3.2x10-6(298K/K -298)2 Eө/V = 0.07 Eө = 0.07 V

  9. to identify the value of v, we need to write down the cell reaction Ag+ + 1/2H2(g) → H+(aq) + Ag(s) ΔrGө = -vFEө = - (1) x 9.6485 x104 C mol-1 x (0.07V) = - 6.754 x 103 CVmol-1 = - 6.754 x 103 J mol-1 Calculate the temperature coefficient of the cell electromotive force = – 4.11x10-4 K-1V – 3.2x10-6x2x(T/K -298) K-1V = - 4.11x10-4 K-1V (at 298K) then ΔrSө = vF = 1 x 9.6485 x 104 C mol-1 x (- 4.11x10-4 K-1V ) = - 39.66 CV K-1 mol-1 = - 39.66 J K-1 mol-1 to calculate the standard reaction enthalpy: ΔrHө = ΔrGө + TΔrSө = -6.754kJ mol-1 + 298K (- 39.66 J K-1 mol-1) = -18.572 kJ mol-1

  10. Example: The standard cell potential of Pt(s)|H2(g)|HCl(aq)| Hg2Cl2(s)|Hg(l)|Ag(s) was found to be +0.269 V at 293 K and + 0.266 V at 303K. Evaluate the standard reaction Gibbs function, enthalpy, and entropy at 298K. Solution: Write the cell reaction Hg2Cl2(s) + H2(g) → 2Hg(l) + 2HCl(aq) So v = 2, To find the ΔrGө at 298 K, one needs to know the standard emf at 298K, which can be obtained by linear interpolation between the two temperatures. Eө = 0.2675 V ΔrGө = -2F Eө = -51.8 kJ mol-1 The standard reaction entropy can then be calculated from = (0.266V- 0.269V)/10K = -3.0x10-4 VK-1 ΔrSө = 2F = - 58 JK-1 mol-1 then ΔrHө = ΔrGө + TΔrSө = -69 kJ mol-1 What is the quotient, Q, of the above cell reaction?

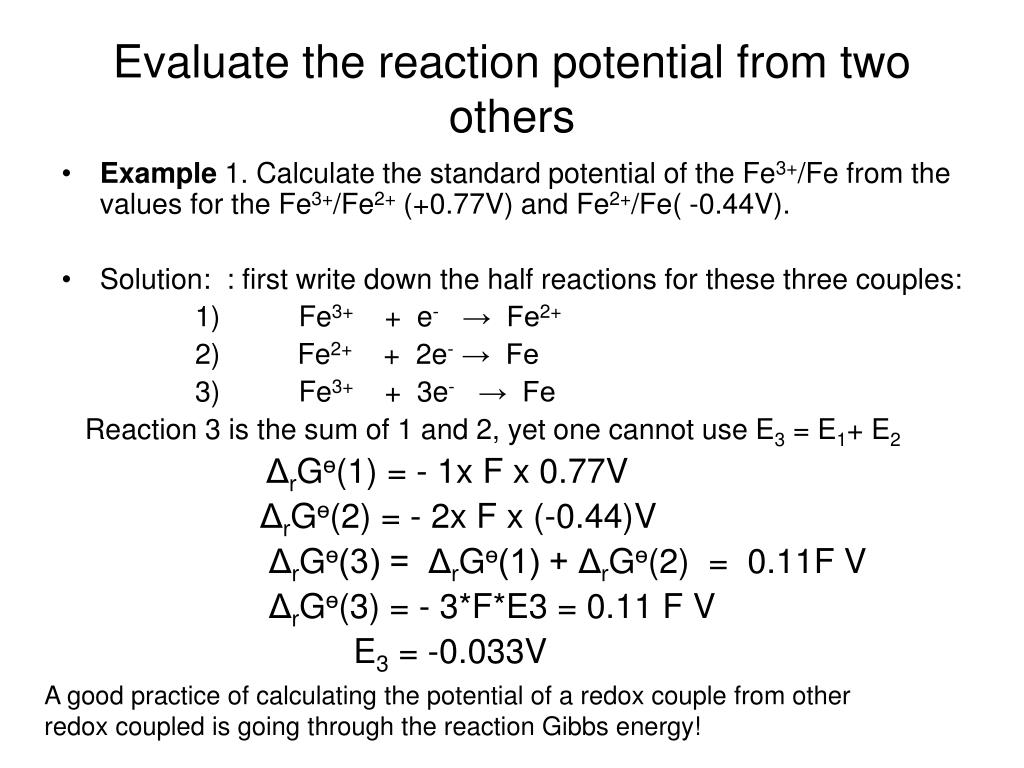

  11. Evaluate the reaction potential from two others • Example 1. Calculate the standard potential of the Fe3+/Fe from the values for the Fe3+/Fe2+ (+0.77V) and Fe2+/Fe( -0.44V). • Solution: : first write down the half reactions for these three couples: 1) Fe3+ + e- → Fe2+ 2) Fe2+ + 2e- → Fe 3) Fe3+ + 3e- → Fe Reaction 3 is the sum of 1 and 2, yet one cannot use E3 = E1+ E2 ΔrGө(1) = - 1x F x 0.77V ΔrGө(2) = - 2x F x (-0.44)V ΔrGө(3) = ΔrGө(1) + ΔrGө(2) = 0.11F V ΔrGө(3) = - 3*F*E3 = 0.11 F V E3 = -0.033V A good practice of calculating the potential of a redox couple from other redox coupled is going through the reaction Gibbs energy!

  12. Example 2: Given that the standard potentials of the Cu2+/Cu and Cu+/Cu couples are +0.340V and + 0.522V, respectively, evaluate Eө(Cu2+, Cu+). Solution: Again, we should go through the standard Gibbs energy to calculate it. First write the half-reactions: (1) Cu2+(aq) + 2e- → Cu(s) (2) Cu+(aq) + e- → Cu(s) (3) Cu2+(aq) + e- → Cu+ it can be identified easily that reaction (3) equals (1) - (2) thus: ΔrGө(3) = ΔrGө(1) - ΔrGө(2) = (-2*F*0.340V) – (-1*F*0.522V) ΔrGө(3) = -0.158F V -1*F*Eө(Cu2+/Cu+) = -0.158F V Eө(Cu2+/Cu+) = 0.158 V

  13. Summary of chapter 7 • Equilibrium constant, • Gibbs energy vs the extent of reaction • Reaction Gibbs energy • Standard reaction Gibbs energy and thermodynamic equilibrium constant. • Le Chaterlier principle & van’t Hoff relationship. • Reactions in charged environment: Nerst equation. • Cell potential and standard cell potential. • Connection between thermal and electrochemical quantities.
