  1. Update on Spatial and GIO Related Issues

  2. SW Geospatial Framework Integration of key Spatial Water Datasets National Elevation Dataset (NED) National Hydrography Dataset (NHD) NED-Hydrology (EDNA) Watershed Boundary Dataset(WBD)

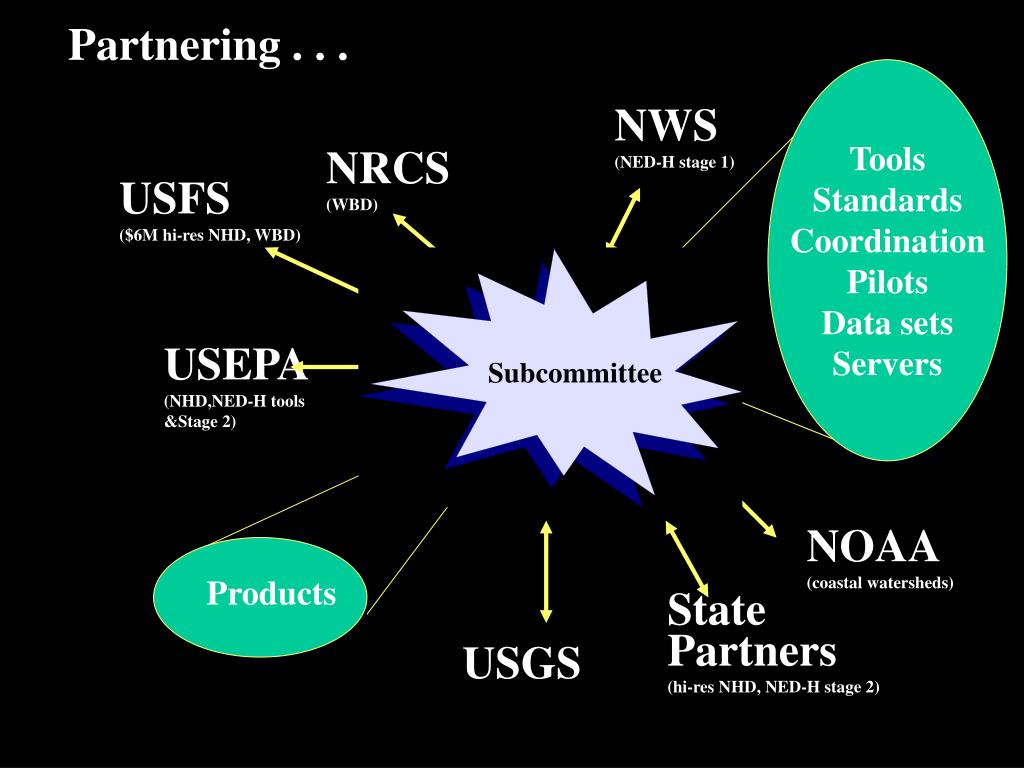

  3. Partnering . . . Tools Standards Coordination Pilots Data sets Servers NWS (NED-H stage 1) NRCS (WBD) USFS ($6M hi-res NHD, WBD) USEPA (NHD,NED-H tools &Stage 2) Subcommittee NOAA (coastal watersheds) Products State Partners (hi-res NHD, NED-H stage 2) USGS

  4. States participating in high resolution National Hydrography Dataset development (Map courtesy Zsolt Nagy)

  5. NED National Elevation Dataset

  6. EDNA [alias NED-H] 2101 HUCs processed 1644 HUCs reviewed Stage 1

  7. 5000pixels 2 sq.miles!

  8. COMPLETED FALL 2002 Project Status

  9. Subcommittee on Spatial Water Data Coastal Watersheds Work Group Guidelines Work Group Hydro Standard Work Group National Hydrography Framework Standard FGDC HUC unified Guideline

  10. www.ftw.nrcs.usda.gov/huc_data.htm Current version can be found at . . . .

  11. Item Name Int. width Type Contents HUC_8 8 C HUC_10 10 C HUC_12 12 C ACRES 4 B STATES 12 C AR-MO-KS NCONTRB_DA 4 B (in acres) DS_HUC 14 C NAME 80 C (Lowest level) HU_MOD 80 C DRAFT Attribute Scheme (PAT) (karst, interbasin transfer, etc)

  12. currently: NRCS certification proposed: Subcommittee review

  13. June 5-6’01 July’01 Regional HUC Meetings

  14. the end

  15. Slope, aspect • flow direction • flow accumulation • synthetic reaches/streams • conflation to NHD EDNA NED • 30 meter • Seamless • 10mb downloads Critical for water projects!

  16. Subcommittee on Spatial Water Data Coastal Watersheds Work Group Guidelines Work Group FGDC HUC Interagency Guideline

  17. EDNA [alias NED-H] STAGE 1
