Data Warehousing Concepts and Design

Data Warehousing Concepts and Design. Chapters 31 & 32 in textbook. What is Data Warehousing?. A subject-oriented, integrated, time-variant and non-volatile collection of data. Supports decision-making process. Benefits: Potential high returns on investment. Competitive advantage.

istas
Download Presentation

Data Warehousing Concepts and Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Data Warehousing Concepts and Design Chapters 31 & 32 in textbook

  2. What is Data Warehousing? • A subject-oriented, integrated, time-variant and non-volatile collection of data. • Supports decision-making process. • Benefits: • Potential high returns on investment. • Competitive advantage. • Increased productivity of corporate decision-makers.

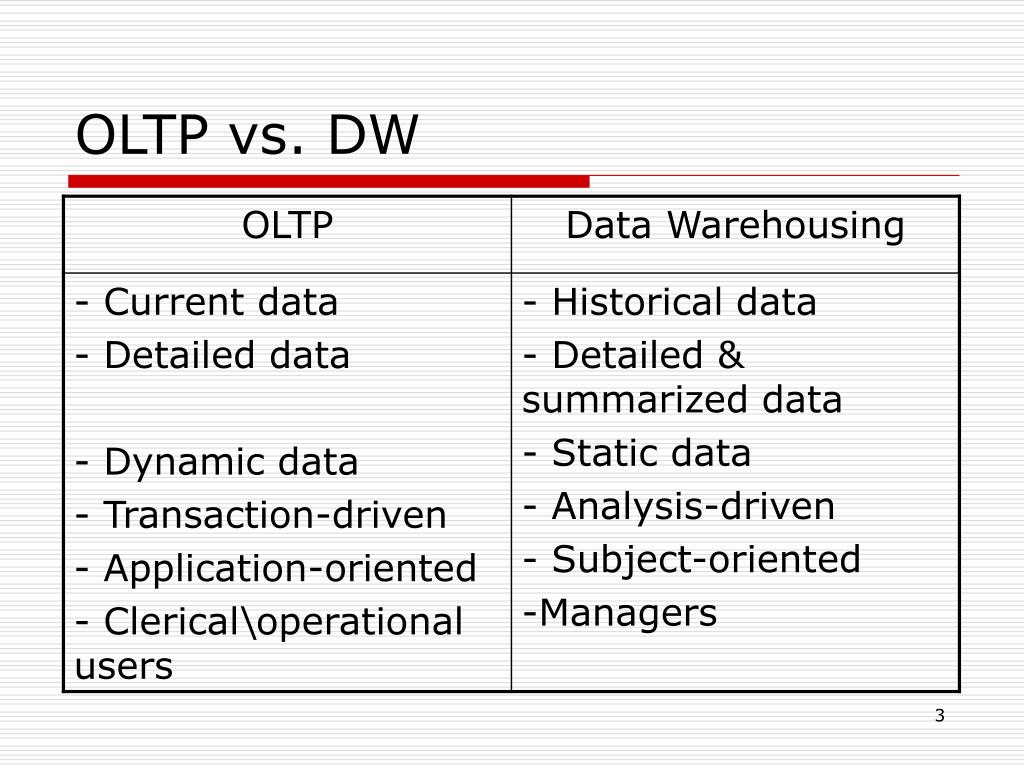

  3. OLTP vs. DW

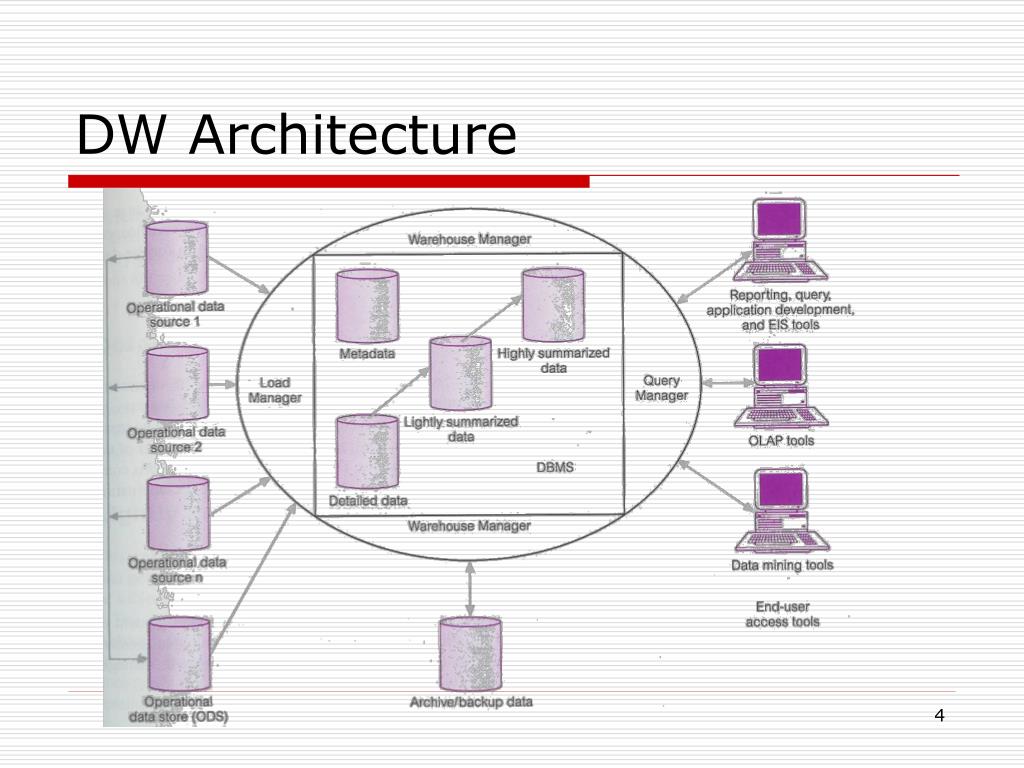

  4. DW Architecture

  5. Data Warehousing Design • DW Design depends on the questions that managers impose on a DW. • The data itself gets • Extracted from OLTP systems. • Cleaned to get rid of redundancy and missing values. • Stored in a warehouse. • In step 3, we design the DW.

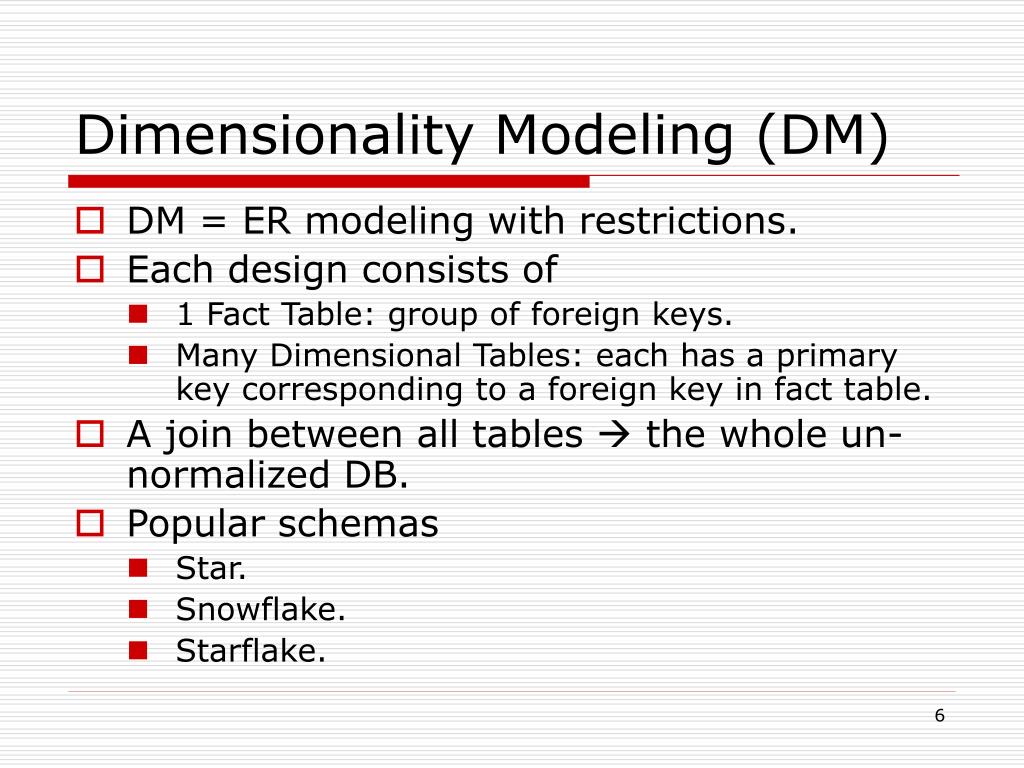

  6. Dimensionality Modeling (DM) • DM = ER modeling with restrictions. • Each design consists of • 1 Fact Table: group of foreign keys. • Many Dimensional Tables: each has a primary key corresponding to a foreign key in fact table. • A join between all tables  the whole un-normalized DB. • Popular schemas • Star. • Snowflake. • Starflake.

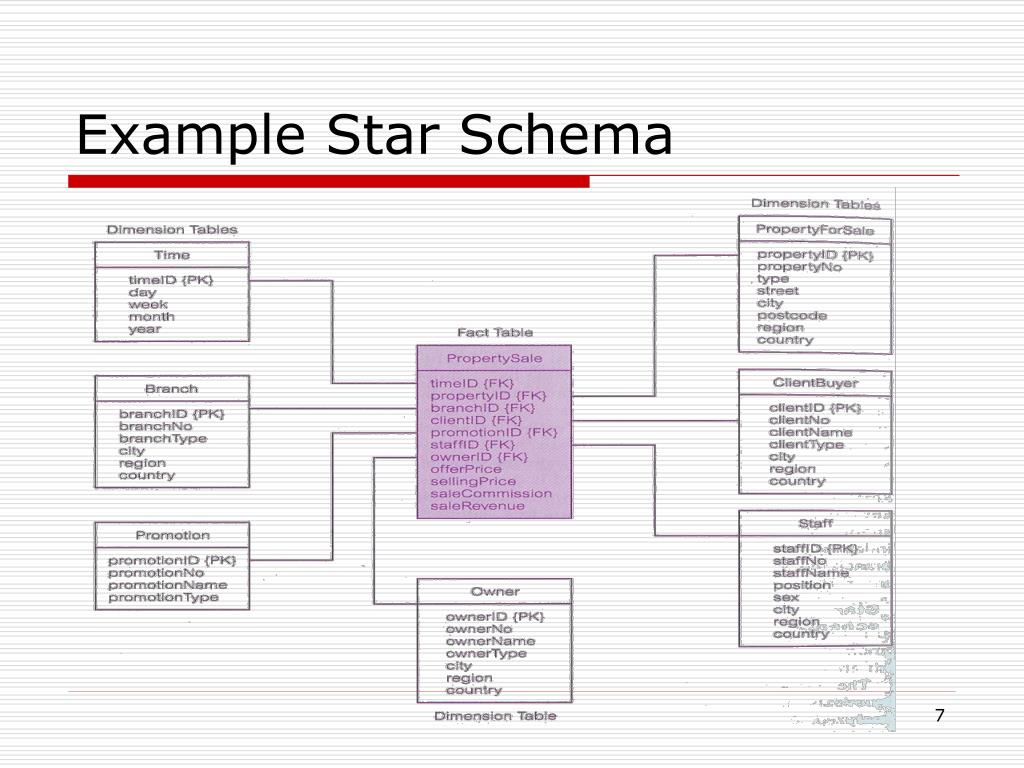

  7. Example Star Schema

  8. DW Design Methodology • Choosing the process. • Choosing the grain. • Identifying the dimensions. • Choosing the facts. • Storing pre-calculations. • Rounding-out the dimension tables. • Choosing the duration of the DB. • Tracking slowly changing dimensions. • Deciding query priorities and modes.
