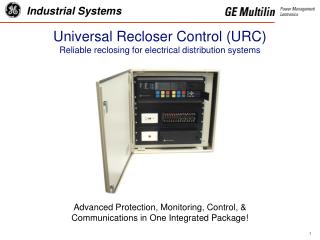

Universal Recloser Control (URC)Reliable reclosing for electrical distribution systems

Advanced Protection, Monitoring, Control, & Communications in One Integrated Package!


Contents l.jpg
Contents

  • Communications

  • Wiring Options

  • Recloser Models

  • Specifications

  • Advantage GE

  • How To Order

  • URC Applications

  • Mounting Options

  • Front Panel Layout

  • Benefits of URC

  • Key Features

  • URPC Software Features

To return to this slide, click here


Urc applications l.jpg
URC Applications

  • The URC is suitable for new applications, or as a retrofit of existing recloser controls including:

    • For Kyle®/Cooper Form 3, 3A, 4, 4A, 4C, FXA, and FXB

    • Medium and low voltage systems

    • Coordination with substation feeders using traditional recloser curve coordinate or UCA GOOSE messaging

A versatile and flexible solution for any application


Slide4 l.jpg

URC Applications

The URC is suitable for controlling both pole mounted and substation (ground) reclosers, including multiple reclosers:

Pole Mount Recloser

Substation Recloser


Convenient mounting hardware l.jpg

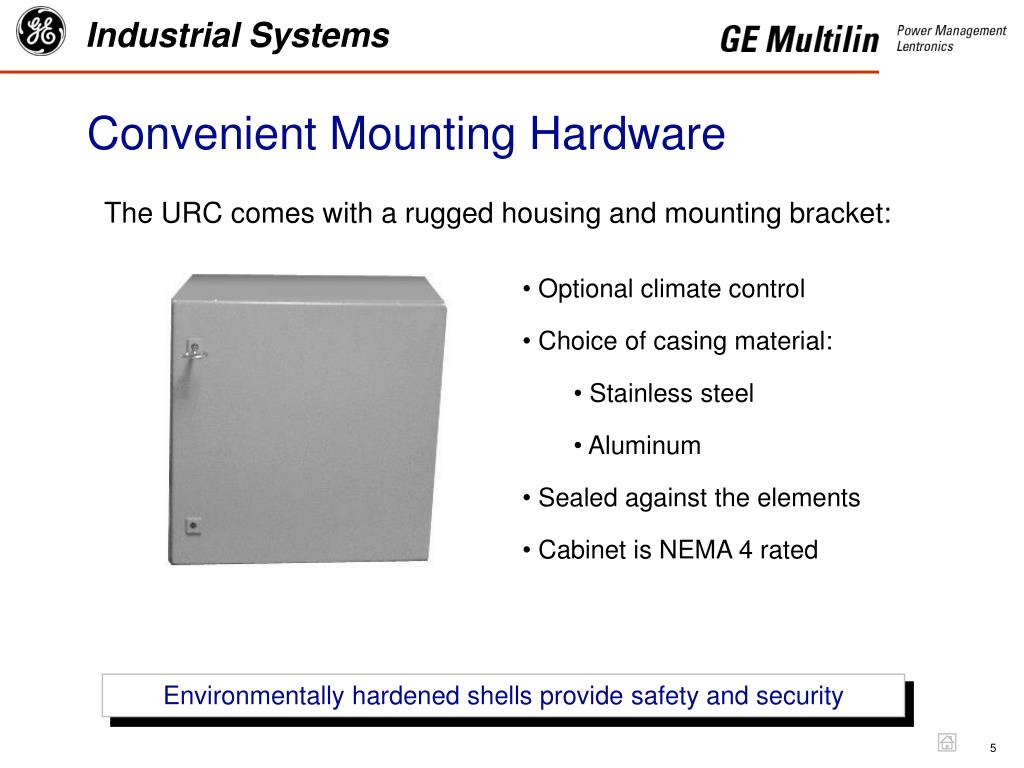

Convenient Mounting Hardware

The URC comes with a rugged housing and mounting bracket:

  • Optional climate control

  • Choice of casing material:

    • Stainless steel

    • Aluminum

  • Sealed against the elements

  • Cabinet is NEMA 4 rated

Environmentally hardened shells provide safety and security


Urc front panel features l.jpg
URC Front Panel Features

Programmable LED indicators

Large 2 line backlit LCD display & keypad

Target Reset

LED indicators

User-programmable pushbuttons

(Trip, Close, Block 79, Block Gnd OC, HLT, Local/Remote, etc.)

Front RS232 PC interface

Front mounted 120 Volt AC power supply

Front-mounted test panels with covers (optional)

RJ45 Ethernet Port for PC interface (optional)


Benefits of the urc l.jpg

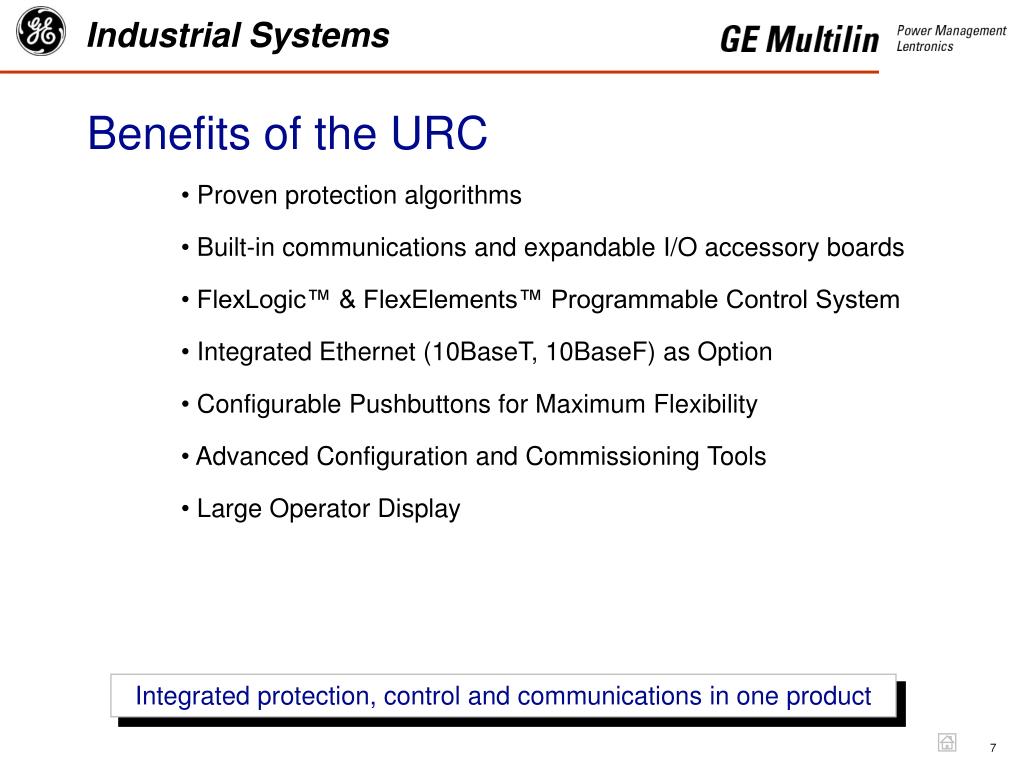

Benefits of the URC

  • Proven protection algorithms

  • Built-in communications and expandable I/O accessory boards

  • FlexLogic™ & FlexElements™ Programmable Control System

  • Integrated Ethernet (10BaseT, 10BaseF) as Option

  • Configurable Pushbuttons for Maximum Flexibility

  • Advanced Configuration and Commissioning Tools

  • Large Operator Display

Integrated protection, control and communications in one product


Key features l.jpg
Key Features

  • Protection

    • Standard time curves including IEEE, IEC, GE IAC, I2t, definite time, plus 4 user programmable with selection of 41 Cooper Type Curves

    • Optional Hi-Z fault detection

    • Phase, neutral, ground or sensitive ground and negative sequence IOC/TOC

    • Breaker failure

    • Multiple setting groups

  • Control

    • Programmable four-shot autoreclosing with programmable sequence coordination

    • Programmable logic system (FlexLogic™) including gates, latches, timers, counters and digital elements

  • Metering

    • A, V, Watt, Var, PF, Demand metering

  • 12 User Programmable Pushbuttons

    • Trip, Close, HLT, Block 79, Block Gnd OC, Local/Remote,etc.


Slide9 l.jpg

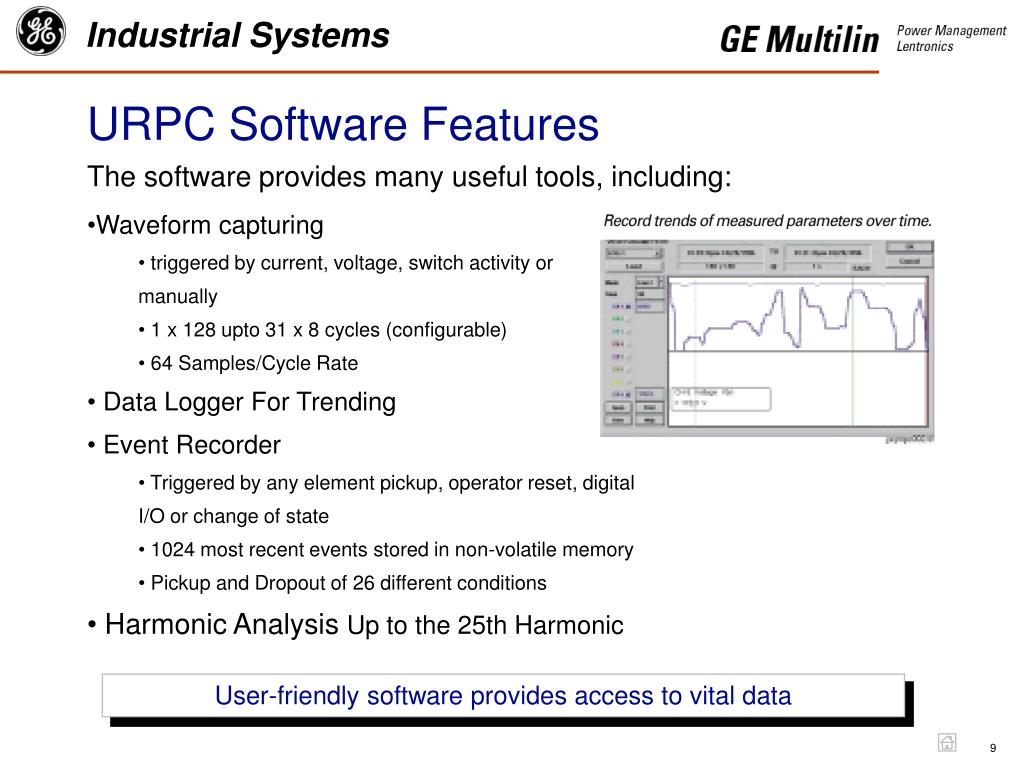

URPC Software Features

The software provides many useful tools, including:

  • Waveform capturing

    • triggered by current, voltage, switch activity or manually

    • 1 x 128 upto 31 x 8 cycles (configurable)

    • 64 Samples/Cycle Rate

  • Data Logger For Trending

  • Event Recorder

    • Triggered by any element pickup, operator reset, digital I/O or change of state

    • 1024 most recent events stored in non-volatile memory

    • Pickup and Dropout of 26 different conditions

  • Harmonic Analysis Up to the 25th Harmonic

User-friendly software provides access to vital data


Slide10 l.jpg

Communications

The URC’s open communications protocol and multiple ports facilitate system integration:

  • RS485 port supports ModBus RTU

  • MMS/UCA2, ModBus TCP/IP, and DNP 3.0 on 10BaseF options

  • Simultaneous communication to PLC/RTU and PC

  • Front RS232 and optional RJ45 Ethernet ports provide local PC connection for maintenance, reporting and monitoring by personnel

Designed for seamless integration to minimize installation time and costs


Slide11 l.jpg

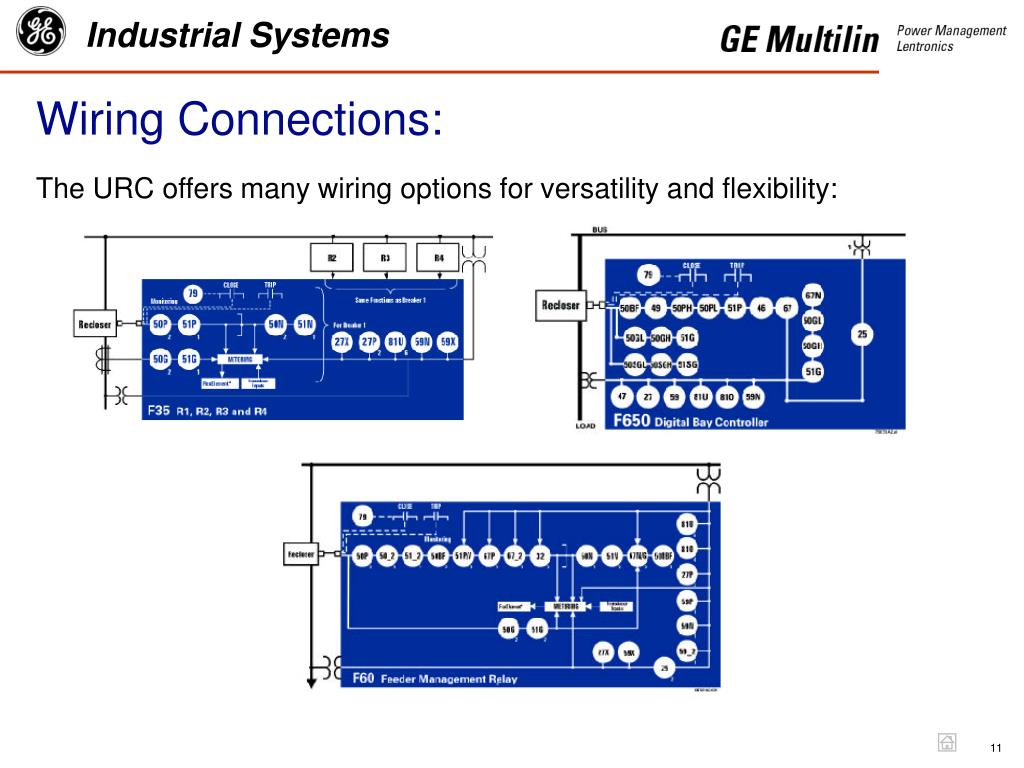

Wiring Connections:

The URC offers many wiring options for versatility and flexibility:



Specifications l.jpg
Specifications

  • Dimensions H=600mm (24") x W=600mm (24") x D=350mm (14")

  • Weight 28.4kg (62.6lbs) w/batteries approx. 36kg (80 lbs)

  • Enclosure – NEMA4

  • Operating temperature: -40 to +85 C (For 16 hours)

  • Approvals – UL & CSA Certified, CE Compliant

  • ANSI Device Functions – 25, 27P, 27X, 32, 50DD, 50BF, 50P, 50G, 50N, 50_2, 51P, 51G, 51N, 51_2, 59N, 59P,59X, 59_2, 67P, 67N,67_2, 79, 81U, 81O


Advantage ge l.jpg

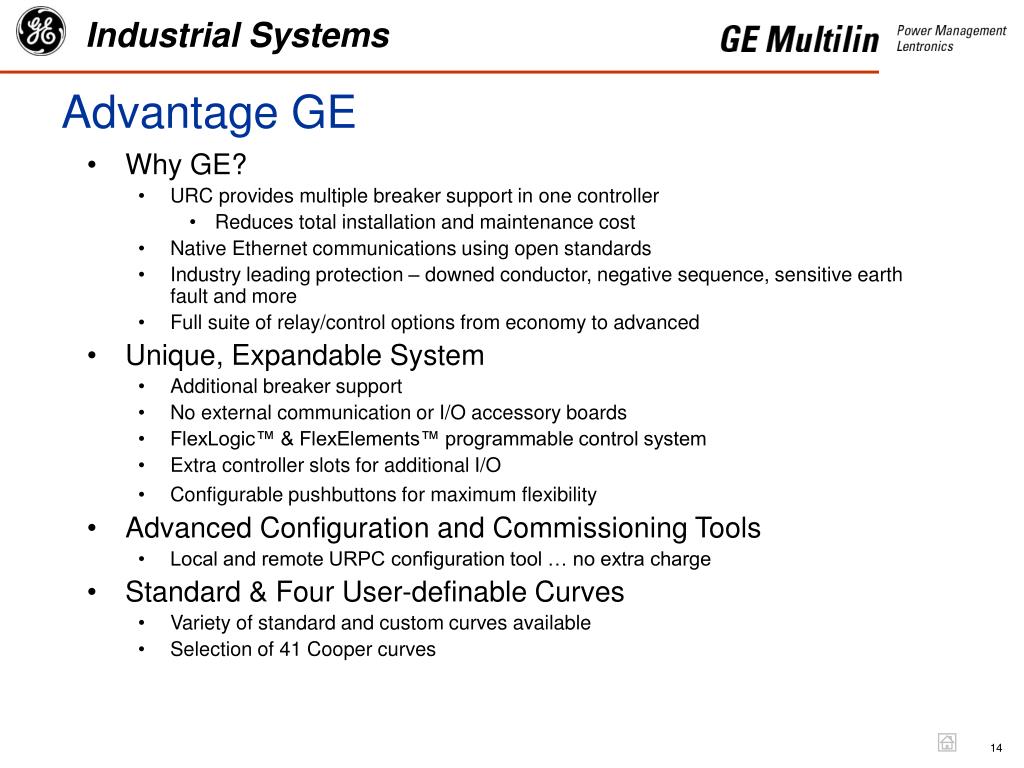

Advantage GE

  • Why GE?

    • URC provides multiple breaker support in one controller

      • Reduces total installation and maintenance cost

    • Native Ethernet communications using open standards

    • Industry leading protection – downed conductor, negative sequence, sensitive earth fault and more

    • Full suite of relay/control options from economy to advanced

  • Unique, Expandable System

    • Additional breaker support

    • No external communication or I/O accessory boards

    • FlexLogic™ & FlexElements™ programmable control system

    • Extra controller slots for additional I/O

    • Configurable pushbuttons for maximum flexibility

  • Advanced Configuration and Commissioning Tools

    • Local and remote URPC configuration tool … no extra charge

  • Standard & Four User-definable Curves

    • Variety of standard and custom curves available

    • Selection of 41 Cooper curves


Ordering information l.jpg
Ordering Information

To order the URC, call your local GE sales office, or contact:

URC Ordering Code:

GE Multilin Inc.

215 Anderson Ave.

Markham, Ontario

Canada L6E 1B3

International:

+1 905 294 6222

Europe:

+34 94 485 88 00

Email:

[email protected]

Web:

www.GEindustrial.com/multilin
