Presentation Transcript

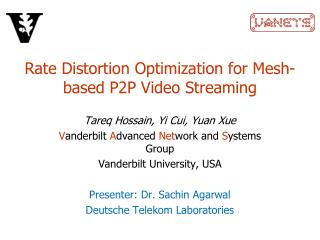

Rate distortion optimization for mesh based p2p video streaming l.jpg

Rate Distortion Optimization for Mesh-based P2P Video Streaming

Tareq Hossain, Yi Cui, Yuan Xue

Vanderbilt Advanced Network and Systems Group

Vanderbilt University, USA

Presenter: Dr. Sachin Agarwal

Deutsche Telekom Laboratories


Outline l.jpg

Outline

  • Motivation

    • Video Broadcast

    • Can P2P Help?

    • Rate Distortion for P2P Mesh

  • Rate Optimization

  • Simulation

  • Results

  • Conclusion


Motivation l.jpg

Motivation

  • Video Broadcast

    • Increasing popularity due to wide use of internet

  • Can P2P Help?

    • Cost effective resource utilization

      • CPU cycles

      • Storage space

      • Uplink bandwidth

    • Instant deployability

      • Almost ubiquitous network coverage in the absence of CDN services and IP multicast


Rate distortion for p2p mesh l.jpg

Rate Distortion for P2P Mesh

  • Mesh based P2P can fully utilize the network resources of its peers compared to a tree based network

  • We use distributed algorithm – each peer adjusts its own streaming rate to reach the global optimum by satisfying:

    • Capacity constraint

    • Relay constraint

  • Double Pricing Solution

    • Simultaneous incorporation of capacity constraint and relay constraint significantly reduces the aggregate rate distortion

  • Single Pricing Solution

    • Relay constraint is applied after rate distortion algorithm converges

  • We present rate-distortion optimization for P2P mesh network

    • Double pricing solution performs better than single pricing solution


Outline5 l.jpg

Outline

  • Motivation

  • Rate Optimization

    • Performance Evaluation

    • Problem Formulation

    • Distributed Algorithm

  • Simulation

  • Results

  • Conclusion


Performance evaluation l.jpg

Performance Evaluation

  • Video quality is measured as the Mean-Square-Error (MSE) averaged over all frames

  • PSNR is used to quantify video quality, defined by

    • D represents the overall Mean-Square-Error (MSE) averaged over all frames of an encoded video sequence

  • The distortion D as a function of streaming rate xf is given by

    • The variables (θ, x0 and D0 ) depend on encoded video sequence as well as on the percentage of intra coded macroblocks.


Problem formulation l.jpg

Problem Formulation

Rate optimization is a convex function of the allocated rate

Here f represents a flow between two peers, x is the rate vector and c is the capacity vector

A is an L x F (link, flow) matrix of links and flows such that Alf = 1 if flow f goes through link l and 0 otherwise

B is an F x F sparse matrix, where ((hk – 1)H + hi)th row is active only if there is a flow from peer hk to peer hi. Formally,


Distributed algorithm l.jpg

Distributed Algorithm

  • Each receiving peer ( ) calculates the rates of its incoming flows in a mesh

    • Network price:

    • Net relay price:

    • Source Rate update for each peer:

    • Rate is updated based on the minimum of network and net relay price available among the all incoming flows

  • Rate update for incoming flows:

  • Rate update for incoming flows with minimum network and net relay price:

link price

relay price


Outline9 l.jpg

Outline

  • Motivation

  • Rate Optimization

  • Simulation

    • Configuration

    • Input Data

    • Multicast Tree Construction

  • Results

  • Conclusion


Configuration l.jpg

Configuration

  • To determine the actual allocated rate, we choose the highest quantized rate that is immediately less than the rate achieved by our solution

  • The ITU-T test sequences used are: foreman, akiyo, hall, mother-daughter

  • The server has a fixed rate of 2Mbps

  • The maximum number of peers ~160

  • The uplink bandwidth of each peer is randomly assigned between 0.6Mbps and 2Mbps


Input data l.jpg

Input data

  • The PSNR-Rate video input data (a) and Number of peers-Time data (b):

Rate (Kbps)


Multicast mesh construction l.jpg

Multicast Mesh Construction

  • Peers join the streaming network one-by-one

    • Joining peer uses the spare capacity of existing peers to determine a suitable parent. The spare coefficient is defined as

    • Here xf(h)is the incoming flow rate of the peer h

  • Implementation

    • At the end of each rate update cycle, peers send their spare coefficient value to parents

    • The ID of the best suitable parent propagates to the server


Outline13 l.jpg

Outline

Motivation

Rate Optimization

Simulation

Results

Conclusion


Results l.jpg

Results

  • The average PSNR gain over all the videos for the double pricing solution is 1.86 dB (PSNR is 0 when all peers leave ~720s)


Results15 l.jpg

Results

  • The average gain for the double pricing solution represented in terms of rate


Conclusion l.jpg

Conclusion

We present an optimal rate allocation solution for P2P mesh network

We use non-linear optimization framework

Minimize aggregate distortion

Maximize the overall PSNR among all peers in a P2P mesh

Simultaneously apply peer relaying constraint along with capacity constraint

Double pricing solution consistently performs better than single pricing solution


Thank you l.jpg

Thank You

VANETS (Vanderbilt Advanced Network and Systems) Group

http://vanets.vuse.vanderbilt.edu

QUESTIONS?
