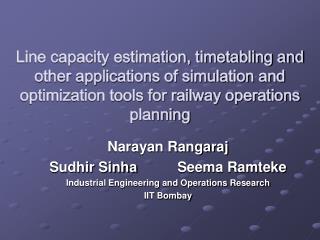

Line capacity estimation, timetabling and other applications of simulation and optimization tools for railway operations planning

Narayan Rangaraj

Sudhir Sinha Seema Ramteke

Industrial Engineering and Operations Research

IIT Bombay


Overview of planning l.jpg
Overview of planning of simulation and optimization tools for railway operations planning

  • Strategic problems

    • Capacity planning (infrastructure)

  • Tactical problems

    • Timetabling

    • Fleet planning

    • Crew scheduling

  • Operational problems

    • Train control

    • Dynamic scheduling

    • Dynamic pricing (revenue management)


Strategic decisions railways l.jpg
Strategic decisions (railways) of simulation and optimization tools for railway operations planning

  • Current railway framework

    • LRDSS (Railway Board), Railplan (MRVN), etc.

  • Our work

    • Definition of capacity on railway section

    • Capturing congestion effects and broad scheduling strategies

    • Medium term capacity investments in signalling

    • Trade off between throughput (number of trains) handled and transit time (average)


Strategic decisions railways4 l.jpg
Strategic decisions (railways) of simulation and optimization tools for railway operations planning

  • Robust capacity: capacity in the presence of failure

    • Signaling failures modeled and impact on train running quantified

  • Simulation used as a tool for analysis

    • Line capacity studies done in Secunderabad-Kazipet section as part of tool development for IRISET, Secunderabad

    • Virar-Dahanu Road section as a test section for automatic signaling on main line sections

    • Extensive studies on Central Railway main line and harbour line sections on the suburban network in Mumbai


Railways capacity analysis l.jpg
Railways (capacity analysis) of simulation and optimization tools for railway operations planning

  • Simulation for line capacity analysis

    • Reliability vs. capacity

      Studies on the suburban network for a given corridor

      Quantify the trade-off between achievable headway and service measures (such as punctuality and average delays suffered by trains) under a given pattern of failure


Railways capacity analysis6 l.jpg
Railways (capacity analysis) of simulation and optimization tools for railway operations planning

  • Terminal capacity

    • Capability of handling trains at terminals

    • Routing possibilities

    • Look-ahead period and a routing algorithm applied on an appropriate time-space network

    • Representation of network from primitive structures identified

      In the suburban case, trade off established between achievable headway and turnaround time at platforms (e.g. in Mumbai CST station, shown that a headway of 3 minutes achievable for an identified stream of trains, provided that the turnaround time was less than about 4 mins and 20 secs.


Tactical decisions railways l.jpg
Tactical decisions (Railways) of simulation and optimization tools for railway operations planning

  • Timetabling

    • Master chart preparation tool for railway planning

      Java based graphical tool with cyclical schedule generation

    • Mini-scheduler for conflict checking and minor timetabling changes

      Java based tool with interface-based verification of conflicts and suggesting first feasible times for activities. Simple algorithms for backward scheduling and combined constraint satisfaction

    • Scheduler for full-scale timetabling

      Based on constraint satisfaction tool CHIP

      Capable of full-scale timetable generation


Tactical decisions railways8 l.jpg
Tactical decisions (Railways) of simulation and optimization tools for railway operations planning

  • Rake linking

    • Long distance trains

      Coaching stock utilisation (integrated with maintenance schedules at terminals)

      Timetables as an input

    • Suburban trains

      Integrated with timetables

      Maintenance schedules as an input


Tactical decisions railways9 l.jpg
Tactical decisions (Railways) of simulation and optimization tools for railway operations planning

  • Long distance rake linking

    • DSS which allows views of a common database of

      • Timetable - origin/destination and timings

      • Terminal maintenance line charts (pit lines and washing lines - also considering constraints on line length and time for maintenance)

      • Rake link table (constraints on length of run between two maintenance points and rake compatibility)

    • Typical patterns of rake linking (self linking, interchange of day trains)

    • Trains introduced to take advantage of rake link possibilities

    • Terminals changed to accommodate rake links


Tactical decisions railways10 l.jpg
Tactical decisions (Railways) of simulation and optimization tools for railway operations planning

  • Suburban services rake linking

    • Rake linking of timetabled suburban services is a single/ multi-commodity flow problem

    • Model helps in

      • finding minimum number of rakes for a given schedule (big improvement NOT expected, as timetables are generated with rake links in mind)

      • capturing extent of empty running

      • generate/suggest changes in operating parameters (e.g. turnaround times for a few services) so that a rake can be saved

    • Open problem : multi-commodity problem (e.g. 9 car/12 car rakes, DC rakes/AC-DC rakes)


Other tactical decisions l.jpg
Other tactical decisions of simulation and optimization tools for railway operations planning

  • Railways: Crew scheduling

    • Initial system being developed

  • Bus system (urban): Depot allocation

    • Variants of the transportation problem in network flows

  • Bus system (urban): Crew scheduling

    • Multi-stage heuristics

      • (e.g. HASTUS) LP for the aggregate problem,

      • Variant of shortest path for individual work-piece definition from a vehicle-route

      • (non-bipartite) matching for creation of work days

    • Column generation


Marketing and pricing models l.jpg
Marketing and Pricing models of simulation and optimization tools for railway operations planning

  • Railways

    • Network based models for pricing (based on second shortest distance)

    • Marketing and service planning (Konkan Railways)

  • Containers/Trucking

    • Fleet utilization and locational imbalance based pricing model


Other studies l.jpg
Other studies of simulation and optimization tools for railway operations planning

  • Supply chain view of transport operations

  • Freight supply chains on Indian Railways

  • Containerised movement of import export commodities to and from Jawaharlal Nehru Port Trust to the hinterland


Summary of approaches l.jpg
Summary of approaches of simulation and optimization tools for railway operations planning

  • Large set of problems amenable to analysis

  • Modeling and delimiting the scope of the model calls for a lot of effort and interaction with users

  • Major O.R. techniques used were Simulation, Network Flow models and Linear Programming, in many variants


Three examples l.jpg
Three examples of simulation and optimization tools for railway operations planning

  • Simulation studies on line capacity, including an analysis of signal failures

  • A master-chart preparation tool with a scheduling option

  • Rake linking for suburban services


Faculty professional associates l.jpg
Faculty/professional associates of simulation and optimization tools for railway operations planning

  • Marketing applications/network based pricing/Inland water transport - G. Raghuram

  • Simulation based tools - A.Ranade and K. Moudgalya

  • Robust capacity – N. Hemachandra

  • Suburban rake linking, suburban timetabling, network operations and pricing - M. Sohoni

  • Containerization - N. Viswanadham

  • Railway operations – A. K. Srivastava and Vasudeva Kamath


Students and research associates l.jpg

Ashok Kumar of simulation and optimization tools for railway operations planning

B. N. Vishnu

Jugal Garg

Kapil Goswami

K. Chandrashekar

Mitali Johri

Prashant Puniya

Ravindra Gokhale

Rajesh Naik

Sadanand Kandalkar

Jai Mrug

Deepansh Malik

Sudhir Sinha

Vaishali Moharir

Mahesh Shenoy

B.C.S.Krishnamohan

J. R. Suresh

Hrishikesh Karmarkar

S. Chandran

Priya Mahadevan

V. Aneesh

Seema Ramteke

Amit Arora

Manish Garg

Students and research associates


Publications and conference presentations in this area l.jpg
Publications and conference presentations in this area of simulation and optimization tools for railway operations planning

  • N. Rangaraj and M. V. Kamath, "Dynamic operational policies for the Bombay suburban rail transportation system", Journal of Transport Management, vol20, no 2, 1996

  • N. Rangaraj and J. R. Suresh, "Decision support for crew scheduling in urban transport", Journal of Transport Management, vol 18, no 3, March 1994

  • N. Rangaraj, G. Raghuram and M. V. Kamath, "Are passengers on Indian Railways paying their way? Parts I and II", Railway Fare and Freight Committee (Seminars and studies), Ministry of Railways, Govt of India,1993

  • Vishnu Narayanan and Narayan Rangaraj, "A network-based representation of track layouts in railway stations", submitted to Transportation Research, Series B

  • Narayan Rangaraj, Milind Sohoni, Prashant Puniya and Jugal Garg ,"Rake Linking for Suburban Train Services", submitted to Opsearch

  • Narayan Rangaraj, "An analysis of cyclic timetables for suburban railway services", submitted to Abhivyakti


Publications and conference presentations in this area19 l.jpg
Publications and conference presentations in this area of simulation and optimization tools for railway operations planning

  • N.Rangaraj, A.Ranade, Moudgalya, C.Konda, M.Johri and R.Naik "Simulator for Line Capacity Planning" Sixth Asia Pacific Operations Research Society, Delhi, December 2003

  • N. Rangaraj and N. Viswanadham, "An example of a supply chain involving multimodal containerised transport", National Conference on Transportation Systems, Delhi, 2002

  • N. Rangaraj and A. K. Srivastava, "Some IT imperatives for Indian Railways in a supply chain management environment", National Connectivity Vision: Surface Transportation and Communication, Indian National Academy of Engineering, Hyderabad, 2001

  • N. Rangaraj and A. K. Srivastava, "Network capacity planning and operational control in Indian Railways", National Connectivity Vision: Surface Transportation and Communication, Indian National Academy of Engineering, Hyderabad, 2001

  • G. Raghuram, N.Rangaraj and M. V. Kamath, "Network based pricing for passenger services on Indian Railways", Refereed Proceedings of the National Conference on Transportation Systems and Studies, and Railway Fare and Freight Committee (Seminars and studies), Ministry of Railways, Govt of India, 1993


Publications and conference presentations in this area20 l.jpg
Publications and conference presentations in this area of simulation and optimization tools for railway operations planning

  • N. Rangaraj,"Quantitative models for capacity planning in transport systems, ORSI Annual Convention, Ahmedabad, 2000

  • N. Rangaraj, M. Shenoy and M. V. Kamath, "Application of Constraint Logic Programming to Commuter Train Timetabling", presented at the Australian Workshop on Constraints, held in conjunction with the Australian Joint Conference on Artificial Intelligence, Griffith University, Brisbane,Australia, 1998

  • N. Rangaraj, "Timetabling strategies for suburban railway operations", at IT Tracks for IR (seminar organised jointly by IIT Bombay and Tata Unisys Ltd), April 1996

  • N. Rangaraj and B. C. S. Krishnamohan, A systematic and quantitative view of capacity estimation and enhancement of the Indian Railway network", ORSI Annual Convention, Bhubhaneswar, 1993

  • N. Rangaraj and J. R. Suresh, "Crew Scheduling for urban bus operations", ORSI Annual Convention, Ahmedabad, 1992

  • Narayan Rangaraj , "An analysis of Operations, Mode Choice, Pricing and Network Economics of Container Movement", International Workshop on IT-Enabled Manufacturing, Logistics and Supply Chain Management held in Bangalore during December 15-16, 2003


Publications and conference presentations in this area21 l.jpg
Publications and conference presentations in this area of simulation and optimization tools for railway operations planning

  • N. Rangaraj and B. N. Vishnu, "Node capacity and terminal management on Indian Railways", Vision 2025, Railway Staff College, Vadodara, 2002

  • N. Rangaraj and M. Sohoni,"Meeting transport demands on a network: costs of loaded and empty movements and of waiting", Industrial Engineering and Operations Research, IIT Bombay (2001), also technical report at The Logistics Institute - Asia Pacific, National University of Singapore

  • N. Rangaraj and N.Viswanadham, "Multimodal containerised transport for export and import through Western India - a supply chain perspective", Industrial Engineering and Operations Research, IIT Bombay, 2001, also technical report at The Logistics Institute - Asia Pacific, National University of Singapore

  • N. Rangaraj,"A note on section scheduling", Industrial Engineering and Operations Research, IIT Bombay, 1997

  • N. Rangaraj and J. Mrug, "A decision support system for rake linking and related operational decisions", Industrial Engineering and Operations Research, IIT Bombay, 1997


Publications and conference presentations in this area22 l.jpg
Publications and conference presentations in this area of simulation and optimization tools for railway operations planning

  • N. Rangaraj and M. V. Kamath, "Demand-sensitive schedule generation for an urban mass transportation system", Industrial Engineering and Operations Research, IIT Bombay, 1995

  • Konkan Railway Corporation Limited [with B. Banerjee and G. Raghuram],Vikalpa v. 25, no. 1 (2000).

  • Narayan Rangaraj, Sudhir Sinha, Ravindra Gokhale and Sadanand Kandalkar, Capacity Enhancement of the Mumbai Suburban Railway System through Signaling Improvements: A Simulation Based Approach, Manuscript in preparation

  • Ravindra Gokhale, Narayan Rangaraj and N. Hemachandra, Railway Line Capacity Evaluation under Influence of Signal Failures, using a Simulation Based Approach, Manuscript in preparation
