instructor nachiket m kharalkar lecture 10 date 06 22 2007 e mail knachike@ece utexas edu

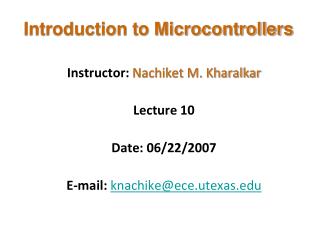

Introduction to Microcontrollers

Instructor: Nachiket M. Kharalkar

Lecture 10

Date: 06/22/2007

E-mail: [email protected]

today s agenda
Today’s Agenda
  • Exam 1 = June 25th
  • Review Exam 1
  • Finite state machine
  • Lab 3: Traffic light controller

Nachiket M. Kharalkar

definitions
Definitions

volatile, nonvolatile, RAM, ROM, port

basis, nibble, precision, decimal digits (see table in next slide)

overflow, ceiling and floor, drop out,

bus, address bus, data bus,

memory-mapped, I/O mapped

bus cycle, read cycle, write cycle,

IR, EAR, BIU, CU, ALU, registers,

reset vector

Nachiket M. Kharalkar

few basic things to memorize
Few basic things to memorize
  • 22 = 4
  • 23 = 8
  • 24 = 16
  • 25 = 32
  • 26 = 64
  • 27 = 128
  • 28 = 256
  • 29 = 512
  • 210 = 1024 ≈ 103
  • 211 = 2048
  • 212 = 4096
  • 213 = 8192
  • 214 = 16384
  • 215 = 32768
  • 216 = 65536
  • 162 = 256
  • 163 = 4096
  • 164 = 65536

Nachiket M. Kharalkar

number conversions 8 bit fill in the blank
Number conversions, 8-bit (fill in the blank)
  • convert one format to another without a calculator

signed decimal e.g., -56

unsigned decimal e.g., 200

binary e.g., %11001000

hexadecimal e.g., $C8

  • I won’t ask you to convert signed binary or signed hex:

signed binary e.g., -%00101111

signed hexadecimal e.g., -$2F

Nachiket M. Kharalkar

details of executing single instructions
Details of executing single instructions
  • 8-bit addition, subtraction yielding result, N, Z, V, C (like HW1)
  • simplified cycle by cycle execution
  • assembly listing to execution cycles (Lab 2) for example for indexed mode addresses,

ldaa 4,x

ldaa 40,x

ldaa -4,x

ldaa -40,x

ldaa $400,x

ldaa 4,+x

ldaa 4,-x

ldaa 4,x+

ldaa 4,x-

  • calculate effective address
  • go from assembly to machine code xb
  • go from machine code xb to assembly
  • simple multiply and divide (mul idiv fdiv)

Nachiket M. Kharalkar

simple programs look at assembly code in chap 1 2 3
Simple programs (look at assembly code in Chap 1,2,3)
  • set reset vector
  • specify an I/O pin is an input
  • specify an I/O pin is an output
  • clear an I/O output pin to zero
  • set an I/O output pin to one
  • toggle an I/O output pin
  • check if an I/O input pin is high or low
  • e.g., if PA4 is low then make PB2 high
  • 8-bit operations
  • add, sub, shift left, shift right, and, or, exor
  • simple if-then like examples in Chapter 3
  • simple while-loop like examples in Chapter 3

Nachiket M. Kharalkar

slide9
it is important to know
    • precision (e.g., 8-bit, 16-bit)
    • format (e.g., unsigned, signed)
  • unsigned, bhi blo bhs and bls
  • signed, bgt blt bge and ble
  • It takes three steps
    • read the first value into a register
    • compare the first value with the second value
    • conditional branch

Nachiket M. Kharalkar

16 bit timer
16-bit timer

6812 timer ports.

Nachiket M. Kharalkar

fixed time delay software using the built in timer
Fixed time delay software using the built-in timer

****Timer_Init**********

* Initialize Timer

* Input: none

* Outputs: none

* error: none

Timer_Init

movb #$80,TSCR1 ;enable TCNT

movb #$00,TSCR2 ;divide by 1

rts

****Timer_Wait**********

* Time delay function

* Input: RegD time to wait (125ns cycles)

* Outputs: none

* error: input must be less than 32767

Timer_Wait

adddTCNT TCNT at end of delay

WloopcpdTCNT is EndT<TCNT

bplWloop

rts

Nachiket M. Kharalkar

example
Example

assume TCNT = 31 (can be any value),

Reg D = 4000 (means 1ms, in 250-ns units)

the addd will make RegD = 4031 (remains fixed for the rest of the subroutine)

Run square.rtf, with a ScanPoint on Wloop

RegD-TCNT

CCR=sXhInzvc RegD=4031 TCNT=34 3997

CCR=sXhInzvc RegD=4031 TCNT=40 3991

CCR=sXhInzvc RegD=4031 TCNT=46 3985

CCR=sXhInzvc RegD=4031 TCNT=52 3979

CCR=sXhInzvc RegD=4031 TCNT=4000 31

CCR=sXhInzvc RegD=4031 TCNT=4006 25

CCR=sXhInzvc RegD=4031 TCNT=4012 19

CCR=sXhInzvc RegD=4031 TCNT=4018 13

CCR=sXhInzvc RegD=4031 TCNT=4024 7

CCR=sXhInzvc RegD=4031 TCNT=4030 1

CCR=sXhINzvC RegD=4031 TCNT=4036 -5

Nachiket M. Kharalkar

slide14
;************ Timer_Wait10ms***************

; time delay

; inputs: RegY is the number of 10ms to wait

; outputs: none

; errors: RegY=0 will wait 655.36 sec

; CYCLES10MS = 315 ;Run mode in real 9S12C32 10000us/32us, if TCNT=32us

Timer_Wait10ms

ldd #CYCLES10MS

bsr Timer_Wait

dbne Y,Timer_Wait10ms

rts

Nachiket M. Kharalkar

board demo
Board Demo

http://www.ece.utexas.edu/~valvano/S12C32.htm

For more information on using the board to develop assembly programs seehttp://www.ece.utexas.edu/~valvano/EE319K/CW12asm.pdf

Nachiket M. Kharalkar

abstraction
Abstraction
  • Software abstraction
    • define a problem with a set of basic abstract principles
    • separate policies mechanisms
  • The three advantages of this abstraction are

1) it can be faster to develop

2) it is easier to debug (prove correct) and

3) it is easier to change

Nachiket M. Kharalkar

finite state machine fsm
Finite State Machine (FSM)
  • A finite state machine (FSM) or finite automaton is a model of behavior composed of states, transitions and actions.
    • inputs, outputs, states, and state transitions
    • state graph defines relationships of inputs and outputs
  • There are two types of FSM’s
    • Acceptors/Recognizers and
    • Transducers

Nachiket M. Kharalkar

acceptor fsm
Acceptor FSM
  • This kind of machine gives a binary output, saying either yes or no to answer whether the input is accepted by the machine or not.
  • All states of the FSM are said to be either accepting or not accepting.

Nachiket M. Kharalkar

http://en.wikipedia.org

transducer fsm
Transducer FSM
  • Transducers generate output based on a given input and/or a state using actions.
  • They are used for control applications.
  • It can be further classified into following two types
    • Moore FSM and
    • Mealy FSM

Nachiket M. Kharalkar

moore fsm
Moore FSM
  • Output value depends only on the current state, and inputs affect the state transitions
  • Significance is being in a state
    • input: when to change state
    • output: how to be in that state
  • The advantage of the Moore model is a simplification of the behavior.

Nachiket M. Kharalkar

moore fsm22
Moore FSM

Nachiket M. Kharalkar

mealy fsm
Mealy FSM
  • Output depends both on the current state and the inputs.
  • inputs affect the state transitions.
  • significance is the state transition
    • input: when to change state
    • output: how to change state
  • The use of a Mealy FSM leads often to a reduction of the number of states.

Nachiket M. Kharalkar

mealy fsm24
Mealy FSM

Nachiket M. Kharalkar

slide25
data structure embodies the FSM
    • multiple identically-structured nodes
    • statically-allocated fixed-size linked structures
    • one-to-one mapping FSM state graph and linked structure
    • one structure for each state
  • linked structure
    • pointer (or link) to other nodes (define next states)
  • table structure
    • indices to other nodes (define next states)

Nachiket M. Kharalkar

slide28
org $3800 variables go in RAM

StatePt rmb 2 Pointer to the current state

org $4000 Put in ROM

Out equ 0 offset for output value

* 2 bit pattern stored in the low part of an 8 bit byte

Wait equ 1 offset for time to wait

Next equ 2 offset for 4 next states

* Four 16 bit unsigned absolute addresses

Nachiket M. Kharalkar

slide29
org $3800 variables go in RAM

StatePtrmb 2 Pointer to the current state

org $4000 Put in ROM

Out equ 0 offset for output value

* 2 bit pattern stored in the low part of an 8 bit byte

Wait equ 1 offset for time to wait

Next equ 2 offset for 4 next states

InitStatefdb S1 Initial state

S1 fcb %01 Output

fcb 5 Wait Time

fdb S2,S1,S2,S3

S2 fcb %10 Output

fcb 10 Wait Time

fdb S3,S1,S2,S3

S3 fcb %11 Output

fcb 20 Wait Time

fdb S1,S1,S2,S1

org $5000 programs go in ROM

Main lds #$4000

* initializations

ldxInitState State pointer

stxStatePt

* Purpose: run the FSM

* 1. Perform output for the current state

* 2. Wait for specified amout of time

* 3. Input from the switches

* 4. Go to the next state depending on the input

* StatePt is the current state pointer

FSM ldxStatePt 1. Do output

ldabOut,x Output value for this state in bits 1,0

stab PTT

ldaaWait,x 2. Wait in this state

bsr WAIT

ldab PTM 3. Read input

andb #$03 just interested in bits 1,0

lslb 2 bytes per 16 bit address

abx add 0,2,4,6 depending on input

ldxNext,x 4. Next state depending on input

stxStatePt

bra FSM

Nachiket M. Kharalkar

slide30
To add more complexity

(e.g., put a red/red state after each yellow state),

we simply increase the size of the fsm[] structure

define the Out, Time, and Next pointers

To add more output signals

(e.g., walk light),

use more of Out field.

could increase the precision of the Out field

To add two input lines

(e.g., walk button),

increase the size of Next[8].

size = 2**(number of inputs)

Nachiket M. Kharalkar

lab 3 traffic light controller
Lab 3: Traffic Light controller

Nachiket M. Kharalkar

slide32
/* Port C bits 1,0 are sensor inputs,

Port B bits 5-0 are LED outputs */

const struct State {

unsigned char Out; //Output to Port B

unsigned short Time; //sec to wait

const struct State *Next[4];}; // Next if input=00,01,10,11*/

typedef const struct State StateType;

#define goN &fsm[0]

#define waitN &fsm[1]

#define goE &fsm[2]

#define waitE &fsm[3]

StateType fsm[4]={

{0x21,30,{goN,waitN,goN,waitN}}, // goN

{0x22, 5,{goE,goE,goE,goE}}, // waitN

{0x0C,30,{goE,goE,waitE,waitE}}, // goE

{0x14, 5,{goN,goN,goN,goN}}}; // waitE

StateType *Pt; // Current State

void main(void){

unsigned char Input;

DDRB = 0xFF; // outputs to traffic light

DDRC = 0xFC; // PC1 car on north

Pt = goN; // PC0 car on east

while(1){

PORTB = Pt->Out; // Perform output

Wait1sec(Pt->Time); // Time to wait

Input = PORTC&0x03; // 00,01,10,11

Pt = Pt->Next[Input]; // next

}

}

Nachiket M. Kharalkar
