Persistent state service

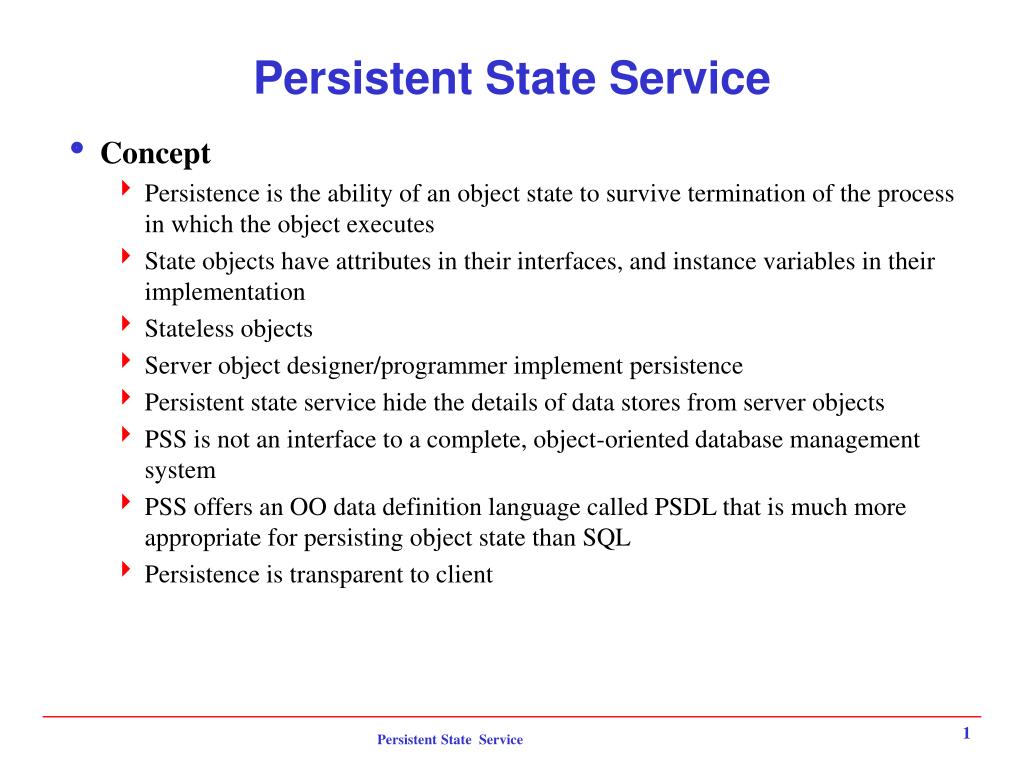

Persistent State Service

  • Concept

    • Persistence is the ability of an object state to survive termination of the process in which the object executes

    • State objects have attributes in their interfaces, and instance variables in their implementation

    • Stateless objects

    • Server object designer/programmer implement persistence

    • Persistent state service hide the details of data stores from server objects

    • PSS is not an interface to a complete, object-oriented database management system

    • PSS offers an OO data definition language called PSDL that is much more appropriate for persisting object state than SQL

    • Persistence is transparent to client

Persistent State Service


Persistent state service1

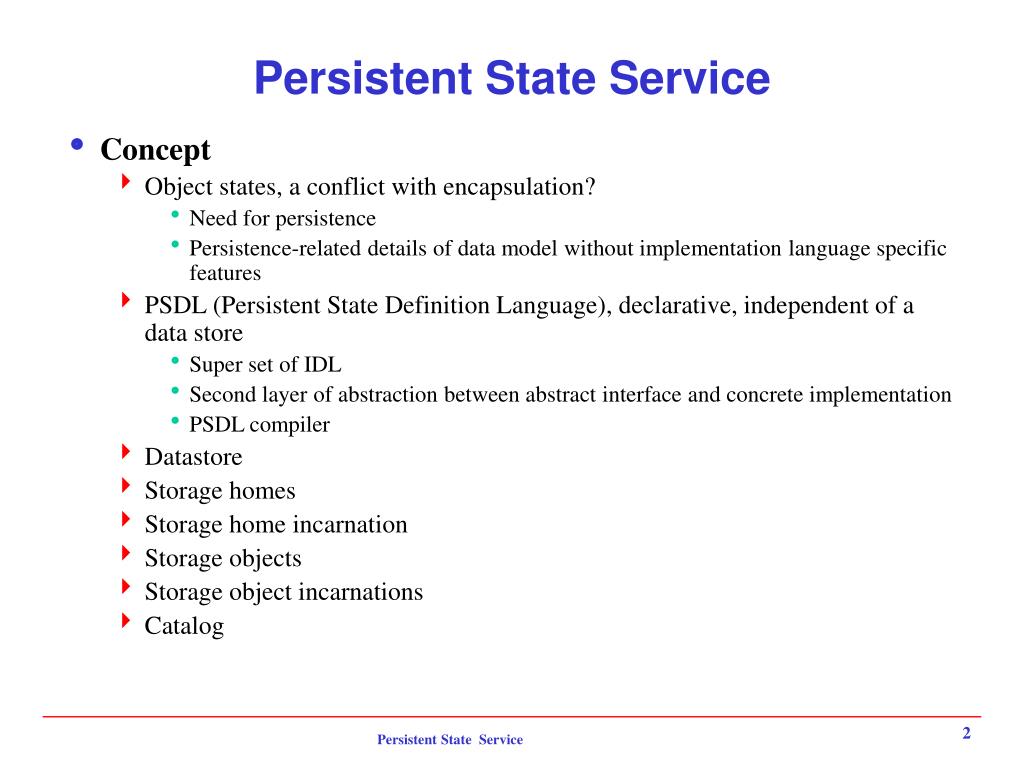

Persistent State Service

  • Concept

    • Object states, a conflict with encapsulation?

      • Need for persistence

      • Persistence-related details of data model without implementation language specific features

    • PSDL (Persistent State Definition Language), declarative, independent of a data store

      • Super set of IDL

      • Second layer of abstraction between abstract interface and concrete implementation

      • PSDL compiler

    • Datastore

    • Storage homes

    • Storage home incarnation

    • Storage objects

    • Storage object incarnations

    • Catalog

Persistent State Service


Persistent state service2

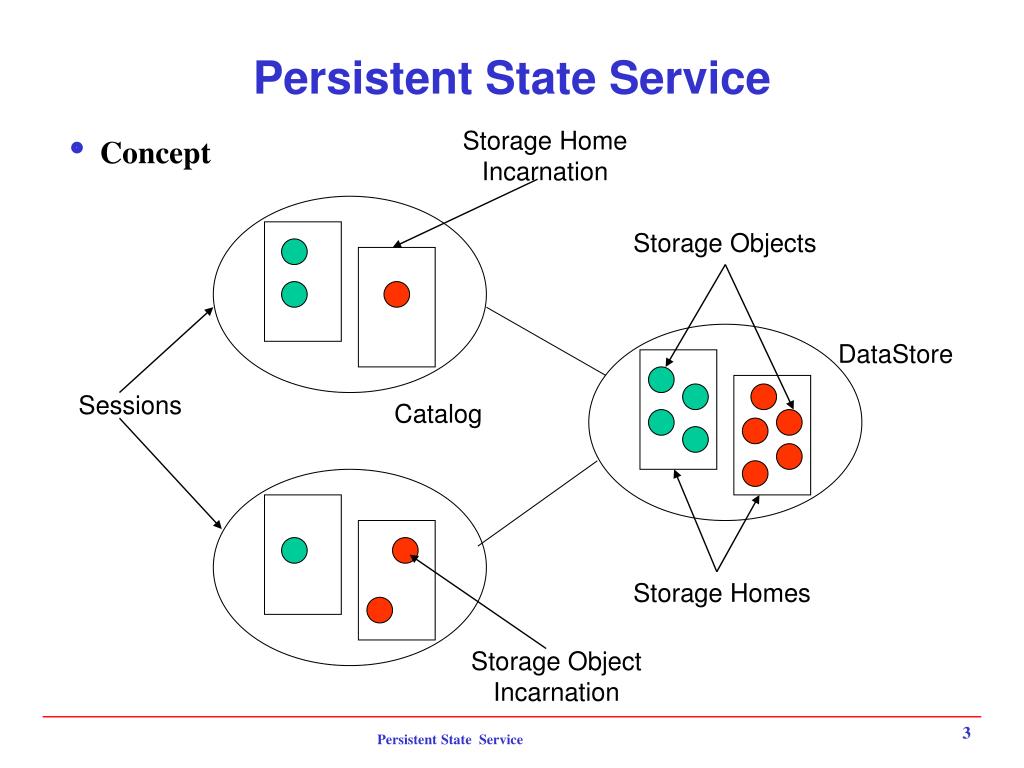

Persistent State Service

Storage Home

Incarnation

  • Concept

Storage Objects

DataStore

Sessions

Catalog

Storage Homes

Storage Object

Incarnation

Persistent State Service


Persistent state service3

Persistent State Service

  • Concept

    • Datastores are storage technologies that are used to achieve persistence of data.

    • Storage types define the representation of storage objects

    • Storage type specifications are interfaces to storage objects

    • A storage object incarnation is a programming language representation of a storage object

    • A storage home manages the life cycle of types of storage objects. Its interfaces defined in a storage home specification

    • Storage home incarnations are programming language representations of storage homes.

    • A key is an attribute of a storage object that uniquely identifies the storage object within its storage home.

    • A session is a logical connection between a datastore and a process that executes a server object

Persistent State Service


Storage objects

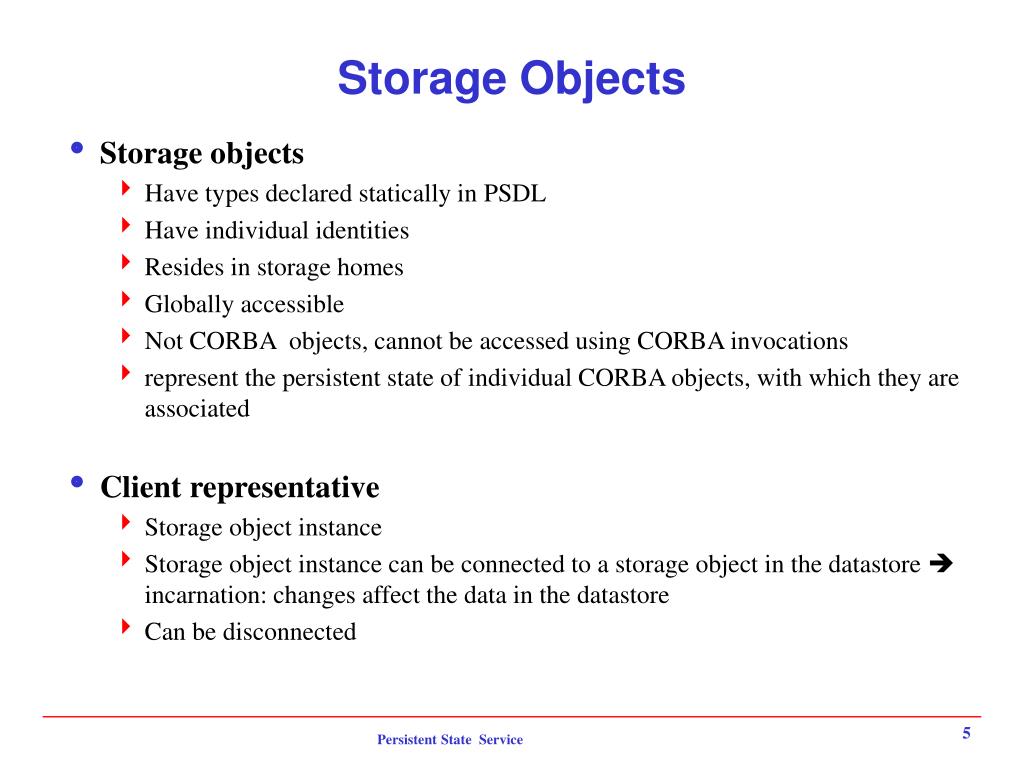

Storage Objects

  • Storage objects

    • Have types declared statically in PSDL

    • Have individual identities

    • Resides in storage homes

    • Globally accessible

    • Not CORBA objects, cannot be accessed using CORBA invocations

    • represent the persistent state of individual CORBA objects, with which they are associated

  • Client representative

    • Storage object instance

    • Storage object instance can be connected to a storage object in the datastore  incarnation: changes affect the data in the datastore

    • Can be disconnected

Persistent State Service


Storage homes

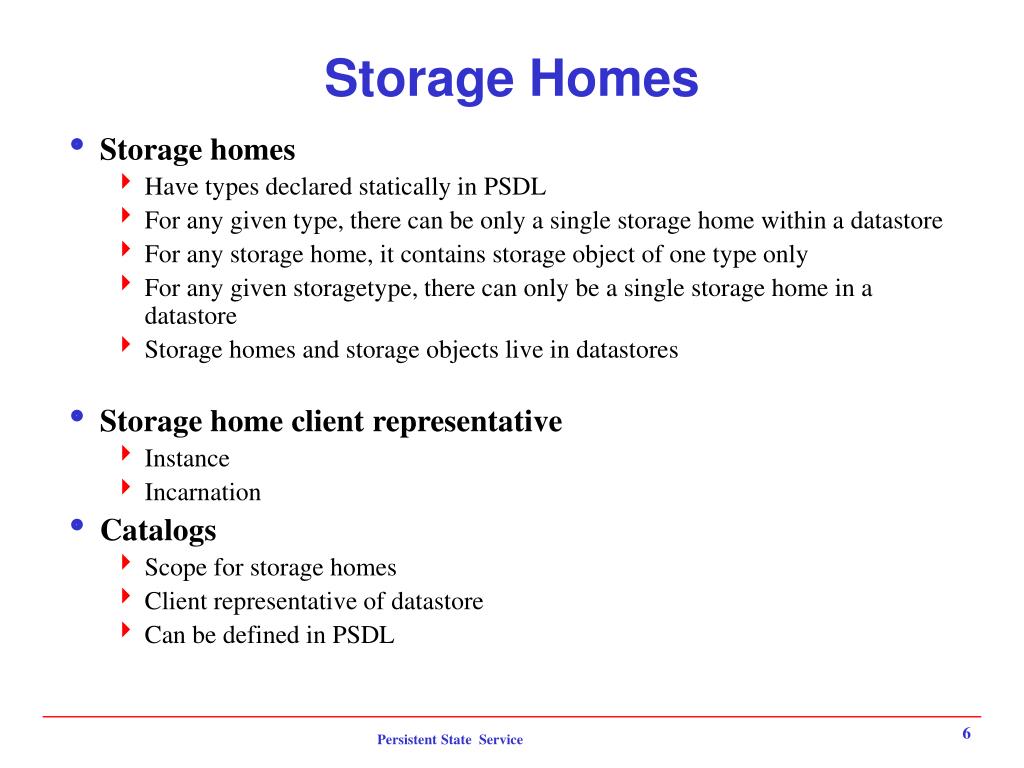

Storage Homes

  • Storage homes

    • Have types declared statically in PSDL

    • For any given type, there can be only a single storage home within a datastore

    • For any storage home, it contains storage object of one type only

    • For any given storagetype, there can only be a single storage home in a datastore

    • Storage homes and storage objects live in datastores

  • Storage home client representative

    • Instance

    • Incarnation

  • Catalogs

    • Scope for storage homes

    • Client representative of datastore

    • Can be defined in PSDL

Persistent State Service


Persistent state service4

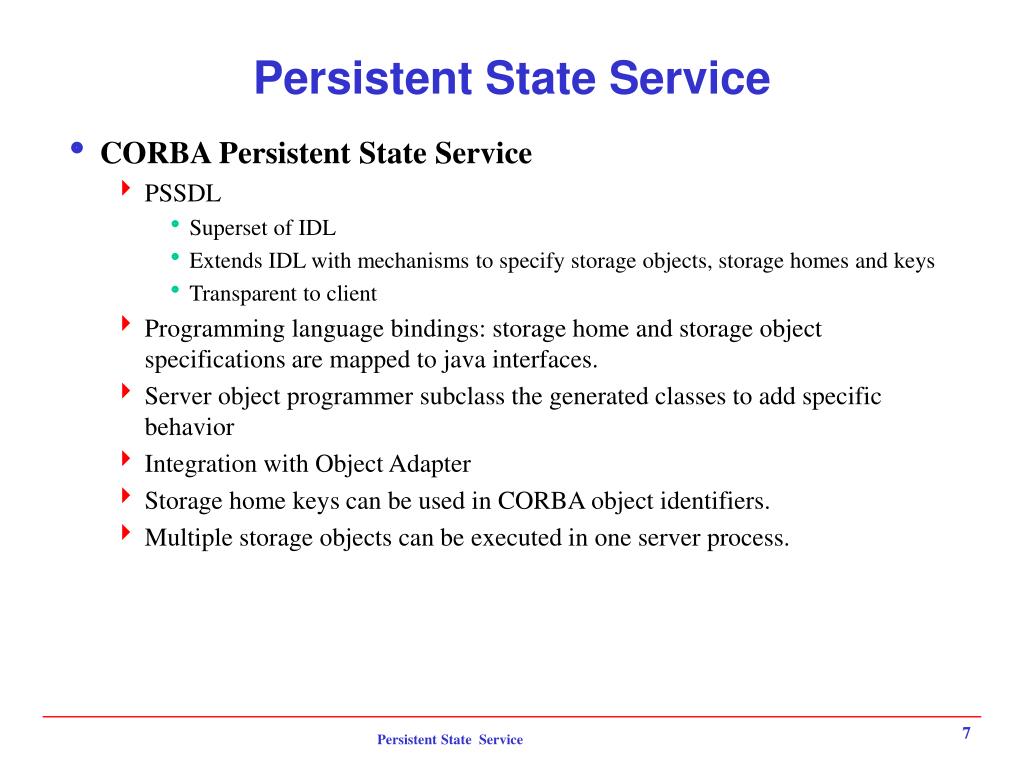

Persistent State Service

  • CORBA Persistent State Service

    • PSSDL

      • Superset of IDL

      • Extends IDL with mechanisms to specify storage objects, storage homes and keys

      • Transparent to client

    • Programming language bindings: storage home and storage object specifications are mapped to java interfaces.

    • Server object programmer subclass the generated classes to add specific behavior

    • Integration with Object Adapter

    • Storage home keys can be used in CORBA object identifiers.

    • Multiple storage objects can be executed in one server process.

Persistent State Service


Persistent state service5

Persistent State Service

  • Persistent State Service Architecture

Server Object

Implementation

Storage Object Incarnations &

Storage Home Incarnations

Connection & Session

Management API

Datastore

AP

Storage Object &

Storage Home Schema

Datastore Run-Time

Persistent State Service


Persistent state service6

Persistent State Service

  • Architecture Components and Their Interactions

    • Datastore APIs are independent of storage types

    • Session management of the persistent state service has to be integrated with the session management of the datastore

    • A schema is a type definition of information that is defined in a language specific to the datastore

    • Server object implementations are independent of schemas and thus not dependent on particular datastore technology

    • Storage object and storage home implementations are dependent on datastore technology

Persistent State Service


Persistent state service7

Persistent State Service

  • Generating Architecture Components

    • Storage object and storage home incarnations can be generated automatically

Storage Home and Storage Type

Incarnations (Prog-Lan)

PSSDL

Compiler

Storage Home and Storage Type

Specification (PSSDL)

Storage Home and Storage Type

schema

Persistent State Service


Persistent state service8

Persistent State Service

  • Datastore Technology for Persistence

    • Persistence in file systems

      • CORBA externalization service: standardize interfaces that enable CORBA objects to write their state into a sequential byte stream and to read the state from the byte stream.

      • No concurrency control and transactional access

    • Persistence in relational databases

      • Mapping objects into tables

      • Object-relational mappings are complicated due to the mismatch rational and object-oriented paradigms

    • Persistence in object database

Persistent State Service


The persistent state definition language

The Persistent State Definition Language

  • Declarative language

    • Stateful, non-CORBA object

  • Superset of IDL

  • Abstract storagetypes

    // file: employee.psdl

    Abstract storagetype Person {

    state string full_name;

    readonly state long ssn;

    readonly state ref<Person> spouse;

    void marry(in ref<Person> the_spouse);

    };

    Abstract storagetype Employee: Person{

    state string phone_number;

    state string office;

    };

Persistent State Service


The persistent state definition language1

The Persistent State Definition Language

  • Embedded storagetype: state member itself is a storagetype

  • Reference types: state member references to other storagetypes

  • Operations declared in an abstract storagetype follow the same rule as the operations in IDL interface

    • Arguments must be storagetypes

  • Storagetypes can inherit from each other

    • The base is CosPersistentState

Persistent State Service


Cospersistentstate

CosPersistentState

Module CosPersistentState{

typedef CORBA::OctetSeq Pid;

typedef CORBA:OctetSeq ShortPid;

abstract storagetype StorageObject {

void destroy_object(); // associated object is destroyed, not the incarnation

bolean object_exists();

Pid get_pid();

ShortPid get_short_pid();

StorageHomeBase get_storage_home();

};

};

Persistent State Service


Abstract storage homes

Abstract Storage Homes

abstract storagehome PersonHome of Person {

factory create_person(in string name, in long ssn);

key ssn_key social_security_number;

};

abstract storagehome EmployeeHome of Employee: PersonHome{

factory create_employee(in string name, in long ssn,

in string phone, in string office);

};

Persistent State Service


Catalogs

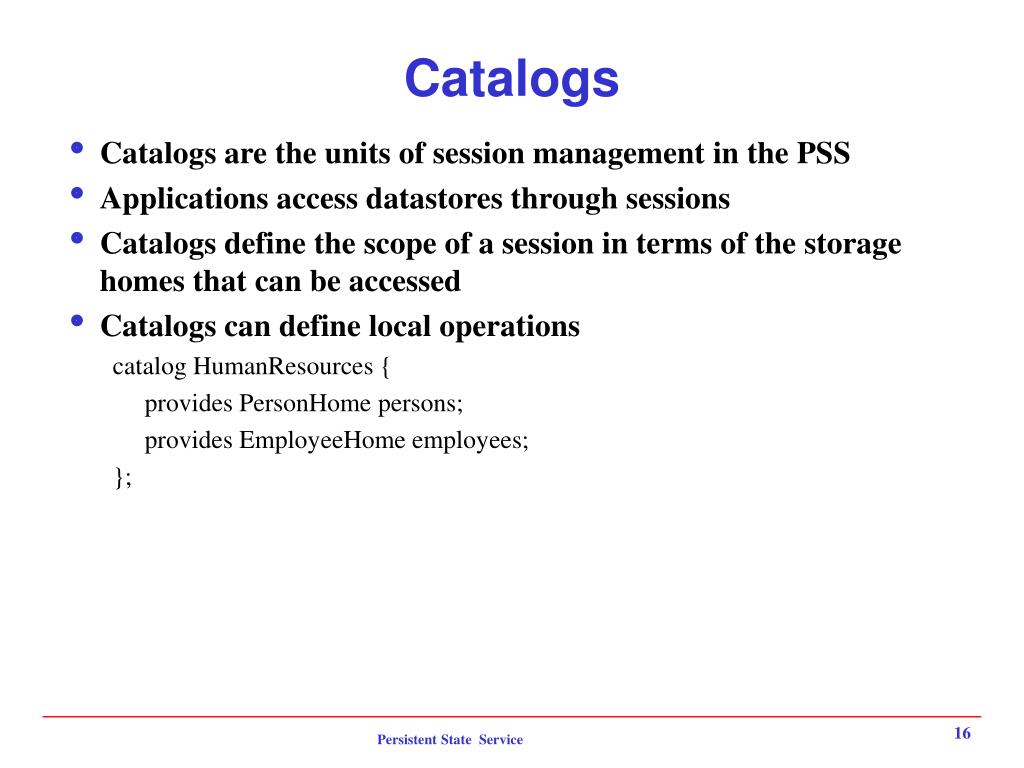

Catalogs

  • Catalogs are the units of session management in the PSS

  • Applications access datastores through sessions

  • Catalogs define the scope of a session in terms of the storage homes that can be accessed

  • Catalogs can define local operations

    catalog HumanResources {

    provides PersonHome persons;

    provides EmployeeHome employees;

    };

Persistent State Service


Key points

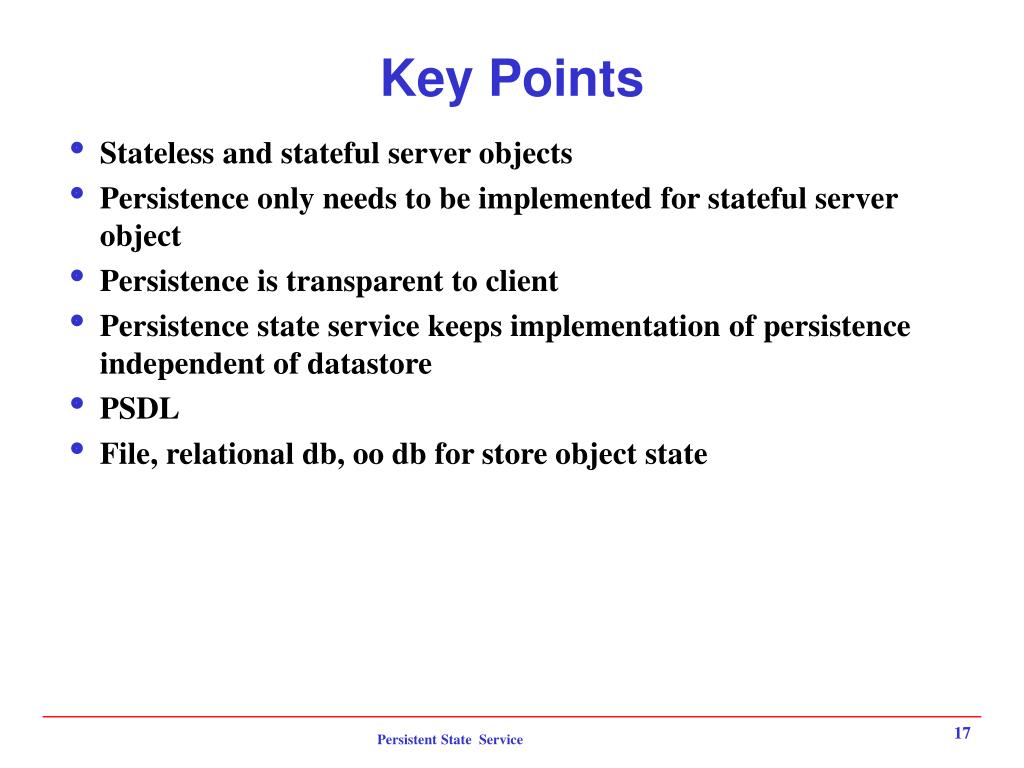

Key Points

  • Stateless and stateful server objects

  • Persistence only needs to be implemented for stateful server object

  • Persistence is transparent to client

  • Persistence state service keeps implementation of persistence independent of datastore

  • PSDL

  • File, relational db, oo db for store object state
