802 11 2012 interworking 802 11u

802.11-2012 Interworking(802.11u)

Scott Armitage


Recent 11u developments

Recent 11u Developments

  • wpa_supplicant updated to allow network selection based upon roaming consortium id

  • Cisco wireless updated to allow 40bit roaming consortium ids

  • Samsung Galaxy S III have been Passpoint™ certified

  • Currently it appears only carriers can create 11u profiles i.e. no gui for users (sphotspot20.conf)

  • Rumours of an update in 2013 to allow users to create 11u profiles


Passpoint

Passpoint™

  • 802.11u supported in device

    • Operator Selection

    • GAS 2WAY

    • ANQP 4WAY

  • EAP Authentication

    • TTLS/MSCHAPv2 (user/password)

  • HotSpot 2.0


Basic test roaming consortium id

Basic Test – Roaming Consortium ID

  • Initial test to check network selection using eduroam Roaming Consortium ID

  • Basic client configuration

  • wpa_supplicant

  • Cisco 1142 AP / WiSM2 Contoller

  • Cisco 7.3.101.0 code release


Basic test wlan 11u configuration

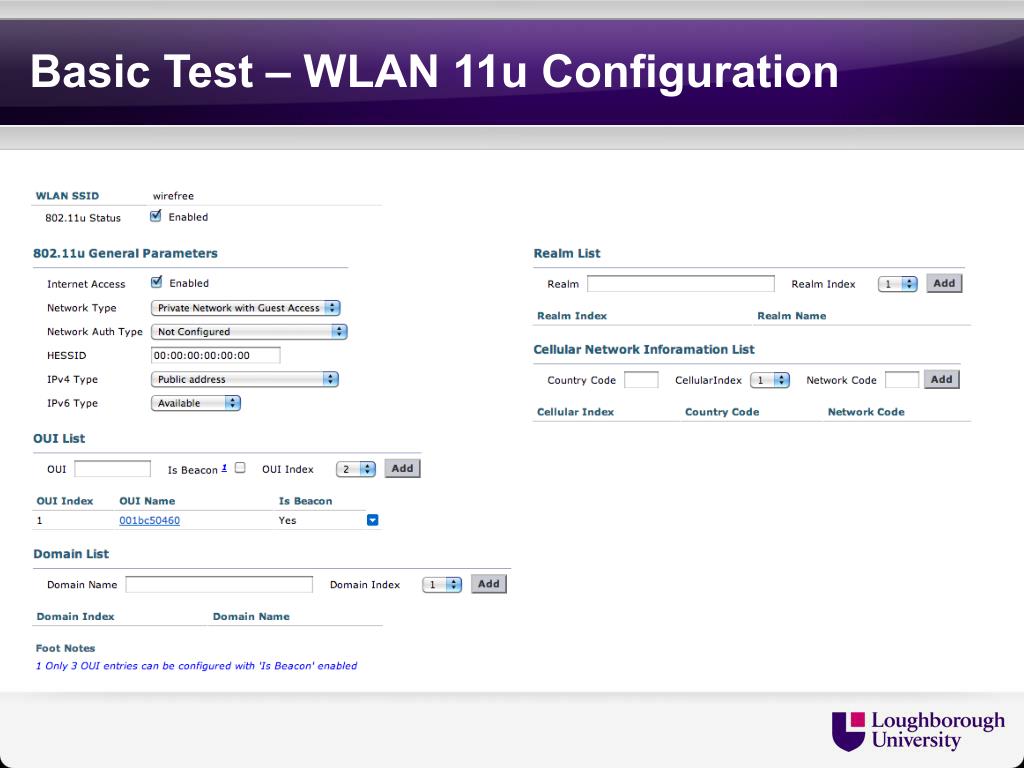

Basic Test – WLAN 11u Configuration


Basic test wpa suplicant configuration

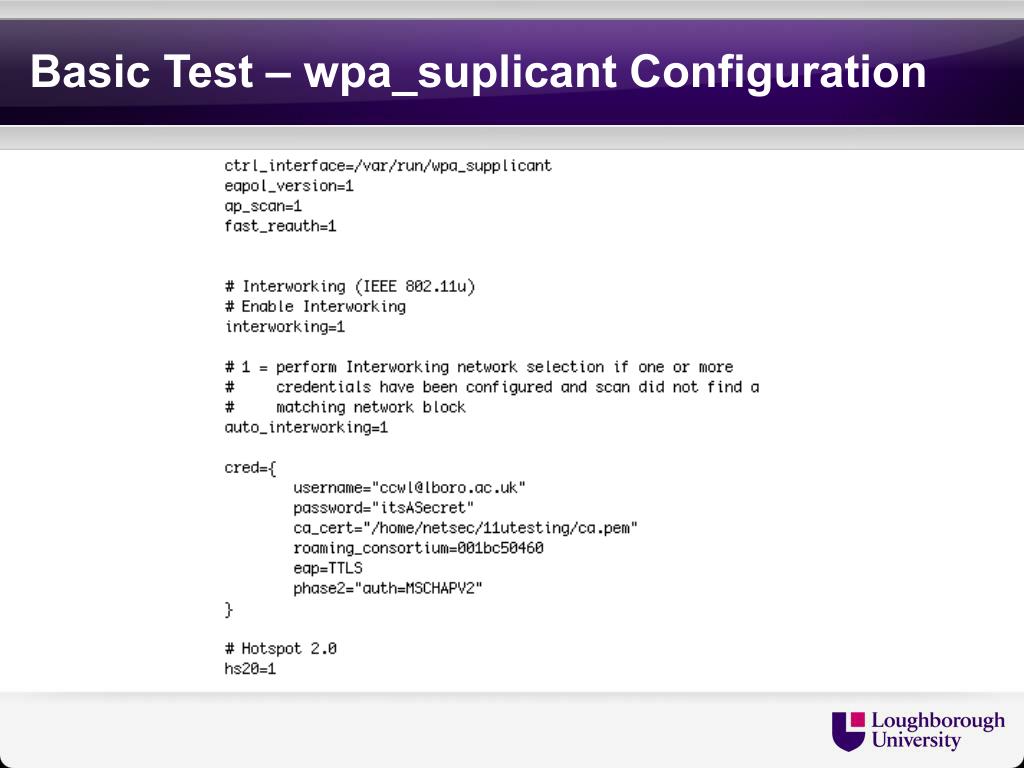

Basic Test – wpa_suplicant Configuration


Basic test wpa supplicant debug

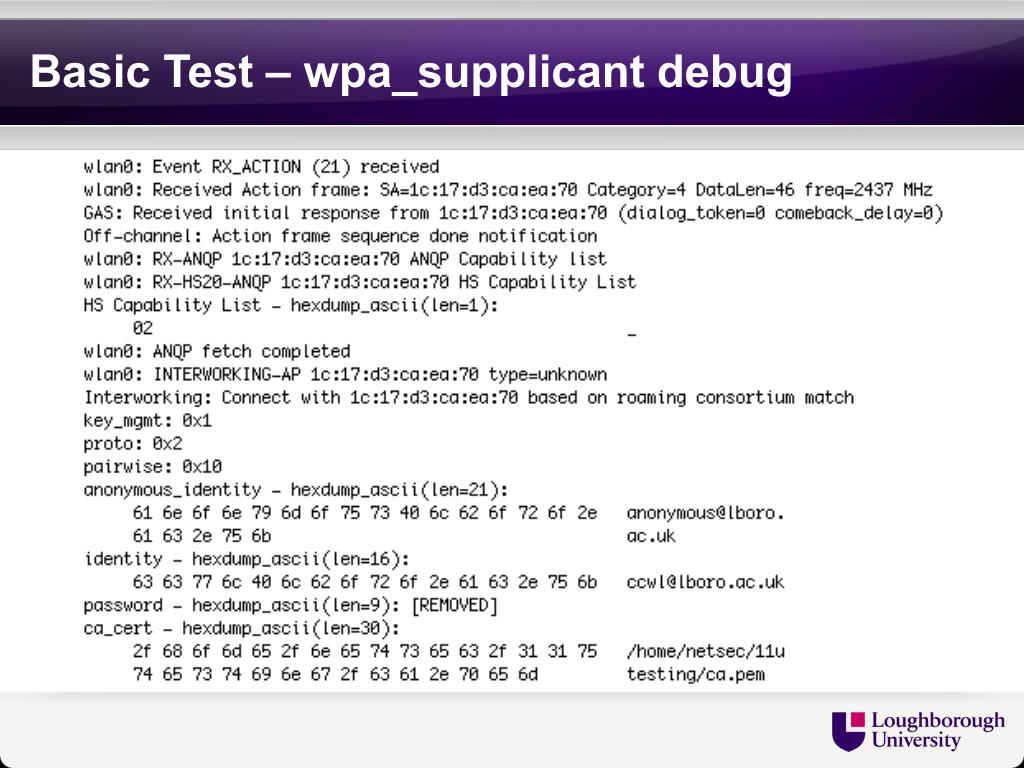

Basic Test – wpa_supplicant debug


Overlap with domain test

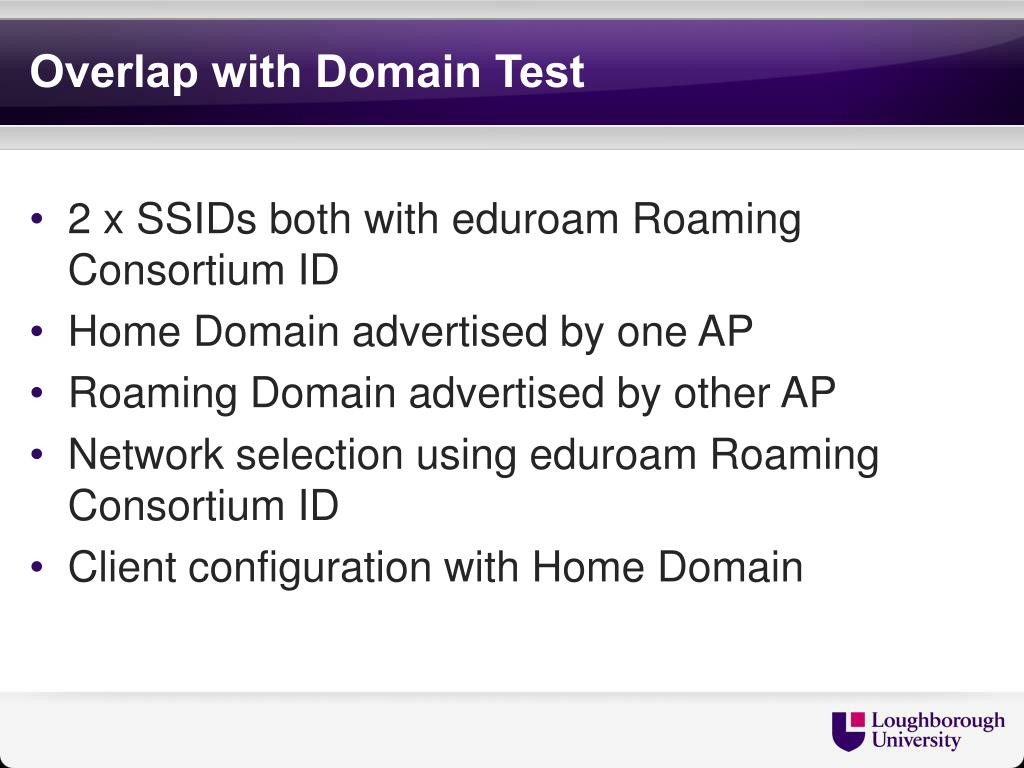

Overlap with Domain Test

  • 2 x SSIDs both with eduroam Roaming Consortium ID

  • Home Domain advertised by one AP

  • Roaming Domain advertised by other AP

  • Network selection using eduroam Roaming Consortium ID

  • Client configuration with Home Domain


Domain test wlan configuration

Domain Test: WLAN Configuration


Domain test client configuration

Domain Test: Client Configuration


Domain test

Domain Test


Same ssid different domains test

Same SSID, Different Domains Test

  • 2 x Access Points

  • Same SSID

  • Same Roaming Consortium ID

  • Different Domain in WLAN 11u Settings


Same ssid different domains test1

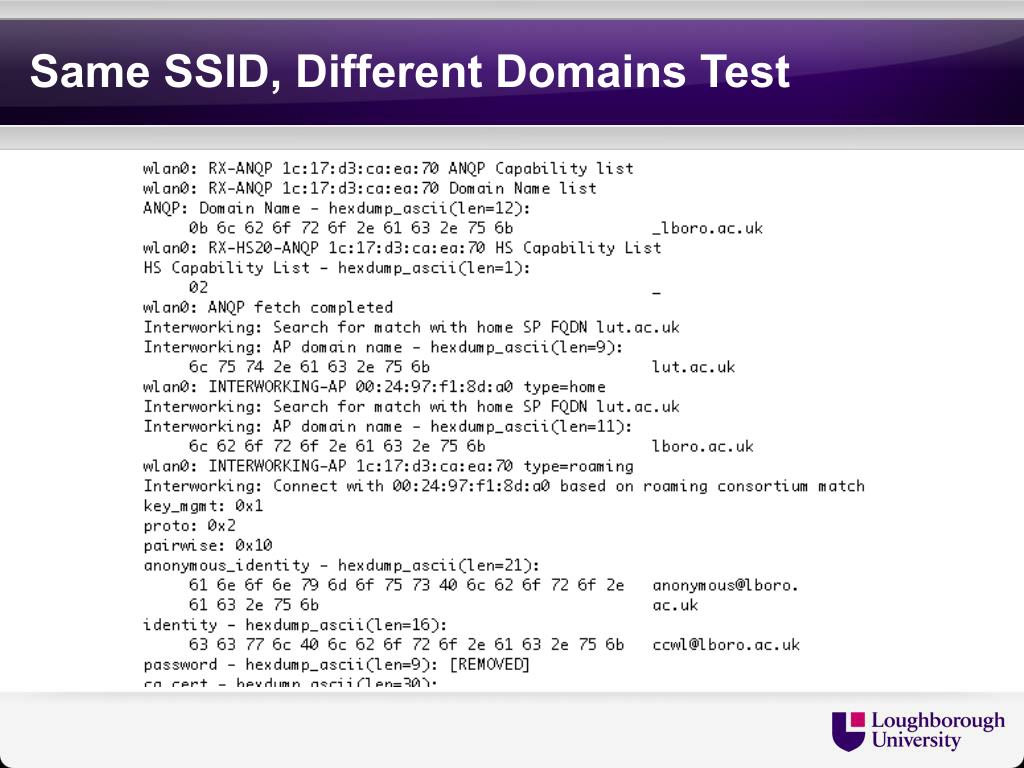

Same SSID, Different Domains Test


Mobility services advertisement protocol

Mobility Services Advertisement Protocol

  • eduroam icon with links

  • Service provider icon with links e.g. AUP, intranet, etc


Russell square problem

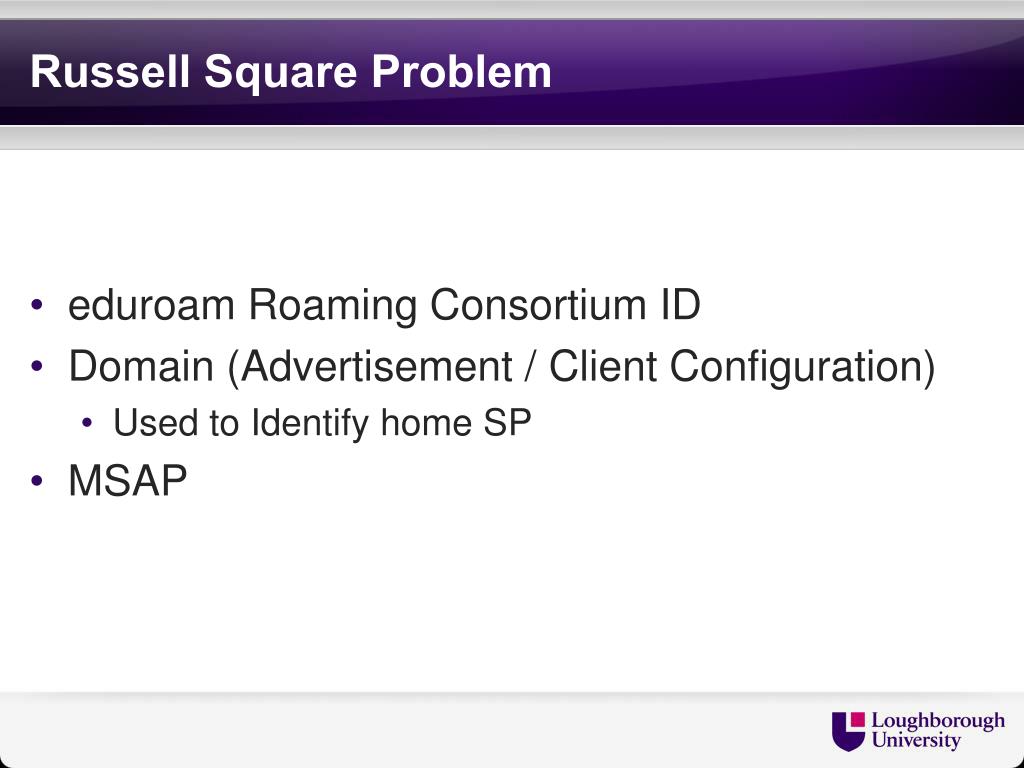

Russell Square Problem

  • eduroam Roaming Consortium ID

  • Domain (Advertisement / Client Configuration)

    • Used to Identify home SP

  • MSAP


  • Login
