  1. Tsunami Hazards on the East and Gulf Coasts Dr. Annie Kammerer, P.E. NRC Office of Nuclear Regulatory Research RIC 2009

  2. Overview • Research Goals • Overview of program • Available products

  3. Research Goals • Better understanding for all US coasts • Development of a source database • Integration of landslide modeling • Input for probable maximum tsunami (PMT) hazard levels • PTHA (probabilistic) where appropriate • Incorporation into regulatory guidance

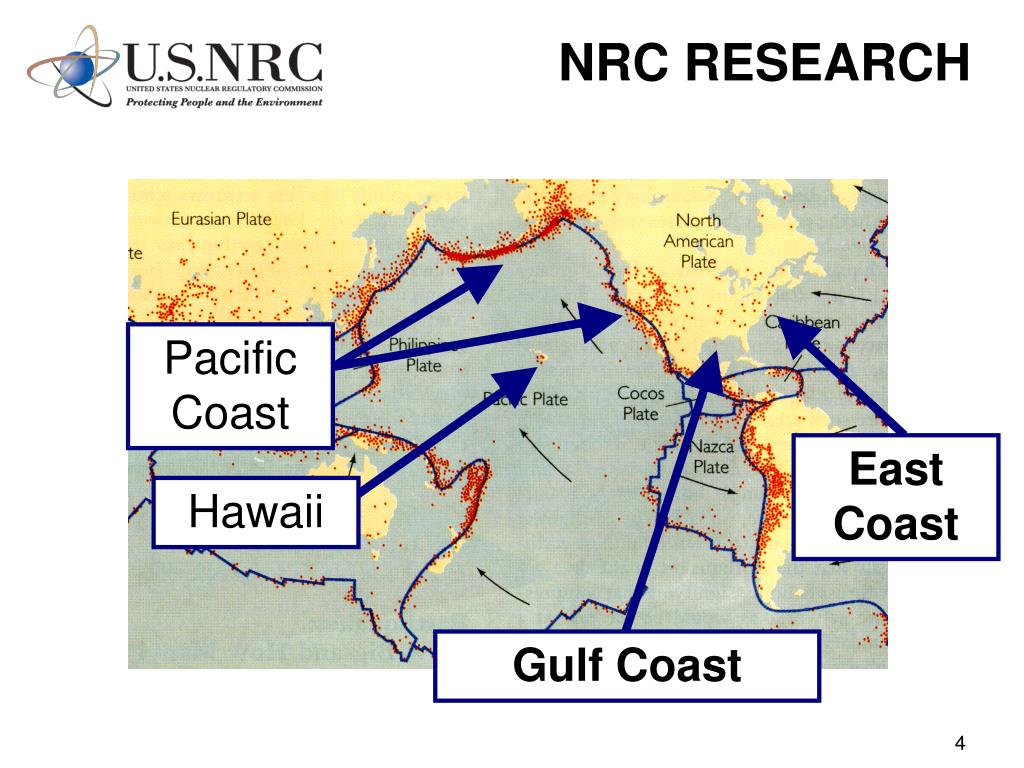

  4. NRC RESEARCH Pacific Coast East Coast Hawaii Gulf Coast

  5. Damage comes from… • Wave inundation • Drawdown (important for plants) • Floating debris • Scour

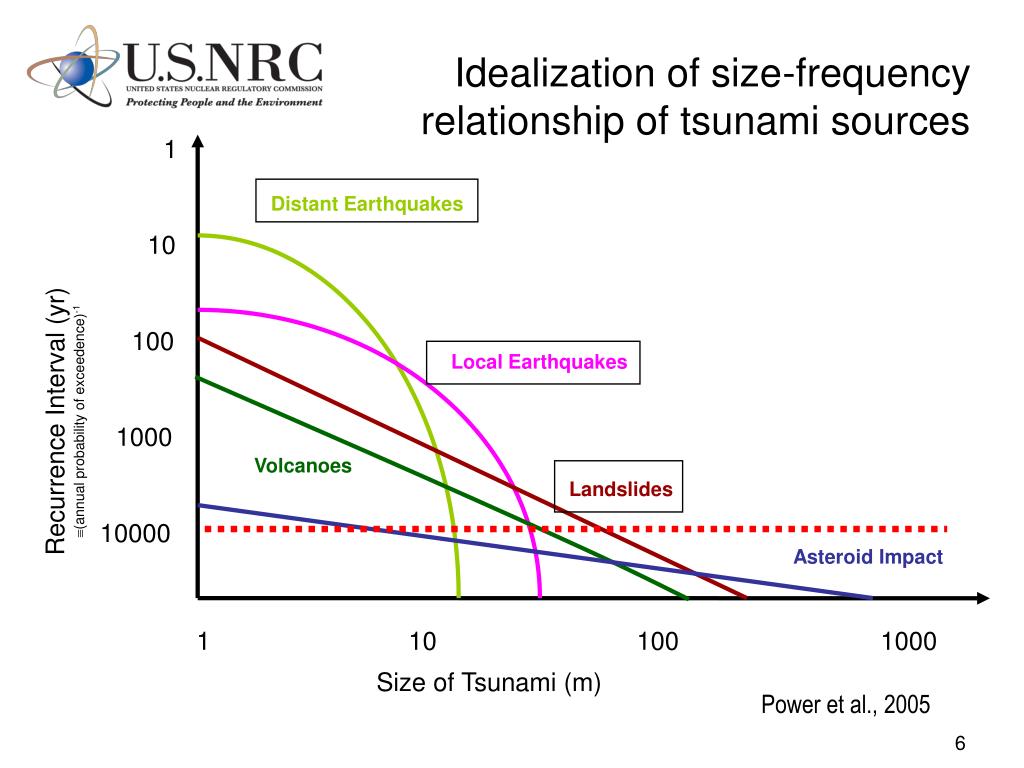

  6. 1 Distant Earthquakes 10 100 Local Earthquakes Recurrence Interval (yr) (annual probability of exceedence)-1 1000 Volcanoes Landslides 10000 Asteroid Impact 1 10 100 1000 Size of Tsunami (m) Idealization of size-frequency relationship of tsunami sources Power et al., 2005

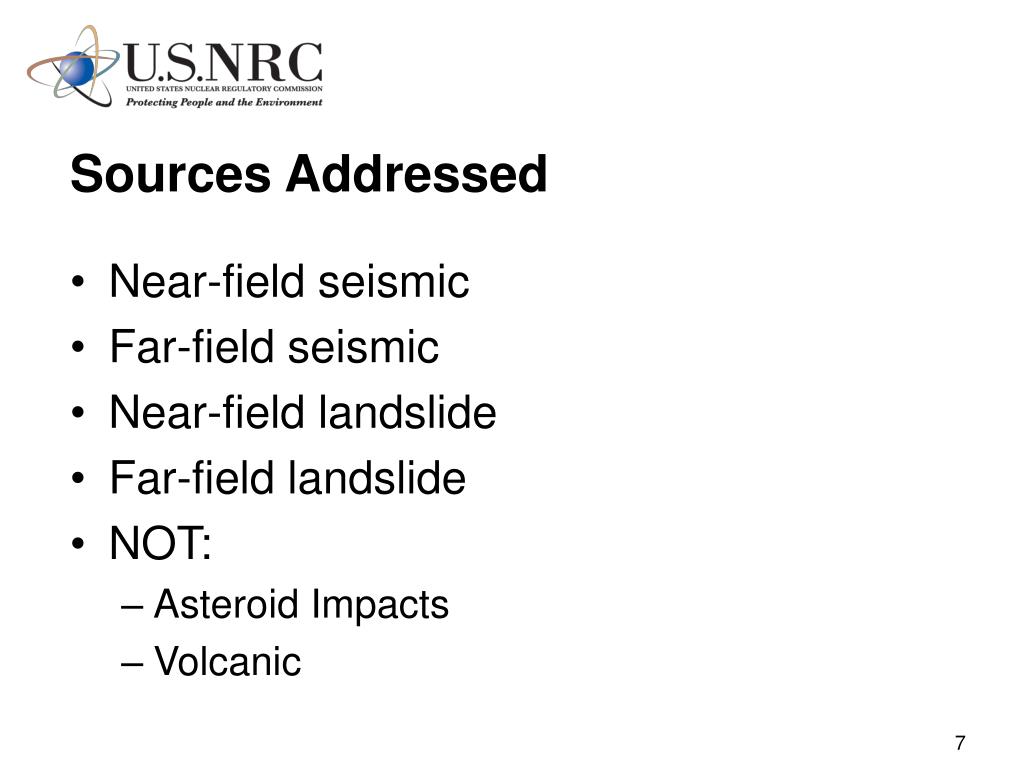

  7. Sources Addressed • Near-field seismic • Far-field seismic • Near-field landslide • Far-field landslide • NOT: • Asteroid Impacts • Volcanic

  8. Research Plan • Data collection, review of current state of knowledge, interpretation of data, basic modeling (completed - first USGS report) • Targeted field work, additional analyses, additional modeling (second USGS report) • Updating NOAA models for landslide sources, global modeling • Hazard map development • PTHA

  9. Data collection, review of current state of knowledge, interpretation of data, basic modeling (2008) ML082960196 (IJMG special publication)

  10. Near Field Landslides

  11. Currituck Landslide

  12. Currituck Landslide -40 -20 0 20 40 Meters 0 100 200 300 KM

  13. Existing Data

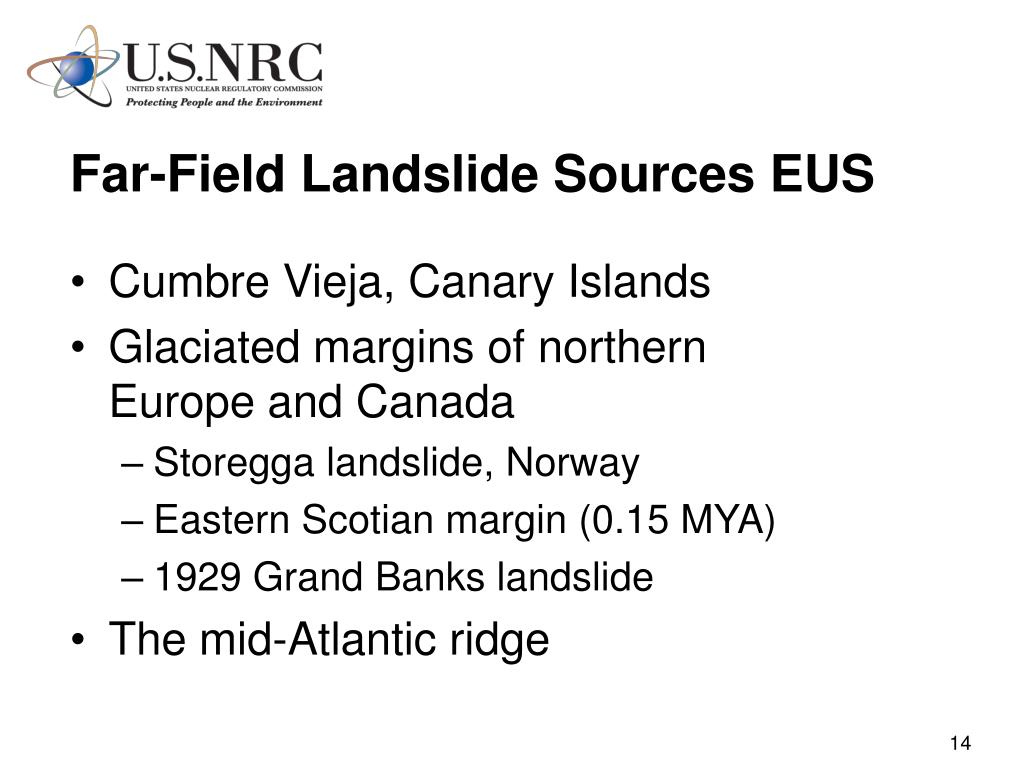

  14. Far-Field Landslide Sources EUS • Cumbre Vieja, Canary Islands • Glaciated margins of northern Europe and Canada • Storegga landslide, Norway • Eastern Scotian margin (0.15 MYA) • 1929 Grand Banks landslide • The mid-Atlantic ridge

  15. Canary and Hawaiian Islands

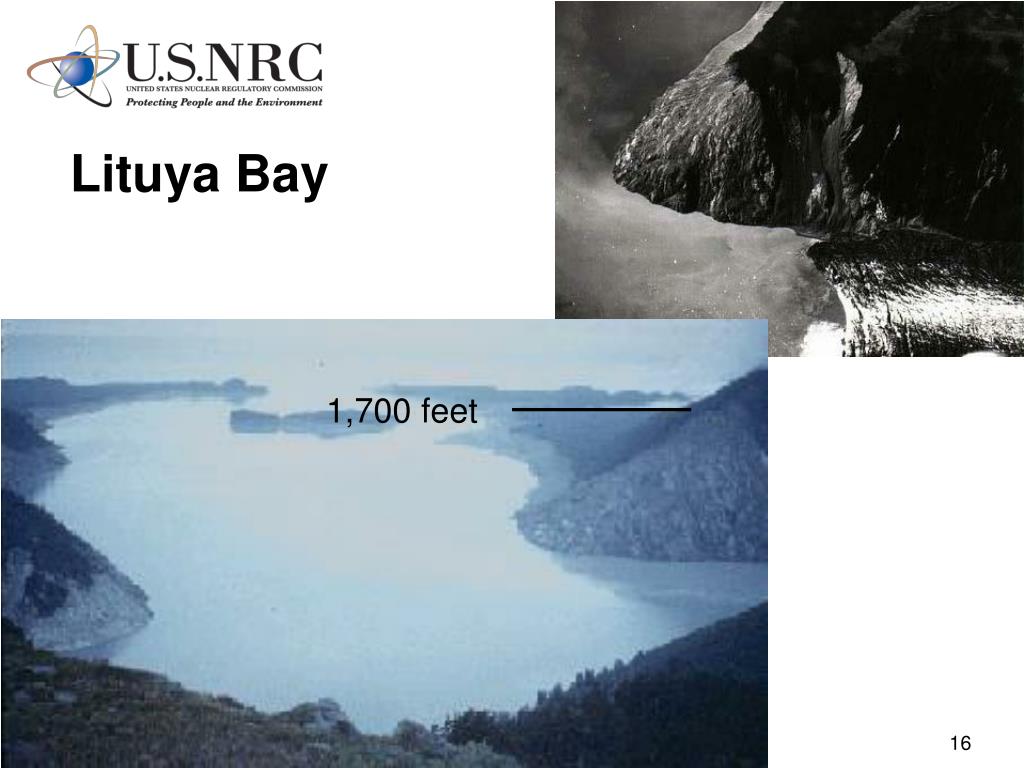

  16. Lituya Bay 1,700 feet

  17. Far-Field Seismic Sources • West of Gibraltar • 1755 Lisbon • 1761 Earthquake and Tsunami • The Northeast Caribbean • Puerto Rico Trench • Hispaniola Trench • Northern Panama

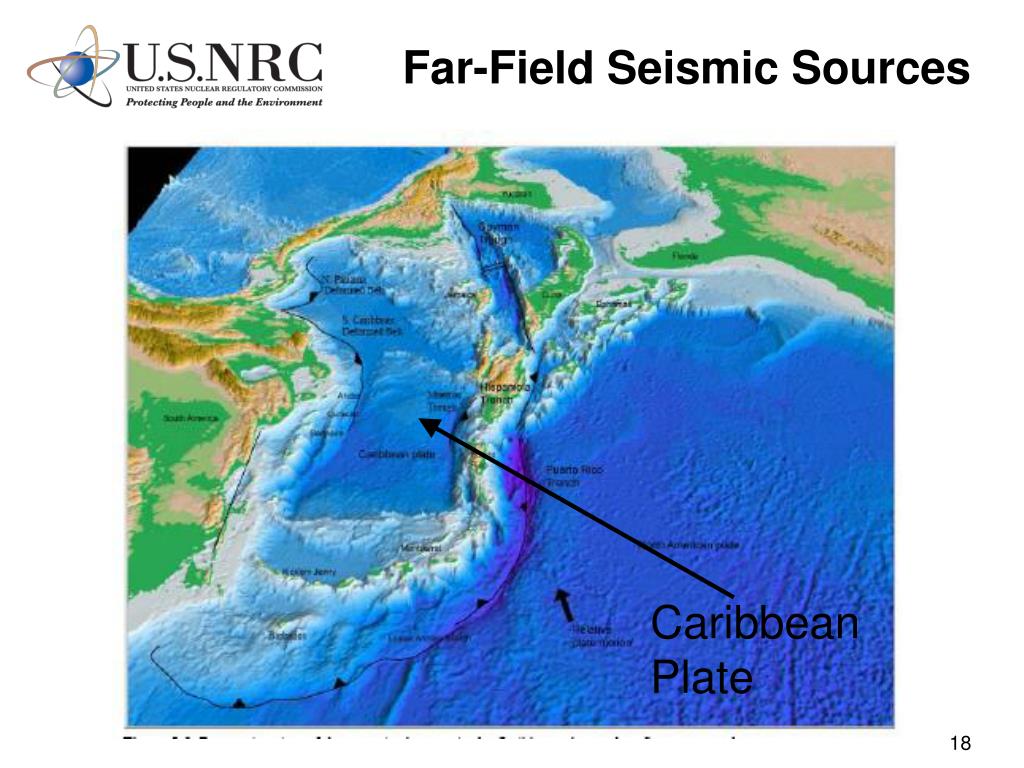

  18. Far-Field Seismic Sources Caribbean Plate

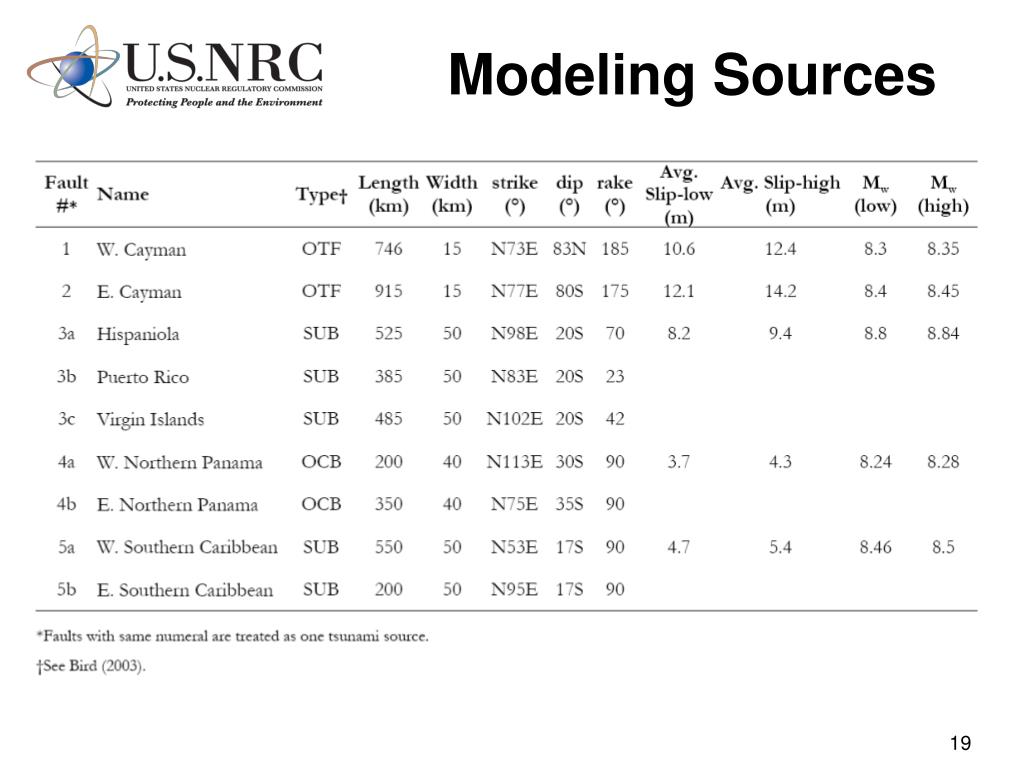

  19. Modeling Sources

  20. Southern Caribbean Subduction Zone

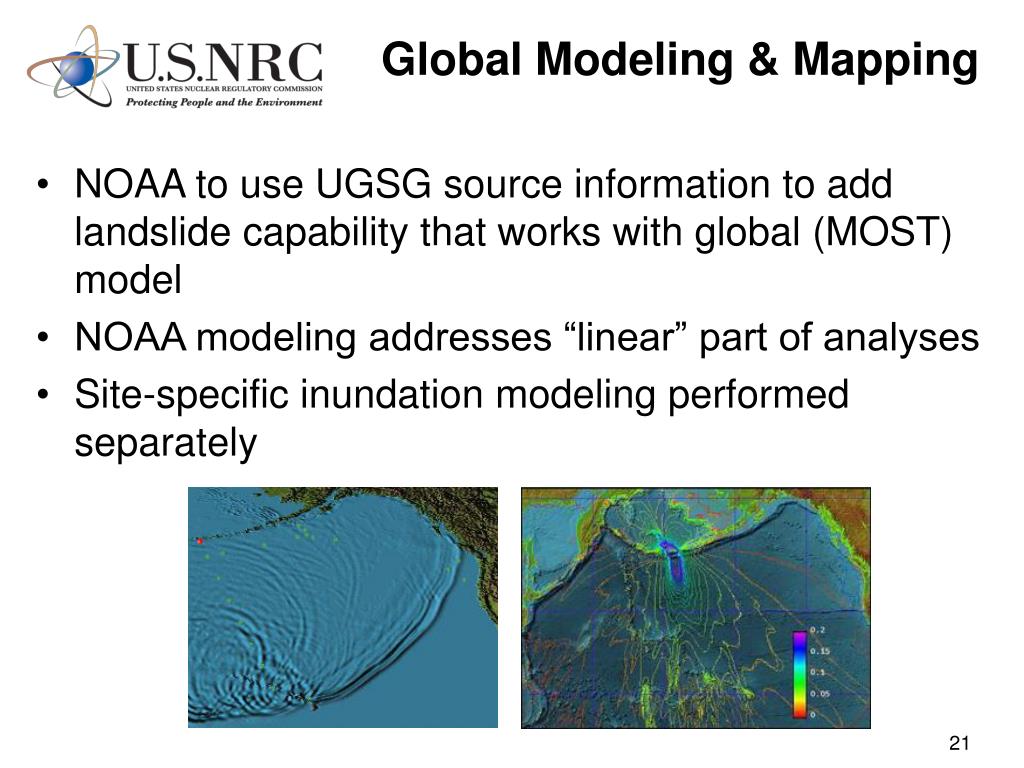

  21. Global Modeling & Mapping • NOAA to use UGSG source information to add landslide capability that works with global (MOST) model • NOAA modeling addresses “linear” part of analyses • Site-specific inundation modeling performed separately

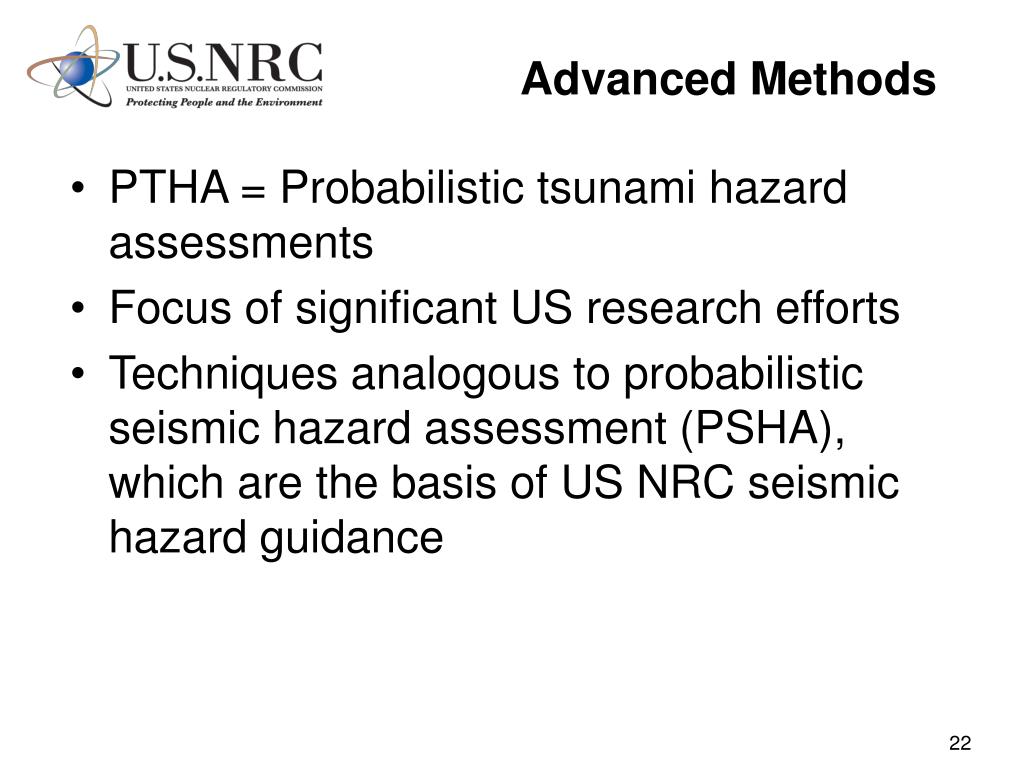

  22. Advanced Methods • PTHA = Probabilistic tsunami hazard assessments • Focus of significant US research efforts • Techniques analogous to probabilistic seismic hazard assessment (PSHA), which are the basis of US NRC seismic hazard guidance

  23. Probabilistic Tsunami Hazard

  24. Questions
