The telnet protocol

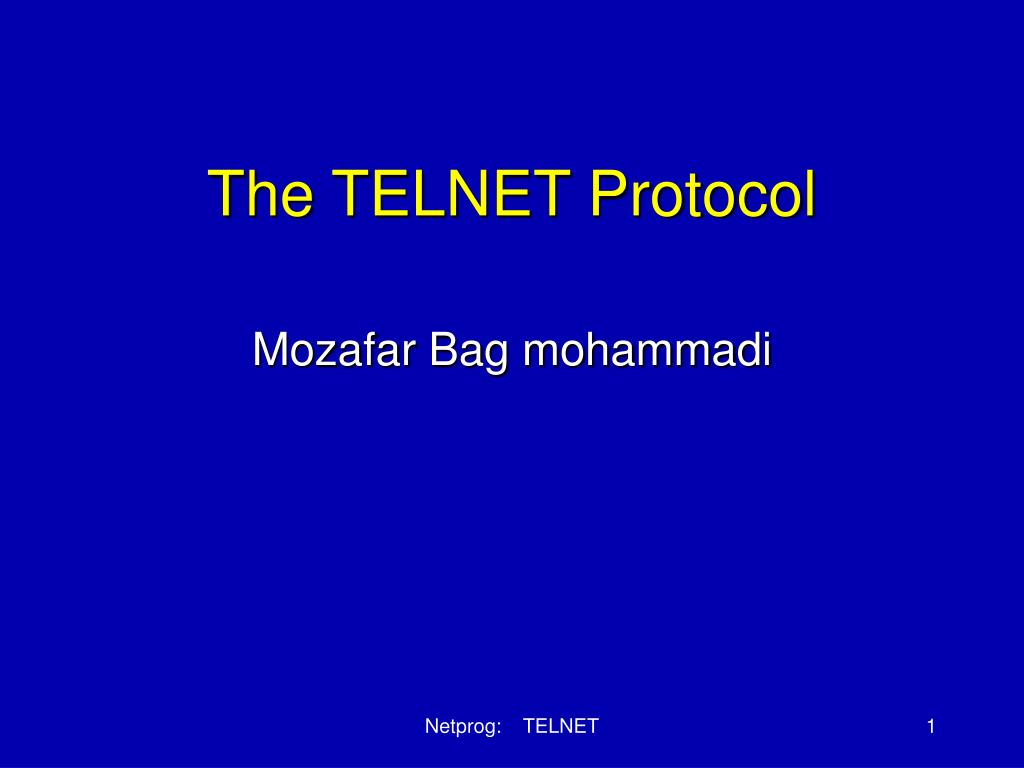

The TELNET Protocol

Mozafar Bag mohammadi

Netprog: TELNET


Telnet
Telnet

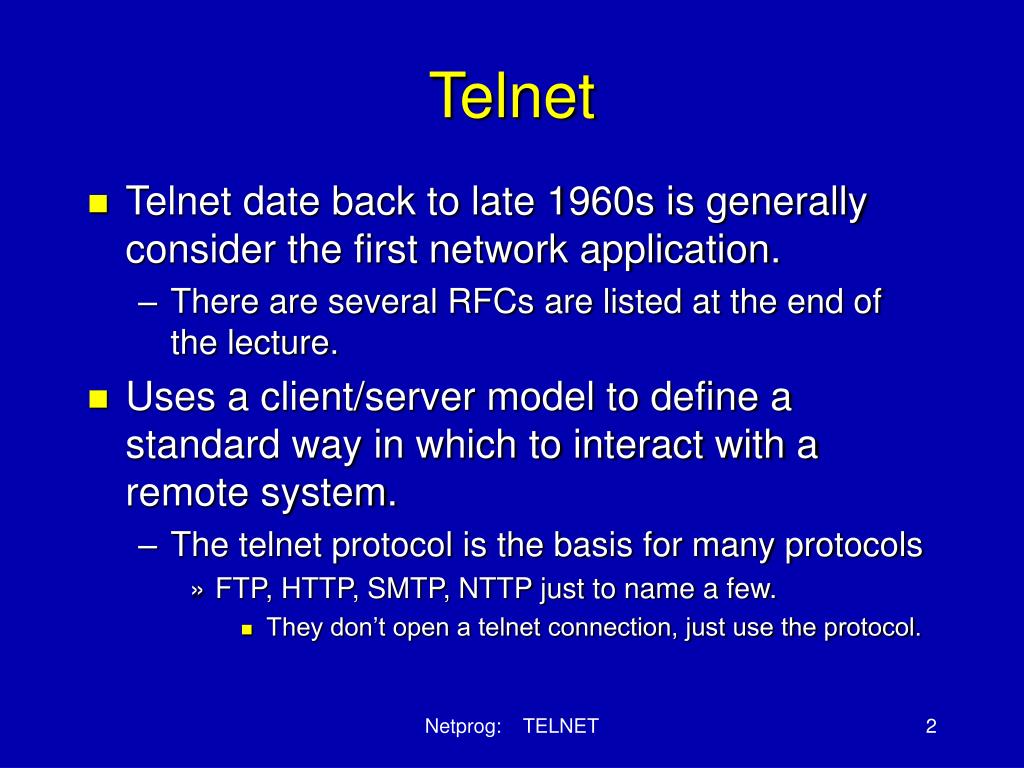

  • Telnet date back to late 1960s is generally consider the first network application.

    • There are several RFCs are listed at the end of the lecture.

  • Uses a client/server model to define a standard way in which to interact with a remote system.

    • The telnet protocol is the basis for many protocols

      • FTP, HTTP, SMTP, NTTP just to name a few.

        • They don’t open a telnet connection, just use the protocol.

Netprog: TELNET


Telnet 2

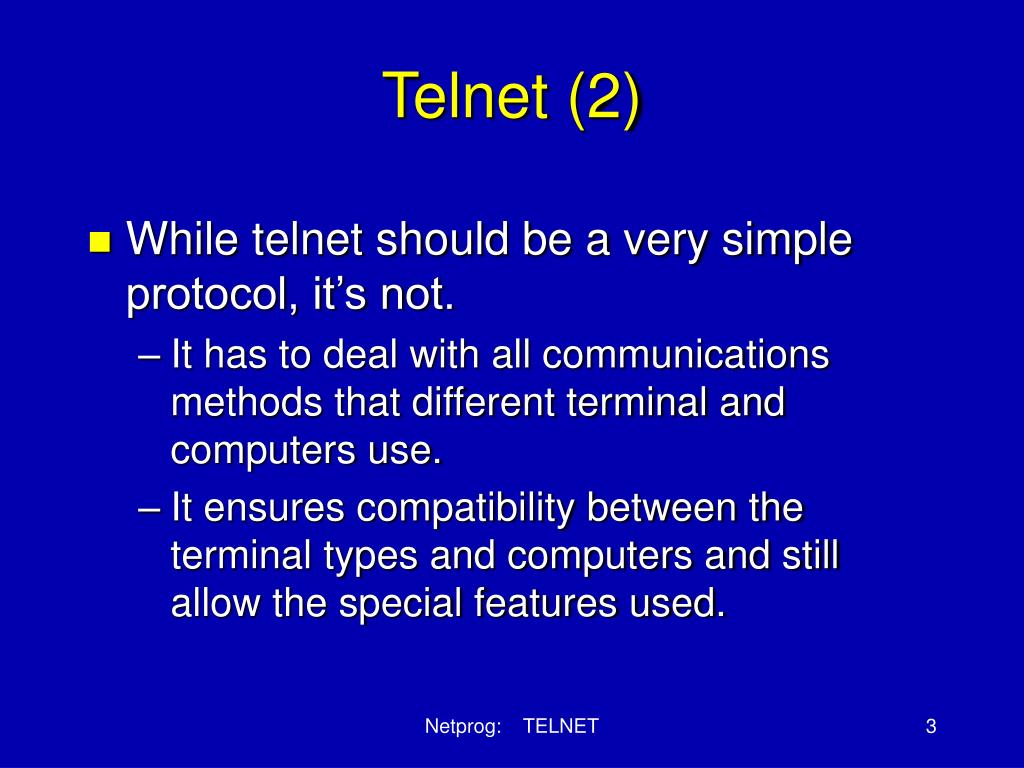

Telnet (2)

  • While telnet should be a very simple protocol, it’s not.

    • It has to deal with all communications methods that different terminal and computers use.

    • It ensures compatibility between the terminal types and computers and still allow the special features used.

Netprog: TELNET


Telnet vs telnet
TELNET vs. telnet

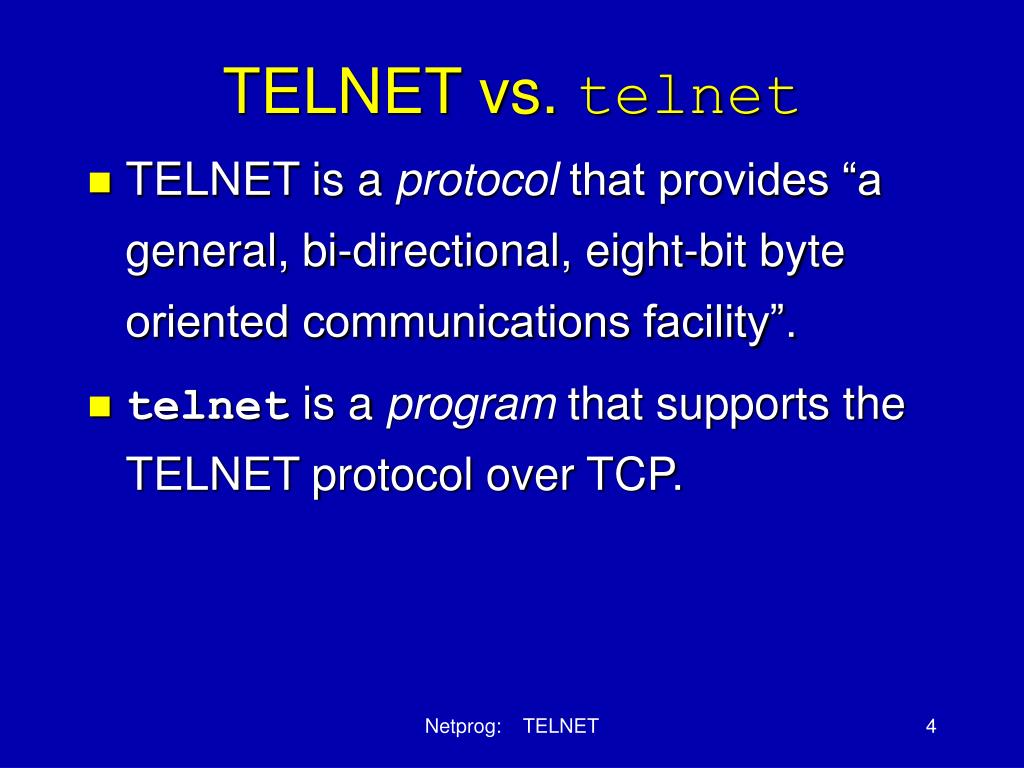

  • TELNET is a protocol that provides “a general, bi-directional, eight-bit byte oriented communications facility”.

  • telnet is a program that supports the TELNET protocol over TCP.

Netprog: TELNET


The telnet protocol1
The TELNET Protocol

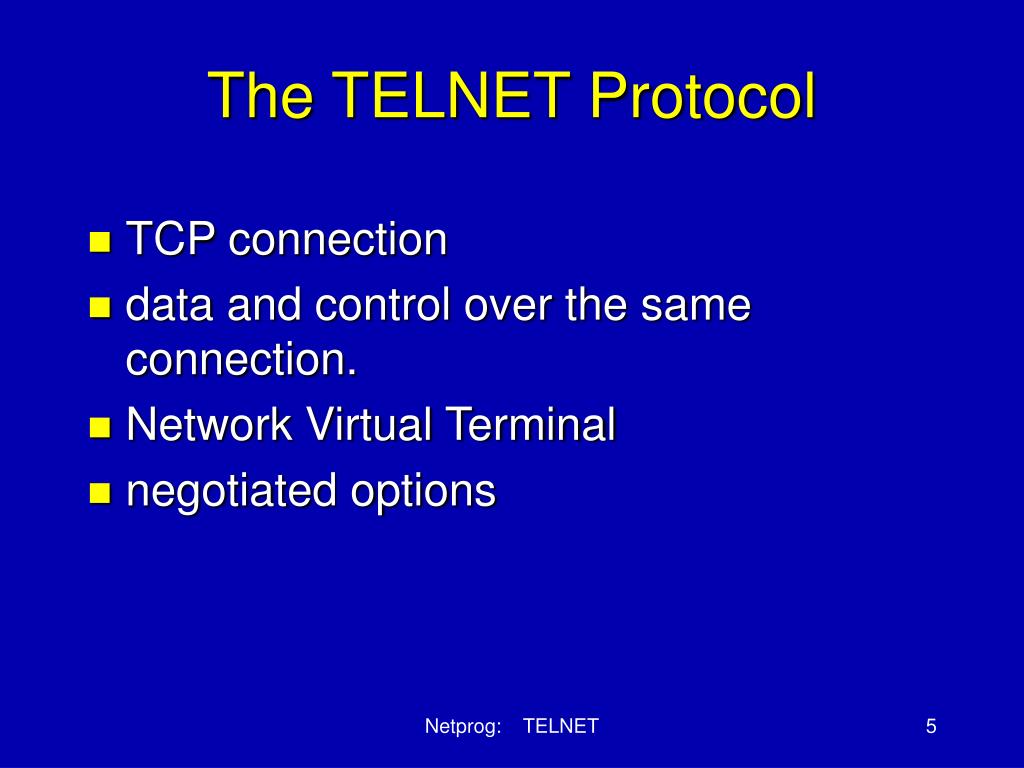

  • TCP connection

  • data and control over the same connection.

  • Network Virtual Terminal

  • negotiated options

Netprog: TELNET


Network virtual terminal
Network Virtual Terminal

  • All communications uses a standard terminal called NVT

    • The client takes input, translates into NVT sends it to the server, which translates to the representation that the computer uses.

    • Special Telnet commands are interspersed with the data to perform the functions needed to for the operation of the protocol

Netprog: TELNET


Network virtual terminal1

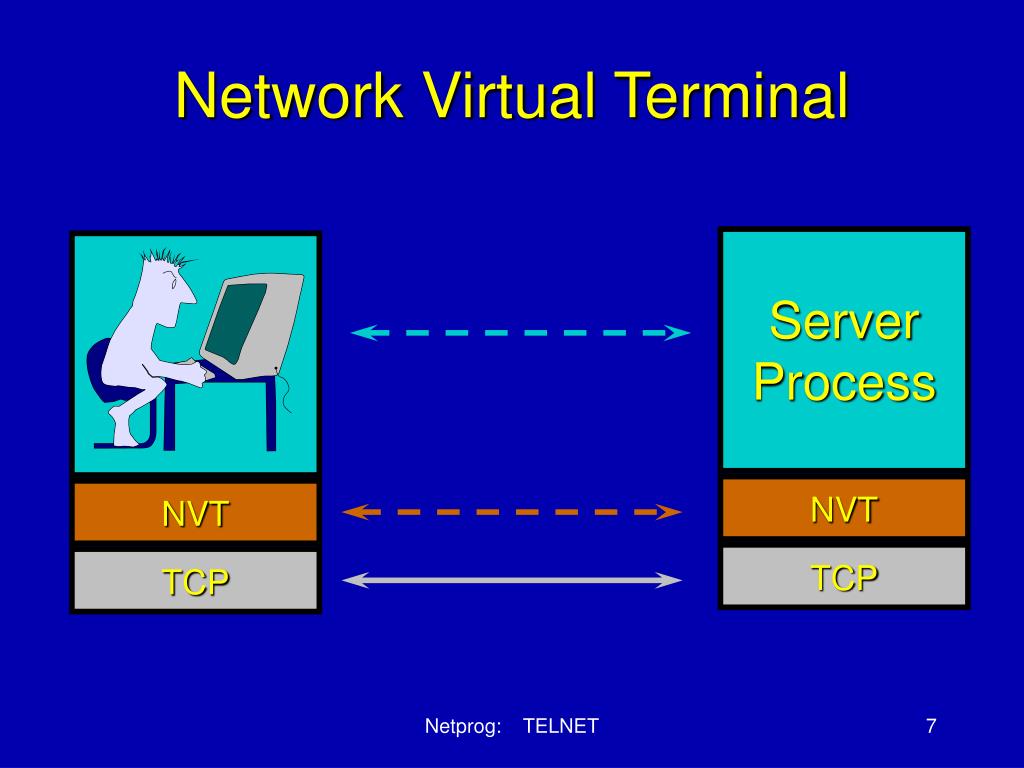

Network Virtual Terminal

Server

Process

NVT

NVT

TCP

TCP

Netprog: TELNET


Telnet1
Telnet

Netprog: TELNET


Nvt ascii control codes

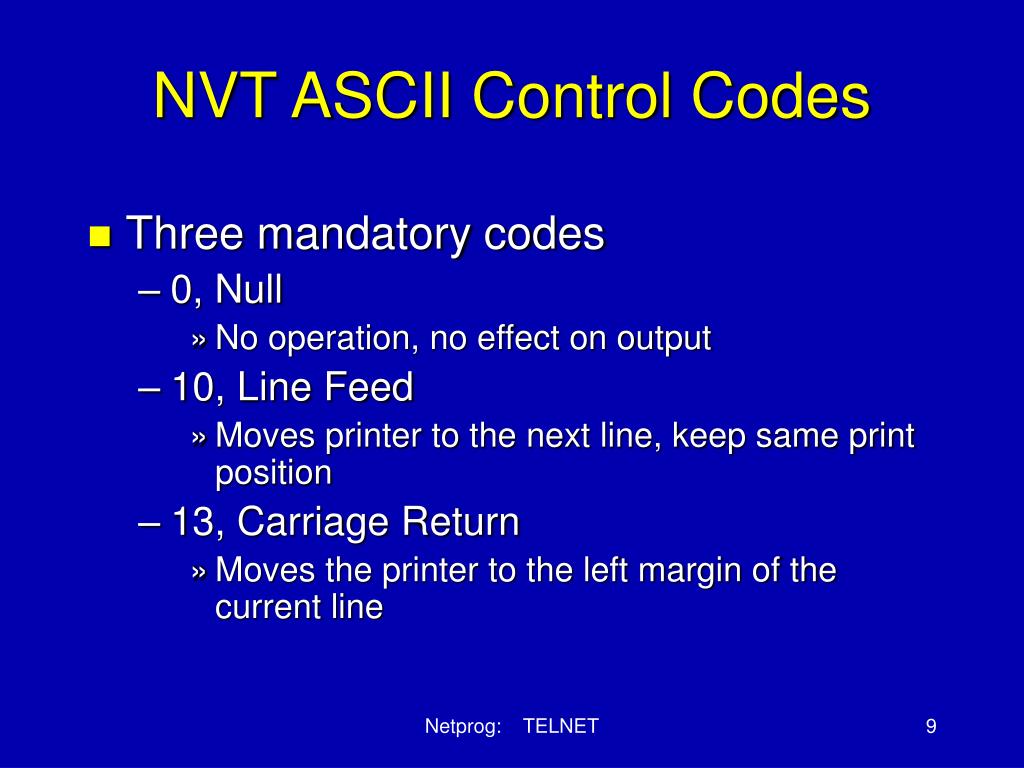

NVT ASCII Control Codes

  • Three mandatory codes

    • 0, Null

      • No operation, no effect on output

    • 10, Line Feed

      • Moves printer to the next line, keep same print position

    • 13, Carriage Return

      • Moves the printer to the left margin of the current line

Netprog: TELNET


Nvt ascii control codes 2

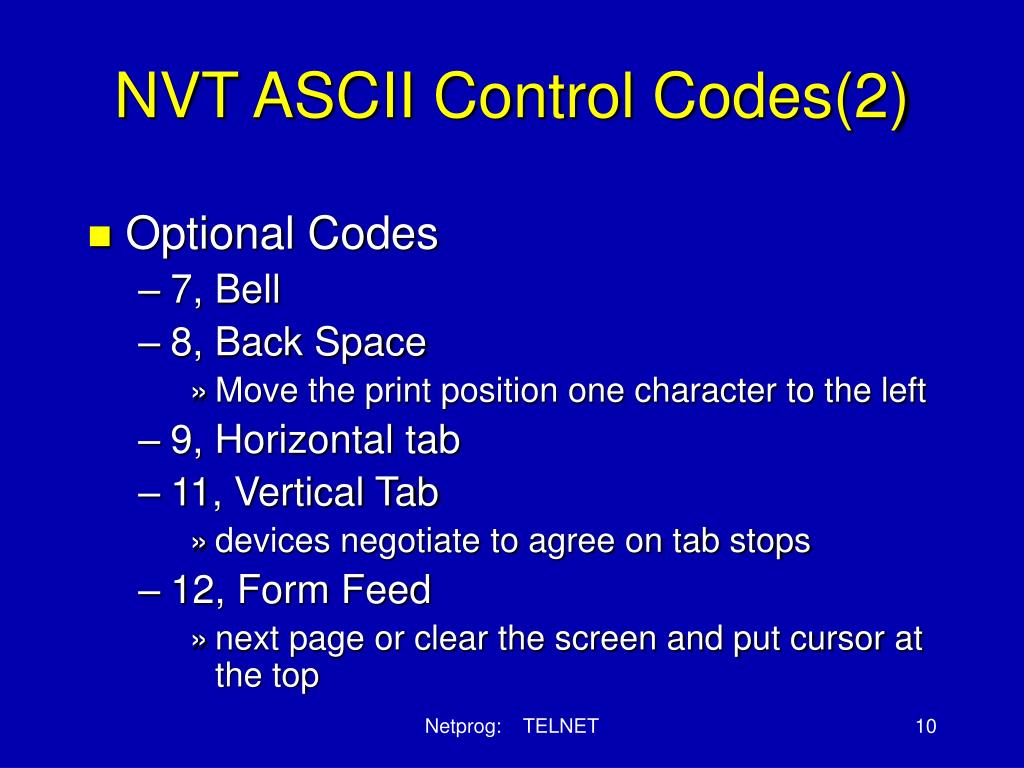

NVT ASCII Control Codes(2)

  • Optional Codes

    • 7, Bell

    • 8, Back Space

      • Move the print position one character to the left

    • 9, Horizontal tab

    • 11, Vertical Tab

      • devices negotiate to agree on tab stops

    • 12, Form Feed

      • next page or clear the screen and put cursor at the top

Netprog: TELNET

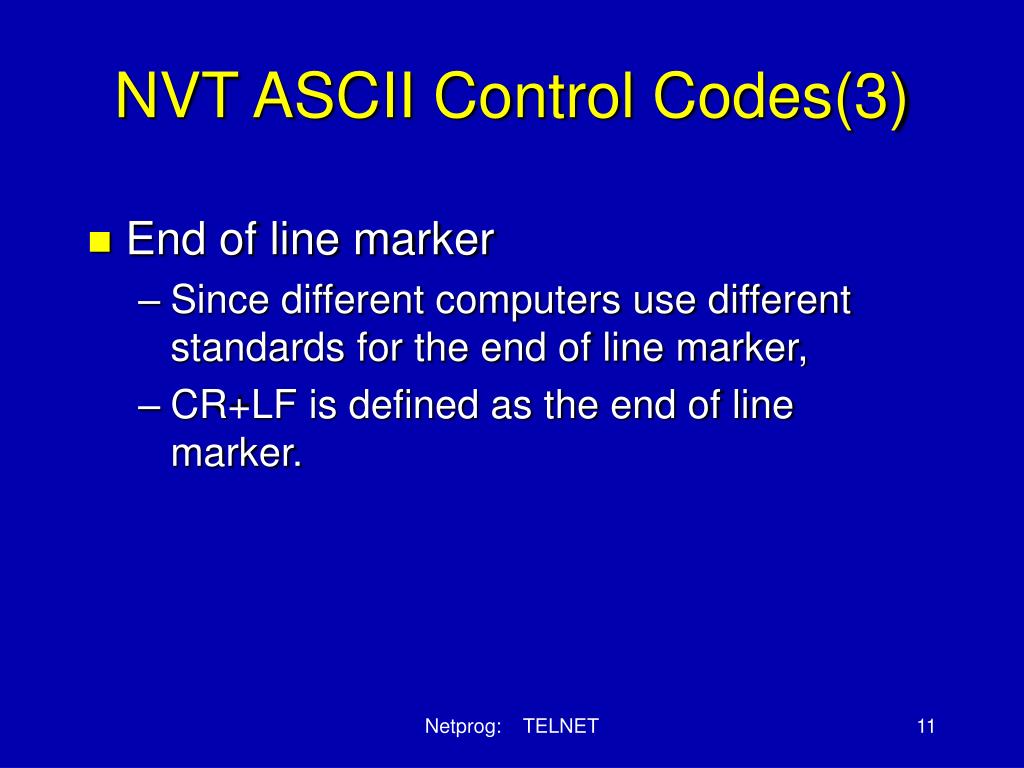

Nvt ascii control codes 3
NVT ASCII Control Codes(3)

  • End of line marker

    • Since different computers use different standards for the end of line marker,

    • CR+LF is defined as the end of line marker.

Netprog: TELNET


Negotiated options
Negotiated Options

  • All NVTs support a minimal set of capabilities.

  • Some terminals have more capabilities than the minimal set.

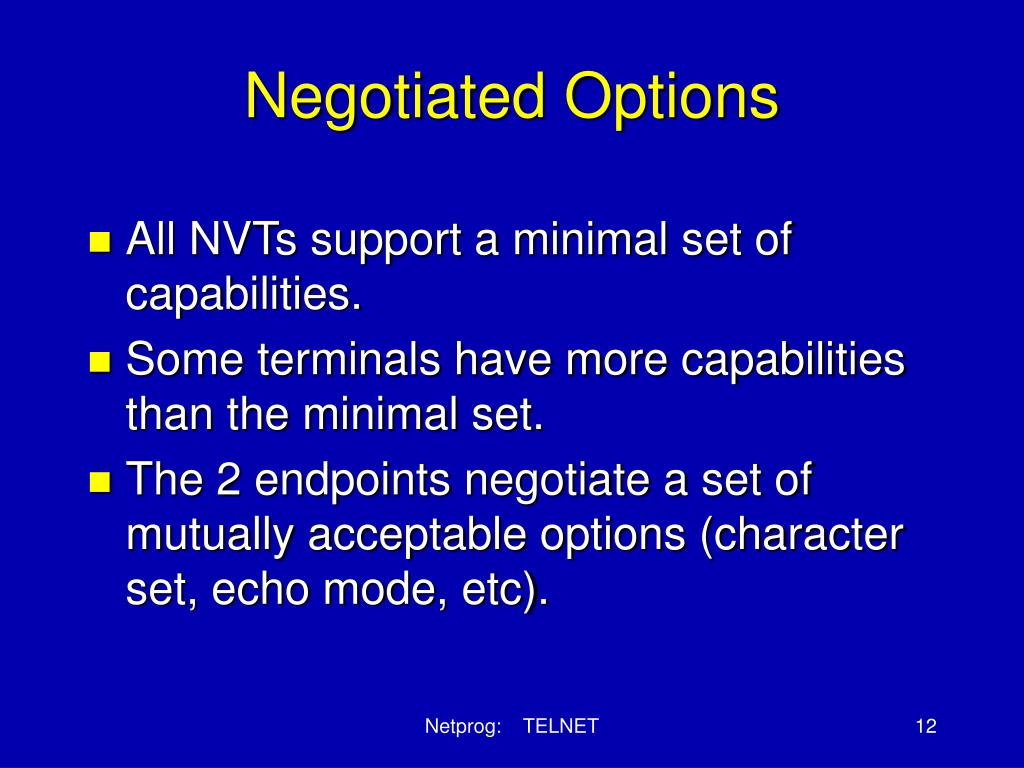

  • The 2 endpoints negotiate a set of mutually acceptable options (character set, echo mode, etc).

Netprog: TELNET


Negotiated options1
Negotiated Options

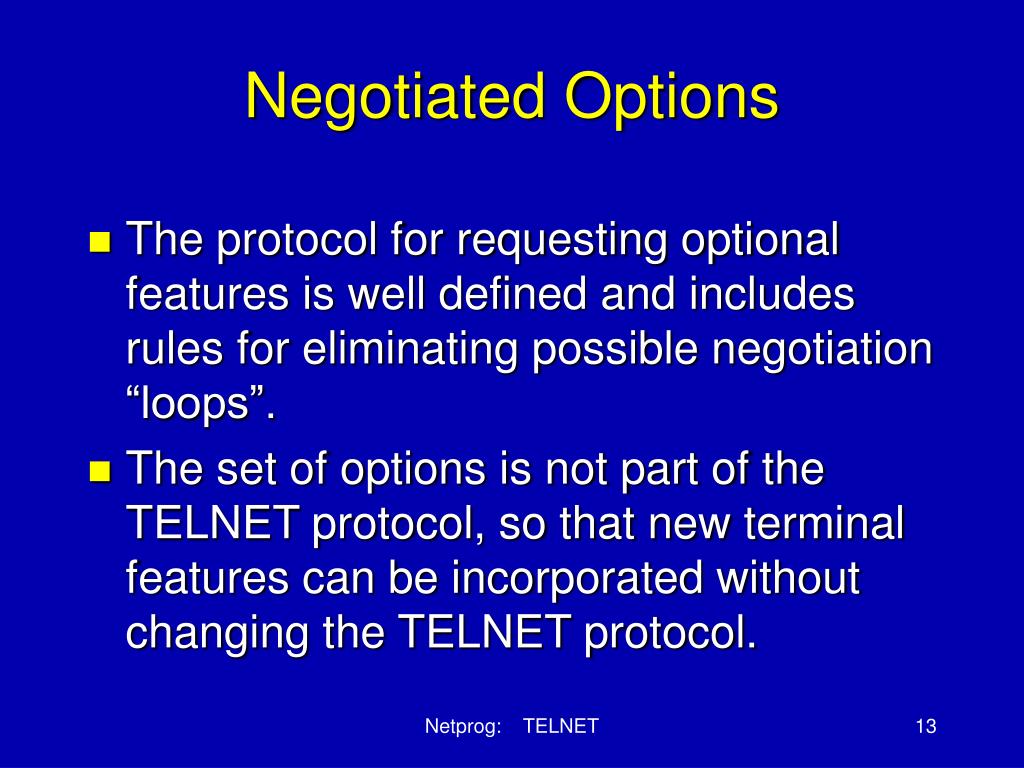

  • The protocol for requesting optional features is well defined and includes rules for eliminating possible negotiation “loops”.

  • The set of options is not part of the TELNET protocol, so that new terminal features can be incorporated without changing the TELNET protocol.

Netprog: TELNET


Option examples

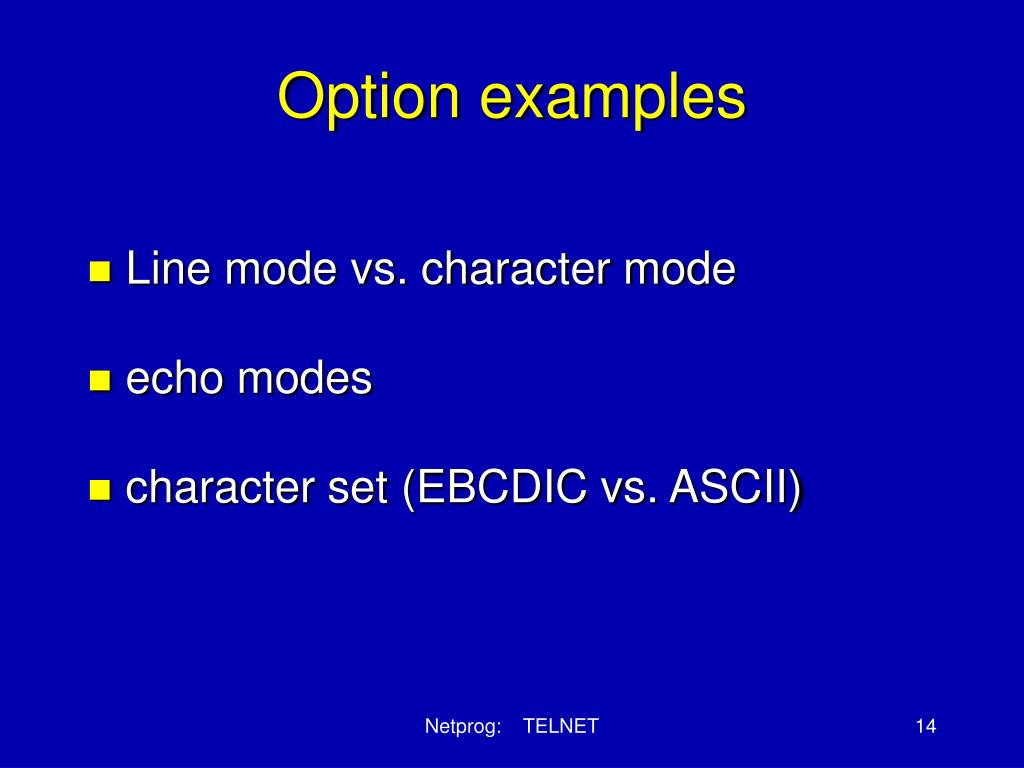

Option examples

  • Line mode vs. character mode

  • echo modes

  • character set (EBCDIC vs. ASCII)

Netprog: TELNET

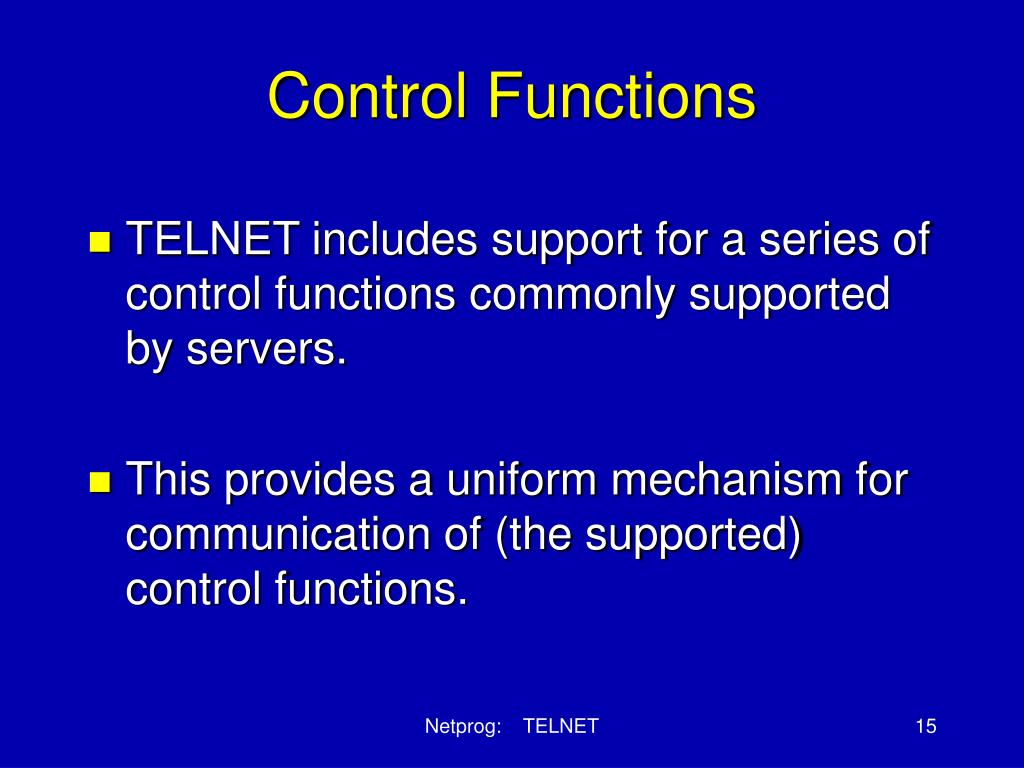

Control functions
Control Functions

  • TELNET includes support for a series of control functions commonly supported by servers.

  • This provides a uniform mechanism for communication of (the supported) control functions.

Netprog: TELNET


Control functions1

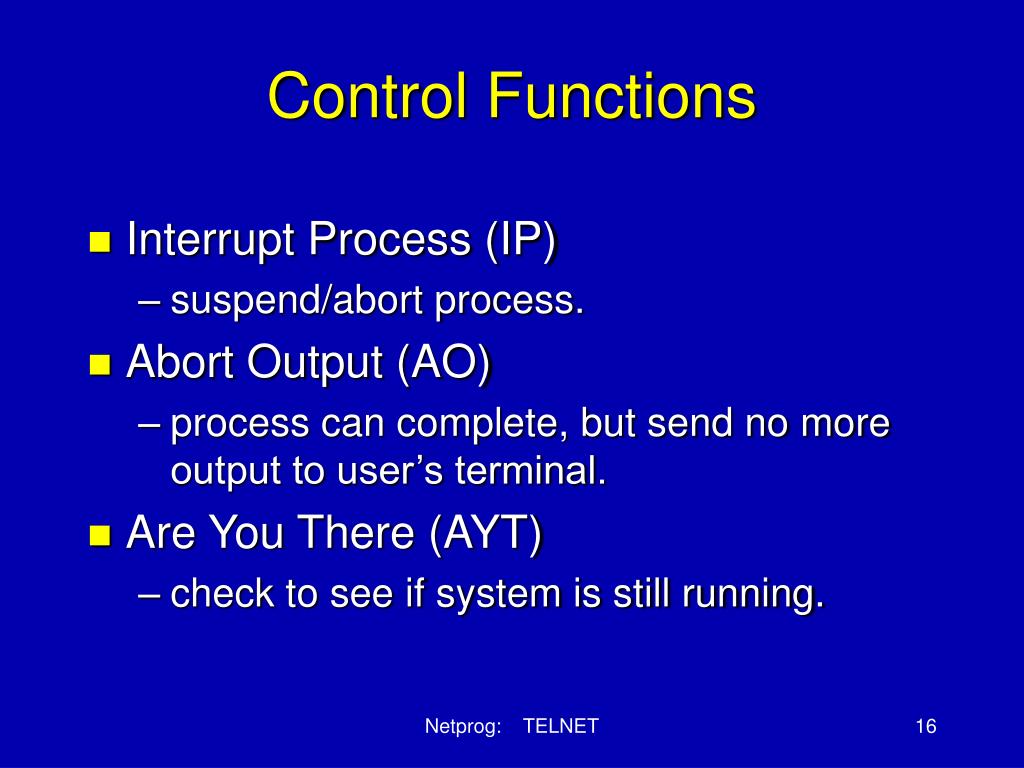

Control Functions

  • Interrupt Process (IP)

    • suspend/abort process.

  • Abort Output (AO)

    • process can complete, but send no more output to user’s terminal.

  • Are You There (AYT)

    • check to see if system is still running.

Netprog: TELNET


More control functions
More Control Functions

  • Erase Character (EC)

    • delete last character sent

    • typically used to edit keyboard input.

  • Erase Line (EL)

    • delete all input in current line.

Netprog: TELNET

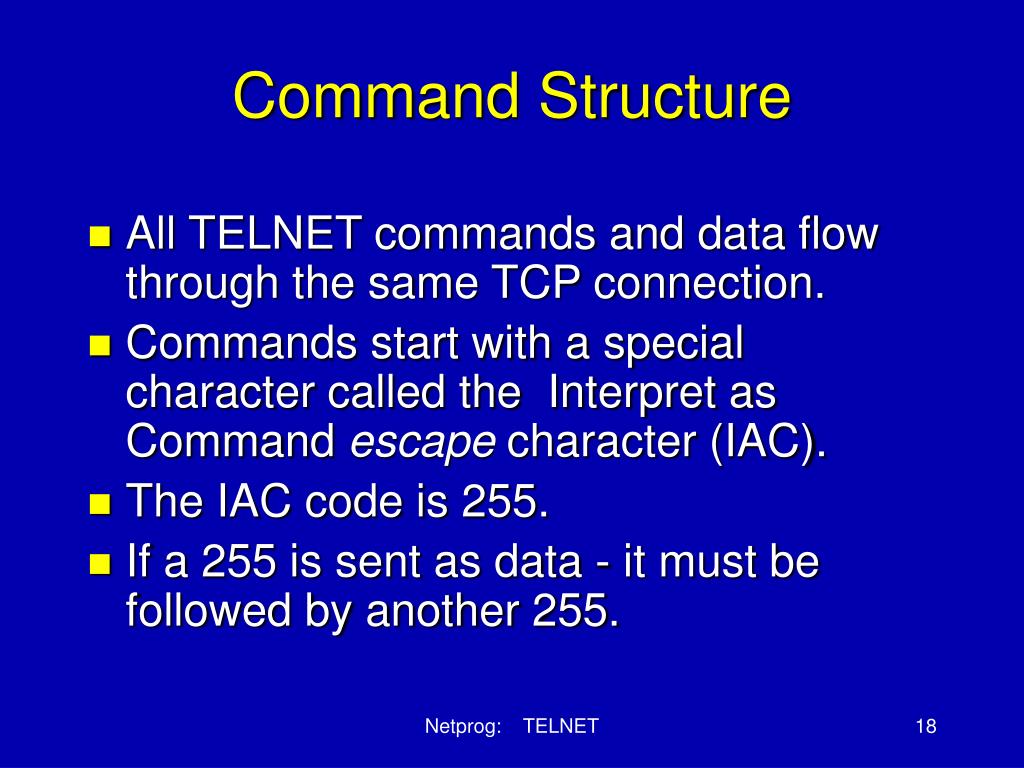

Command structure
Command Structure

  • All TELNET commands and data flow through the same TCP connection.

  • Commands start with a special character called the Interpret as Command escape character (IAC).

  • The IAC code is 255.

  • If a 255 is sent as data - it must be followed by another 255.

Netprog: TELNET


Looking for commands
Looking for Commands

  • Each receiver must look at each byte that arrives and look for IAC.

  • If IAC is found and the next byte is IAC - a single byte is presented to the application/terminal (a 255).

  • If IAC is followed by any other code - the TELNET layer interprets this as a command.

Netprog: TELNET


Commands

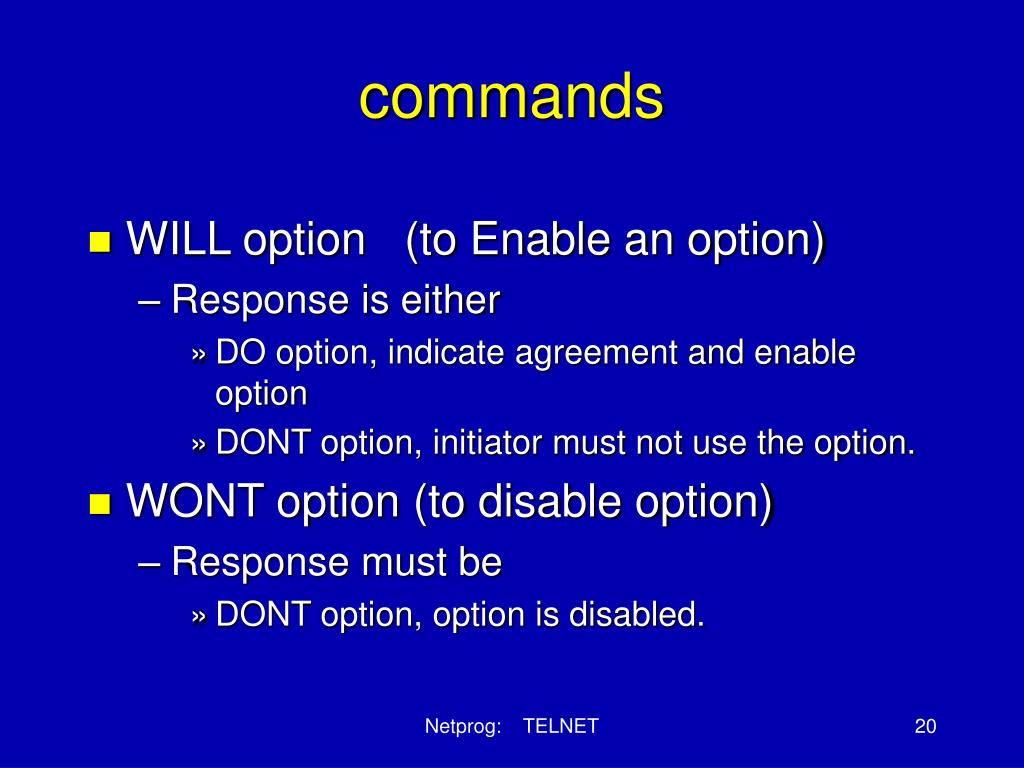

commands

  • WILL option (to Enable an option)

    • Response is either

      • DO option, indicate agreement and enable option

      • DONT option, initiator must not use the option.

  • WONT option (to disable option)

    • Response must be

      • DONT option, option is disabled.

Netprog: TELNET


Command codes

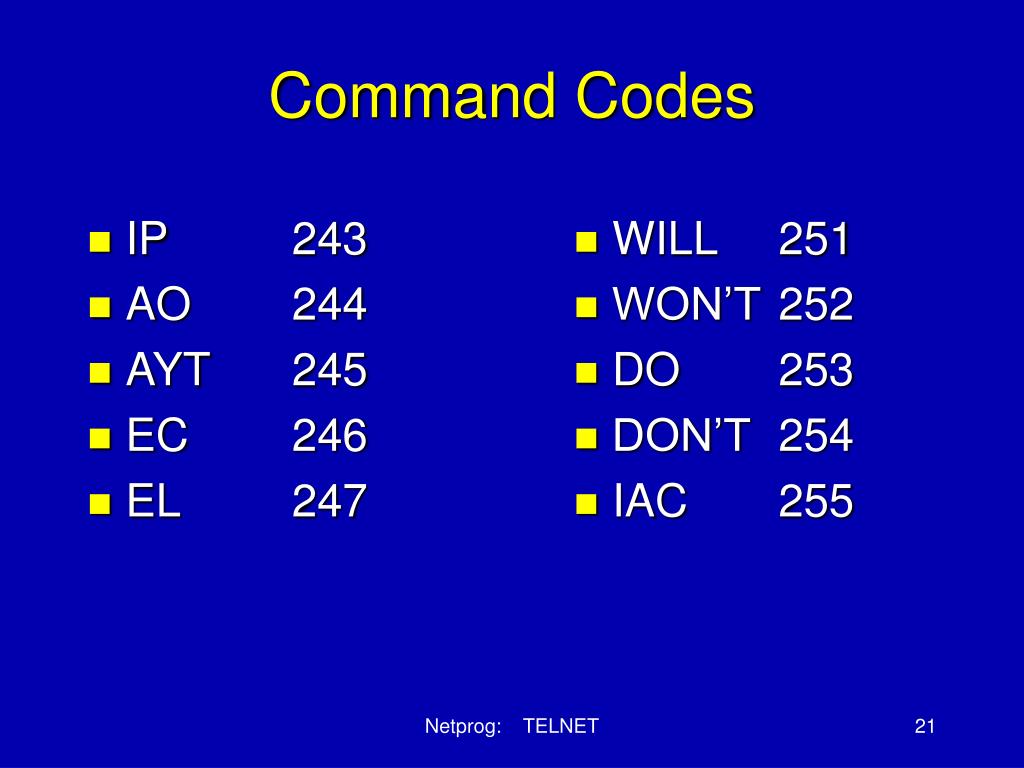

Command Codes

  • IP 243

  • AO 244

  • AYT 245

  • EC 246

  • EL 247

  • WILL 251

  • WON’T 252

  • DO 253

  • DON’T 254

  • IAC 255

Netprog: TELNET


Telnet options
Telnet Options

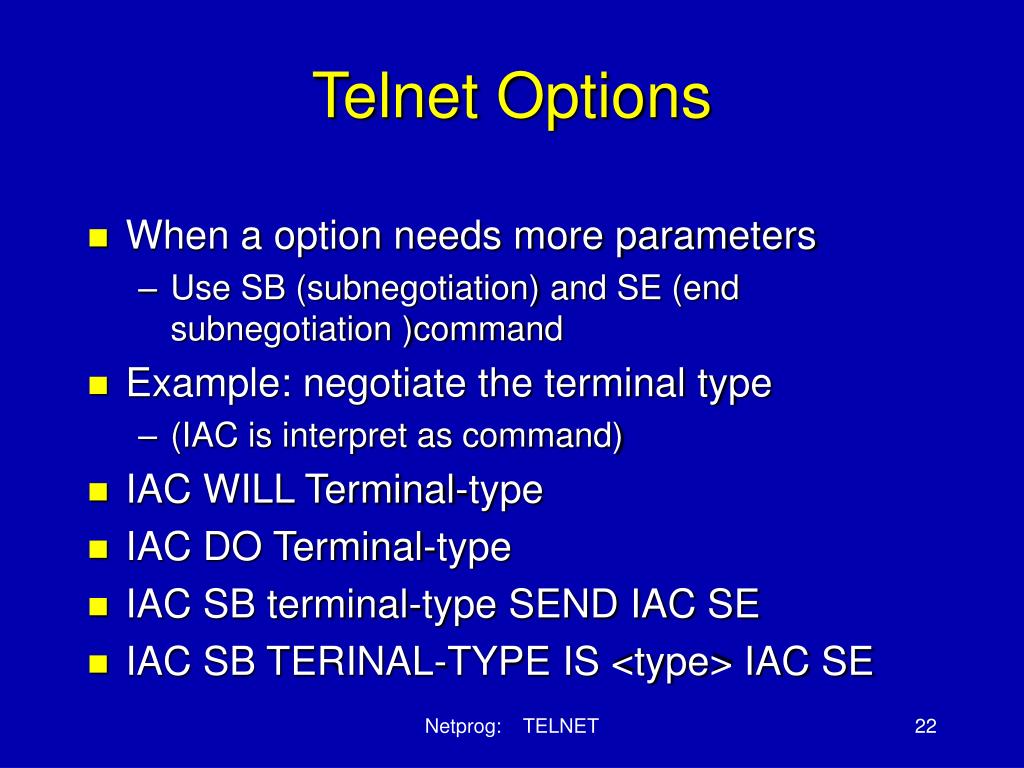

  • When a option needs more parameters

    • Use SB (subnegotiation) and SE (end subnegotiation )command

  • Example: negotiate the terminal type

    • (IAC is interpret as command)

  • IAC WILL Terminal-type

  • IAC DO Terminal-type

  • IAC SB terminal-type SEND IAC SE

  • IAC SB TERINAL-TYPE IS <type> IAC SE

Netprog: TELNET

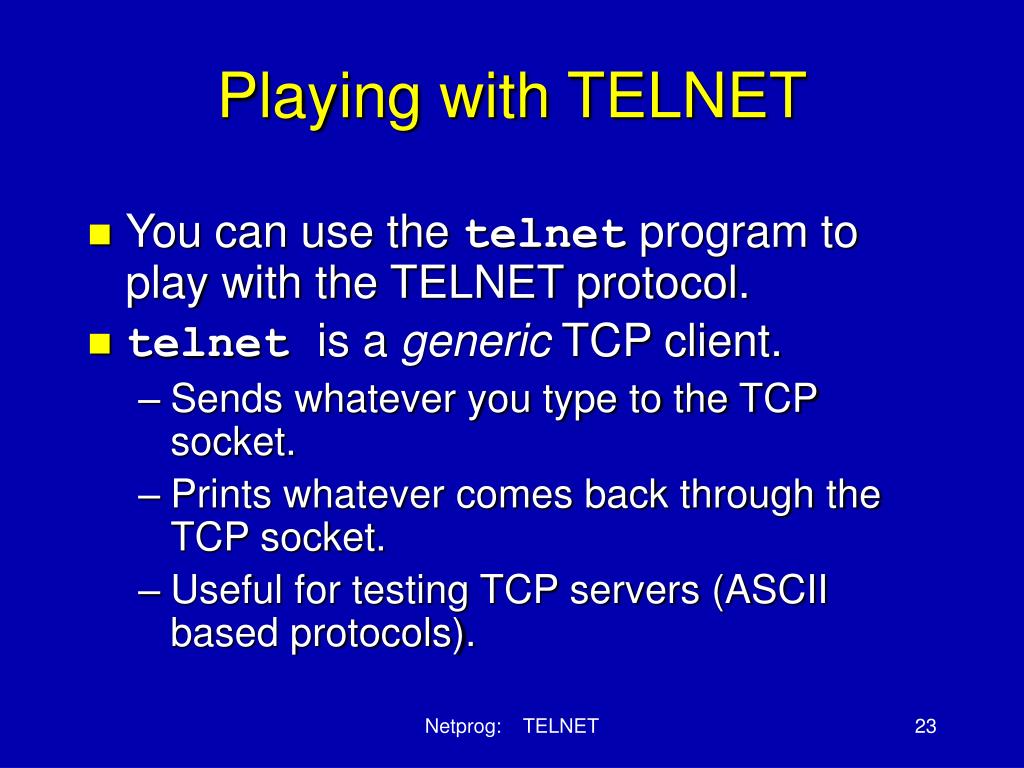

Playing with telnet
Playing with TELNET

  • You can use the telnet program to play with the TELNET protocol.

  • telnet is a generic TCP client.

    • Sends whatever you type to the TCP socket.

    • Prints whatever comes back through the TCP socket.

    • Useful for testing TCP servers (ASCII based protocols).

Netprog: TELNET

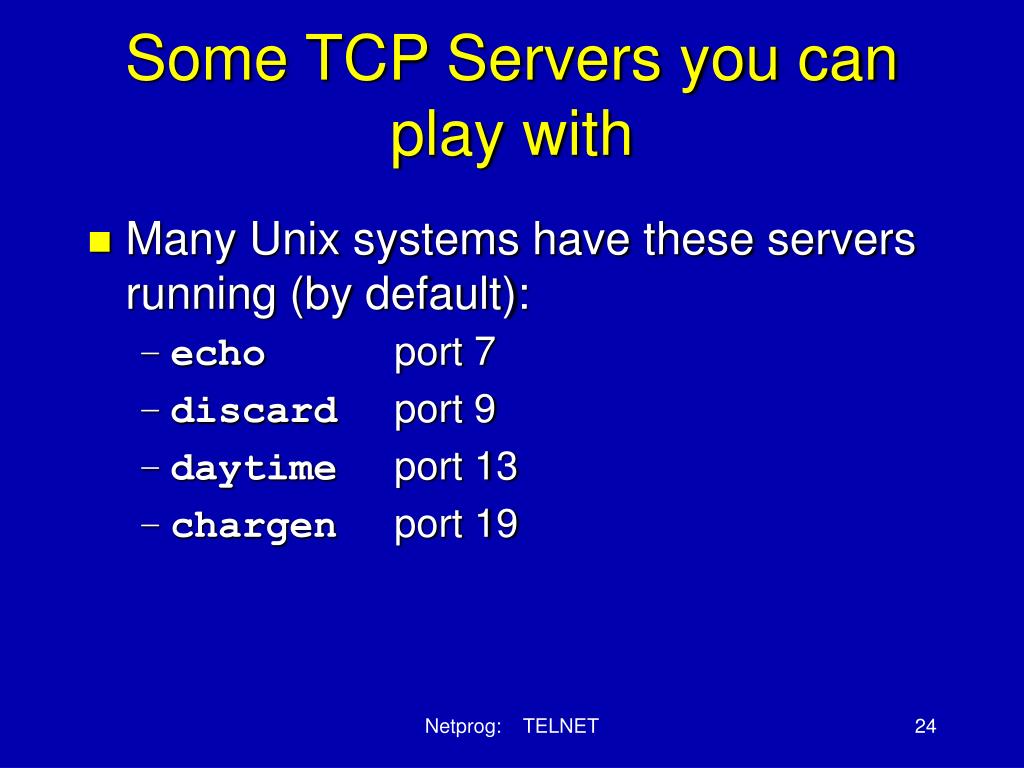

Some tcp servers you can play with
Some TCP Servers you can play with

  • Many Unix systems have these servers running (by default):

    • echo port 7

    • discard port 9

    • daytime port 13

    • chargen port 19

Netprog: TELNET

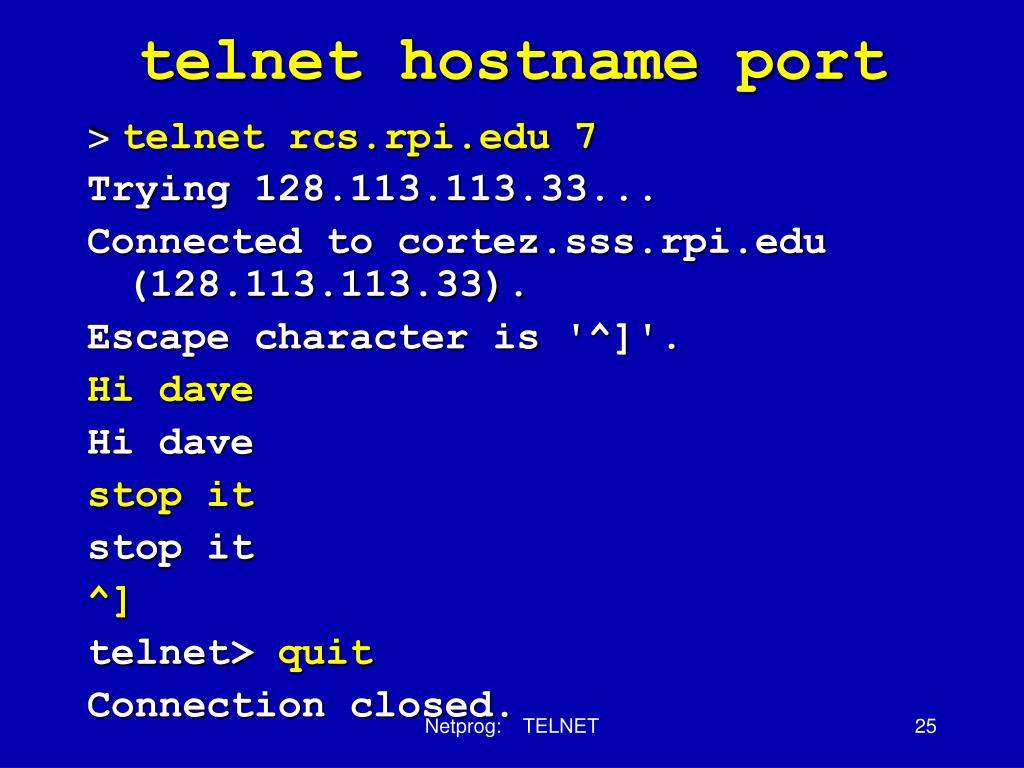

Telnet hostname port
telnet hostname port

> telnet rcs.rpi.edu 7

Trying 128.113.113.33...

Connected to cortez.sss.rpi.edu (128.113.113.33).

Escape character is '^]'.

Hi dave

Hi dave

stop it

stop it

^]

telnet> quit

Connection closed.

Netprog: TELNET


Telnet vs tcp
telnet vs. TCP

  • Not all TCP servers talk TELNET (most don't)

  • You can use the telnet program to play with these servers, but the fancy commands won't do anything.

    • type ^], then "help" for a list of fancy TELNET stuff you can do in telnet.

Netprog: TELNET

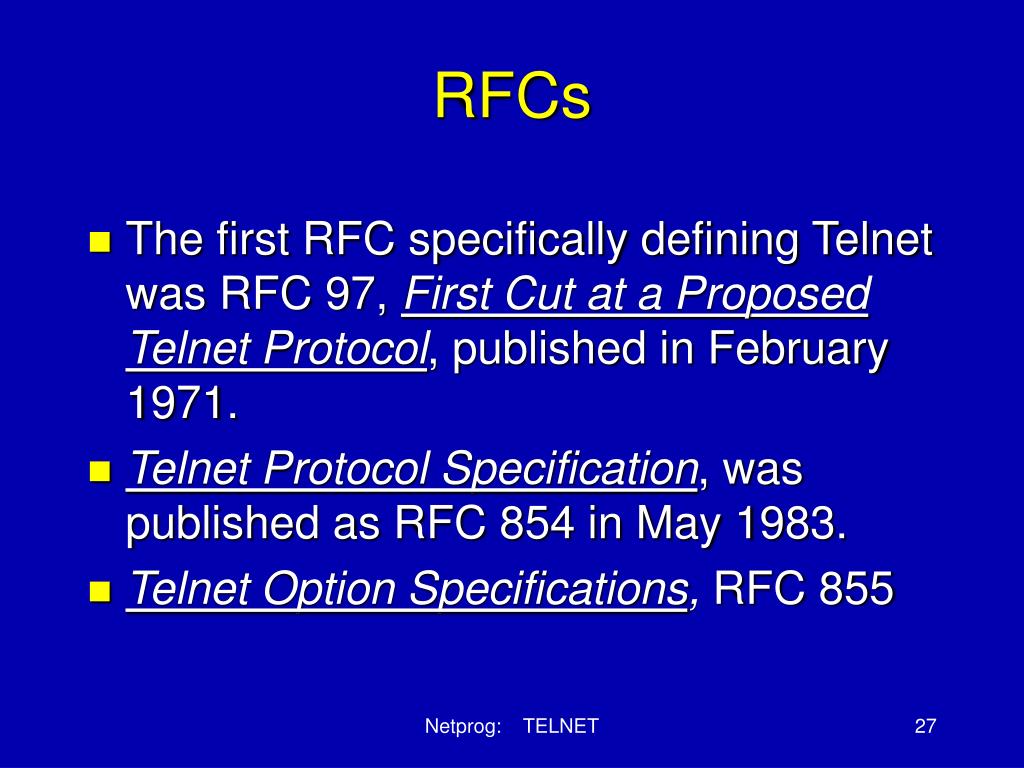

RFCs

  • The first RFC specifically defining Telnet was RFC 97, First Cut at a Proposed Telnet Protocol, published in February 1971.

  • Telnet Protocol Specification, was published as RFC 854 in May 1983.

  • Telnet Option Specifications, RFC 855

Netprog: TELNET
