  1. Digi - Brush Josh Long Katie Schremser Caleb Ayew-ew

  2. Project-Specific Success Criteria • An ability to display images on the display board • An ability to track the digital brush on the display board • An ability to mimic paintbrush stroke characteristics on the display board • An ability to save the painted image on a SD card • An ability to distinguish user’s color selection and display selected color before being painted

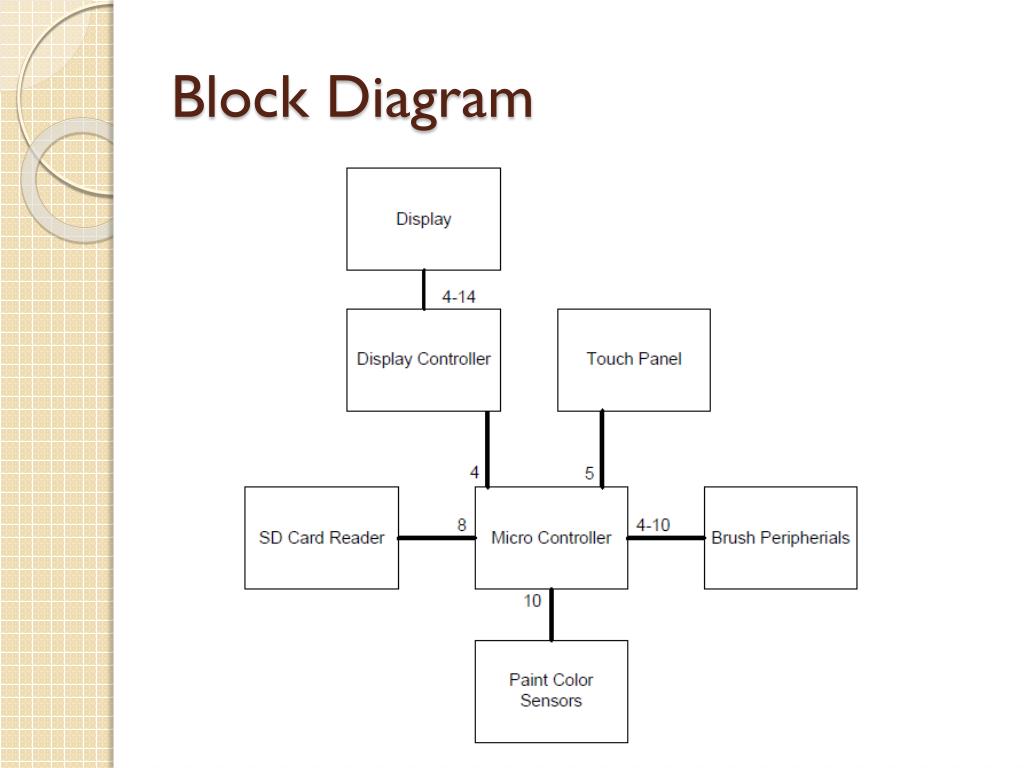

  3. Block Diagram

  4. Most Important Constraints • Display interfaces with microcontroller • Being able to send data from microcontroller onto the screen • Being able to receive data from touch screen • Serial and VGA communication • Being able to support all peripherals on one microcontroller • ATD • SPI • SCI • I2C

  5. Component Comparisons/Alternatives • Display/Touch System • Separate monitor and touch screen • NL10276AC24-02 (NEC) (monitor) • KIT121TOUCH (EarthLCD) (touch screen) • Combined • NEO 15.1” (CyberTouch) • Graphics Controller • Pre-built VGA controller • uVGA-PICASO-MD1 (4D Systems) • 16-bit i80 CPU Interface • PICASO-SGC (4D Systems)

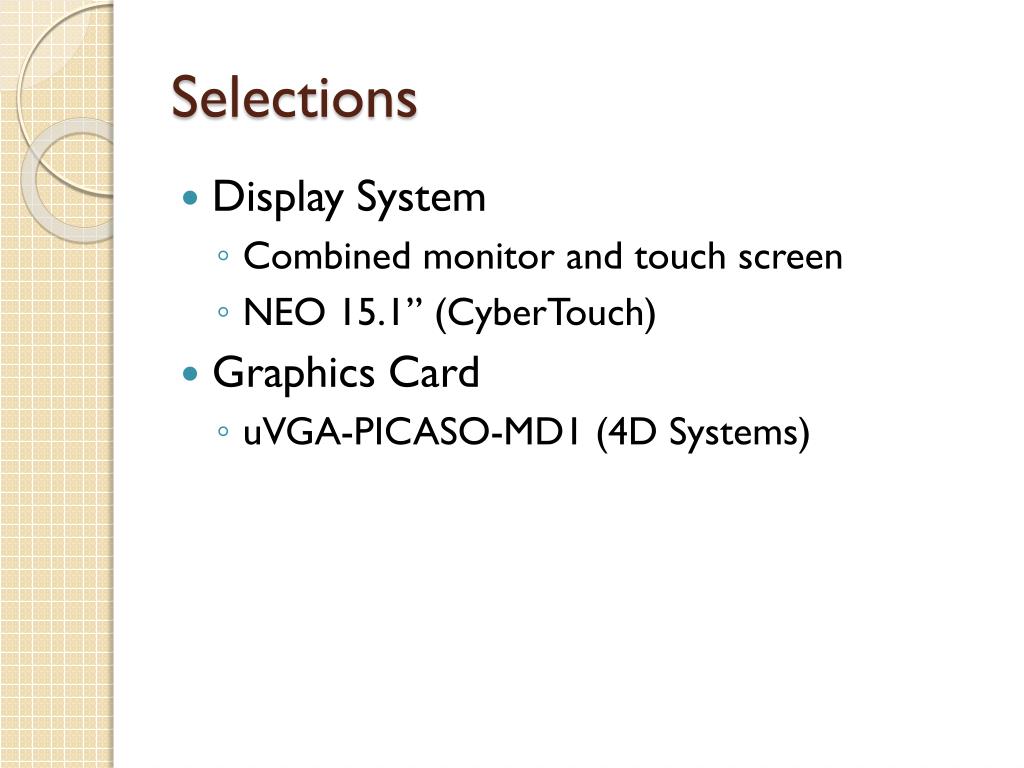

  6. Selections • Display System • Combined monitor and touch screen • NEO 15.1” (CyberTouch) • Graphics Card • uVGA-PICASO-MD1 (4D Systems)
