Presentation Transcript


The three gorges dam

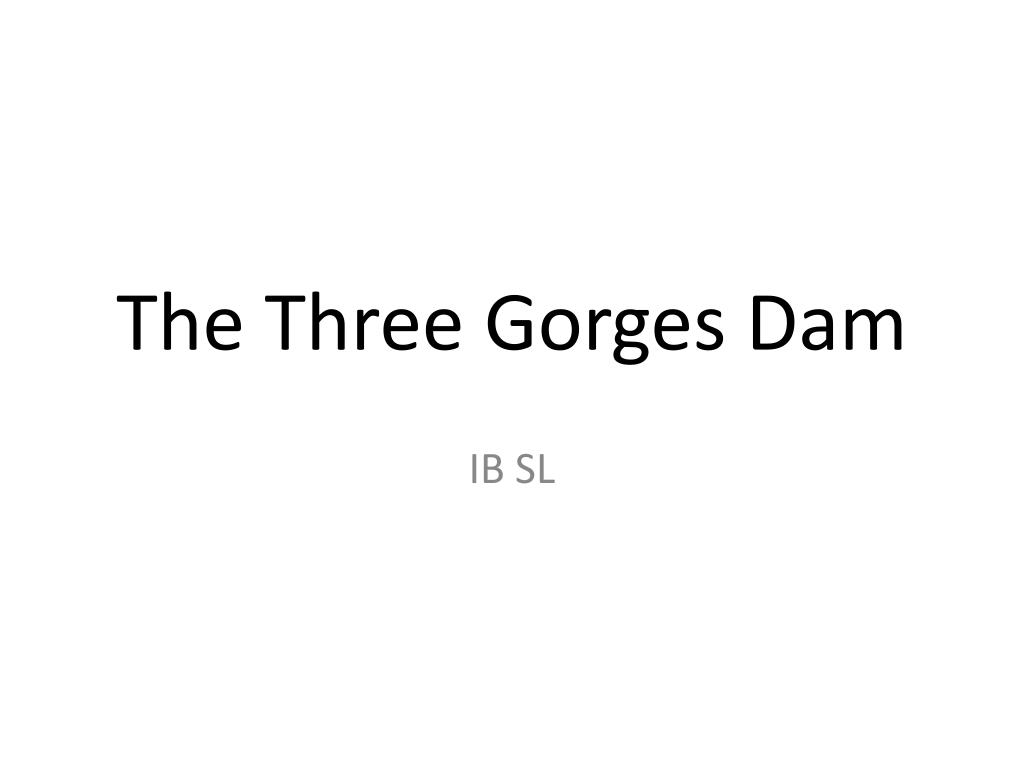

The Three Gorges Dam

IB SL


Hydroelectric power

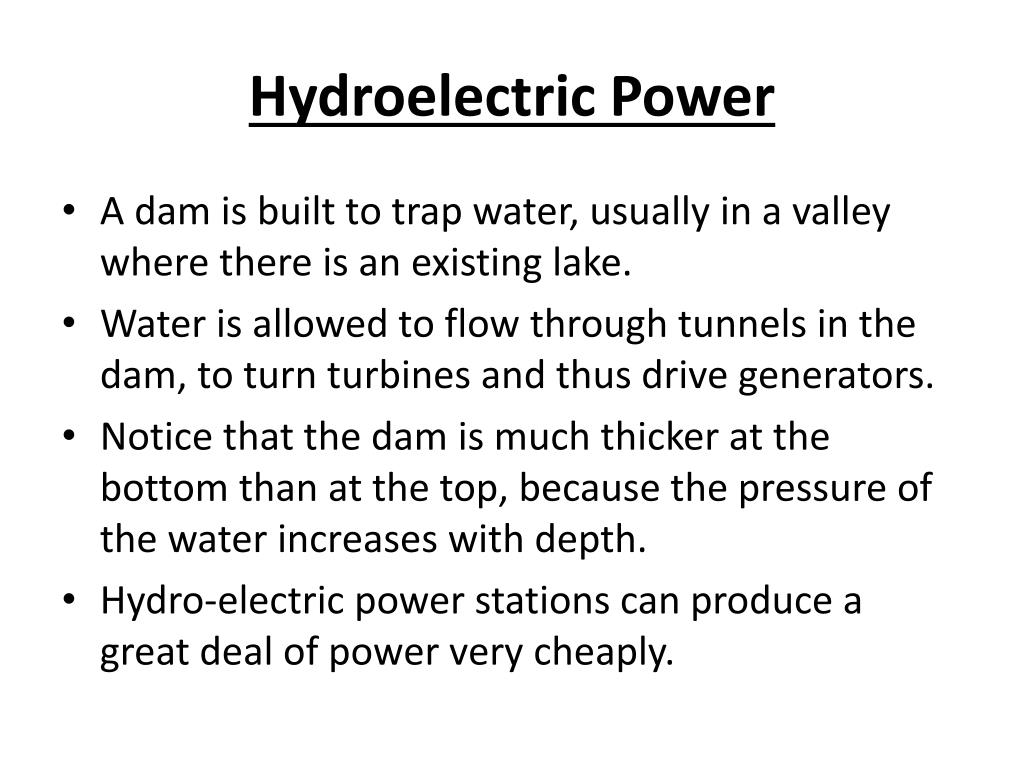

Hydroelectric Power

  • A dam is built to trap water, usually in a valley where there is an existing lake.

  • Water is allowed to flow through tunnels in the dam, to turn turbines and thus drive generators.

  • Notice that the dam is much thicker at the bottom than at the top, because the pressure of the water increases with depth.

  • Hydro-electric power stations can produce a great deal of power very cheaply.


Hydroelectric power pros vs cons

Hydroelectric Power: Pros Vs Cons


What is it

What Is It?

  • The Three Gorges Dam is a hydroelectric dam that spans the Yangtze River by the town of Sandouping, located in the Yiling District of Yichang, in Hubei province, China.

  • It is the world's largest electricity-generating plant of any kind,and second in production.

  • The dam body was completed in 2006 and the originally planned components of the project were completed on October 30, 2008, when the 26th generator in the shore plant began commercial operation. Each generator has a capacity of 700 MW.

  • Six additional generators in the underground power plant are not expected to become fully operational until 2011.


What is it1

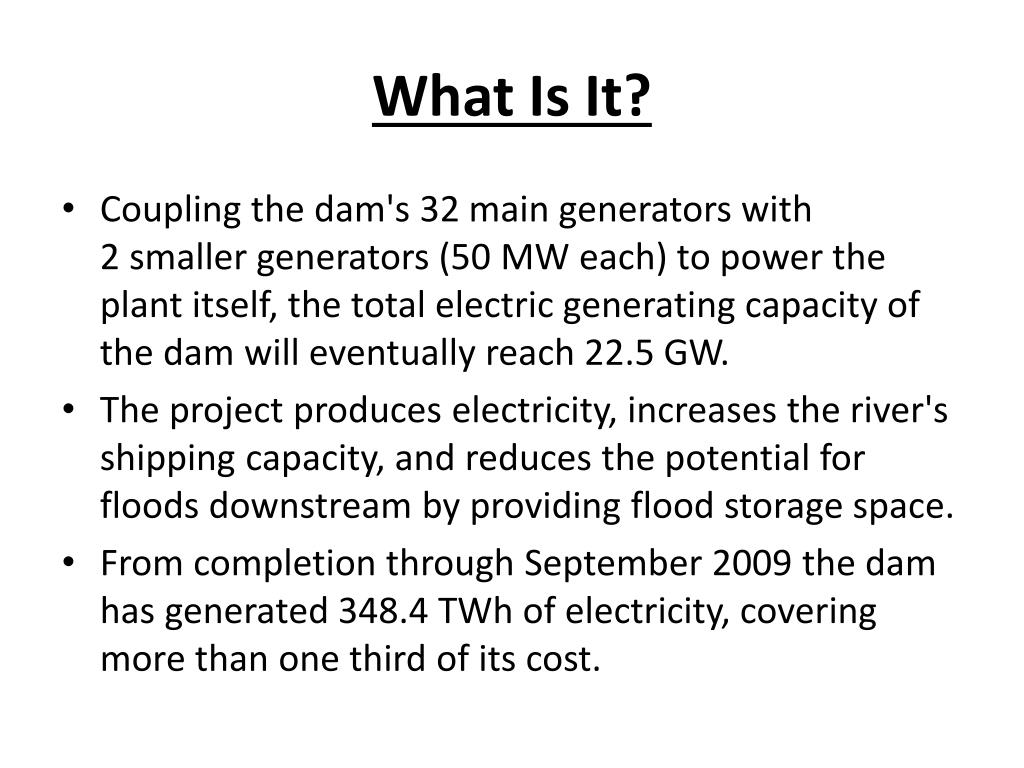

What Is It?

  • Coupling the dam's 32 main generators with 2 smaller generators (50 MW each) to power the plant itself, the total electric generating capacity of the dam will eventually reach 22.5 GW.

  • The project produces electricity, increases the river's shipping capacity, and reduces the potential for floods downstream by providing flood storage space.

  • From completion through September 2009 the dam has generated 348.4 TWh of electricity, covering more than one third of its cost.


Controversy

Controversy

  • The Chinese state regards the project as a historic engineering, social and economic success,with the design of state-of-the-art large turbines,and a move toward limiting greenhouse gas emissions.

  • However, the dam flooded archaeological and cultural sites and displaced some 1.3 million people, and is causing significant ecological changes, including an increased risk of landslides.

  • The dam has been a controversial topic both in China and abroad.


Facts

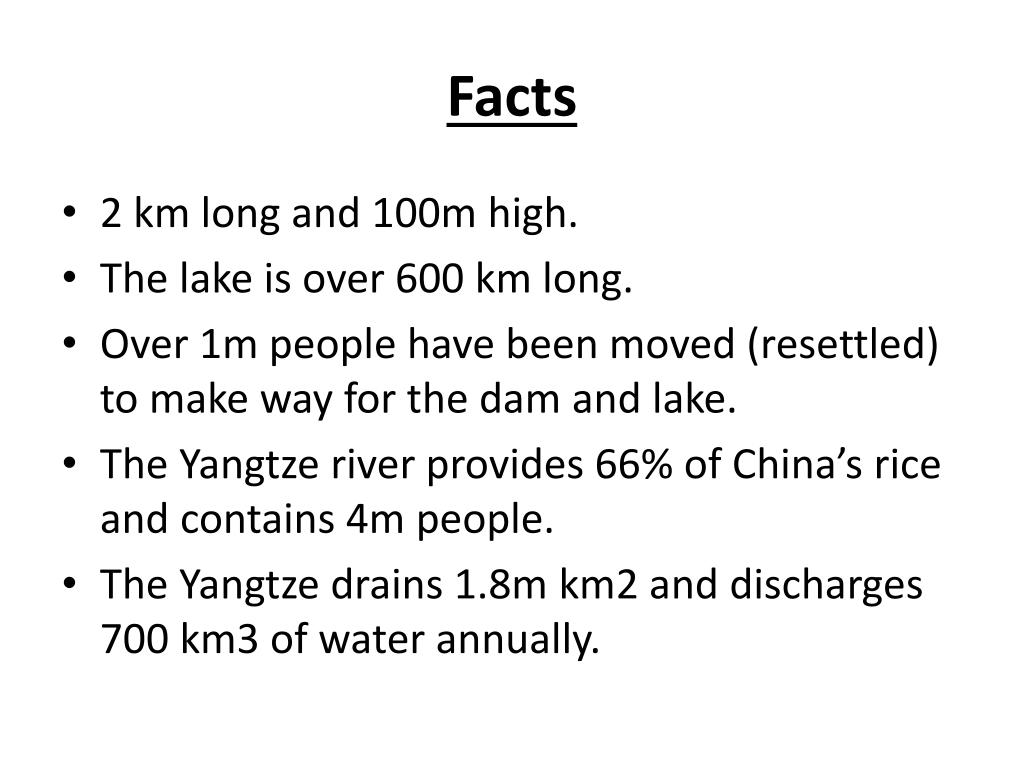

Facts

  • 2 km long and 100m high.

  • The lake is over 600 km long.

  • Over 1m people have been moved (resettled) to make way for the dam and lake.

  • The Yangtze river provides 66% of China’s rice and contains 4m people.

  • The Yangtze drains 1.8m km2 and discharges 700 km3 of water annually.


Advantages

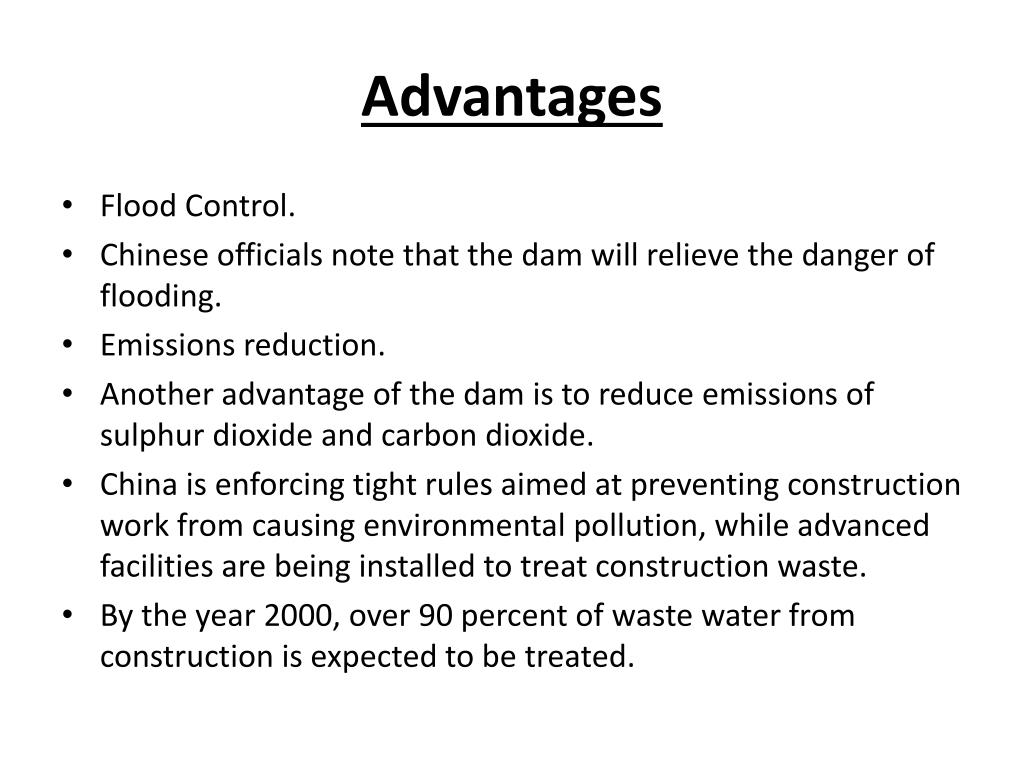

Advantages

  • Flood Control.

  • Chinese officials note that the dam will relieve the danger of flooding.

  • Emissions reduction.

  • Another advantage of the dam is to reduce emissions of sulphur dioxide and carbon dioxide.

  • China is enforcing tight rules aimed at preventing construction work from causing environmental pollution, while advanced facilities are being installed to treat construction waste.

  • By the year 2000, over 90 percent of waste water from construction is expected to be treated.


Disadvantages

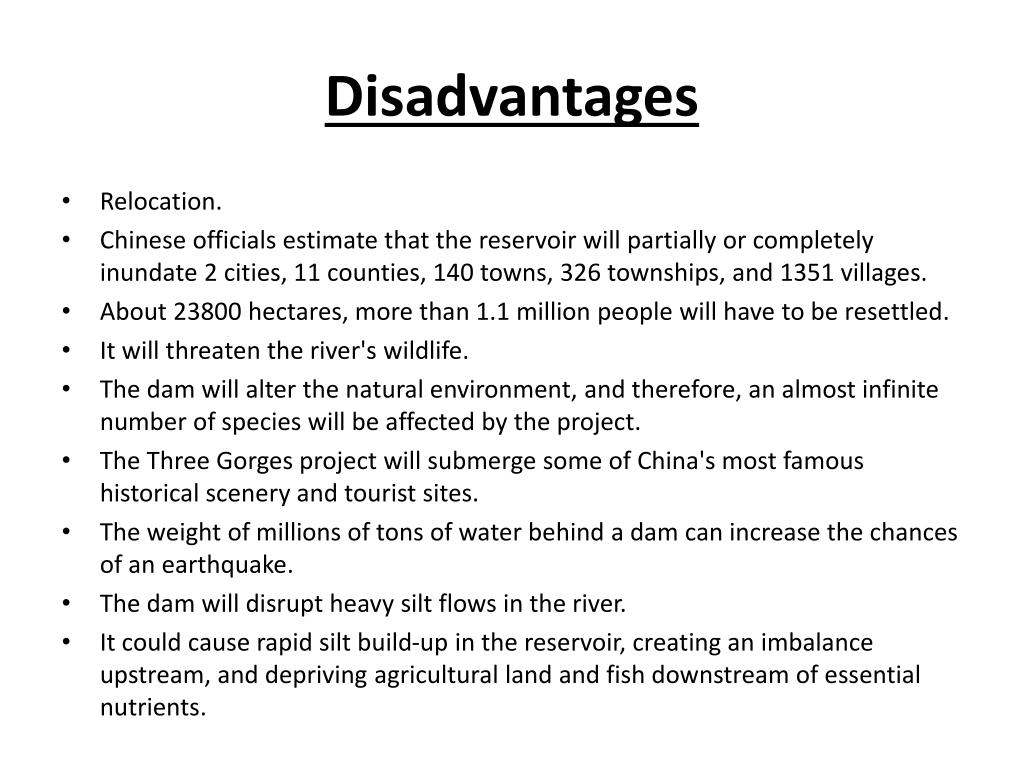

Disadvantages

  • Relocation.

  • Chinese officials estimate that the reservoir will partially or completely inundate 2 cities, 11 counties, 140 towns, 326 townships, and 1351 villages.

  • About 23800 hectares, more than 1.1 million people will have to be resettled.

  • It will threaten the river's wildlife.

  • The dam will alter the natural environment, and therefore, an almost infinite number of species will be affected by the project.

  • The Three Gorges project will submerge some of China's most famous historical scenery and tourist sites.

  • The weight of millions of tons of water behind a dam can increase the chances of an earthquake.

  • The dam will disrupt heavy silt flows in the river.

  • It could cause rapid silt build-up in the reservoir, creating an imbalance upstream, and depriving agricultural land and fish downstream of essential nutrients.


Pros vs cons

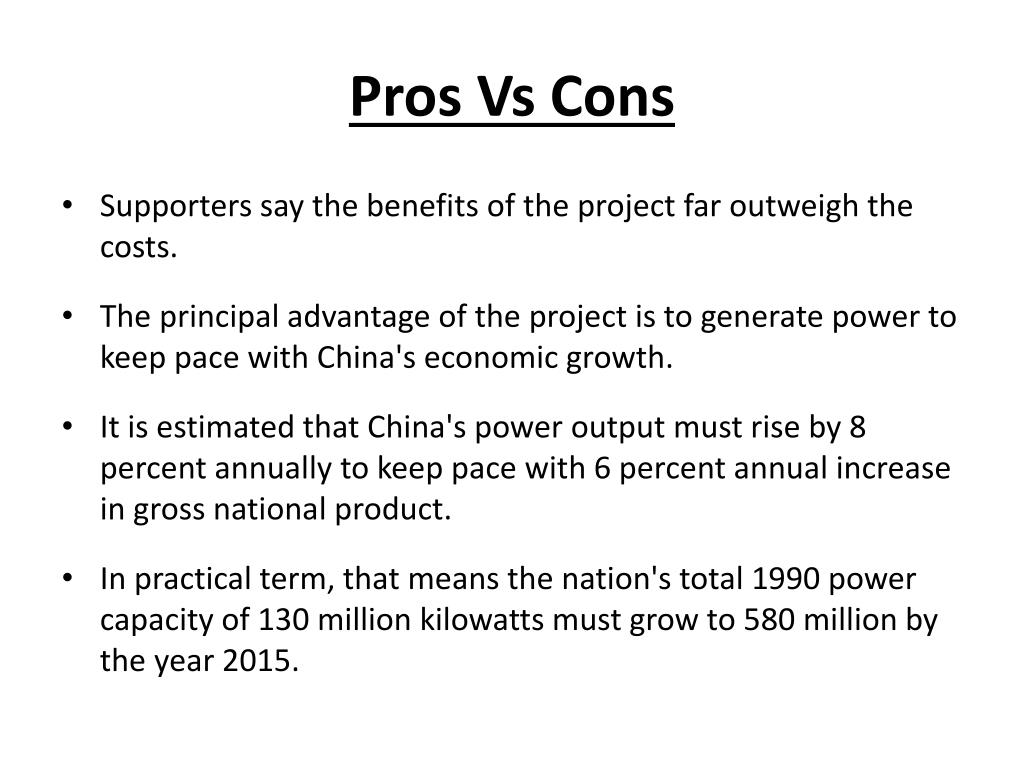

Pros Vs Cons

  • Supporters say the benefits of the project far outweigh thecosts.

  • The principal advantage of the project is to generate power to keep pace with China's economic growth.

  • It is estimated that China's power output must rise by 8 percent annually to keep pace with 6 percent annual increase in gross national product.

  • In practical term, that means the nation's total 1990 power capacity of 130 million kilowatts must grow to 580 million by the year 2015.


Activity

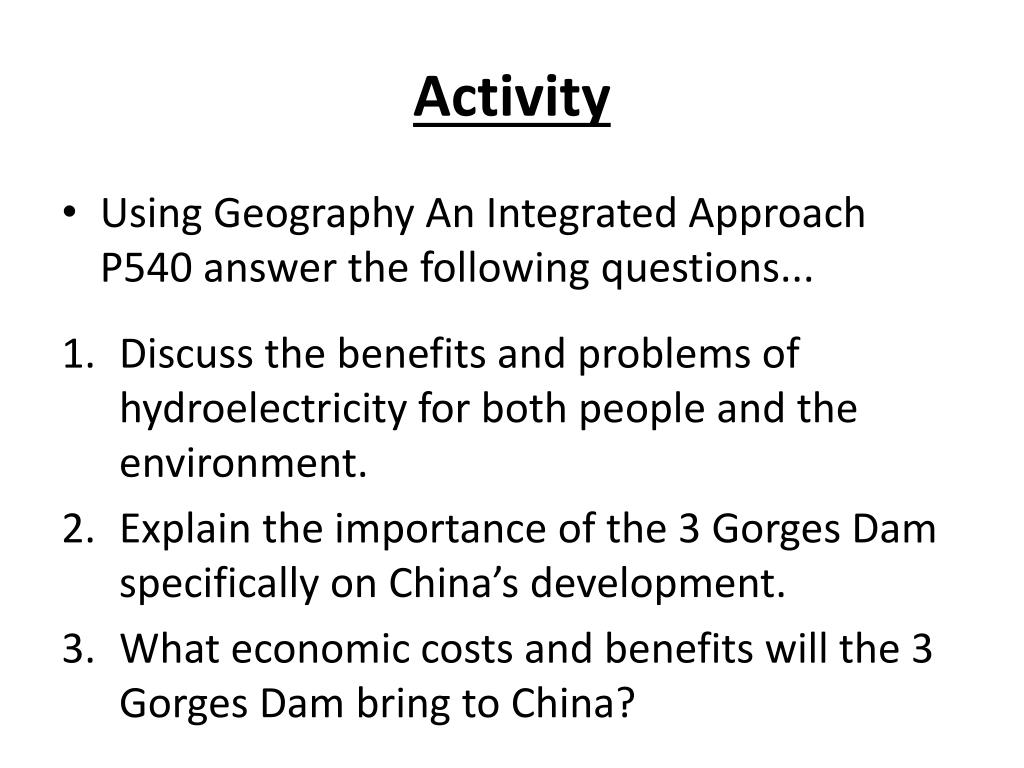

Activity

  • Using Geography An Integrated Approach P540 answer the following questions...

  • Discuss the benefits and problems of hydroelectricity for both people and the environment.

  • Explain the importance of the 3 Gorges Dam specifically on China’s development.

  • What economic costs and benefits will the 3 Gorges Dam bring to China?
