Presentation Transcript


Chapter 31 1 l.jpg

Chapter 31.1

Reproductive Structures of Flowering Plants

AP Biology

Spring 2011


Floral structure and function l.jpg

Floral Structure and Function

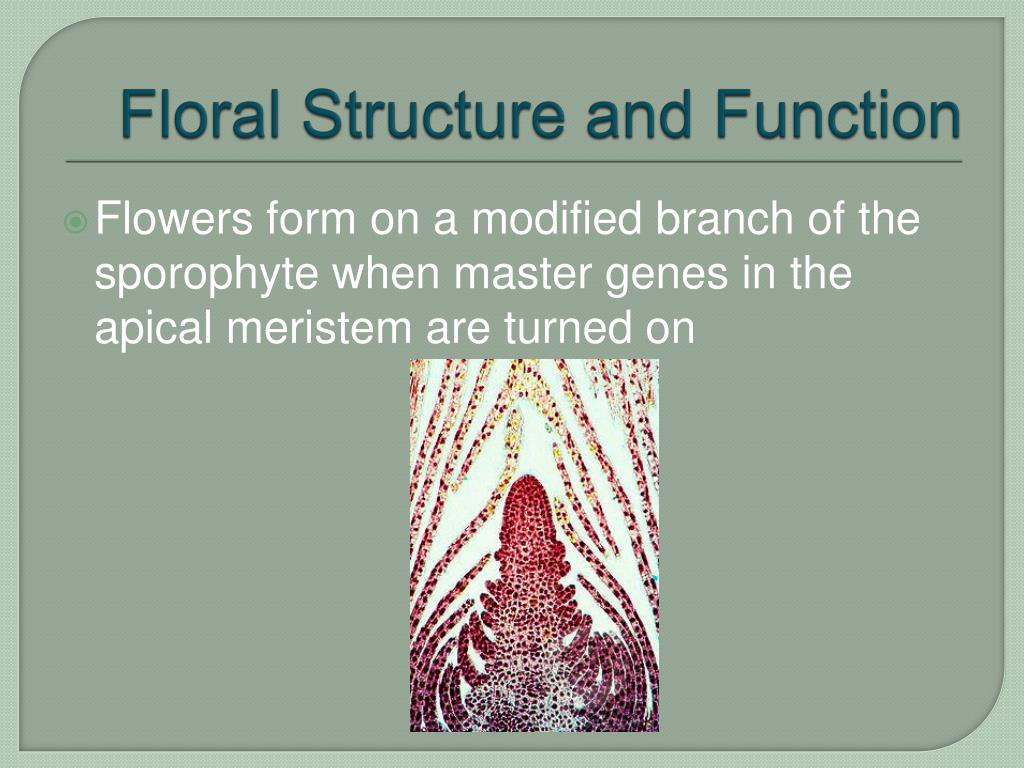

Flowers form on a modified branch of the sporophyte when master genes in the apical meristem are turned on


Floral structure and function3 l.jpg

Floral Structure and Function

Flower parts are arranged in whorls of modified leaves on the end of the receptacle


Floral structure and function4 l.jpg

Floral Structure and Function

Sepals: outermost green, leaf-like parts arranged in a ring called the calyx

Petals: the coloured parts located between the reproductive structures and the sepals, arranged in a ring called the corolla


Floral structure and function6 l.jpg

Floral Structure and Function

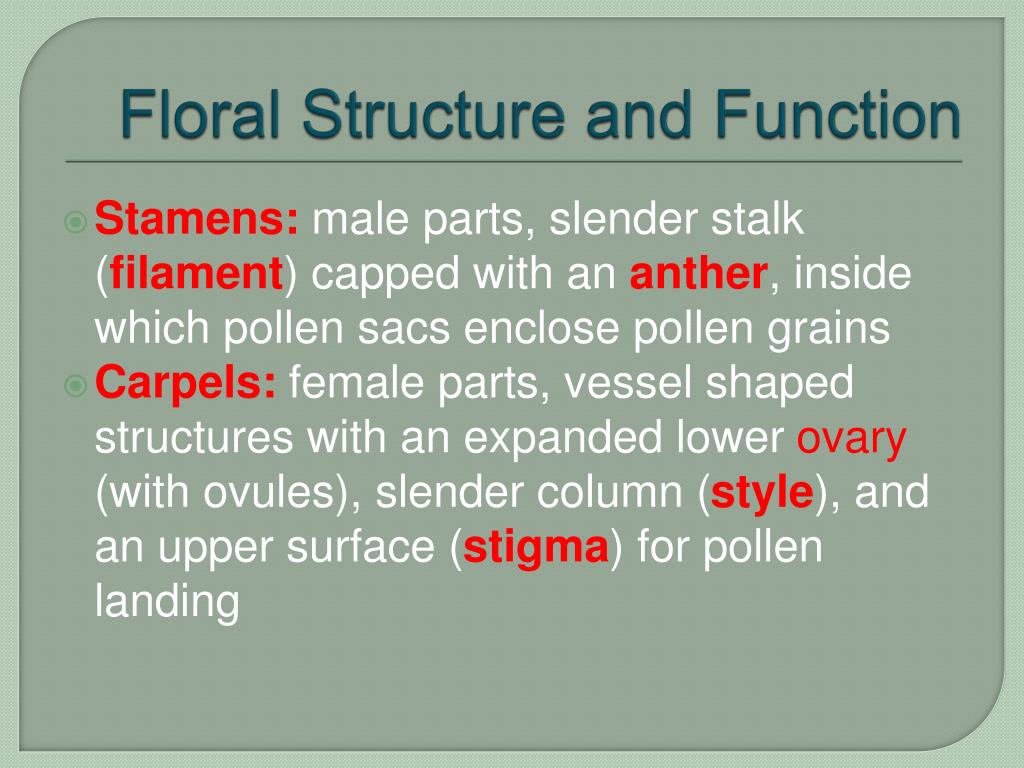

Stamens: male parts, slender stalk (filament) capped with an anther, inside which pollen sacs enclose pollen grains

Carpels: female parts, vessel shaped structures with an expanded lower ovary (with ovules), slender column (style), and an upper surface (stigma) for pollen landing


Floral structure and function7 l.jpg

Floral Structure and Function

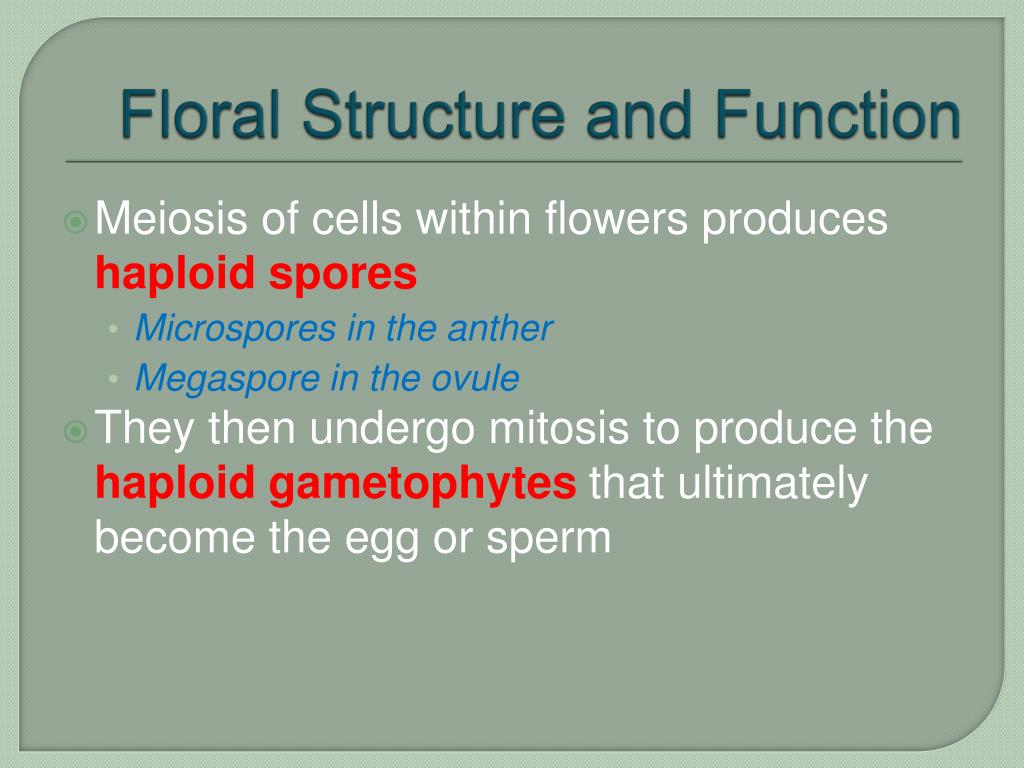

  • Meiosis of cells within flowers produces haploid spores

    • Microspores in the anther

    • Megaspore in the ovule

  • They then undergo mitosis to produce the haploid gametophytes that ultimately become the egg or sperm


Floral structure and function8 l.jpg

Floral Structure and Function

The egg and the sperm fuse to form the diploid zygote

As the zygote develops into a plant, the seed is formed


Diversity in flower structure l.jpg

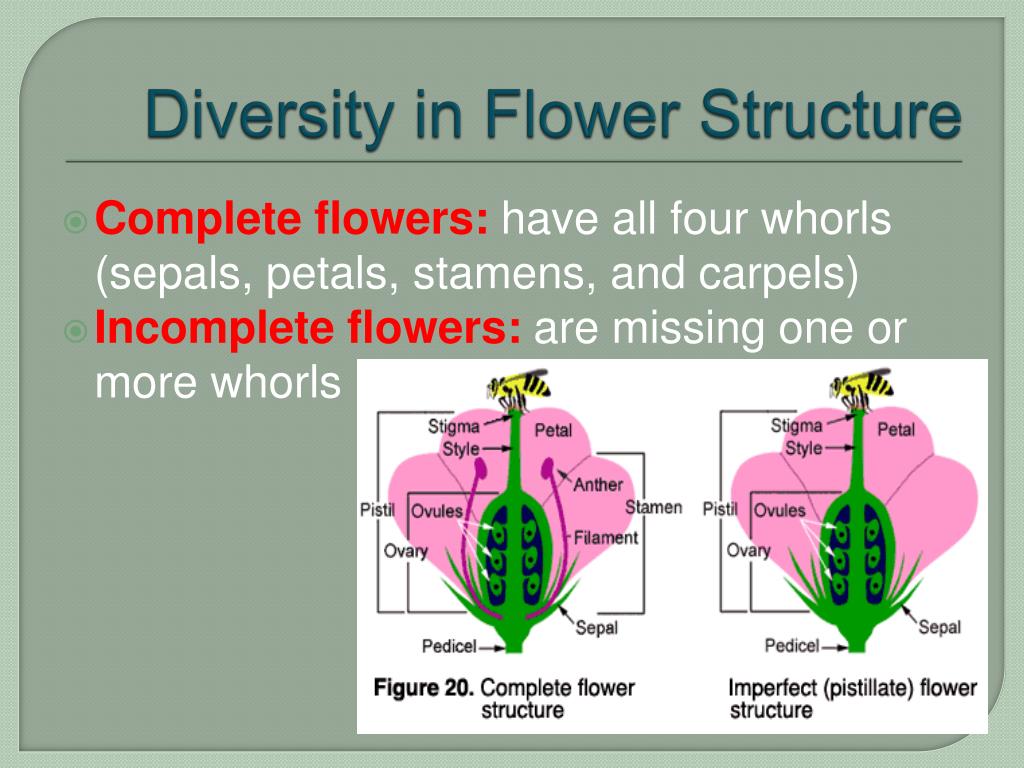

Diversity in Flower Structure

Complete flowers: have all four whorls (sepals, petals, stamens, and carpels)

Incomplete flowers: are missing one or more whorls


Diversity in flower structure10 l.jpg

Diversity in Flower Structure

Perfect flowers: have both stamens and carpel (both sexes on one flower)

Imperfect flowers: produce either stamens or carpels and are known as either “male” or “female” flowers
