The Interface Definition Language for Fail-Safe C

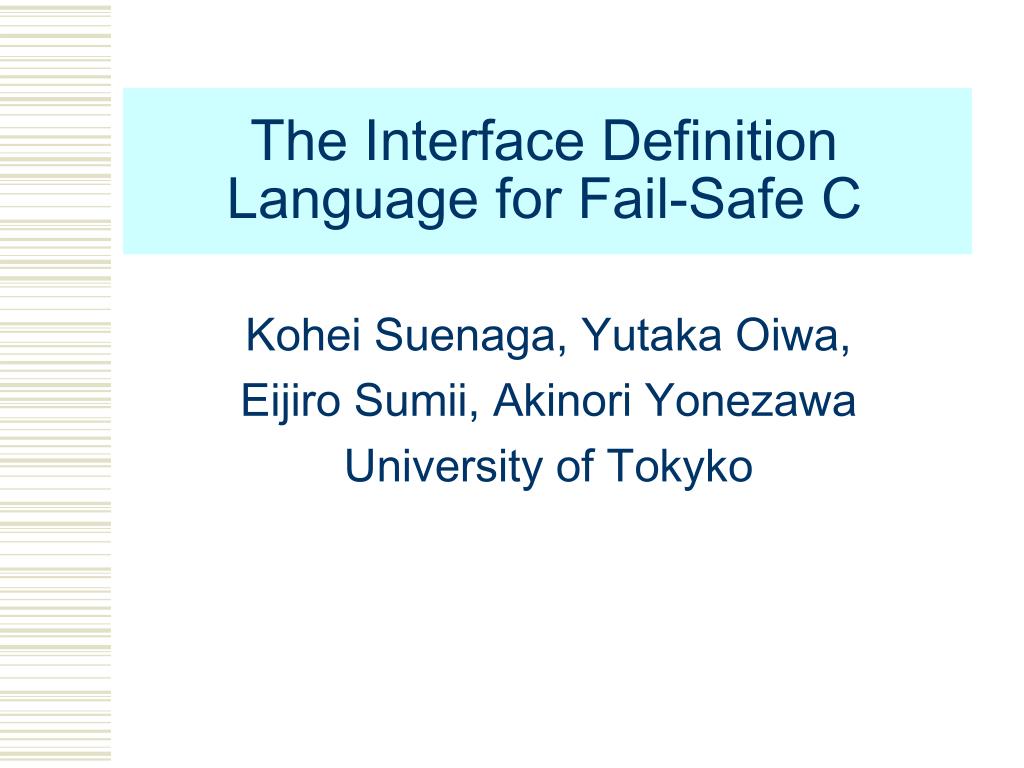

1. The Interface Definition Language for Fail-Safe C Kohei Suenaga, Yutaka Oiwa, Eijiro Sumii, Akinori Yonezawa University of Tokyko

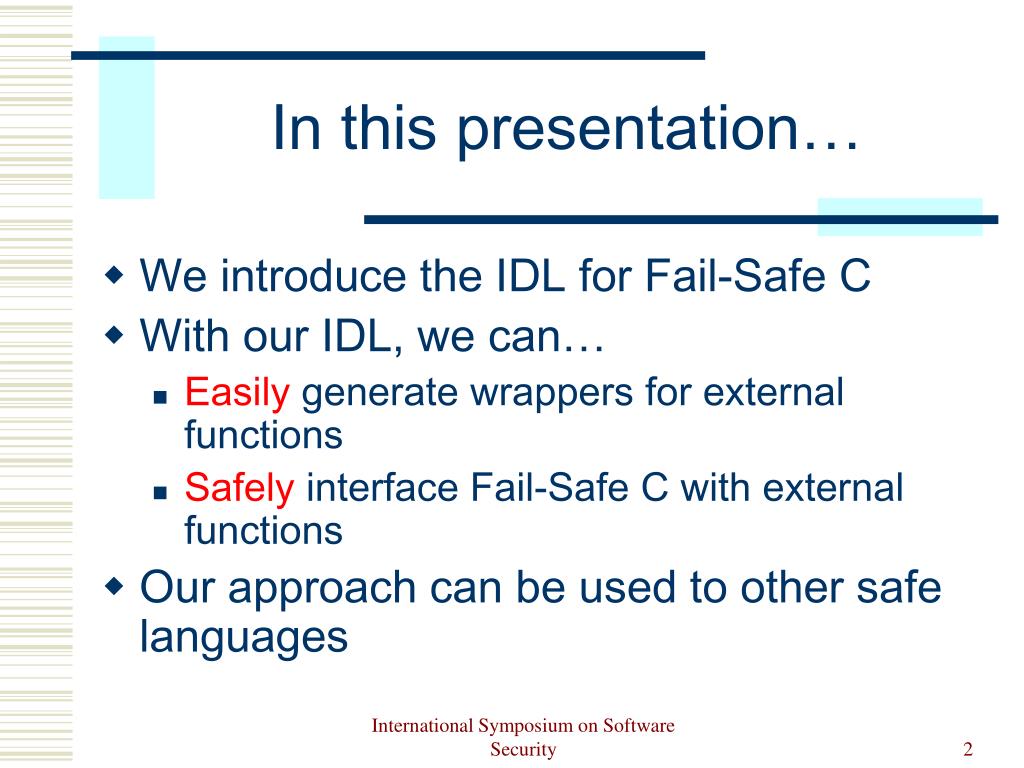

2. In this presentation… • We introduce the IDL for Fail-Safe C • With our IDL, we can… • Easily generate wrappers for external functions • Safely interface Fail-Safe C with external functions • Our approach can be used to other safe languages International Symposium on Software Security

3. Background International Symposium on Software Security

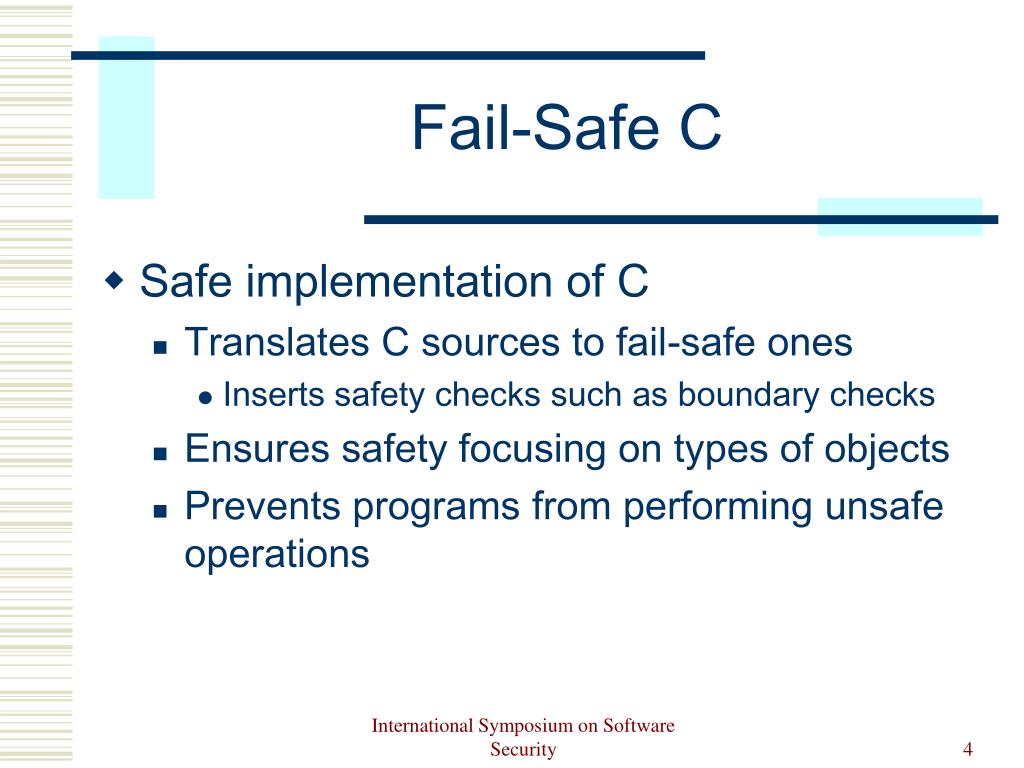

4. Fail-Safe C • Safe implementation of C • Translates C sources to fail-safe ones • Inserts safety checks such as boundary checks • Ensures safety focusing on types of objects • Prevents programs from performing unsafe operations International Symposium on Software Security

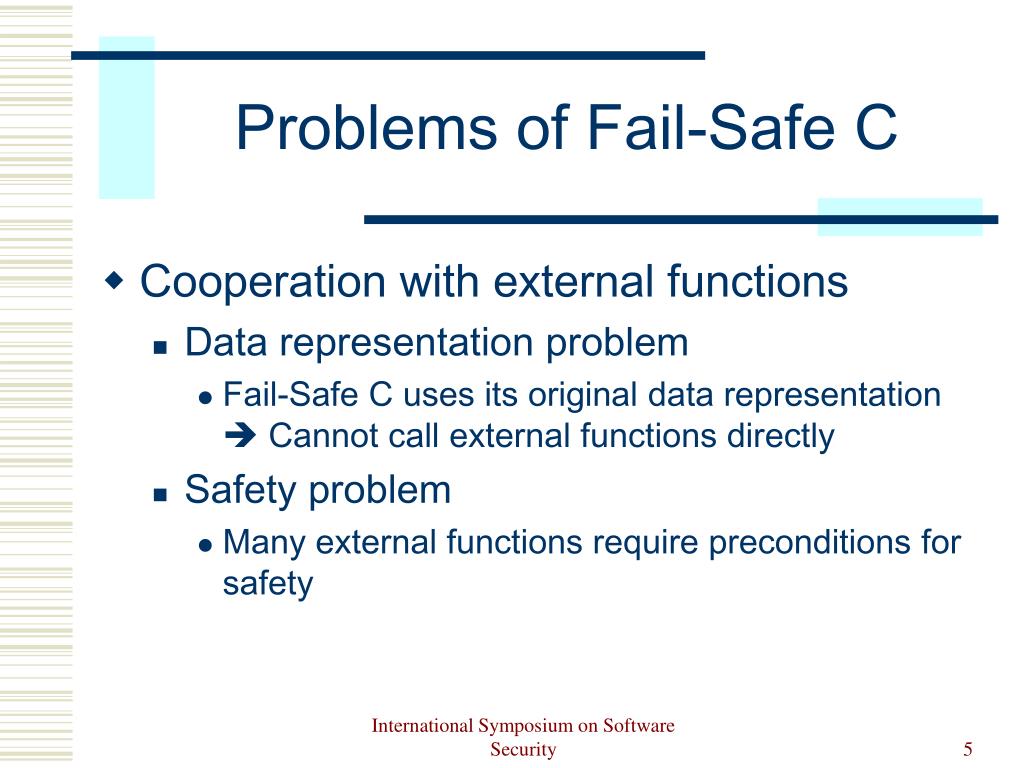

5. Problems of Fail-Safe C • Cooperation with external functions • Data representation problem • Fail-Safe C uses its original data representation Cannot call external functions directly • Safety problem • Many external functions require preconditions for safety International Symposium on Software Security

6. Solution • To prepare a wrapper for each function • Checks preconditions, converts representation, … We want to automatically generate such wrappers International Symposium on Software Security

7. Approach • Interface Definition Language (IDL) • Describe preconditions and behavior of external functions with the IDL Wrappers Interface Definition IDL processor International Symposium on Software Security

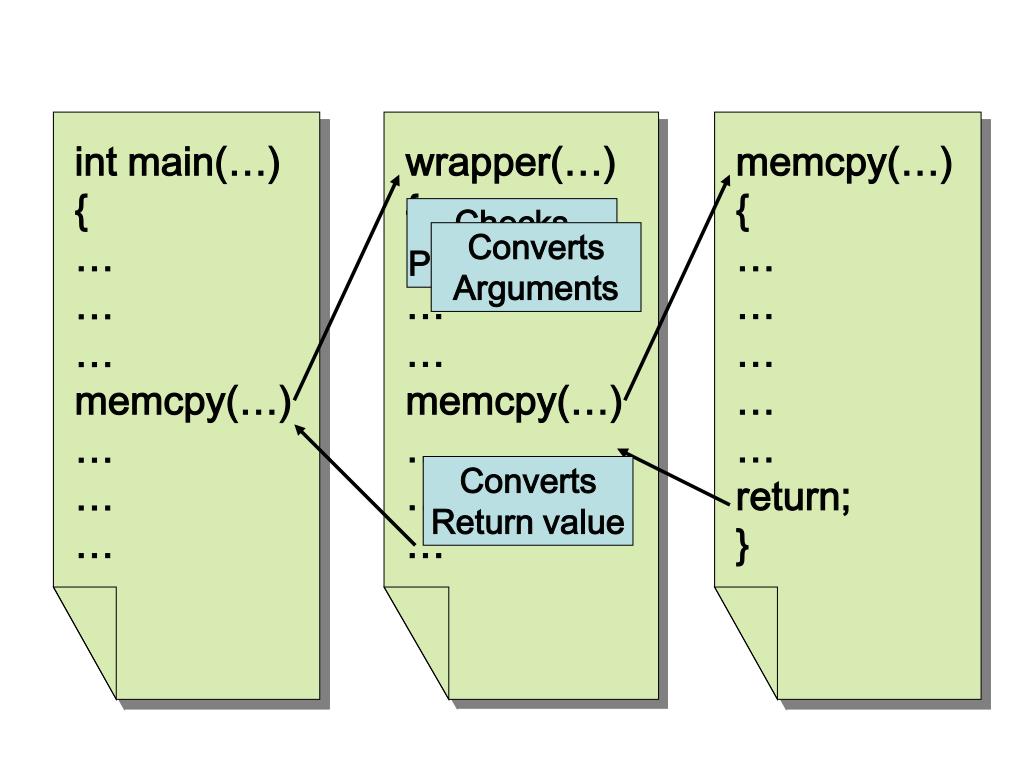

8. int main(…) { … … … memcpy(…)… … … wrapper(…) { … … … memcpy(…) … … … memcpy(…) { … … … … … return; } Checks Preconditions ConvertsArguments ConvertsReturn value

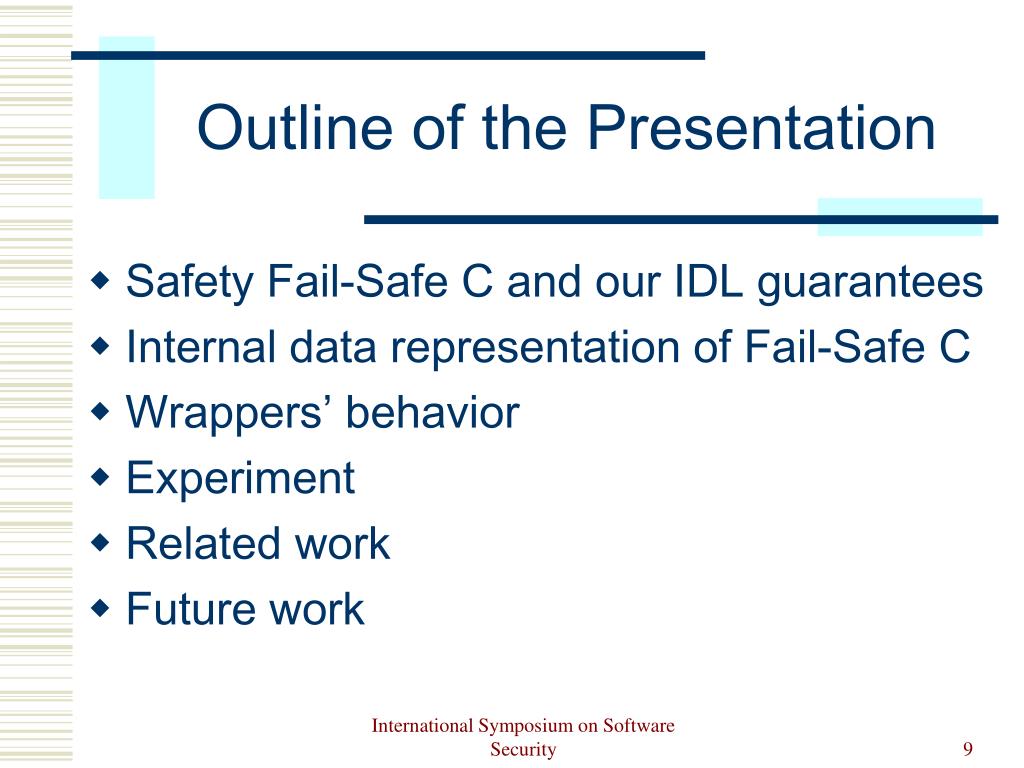

9. Outline of the Presentation • Safety Fail-Safe C and our IDL guarantees • Internal data representation of Fail-Safe C • Wrappers’ behavior • Experiment • Related work • Future work International Symposium on Software Security

10. The Safety Fail-Safe C Guarantees If a program attempts to perform undefined behavior, Fail-Safe C aborts the program before the operation is performed Not fully formal, but sufficient for our aim International Symposium on Software Security

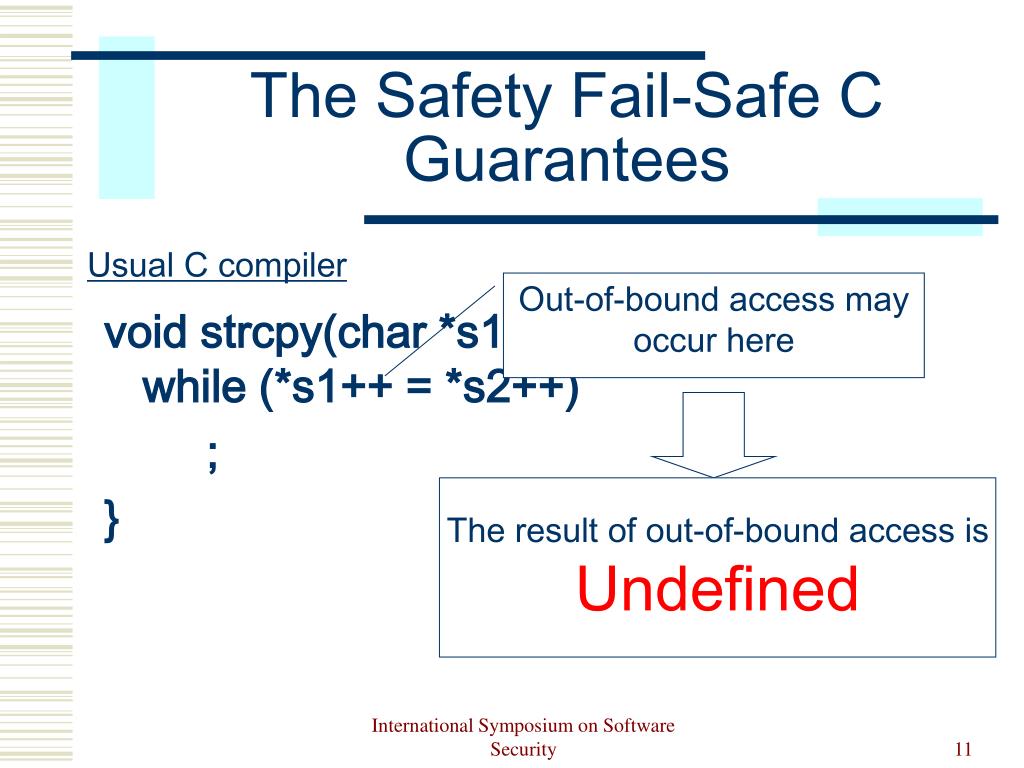

11. The result of out-of-bound access is Undefined The Safety Fail-Safe C Guarantees Usual C compiler void strcpy(char *s1, char *s2) {while (*s1++ = *s2++) ; } Out-of-bound access may occur here International Symposium on Software Security

12. Aborts the program The Safety Fail-Safe C Guarantees Fail-Safe C compiler void strcpy(char *s1, char *s2) {while (*s1++ = *s2++) ; } Attempts to perform out-of-bound access International Symposium on Software Security

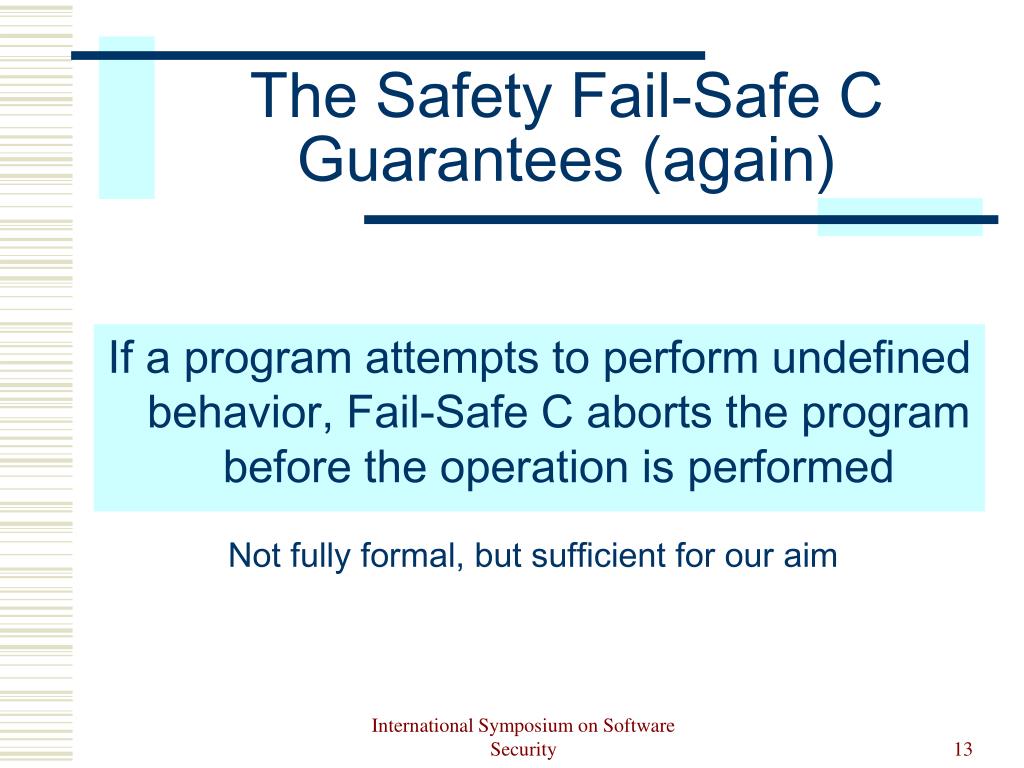

13. The Safety Fail-Safe C Guarantees (again) If a program attempts to perform undefined behavior, Fail-Safe C aborts the program before the operation is performed Not fully formal, but sufficient for our aim International Symposium on Software Security

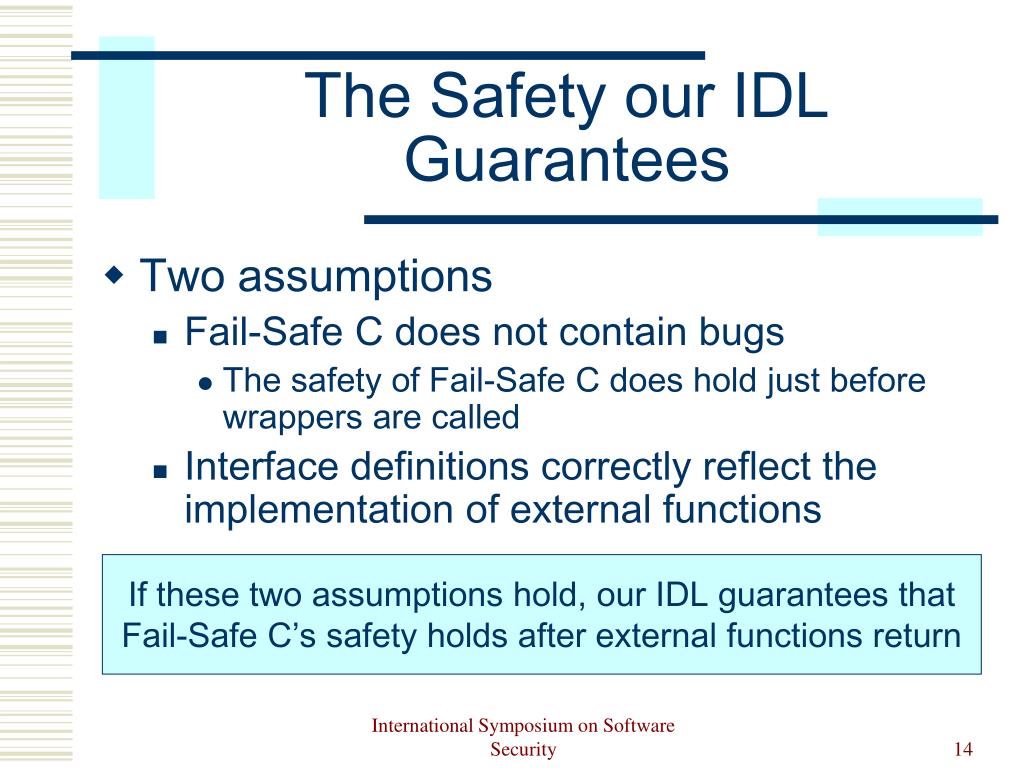

14. The Safety our IDL Guarantees • Two assumptions • Fail-Safe C does not contain bugs • The safety of Fail-Safe C does hold just before wrappers are called • Interface definitions correctly reflect the implementation of external functions If these two assumptions hold, our IDL guarantees thatFail-Safe C’s safety holds after external functions return International Symposium on Software Security

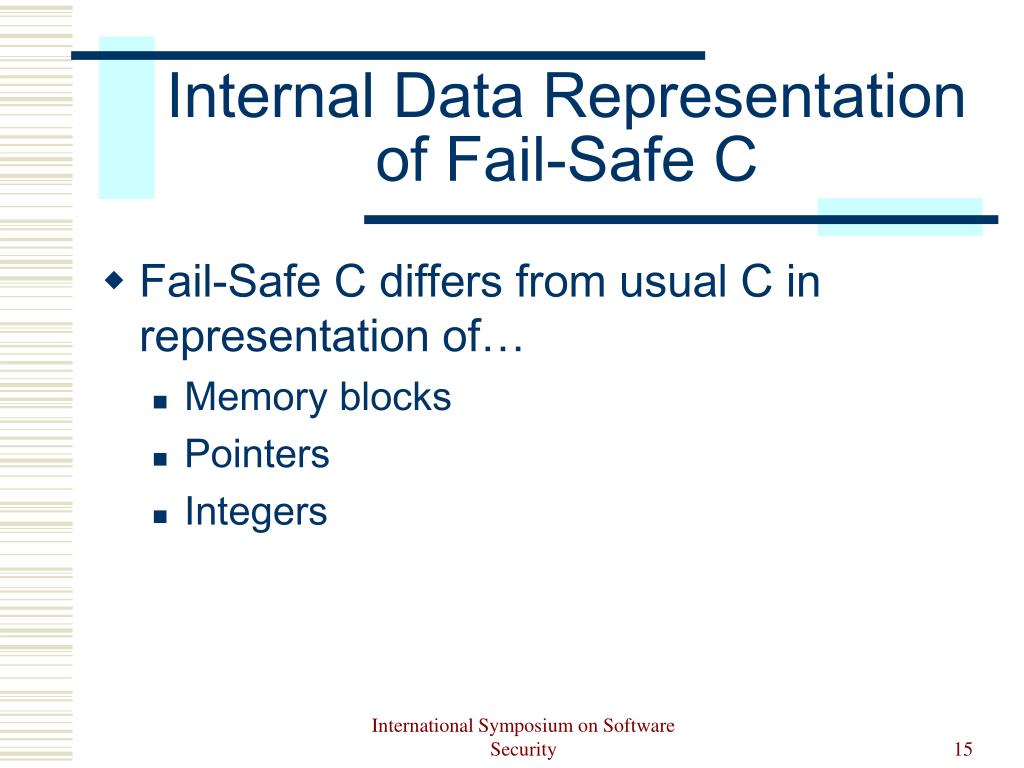

15. Internal Data Representationof Fail-Safe C • Fail-Safe C differs from usual C in representation of… • Memory blocks • Pointers • Integers International Symposium on Software Security

16. size Data Internal Data Representationof Fail-Safe C • Every memory block has a header TypeInfo Header International Symposium on Software Security

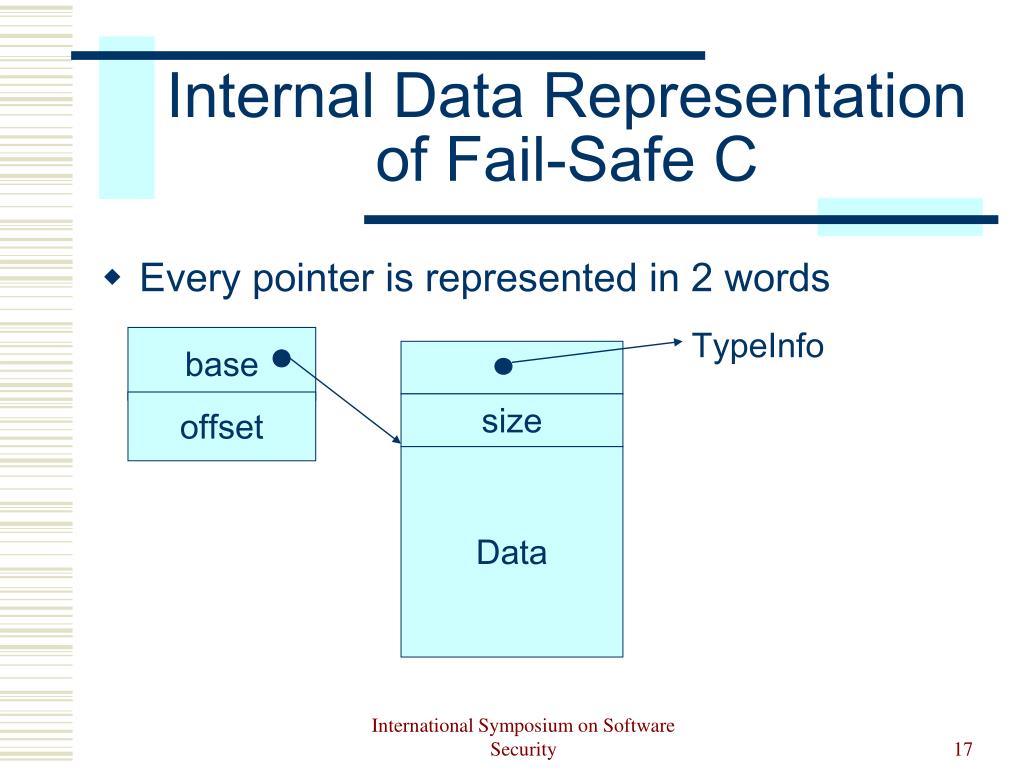

17. Internal Data Representationof Fail-Safe C • Every pointer is represented in 2 words TypeInfo base offset size Data International Symposium on Software Security

18. Internal Data Representationof Fail-Safe C • Every integer is also represented in 2 words (pointers may be cast to integers) pointer integer base cast offset International Symposium on Software Security

19. Summary of Data Representation • Pointers • Represented in 2 words • Integers • Represented in 2 words • Memory blocks • Have metadata • Contents has Fail-Safe C’s representation Wrappers have to convert the representation of arguments International Symposium on Software Security

20. Behavior of the Wrapper of memcpy char *memcpy(char *s1, char *s2, int n); International Symposium on Software Security

21. Behavior of the Wrapper of memcpy Preconditions char *memcpy(char *s1, char *s2, int n); • s1 != NULL, s2 != NULL • First n bytes of memory blocks has to be accessible n bytes from s1 and s2cannot overlap each other n > 0 International Symposium on Software Security

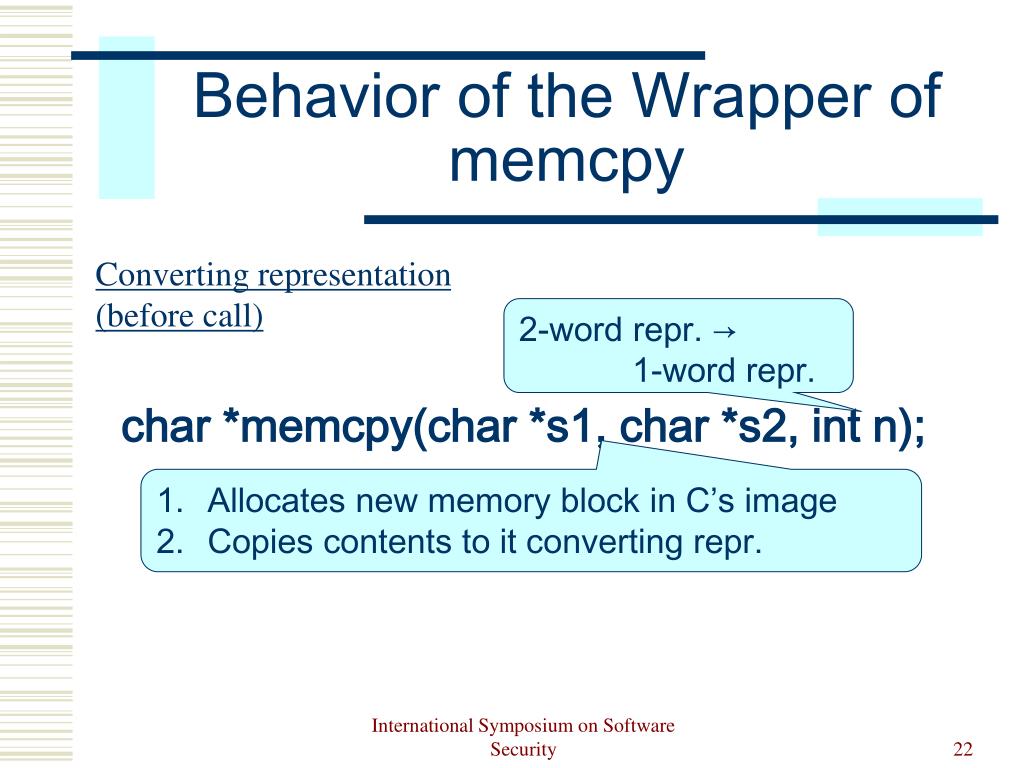

22. Behavior of the Wrapper of memcpy Converting representation (before call) char *memcpy(char *s1, char *s2, int n); 2-word repr. → 1-word repr. • Allocates new memory block in C’s image • Copies contents to it converting repr. International Symposium on Software Security

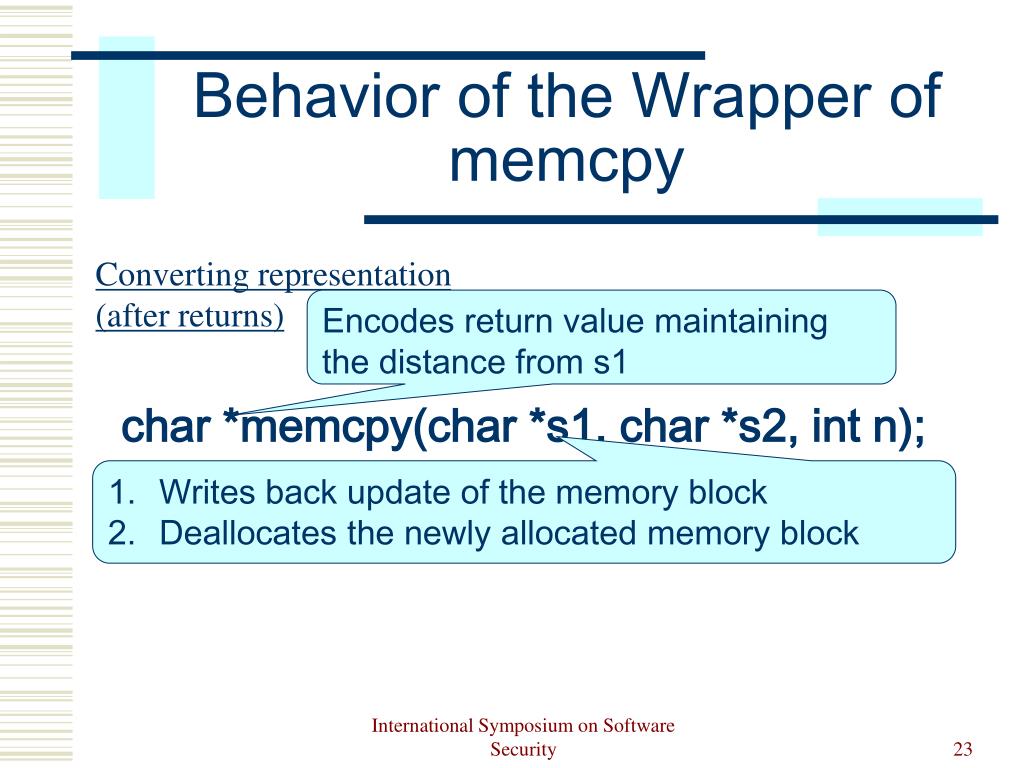

23. Behavior of the Wrapper of memcpy Converting representation (after returns) char *memcpy(char *s1, char *s2, int n); Encodes return value maintaining the distance from s1 • Writes back update of the memory block • Deallocates the newly allocated memory block International Symposium on Software Security

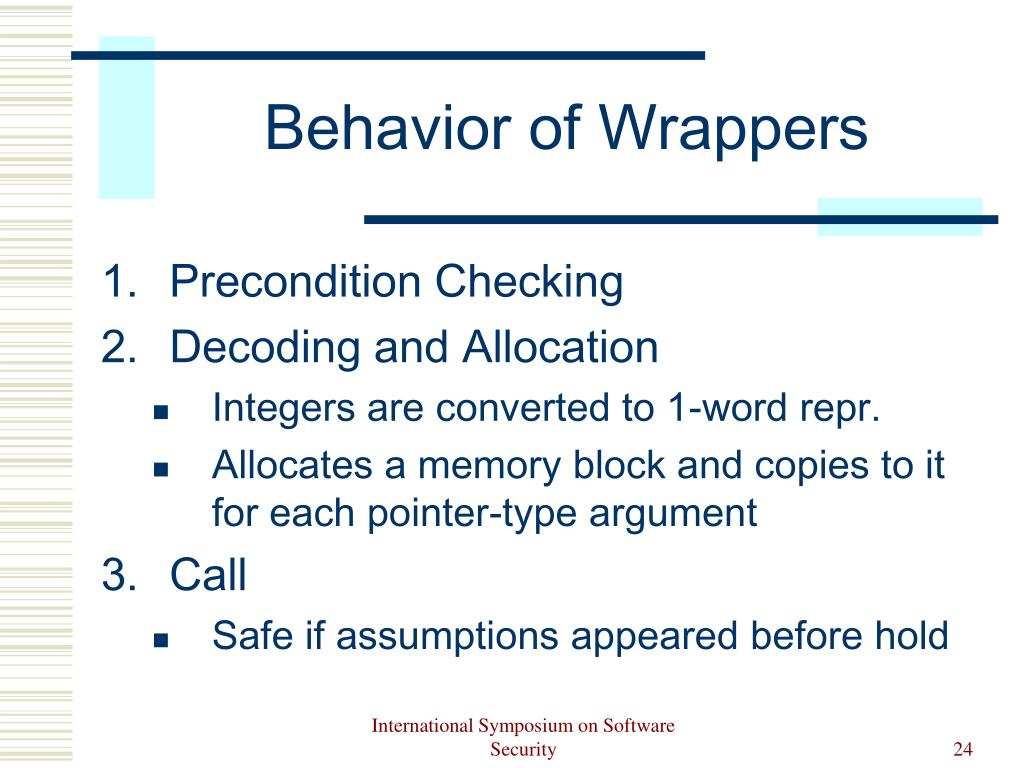

24. Behavior of Wrappers • Precondition Checking • Decoding and Allocation • Integers are converted to 1-word repr. • Allocates a memory block and copies to it for each pointer-type argument • Call • Safe if assumptions appeared before hold International Symposium on Software Security

25. Behavior of Wrappers • Encoding and Deallocation • Converts the return value to Fail-Safe C’s repr. • Reflect update of passed memory blocks • Reflect update of global variables (Fail-Safe C allocates two regions for each global variable) • Deallocates memory blocks allocated in the wrapper International Symposium on Software Security

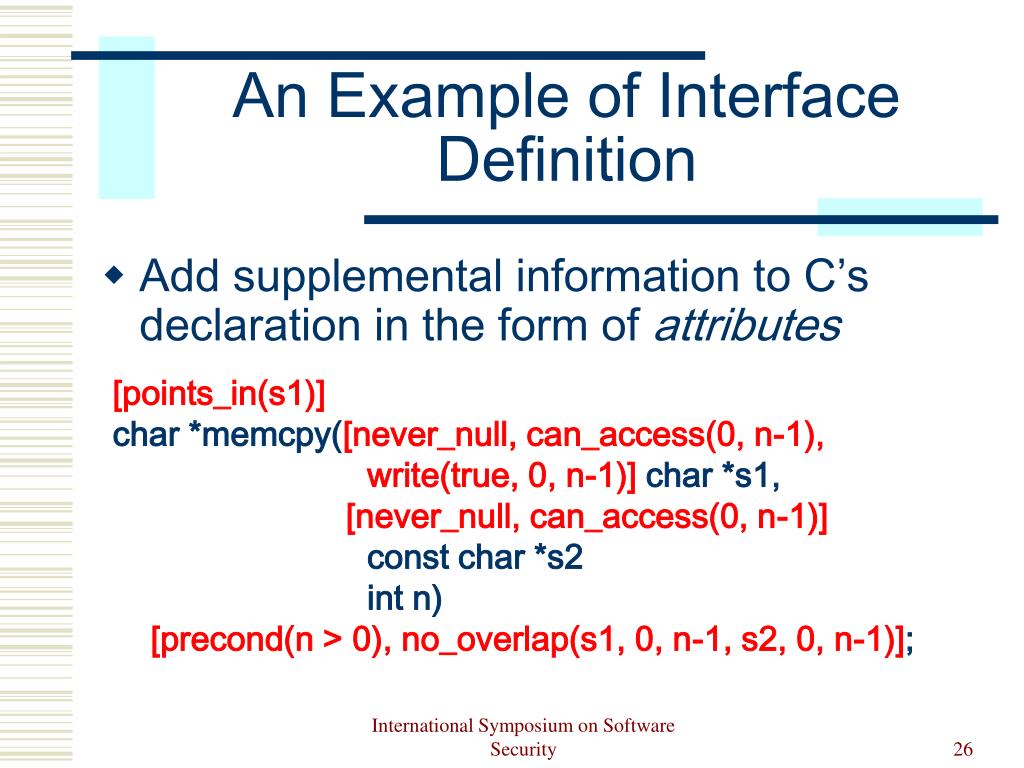

26. An Example of Interface Definition • Add supplemental information to C’s declaration in the form of attributes [points_in(s1)]char *memcpy([never_null, can_access(0, n-1), write(true, 0, n-1)] char *s1, [never_null, can_access(0, n-1)] const char *s2 int n)[precond(n > 0), no_overlap(s1, 0, n-1, s2, 0, n-1)]; International Symposium on Software Security

27. Experiments • Measured overhead with four micro-benchmarks • In each benchmark, we used… • Programs compiled with Fail-Safe C and used wrappers to call external functions • Programs compiled with gcc and called wrappers directly • Environment: UltraSPARC-II 400 MHz CPU, 13.0 GB RAM International Symposium on Software Security

28. Benchmark 1: succ • Takes one integer, adds 1 to it and return it • Measured time spent in calling this function 107 times as an external function • Give information about the overhead of converting integers International Symposium on Software Security

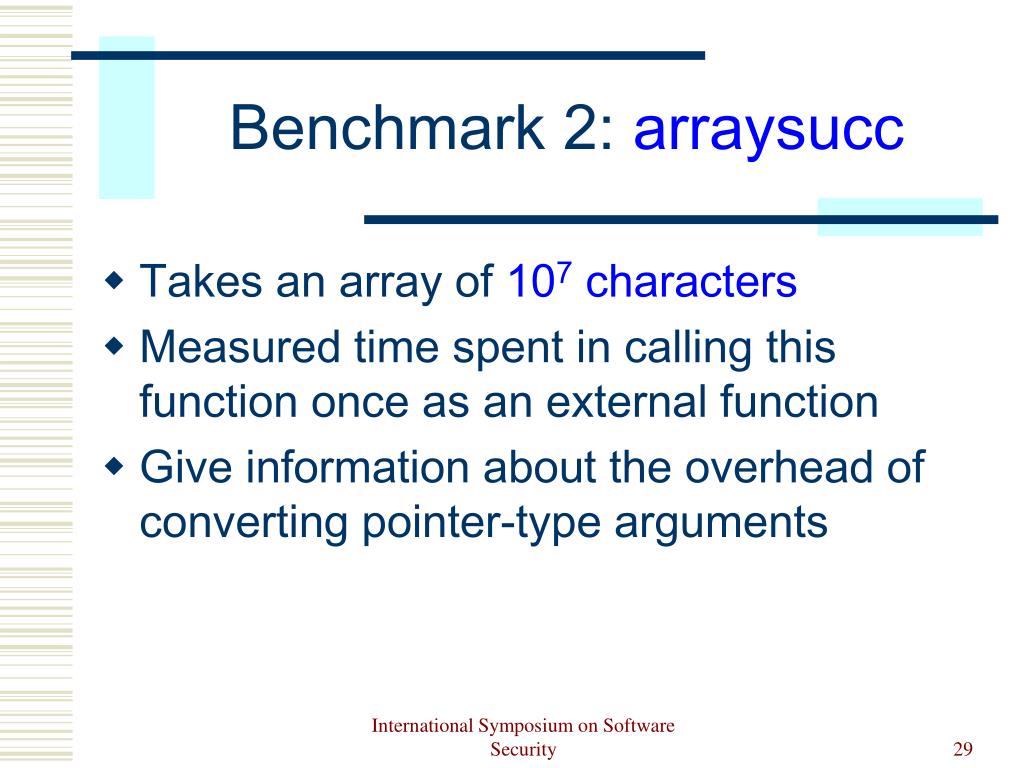

29. Benchmark 2: arraysucc • Takes an array of 107 characters • Measured time spent in calling this function once as an external function • Give information about the overhead of converting pointer-type arguments International Symposium on Software Security

30. Benchmark 3: cp • File-copying program that uses open, read and write system calls • Measured time spent in copying a 100K-byte file • Give information about the overhead of pretty practical programs International Symposium on Software Security

31. Benchmark 4: echo • A simple echo server that uses socket, bind, listen, accept, recv and send system calls (with 1K-byte buffer) • Measured time spent in sending/receiving 100K-byte data between two machines connected with 100BASE-T • Give information about the overhead under existence of network delay International Symposium on Software Security

32. Overall Result Execution time (msec) The overhead of memory allocation is large International Symposium on Software Security

33. Breakdown of arraysucc Time spent in each phase of arraysucc More than half of wrapper’s execution time is spent in Decoding and Allocation International Symposium on Software Security

34. Breakdown of cp Execution time of each phase of read/write’s wrapper Call phase takes most of time due to file access. However, Decoding and Allocation phase takes much timein wrapper’s execution time International Symposium on Software Security

35. Overall Result (again) Execution time (msec) The overhead of echo is very small International Symposium on Software Security

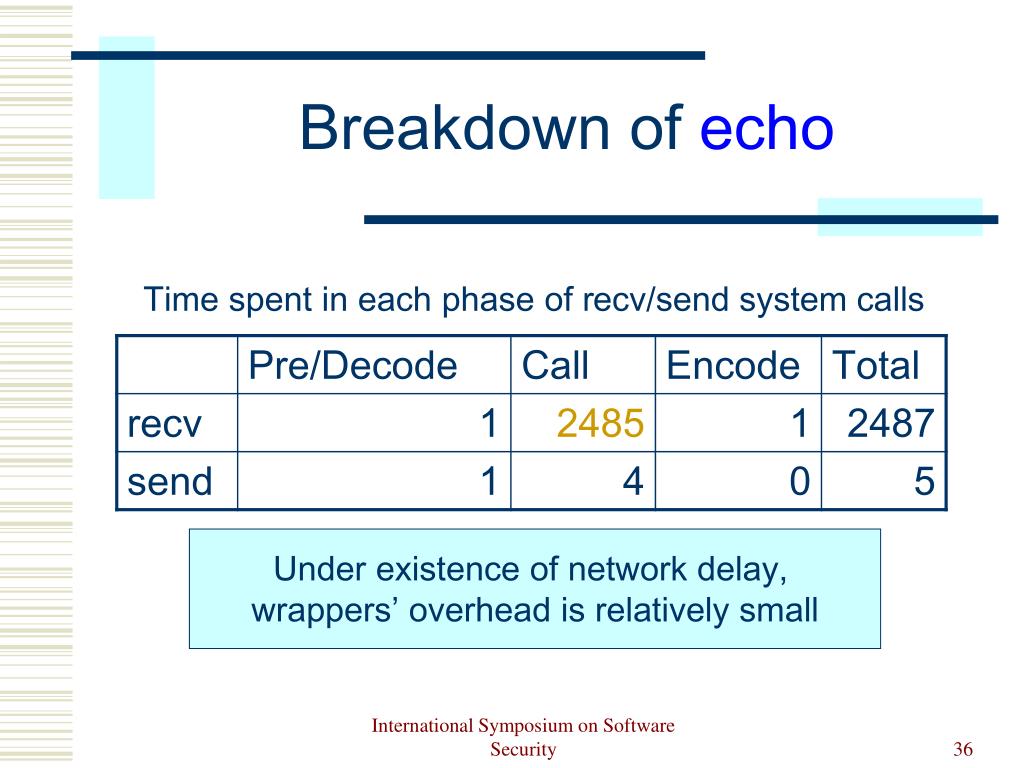

36. Breakdown of echo Time spent in each phase of recv/send system calls Under existence of network delay, wrappers’ overhead is relatively small International Symposium on Software Security

37. Discussion • The overhead of Decoding and Allocation is dominant • To reduce this overhead… • Omit copying contents of memory block if the block is not read • Omit allocating new memory block if the block has the same image as usual C’s one International Symposium on Software Security

38. Related Work • CamlIDL [Leroy 01], H/Direct [Finne et.al. 98] • IDL for OCaml and Haskell • The syntax of our IDL is based on CamlIDL • Pay less attention to safety • External function call is not always safe if preconditions do not hold International Symposium on Software Security

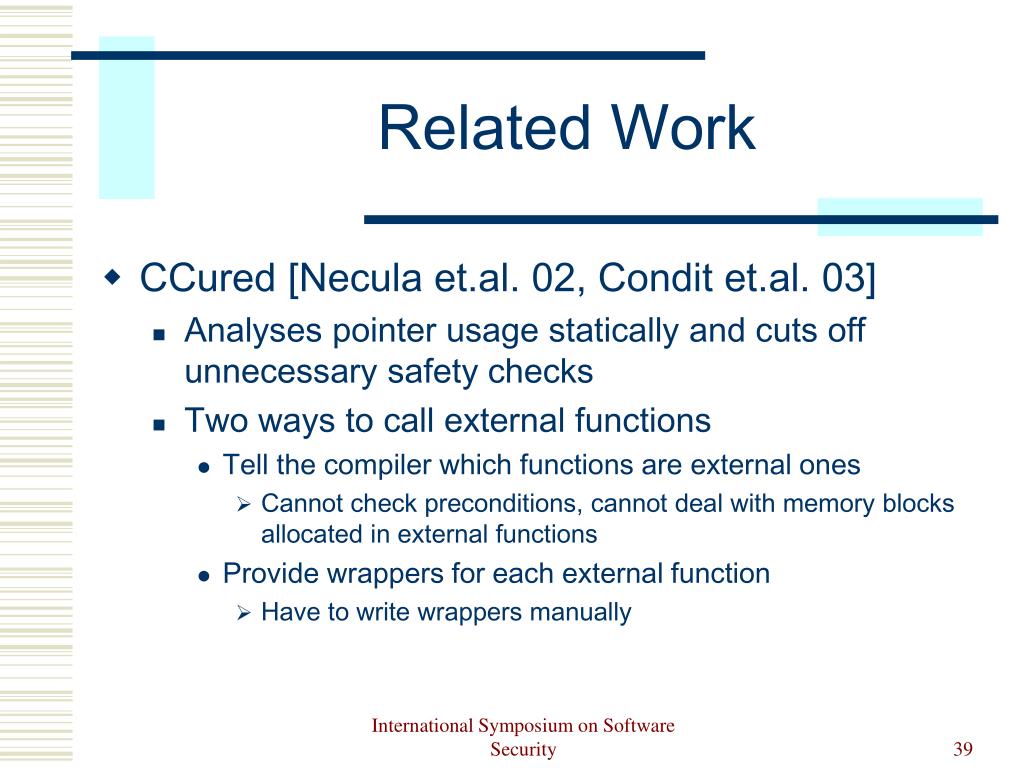

39. Related Work • CCured [Necula et.al. 02, Condit et.al. 03] • Analyses pointer usage statically and cuts off unnecessary safety checks • Two ways to call external functions • Tell the compiler which functions are external ones • Cannot check preconditions, cannot deal with memory blocks allocated in external functions • Provide wrappers for each external function • Have to write wrappers manually International Symposium on Software Security

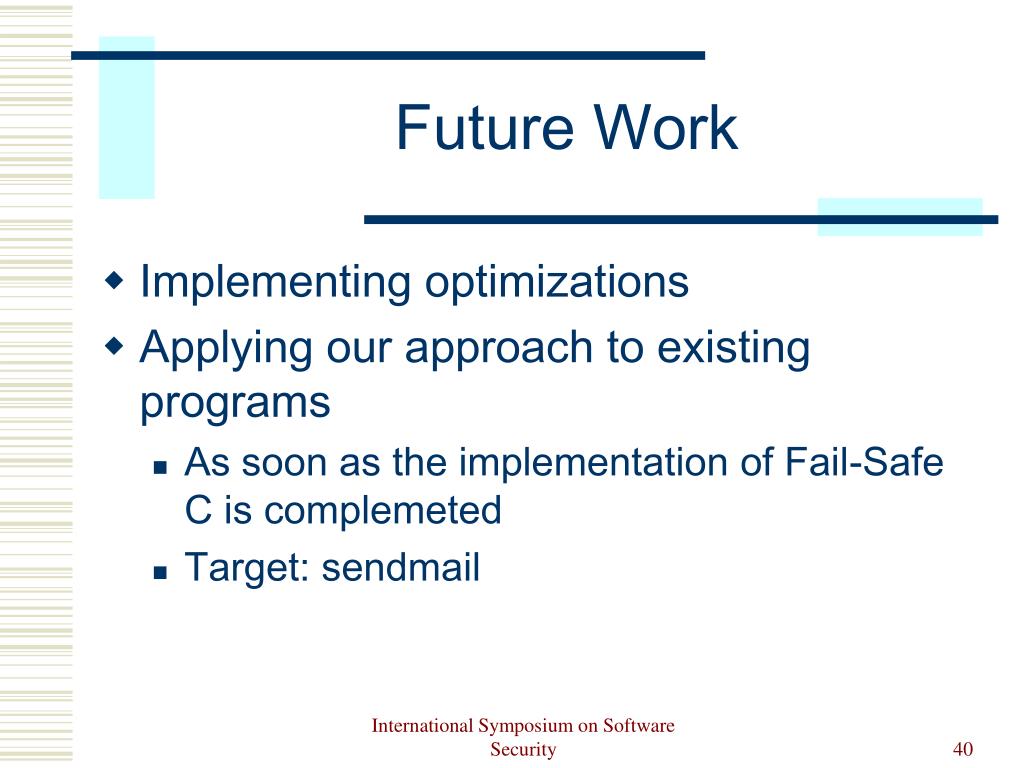

40. Future Work • Implementing optimizations • Applying our approach to existing programs • As soon as the implementation of Fail-Safe C is complemeted • Target: sendmail International Symposium on Software Security

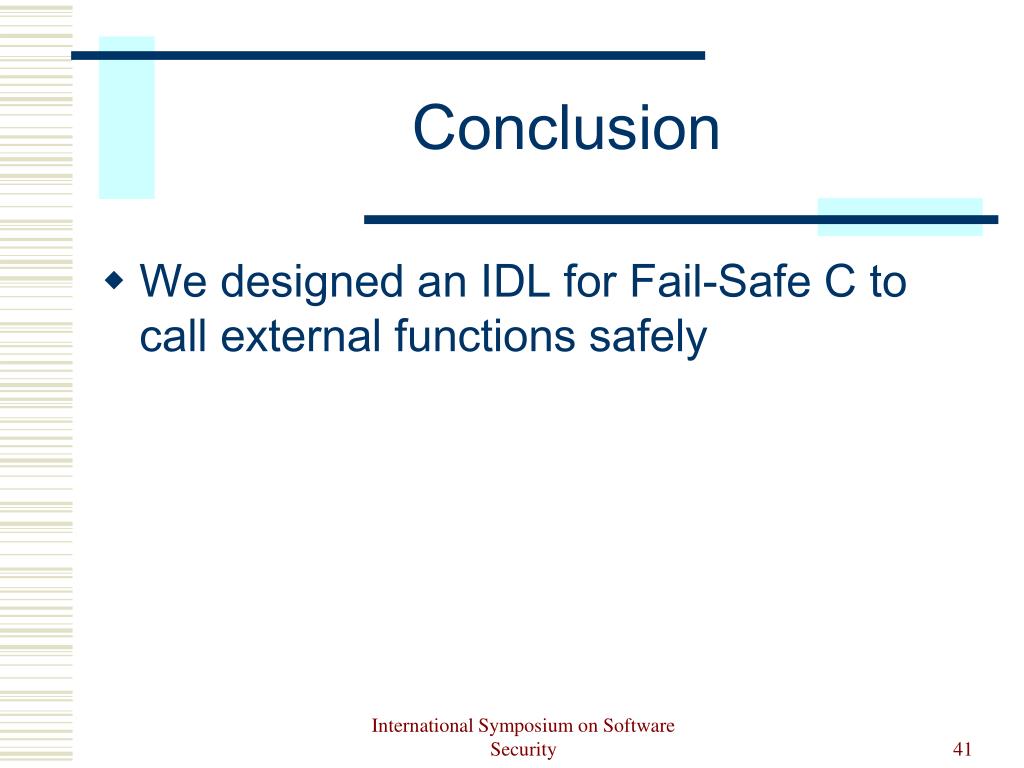

41. Conclusion • We designed an IDL for Fail-Safe C to call external functions safely International Symposium on Software Security

42. Fin International Symposium on Software Security

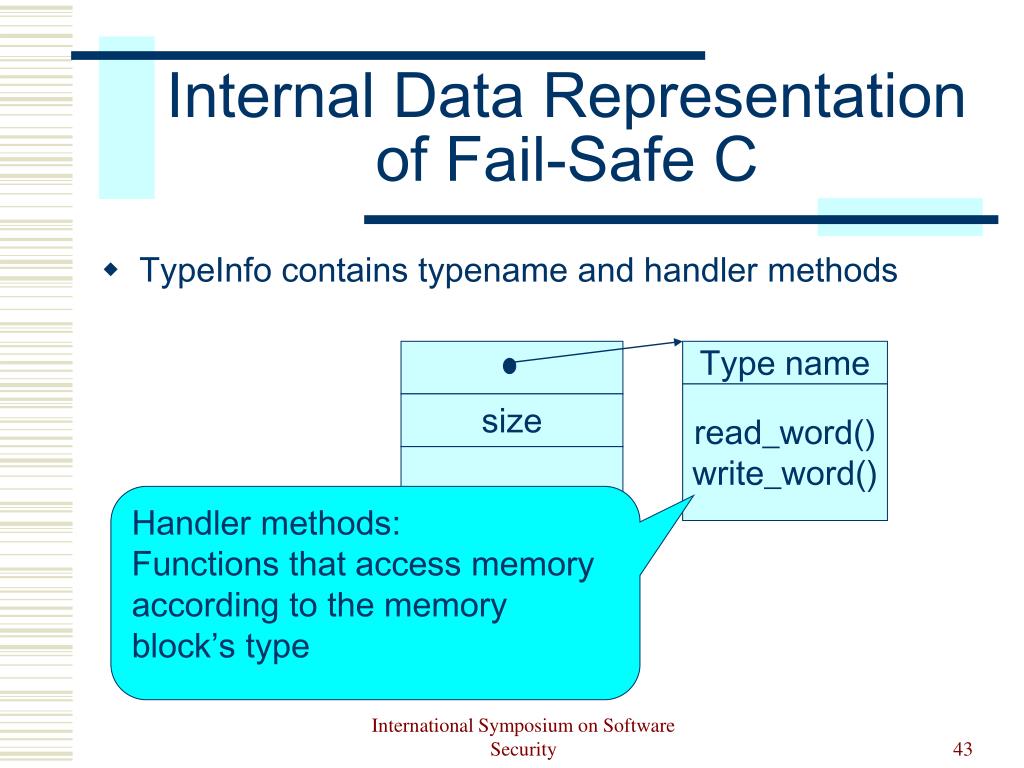

43. size Data Internal Data Representationof Fail-Safe C • TypeInfo contains typename and handler methods Type name read_word() write_word() Handler methods:Functions that access memory according to the memory block’s type International Symposium on Software Security

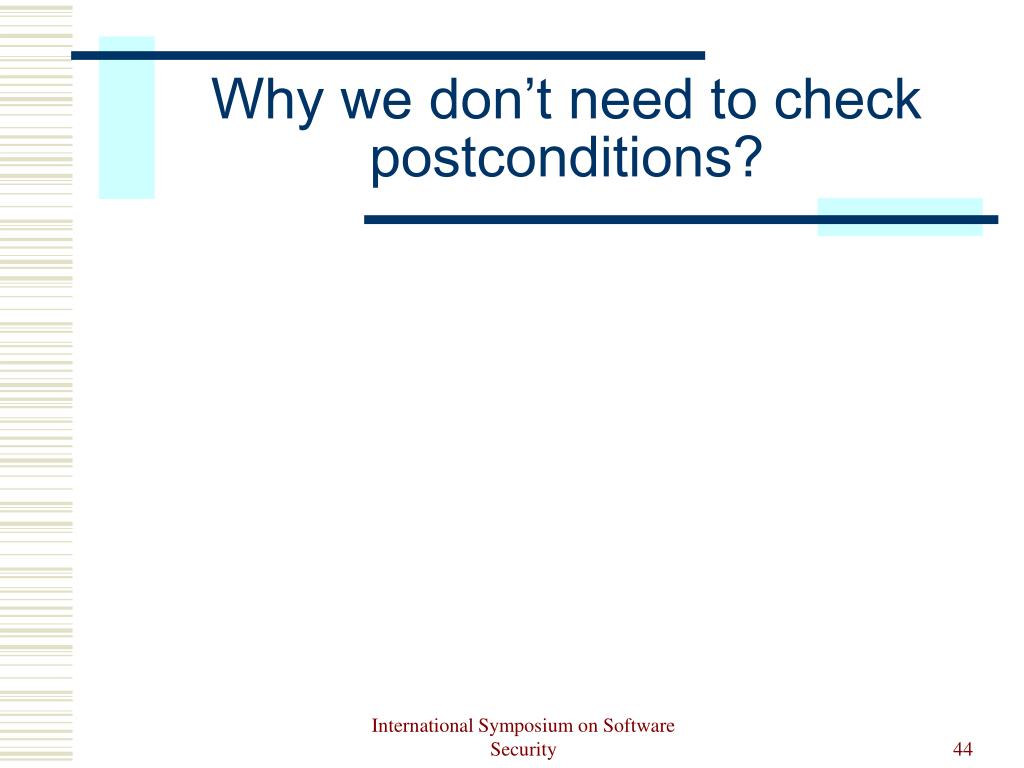

44. Why we don’t need to checkpostconditions? International Symposium on Software Security
