Presentation Transcript


Voip service in dame eduroam

VoIPservice in DAMe/eduroam

Gabriel López

University of Murcia


Dame current status

DAMe: current status

  • Network authentication in eduroam and SSO token distribution

    • RADIUS hierarchy

    • Token based on SAML

  • Network authorization based on end user attributes

    • Based on eduGAIN BEs

    • XACML authorization policies

  • Web authN and authZ profile

  • Beside:

    • Integrated with Shibboleth and PAPI idPs

    • Support for LoA (Level of Assurance)

    • RadSec deployment in progress


Voip service in dame eduroam

VoIPservice in DAMe

  • New services for SSO

  • Based on the SSO token provided by DAMe

  • Provide APIs for BEs:

    • Token generation

    • Token validation

    • Authorization

  • Unified SSO token

    • perfsonar, DAMe, etc

  • Provide optional authorization for VoIP services based on end user attributes

  • SIP protocol for testing


Voip target scenario

VoIP target scenario


Voip dame profiles

VoIP/DAMe profiles

  • Profile 1: The user has a valid SSO token

    • From the end user network authentication (DAMe)

    • New registration method required

    • Token validation through BEs

    • Extending registration method for authorization

  • Profile 2: The end user does not have a valid SSO token

    • Receives a new SSO token for further authentications (VoIP, Web, etc…)

    • Who does the end user authentication?

      • VoIP Registrar vs idP

    • Who does the token generation? BEs vs idP


Voip dame profiles1

VoIP/DAMe profiles

  • Profile 2: SSO token generation delegated to the BEs (DAMe-based)

    • Profile 2.1 Traditional authentication in the registrar server (HTTP-Digest)

      • Authentication in the registrar server

    • Profile 2.2 Authentication based on HTTP (HTTP-redirect)

      • Authentication in the idP

    • Profile 2.3 in-line/native authentication (new method)

      • Authentication in the idP


Profile 1 the user has a valid sso token

Profile 1: The user has a valid SSO token


Profile 1 the user has a valid sso token1

Profile 1: The user has a valid SSO token

  • Extension of SIP messages:

    • Register (token)

    • New authentication method

  • Extension of SIP proxies:

    • Token validation  BEs

    • Authorization based on end user and environment attributes  BEs

      • Authorization process (attributes recovery and PDP requests are transparent for proxies )


Profile 2 1 traditional authentication in the registrar server

Profile 2.1 Traditional authentication in the registrar server


Profile 2 1 traditional authentication in the registrar server1

Profile 2.1 Traditional authentication in the registrar server

  • Extension of SIP messages:

    • OK 200 (token)

    • Classic authentication

  • Extension of SIP proxies:

    • Token generation request  BEs

    • Authorization based on end user and environment attributes  BEs

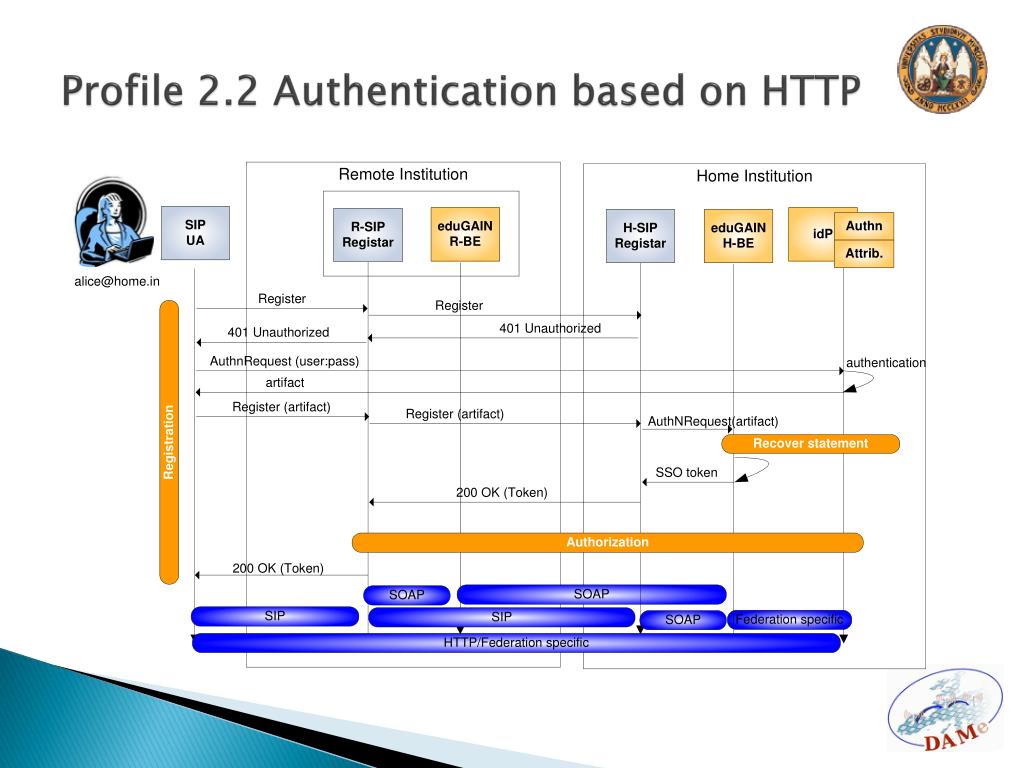

Profile 2 2 authentication based on http

Profile 2.2 Authentication based on HTTP

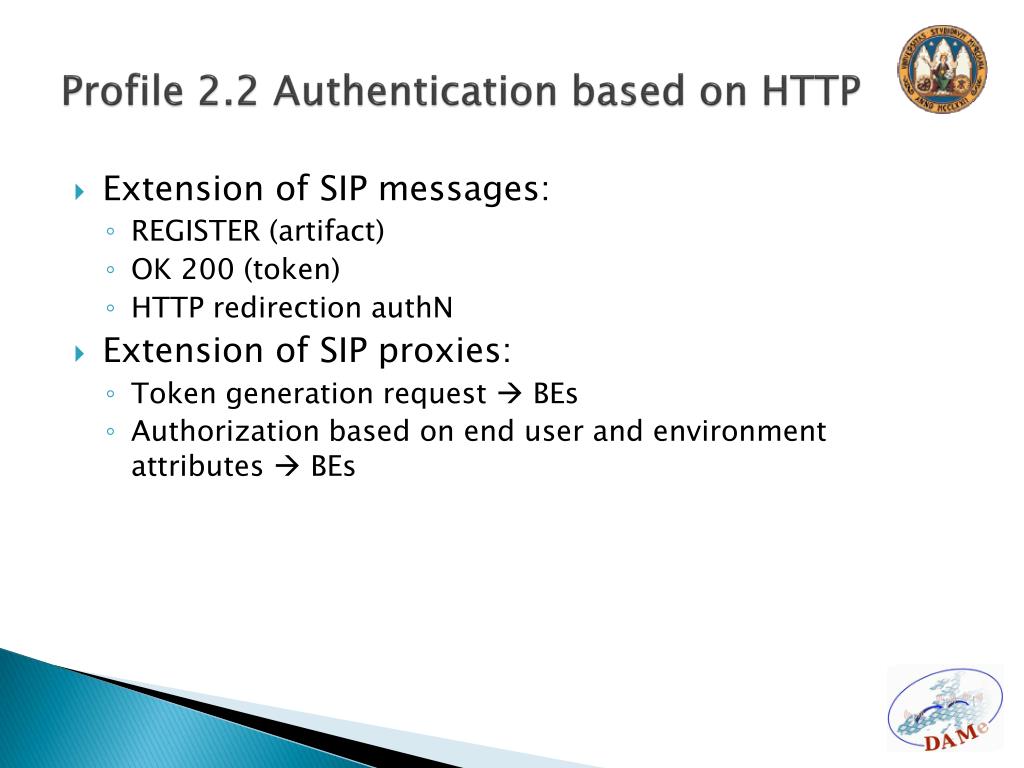

Profile 2 2 authentication based on http1

Profile 2.2 Authentication based on HTTP

  • Extension of SIP messages:

    • REGISTER (artifact)

    • OK 200 (token)

    • HTTP redirection authN

  • Extension of SIP proxies:

    • Token generation request  BEs

    • Authorization based on end user and environment attributes  BEs


Profile 2 3 in line native authentication

Profile 2.3 in-line/native authentication


Profile 2 3 in line native authentication1

Profile 2.3 in-line/native authentication

  • Extension of SIP messages:

    • OK 200 (token)

    • Register includes end user creds (protected channel needed)

  • Extension of SIP proxies:

    • Token generation request  BEs

    • Authorization based on end user and environment attributes  BEs


Voip dame be api

VoIP/DAMe: BE-API

  • AuthnRequest(SSOToken): Boolean

    • SSOToken validation (profile 1)

      • Validity Period, signature (PKC chain, trust anchors, etc)

  • AuthnQuery(user): SSOToken

    • Requests authentication statement from idP (profile 2.1)

    • Generates SSO token

  • AuthnRequest(artifact): SSOToken

    • AuthN statement recovery from idP (profile 2.2)

    • SSO token generation

  • AuthnRequest(creds): SSOToken

    • Sends authentication requests (application specific to idP) (profile 2.3)

    • SSO token generation


Voip dame be api1

VoIP/DAMe: BE-API

  • AuthzRequest(SSOToken): Boolean (+obligations)

    • Recover end user attributes from home domain

      • Through eduGAIN BEs

      • Directly from the AttributeProvider

    • Request an Authorization Decision

      • To the local PDP

      • Based on End User id, End User attributes, resource, action, other info (date/time, network load, etc.)


Conclusions

Conclusions

  • SIP allows the extension of standard messages

    • Extension Service Instruction

  • Authentication methods have already been proposed in other works

  • BE-API valid for other services?

  • Compliant with other SAML/SIP proposals (Tschofenig)

  • Security of the token

    • alice  R-SIP Registrar

    • SIP/SSL, IPSec, token encryption


Voip service in dame eduroam

  • backup


Network authentication and sso token distribution

Network authenticationand SSO tokendistribution


Network authorization for network properties

Network authorizationfornetworkproperties


Web authn authz profile

Web authN/authZprofile


  • Login
