Function Learning and Neural Nets

Setting • Learn a function with : • Continuous-valued examples • E.g., pixels of image • Continuous-valued output • E.g., likelihood that image is a ‘7’ • Known as regression • [Regression can be turned into classification via thresholds]

f(x) x Function-Learning (Regression) Formulation • Goal function f • Training set: (x(i),y(i)), i = 1,…,n, y(i)=f(x(i)) • Inductive inference: find a function h that fits the points well • Same Keep-It-Simple bias

f(x) x Least-Squares Fitting • Hypothesize a class of functions f(x,θ) parameterized by θ • Minimize squared loss E(θ) = Σi ( f(x(i),θ)-y(i) )2

Linear Least-Squares • f(x,θ) = x ∙ θ • Value of θ that optimizes E(θ) is:θ = [Σi x(i) ∙ y(i)] /[Σi x(i) ∙ x(i)] • E(θ) = Σi ( x(i)∙θ - y(i) )2 = Σi ( x(i) 2θ 2 – 2x(i)y(i)θ + y(i)2) • E’(θ) = 0 => d/d θ [Σi ( x(i) 2 θ 2 – 2 x(i) y(i) θ+ y(i)2)] • = Σi2 x(i)2 θ – 2 x(i) y(i)= 0 • => θ = [Σi x(i) ∙ y(i)] /[Σi x(i) ∙ x(i)] f(x) f(x,q) x

Linear Least-Squares with constant offset • f(x,θ0,θ1) = θ0 + θ1 x • E(θ0,θ1) = Σi(θ0+θ1 x(i) - y(i) )2= Σi(θ02 + θ12 x(i) 2+ y(i)2 +2θ0θ1x(i)-2θ0y(i)-2θ1x(i)y(i)) • dE/dθ0(θ0*,θ1*) = 0 and dE/dθ1(θ0*,θ1*) = 0, so:0 = 2Σi(θ0* +θ1*x(i) - y(i)) 0 = 2Σix(i)(θ0*+θ1* x(i) - y(i)) • Verify the solution:θ0*= 1/N Σi (y(i) – θ1*x(i)) θ1*= [N (Σi x(i)y(i)) – (Σi x(i))(Σi y(i))]/ [N (Σi x(i)2) – (Σi x(i))2] f(x) f(x,q) x

Multi-Dimensional Least-Squares • Let x include attributes (x1,…,xN) • Let θ include coefficients (θ1,…,θN) • Model f(x,θ) = x1θ1 + … + xNθN f(x) f(x,q) x

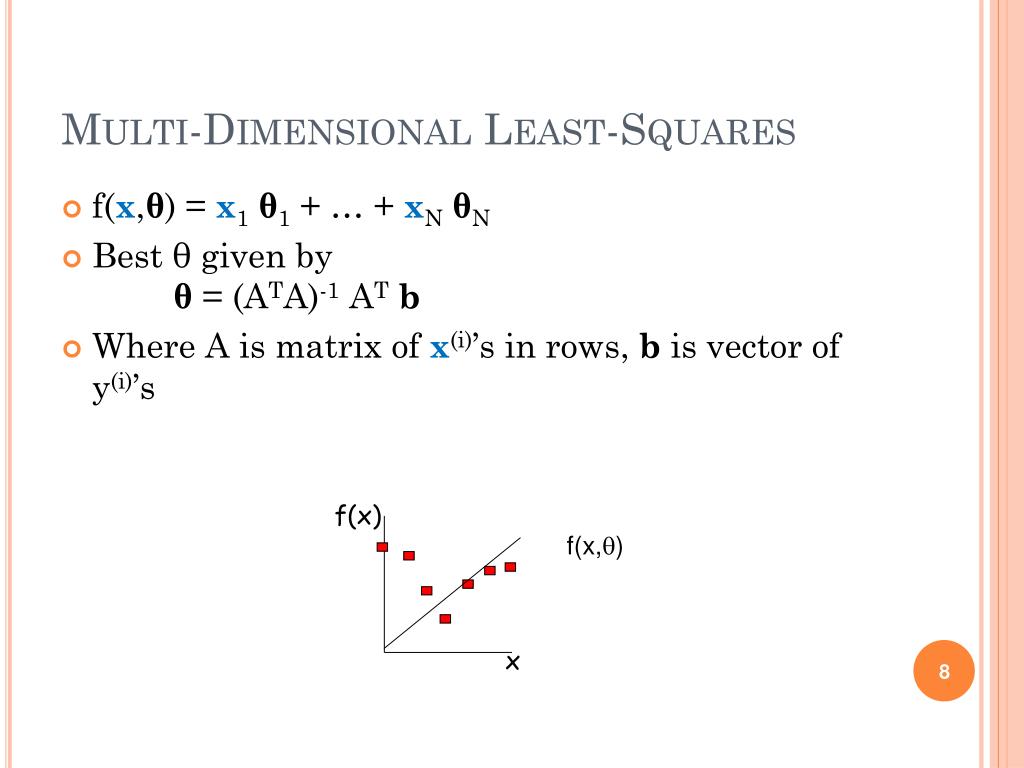

Multi-Dimensional Least-Squares • f(x,θ) =x1θ1 + … + xNθN • Best θ given byθ = (ATA)-1 ATb • Where A is matrix of x(i)’s in rows, b is vector of y(i)’s f(x) f(x,q) x

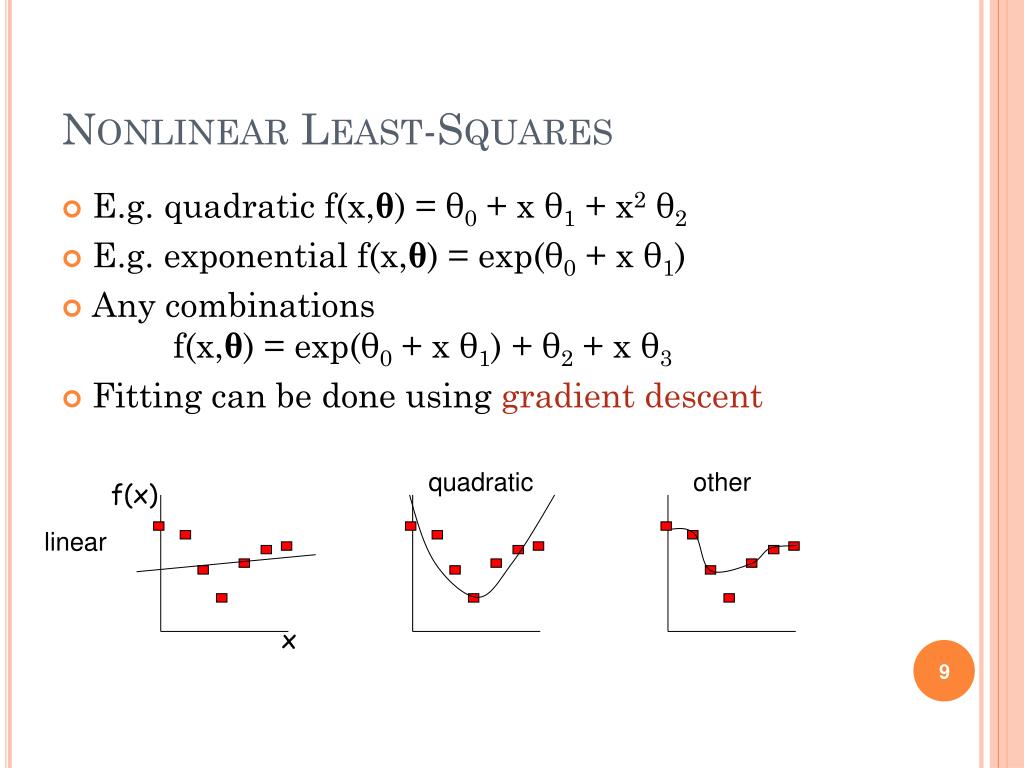

Nonlinear Least-Squares • E.g. quadratic f(x,θ) = θ0 + x θ1 + x2θ2 • E.g. exponential f(x,θ) = exp(θ0 + x θ1) • Any combinations f(x,θ) = exp(θ0 + x θ1) + θ2 + x θ3 • Fitting can be done using gradient descent quadratic other f(x) linear x

Aside: Feature Transforms • Common model: weighted sums of nonlinear functions f1(x),…,fN(x) • Linear in the feature space • Polynomial g(x,θ) = θ0 + x θ1 + … + xdθd • In general g(x,θ) = f1(x) θ1 + … + fN(x) θN • Least squares fit can be solved exactly by consider a transformed dataset (x’,y) with x’=(f1(x),…,fN(x)) • More on this later…

Gradient direction is orthogonal to the level sets (contours) of f,points in direction of steepest increase

Gradient descent: iteratively move in direction

Gradient Descent for Least Squares • Let θ = (θ1,…,θn) • Error • Take gradient: • Update rule A vector, in which element k indicates how quickly the prediction at example i changes with respect to a change in k

Gradient Descent for Least Squares • Let θ = (θ1,…,θn) • Error • Take gradient: • Update rule The error at example i

Gradient Descent Example: Linear Fitting • f(x,θ) =x1θ1 + … + xNθN • Update rule

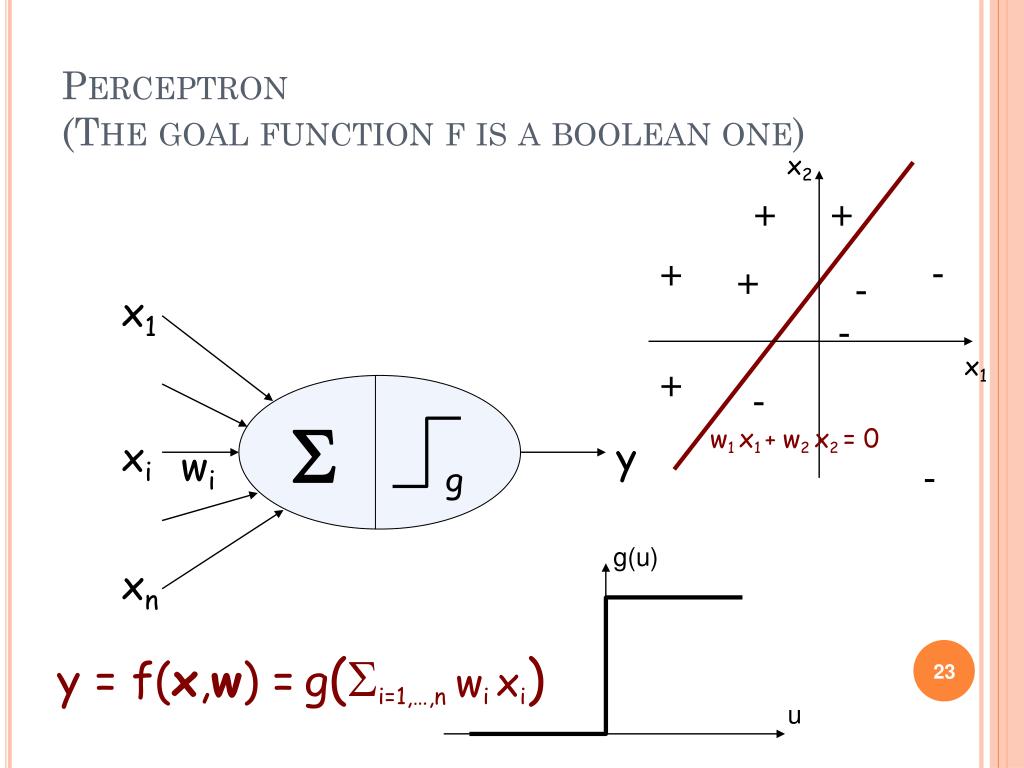

x2 + + x1 + - + - - S xi y x1 wi + g - - xn y = f(x,w) =g(Si=1,…,nwixi) Perceptron(The goal function f is a boolean one) w1 x1 + w2 x2 = 0 g(u) u

x1 xi y wi g S xn A Single Perceptron can learn A disjunction of boolean literals x1 x2 x3 Majority function

x1 xi y wi g S xn A Single Perceptron can learn A disjunction of boolean literals x1 x2 x3 Majority function XOR?

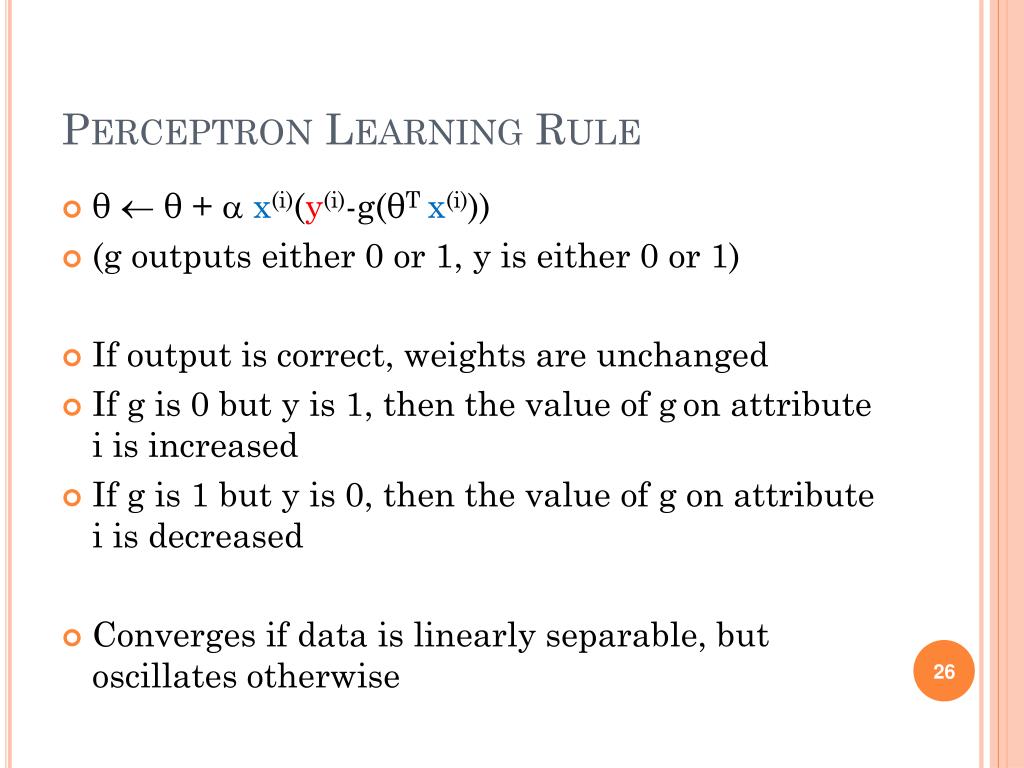

Perceptron Learning Rule • θ θ+  x(i)(y(i)-g(θT x(i))) • (g outputs either 0 or 1, y is either 0 or 1) • If output is correct, weights are unchanged • If g is 0 but y is 1, then the value of gon attribute i is increased • If g is 1 but y is 0, then the value of g on attribute i is decreased • Converges if data is linearly separable, but oscillates otherwise

+ + x1 + - - - S xi y wi g - + + - xn Perceptron(The goal function f is a boolean one) ? g(u) y = f(x,w) =g(Si=1,…,nwixi) u

x1 xi y wi g S xn Unit (Neuron) y = g(Si=1,…,nwi xi) g(u) = 1/[1 + exp(-au)]

x1 x1 S S xi xi y y wi wi g g xn xn Neural Network • Network of interconnected neurons Acyclic (feed-forward) vs. recurrent networks

Inputs Hidden layer Output layer Two-Layer Feed-Forward Neural Network w1j w2k

Networks with hidden layers • Can represent XORs, other nonlinear functions • Common neuron types: • Linear, soft perception (sigmoid), radial basis functions • As the number of hidden units increase, so does the network’s capacity to learn functions with more nonlinear features • How to train hidden layers?

Backpropagation (Principle) • New example y(k) = f(x(k)) • φ(k) = compute NN prediction with weights w(k-1) for inputs x(k) • Error function: E(k)(w(k-1)) = (φ(k) – y(k))2 • Backpropagation algorithm: Update the weights of the inputs to the last layer, then the weights of the inputs to the previous layer, etc.

Stochastic Gradient Descent • Gradient descent uses a batch update because all examples are incorporated in each step • Stochastic Gradient Descent: use single example on each step • Update rule: • Pick example i (either at random or in order) and a step size  • Update ruleθ θ+  x(i)(y(i)-g(x(i),θ)) • Reduces error on i’th example… but does it converge?

Understanding Backpropagation • Minimize E(q) • Gradient Descent… E(q) q

Understanding Backpropagation • Minimize E(q) • Gradient Descent… E(q) Gradient of E q

Understanding Backpropagation • Minimize E(q) • Gradient Descent… E(q) Step ~ gradient q

Learning algorithm • Given many examples (x(1),y(1)),…, (x(N),y(N)) and a learning rate  • Init: Set k = 0 (or rand(1,N)) • Repeat: • Tweak weights with a backpropagation update on example x(k), y(k) • Set k = k+1 (or rand(1,N))

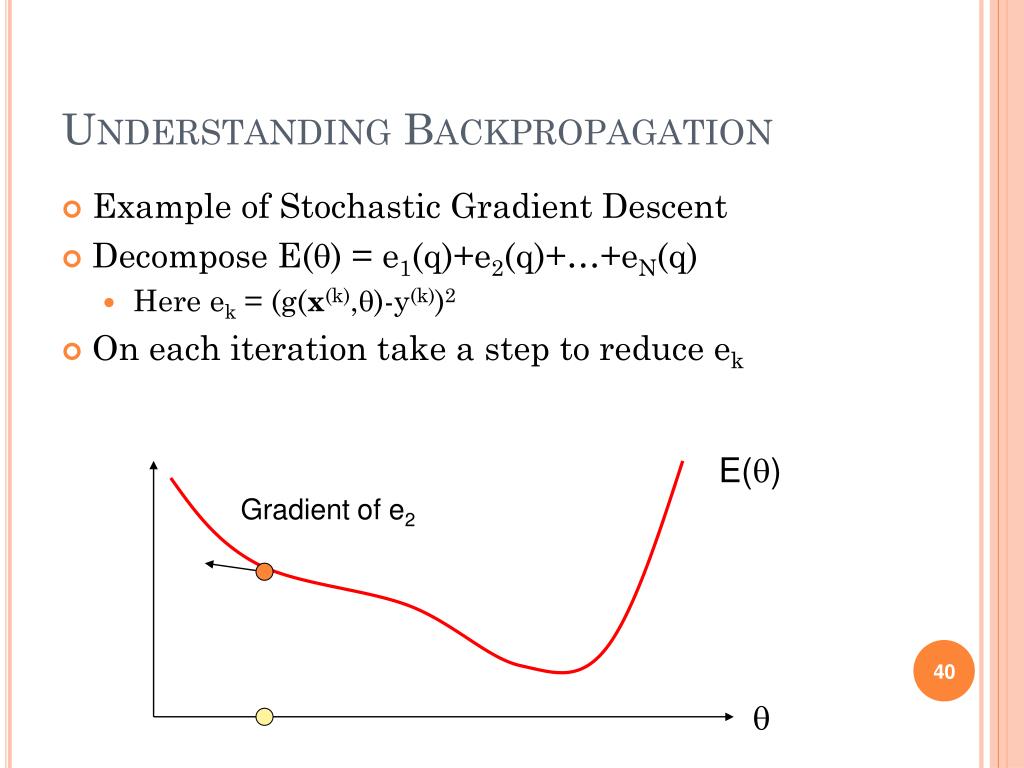

Understanding Backpropagation • Example of Stochastic Gradient Descent • Decompose E(q) = e1(q)+e2(q)+…+eN(q) • Here ek = (g(x(k),q)-y(k))2 • On each iteration take a step to reduce ek E(q) Gradient of e1 q

Stochastic Gradient Descent • Objective function values (measured over all examples) over time settle into local minimum • Step size must be reduced over time, e.g., O(1/t)

Caveats • Choosing a convergent “learning rate”  can be hard in practice E(q) q

Example from B553: Image encoding • 2 layer network, 1 hidden radial basis function layer with 50 neurons (200 parameters) 1000 training examples Fitted NN 12x18 image

Comments and Issues • How to choose the size and structure of networks? • If network is too large, risk of over-fitting (data caching) • If network is too small, representation may not be rich enough • Role of representation: e.g., learn the concept of an odd number

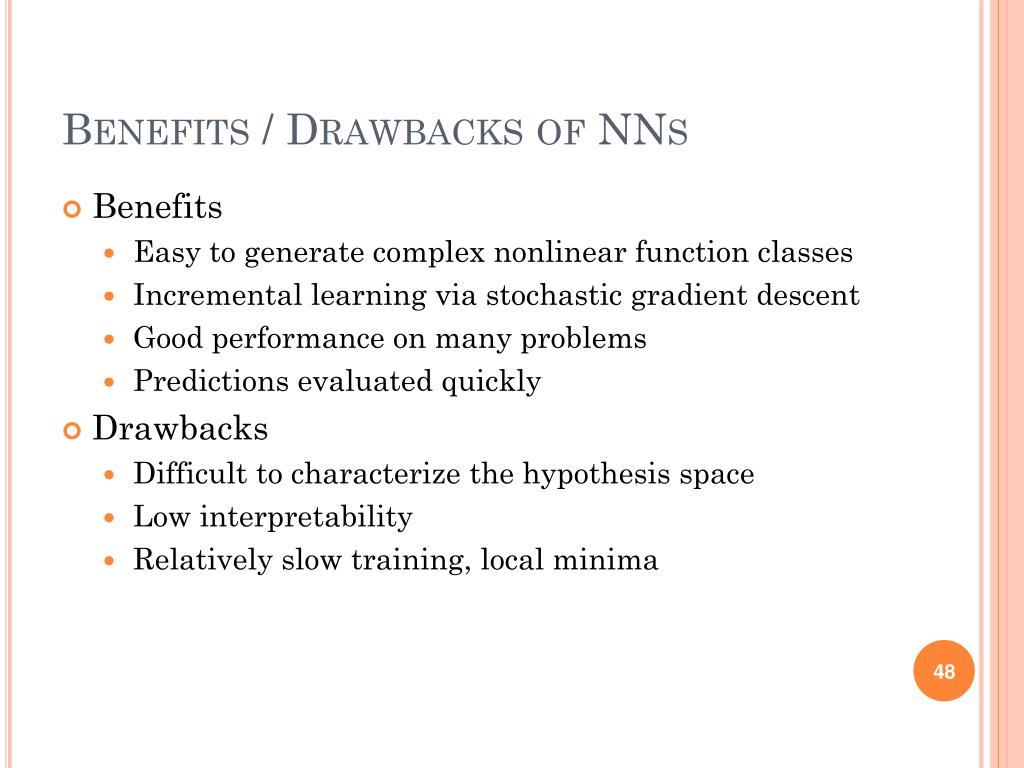

Benefits / Drawbacks of NNs • Benefits • Easy to generate complex nonlinear function classes • Incremental learning via stochastic gradient descent • Good performance on many problems • Predictions evaluated quickly • Drawbacks • Difficult to characterize the hypothesis space • Low interpretability • Relatively slow training, local minima

Performance of Function Learning • Overfitting: too many parameters • Regularization: penalize large parameter values • Minimize E(θ) +  C(θ) where C(θ) measures the cost of a parameter (independent of data) and  is a regularization parameter • Efficient optimization • If E(q) is nonconvex, can only guarantee finding a local minimum • Batch updates are expensive, stochastic updates converge slowly

Readings • R&N 18.8-9
