  1. Instructor & Todd Lammle Sybex CCNA 640-802 Chapter 10: Security

  2. Chapter 10 Objectives The CCNA Topics Covered in this chapter include: • Introduction to Security • Types of attacks • Mitigating attacks • Access-lists • Standard • Extended • Named • Monitoring Access-lists 2

  3. Introduction to Security

  4. Attacks • Application-layer attacks • Autorooters • Backdoors • Denial of service (DoS) and distributed denial of service (DDoS) attacks • (many others)

  5. Mitigating Attacks • Appliances • IDS • IPS • Stateful IOS Firewall inspection engine • Firewall voice traversal • ICMPinspection • Authenticationproxy

  6. Access Lists • Purpose: • Used to permit or deny packets moving through the router • Permit or deny Telnet (VTY) access to or from a router • Create dial-on demand (DDR) interesting traffic that triggers dialing to a remote location

  7. Important Rules • Packets are compared to each line of the assess list in sequential order • Packets are compared with lines of the access list only until a match is made • Once a match is made & acted upon no further comparisons take place • An implicit “deny” is at the end of each access list • If no matches have been made, the packet will be discarded

  8. Types of Access Lists • Standard Access List • Filter by source IP addresses only • Extended Access List • Filter by Source IP, Destination IP, Protocol Field, Port Number • Named Access List • Functionally the same as standard and extended access lists.

  9. Application of Access Lists • Inbound Access Lists • Packets are processed before being routed to the outbound interface • Outbound Access Lists • Packets are routed to the outbound interface & then processed through the access list

  10. One access list per interface, per protocol, or per direction More specific tests at the top of the ACL New lists are placed at the bottom of the ACL Individual lines cannot be removed End ACLs with a permit any command Create ACLs & then apply them to an interface ACLs do not filter traffic originated from the router Put Standard ACLs close to the destination Put Extended ACLs close the the source ACL Guidelines

  11. Standard IP Access Lists Router#config t Enter configuration commands, one per line. End with CNTL/Z. Router(config)#access-list ? <1-99> IP standard access list <100-199> IP extended access list <1000-1099> IPX SAP access list <1100-1199> Extended 48-bit MAC address access list <1200-1299> IPX summary address access list <200-299> Protocol type-code access list <300-399> DECnet access list <600-699> Appletalk access list <700-799> 48-bit MAC address access list <800-899> IPX standard access list <900-999> IPX extended access list

  12. Standard IP Access Lists • Creating a standard IP access list: Router(config)#access-list 10 ? deny Specify packets to reject permit Specify packets to forward • Permit or deny? Router(config)#access-list 10 deny ? Hostname or A.B.C.D Address to match any any source host host A single host address • Using the host command Router(config)#access-list 10 deny host 172.16.30.2

  13. Standard ACL Example

  14. Standard ACL example 2

  15. Standard ACL Example 3

  16. Wildcards • What are they??? • Used with access lists to specify a…. • Host • Network • Part of a network

  17. Block Sizes 64 32 16 8 4 • Rules: • When specifying a range of addresses, choose the closest block size • Each block size must start at 0 • A ‘0’ in a wildcard means that octet must match exactly • A ‘255’ in a wildcard means that octet can be any value • The command any is the same thing as writing out the wildcard: 0.0.0.0 255.255.255.255

  18. Specifying a Range of Subnets (Remember: specify a range of values in a block size) Requirement: Block access in the range from 172.16.8.0 through 172.16.15.0 = block size 8 Network number = 172.16.8.0 Wildcard = 0.0.7.255 **The wildcard is always one number less than the block size

  19. Controlling VTY (Telnet) Access • Why?? • Without an ACL any user can Telnet into the router via VTY and gain access • Controlling access • Create a standard IP access list • Permitting only the host/hosts authorized to Telnet into the router • Apply the ACL to the VTY line with the access-class command

  20. Example Lab_A(config)#access-list 50 permit 172.16.10.3 Lab_A(config)#line vty 0 4 Lab_A(config-line)#access-class 50 in (implied deny)

  21. Extended IP Access Lists • Allows you to choose... • IP Source Address • IP Destination Address • Protocol • Port number

  22. Extended IP ACLs Router(config)#access-list ? <1-99> IP standard access list <100-199> IP extended access list <1000-1099> IPX SAP access list <1100-1199> Extended 48-bit MAC address access list <1200-1299> IPX summary address access list <200-299> Protocol type-code access list <300-399> DECnet access list <600-699> Appletalk access list <700-799> 48-bit MAC address access list <800-899> IPX standard access list <900-999> IPX extended access list Router(config)#access-list 110 ? deny Specify packets to reject dynamic Specify a DYNAMIC list of PERMITs or DENYs permit Specify packets to forward

  23. Extended IP ACLs Router(config)#access-list 110 deny ? <0-255> An IP protocol number ahp Authentication Header Protocol eigrp Cisco's EIGRP routing protocol esp Encapsulation Security Payload gre Cisco's GRE tunneling icmp Internet Control Message Protocol igmp Internet Gateway Message Protocol igrp Cisco's IGRP routing protocol ip Any Internet Protocol ipinip IP in IP tunneling nos KA9Q NOS compatible IP over IP tunneling ospf OSPF routing protocol pcp Payload Compression Protocol tcp Transmission Control Protocol udp User Datagram Protocol Router(config)#access-list 110 deny tcp ? A.B.C.D Source address any Any source host host A single source host

  24. Extended IP ACL Steps #1: Select the access list: RouterA(config)#access-list 110 #2: Decide on deny or permit: RouterA(config)#access-list 110 deny #3: Choose the protocol type: RouterA(config)#access-list 110 deny tcp #4: Choose source IP address of the host or network: RouterA(config)#access-list 110 deny tcp any #5: Choose destination IP address RouterA(config)#access-list 110 deny tcp any host 172.16.30.2 #6: Choose the type of service, port, & logging RouterA(config)#access-list 110 deny tcp any host 172.16.30.2 eq 23 log

  25. Steps (cont.) RouterA(config)#access-list 110 deny tcp any host 172.16.30.2 eq 23 log RouterA(config)#access-list 110 permit ip any 0.0.0.0 255.255.255.255 RouterA(config)#ip access-group 110 in or RouterA(config)#ip access-group 110 out

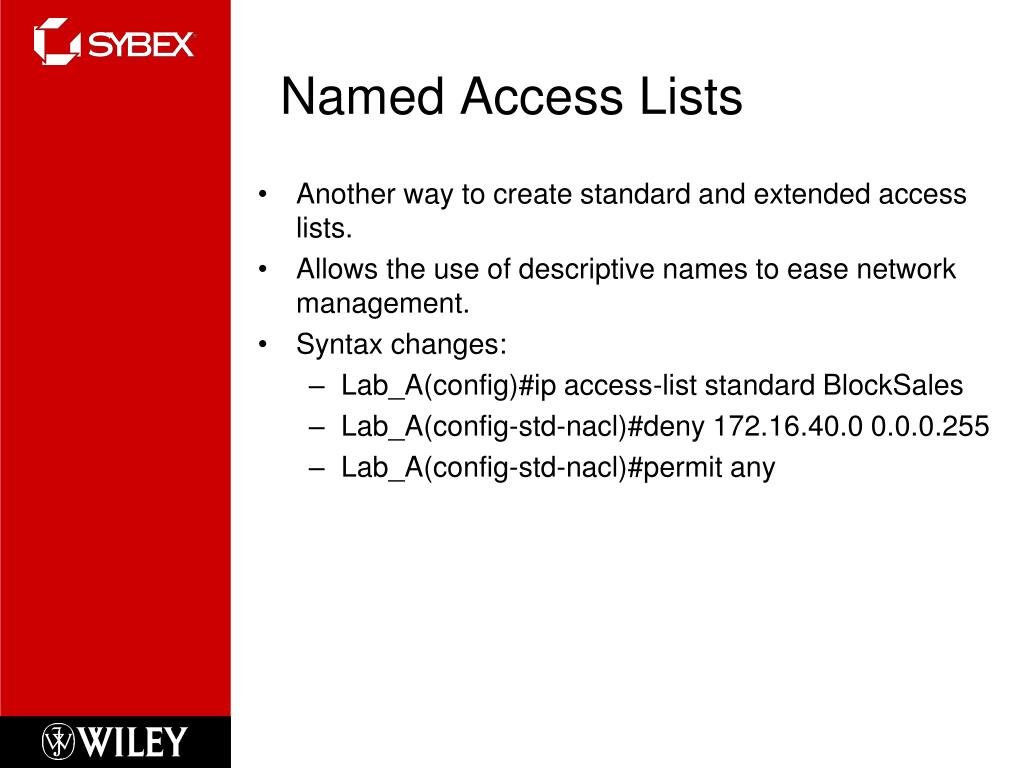

  26. Named Access Lists • Another way to create standard and extended access lists. • Allows the use of descriptive names to ease network management. • Syntax changes: • Lab_A(config)#ip access-list standard BlockSales • Lab_A(config-std-nacl)#deny 172.16.40.0 0.0.0.255 • Lab_A(config-std-nacl)#permit any

  27. Monitoring IP Access Lists • Display all access lists & their parameters show access-list • Show only the parameters for the access list 110 show access-list 110 • Shows only the IP access lists configured show ip access-list • Shows which interfaces have access lists set show ip interface • Shows the access lists & which interfaces have access lists set show running-config

  28. Written Labs and Review Questions • Open your books and go through all the written labs and the review questions. • Review the answers in class. 28
