  1. System issues System decomposition / Product tree System specification: function, performance, interfaces, budget Work-breakdown structure

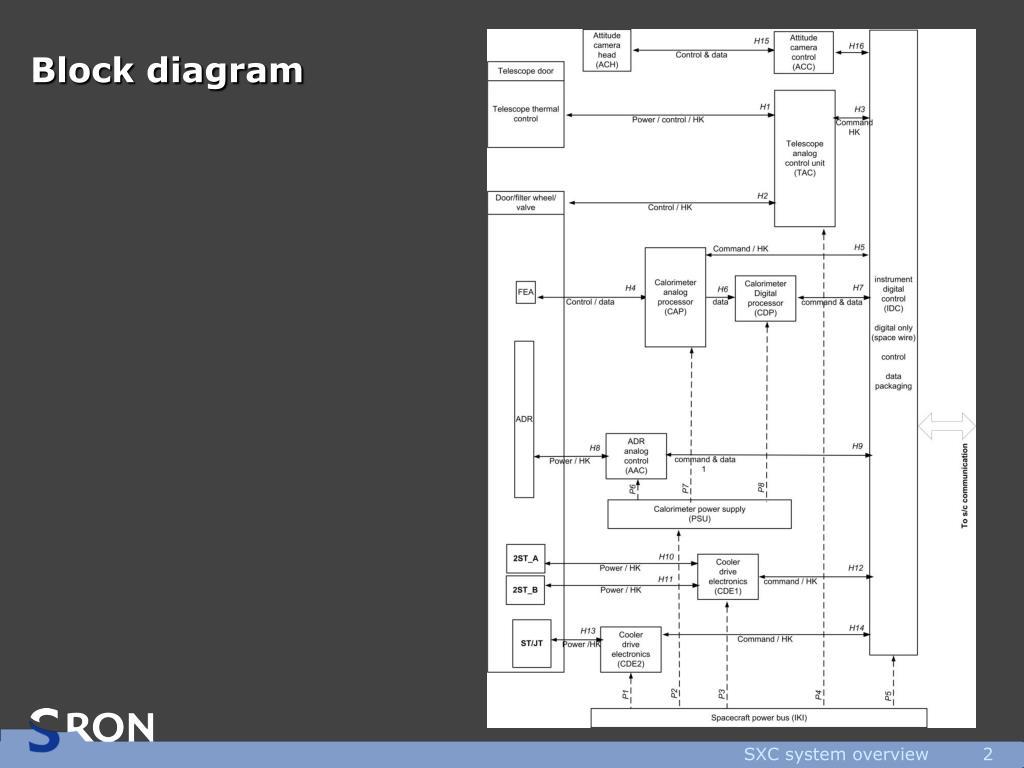

  2. Block diagram SXC system overview

  3. System levels CONSORTIUM SYSTEM SPACECRAFT SUBSYSTEM SUBSYSTEM SUBSYSTEM UNIT UNIT UNIT SXC system overview

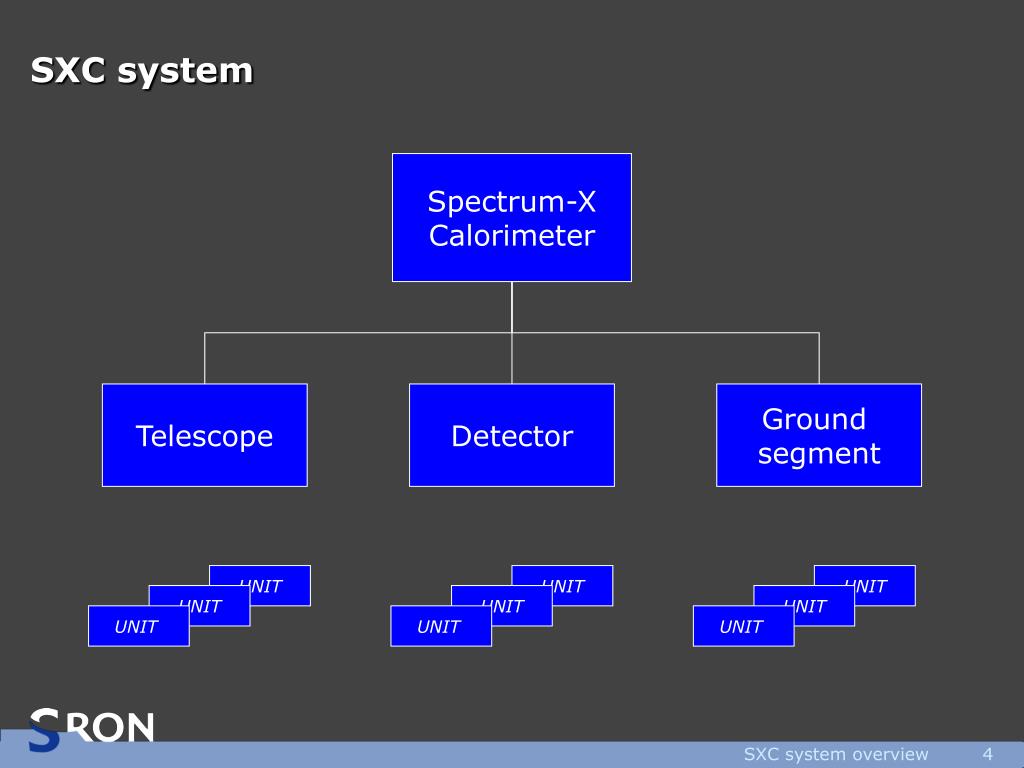

  4. SXC system Spectrum-X Calorimeter Telescope Detector Ground segment UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT UNIT SXC system overview

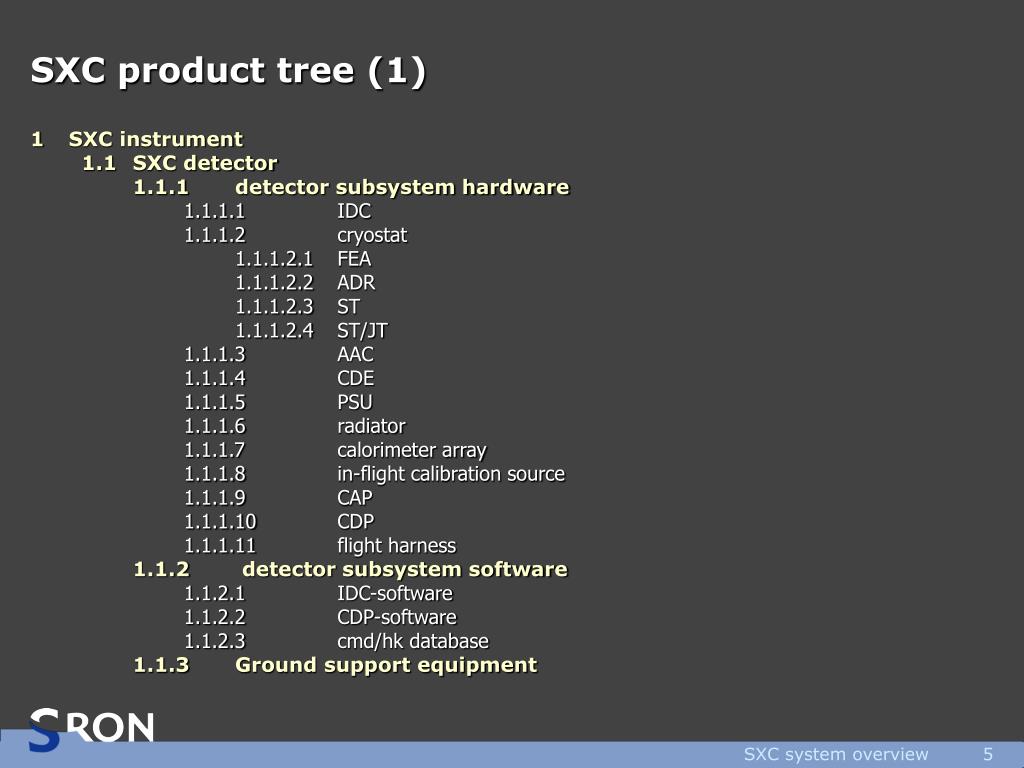

  5. SXC product tree (1) 1 SXC instrument 1.1 SXC detector 1.1.1 detector subsystem hardware 1.1.1.1 IDC 1.1.1.2 cryostat 1.1.1.2.1 FEA 1.1.1.2.2 ADR 1.1.1.2.3 ST 1.1.1.2.4 ST/JT 1.1.1.3 AAC 1.1.1.4 CDE 1.1.1.5 PSU 1.1.1.6 radiator 1.1.1.7 calorimeter array 1.1.1.8 in-flight calibration source 1.1.1.9 CAP 1.1.1.10 CDP 1.1.1.11 flight harness 1.1.2 detector subsystem software 1.1.2.1 IDC-software 1.1.2.2 CDP-software 1.1.2.3 cmd/hk database 1.1.3 Ground support equipment SXC system overview

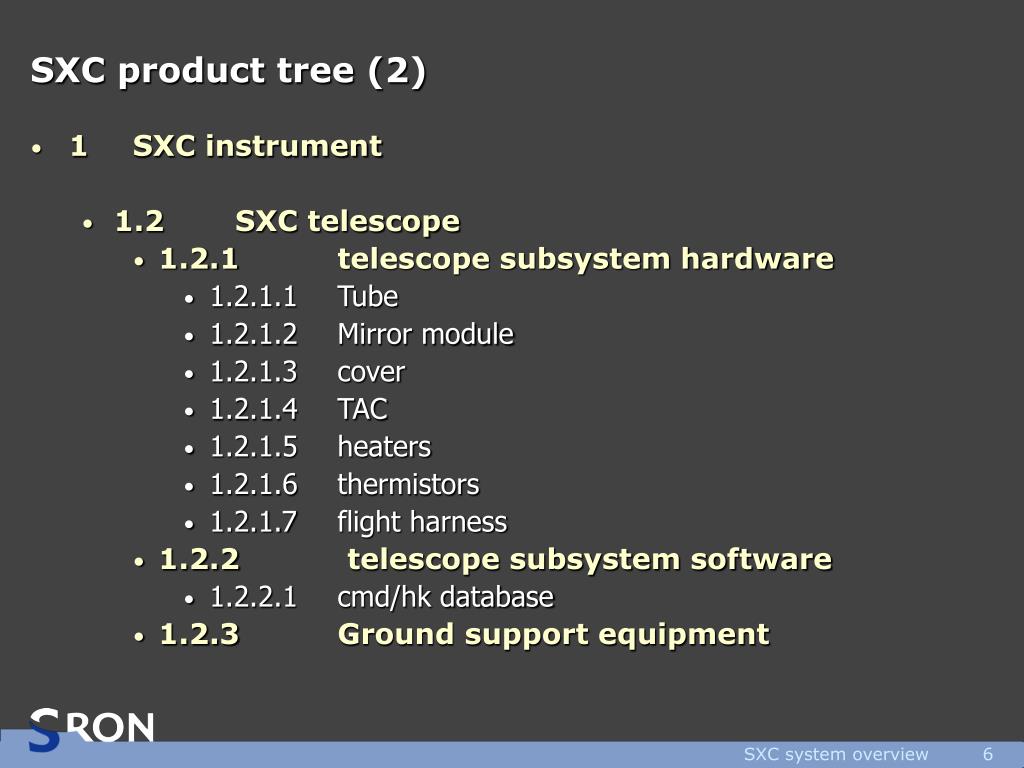

  6. SXC product tree (2) • 1 SXC instrument • 1.2 SXC telescope • 1.2.1 telescope subsystem hardware • 1.2.1.1 Tube • 1.2.1.2 Mirror module • 1.2.1.3 cover • 1.2.1.4 TAC • 1.2.1.5 heaters • 1.2.1.6 thermistors • 1.2.1.7 flight harness • 1.2.2 telescope subsystem software • 1.2.2.1 cmd/hk database • 1.2.3 Ground support equipment SXC system overview

  7. System issues • System decomposition / Product tree • System specification: function, performance, Interfaces, budget • Work-breakdown structure SXC system overview

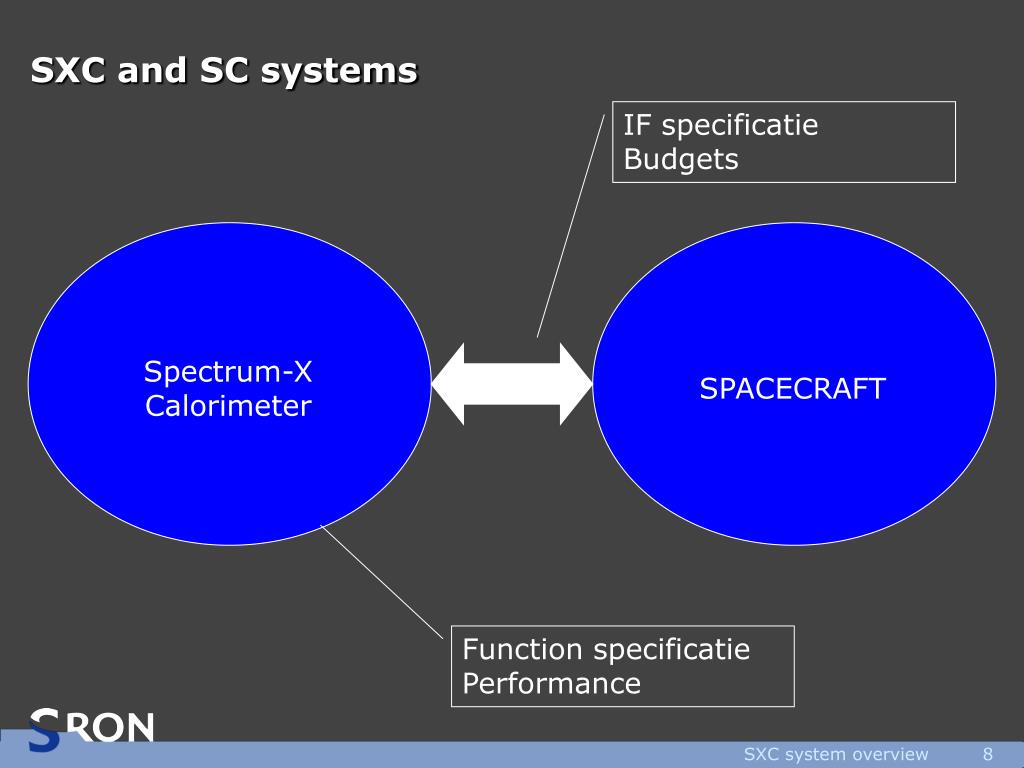

  8. SXC and SC systems IF specificatie Budgets Spectrum-X Calorimeter SPACECRAFT Function specificatie Performance SXC system overview

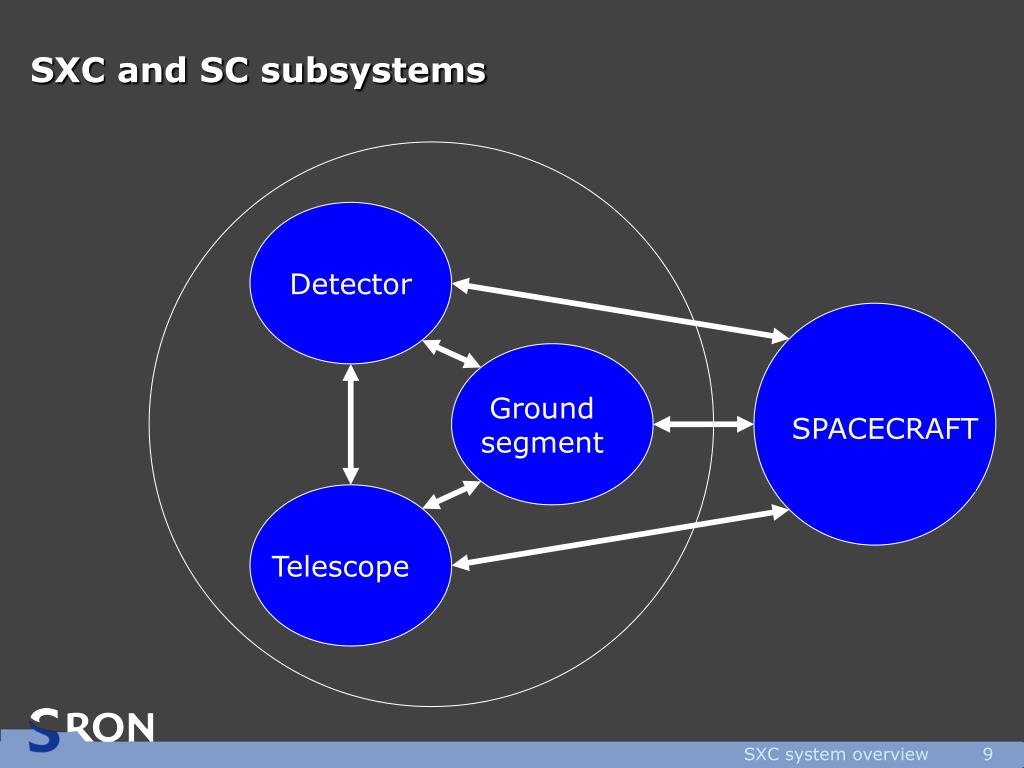

  9. SXC and SC subsystems Detector SPACECRAFT Ground segment Telescope SXC system overview

  10. Controlled documents Controlled: agreed between two or more parties. Subsystem requirements specification Subsystem to subsystem interface specification • Electrical • Mechanical • Alignment • Software • Resources (mass, power) • etc Technical planning • D&V-plan • EMC-plan • AIV-plan • etc SXC system overview

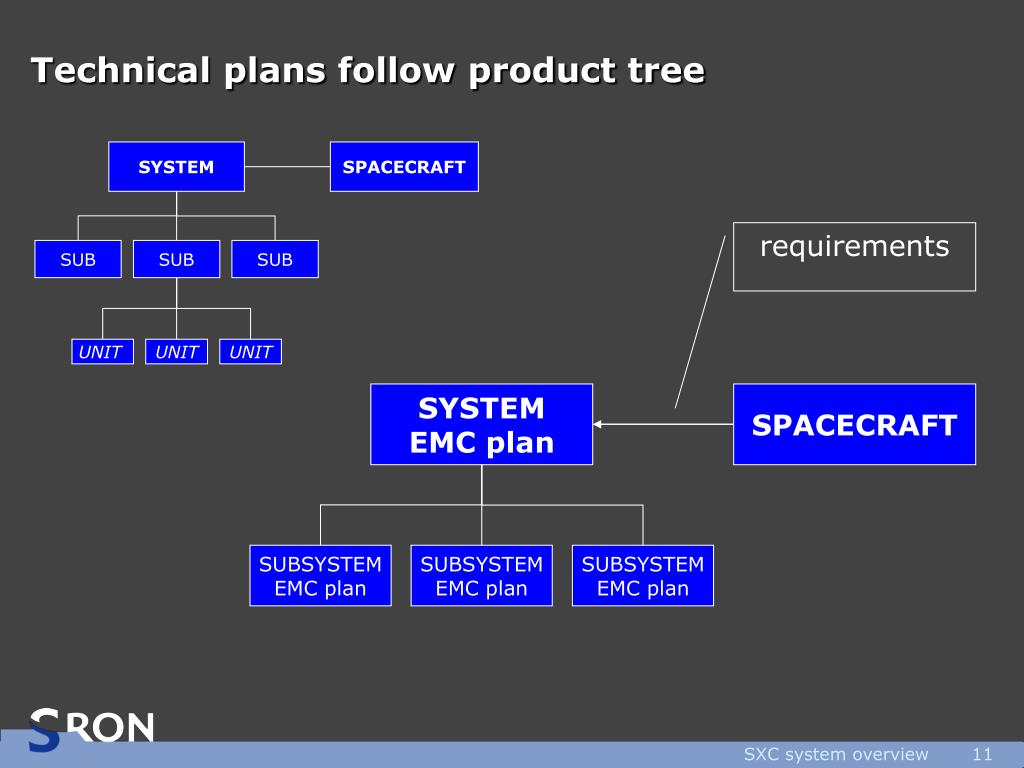

  11. Technical plans follow product tree SYSTEM SPACECRAFT requirements SUB SUB SUB UNIT UNIT UNIT SYSTEM EMC plan SPACECRAFT SUBSYSTEM EMC plan SUBSYSTEM EMC plan SUBSYSTEM EMC plan SXC system overview

  12. System issues • System decomposition / Product tree • System specification: function, performance, Interfaces, budget • Work-breakdown structure, project organization SXC system overview

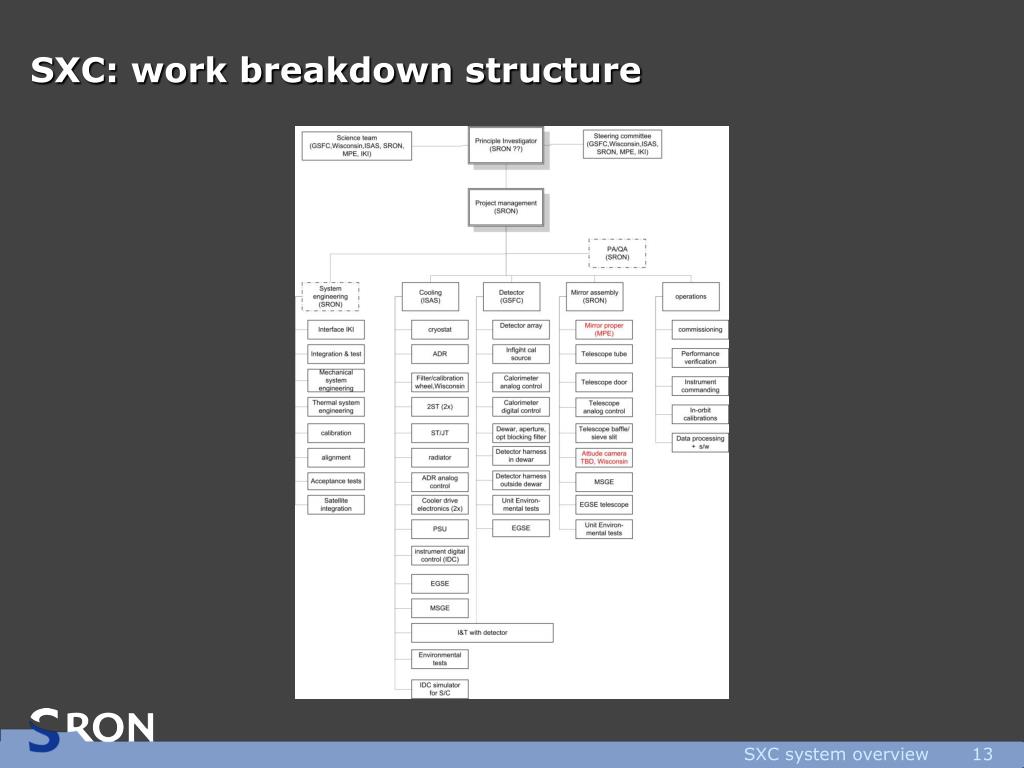

  13. SXC: work breakdown structure SXC system overview

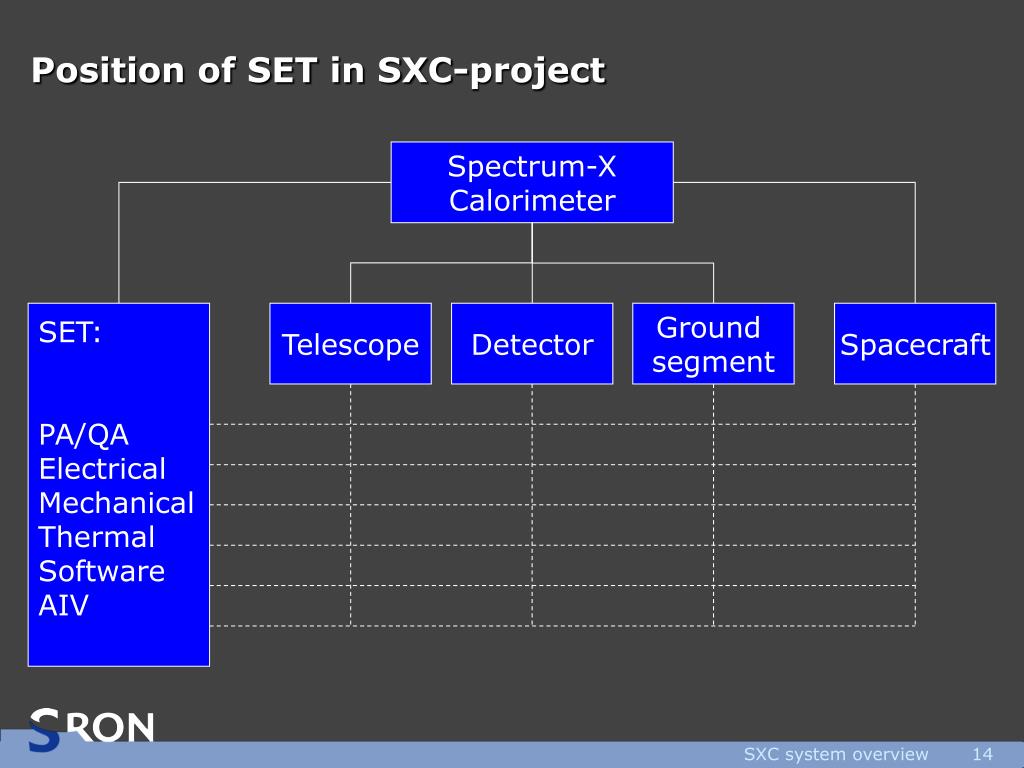

  14. Position of SET in SXC-project Spectrum-X Calorimeter SET: PA/QA Electrical Mechanical Thermal Software AIV Telescope Detector Ground segment Spacecraft SXC system overview

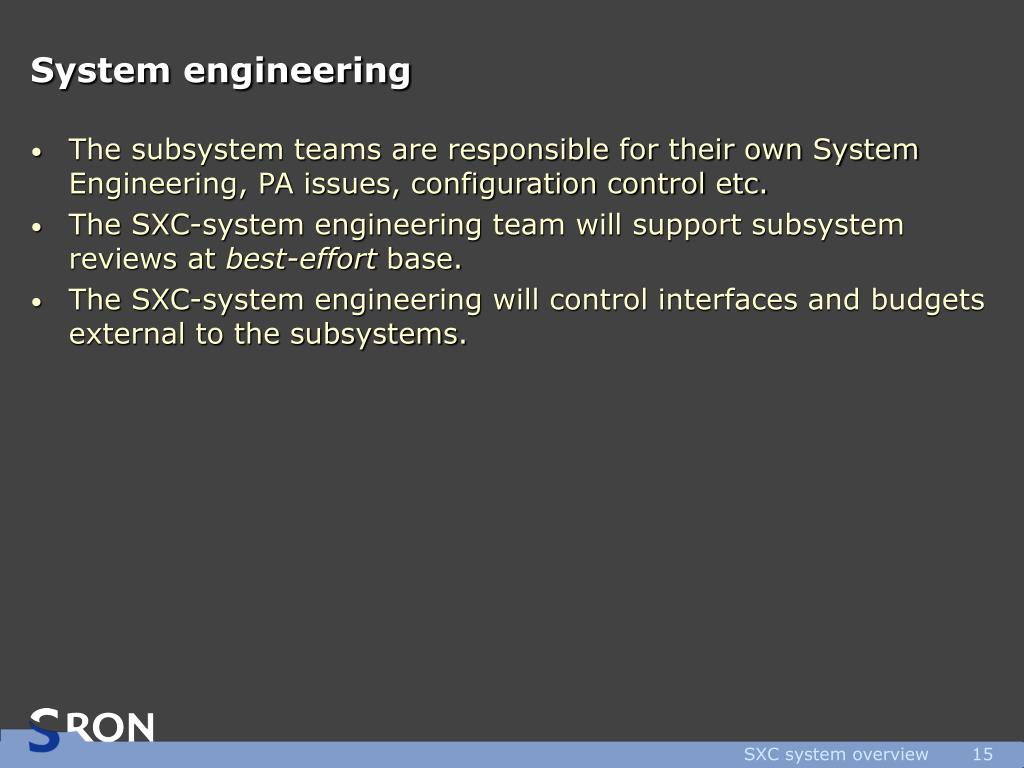

  15. System engineering • The subsystem teams are responsible for their own System Engineering, PA issues, configuration control etc. • The SXC-system engineering team will support subsystem reviews at best-effort base. • The SXC-system engineering will control interfaces and budgets external to the subsystems. SXC system overview
