Presentation Transcript

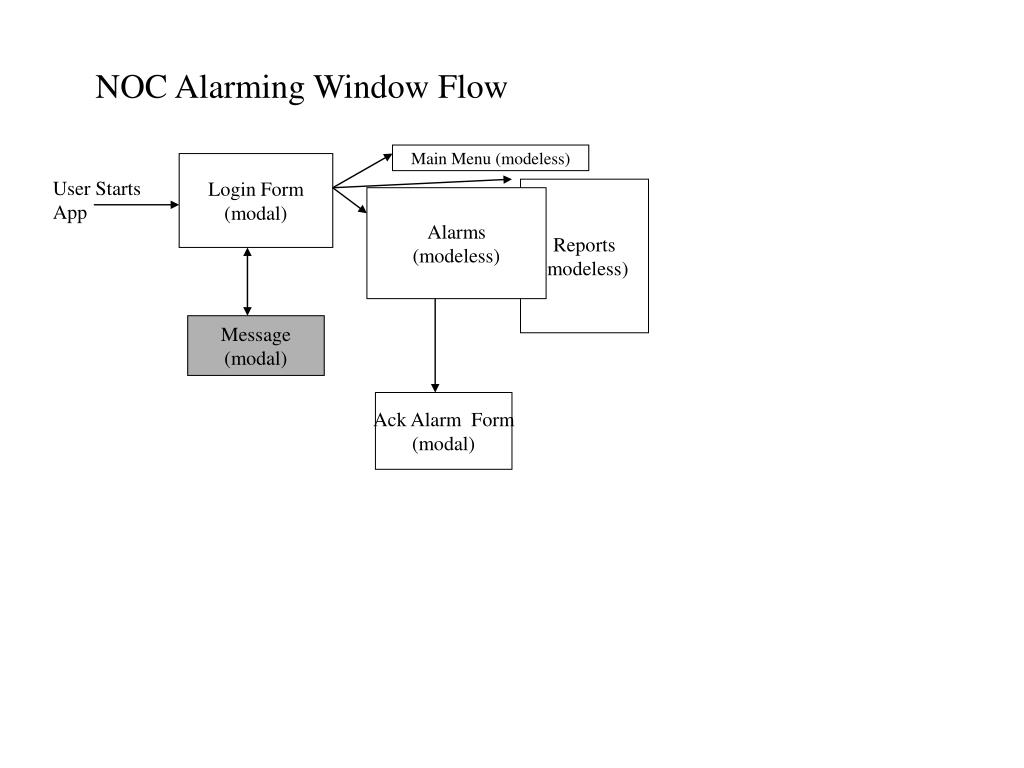

  1. NOC Alarming Window Flow Main Menu (modeless) Login Form (modal) User Starts App Reports (modeless) Alarms (modeless) Message (modal) Ack Alarm Form (modal)

  2. Main Menu Exit Copy Paste Find Thresholds Routes in Profile Copy Profile Escalations Filters Security Global Alarms Reports >> Main (by Country) Ad-Hoc Minute Flow • File|Exit closes all open windows and then the main menu followed by any other client processes and threads. • Edit options should work in both the alarms and report windows. • The Admin menu item should not show up for those not in the NOC manager group. • We are waiting on a number of other canned reports expected by Mark B. and Jonnie D. (under View|Reports) • Minute Flow is to be the fancy “show-and-tell” window for NOC visitors. • Tools can be hooked into whatever applications the NOC uses besides this, like SQL*Plus or Notepad, for example. • Help. Any online or context sensitive help will be postponed. If anything, there will be an About option that displays the application’s version number and contact information.

  3. NGT NOC Alarms Route Filter(s): Alarms Form TWCR03O C&W OUT 100 %blocked 90-100 8hr 10mins Level 2 ATMX03O ATT MEX 52 10 %ASR 0-30 1hr 25mins NOC Mgr. ATMX01O ATT A10 52 2 # available 0-5 0hr 30mins NOC Sup. EMAIL EMAIL JAPAN 3.6 quake 2-4 0hr 40mins NOC Sup. ATMX05O ATT MEX 52 35%ASR 30-40 0hr 15mins NOC ATMX06I ATT A13 MEXICO 52 175 LOOPING 100-200 PGE OUT 1hr 00mins NOC PROBE #834 PROBE #834 1hr 00mins NOC ATMX03I ATT MEX MEXICO 52 69%ASR 10-20 1hr 25mins NOC Mgr. ATMX03I ATT MEX MEXICO 52 72%ASR 25-30 1hr 25mins NOC Mgr. ATMX03I ATT MEX MEXICO 52 70%ASR 10-20 1hr 25mins NOC Mgr.

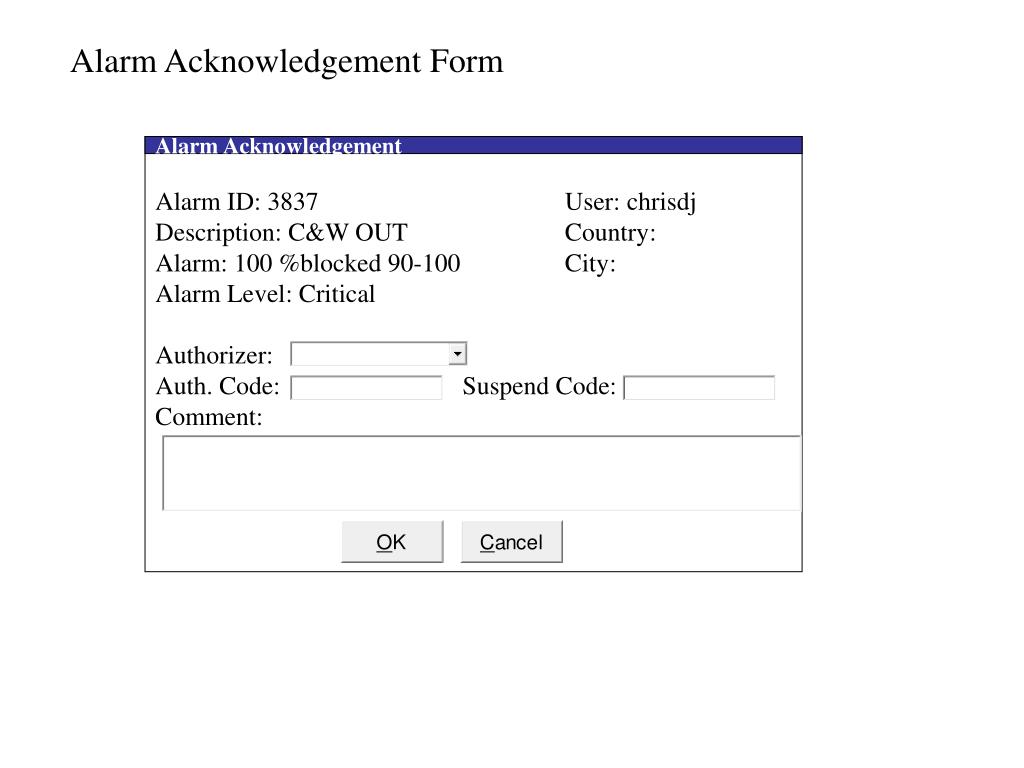

  4. Alarm ID: 3837 User: chrisdj Description: C&W OUT Country: Alarm: 100 %blocked 90-100 City: Alarm Level: Critical Authorizer: Auth. Code: Suspend Code: Comment: Alarm Acknowledgement Alarm Acknowledgement Form

  5. Edit Route Filters Edit Route Filters Current Filters Available New Filter Name In Filter

  6. Alarm Thresholds Profile: Profile: Scope: Scope: Country City Cell Route Route Alarm Type: % Occupied % Blocked % Congested Country: AFGANISTAN ALGERIA MEXICO Alarm Type: ASR ALOC LOW HIGH LOW HIGH INFO INFO MINOR MINOR MAJOR MAJOR CRITICAL CRITICAL
