Presentation Transcript


Standards l.jpg

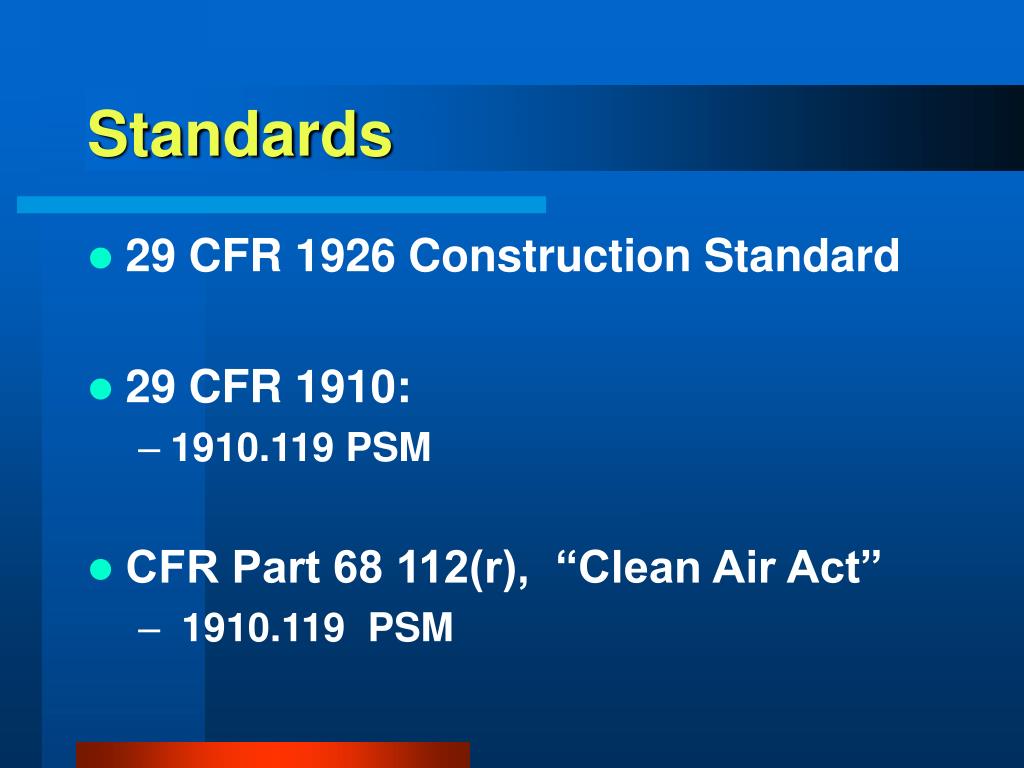

Standards

  • 29 CFR 1926 Construction Standard

  • 29 CFR 1910:

    • 1910.119 PSM

  • CFR Part 68 112(r), “Clean Air Act”

    • 1910.119 PSM


Slide4 l.jpg


Most frequently cited l.jpg

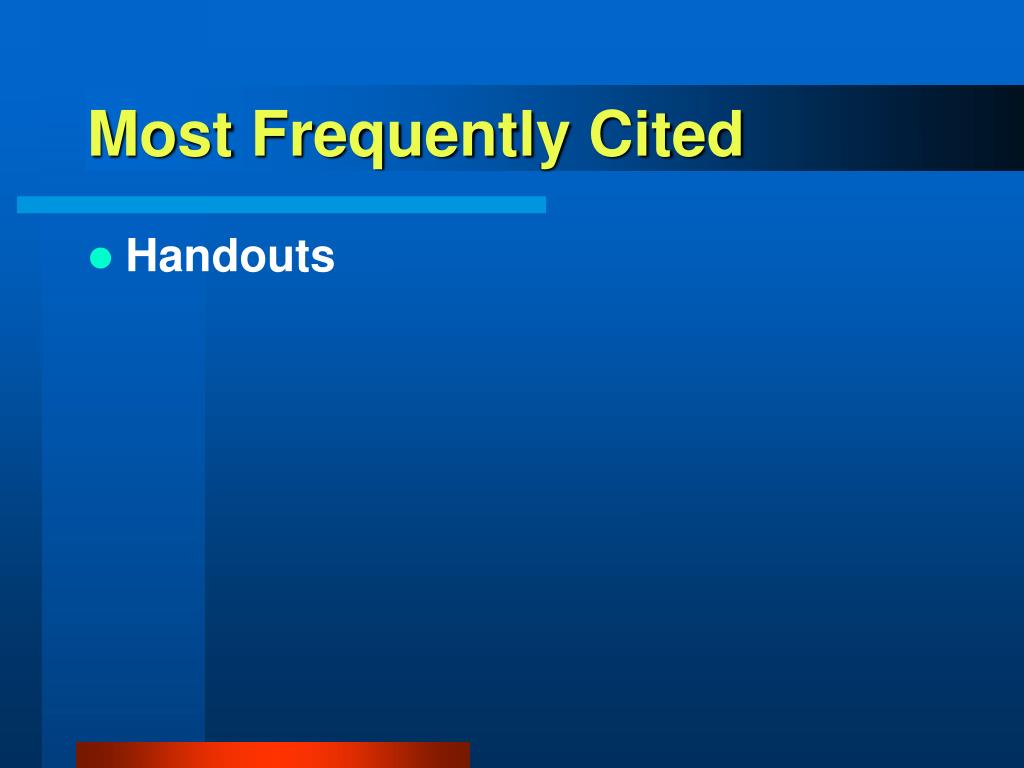

Most Frequently Cited Construction standards a the same time?

  • Handouts


Fatality information l.jpg
Fatality Information Construction standards a the same time?

  • Handout


Hazcom l.jpg

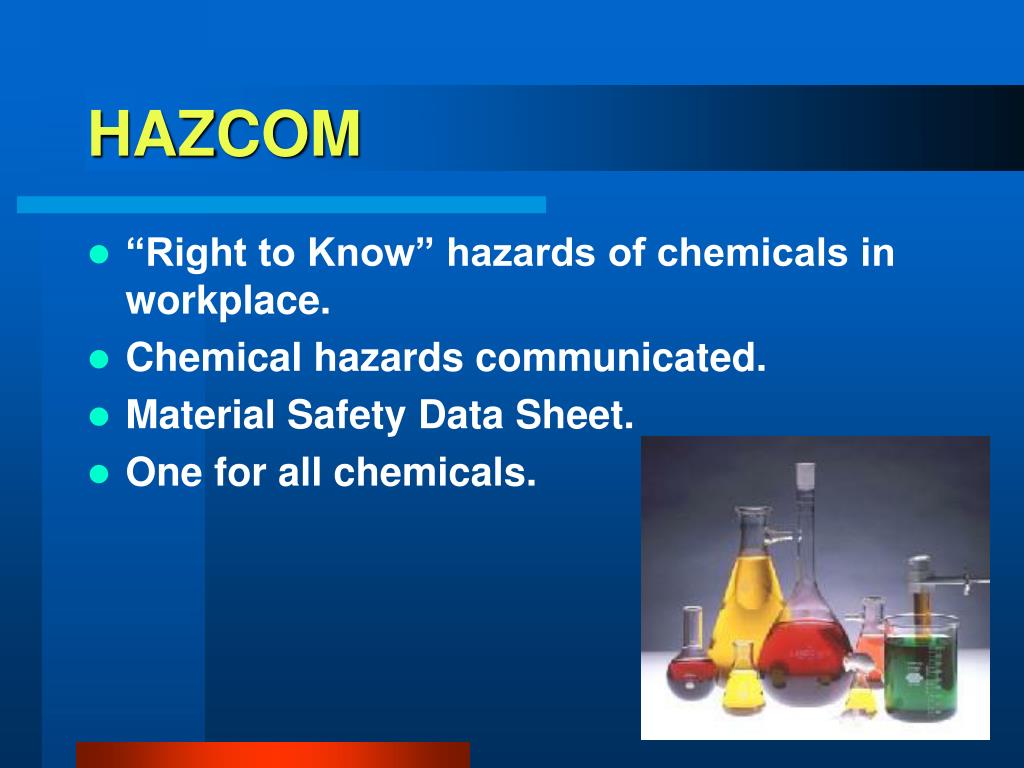

HAZCOM Construction standards a the same time?

  • “Right to Know” hazards of chemicals in workplace.

  • Chemical hazards communicated.

  • Material Safety Data Sheet.

  • One for all chemicals.


Labels l.jpg
Labels Construction standards a the same time?

  • Identify chemical.

  • Indicate hazard.

  • All containers labeled.


Manufacturer labels l.jpg

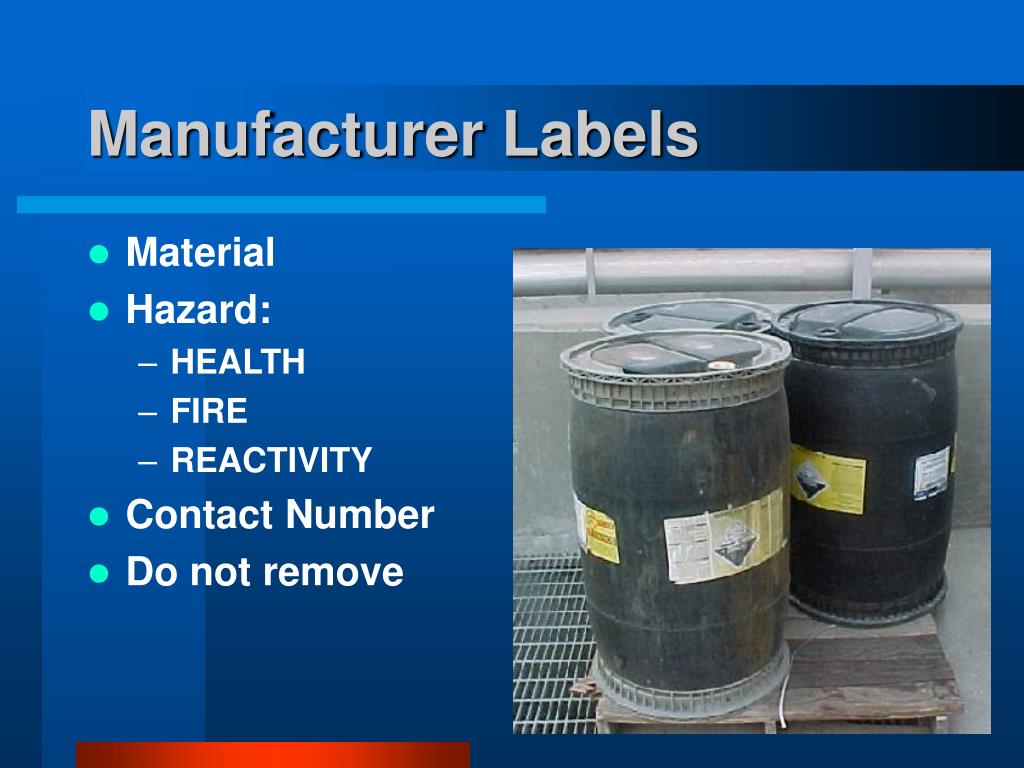

Manufacturer Labels Construction standards a the same time?

  • Material

  • Hazard:

    • HEALTH

    • FIRE

    • REACTIVITY

  • Contact Number

  • Do not remove


Chemical exposure first aid l.jpg
Chemical Exposure First Aid Construction standards a the same time?

  • Remove contaminated clothing

  • Safety shower 15 minutes

  • Seek medical attention.


Personal protective equipment l.jpg
Personal Protective Equipment Construction standards a the same time?


Personal protective equipment12 l.jpg
Personal Protective Equipment Construction standards a the same time?

  • Foot - ANSI Z41.1

  • Head - ANSI Z89.2

  • Hearing -

  • Eye & face - Z87.1

  • Respiratory - NIOSH

  • Harness, lifelines & lanyards

  • Working over or near water


Other ppe l.jpg
Other PPE Construction standards a the same time?

  • Job specific:

- hearing

- respirator

- welding hood/cutting goggles

- leather gloves

- protective clothing

- acid suit


Fall protection l.jpg

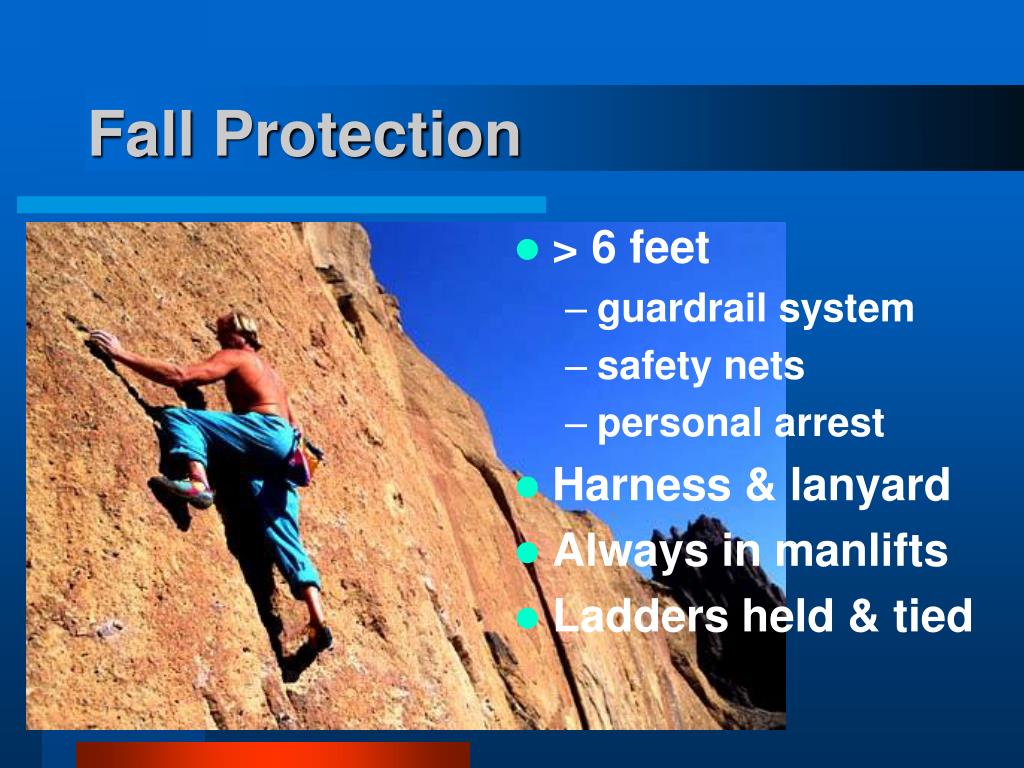

Fall Protection Construction standards a the same time?

  • > 6 feet

    • guardrail system

    • safety nets

    • personal arrest

  • Harness & lanyard

  • Always in manlifts

  • Ladders held & tied


Leading edge work l.jpg

Definition of leading Edge Construction standards a the same time?

Exception:

creates greater hazard

Holes

Leading Edge Work


Fall protection safety nets l.jpg
Fall Protection - Safety Nets Construction standards a the same time?

Safety nets and safety net installations must be drop-tested at the jobsite:

  • After initial installation and before being used.

  • Whenever relocated.

  • After major repair.

  • At 6-month intervals if left in one place.


Safety nets l.jpg
Safety Nets Construction standards a the same time?

  • Working > 25 ft above surface

  • Where use other safety devices are impractical

  • No work until inspected & tested

  • Extend 8 ft beyond edge


Fall protection safety nets18 l.jpg

Vertical distance  Construction standards a the same time?from working level to horizontal plane of net

Minimum required horizontal distance of outer edge of net from the edge of the working surface

Up to 5 feet

8 feet

5 to 10 feet

10 feet

More than 10 feet

13 feet

Fall Protection - Safety Nets


Working over near water l.jpg
Working Over/Near Water Construction standards a the same time?

  • Life jacket

  • Inspected before and after each use for buoyancy

  • Ring buoys provided

  • Lifesaving skiff


Fall protection20 l.jpg
Fall Protection Construction standards a the same time?

  • Harness & lanyard

  • Tied off above

  • Always in manlifts


Fall protection guardrails l.jpg
Fall Protection - Guardrails Construction standards a the same time?

  • Top rail – 39-45”

  • Midrail / Toeboard

  • Intermediate <19”

  • 200 pounds force


Fall protection fall arrest l.jpg
Fall Protection – Fall Arrest Construction standards a the same time?

  • < 1800lbs arresting force

  • <6ft free fall

  • Inspected before each use


Barricades l.jpg

Purpose: Construction standards a the same time?

To warn others

Indicate danger

Keep people out

Types:

Tape (Red or Yellow)

Wood

Fence

Barricades


Falling objects l.jpg
Falling Objects Construction standards a the same time?


Protection from impalement l.jpg
Protection from impalement Construction standards a the same time?


Ladders l.jpg
Ladders Construction standards a the same time?

  • Inspect before use

  • Firm support

  • 3 rungs above work level

  • 3 point climb

  • Never carry materials


Scaffolding 1926 451 l.jpg
Scaffolding 1926.451 Construction standards a the same time?

  • Footing - sound & rigid

  • Erection, moving, dismantled or altered under direction of Competent person

  • Guardrail & toeboard > 10 ft

  • Handrail & midrail

  • 12 inch overlap of planking


Accident prevention signs l.jpg

Visible at all times Construction standards a the same time?

Danger:

immediate hazard

red

Caution:

warn of potential hazards

unsafe practices

yellow

Accident Prevention Signs


Accident prevention signs29 l.jpg

Exit Construction standards a the same time?

Safety Instruction

Traffic

Accident prevention tags

temporary

tools

equipment

etc

Accident Prevention Signs


Permits l.jpg

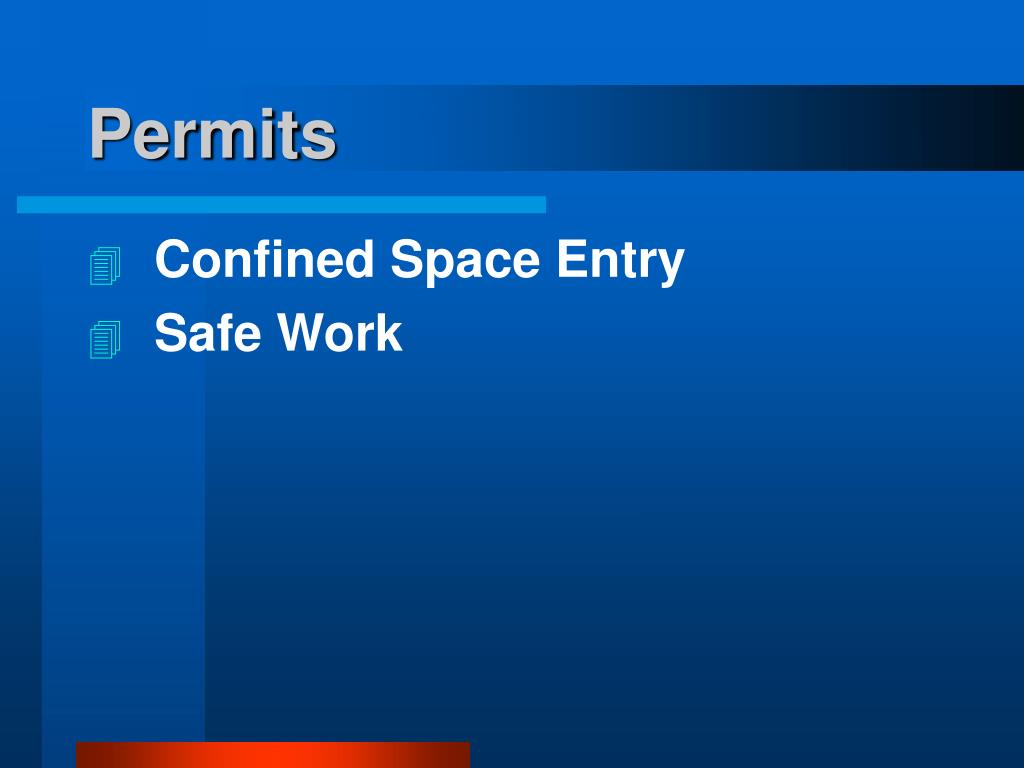

Permits Construction standards a the same time?

  • Confined Space Entry

  • Safe Work


Hot work l.jpg
Hot Work Construction standards a the same time?

  • Work which produces fire or spark.

  • Welding, torch cutting, grinding.

  • Electric tools in hazardous locations.


Hot work permit l.jpg
Hot Work Permit Construction standards a the same time?

  • Fire watch each level.

  • 30 minute check.

  • Expires after 15 minutes if unattended


Confined space definition l.jpg
Confined Space - Definition Construction standards a the same time?

  • Large enough for entry .

  • Limited or restricted entry.

  • Not designed for continuous occupancy


Permit required l.jpg

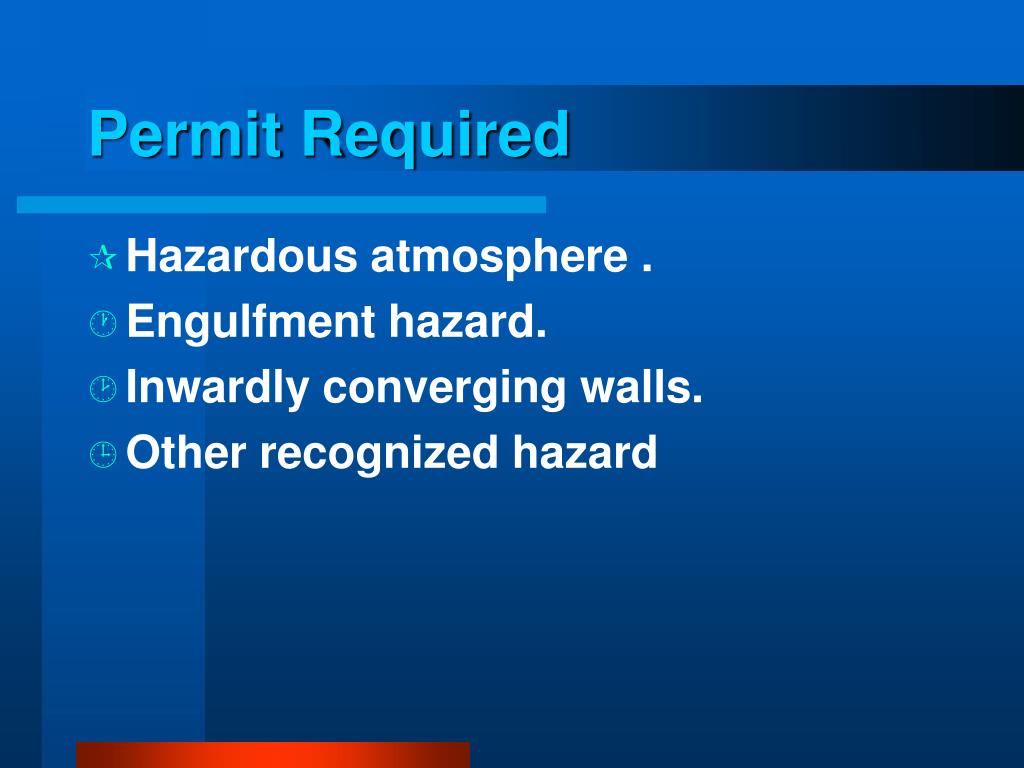

Permit Required Construction standards a the same time?

  • Hazardous atmosphere .

  • Engulfment hazard.

  • Inwardly converging walls.

  • Other recognized hazard


Confined space labels l.jpg
Confined Space Labels Construction standards a the same time?


Excavations 1926 651 l.jpg
Excavations - 1926.651 Construction standards a the same time?

  • Barricading

  • Shoring

  • Sloped walls

  • Confined Space?

  • Egress Ladder

  • Ground Fault (GFCI)

  • Keep dry

  • Handout


Excavations 1926 65137 l.jpg

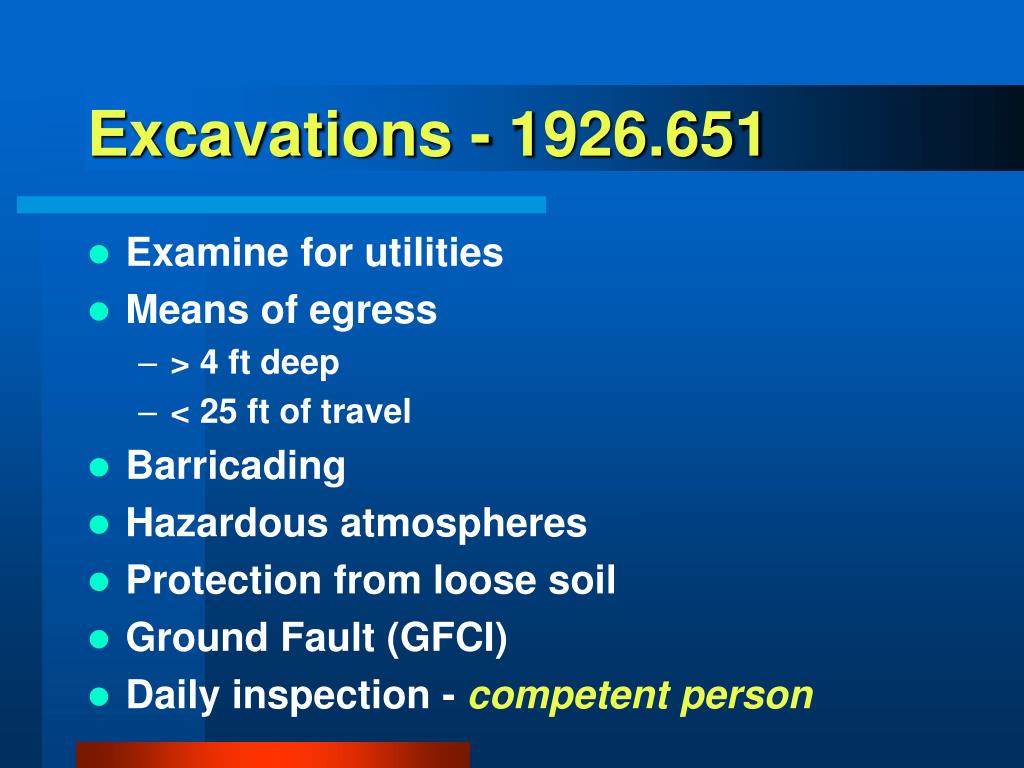

Excavations - 1926.651 Construction standards a the same time?

  • Examine for utilities

  • Means of egress

    • > 4 ft deep

    • < 25 ft of travel

  • Barricading

  • Hazardous atmospheres

  • Protection from loose soil

  • Ground Fault (GFCI)

  • Daily inspection - competent person


Inspect for what l.jpg
Inspect for what? Construction standards a the same time?

  • Cracks - spoils 2’ back

  • Water

  • Cave-in

  • Ladder

  • Shoring/sloping/box


Excavation protection l.jpg
Excavation Protection Construction standards a the same time?

  • Sloping

  • Shoring

  • Trench box

  • Spoils 2’ back


Excavations 1926 652 l.jpg
Excavations - 1926.652 Construction standards a the same time?

  • Exceptions to shoring:

    • entirely in rock

    • < 5 ft & ground examined by competent person showing no indication of potential cave-in


Shoring slopes l.jpg
Shoring & Slopes Construction standards a the same time?

  • Stable rock 90 deg

  • Type A - 3/4:1

  • Type B - 1:1

  • Type C - 1 1/2: 1

  • Handouts


Steel erection standard l.jpg
Steel Erection Standard Construction standards a the same time?

  • Handout


Lockout tagout test l.jpg
Lockout, Tagout, Test Construction standards a the same time?

  • Isolate all energy sources:

    • electrical

    • mechanical

    • pneumatic

    • chemical

    • any other

  • Lockout

  • Tagout

  • Test to verify isolation


Electrical safety l.jpg
Electrical Safety Construction standards a the same time?


Slide45 l.jpg
GFCI Construction standards a the same time?

  • Ground Fault Circuit Interrupters

  • All electric tools

  • Connect at source


Grounding bonding l.jpg

Handout Construction standards a the same time?

Grounding

equipment

system to earth

grounding electrode to earth

Bonding:

between 2 conductive objects

Grounding & Bonding


Tools and machines l.jpg
Tools and Machines Construction standards a the same time?

  • Electrical cords not taped

  • Use the right tools for the job

  • Be aware of sub contractors

  • Protect others from flying particles

  • GFCI electric tools


Injuries l.jpg
Injuries Construction standards a the same time?

  • Seek proper medical attention.

  • Report allImmediately.

  • EMS if necessary.

  • Clean up blood appropriately.


Recordkeeping l.jpg
Recordkeeping Construction standards a the same time?

  • OSHA 300 log


Bloodborne pathogens l.jpg
Bloodborne Pathogens Construction standards a the same time?

  • Diseases carried by blood or body fluids.

  • Examples:

    • HIV

    • Hepatitis B & C.

  • Exposure by contact.


Bloodborne pathogens51 l.jpg
Bloodborne Pathogens Construction standards a the same time?

  • How to handle:

    • Assume all body fluids are infected.

    • Wear rubber gloves.

  • Bleach & water solution for cleanup.

  • Red Bio-hazard bag for disposal.


Crane safety l.jpg
Crane Safety Construction standards a the same time?

  • Barricade hazard areas and post signs

  • Inspect before each use

  • Hand signals must conform to ANSI standard

  • Signs must be posted at job site


Rigging types l.jpg
Rigging - Types Construction standards a the same time?

  • Alloy steel chains

  • Wire rope

  • Natural & synthetic fiber

  • Synthetic webbing


Shackles hooks l.jpg
Shackles & Hooks Construction standards a the same time?

  • Hooks:

    • safety factor of 5

    • safety clasp

    • rated capacity

  • Shackles


Wire rope u bolts l.jpg
Wire Rope - “U” Bolts Construction standards a the same time?

  • Never saddle a dead horse?

  • “U” in contact with dead end

  • Handout


Rigging slings l.jpg
Rigging - Slings Construction standards a the same time?

  • Inspect daily before use

  • Inspect:

    • wear

    • broken or worn stitches

    • red thread

    • burns

  • Other


Rigging l.jpg
Rigging Construction standards a the same time?

  • Does angle change capacity of sling?

  • Handout & discussion


Inspection testing l.jpg
Inspection & Testing Construction standards a the same time?

  • Daily before use

  • Periodic


Operation of equipment l.jpg
Operation of Equipment Construction standards a the same time?

  • Forklifts

  • Cranes

  • Etc


Emergency plans l.jpg
Emergency Plans Construction standards a the same time?

  • In writing

  • Designated actions

  • Fire & other emergencies


Elements l.jpg

Escape procedures & route assignments Construction standards a the same time?

Procedures for those who remain

Accounting procedures

Rescue & medical duties

Means to report

Who to contact for further information

Training

Elements


Exceptions l.jpg
Exceptions Construction standards a the same time?

  • Written plan not required if:

    • less than 10 employees

    • plan communicated orally


Industrial hygiene l.jpg
Industrial Hygiene Construction standards a the same time?

  • Asbestos

  • Lead

  • Silica

  • Welding Fumes

  • Other Chemicals


Psm rmp requirements l.jpg
PSM & RMP Requirements Construction standards a the same time?

  • Employer Responsibilities

  • Contractor Responsibilities


Employer s responsibilities l.jpg
Employer’s Responsibilities Construction standards a the same time?

  • Evaluate contractor’s safety performance and programs

  • Inform of know potential fire, explosion, or toxic release hazards

  • Applicable provisions of emergency action plan


Employer s responsibilities66 l.jpg
Employer’s Responsibilities Construction standards a the same time?

  • Development of safe work practices;

    • LOTO

    • Confined Space Entry

    • opening process equipment

    • control over site entrance


Employer s responsibilities67 l.jpg
Employer’s Responsibilities Construction standards a the same time?

  • Periodically evaluate contractor performance

  • Maintain contractor injury and illness log


Contractor s responsibilities l.jpg
Contractor’s Responsibilities Construction standards a the same time?

  • Ensure each is trained in work practices necessary to safety perform work

  • Instructed in known potential fire, explosion or toxic release hazards

  • Applicable provisions of emergency action plan


Contractor s responsibilities69 l.jpg
Contractor’s Responsibilities Construction standards a the same time?

  • Document that each employee has received and understood training.

  • Ensure employees follow safety rules of facility

  • Advise employer of any unique hazards


Slide70 l.jpg
Test Construction standards a the same time?


ad
