Integrating st lmarck s algorithm in coq

Integrating Stålmarck’s algorithm in Coq

Laurent Théry

Lemme


Motivations

Motivations

  • Verifying verification tools

  • Adding more automation to Coq


Outline

Outline

  • What is Stålmarck’s algorithm?

  • How to integrate it to Coq?

  • How efficient is the result?


St lmarck s algorithm

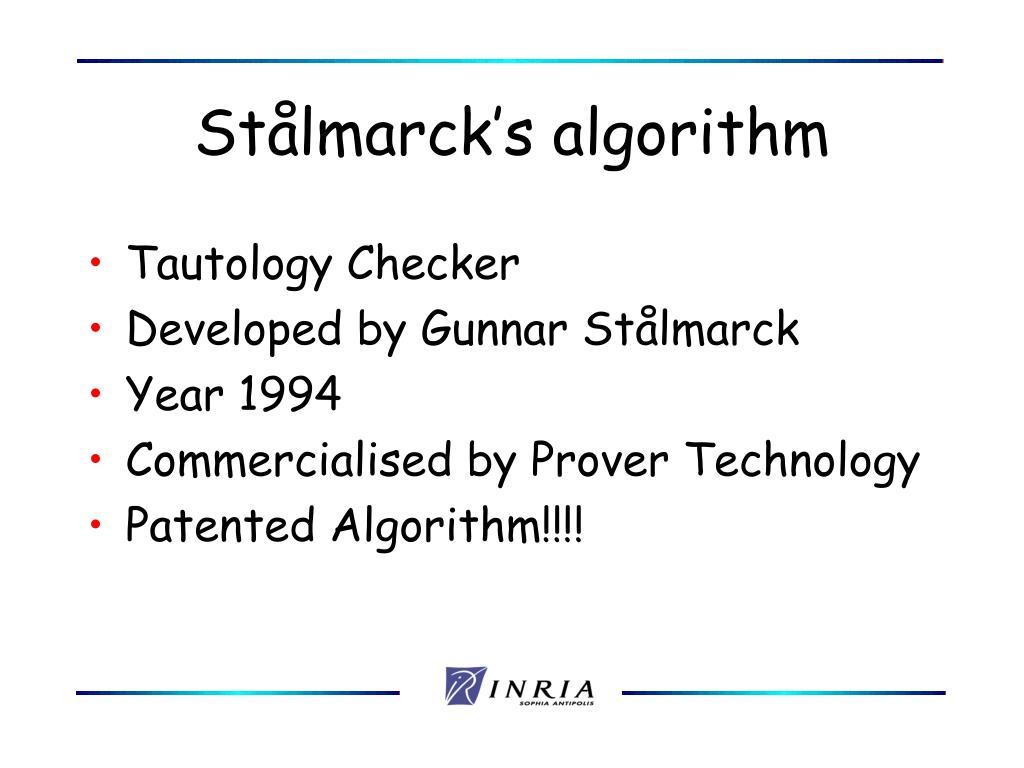

Stålmarck’s algorithm

  • Tautology Checker

  • Developed by Gunnar Stålmarck

  • Year 1994

  • Commercialised by Prover Technology

  • Patented Algorithm!!!!


Boolean formulae

Boolean Formulae

Constant value:

Variables:

Negation:

Conjunction:

Disjunction:

Implication:


Checking tautologies

Checking tautologies

Checking if the formula is true for

all assignment:


Triplets

Triplets


Refutation

Refutation


Propagation rules

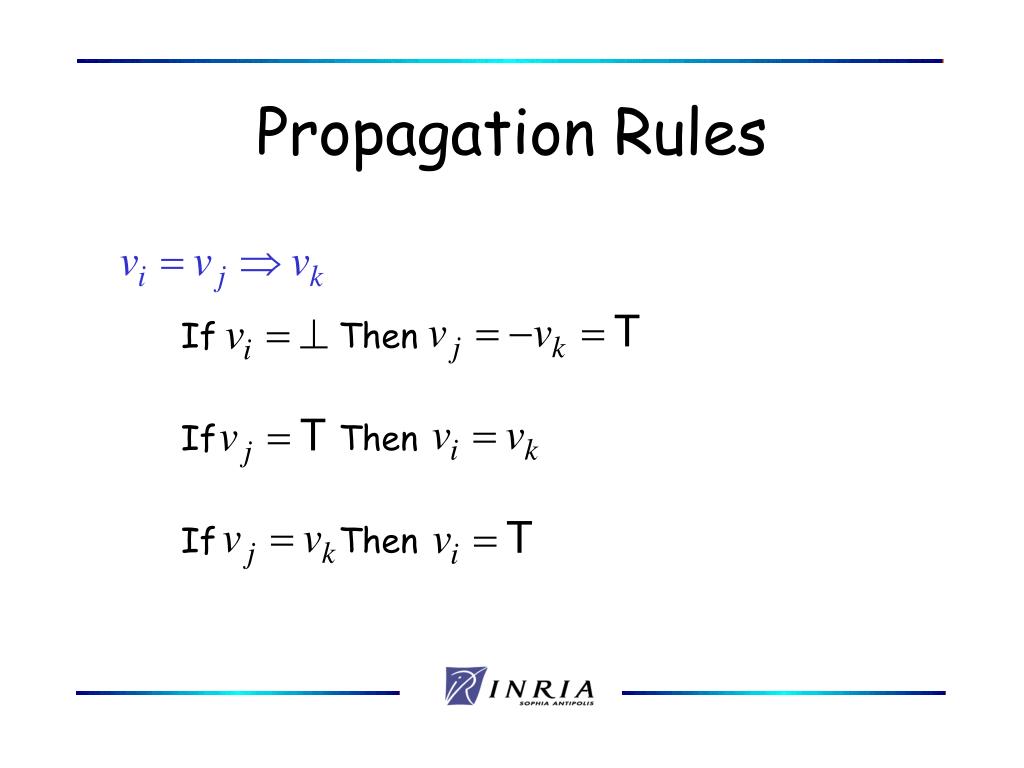

Propagation Rules

If Then

If Then

If Then


Example

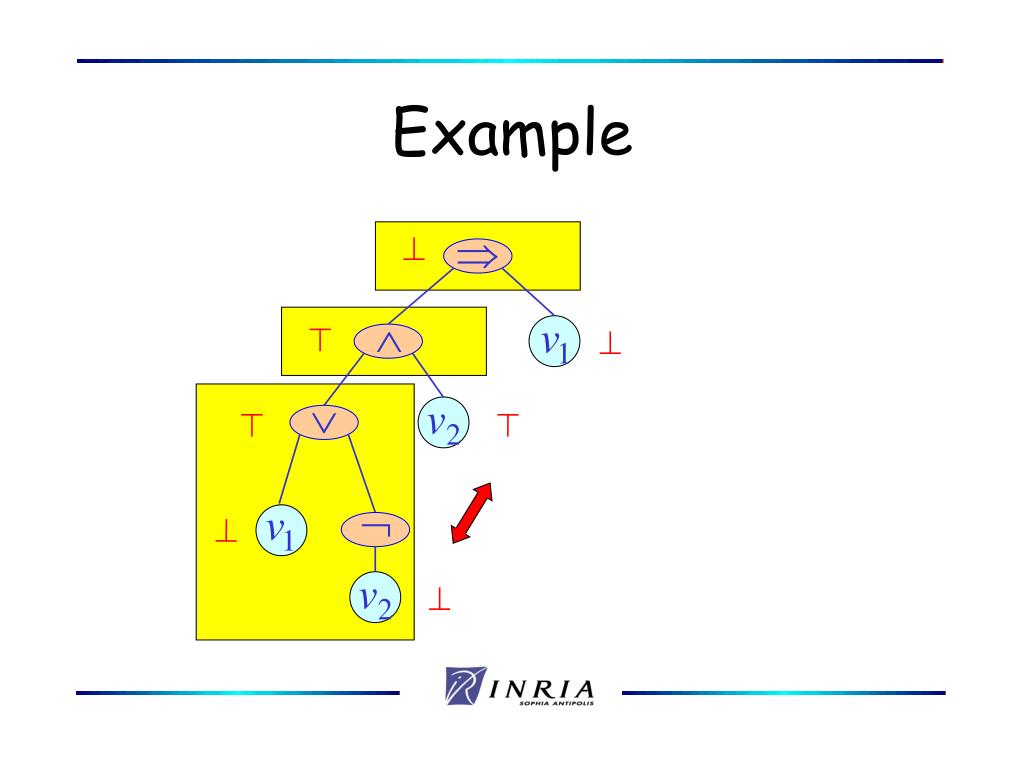

Example


Case splitting

Case Split

Propagation

Case Split

Case Splitting

Propagation

Exponential Growth

Propagation


Dilemma rule

Intersection

Dilemma Rule

Propagation

Case Split

Propagation

Propagation


Iteration

Iteration

On all variables

Till no new information is gained


Nesting

Nesting

Level 2: most tautologies


Integrating

Extraction

Reflection

Coq

Proof

Checking

Trace

Integrating


Implementation

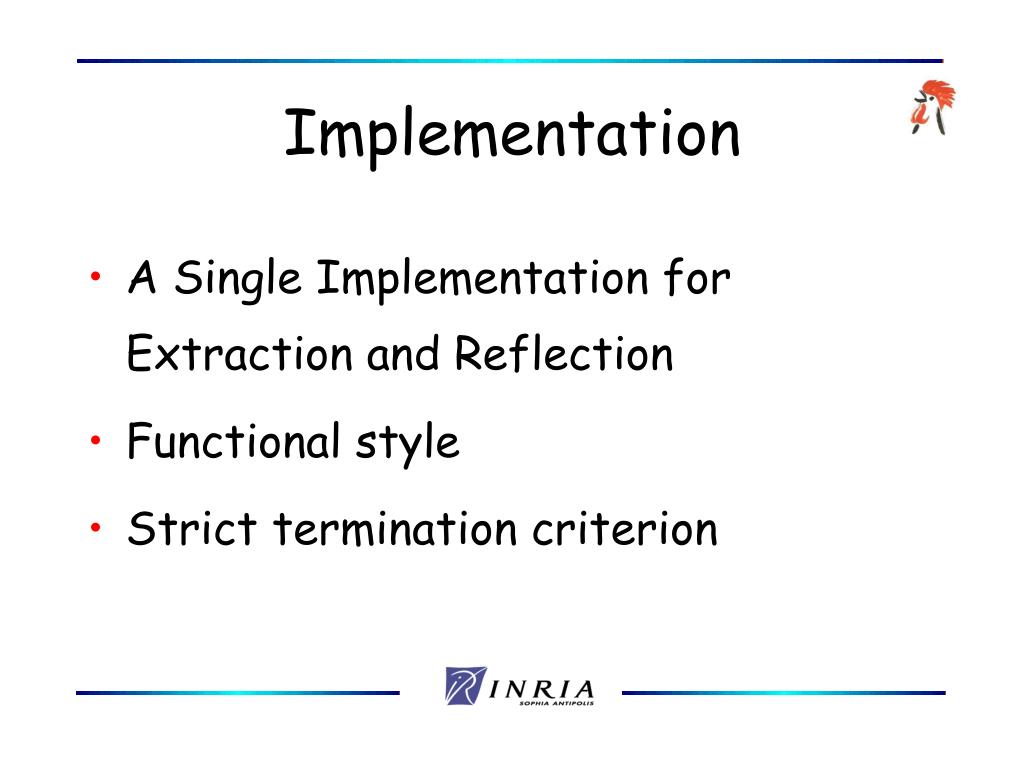

Implementation

  • A Single Implementation for Extraction and Reflection

  • Functional style

  • Strict termination criterion


State

State

  • Variables: integer (T=1,=-1)

  • State: {2=-3,3=-1,4=5}

  • Union-find:

    {1  1, 2  1, 3  -1, 4 4, 5  4}

  • Back-pointer:

    {1 [2,-3],2 -1,3 -1,4 [5],5 4}


Termination

Termination

  • Easy except:

    fun append =

    [] M => M

    | L [] => L

    | [a|L] [b|M] =>

    if (lt a b) then [a |(append [a|L] M)]

    else [b | (append L [b|M])]

    • _


Integrating st lmarck s algorithm in coq

fun append =

[] M => M

| L [] => L

| [a|L] [b|M] =>

if (lt a b) then [a |(append L [b|M])]

else

let append1 = fun

[] => L

| [c|N] => if (lt a c) then [a|(append L [c|N])]

else [c|(append1 N)]

in [b|(append1 M)]


Extraction reflection

Extraction/Reflection


Trace

Trace

Coq

Ocaml


3 level approach

3 Level Approach

  • Adding Trace:

  • Checking Trace:

  • Correctness Theorem:


Trace1

Trace

Reducing Search:

Successful case splitting (v)

Successful rule propagation (r)

Result of the intersection (i)


Benchmark time

Benchmark (time)


Benchmarck size

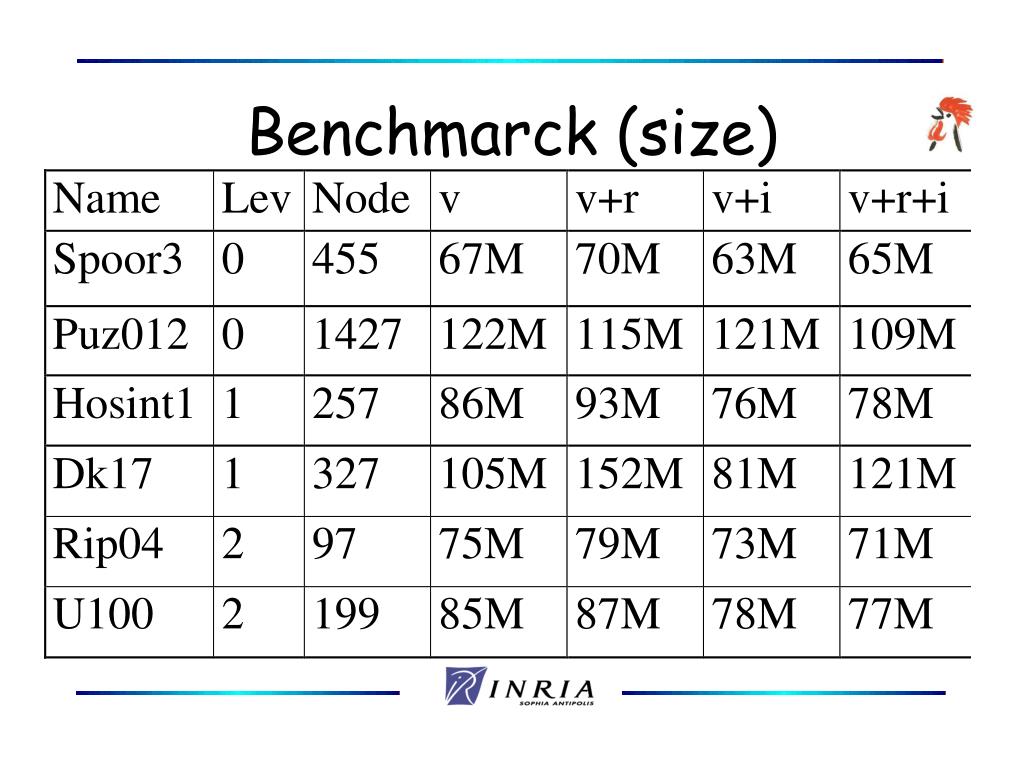

Benchmarck (size)


Conclusions

Conclusions

  • Extraction: clearly the most efficient

  • Reflection: computation is expensive in Coq (< 1s)

  • Trace: practical if we can reduce the amount of computation
