  1. Foundations of Software DesignFall 2002Marti Hearst Lecture 21: Sorting, cont.

  2. QuickSort • A Divide-and-Conquer recursive algorithm • Divide: • If only one item in list, return it. • Else choose a pivot, and • Divide the list into 3 subsets • Items < pivot, pivot, items > pivot • Recurse: • Recursively solve the problem on the subsets • Conquer: • Merge the solutions for the subproblems • Concatenate the three lists

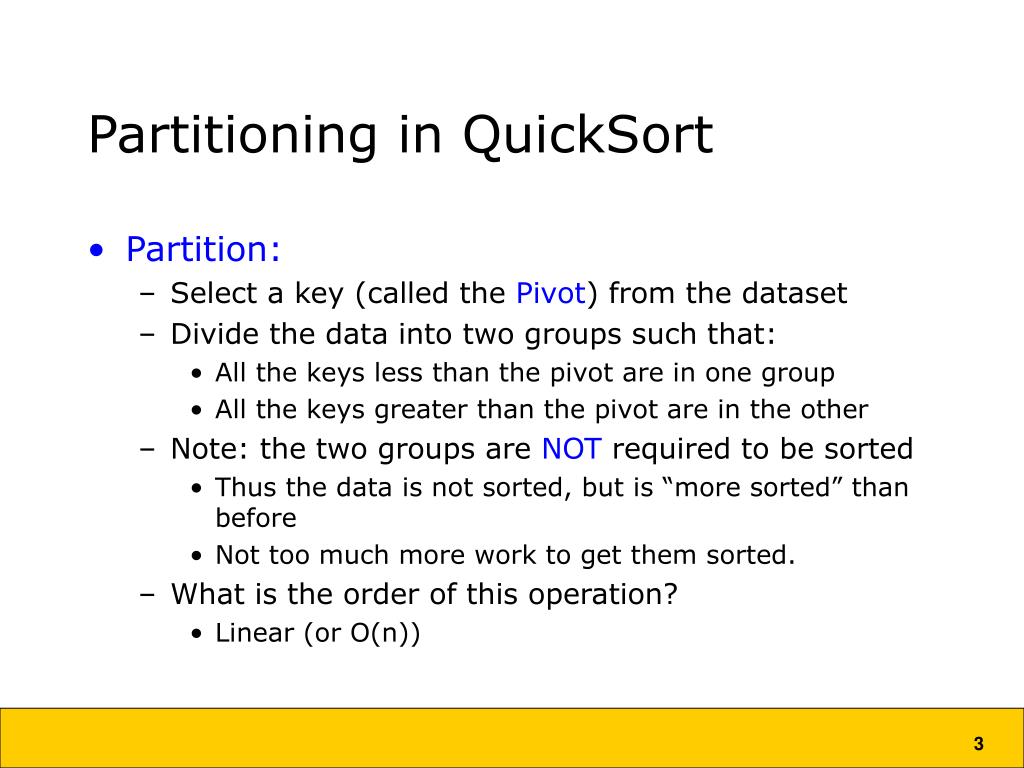

  3. Partitioning in QuickSort • Partition: • Select a key (called the Pivot) from the dataset • Divide the data into two groups such that: • All the keys less than the pivot are in one group • All the keys greater than the pivot are in the other • Note: the two groups are NOT required to be sorted • Thus the data is not sorted, but is “more sorted” than before • Not too much more work to get them sorted. • What is the order of this operation? • Linear (or O(n))

  4. QuickSort • An advantage: can be done “in place” • Meaning you don’t need to allocate an additional array or vector to hold the temporary results • Do the in-place swapping in the divide step • Choose pivot • Have two indexes: L and R • While L is < R • Move L forwards until A[L] > pivot • Move R backwards until A[R] < pivot • Swap them

  5. The QuickSort Recursive Step public void quickSort(int left, int right) { if (left > right) return; int partition = partitionArray(left, right); quickSort(left, partition – 1); quickSort(partition + 1, right); } }

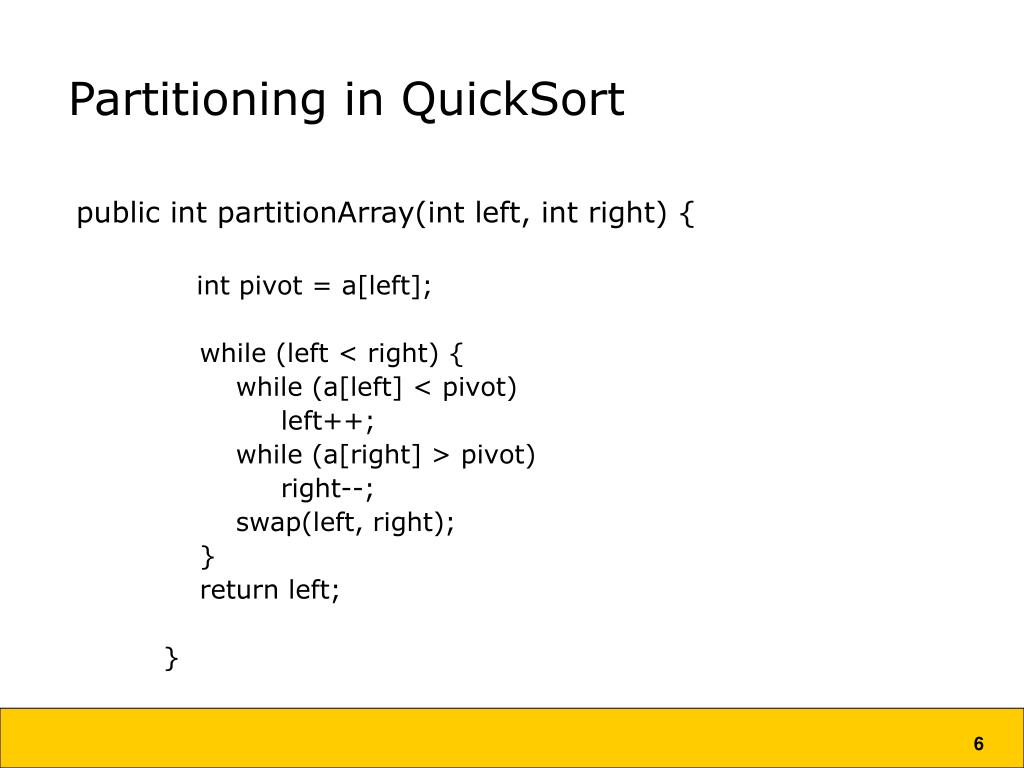

  6. Partitioning in QuickSort public int partitionArray(int left, int right) { int pivot = a[left]; while (left < right) { while (a[left] < pivot) left++; while (a[right] > pivot) right--; swap(left, right); } return left; }

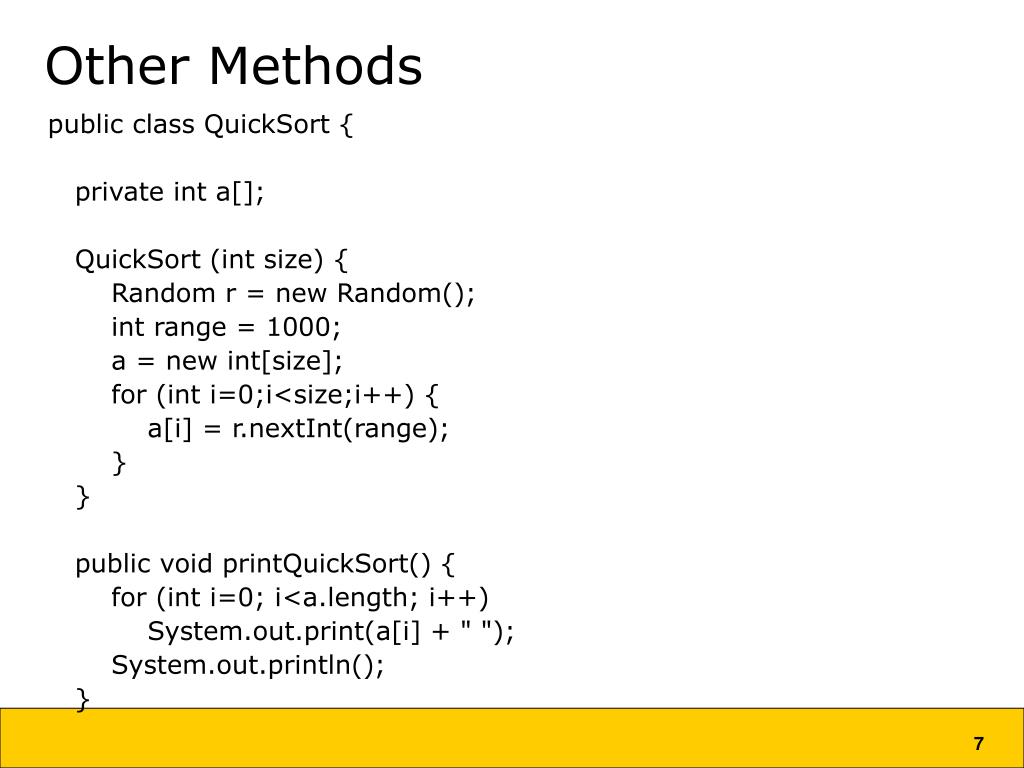

  7. Other Methods public class QuickSort { private int a[]; QuickSort (int size) { Random r = new Random(); int range = 1000; a = new int[size]; for (int i=0;i<size;i++) { a[i] = r.nextInt(range); } } public void printQuickSort() { for (int i=0; i<a.length; i++) System.out.print(a[i] + " "); System.out.println(); }

  8. Other Methods private void swap (int l, int r) { int temp = a[l]; a[l] = a[r]; a[r] = temp; } public static void main(String args[]){ QuickSort qs = new QuickSort(8); System.out.println("Before Quicksort: "); qs.printQuickSort(); qs.quickSort(0, qs.a.length-1); System.out.println("After Quicksort: "); qs.printQuickSort(); }

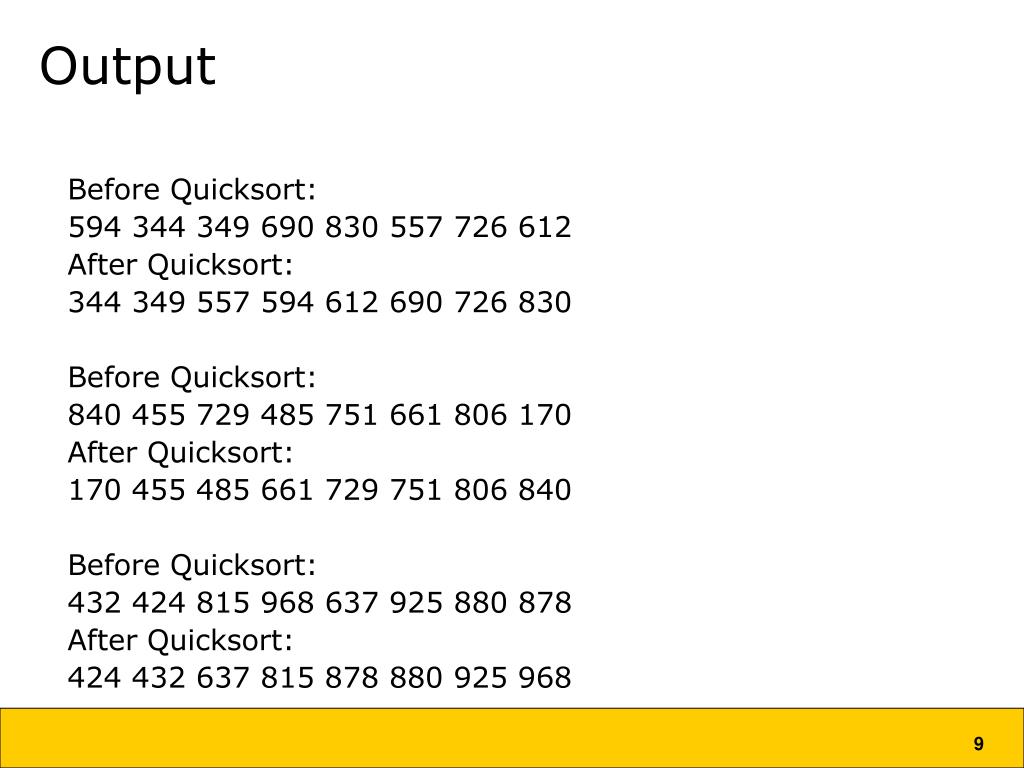

  9. Output Before Quicksort: 594 344 349 690 830 557 726 612 After Quicksort: 344 349 557 594 612 690 726 830 Before Quicksort: 840 455 729 485 751 661 806 170 After Quicksort: 170 455 485 661 729 751 806 840 Before Quicksort: 432 424 815 968 637 925 880 878 After Quicksort: 424 432 637 815 878 880 925 968

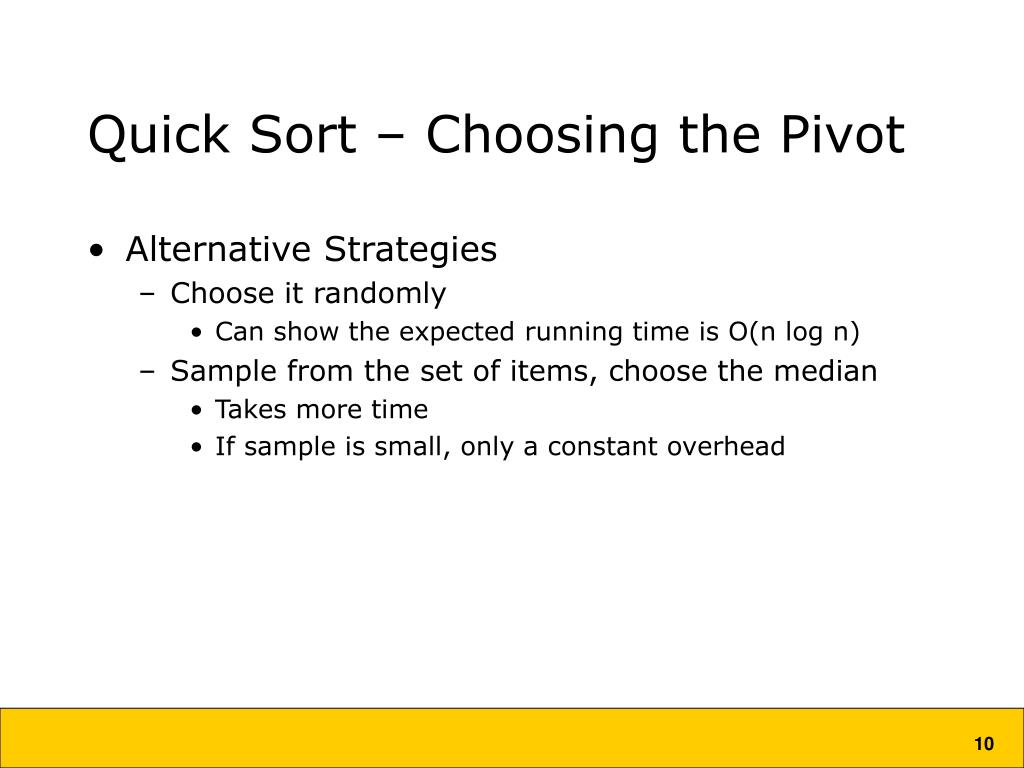

  10. Quick Sort – Choosing the Pivot • Alternative Strategies • Choose it randomly • Can show the expected running time is O(n log n) • Sample from the set of items, choose the median • Takes more time • If sample is small, only a constant overhead

  11. Quick Sort • Running Time analysis • If the pivot is always the median value • Each list is divided neatly in half • The height of the sorting tree is O(log n) • Each level takes O(n) for the divide step • O(n log n) • If the list is in increasing order and the pivot is the last value • Each list ends up with one element on the right and all the other elements on the left • The height of the sorting tree is O(n) • Each level takes O(n) for the divide step • O(n^2) • However, in practice (and in the general case), QuickSort is usually the fastest sorting algorithm.

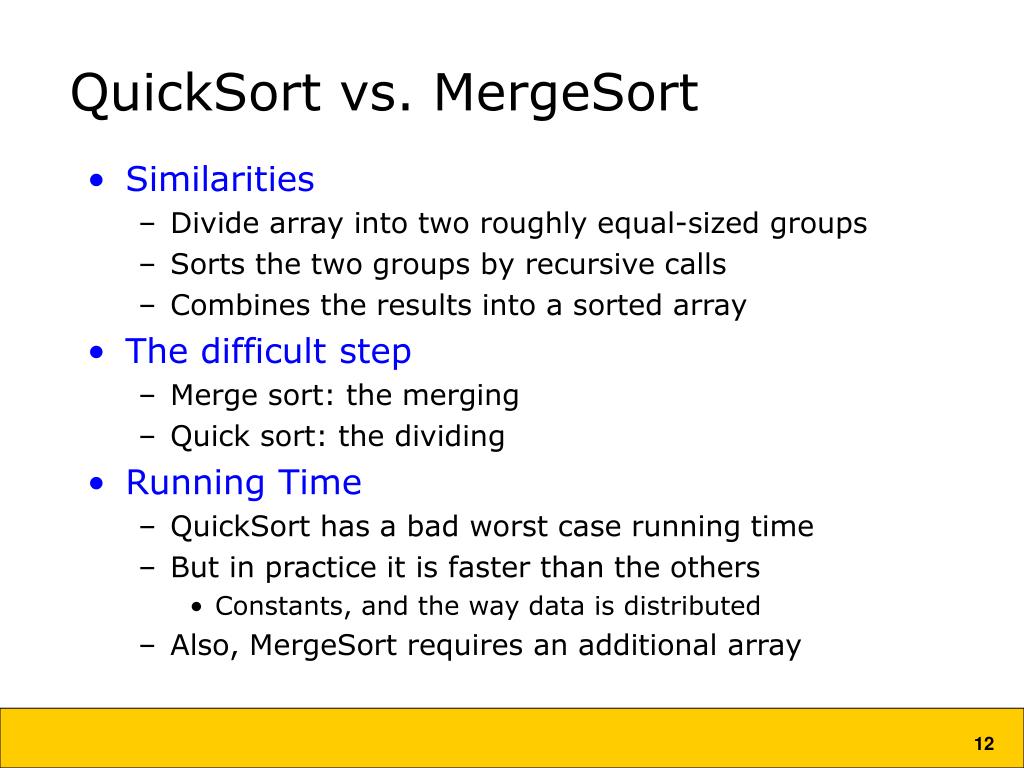

  12. QuickSort vs. MergeSort • Similarities • Divide array into two roughly equal-sized groups • Sorts the two groups by recursive calls • Combines the results into a sorted array • The difficult step • Merge sort: the merging • Quick sort: the dividing • Running Time • QuickSort has a bad worst case running time • But in practice it is faster than the others • Constants, and the way data is distributed • Also, MergeSort requires an additional array

  13. Algorithm Animations • http://www.inf.ethz.ch/~staerk/algorithms/SortAnimation.html

  14. Bucket Sort • Sorting takes at least O(n log n) • Can go faster given certain restrictions • Restriction: you know all the keys fall in some range 1 … M • Make an array of size M • For each item with key k, put it in bucket A[k] • The array then holds results in sorted order • Takes time O(n + M) and space O(M) • Doesn’t work if you don’t know the range of keys in advance • How is this different than a hash table?

  15. Radix Sort • Combine: • Bucket sort idea • Stable sort idea • Binary representation for the key • To do the sort • Divide: Sort on bit position n into 2 buckets • Recurse: • For each bucket: • Sort on bit position n-1 into 2 buckets • Running time: • O (b * n) where b == length of the key

  16. Slide adapted from Goodrich & Tamassia

  17. Sorting Arbitrary Objects • We want to write sorting algorithms so they can sort lists of objects of any type • To do this, we use java interfaces • To discuss this, we first review • Polymorphism • Inheritance • Abstract Classes

  18. Inheritance • Models the IS-A relationship • a student is-a person • an undergraduate is-a student • a rectangle is-a shape • a rook is-a piece • Contrast with the Has-A relationship • a student has-a name • a rook has-a position • Is-a relationships indicate inheritance, has-a relationships indicate composition (fields) Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  19. Inheriting from a Class • A class inherits another class of it contains the extends keyword public class Student extends Person • Person is said to be • the parent class of Student • the super class of Student • the base class of Student • an ancestor of Student • Student is said to be • a child class of Person • a sub class of Person • a derived class of Person • a descendant of Person Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  20. Inheriting from a Class • If a class header does not include the extends clause the class extends the Object class by default public class Die • Object is an ancestor to all classes • it is the only class that does not extend some other class • A class extends exactly one other class • extending two or more classes is multiple inheritance. Java does not support this directly, rather it uses Interfaces. Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

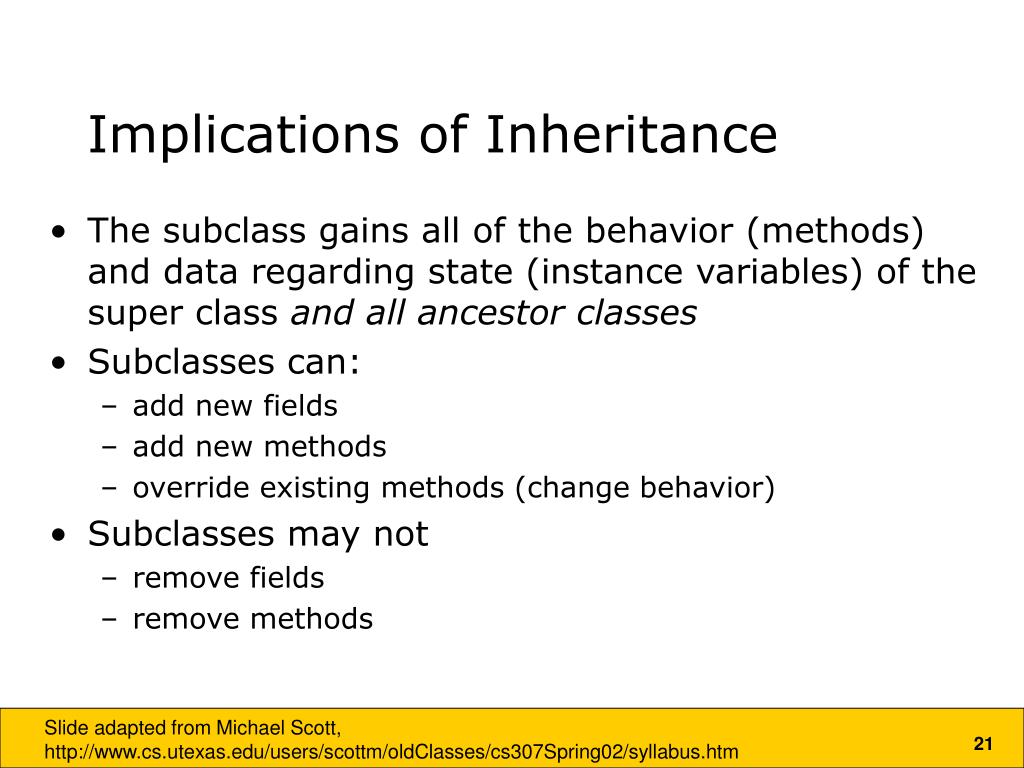

  21. Implications of Inheritance • The subclass gains all of the behavior (methods) and data regarding state (instance variables) of the super class and all ancestor classes • Subclasses can: • add new fields • add new methods • override existing methods (change behavior) • Subclasses may not • remove fields • remove methods Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

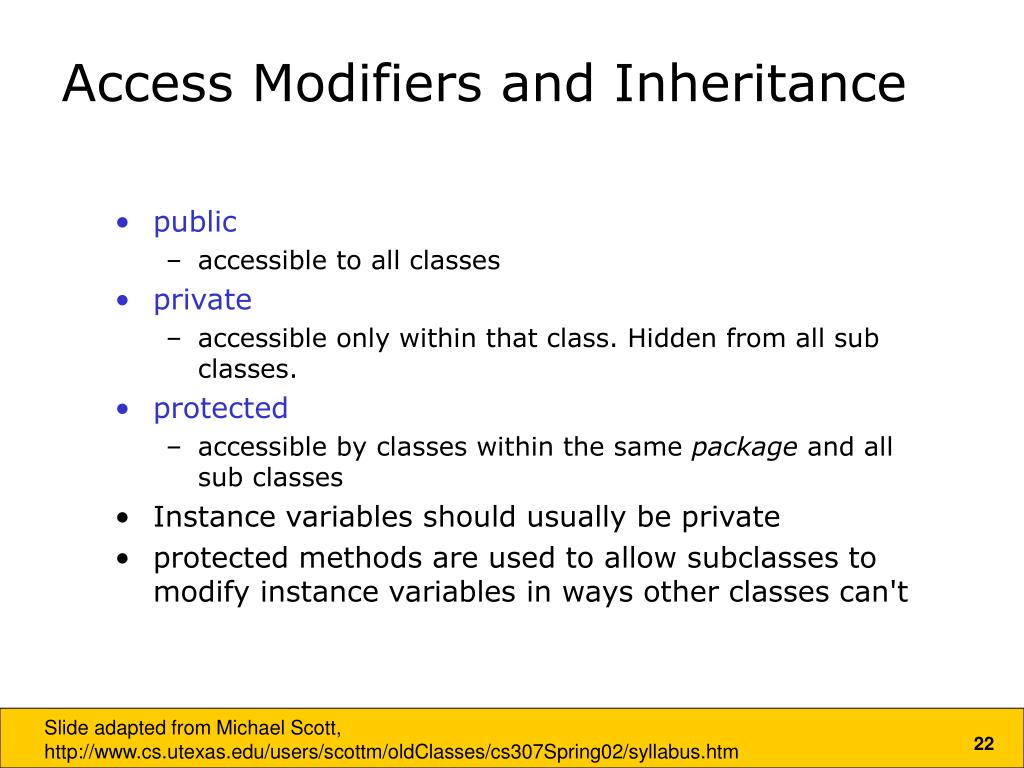

  22. Access Modifiers and Inheritance • public • accessible to all classes • private • accessible only within that class. Hidden from all sub classes. • protected • accessible by classes within the same package and all sub classes • Instance variables should usually be private • protected methods are used to allow subclasses to modify instance variables in ways other classes can't Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  23. The Object Class • All classes inherit Object directly or indirectly (via a chain of inheritance) • Minimal class, but it does contain the toString, equals and getClass methods • implication is every class has a toString and equals method • normally classes will override these methods to give them a more meaningful behavior than the ones Object provides Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  24. Shape Classes • Declare a class called ClosedShape • assume all shapes have x and y coordinates • override Object's version of toString • Possible subclasses of ClosedShape • Rectangle • Circle • Ellipse • Square • Possible hierarchy ClosedShape -> Rectangle -> Square Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

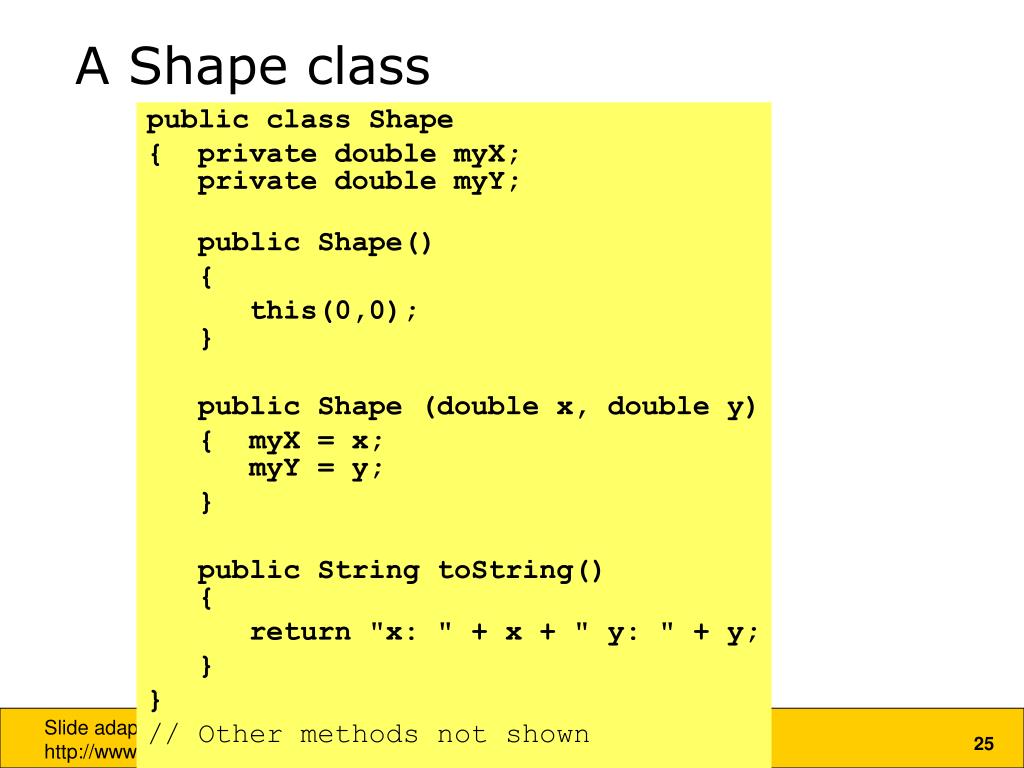

  25. A Shape class public class Shape { private double myX; private double myY; public Shape() { this(0,0); } public Shape (double x, double y) { myX = x; myY = y; } public String toString() { return "x: " + x + " y: " + y; } } // Other methods not shown Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

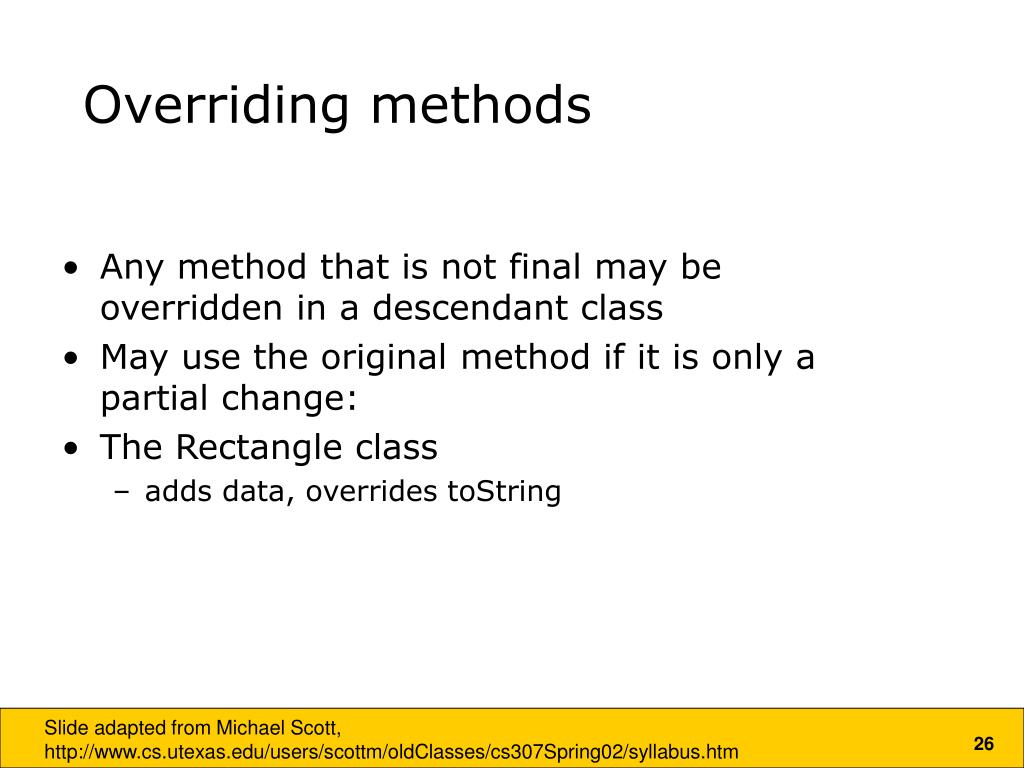

  26. Overriding methods • Any method that is not final may be overridden in a descendant class • May use the original method if it is only a partial change: • The Rectangle class • adds data, overrides toString Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  27. A Rectangle Class public class Rectangle extends Shape{ private double myWidth; private double myHeight; public Rectangle() { this(0, 0); } public Rectangle(double width, double height) { myWidth = width; myHeight = height; } public String toString() { return super.toString() + " width " + myWidth + " height " + myHeight; } } // other methods not shown Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  28. The Keyword super • super is used to access something from the super class that has been overridden • Rectangle's toString makes use of the toString in Shape by calling super.toString() • without the super calling toString would result in infinite recursive calls • Java does not allow nested supers super.super.toString() results in a syntax error even though technically this refers to a valid method, Object's toString • Rectangle partially overrides Shape’s toString Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

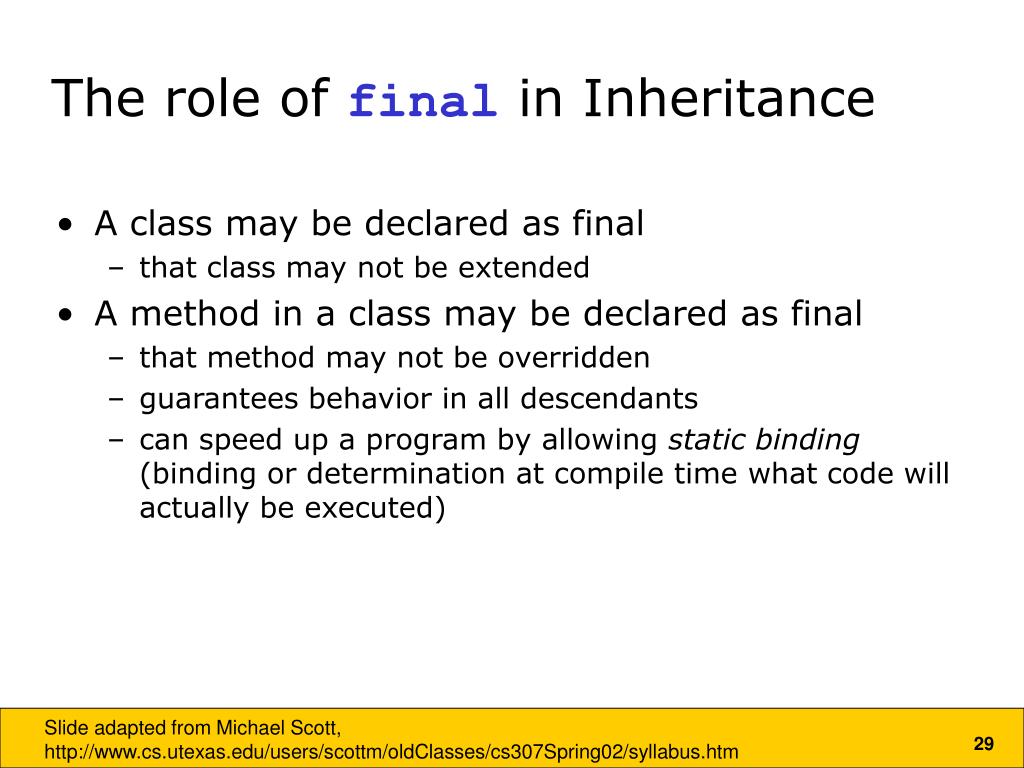

  29. The role of final in Inheritance • A class may be declared as final • that class may not be extended • A method in a class may be declared as final • that method may not be overridden • guarantees behavior in all descendants • can speed up a program by allowing static binding (binding or determination at compile time what code will actually be executed) Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  30. Constructors and Inheritance • Constructors handle initialization of objects • When creating an object with one or more ancestors (every type except Object) a chain of constructor calls takes place • The reserved word super may be used in a constructor to call a one of the parent's constructors • must be first line of constructor • if no parent constructor is explicitly called the default, 0 parameter constructor of the parent is called • if no default constructor exists a syntax error results Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  31. Initialization method public class Rectangle extends Shape { private double myWidth; private double myHeight; public Rectangle() { init(0, 0); } public Rectangle(double width, double height) { init(width, height); } public Rectangle(double x, double y, double width, double height) { super(x, y); init(width, height); } private void init(double width, double height) { myWidth = width; myHeight = height; } Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  32. Polymorphism and Object Variables Rect r = new Rect(10, 20); Shape s = r; System.out.println("Area is " + s.getArea()); • The above code works if Rect extends Shape • An object variable may point to an object of its base type or a descendant in the inheritance chain • A Rect extends shape so s may point to it • This is a form of polymorphism and is used extensively in the Java Collection classes • Vector, ArrayList are lists of Objects Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

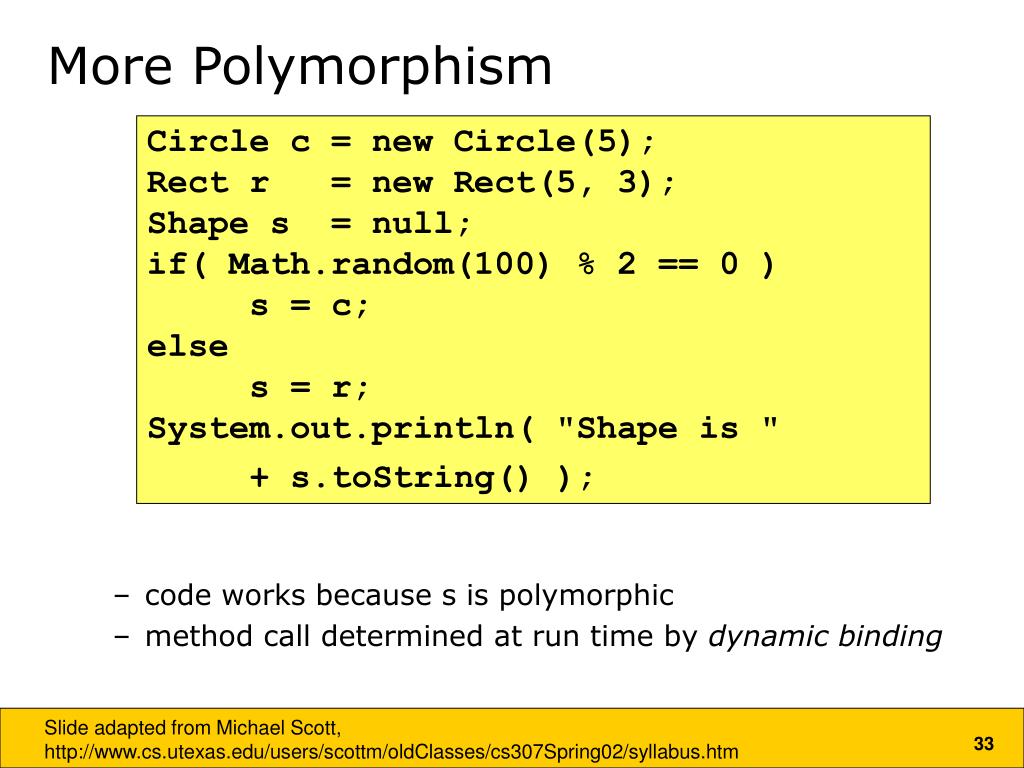

  33. More Polymorphism Circle c = new Circle(5);Rect r = new Rect(5, 3);Shape s = null;if( Math.random(100) % 2 == 0 ) s = c;else s = r;System.out.println( "Shape is " + s.toString() ); • code works because s is polymorphic • method call determined at run time by dynamic binding Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  34. Type Compatibility Rect r = new Rect(5, 10);Shape s = r;s.changeWidth(20); // syntax error • Polymorphism allows s to point at a Rect object but there are limitations • The above code does not work • Statically s is a shape • no changeWidth method on shape • must cast s to a rectangle; Rect r = new Rect(5, 10);Shape s = r;(Rect)s.changeWidth(20); //Okay Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  35. Problems with Casting • The following code compiles but an exception is thrown at runtime • Casting must be done carefully and correctly • If unsure of what type object will be the instanceof operator or the getClass() method may be used expression instanceof ClassName Rect r = new Rect(5, 10);Circle c = new Circle(5);Shape s = c;((Rect)s).changeWidth(4); Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  36. Abstract Classes and Methods • An abstract class is one that may not be instantiated • an object of that type never exists • a Shape or a Mammal • a method may be declared abstract in its header, after visibility modifier • no body to the method • all derived classes must eventually implement this method • any class with 1 or more abstract methods is an abstract class Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  37. Multiple Inheritance • Inheritance models the "is-a" relationship between real world things • In the real world a thing can have "is-a" relationships with several other things • a Graduate Teaching Assistant is-a Graduate Student. Graduate Teaching Assistant is-a Faculty Member • a Student is-a Person; a Student is a SortableObject Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

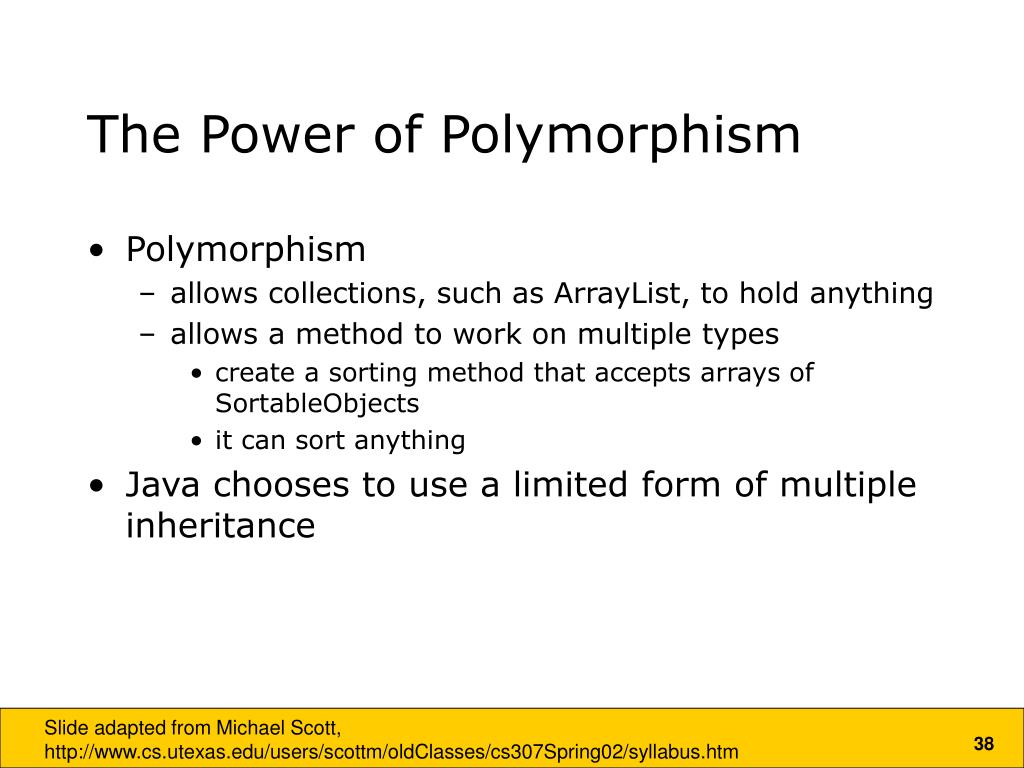

  38. The Power of Polymorphism • Polymorphism • allows collections, such as ArrayList, to hold anything • allows a method to work on multiple types • create a sorting method that accepts arrays of SortableObjects • it can sort anything • Java chooses to use a limited form of multiple inheritance Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  39. Interfaces • A Java interface is a "pure abstract class". Design only, no implementation. • Interfaces are declared in a way similar to classes but • consist only of public abstract methods • public final fields • A Java class extends exactly one other class, but can implement as many interfaces as desired. Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

  40. Why Use Interfaces? • Useful for • Capturing similarities among unrelated classes without artificially forcing a class relationship. • Declaring methods that one or more classes are expected to implement. • Revealing an object's programming interface without revealing its class. • You can use interface names anywhere you can use any other data type name. • Only an instance of a class that implements the interface can be assigned to a reference variable whose type is an interface name.

  41. The Java Comparable Interface • compareTo should return • an int < 0 if the calling object is less than the parameter, • 0 if they are equal, • an int > 0 if the calling object is greater than the parameter package java.lang public interface Comparable{ public int compareTo( Object other );} Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

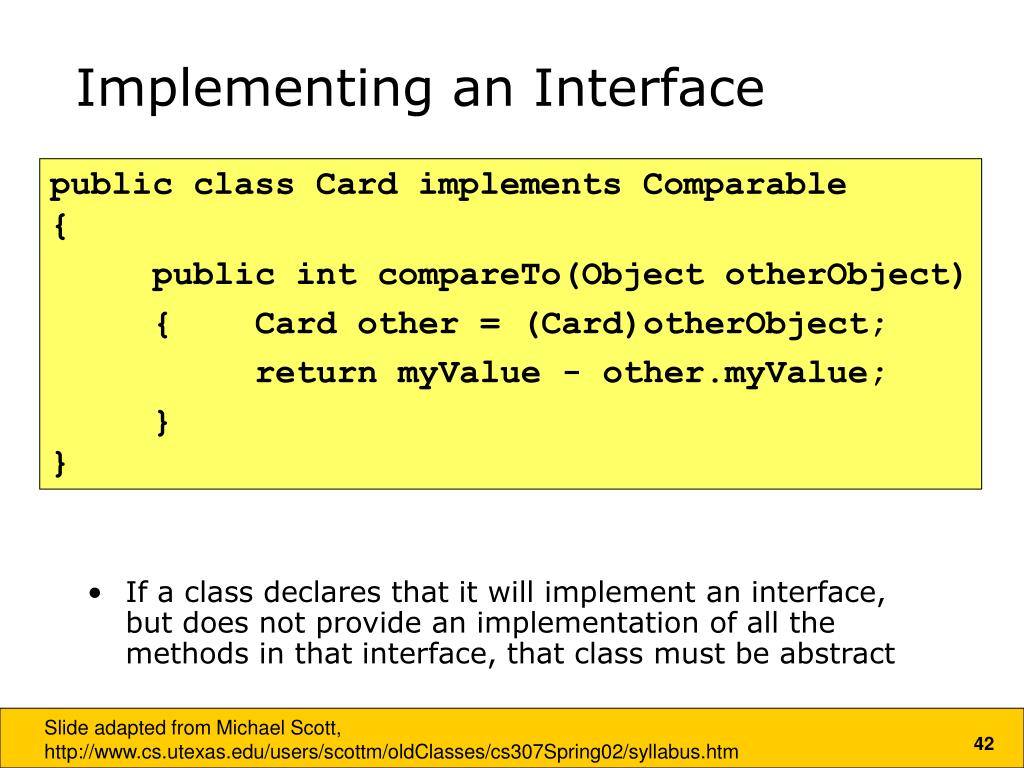

  42. Implementing an Interface public class Card implements Comparable{ public int compareTo(Object otherObject) { Card other = (Card)otherObject; return myValue - other.myValue; }} • If a class declares that it will implement an interface, but does not provide an implementation of all the methods in that interface, that class must be abstract Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

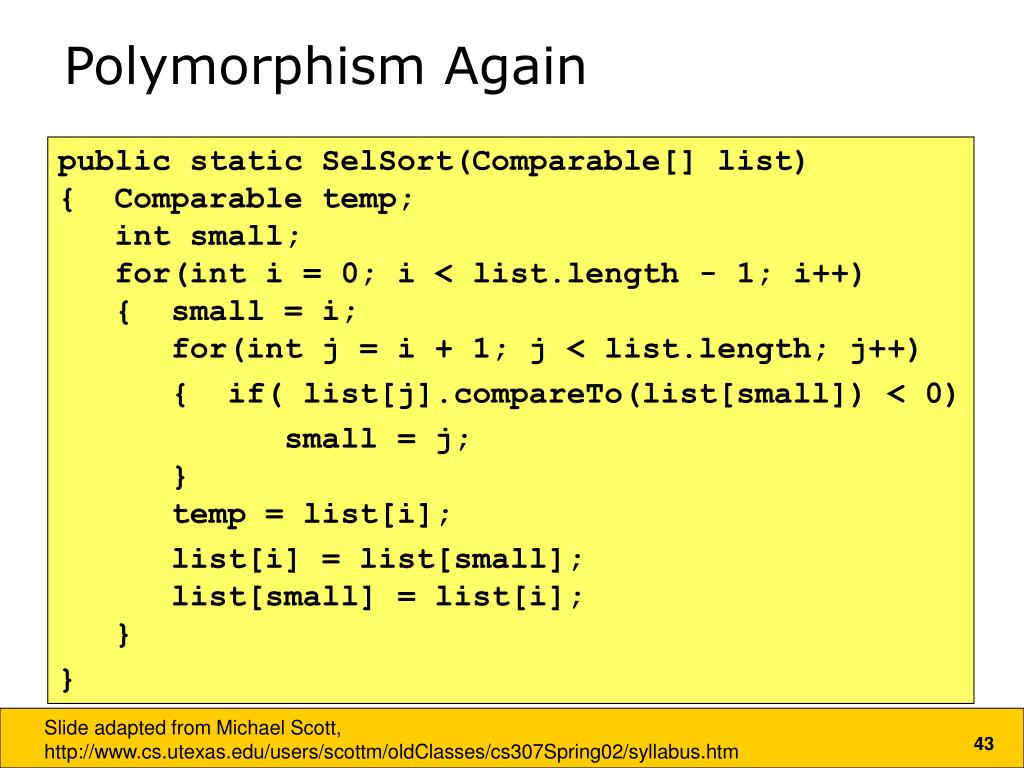

  43. Polymorphism Again public static SelSort(Comparable[] list){ Comparable temp; int small; for(int i = 0; i < list.length - 1; i++) { small = i; for(int j = i + 1; j < list.length; j++) { if( list[j].compareTo(list[small]) < 0) small = j; } temp = list[i]; list[i] = list[small]; list[small] = list[i]; } } Slide adapted from Michael Scott, http://www.cs.utexas.edu/users/scottm/oldClasses/cs307Spring02/syllabus.htm

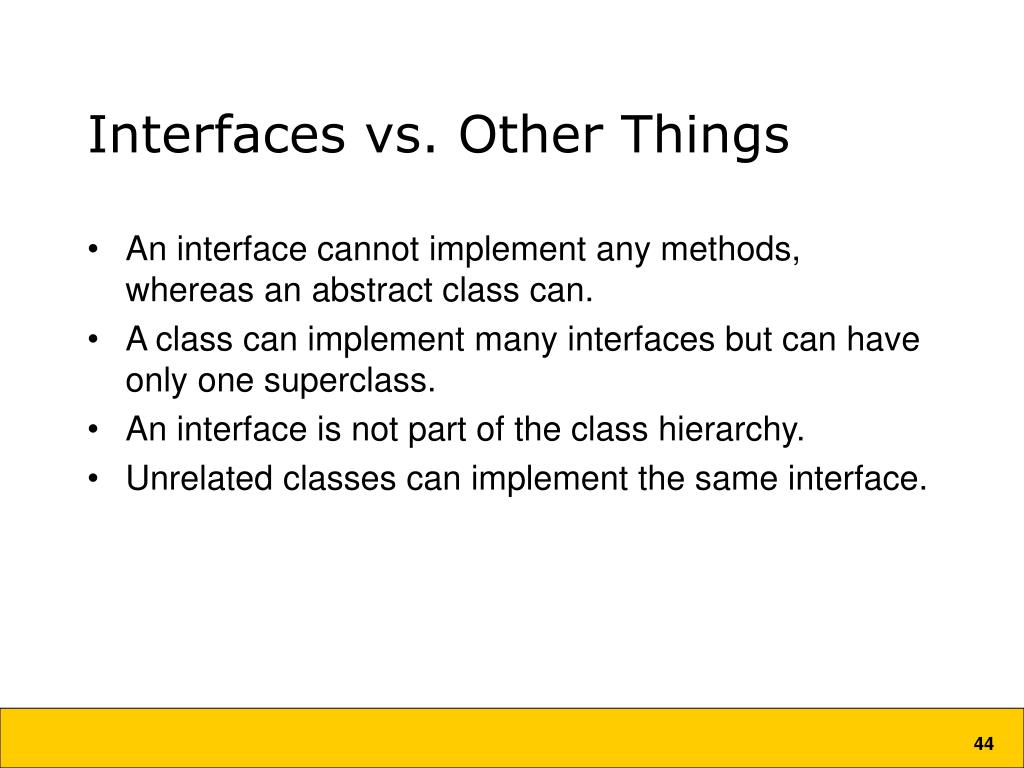

  44. Interfaces vs. Other Things • An interface cannot implement any methods, whereas an abstract class can. • A class can implement many interfaces but can have only one superclass. • An interface is not part of the class hierarchy. • Unrelated classes can implement the same interface.

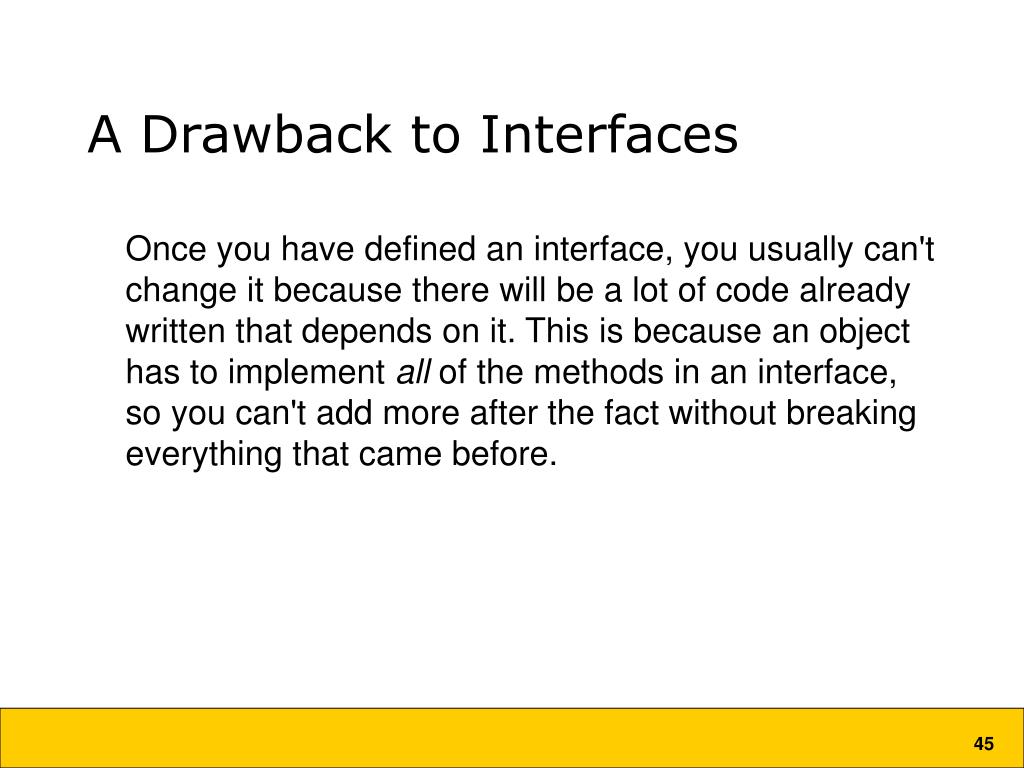

  45. A Drawback to Interfaces Once you have defined an interface, you usually can't change it because there will be a lot of code already written that depends on it. This is because an object has to implement all of the methods in an interface, so you can't add more after the fact without breaking everything that came before.

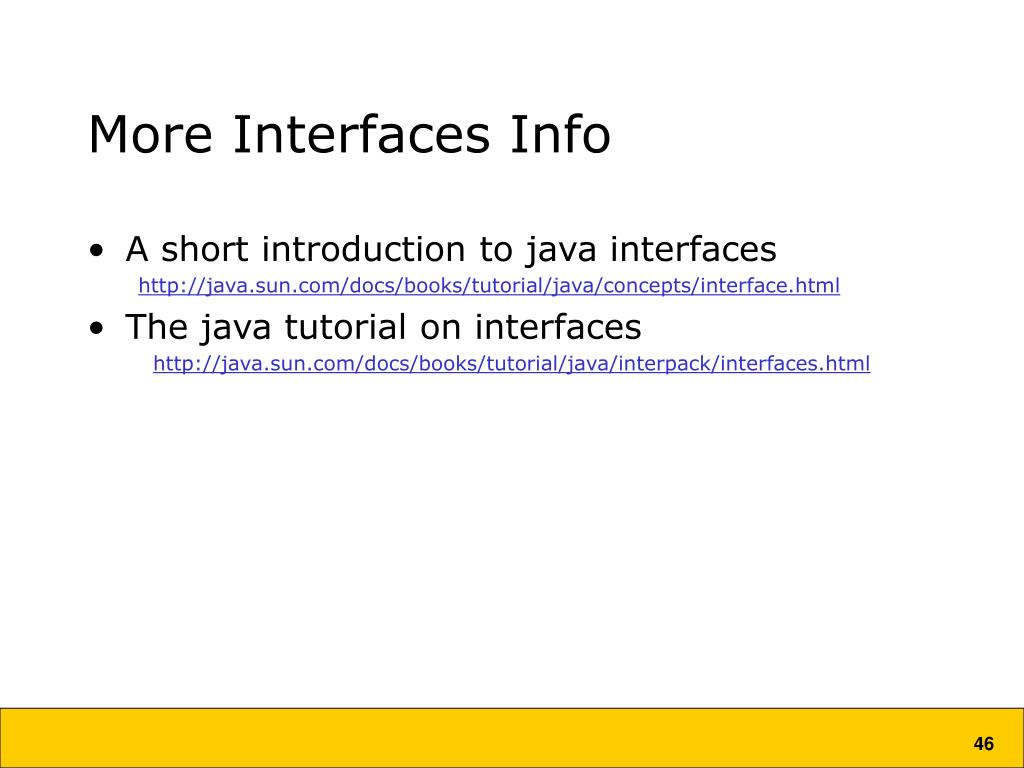

  46. More Interfaces Info • A short introduction to java interfaces http://java.sun.com/docs/books/tutorial/java/concepts/interface.html • The java tutorial on interfaces http://java.sun.com/docs/books/tutorial/java/interpack/interfaces.html
