TAC Vista Security


Target

Target

  • TAC Vista & Security Integration

  • Key customer groups

    • Existing TAC Vista users

      • Provide features and hardware for security expansion


Existing tac vista customer

Existing TAC Vista Customer

  • Benefit Targets

    • Provide an integrated security solution

    • Provide a common alarm and events viewer

    • Provide a common graphical user interface


Solution

Solution

  • TAC Vista and the security components interact by two means

    • With pages generated by a TAC Xenta 527

    • With a security tool embedded in TAC Vista

      • There are two versions of the tool

    • The TAC Xenta 527 and the tool work concurrently

    • Method is transparent to the user


Solution1

Solution

  • TAC has enhanced TAC Xenta 511, 527, 911, 913

    • TAC Vista Server communicates directly to these devices

  • Connect TAC Vista to TAC Vista Security using

    • TAC Xenta 527 version 2


I net and vista integration

I/NET and Vista Integration


Methodology

Methodology

  • Daily tasks

    • Pages and editors are provided from TAC Xenta 527

  • More complex tasks

    • Vista launches the security tool at a relevant editor

  • This is not apparent to the user

    • Editors present automatically based on user context

  • The security tool and editors are Vista look and feel

  • The user can start the security tool independently


Tac vista security in daily use

TAC Vista Security in Daily Use


Daily operation

Daily Operation

  • Daily tasks achieved through interactive configuration pages

  • Pages present automatically

    • Launched in the TAC Vista client with context

  • Pages provide

    • Daily Security tasks in the TAC Vista workstation

      • Adding, modifying, deleting point extensions

      • Point control and point configuration

      • Door release

      • More, see table of functionality


Security configuration in vista

Security Configuration in Vista

  • Access to alarm configuration now possible

    • Security message routing and masking from TAC Vista

    • Re-prioritize Security alarms


Operation benefits

Operation Benefits

  • Benefits from improved daily operation

    • Includes all daily operator tasks

      • Less to learn, focus on single client

      • Access to all needed features

    • Common look and feel, TAC Vista and Security tool

      • Simplifies training, broadens system usage


Alarms and events

Alarms and Events

  • Improved Vista alarm and event viewers

    • Columns added for all key Security attributes

    • Filters enhanced to include Security attributes

  • Alarm/event data goes direct to Vista through the Xenta 527

  • Enhancements include the addition of the following

  • First name

  • Last name

  • Tenant

  • Group

  • Card number

  • Unique key

  • Link name

  • Station name

  • Point name

  • Alarm text

  • Logical address

  • Physical address


Alarms and events1

Alarms and Events

  • User profiles

    • Administrators can limit who sees what in events

      • Configured by user

      • Allow or deny view of selected event items

        • Improves the usage of Vista in a hosted environment with multiple customers in the same server

    • Users get personal view of alarms and events

      • Default views available

      • System starts at users personal view


Alarms and events2

Alarms and Events

  • Web viewer

    • Web resource and reports now open in workstation

      • Users do not have to keep track of as many open applications


Alarms and events benefits

Alarms and Events Benefits

  • Improved options in TAC Vista

  • Common viewer for both Security and Vista

  • Simple easy to use interface


Engineering operation system configuration

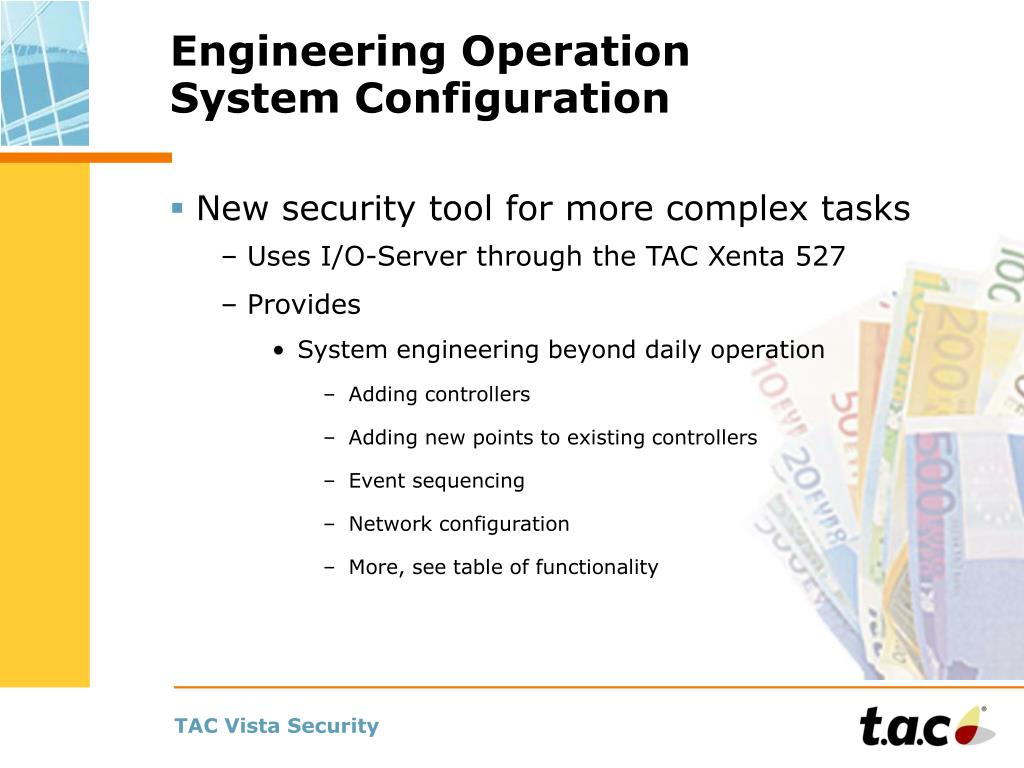

Engineering OperationSystem Configuration

  • New security tool for more complex tasks

    • Uses I/O-Server through the TAC Xenta 527

    • Provides

      • System engineering beyond daily operation

        • Adding controllers

        • Adding new points to existing controllers

        • Event sequencing

        • Network configuration

        • More, see table of functionality


Security host tool in vista

Security Host Tool in Vista


Security host tool

Security Host Tool

  • Two types of licenses configured to

    • Show all options for HVAC and Integration

      • Primarily used in Americas

        or

    • Hide HVAC options for Security use only

      • Primarily used in Europe

    • Tool launched in two ways

      • From tools menu in TAC Vista

      • In context from TAC Vista, based on user actions


Engineering and configuration benefits

Engineering and Configuration Benefits

  • Common approach between HVAC and Security

  • Access to all Security features

  • TAC Vista look and feel with Security functionality

    • TAC Vista customer familiarity

    • Security customer ease of use

  • Proof of concept for future integration


System contents

System contents

  • Vista CD includes

    • Security host tool

    • I/O Server

    • I2V graphics migration tool

    • Trend data migration tool

    • All relevant documentation

  • License required to use Security host tool

    • Regulates use

    • Allows TAC to determine usage


System implementation

System Implementation

  • Resides in any existing PC system

  • At least one TAC Xenta 527 v2 must be installed

  • Does not effect the existing system function

    • Any existing TAC I/NET system unaffected

    • Any existing TAC Vista system unaffected

  • Existing TAC I/NET users can use

    • Full TAC I/NET client to manage the system

    • TAC Vista with the Security tool

  • Existing TAC Vista users can use

    • The Security tool


Table of functionality

Table of Functionality


Remaining tasks

Remaining Tasks

  • For some security customers a digital video interface will be required in TAC Vista

    • Potential solutions are under review

  • Integration with the new TAC Vista graphics will be required

    • Requirements are under review


I net and vista integration1

I/NET and Vista Integration


  • Login
