Presentation Transcript


Distributed shared memory

Distributed Shared Memory


Distributed shared memory1

Distributed Shared Memory

  • Middleware

  • Memory that is distributed and duplicated appears local and as single copy

  • Hides complexity


Designing dsm

Designing DSM

  • Data structure (byte, object, immutable)

  • Synchronization constructs

  • Consistency model (ordering of updates)

  • Update options (update or invalidate)

  • Granularity

  • Thrashing


Memory consistency models

Memory Consistency Models

  • Defined for DSMs

  • Consider what executions could happen

  • Execution

    • Sequences of read and write operations

    • One sequence for each process in system.

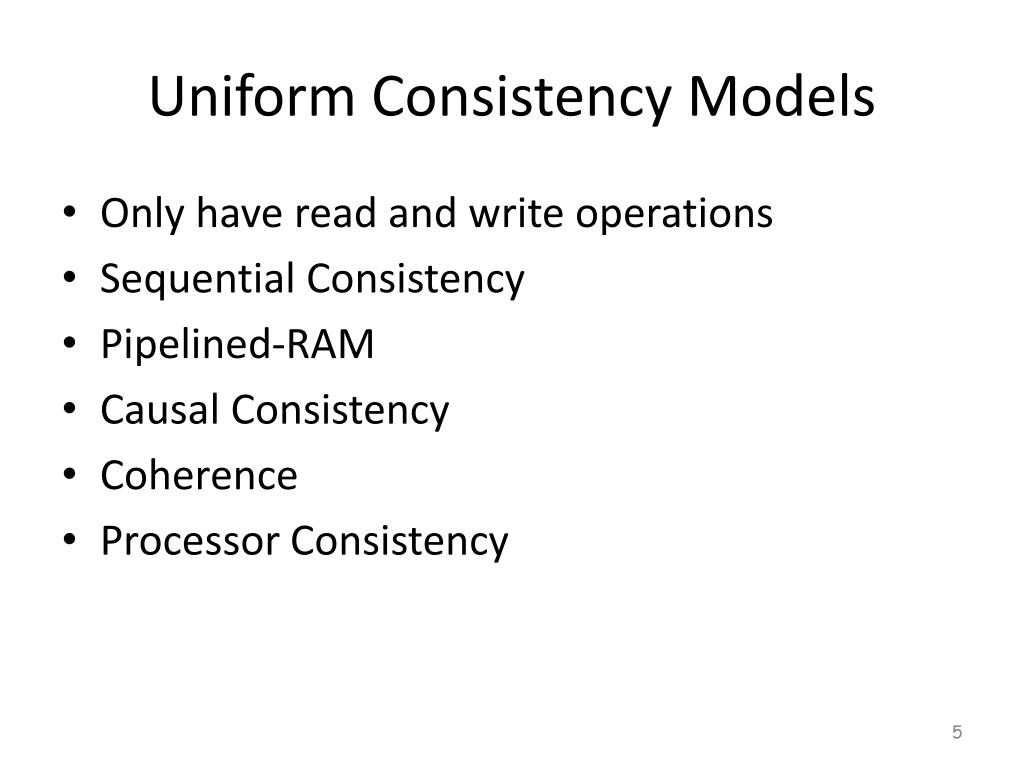

Uniform consistency models

Uniform Consistency Models

  • Only have read and write operations

  • Sequential Consistency

  • Pipelined-RAM

  • Causal Consistency

  • Coherence

  • Processor Consistency

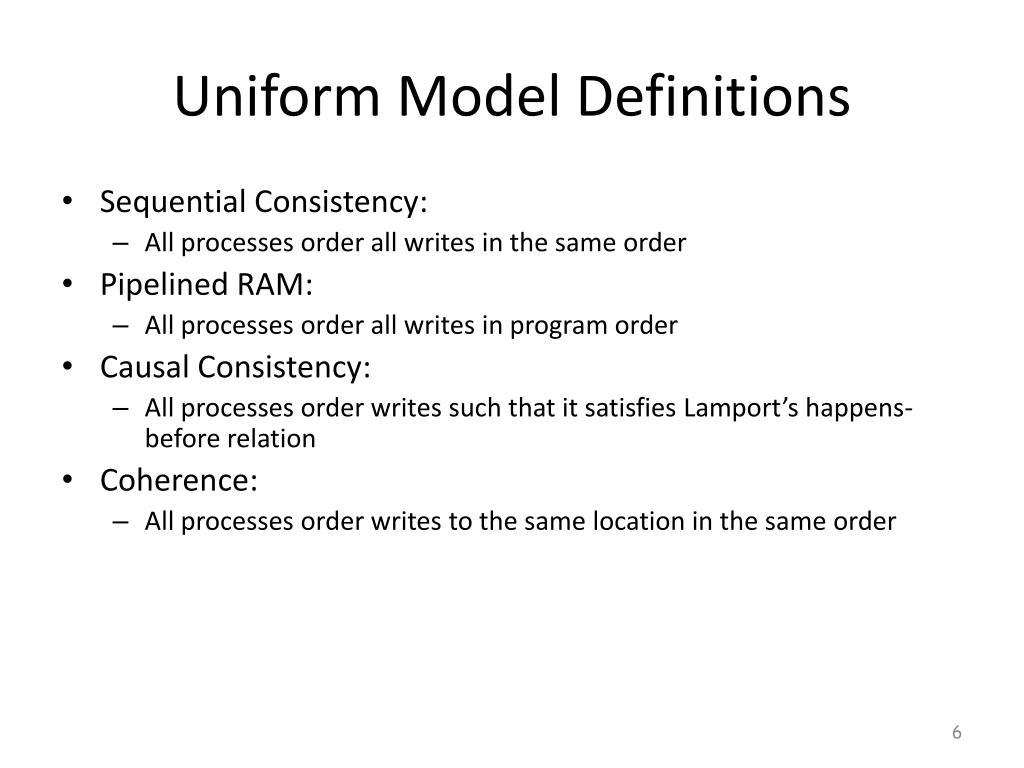

Uniform model definitions

Uniform Model Definitions

  • Sequential Consistency:

    • All processes order all writes in the same order

  • Pipelined RAM:

    • All processes order all writes in program order

  • Causal Consistency:

    • All processes order writes such that it satisfies Lamport’s happens-before relation

  • Coherence:

    • All processes order writes to the same location in the same order


Release consistency

Release Consistency

  • Hybrid Model

  • Operations available:

    • Read – read local copy

    • Write – write to local copy

    • Acquire – update local copy

    • Release – send updates of local copy

  • Acquire and Release ops are sequentially consistent

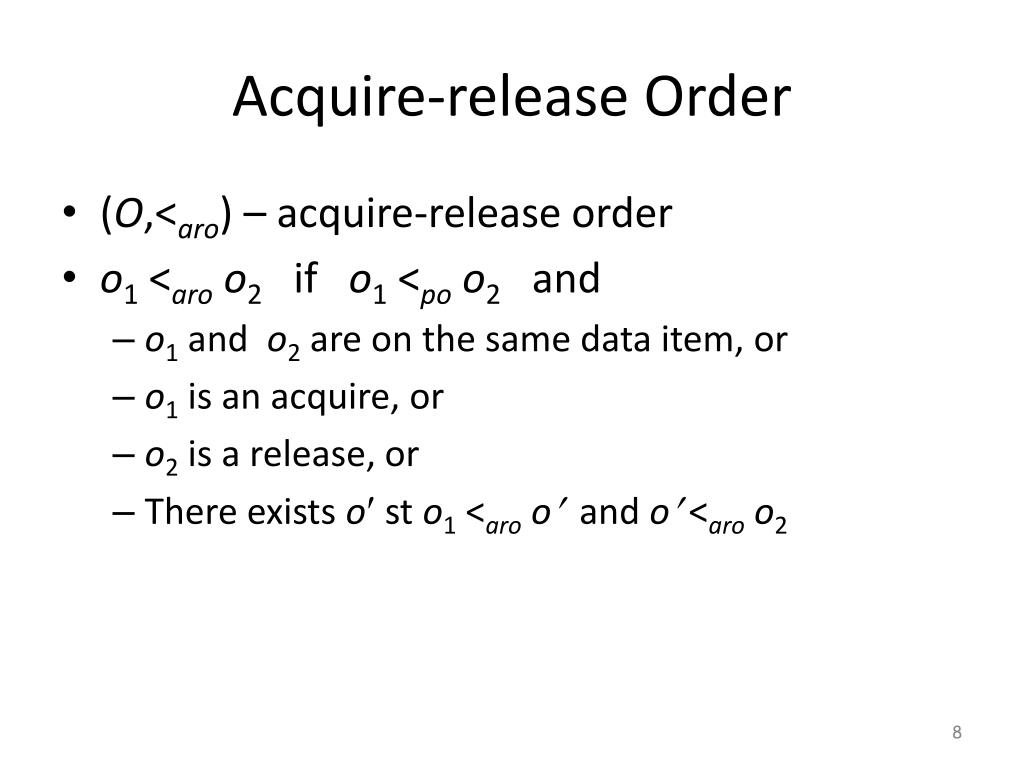

Acquire release order

Acquire-release Order

  • (O,<aro) – acquire-release order

  • o1 <aroo2 if o1 <poo2 and

    • o1 and o2 are on the same data item, or

    • o1 is an acquire, or

    • o2 is a release, or

    • There exists o st o1 <aroo and o <aroo2


Formal definition of rc

Formal Definition of RC

  • A computation is Release Consistent if

  • Each process orders its own ops, all writes, release and acquire operations

  • Such that the order satisfies the acquire-release order

  • The acquire and release ops are ordered such that

    • All processes agree on the ordering (SC)

    • Each acquire is immediately followed by its matching release.


Hybrid models

Hybrid Models

  • Distinguish between different types of memory accesses

  • Release Consistency

    • Provides acquire and release operations

  • Entry Consistency

    • Each shared variable has a lock

  • Scope Consistency

    • Variables are associated with locks automatically

  • Weak Consistency

    • Orders synchronization operations
