Presentation Transcript


Introduction to iso 15189

Introduction to ISO 15189

New and modified requirements

Ben Courtney


Introduction to iso 15189

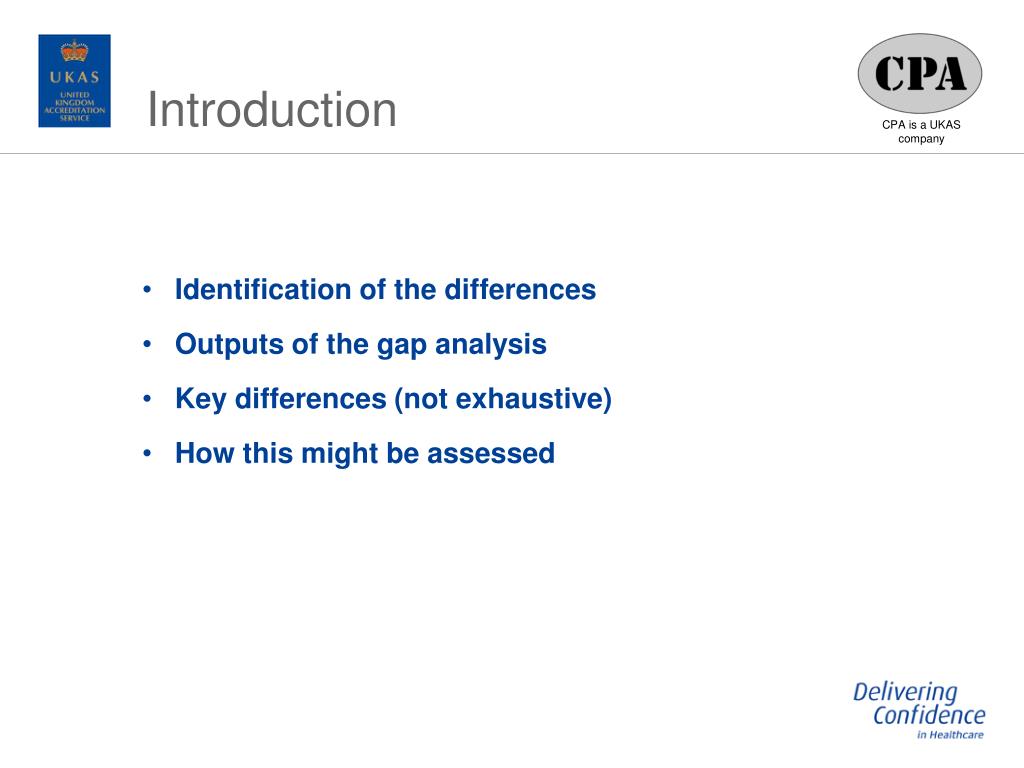

Introduction

  • Identification of the differences

  • Outputs of the gap analysis

  • Key differences (not exhaustive)

  • How this might be assessed


Introduction to iso 15189

Basic principles of assessment

  • Unchanged

  • Multiple ways of meeting requirements

  • As before, not an audit, but an assessment

  • Holistic approach to add value

  • Assessment Team looking for conformity


Introduction to iso 15189

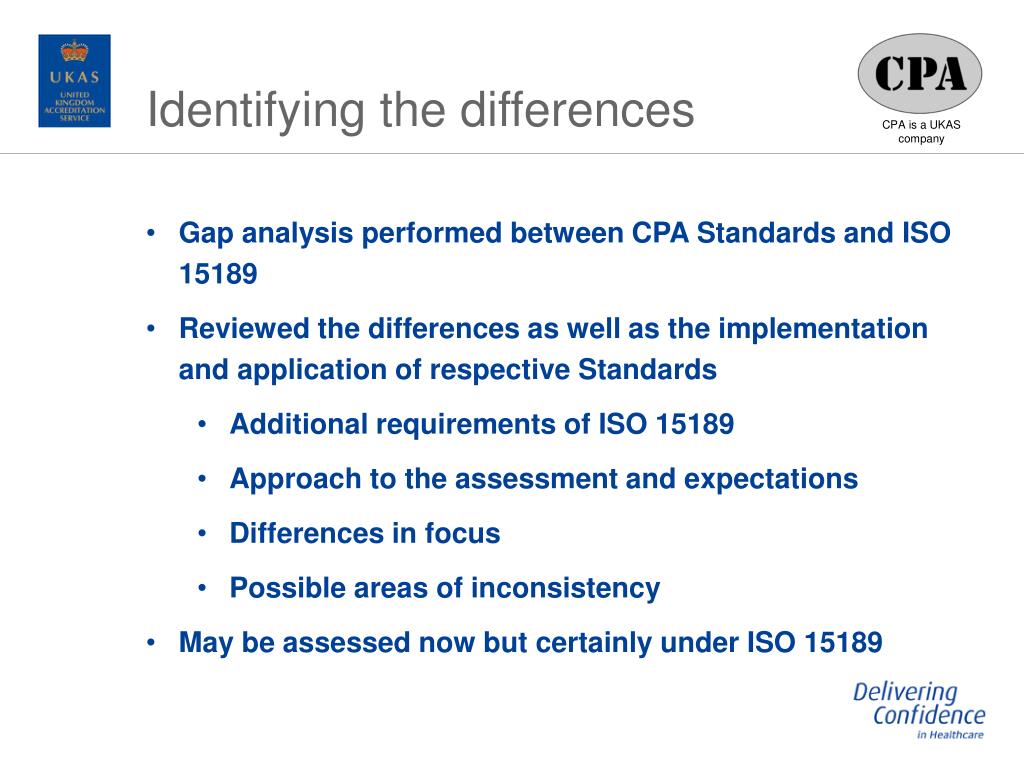

Identifying the differences

  • Gap analysis performed between CPA Standards and ISO 15189

  • Reviewed the differences as well as the implementation and application of respective Standards

    • Additional requirements of ISO 15189

    • Approach to the assessment and expectations

    • Differences in focus

    • Possible areas of inconsistency

  • May be assessed now but certainly under ISO 15189


Introduction to iso 15189

Scope

  • Aim:

    • Communicate the gaps (not exhaustive)

  • Not:

    • To advise on how to achieve conformity

  • Laboratory responsible for identifying and addressing gaps


Introduction to iso 15189

Evaluation &

Risk management

Information management

Equipment records

Service agreements

Staff suggestions

New

Modified

Staff competence

EQA/IQC

Validation/

Verification

Uncertainty

Traceability

Purchasing

Laboratory director responsibilities


Introduction to iso 15189

Information management

  • Clause: 5.10

  • Specific requirements for laboratory information management

  • Systems validated by supplier and verified by lab (resultant changes will need to be verified again)

  • Authorisation for management of LIMS, including maintenance and modification and for those who use LIMS


Introduction to iso 15189

Information management (cont)

  • Safeguarded against tampering

  • Environment compliant?

  • Integrity maintained and system failures documented

  • Results and records accurately reproduced

  • Contingency plans

  • If systems maintained off site, requirements must still be met – selection of suppliers

  • Links to: 4.1; 4.6; 4.9; 4.13; 5.2; 5.8; 5.9


Introduction to iso 15189

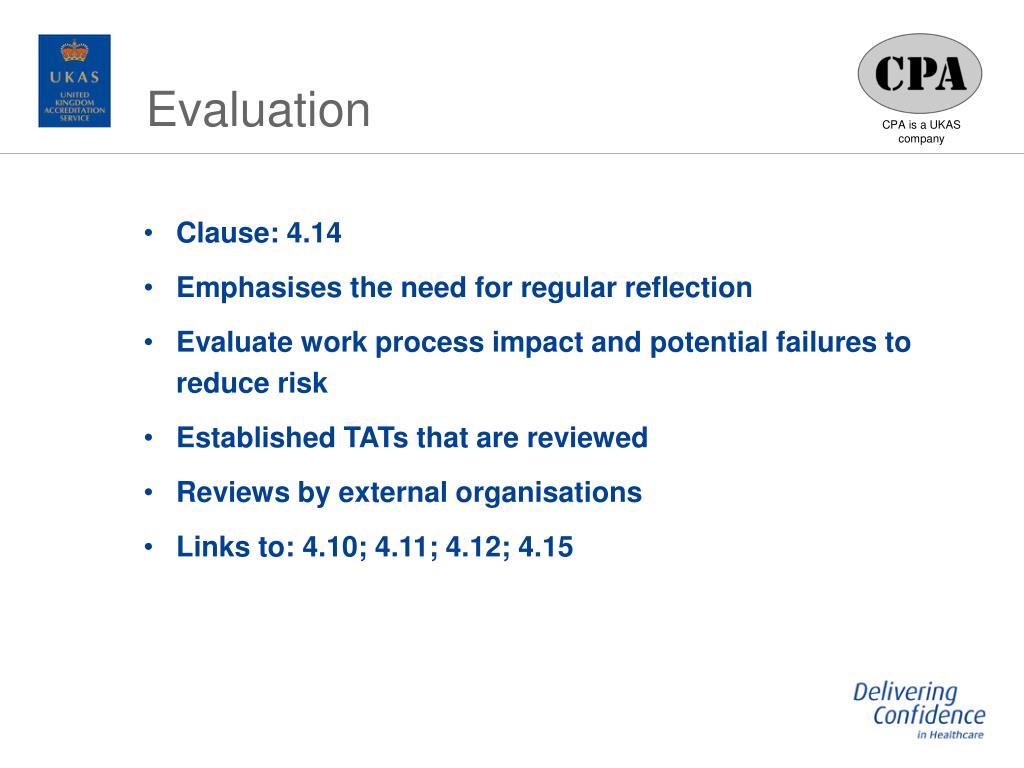

Evaluation

  • Clause: 4.14

  • Emphasises the need for regular reflection

  • Evaluate work process impact and potential failures to reduce risk

  • Established TATs that are reviewed

  • Reviews by external organisations

  • Links to: 4.10; 4.11; 4.12; 4.15


Introduction to iso 15189

Staff suggestions

  • 4.14.4 & 4.1.2.6

  • Communication processes – effective

  • Staff to be encouraged to make suggestions to improve

  • Evaluated

  • Implemented, as appropriate

  • Feedback

  • Records maintained

  • Links to: 4.11, 4.12


Introduction to iso 15189

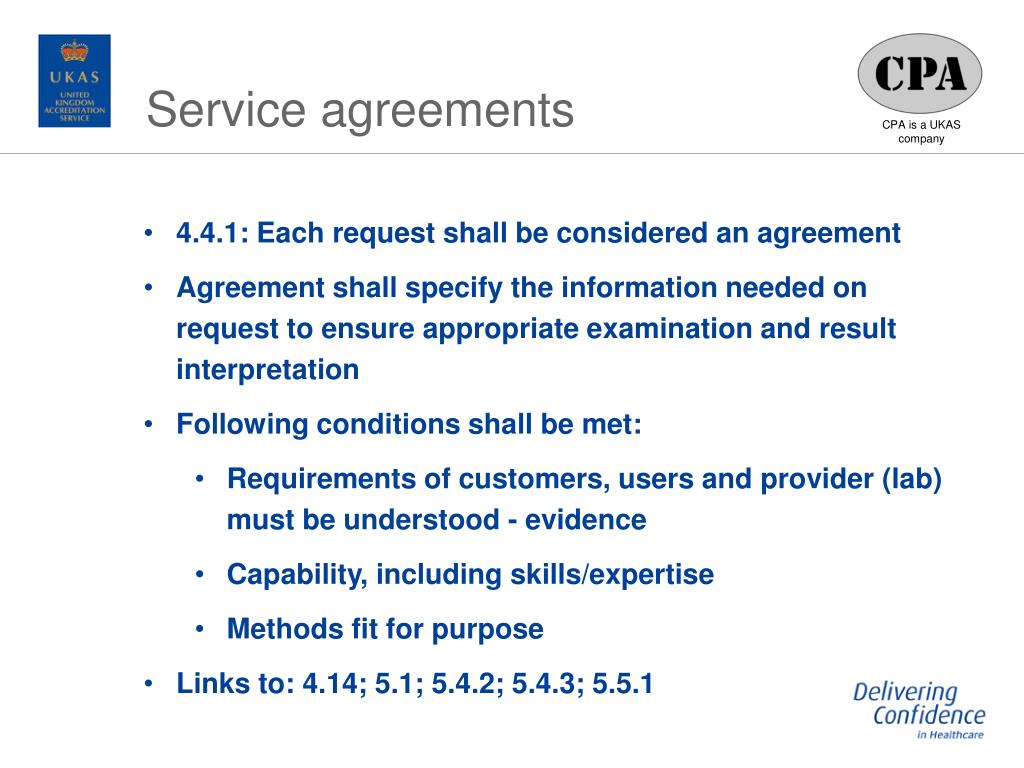

Service agreements

  • 4.4.1: Each request shall be considered an agreement

  • Agreement shall specify the information needed on request to ensure appropriate examination and result interpretation

  • Following conditions shall be met:

    • Requirements of customers, users and provider (lab) must be understood - evidence

    • Capability, including skills/expertise

    • Methods fit for purpose

  • Links to: 4.14; 5.1; 5.4.2; 5.4.3; 5.5.1


Introduction to iso 15189

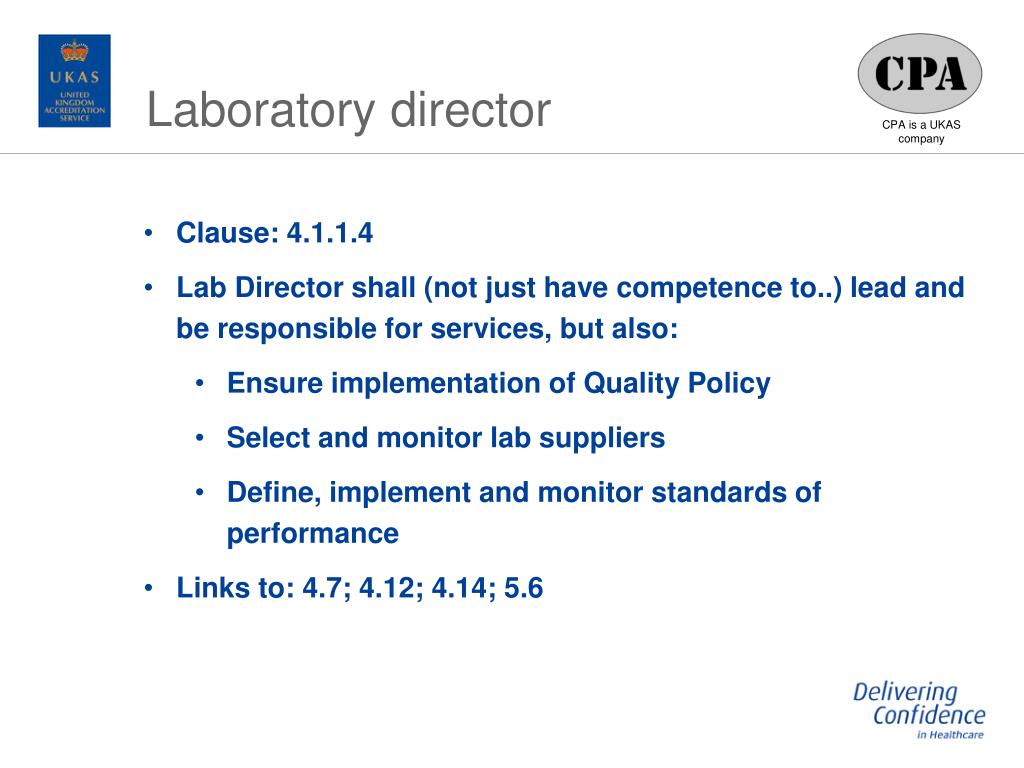

Laboratory director

  • Clause: 4.1.1.4

  • Lab Director shall (not just have competence to..) lead and be responsible for services, but also:

    • Ensure implementation of Quality Policy

    • Select and monitor lab suppliers

    • Define, implement and monitor standards of performance

  • Links to: 4.7; 4.12; 4.14; 5.6


Introduction to iso 15189

Equipment records

  • Clause: 5.3.1.7

  • Expanded requirements – records maintained

    • Contact information for the supplier

    • Date of receipt and date into service

    • Condition when received

    • Manufacturer instructions

    • Initial acceptability for use

    • On-going acceptability for use

  • Links to: 4.13; 5.5.1; 5.6


Introduction to iso 15189

Reagents and consumables

  • Clause: 5.3.2

  • Acceptance testing: new lot verification of performance

  • Inventory and instructions for use

  • Agreements with manufacturer to be informed of changes?

  • Records: identity, condition, instruction, performance verification

  • Links to: 4.13; 5.5.1; 5.6


Introduction to iso 15189

Purchasing

  • Clause: 4.6

  • Equipment, reagents, consumables and services

  • Acceptance criteria

  • Evaluation

  • Monitoring of performance

  • Collaborate with other departments, if necessary

  • Links to: 4.1.1.4; 4.13, 5.3, 5.6


Introduction to iso 15189

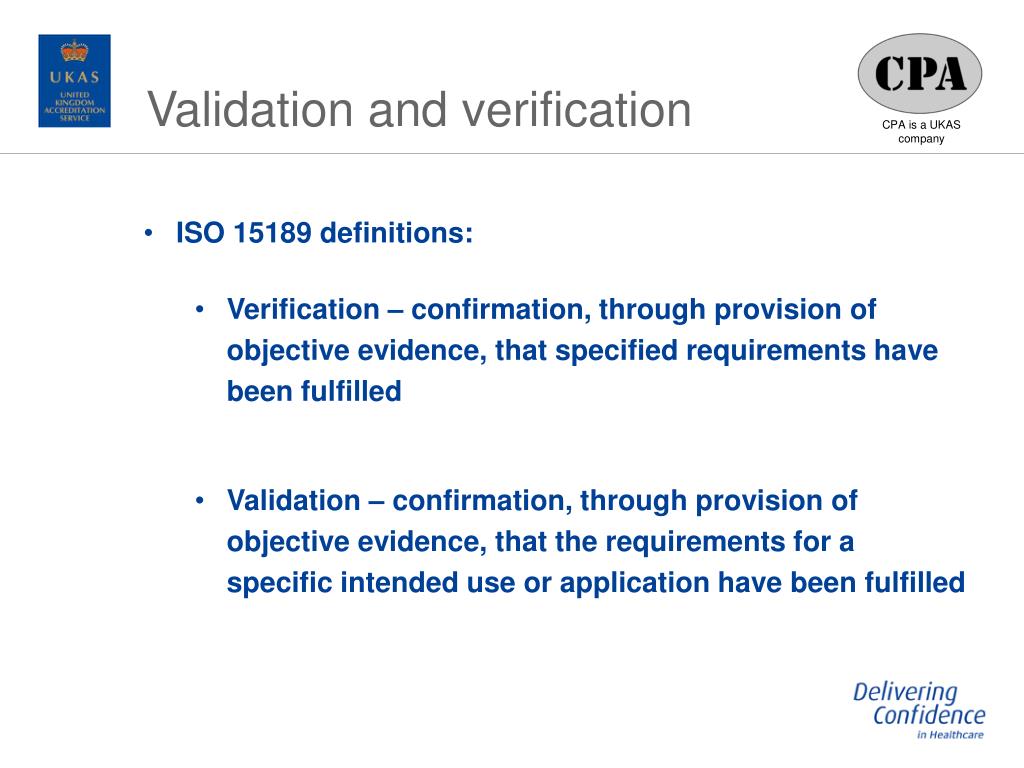

Validation and verification

  • ISO 15189 definitions:

    • Verification – confirmation, through provision of objective evidence, that specified requirements have been fulfilled

    • Validation – confirmation, through provision of objective evidence, that the requirements for a specific intended use or application have been fulfilled


Introduction to iso 15189

Verification

  • Clause: 5.5.1.2

  • Documented procedure to verify competence

  • Can manufacturer's specifications be met?

  • Use of kit limited to manufacturer’s specified scope or requirement to validate?

  • Have all staff been involved?

  • Authorisation by competent personnel

  • When change reagents

  • Links to: 4.12; 4.14; 5.6


Introduction to iso 15189

Validation

  • Clause: 5.5.1.3

  • Defined acceptance criteria

  • Documented procedure – as detailed as required?

  • Critical evaluation of manufacturer’s validation, including traceability

  • Suitable for use within the lab for user demographic

  • Validation supplemented where necessary?

  • Changes to methods captured for impact on validation

  • Suitable authorisation

  • Links to: 4.12; 4.14; 5.6


Introduction to iso 15189

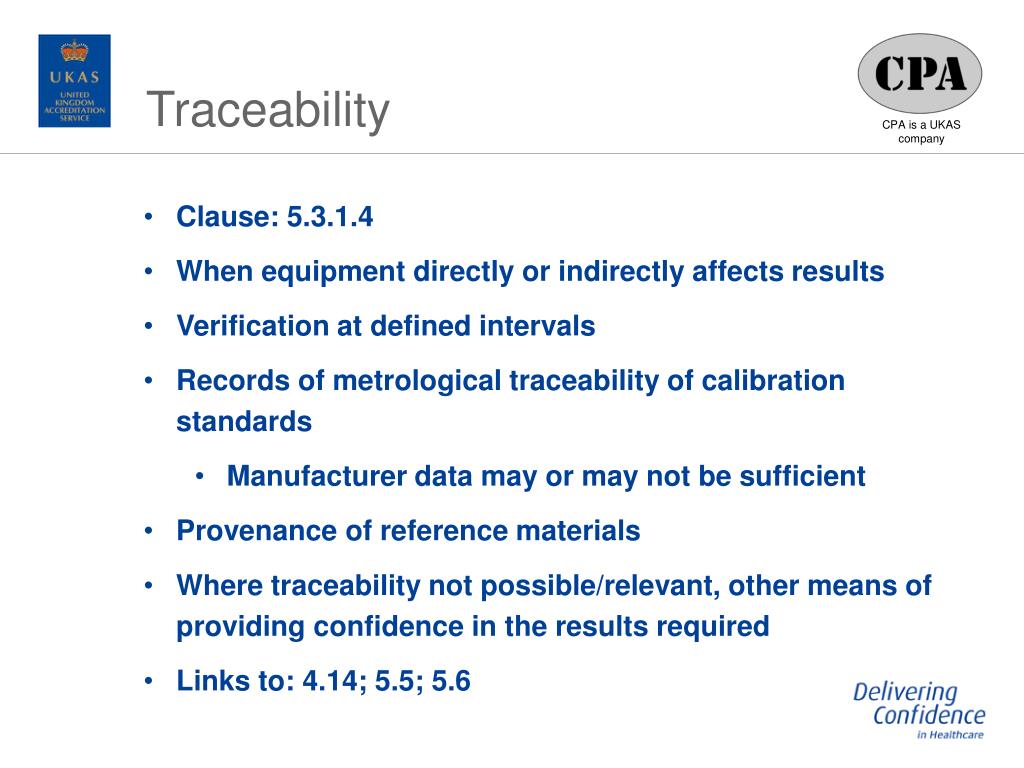

Traceability

  • Clause: 5.3.1.4

  • When equipment directly or indirectly affects results

  • Verification at defined intervals

  • Records of metrological traceability of calibration standards

    • Manufacturer data may or may not be sufficient

  • Provenance of reference materials

  • Where traceability not possible/relevant, other means of providing confidence in the results required

  • Links to: 4.14; 5.5; 5.6


Introduction to iso 15189

Measurement Uncertainty

  • Clause: 5.5.1.4

  • Performance requirements for each measurement procedure to be defined

  • Regularly reviewed

  • Uncertainty estimates to be readily available

  • Requirements cover examinations reporting measured quantity values and those that include a measurement step

  • Links to: 4.14; 5.1; 5.6


Introduction to iso 15189

EQA

  • Clause: 5.6.3

  • Proficiency testing and interlaboratory comparisons critical in demonstrating competence

  • Documented procedure – responsibilities, participation

  • Acceptance criteria for the scheme

  • Acceptance criteria for the results

  • TPS 47 and ILAC P9

  • Links to 4.14; 5.1; 5.5


Introduction to iso 15189

IQC

  • Clause: 5.6.2

  • On-going monitoring of performance by IQC required

  • Needs to be suitably robust

    • What is this based on?

    • Define rationale for approach to test assurance – what is the package?

    • Including manufacturer material, is there sufficient to provide confidence in test results?

  • Documented procedure – responsibilities, participation

  • Links to 4.14; 5.1; 5.5


Introduction to iso 15189

Staff competence

  • Clause: 5.1.4; 5.1.6; 5.1.8; 5.1.9

  • Staff competence - objective evidence

  • Specifies list

  • Across scope of testing?

  • Across scope of staff?

  • On-going assessment against pre-defined criteria

  • Continuing education and proof of effectiveness

  • Personnel records to include accidents, work experience

  • Links to: 4.1; 5.5; 5.6


Introduction to iso 15189

Evidence requirements

  • Where does it say what you do?

  • Why is it done that way?

  • Do staff know what should be done and why?

  • Where is this implemented?

  • Where is the evidence that this is implemented?

  • Is the evidence objective?

  • What does the evidence tell you?

  • Does it work?


Introduction to iso 15189

Rationale

  • Individual components of Standard are not assessed in isolation

  • Elements link together and will be assessed as such:

  • Staff competence, test assurance, uncertainty, validation

  • Purchasing, equipment, test assurance, responsibilities

  • Holistic assessment

  • Designed to facilitate continual improvement

  • Not a new concept


Introduction to iso 15189

Summary

  • Changes are in specific areas but impact on the whole Standard

  • Different types of changes

    • New

    • Revised expectations

  • Performance should be evaluated at management review, including review of suppliers

  • Health and Safety assessment - much reduced

  • Objective evidence critical


Introduction to iso 15189

Questions?
