  1. Latches & Flip-flops Computer ArchitectureCS 215

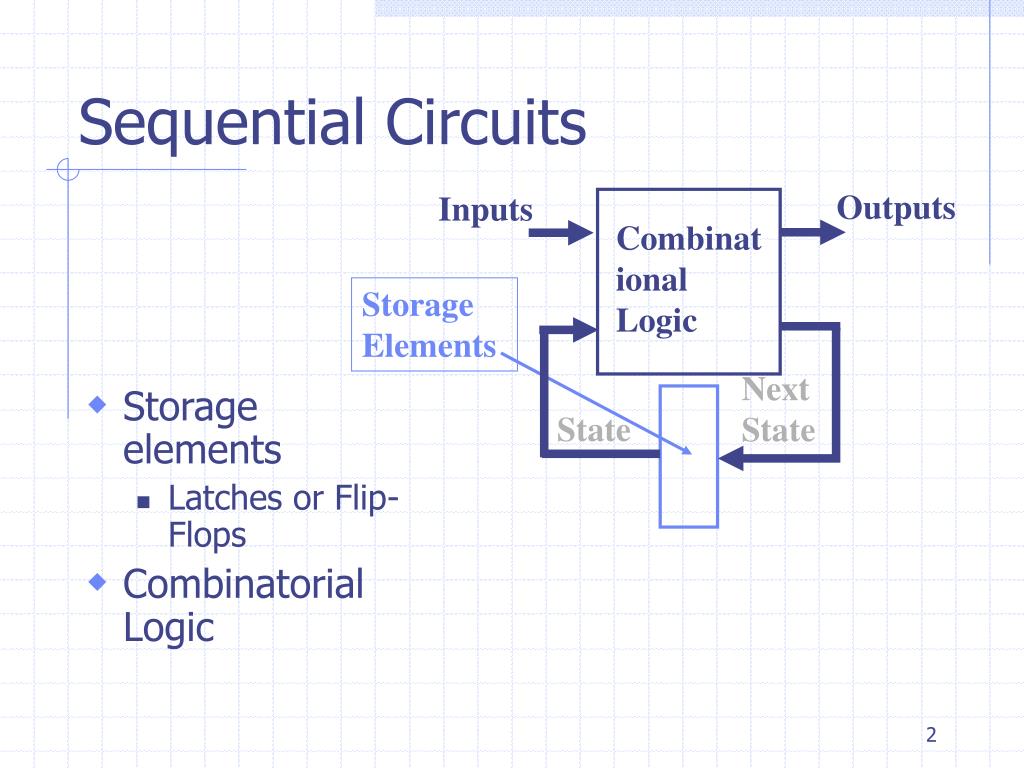

  2. Outputs Inputs Combinational Logic Storage Elements Next State State Sequential Circuits • Storage elements • Latches or Flip-Flops • Combinatorial Logic

  3. Outputs Inputs Combinational Logic Storage Elements Next State State Sequential Circuits • Combinatorial Logic • Next state functionNext State = f(Inputs, State) • Output function (Mealy)Outputs = g(Inputs, State) • Output function (Moore)Outputs = h(State) • Output function type depends on specification and affects the design significantly

  4. Sequential Circuits • Synchronous • Behavior defined from knowledge of its signals at discrete instances of time • Storage elements observe inputs and can change state only in relation to a timing signal (clock pulses from a clock) • Asynchronous • Behavior defined from knowledge of inputs an any instant of time and the order in continuous time in which inputs change • If clock just regarded as another input, all circuits are asynchronous! • Nevertheless, the synchronous abstraction makes complex designs tractable!

  5. Discrete Event Simulation • Rules: • Gates modeled by anideal(instantaneous) function and a fixed gate delay • Any change in input values is evaluated to see if it causes a change in output value • Changes in output values are scheduled for the fixed gate delay after the input change • At the time for a scheduled output change, the output value is changed along with any inputs it drives

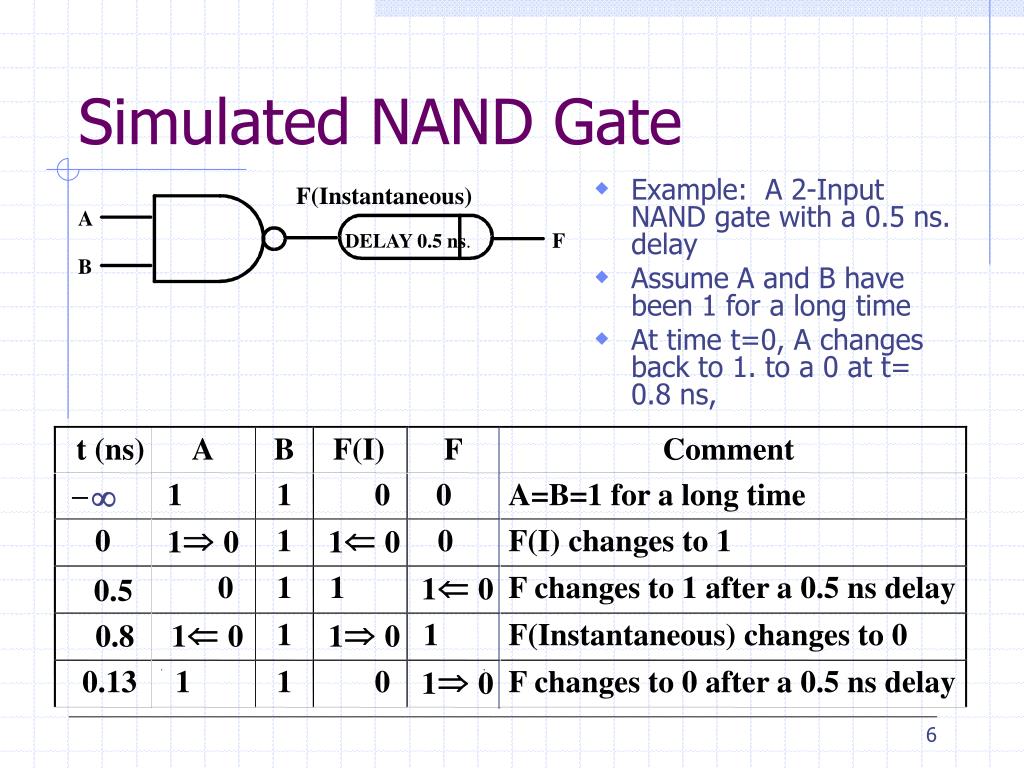

  6. F(Instantaneous) A F DELAY 0.5 ns. B t (ns) A B F(I) F Comment –  1 1 0 0 A=B=1 for a long time Þ Ü 0 1 0 F(I) changes to 1 1 0 1 0 Ü 0 1 1 F changes to 1 after a 0.5 ns delay 1 0 0.5 Ü Þ 1 1 F(Instantaneous) changes to 0 0.8 1 0 1 0 Þ 0.13 1 1 0 F changes to 0 after a 0.5 ns delay 1 0 Simulated NAND Gate • Example: A 2-Input NAND gate with a 0.5 ns. delay • Assume A and B have been 1 for a long time • At time t=0, A changes back to 1. to a 0 at t= 0.8 ns,

  7. Q R S Q Q Comment 1 1 ? ? Stored state unknown 1 0 1 0 “Set” Q to 1 1 1 1 0 Now Q “remembers” 1 0 1 0 1 “Reset” Q to 0 Basic (NAND) S–R Latch S (set) Q • “Cross-Coupling” two NAND gates gives the S-R Latch • S = 0, R = 0 is forbidden as input pattern R (reset) Time 1 1 0 1 Now Q “remembers” 0 0 0 1 1 Both go high 1 1 ? ? Unstable!

  8. R (reset) Q Q S (set) Time R S Q Q Comment 0 0 ? ? Stored state unknown 0 1 1 0 “Set” Q to 1 0 0 1 0 Now Q “remembers” 1 1 0 0 1 “Reset” Q to 0 0 0 0 1 Now Q “remembers” 0 1 1 0 0 Both go low 0 0 ? ? Unstable! Basic (NOR) S–R Latch • Cross-coupling twoNOR gates gives theS – R Latch

  9. S Q C Q R Clocked S-R Latch • Adding two NANDgates to the basicS-R NAND latchgives the clockedS–R latch: • Has a time sequence behavior similar to the basic S-R latch except that the S and R inputs are only observed when the line C is high. • C means “control” or “clock”.

  10. S Q C Q R Clocked S-R Latch • The Clocked S-R Latch can be described by a table • The table describeswhat happens after theclock [at time (t+1)]based on: • current inputs (S,R) and • current state Q(t).

  11. D Q C Q Q D Q(t+1) Comment 0 0 0 No change D Q 0 1 1 Set Q 1 0 0 Clear Q Q C 1 1 1 No Change D Latch • Adding an inverterto the S-R Latch,gives the D Latch: • Note that there areno “indeterminate”states!

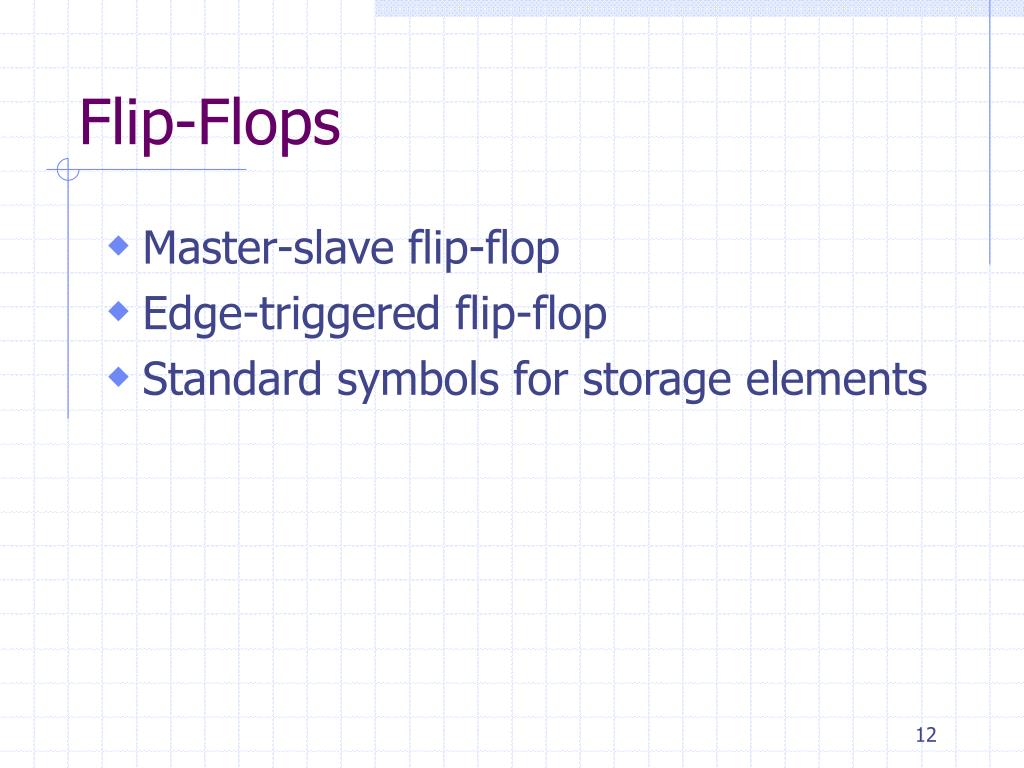

  12. Flip-Flops • Master-slave flip-flop • Edge-triggered flip-flop • Standard symbols for storage elements

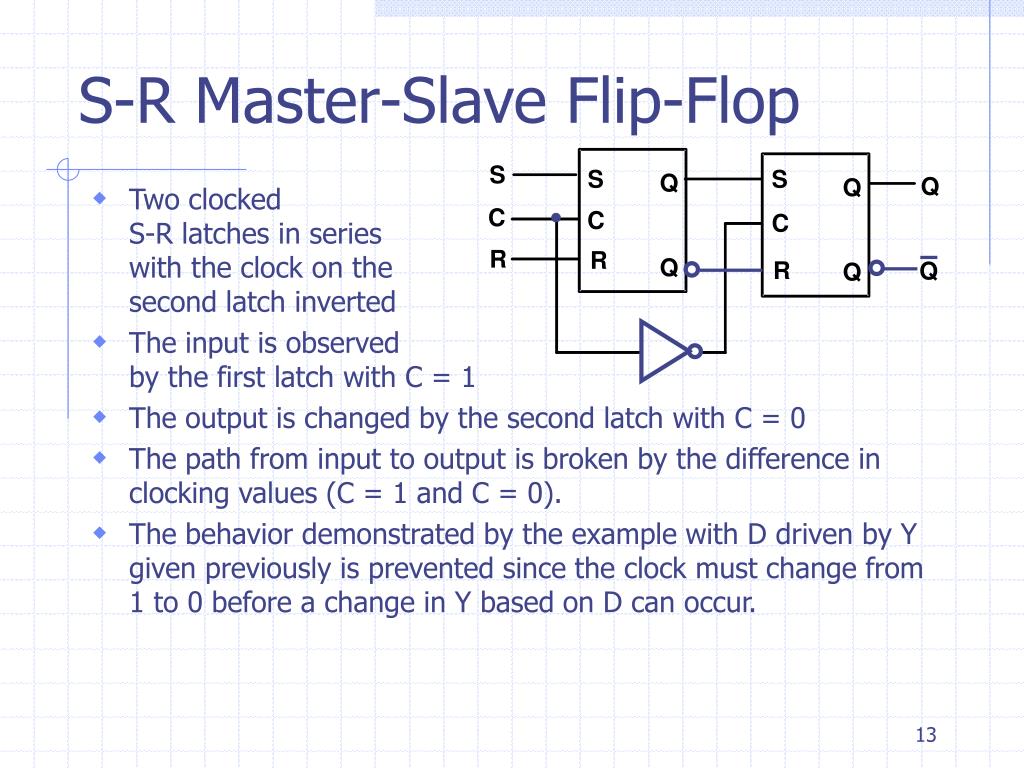

  13. S S S Q Q Q C C C R R Q R Q Q S-R Master-Slave Flip-Flop • Two clockedS-R latches in serieswith the clock on the second latch inverted • The input is observedby the first latch with C = 1 • The output is changed by the second latch with C = 0 • The path from input to output is broken by the difference in clocking values (C = 1 and C = 0). • The behavior demonstrated by the example with D driven by Y given previously is prevented since the clock must change from 1 to 0 before a change in Y based on D can occur.

  14. D D S Q Q Q C C C Q R Q Q Edge-Triggered D Flip-Flop • The edge-triggered D flip-flop is thesame as the master-slave D flip-flop • It can be formed by: • Replacing the first clocked S-R latch with a clocked D latch or • Adding a D input and inverter to a master-slave S-R flip-flop • The delay of the S-R master-slave flip-flop can be avoided since the 1s-catching behavior is not present with D replacing S and R inputs • The change of the D flip-flop output is associated with the negative edge at the end of the pulse • It is called a negative-edge triggered flip-flop

  15. D D S Q Q Q C C C Q R Q Q Positive-Edge Triggered D Flip-Flop • Formed byadding inverterto clock input • Q changes to the value on D applied at the positive clock edge within timing constraints to be specified • Our choice as the standard flip-flop for most sequential circuits

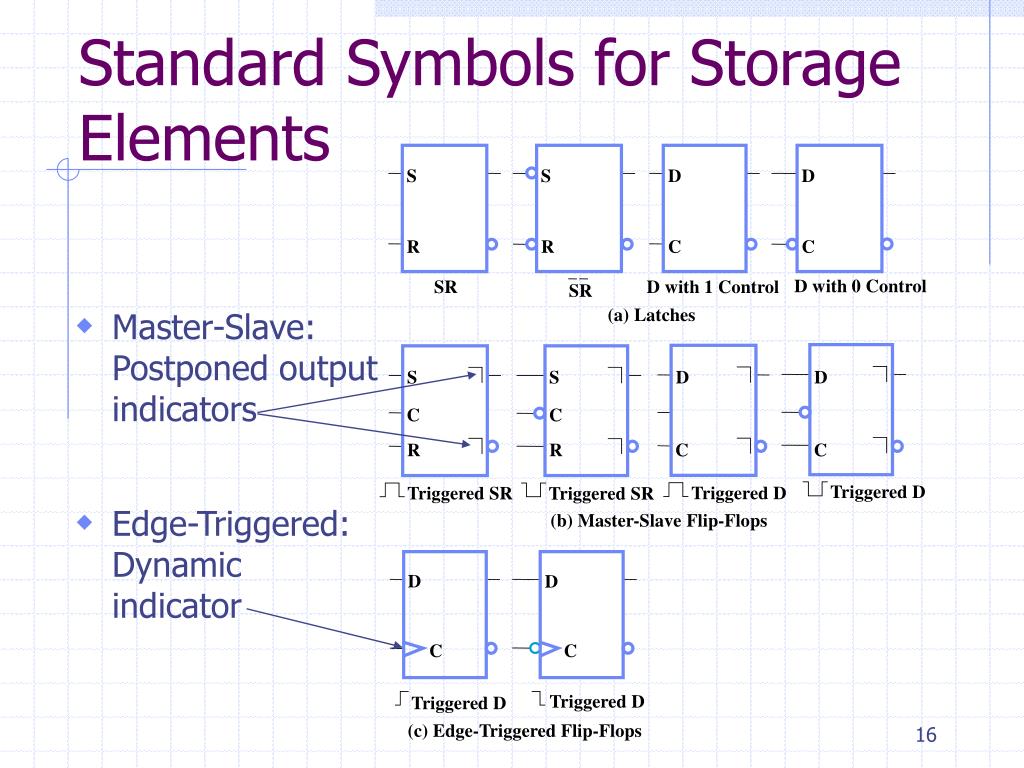

  16. S S D D R R C C D with 0 Control SR D with 1 Control SR (a) Latches S S D D C C R R C C Triggered D Triggered D Triggered SR Triggered SR (b) Master-Slave Flip-Flops D D C C Triggered D Triggered D (c) Edge-Triggered Flip-Flops Standard Symbols for Storage Elements • Master-Slave:Postponed outputindicators • Edge-Triggered:Dynamicindicator

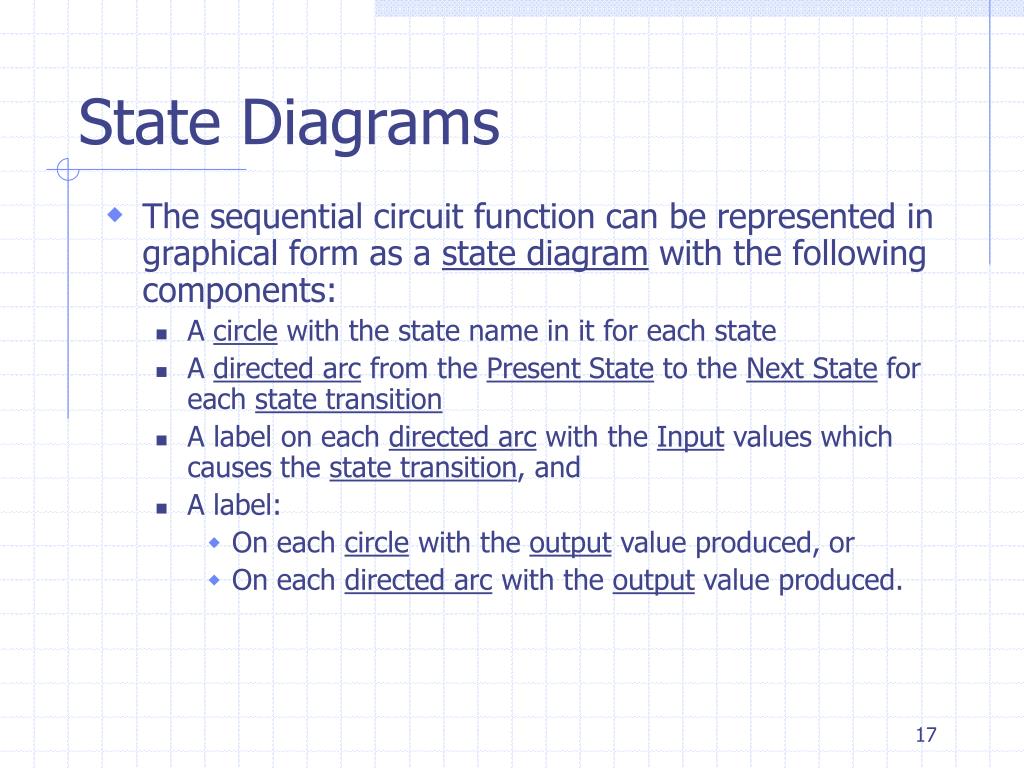

  17. State Diagrams • The sequential circuit function can be represented in graphical form as a state diagram with the following components: • A circle with the state name in it for each state • A directed arc from the Present State to the Next State for each state transition • A label on each directed arc with the Input values which causes the state transition, and • A label: • On each circle with the output value produced, or • On each directed arc with the output value produced.

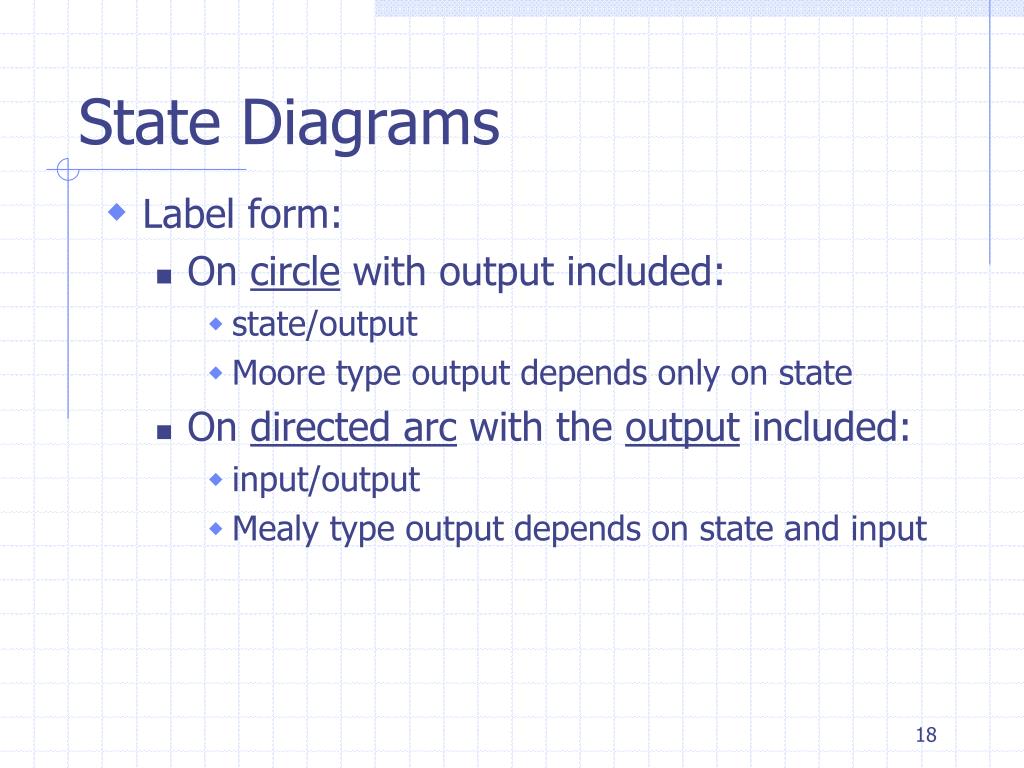

  18. State Diagrams • Label form: • On circle with output included: • state/output • Moore type output depends only on state • On directed arc with the output included: • input/output • Mealy type output depends on state and input

  19. Other Flip-Flop Types • J-K and T flip-flops • Behavior • Implementation • Basic descriptors for understanding and using different flip-flop types • Characteristic tables • Characteristic equations • Excitation tables • For actual use, see Reading Supplement - Design and Analysis Using J-K and T Flip-Flops

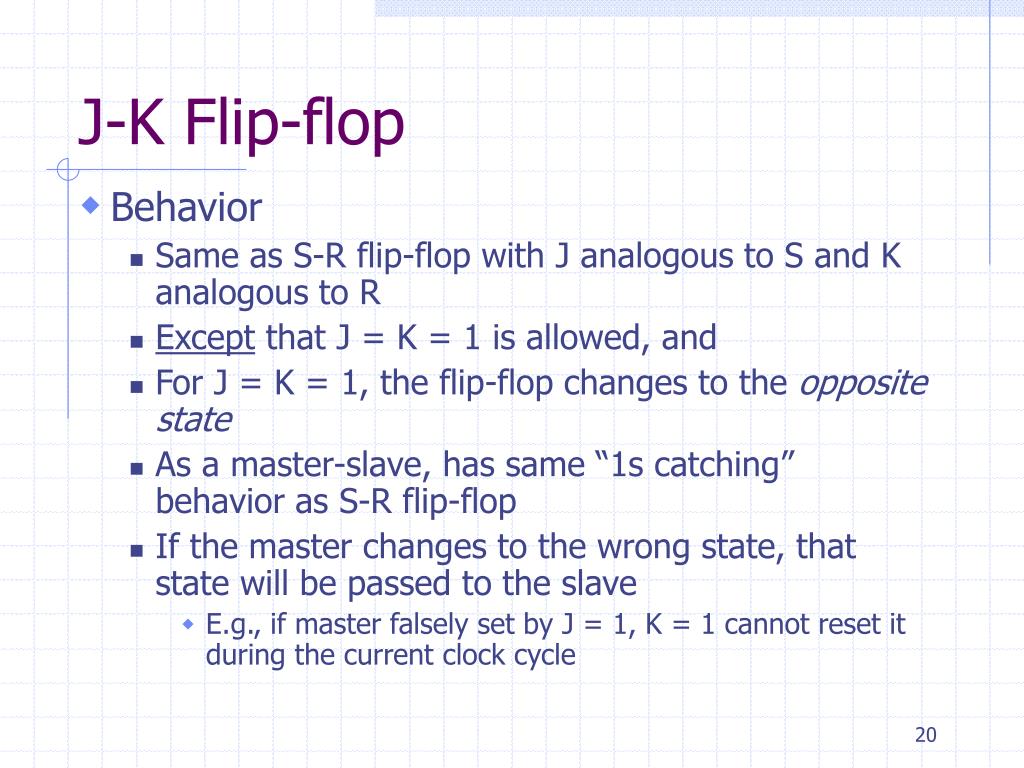

  20. J-K Flip-flop • Behavior • Same as S-R flip-flop with J analogous to S and K analogous to R • Except that J = K = 1 is allowed, and • For J = K = 1, the flip-flop changes to the opposite state • As a master-slave, has same “1s catching” behavior as S-R flip-flop • If the master changes to the wrong state, that state will be passed to the slave • E.g., if master falsely set by J = 1, K = 1 cannot reset it during the current clock cycle

  21. J C K D J K C J-K Flip-flop • Symbol • Implementation • To avoid 1s catchingbehavior, one solutionused is to use anedge-triggered D asthe core of the flip-flop

  22. T Flip-flop • Behavior • Has a single input T • For T = 0, no change to state • For T = 1, changes to opposite state • Same as a J-K flip-flop with J = K = T • As a master-slave, has same “1s catching” behavior as J-K flip-flop • Cannot be initialized to a known state using the T input • Reset (asynchronous or synchronous) essential

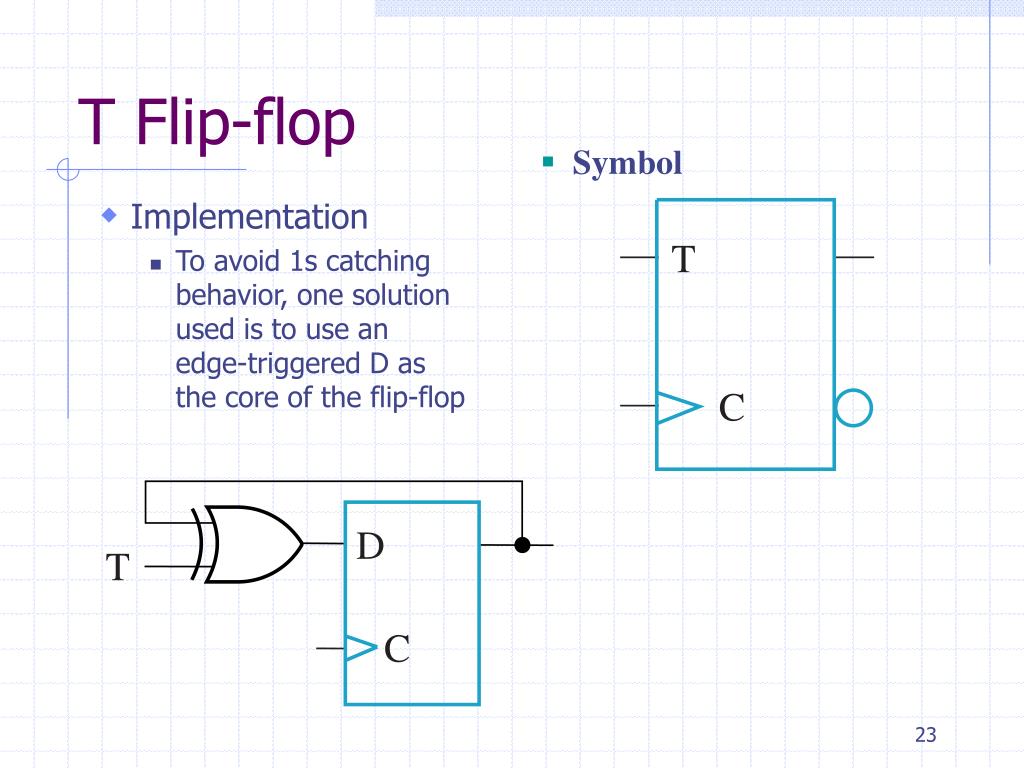

  23. T C D T C T Flip-flop • Symbol • Implementation • To avoid 1s catchingbehavior, one solutionused is to use anedge-triggered D asthe core of the flip-flop

  24. Basic Flip-Flop Descriptors • Used in analysis • Characteristic table - defines the next state of the flip-flop in terms of flip-flop inputs and current state • Characteristic equation - defines the next state of the flip-flop as a Boolean function of the flip-flop inputs and the current state • Used in design • Excitation table - defines the flip-flop input variable values as function of the current state and next state

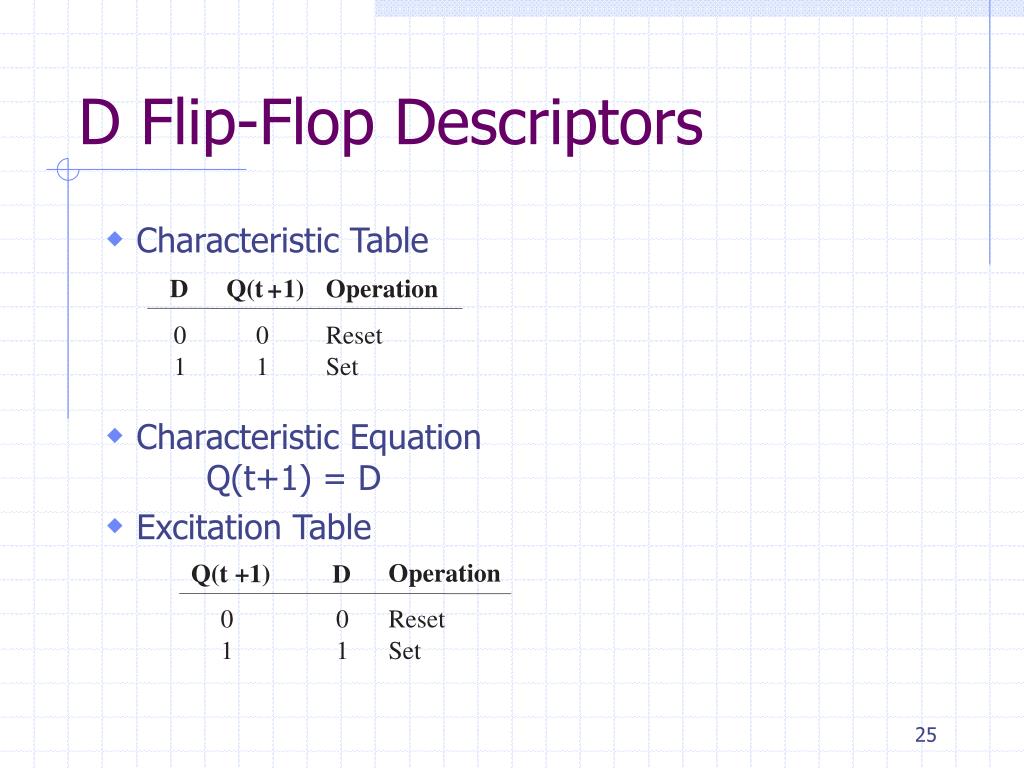

  25. D Q(t 1) Operation + 0 0 Reset 1 1 Set Operation Q(t +1) D 0 0 Reset 1 1 Set D Flip-Flop Descriptors • Characteristic Table • Characteristic Equation Q(t+1) = D • Excitation Table

  26. + T Q(t 1) Operation 0 Q ( t ) No change 1 Q ( t ) Complement + Q(t 1) T Operation Q ( t ) 0 No change Q ( t ) 1 Complement T Flip-Flop Descriptors • Characteristic Table • Characteristic Equation Q(t+1) = T Å Q • Excitation Table

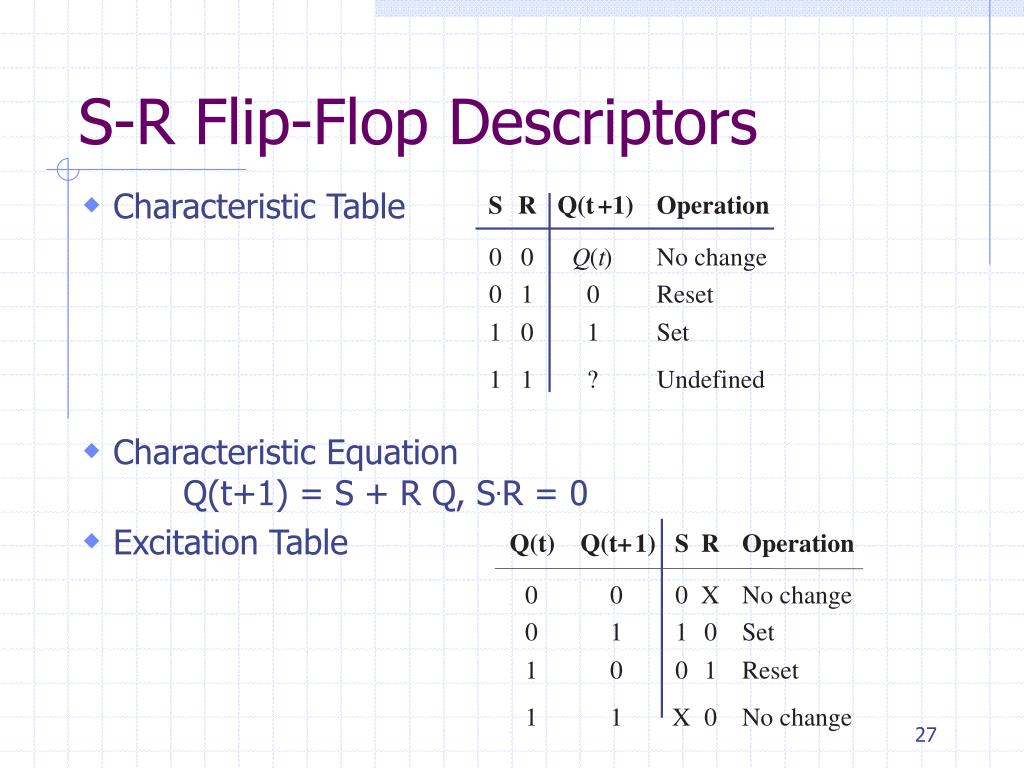

  27. S R Q(t + 1) Operation 0 0 Q ( t ) No change Q(t) Q(t+ 1) S R Operation 0 0 0 X No change 0 1 0 Reset 0 1 1 0 Set 1 0 0 1 Reset 1 0 1 Set 1 1 X 0 No change 1 1 ? Undefined S-R Flip-Flop Descriptors • Characteristic Table • Characteristic Equation Q(t+1) = S + R Q, S.R = 0 • Excitation Table

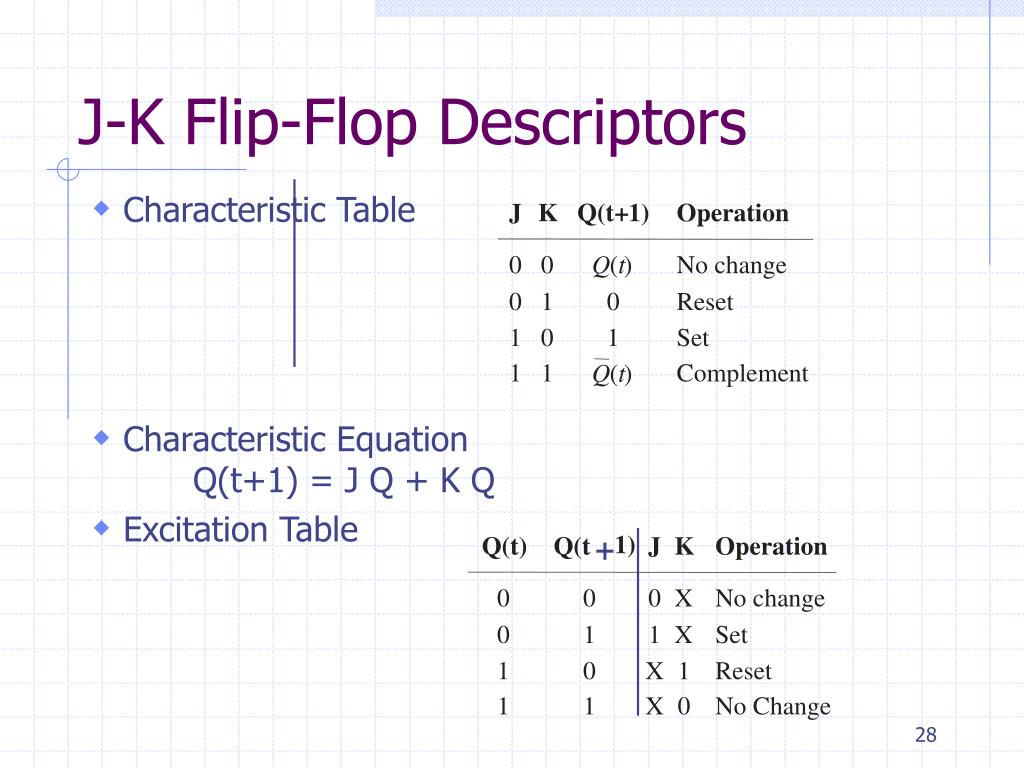

  28. J K Q(t + 1) Operation 0 0 Q ( t ) No change 0 1 0 Reset 1 0 1 Set 1 1 Complement Q ( t ) + 1) Q(t) Q(t J K Operation 0 0 0 X No change 0 1 1 X Set 1 0 X 1 Reset 1 1 X 0 No Change J-K Flip-Flop Descriptors • Characteristic Table • Characteristic Equation Q(t+1) = J Q + K Q • Excitation Table
