Presentation Transcript


Introductory concepts

Introductory Concepts

ANSI-C

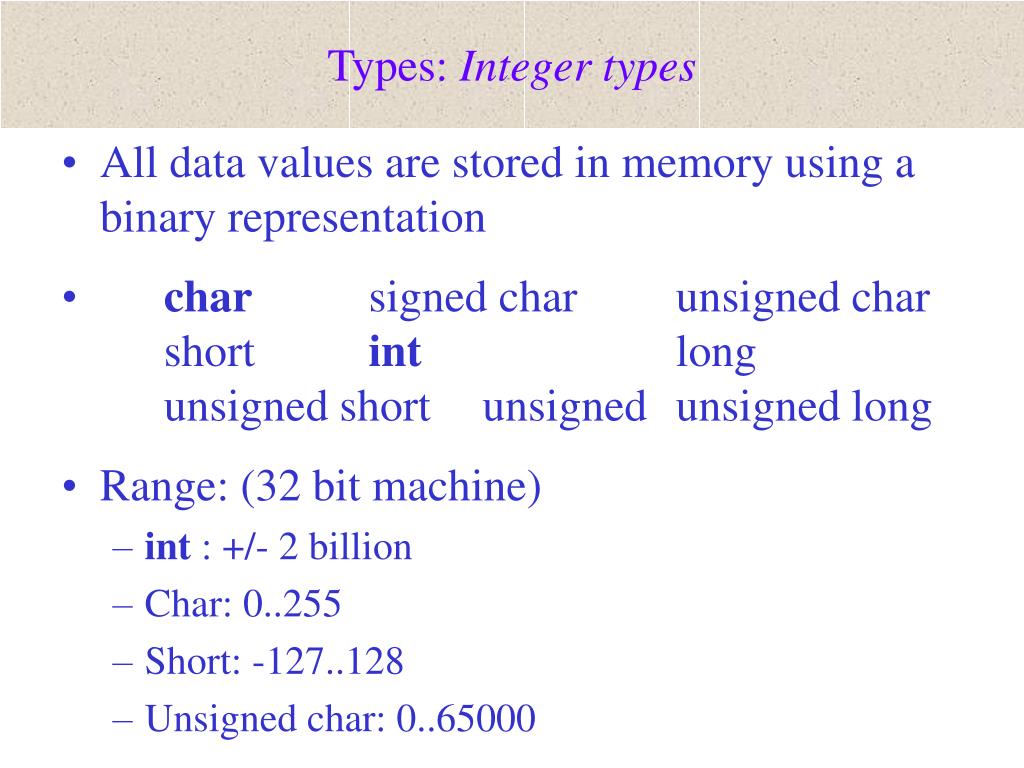

Types integer types

Types: Integer types

  • All data values are stored in memory using a binary representation

  • charsigned charunsigned charshortintlongunsigned short unsignedunsigned long

  • Range: (32 bit machine)

    • int : +/- 2 billion

    • Char: 0..255

    • Short: -127..128

    • Unsigned char: 0..65000


Remarks on character type

Remarks on Character type

  • char values are integer values between 0 and 255;

  • they can be manipulated as integers.

  • The value of a character variable can be safely forced to yield the actual ASCII number it represents.

  • The value of an integer variable can be forced to yield the character it represents if value is between 0..255.

  • See code: intchar.c


Types floating types

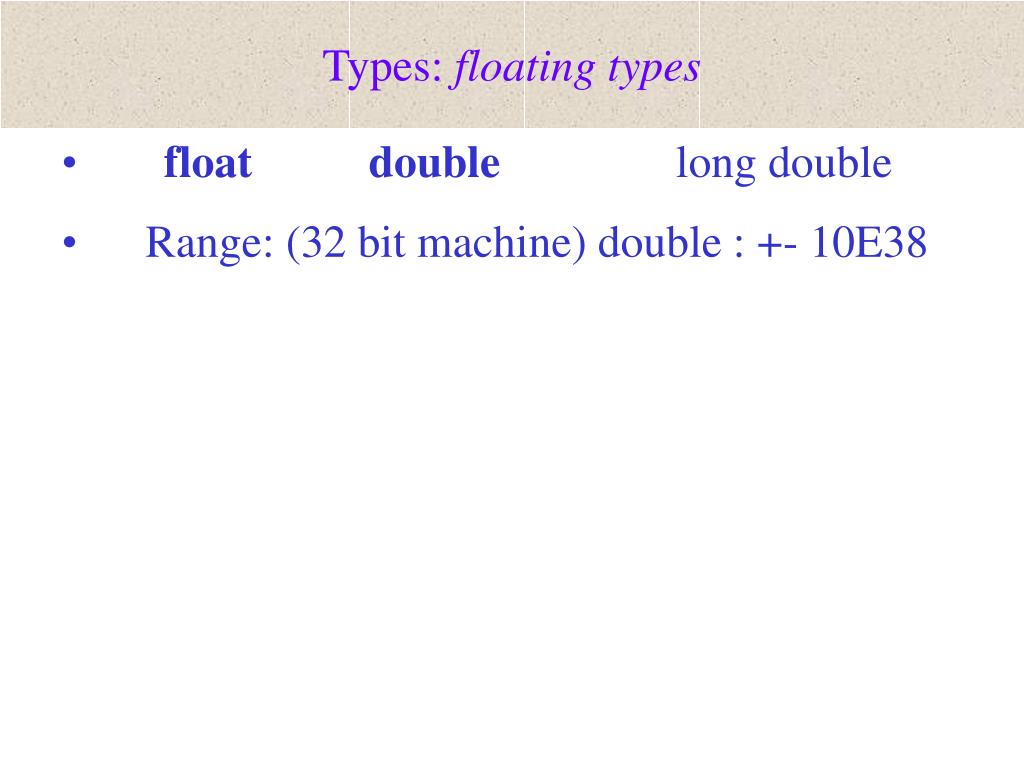

Types: floating types

  • floatdouble long double

  • Range: (32 bit machine) double : +- 10E38


Variables

Variables

  • Use to represent data in memory

    It has a name: identifier

    It has a location in memory

    It has a value

    It has a type: set of values that it can legally contain.


Variable declaration

Variable declaration

  • int num;char letter;float value;

  • declarations with initializations:

    int num = 0;char letter = ‘a’;

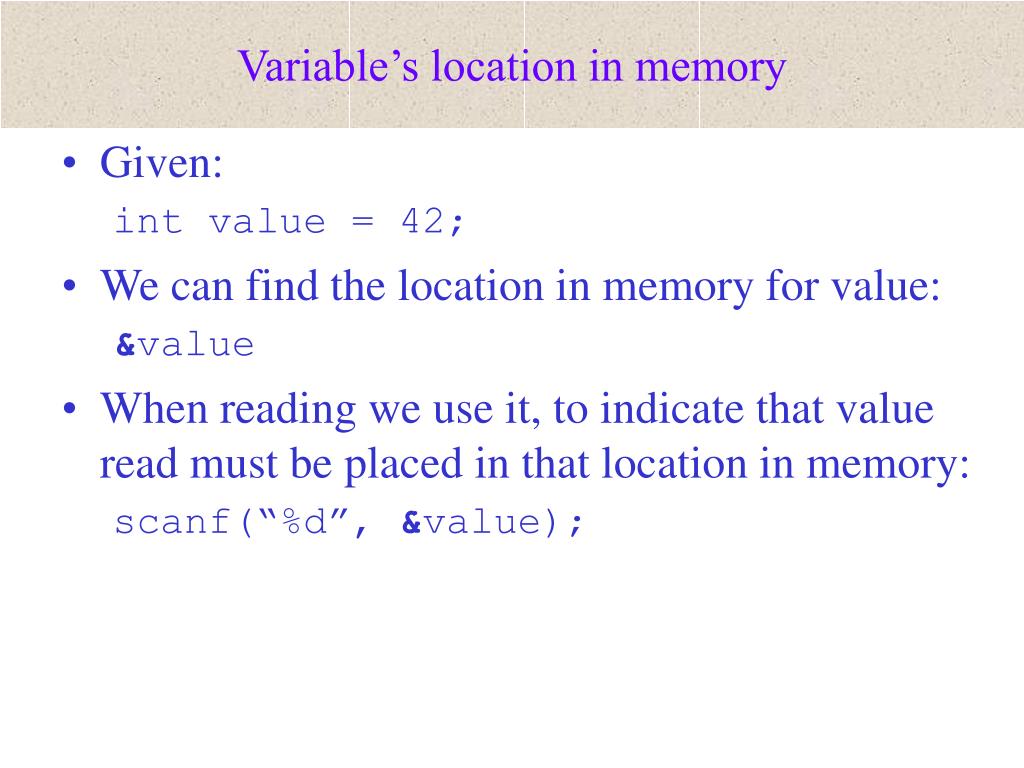

Variable s location in memory

Variable’s location in memory

  • Given:

    int value = 42;

  • We can find the location in memory for value:

    &value

  • When reading we use it, to indicate that value read must be placed in that location in memory:

    scanf(“%d”, &value);

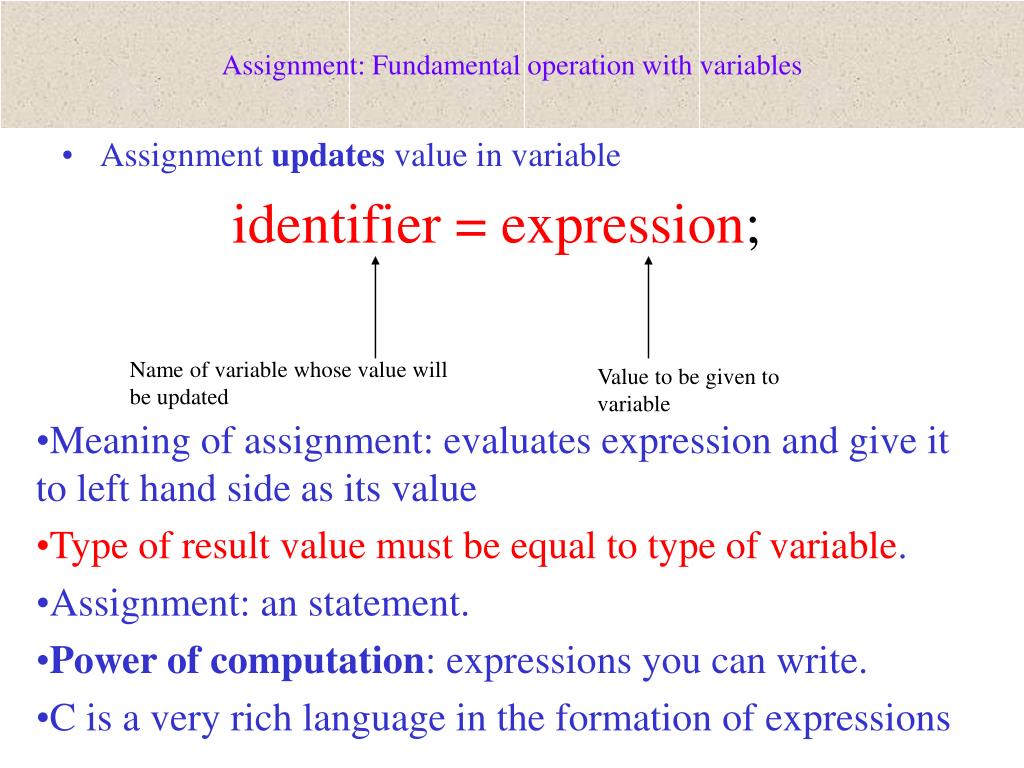

Assignment fundamental operation with variables

Assignment: Fundamental operation with variables

Name of variable whose value will be updated

Value to be given to

variable

  • Assignment updates value in variable

    identifier=expression;

  • Meaning of assignment: evaluates expression and give it to left hand side as its value

  • Type of result value must be equal to type of variable.

  • Assignment: an statement.

  • Power of computation: expressions you can write.

  • C is a very rich language in the formation of expressions


Looking up value in variable

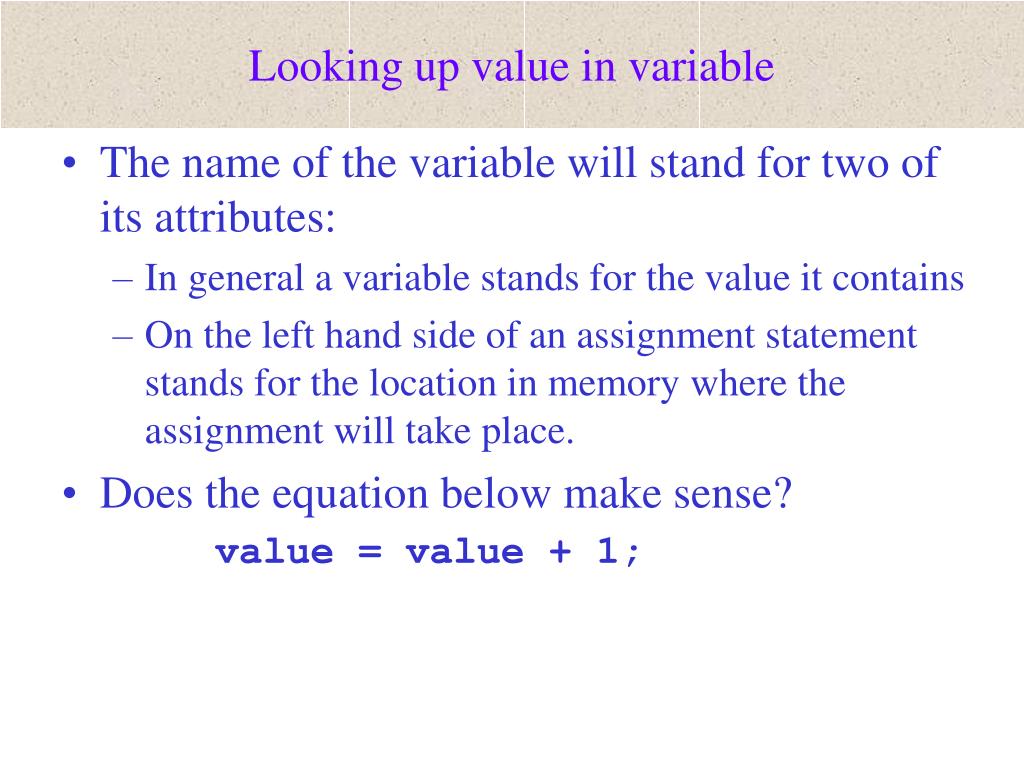

Looking up value in variable

  • The name of the variable will stand for two of its attributes:

    • In general a variable stands for the value it contains

    • On the left hand side of an assignment statement stands for the location in memory where the assignment will take place.

  • Does the equation below make sense?

    value = value + 1;

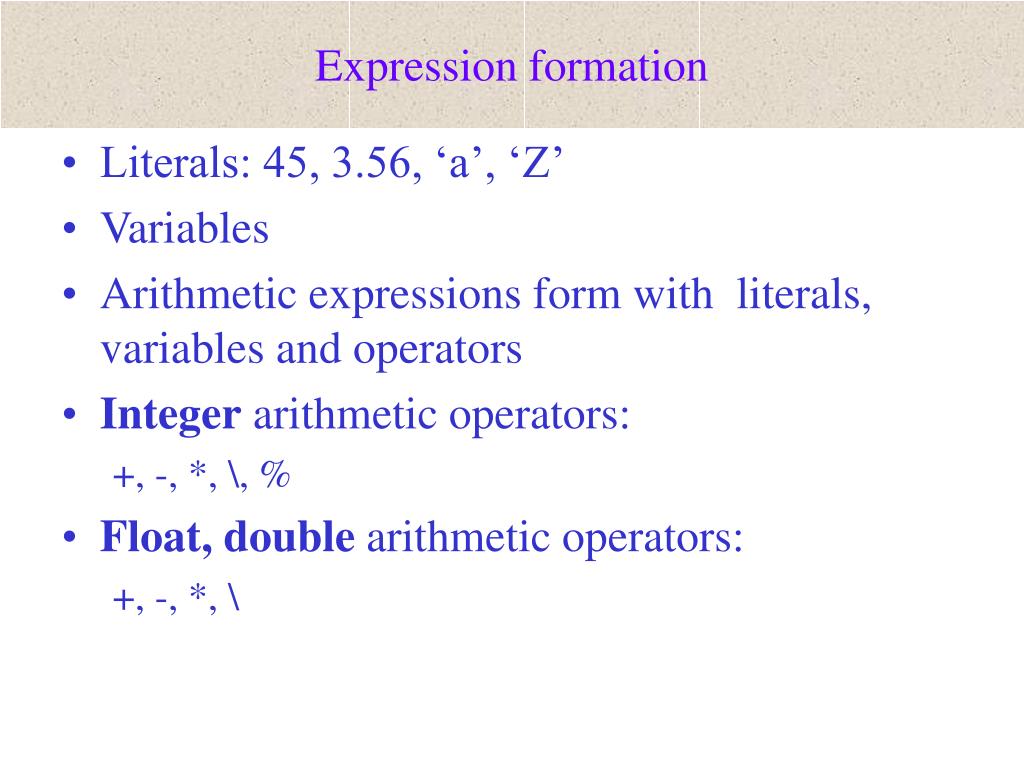

Expression formation

Expression formation

  • Literals: 45, 3.56, ‘a’, ‘Z’

  • Variables

  • Arithmetic expressions form with literals, variables and operators

  • Integer arithmetic operators:

    +, -, *, \, %

  • Float, double arithmetic operators:

    +, -, *, \


Examples of expressions

Examples of expressions

int value1 = 5;

int value2 = 18;

value1 + value2 – 10

value 2 – value1 + 3

value2/value1

value1/value2

value2 % value1

value1 % value2


Examples of expressions1

Examples of expressions

double value1 = 5.0;

double value2 = 18.0;

value1 + value2 – 10.0

value 2 – value1 + 3.0

value2/value1

value1/value2


Precedence of operators when expression does not have parenthesis

Precedence of operators when expression does not have parenthesis

int value1 = 5;

int value2 = 8;

value1 + value2 * 5

value1/value2 + 3 * value1

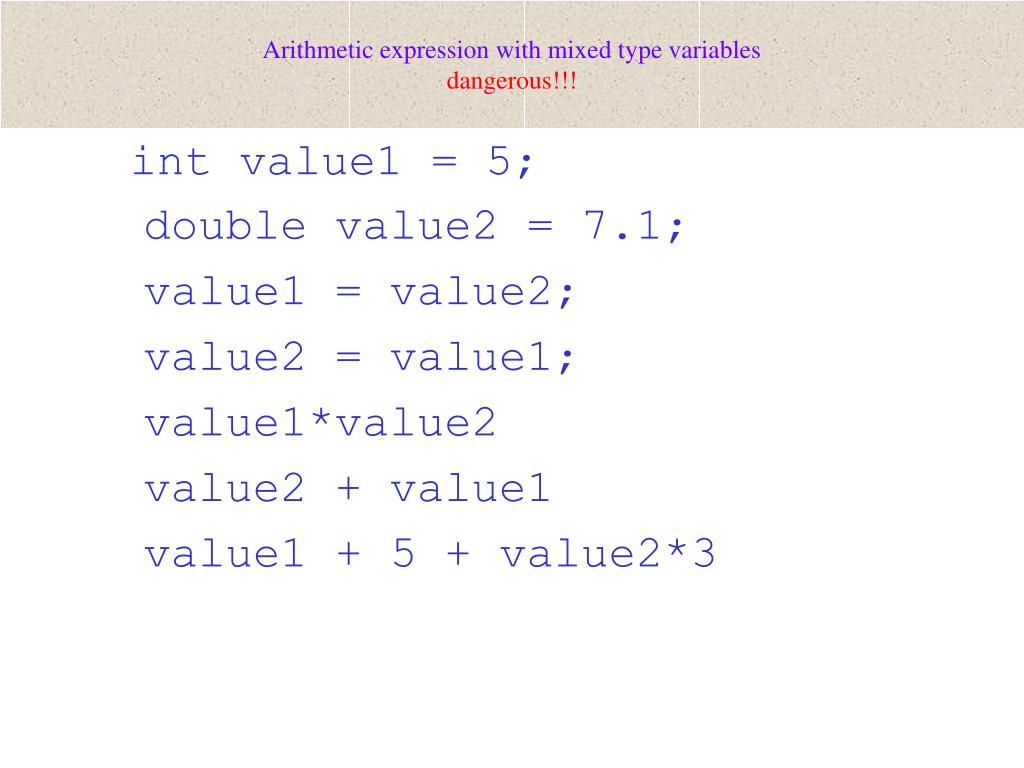

Arithmetic expression with mixed type variables dangerous

Arithmetic expression with mixed type variablesdangerous!!!

int value1 = 5;

double value2 = 7.1;

value1 = value2;

value2 = value1;

value1*value2

value2 + value1

value1 + 5 + value2*3

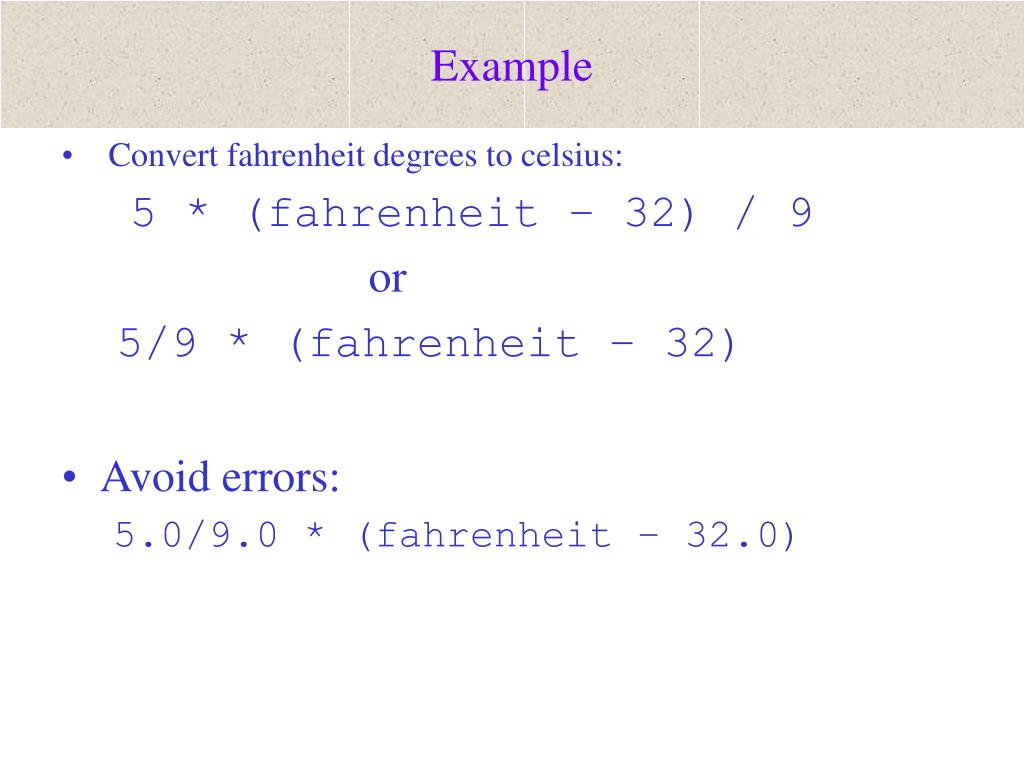

Example

Example

  • Convert fahrenheit degrees to celsius:

    5 * (fahrenheit – 32) / 9

    or

    5/9 * (fahrenheit – 32)

  • Avoid errors:

    5.0/9.0 * (fahrenheit – 32.0)

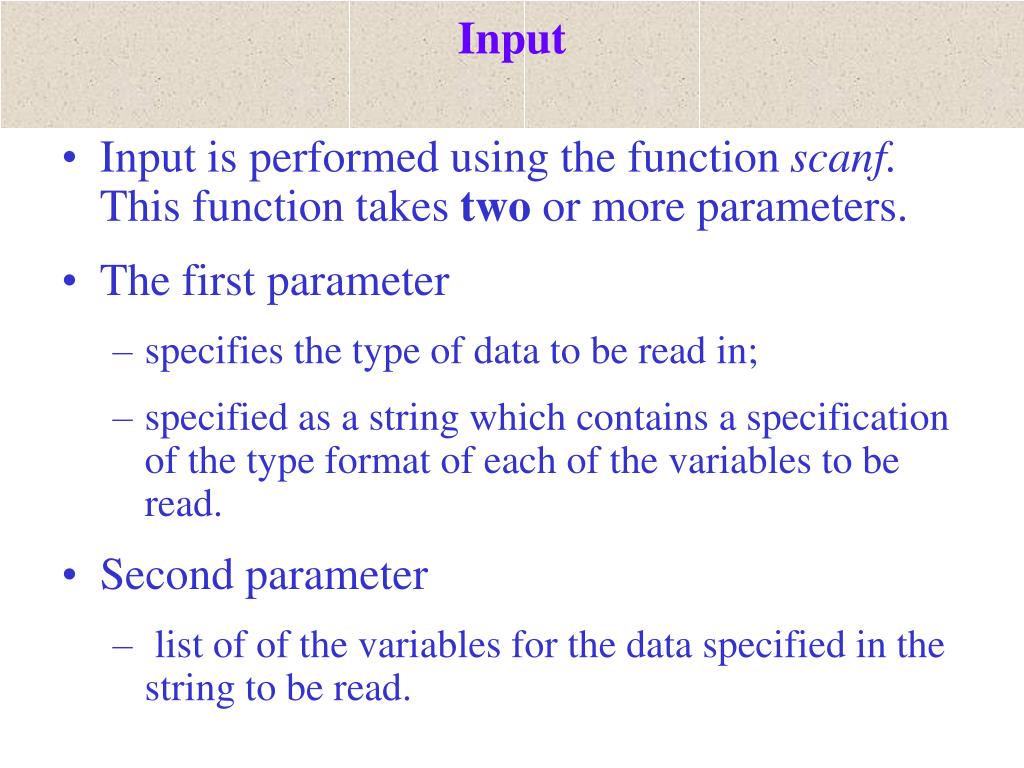

Input

Input

  • Input is performed using the function scanf. This function takes two or more parameters.

  • The first parameter

    • specifies the type of data to be read in;

    • specified as a string which contains a specification of the type format of each of the variables to be read.

  • Second parameter

    • list of of the variables for the data specified in the string to be read.


Input examples

Input Examples

int x,y;

float z;

char ch;

scanf(“%d”, &x); /*%d specifies read one integer */

scanf(“%f”, &z); /* “%f” specifies read one float */

scanf(“%c”, &ch); /* “%c” specifies to read one

character*/

scanf(“%d%d”, &x,&y);/*”%d%d” specifies read 2

integers*/

scanf(“%f%d”, &z, &y); /*”%f%d” specifies read one

float followed by one integer */

scanf(“%c%f%d%d”, &ch, &z, &x,&y);

  • scanf skips blanks, newlines and tabs when reading numbers;


Output

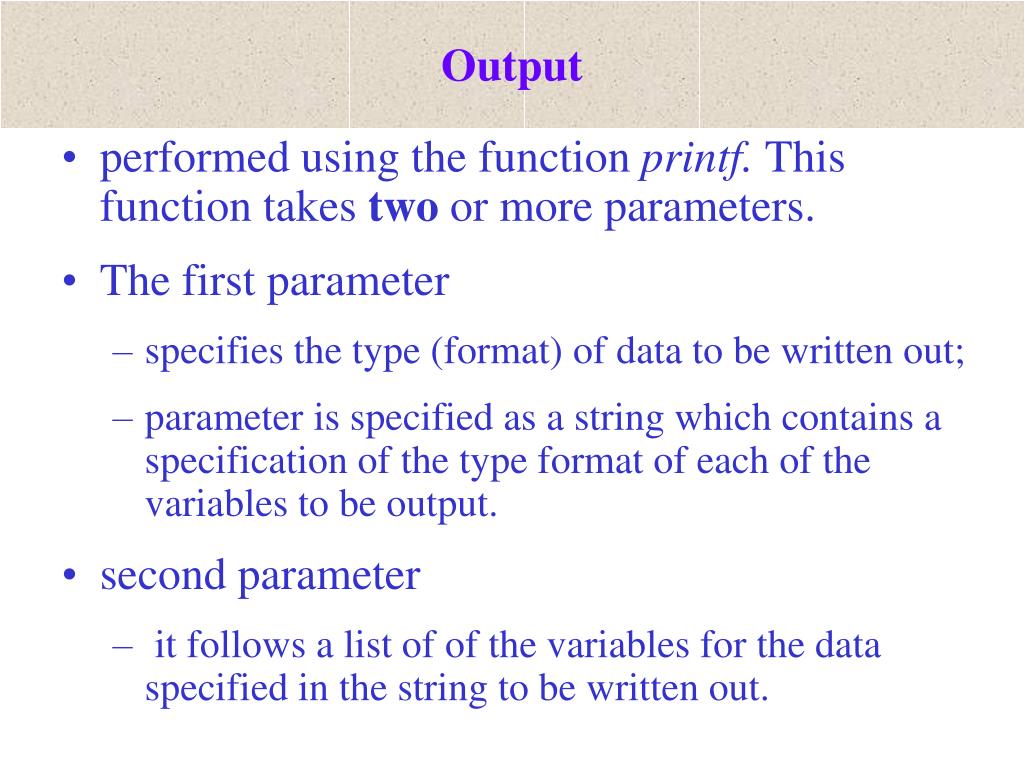

Output

  • performed using the function printf. This function takes two or more parameters.

  • The first parameter

    • specifies the type (format) of data to be written out;

    • parameter is specified as a string which contains a specification of the type format of each of the variables to be output.

  • second parameter

    • it follows a list of of the variables for the data specified in the string to be written out.


Output examples

Output Examples

int x,y;

float z;

char ch;

printf(“%d”, x); /*%d specifies to write one integer */

printf(“%f”, z); /* “%f” specifies to write one float */

printf(“%c”, ch); /* “%c” specifies write one character */

prinff(“%d”, ch); /* it writes the integer value of it */

printf(“%d %d”, x,y);/*”%d%d” writes 2 integers*/

printf(“%f %d”, z, y); /*”%f%d” specifies to write one float followed by one integer */

printf(“%c %f %d %d”, &ch, &z, &x,&y);

  • To print strings we can do:printf(“Hello there”); /* or */

    printf(“%s”, “Hello there”);

  • We can also mix strings within % specifiers:printf(“The square root of %d is %f”, x, z);
