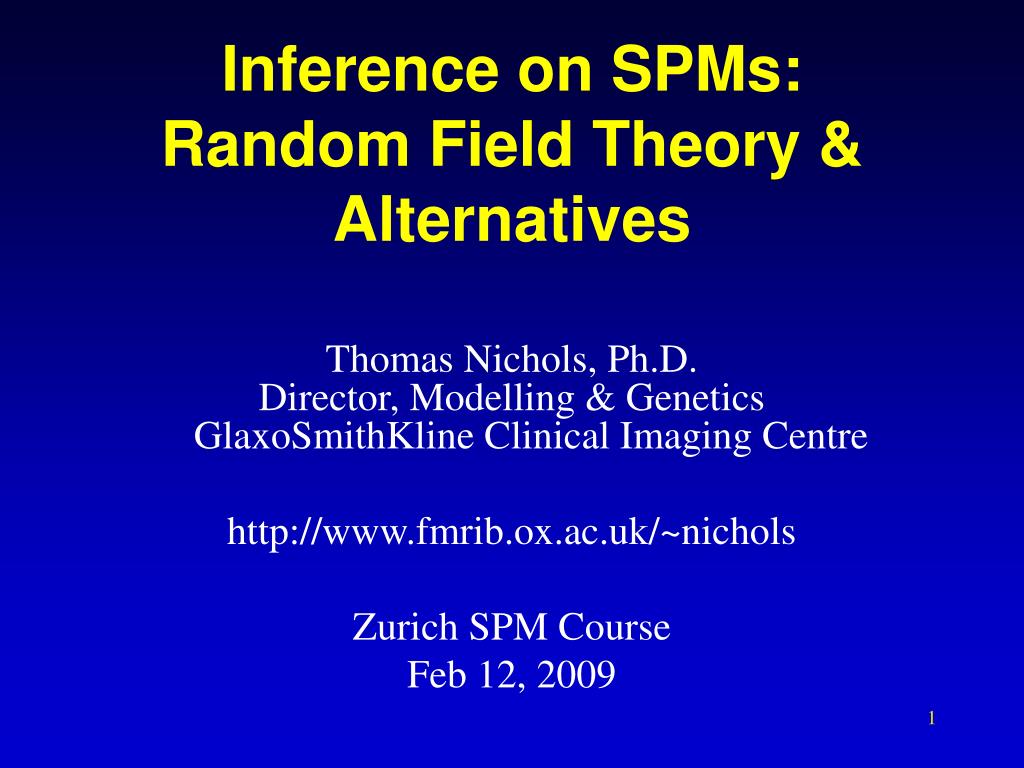

Inference on SPMs: Random Field Theory & Alternatives. Thomas Nichols, Ph.D. Director, Modelling & Genetics GlaxoSmithKline Clinical Imaging Centre http://www.fmrib.ox.ac.uk/~nichols Zurich SPM Course Feb 12, 2009. image data. parameter estimates. design matrix. kernel.

ima
Download Presentation

Inference on SPMs: Random Field Theory & Alternatives

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Inference on SPMs:Random Field Theory & Alternatives Thomas Nichols, Ph.D. Director, Modelling & GeneticsGlaxoSmithKline Clinical Imaging Centre http://www.fmrib.ox.ac.uk/~nichols Zurich SPM Course Feb 12, 2009

  2. image data parameter estimates designmatrix kernel Thresholding &Random Field Theory • General Linear Model • model fitting • statistic image realignment &motioncorrection smoothing normalisation StatisticalParametric Map anatomicalreference Corrected thresholds & p-values

  3. Outline • Orientation • Assessing Statistic images • The Multiple Testing Problem • Random Field Theory & FWE • Permutation & FWE • False Discovery Rate

  4. Outline • Orientation • Assessing Statistic images • The Multiple Testing Problem • Random Field Theory & FWE • Permutation & FWE • False Discovery Rate

  5. t > 0.5 t > 3.5 t > 5.5 Assessing Statistic Images Where’s the signal? High Threshold Med. Threshold Low Threshold Good SpecificityPoor Power(risk of false negatives) Poor Specificity(risk of false positives)Good Power • ...but why threshold?!

  6. Blue-sky inference:What we’d like • Don’t threshold, model the signal! • Signal location? • Estimates and CI’s on(x,y,z) location • Signal magnitude? • CI’s on % change • Spatial extent? • Estimates and CI’s on activation volume • Robust to choice of cluster definition • ...but this requires an explicit spatial model space

  7. Blue-sky inference:What we need • Need an explicit spatial model • No routine spatial modeling methods exist • High-dimensional mixture modeling problem • Activations don’t look like Gaussian blobs • Need realistic shapes, sparse • Some initial work • Hartvig et al., Penny et al., Xu et al. • Not part of mass-univariate framework

  8. Real-life inference:What we get • Signal location • Local maximum – no inference • Center-of-mass – no inference • Sensitive to blob-defining-threshold • Signal magnitude • Local maximum intensity – P-values (& CI’s) • Spatial extent • Cluster volume – P-value, no CI’s • Sensitive to blob-defining-threshold

  9. Voxel-level Inference • Retain voxels above -level threshold u • Gives best spatial specificity • The null hyp. at a single voxel can be rejected u space Significant Voxels No significant Voxels

  10. Cluster-level Inference • Two step-process • Define clusters by arbitrary threshold uclus • Retain clusters larger than -level threshold k uclus space Cluster not significant Cluster significant k k

  11. Cluster-level Inference • Typically better sensitivity • Worse spatial specificity • The null hyp. of entire cluster is rejected • Only means that one or more of voxels in cluster active uclus space Cluster not significant Cluster significant k k

  12. Set-level Inference • Count number of blobs c • Minimum blob size k • Worst spatial specificity • Only can reject global null hypothesis uclus space k k Here c = 1; only 1 cluster larger than k

  13. Outline • Orientation • Assessing Statistic images • The Multiple Testing Problem • Random Field Theory & FWE • Permutation & FWE • False Discovery Rate

  14. u  Null Distribution of T t P-val Null Distribution of T Hypothesis Testing • Null Hypothesis H0 • Test statistic T • t observed realization of T •  level • Acceptable false positive rate • Level  = P( T>u | H0) • Threshold u controls false positive rate at level  • P-value • Assessment of t assuming H0 • P( T > t | H0 ) • Prob. of obtaining stat. as largeor larger in a new experiment • P(Data|Null) not P(Null|Data)

  15. t > 2.5 t > 4.5 t > 0.5 t > 1.5 t > 3.5 t > 5.5 t > 6.5 Multiple Testing Problem • Which of 100,000 voxels are sig.? • =0.05  5,000 false positive voxels • Which of (random number, say) 100 clusters significant? • =0.05  5 false positives clusters

  16. MTP Solutions:Measuring False Positives • Familywise Error Rate (FWE) • Familywise Error • Existence of one or more false positives • FWE is probability of familywise error • False Discovery Rate (FDR) • FDR = E(V/R) • R voxels declared active, V falsely so • Realized false discovery rate: V/R

  17. MTP Solutions:Measuring False Positives • Familywise Error Rate (FWE) • Familywise Error • Existence of one or more false positives • FWE is probability of familywise error • False Discovery Rate (FDR) • FDR = E(V/R) • R voxels declared active, V falsely so • Realized false discovery rate: V/R

  18. FWE MTP Solutions: Bonferroni • For a statistic image T... • Tiith voxel of statistic image T ...use  = 0/V • 0 FWE level (e.g. 0.05) • V number of voxels • u -level statistic threshold, P(Ti u) =  Conservative under correlation Independent: V tests Some dep.: ? tests Total dep.: 1 test

  19. Outline • Orientation • Assessing Statistic images • The Multiple Testing Problem • Random Field Theory & FWE • Permutation & FWE • False Discovery Rate

  20. FWE MTP Solutions: Controlling FWE w/ Max • FWE & distribution of maximum FWE = P(FWE) = P( i {Tiu} | Ho) = P( maxiTi u | Ho) • 100(1-)%ile of max distn controls FWE FWE = P( maxiTi u | Ho) =  • where u = F-1max (1-) . u

  21. FWE MTP Solutions:Random Field Theory • Euler Characteristic u • Topological Measure • #blobs - #holes • At high thresholds,just counts blobs • FWE = P(Max voxel u | Ho) = P(One or more blobs | Ho) P(u  1 | Ho) E(u| Ho) Threshold Random Field No holes Never more than 1 blob Suprathreshold Sets

  22. FWHM Autocorrelation Function Random Field TheorySmoothness Parameterization • E(u) depends on ||1/2 •  roughness matrix: • Smoothness parameterized as Full Width at Half Maximum • FWHM of Gaussian kernel needed to smooth a whitenoise random field to roughness 

  23. 1 2 3 4 5 6 7 8 9 10 1 2 3 4 Random Field TheorySmoothness Parameterization • RESELS • Resolution Elements • 1 RESEL = FWHMx FWHMy FWHMz • RESEL Count R • R = () || = (4log2)3/2 () / ( FWHMx FWHMy FWHMz ) • Volume of search region in units of smoothness • Eg: 10 voxels, 2.5 FWHM 4 RESELS • Beware RESEL misinterpretation • RESEL are not “number of independent ‘things’ in the image” • See Nichols & Hayasaka, 2003, Stat. Meth. in Med. Res. .

  24. Random Field Intuition • Corrected P-value for voxel value t Pc = P(max T > t) E(t) () ||1/2t2 exp(-t2/2) • Statistic value t increases • Pc decreases (but only for large t) • Search volume increases • Pc increases (more severe MTP) • Smoothness increases (roughness ||1/2 decreases) • Pc decreases (less severe MTP)

  25. Expected Cluster Size E(S) = E(N)/E(L) S cluster size N suprathreshold volume({T > uclus}) L number of clusters E(N) = () P( T > uclus ) E(L)  E(u) Assuming no holes 5mm FWHM 10mm FWHM 15mm FWHM Random Field TheoryCluster Size Tests

  26. RFT Cluster Inference & Stationarity VBM:Image of FWHM Noise Smoothness • Problem w/ VBM • Standard RFT result assumes stationarity, constant smoothness • Assuming stationarity, false positive clusters will be found in extra-smooth regions • VBM noise very non-stationary • Nonstationary cluster inference • Must un-warp nonstationarity • Reported but not implemented • Hayasaka et al, NeuroImage 22:676– 687, 2004 • Now available in SPM toolboxes • http://fmri.wfubmc.edu/cms/software#NS • Gaser’s VBM toolbox (w/ recent update!) Nonstationarynoise… …warped to stationarity

  27. Lattice ImageData  Continuous Random Field Random Field Theory Limitations • Sufficient smoothness • FWHM smoothness 3-4× voxel size (Z) • More like ~10× for low-df T images • Smoothness estimation • Estimate is biased when images not sufficiently smooth • Multivariate normality • Virtually impossible to check • Several layers of approximations • Stationary required for cluster size results

  28. Active ... ... yes Baseline ... ... D UBKDA N XXXXX no Real Data • fMRI Study of Working Memory • 12 subjects, block design Marshuetz et al (2000) • Item Recognition • Active:View five letters, 2s pause, view probe letter, respond • Baseline: View XXXXX, 2s pause, view Y or N, respond • Second Level RFX • Difference image, A-B constructedfor each subject • One sample t test

  29. Real Data:RFT Result • Threshold • S = 110,776 • 2  2  2 voxels5.1  5.8  6.9 mmFWHM • u = 9.870 • Result • 5 voxels above the threshold • 0.0063 minimumFWE-correctedp-value -log10 p-value

  30. Outline • Orientation • Assessing Statistic images • The Multiple Testing Problem • Random Field Theory & FWE • Permutation & FWE • False Discovery Rate

  31. 5% Parametric Null Distribution 5% Nonparametric Null Distribution Nonparametric Inference • Parametric methods • Assume distribution ofstatistic under nullhypothesis • Needed to find P-values, u • Nonparametric methods • Use data to find distribution of statisticunder null hypothesis • Any statistic!

  32. 5% Parametric Null Max Distribution 5% Nonparametric Null Max Distribution Controlling FWE: Permutation Test • Parametric methods • Assume distribution ofmax statistic under nullhypothesis • Nonparametric methods • Use data to find distribution of max statisticunder null hypothesis • Again, any max statistic!

  33. Permutation TestOther Statistics • Collect max distribution • To find threshold that controls FWE • Consider smoothed variance t statistic • To regularize low-df variance estimate

  34. mean difference Permutation TestSmoothed Variance t • Collect max distribution • To find threshold that controls FWE • Consider smoothed variance t statistic t-statistic variance

  35. Permutation TestSmoothed Variance t • Collect max distribution • To find threshold that controls FWE • Consider smoothed variance t statistic SmoothedVariancet-statistic mean difference smoothedvariance

  36. Permutation TestStrengths • Requires only assumption of exchangeability • Under Ho, distribution unperturbed by permutation • Allows us to build permutation distribution • Subjects are exchangeable • Under Ho, each subject’s A/B labels can be flipped • fMRI scans not exchangeable under Ho • Due to temporal autocorrelation

  37. Permutation TestLimitations • Computational Intensity • Analysis repeated for each relabeling • Not so bad on modern hardware • No analysis discussed below took more than 3 hours • Implementation Generality • Each experimental design type needs unique code to generate permutations • Not so bad for population inference with t-tests

  38. Active ... ... yes Baseline ... ... D UBKDA N XXXXX no Permutation TestExample • fMRI Study of Working Memory • 12 subjects, block design Marshuetz et al (2000) • Item Recognition • Active:View five letters, 2s pause, view probe letter, respond • Baseline: View XXXXX, 2s pause, view Y or N, respond • Second Level RFX • Difference image, A-B constructedfor each subject • One sample, smoothed variance t test

  39. Maximum Intensity Projection Thresholded t Permutation DistributionMaximum t Permutation TestExample • Permute! • 212 = 4,096 ways to flip 12 A/B labels • For each, note maximum of t image .

  40. Permutation TestExample • Compare with Bonferroni •  = 0.05/110,776 • Compare with parametric RFT • 110,776 222mm voxels • 5.15.86.9mm FWHM smoothness • 462.9 RESELs

  41. 378 sig. vox. Smoothed Variance t Statistic,Nonparametric Threshold Test Level vs. t11 Threshold uRF = 9.87uBonf = 9.805 sig. vox. uPerm = 7.67 58 sig. vox. t11Statistic, Nonparametric Threshold t11Statistic, RF & Bonf. Threshold

  42. Reliability with Small Groups • Consider n=50 group study • Event-related Odd-Ball paradigm, Kiehl, et al. • Analyze all 50 • Analyze with SPM and SnPM, find FWE thresh. • Randomly partition into 5 groups 10 • Analyze each with SPM & SnPM, find FWE thresh • Compare reliability of small groups with full • With and without variance smoothing . Skip

  43. SPM t11: 5 groups of 10 vs all 505% FWE Threshold T>10.93 T>11.04 T>11.01 10 subj 10 subj 10 subj 2 8 11 15 18 35 41 43 44 50 1 3 20 23 24 27 28 32 34 40 9 13 14 16 19 21 25 29 30 45 T>10.69 T>10.10 T>4.66 10 subj 10 subj all 50 4 5 10 22 31 33 36 39 42 47 6 7 12 17 26 37 38 46 48 49

  44. SnPM t: 5 groups of 10 vs. all 505% FWE Threshold T>9.00 Arbitrary thresh of 9.0 T>7.06 T>8.28 T>6.3 10 subj 10 subj 10 subj 2 8 11 15 18 35 41 43 44 50 1 3 20 23 24 27 28 32 34 40 9 13 14 16 19 21 25 29 30 45 T>6.49 T>6.19 T>4.09 10 subj 10 subj all 50 4 5 10 22 31 33 36 39 42 47 6 7 12 17 26 37 38 46 48 49

  45. SnPM SmVar t: 5 groups of 10 vs. all 505% FWE Threshold T>9.00 all 50 Arbitrary thresh of 9.0 T>4.69 T>5.04 T>4.57 10 subj 10 subj 10 subj 2 8 11 15 18 35 41 43 44 50 1 3 20 23 24 27 28 32 34 40 9 13 14 16 19 21 25 29 30 45 T>4.84 T>4.64 10 subj 10 subj 4 5 10 22 31 33 36 39 42 47 6 7 12 17 26 37 38 46 48 49

  46. Outline • Orientation • Assessing Statistic images • The Multiple Testing Problem • Random Field Theory & FWE • Permutation & FWE • False Discovery Rate

  47. MTP Solutions:Measuring False Positives • Familywise Error Rate (FWE) • Familywise Error • Existence of one or more false positives • FWE is probability of familywise error • False Discovery Rate (FDR) • FDR = E(V/R) • R voxels declared active, V falsely so • Realized false discovery rate: V/R

  48. False Discovery RateIllustration: Noise Signal Signal+Noise

  49. 11.3% 11.3% 12.5% 10.8% 11.5% 10.0% 10.7% 11.2% 10.2% 9.5% 6.7% 10.5% 12.2% 8.7% 10.4% 14.9% 9.3% 16.2% 13.8% 14.0% Control of Per Comparison Rate at 10% Percentage of Null Pixels that are False Positives Control of Familywise Error Rate at 10% FWE Occurrence of Familywise Error Control of False Discovery Rate at 10% Percentage of Activated Pixels that are False Positives

  50. p(i) i/V q Benjamini & HochbergProcedure • Select desired limit q on FDR • Order p-values, p(1)p(2) ...  p(V) • Let r be largest i such that • Reject all hypotheses corresponding top(1), ... , p(r). JRSS-B (1995)57:289-300 1 p(i) p-value i/V q 0 0 1 i/V
