Presentation Transcript


Slide1 l.jpg

Human Factors and Fitts’ Law

Ken Goldberg, IEOR and EECS, UC Berkeley


What is ergonomics l.jpg

What is Ergonomics?

Prof. Wojciech Jastrzebowski

in Poland in 1857:

From two Greek words

Ergon meaning work

and

Nomos meaning principles or laws

Ergonomics = The Science of Work


Common definitions l.jpg

What is Ergonomics?

Common Definitions

“Ergonomics is essentially fitting the workplace to the worker. The better the fit the higher the level of safety and worker efficiency.” Fitting the Task to the Human ~ Grandjean 1990

“Ergonomics removes barriers to quality, productivity and human performance by fitting products, tasks, and environments to people.” ErgoWeb.com


Human factors l.jpg

Human Factors

What Is Human Factors?

The following definition was adopted by the International Ergonomics Association in August 2000:

Ergonomics (or human factors) is the scientific discipline concerned with the understanding of interactions among humans and other elements of a system, and the profession that applies theory, principles, data, and other methods to design in order to optimize human well-being and overall system performance.


Human factors and ergonomics l.jpg

Human Factors and Ergonomics

  • Britain - The Ergonomic Society was formed in 1952 with people from psychology, biology, physiology, and design.

  • United States - The Human Factors Society was formed in 1957. In the US "human factors engineering" was emphasized by the US military with concentration on human engineering and engineering psychology.


Slide7 l.jpg

from Mike Mandel, Making Good Time (CMP Bulletin vol. 8 no. 2, California Museum of Photography, UC California, Riverside, 1989)


Gilbreth video l.jpg

Gilbreth Video


Slide9 l.jpg

Hawthorne Effect

Worker Study (1927 - 1932) of the Hawthorne Plant of the Western Electric Company in Cicero, Illinois. Led by Harvard Business School professor Elton Mayo: Effect of varying light levels on Productivity.


Slide12 l.jpg

Measure of Man, Henry Dreyfuss, 1960


Slide13 l.jpg

Occupational Safety and Health Administration,

(OSHA, 1970, www.osha.gov)


Neutral posture for computer use l.jpg

Neutral Posture for Computer Use

Position the monitor about an arm’s length away directly in front of you. The top of the screen no higher than eye level (Unless the user wears bi-focal glasses)

Adjust the seat height so upper arms hang vertically, elbows bent about 90 degrees, shoulders relaxed and wrists fairly straight

Use a document holder close to the monitor rather than laying papers flat

Adjust the back rest to provide firm support to the small of the back

Mouse should be next to keyboard both at a height equivalent to the user’s seated elbow height

Knees comfortably bent with feet resting on the floor. If the chair is raised so the keyboard height equals elbow height, use a footrest .


Paul m fitts 1954 l.jpg

Paul M. Fitts, 1954

Fitts connected the speed-accuracy tradeoff of choice reaction times to reaching movement tasks


Fitts law l.jpg

A

W

ID

A

W

Fitts’ “Law”

  • T = a + b log2( )

Parameters a, b experimentally determined


Alternative square root law l.jpg

Alternative: Square-root Law

  • Fitts’ Logarithmic Law is not derived using biomechanics and kinematics

  • We derive a “Square-root” Law:

    based on 2 simple assumptions


Assumption 1 l.jpg

Assumption 1

Acceleration ( ) is piecewise constant


Assumption 2 l.jpg

Assumption 2

Acceleration is proportional to target width

Wider targets are easier to reach

 larger accelerations possible


Optimal control l.jpg

Optimal Control

  • Given a bound on , Fastest way to reach a target is to use “bang-bang” control

T/2

T


Optimal bang bang control velocity l.jpg

Optimal Bang-Bang Control Velocity

s = T/2

T

Position at time T:


Optimal bang bang control position l.jpg

A

A

2

Optimal Bang-Bang Control Position

T

s = T/2


Optimal binary acceleration model l.jpg

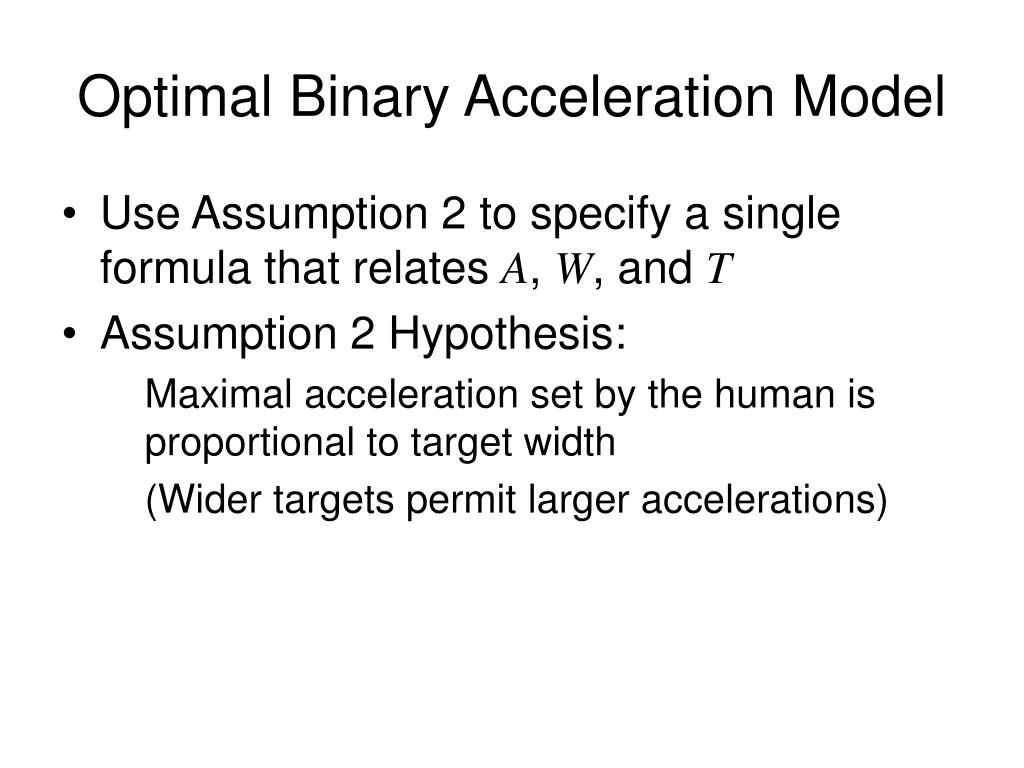

Optimal Binary Acceleration Model

  • Use Assumption 2 to specify a single formula that relates A, W, and T

  • Assumption 2 Hypothesis:

    Maximal acceleration set by the human is proportional to target width

    (Wider targets permit larger accelerations)


Optimal binary acceleration model25 l.jpg

Optimal Binary Acceleration Model

  • Assume:

  • Optimal bang-bang model:

  • Add reaction time a:

  • Parameters a,b set from experimental data


First mouse douglas engelbart and william english 1964 l.jpg

First Mouse (Douglas Engelbart and William English, 1964)


First mouse patent engelbart l.jpg

First Mouse Patent (Engelbart)

(Shumin Zhai, IBM Almaden Research Center)


Modern input devices l.jpg

Modern Input Devices


Fitts law java applet l.jpg

Fitts’ Law Java Applet


Experimental tests l.jpg

Experimental Tests

Homogeneous Cursor Motions

Heterogeneous Cursor Motions

Fixed Rectangle Test

Variable Rectangle Test

Circle Test


Available data l.jpg

Available Data

  • Original data set:

    • 2232 users for fixed rectangle tests

    • 2466 users for variable rectangle tests

    • 1897 users for circle test

    • User did not complete all trials  Removed

    • User has outlier points  Removed

  • Final data set:

    • 1640 users for fixed rectangle tests

    • 1996 users for variable rectangle tests

    • 1561 users for circle tests


Model parameters l.jpg

Model Parameters

  • Parameter set using least-squares linear regression for each user

  • Average parameters over all users:


Typical user l.jpg

Typical User


Models with lowest rms error l.jpg

Models with Lowest RMS Error


Effect size l.jpg

Effect Size

  • Mean signed difference in RMS errors between the Square-root Law and Fitts’ Logarithmic Law, as a percent of the mean RMS error for Fitts’ Logarithmic Law, with 95% confidence intervals

Square-root Law better

Logarithmic Law better


Web based fitts law demo l.jpg

Web-Based Fitts’ Law Demo

www.tele-actor.net/fitts/


Human factors and ergonomics37 l.jpg

Human Factors and Ergonomics

  • Britain - The Ergonomic Society was formed in 1952

  • United States - The Human Factors Society was formed in 1957.


Slide38 l.jpg

Human Factors and Fitts’ Law

Ken Goldberg, IEOR and EECS, UC Berkeley


Cupstacking video l.jpg

Cupstacking Video


Outline l.jpg

Outline

  • Fitts’ Law Introduction

  • Kinematics Models of Fitts’ Task

    • Symmetric Binary Acceleration Model

    • Asymmetric Binary Acceleration Model

  • Fitts’ Task in HCI

  • Web-based Experiments


Choice reaction time task l.jpg

1

2

3

4

5

6

7

8

Choice Reaction Time Task

Stimulus: 1,…,N Response: 1,…,N

J. Merkel, 1885: Stimuli 1,…,N equally likely.

TR = a + b log2N

4


Information theory l.jpg

Information Theory

  • Base 2 logarithm of the number of alternatives is a measure of information

    Number of bits = log2N

    Corresponds to the average number of yes/no questions required to identify correct stimulus

  • In example:

    log2 8 = 3 bits


Fitts information theory approach l.jpg

Fitts’ Information Theory Approach

  • Define “information” encoded in a reaching moving task

  • Information transmitted I in a response is a measure of the reduction in uncertainty


Information transmitted l.jpg

1

2

3

4

5

6

7

8

Information Transmitted

7-8

  • # possibilities before event: 8

  • # possibilities after event: 2

  • Information transmitted: -log2(2/8) = 2 bits

  • Uncertainty: 1 bit

000

001

010

011

100

101

110

111


Discrete vs continuous choice l.jpg

1

2

3

4

5

6

7

8

Discrete vs. Continuous Choice

000

001

010

011

100

101

110

111

Target

StartPosition

Width W

Amplitude A


Fitts formulation l.jpg

Fitts’ Formulation

Number of possibilities after response: W

Number of possibilities before response: 2A

Information transmitted = Index of Difficulty


Weber fraction formulation of fitts task l.jpg

Weber Fraction Formulation of Fitts’ Task

  • Welford, 1968

  • Weber fraction: W/(A+0.5W)

Target

StartPosition

Width W

Amplitude A


Shannon formulation of fitts task l.jpg

Shannon Formulation of Fitts’ Task

  • Formulation based on Shannon’s Theorem[I. Scott MacKenzie 1992]

  • Shannon Formulation for Fitts’ Task:

  • C = Information capacity of communication channel

  • B = channel bandwidth

  • S = signal strength

  • N = noise power


Outline51 l.jpg

Outline

  • Fitts’ Law Introduction

  • Kinematics Models of Fitts’ Task

    • Symmetric Binary Acceleration Model

    • Asymmetric Binary Acceleration Model

  • Fitts’ Task in HCI

  • Web-based Experiments


Outline52 l.jpg

Outline

  • Fitts’ Law Introduction

  • Kinematics Models of Fitts’ Task

    • Symmetric Binary Acceleration Model

    • Asymmetric Binary Acceleration Model

  • Fitts’ Task in HCI

  • Web-based Experiments


Velocity profiles of fitts task l.jpg

Velocity Profiles of Fitts’ Task

  • Velocity profiles are asymmetric

  • Asymmetry increases as target width decreases

  • Amplitude has relatively little effect on asymmetry

[ ]

C.L. MacKenzie et al,1987


Asymmetric binary acceleration model l.jpg

Asymmetric Binary Acceleration Model

Assume: Percent time accelerating increases with W

Asymmetric velocity profile:

Acceleration is constant a

Deceleration set so distanceA reached at time T

s

T


Asymmetric velocity profile l.jpg

s

T

Asymmetric Velocity Profile


Asymmetric model position l.jpg

s

T

Asymmetric Model Position


Asymmetric binary acceleration model57 l.jpg

Asymmetric Binary Acceleration Model

  • Add reaction time a:

  • Parameters a,b set from experimental data

  • Same formula as Optimal Binary Acceleration Model;Different assumptions and derivations


Optimal binary acceleration model58 l.jpg

Optimal Binary Acceleration Model

Velocity v

a

Movement Time T


Asymmetric binary acceleration model59 l.jpg

Asymmetric Binary Acceleration Model

s

Velocity v

Movement Time T


Outline60 l.jpg

Outline

  • Fitts’ Law Introduction

  • Kinematics Models of Fitts’ Task

    • Symmetric Binary Acceleration Model

    • Asymmetric Binary Acceleration Model

  • Fitts’ Task in HCI

  • Web-based Experiments


Mouse l.jpg

Mouse

  • First mouse (1964): Douglas Engelbart and William English
