N k tovey m a phd ceng mice cenv

NBSLM01E Climate Change and Energy: Past, Present and Future

N.K. Tovey (杜伟贤) M.A, PhD, CEng, MICE, CEnv

Н.К.Тови М.А., д-р технических наук

Energy Science DirectorCRedProject

HSBC Director of Low Carbon Innovation

  • 10. Energy Balance Tables

Recipient of James Watt Gold Medal

1


N k tovey m a phd ceng mice cenv

Energy Balance Tables

  • Energy balance tables provide information on:

    • Overall energy consumption in a country for a given year.

    • Details of production and consumption of specific fuels

  • Allow overall efficiency of energy use within a country to be ascertained

  • Give information on energy losses

  • Give information on sector split of energy consumption

  • Information from Balance tables is needed as a first stage in an accurate estimate of carbon emission factors in a country


Energy balance tables

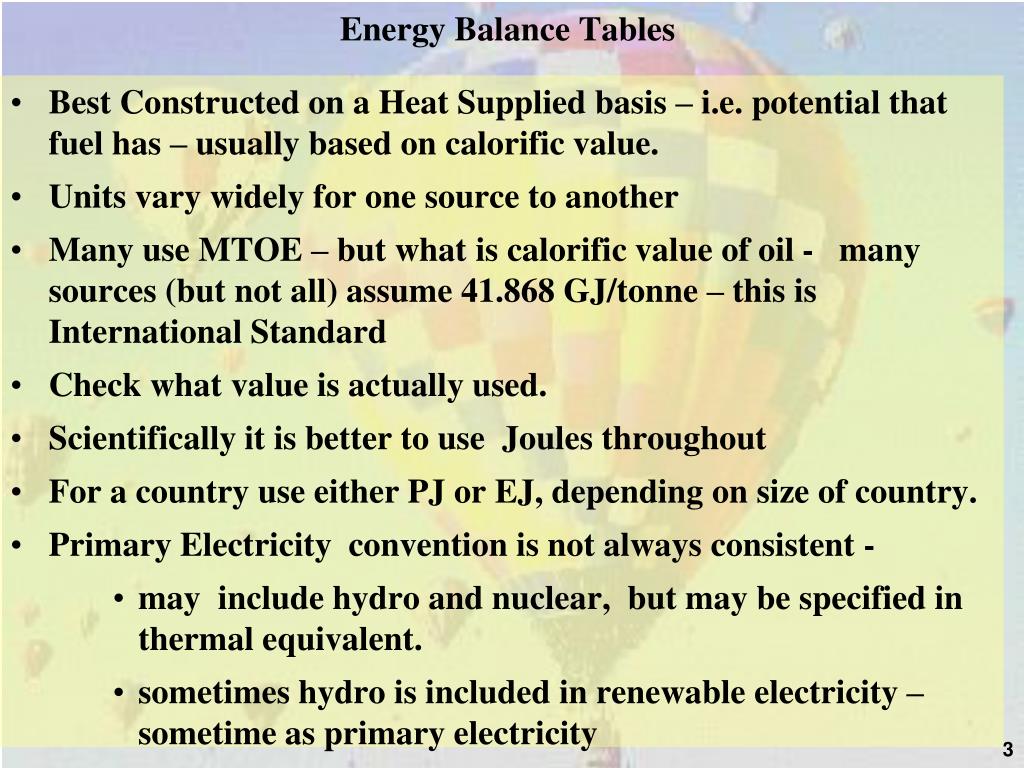

Energy Balance Tables

  • Best Constructed on a Heat Supplied basis – i.e. potential that fuel has – usually based on calorific value.

  • Units vary widely for one source to another

  • Many use MTOE – but what is calorific value of oil - many sources (but not all) assume 41.868 GJ/tonne – this is International Standard

  • Check what value is actually used.

  • Scientifically it is better to use Joules throughout

  • For a country use either PJ or EJ, depending on size of country.

  • Primary Electricity convention is not always consistent -

    • may include hydro and nuclear, but may be specified in thermal equivalent.

    • sometimes hydro is included in renewable electricity – sometime as primary electricity


N k tovey m a phd ceng mice cenv

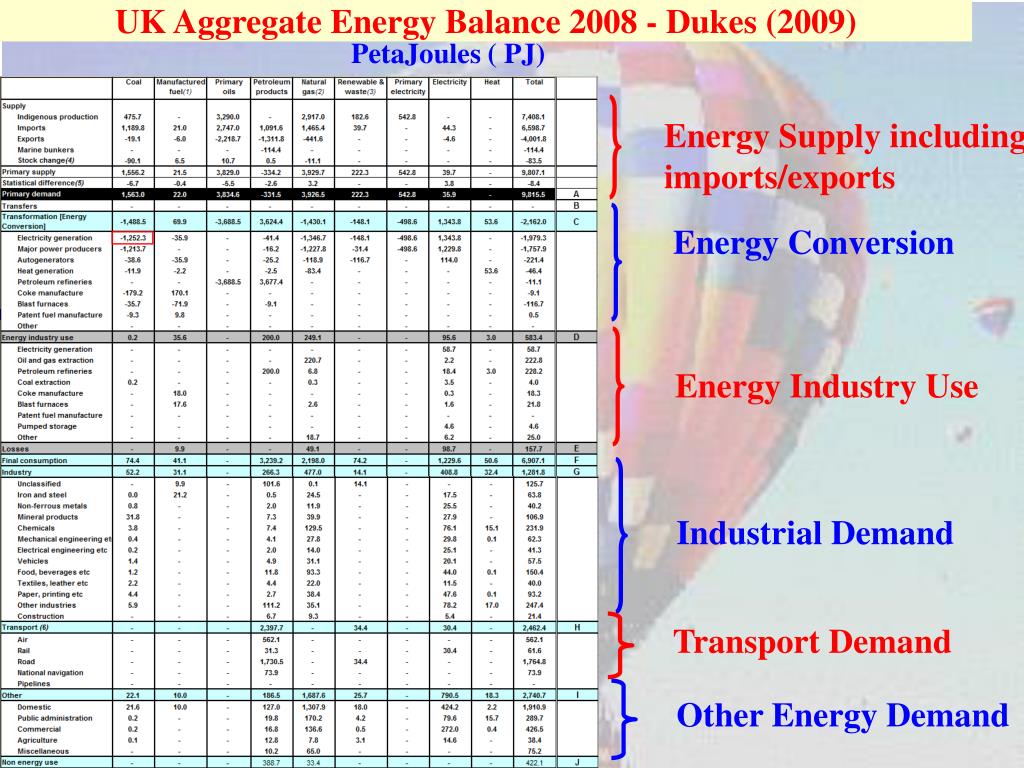

UK Aggregate Energy Balance 2008 - Dukes (2009)

Energy Supply including imports/exports

Energy Conversion

Energy Industry Use

Industrial Demand

Transport Demand

Other Energy Demand

PetaJoules ( PJ)


N k tovey m a phd ceng mice cenv

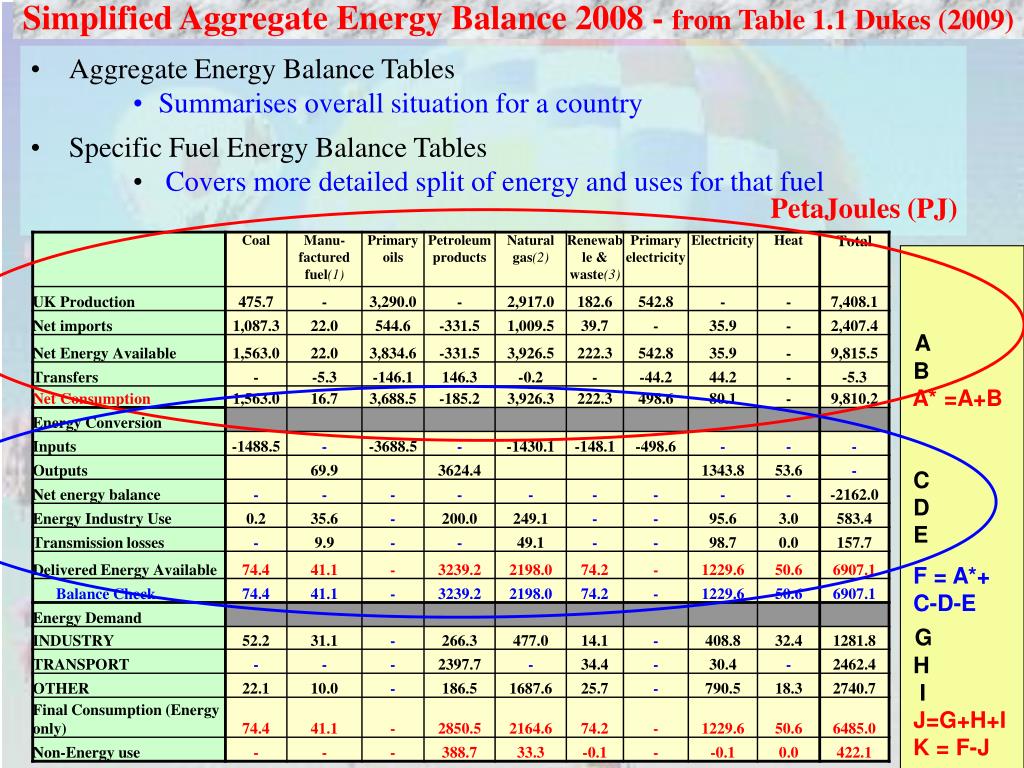

Simplified Aggregate Energy Balance 2008 - from Table 1.1 Dukes (2009)

  • Aggregate Energy Balance Tables

    • Summarises overall situation for a country

  • Specific Fuel Energy Balance Tables

    • Covers more detailed split of energy and uses for that fuel

  • PetaJoules (PJ)

    A

    B

    A* =A+B

    C

    D

    E

    F = A*+

    C-D-E

    G

    H

    I

    J=G+H+I

    K = F-J

    5


    Simplified energy balance tables

    Simplified Energy Balance Tables

    Transfers represent transfers between columns – e.g. Primary electricity is generally large scale renewables and nuclear, but the non-nuclear component is transferred as it is not involved in the energy conversion process in next section.

    i.e 498.6 PJ is attributed to gross nuclear generation (i.e. before conversion), and 44.2 is transferred as renewables.

    A

    B

    A*

    6


    N k tovey m a phd ceng mice cenv

    Simplified Energy Balance Tables: Energy Conversion

    -ve quantities indicate inputs to conversion, +ve indicates outputs.

    1488.5 PJ of coal was used as input to conversion processes of which 1252.3 PJ (see box in full table) went to electricity production.

    3688.5 PJ of crude oil produced 3624.4 PJ of Petroleum products.

    7


    N k tovey m a phd ceng mice cenv

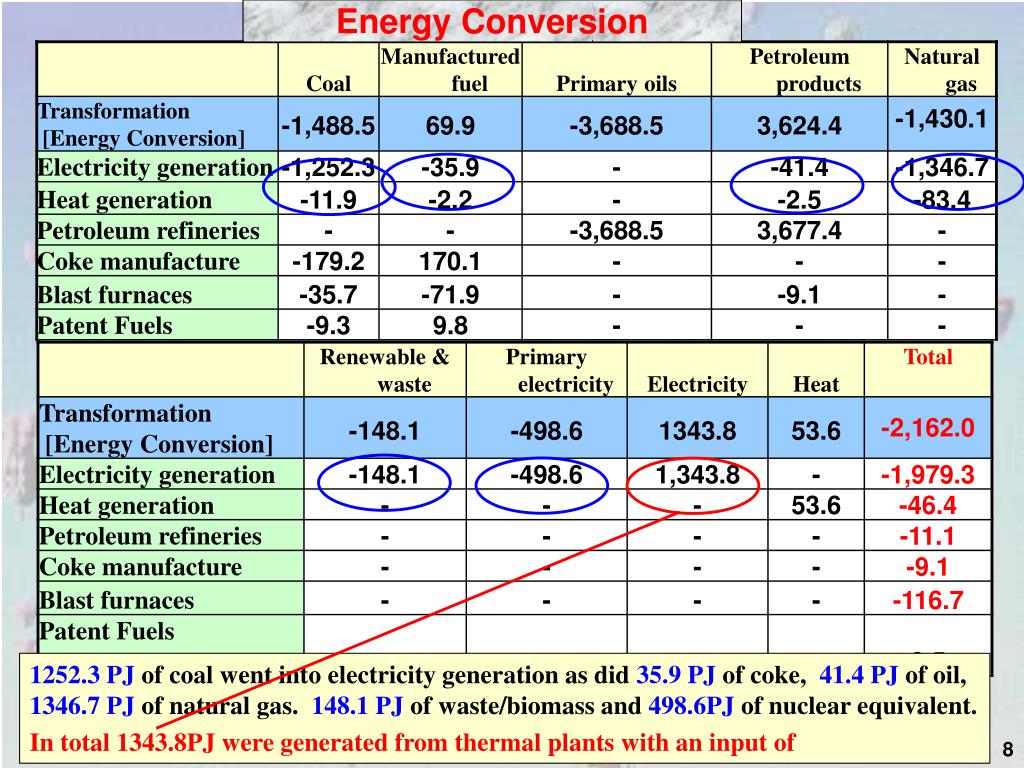

    Energy Conversion

    1252.3 PJ of coal went into electricity generation as did 35.9 PJ of coke, 41.4 PJ of oil, 1346.7 PJ of natural gas. 148.1 PJ of waste/biomass and 498.6PJ of nuclear equivalent.

    In total 1343.8PJ were generated from thermal plants with an input of

    8


    N k tovey m a phd ceng mice cenv

    Energy Conversion

    In 2008, 1252.3 PJ of coal went into electricity generation as did 35.9 PJ of coke, 41.4 PJ of oil, 1346.7 PJ of natural gas. 148.1 PJ of waste/biomass and 498.6PJ of nuclear equivalent.

    Total Input = 3323.1 PJ with 1343.8PJgenerated.

    Thus the overall thermodynamic efficiency of generation

    = 1343.8 / 3323.1 = 40.4%

    In the balance table 498.6PJ was nuclear input,

    actual amount of nuclear electricity generated = 498.6 * 0.404 = 201.6PJ

    Electricity use on stations = 58.7PJ (from full table)

    Overall station efficiency of fossil fuel plant allowing for station use

    = (1343.8 – 58.7 ) / 3323.1 = 38.67%

    Transmission Losses = 98.7PJ or 98.7/(1343.8-58.7) = 7.68%

    9


    N k tovey m a phd ceng mice cenv

    The supply of electricity is 1388.4 from thermal plants

    The total losses associated with the electricity industry

    = 58.7 + 98.7 + 4.6 = 162.1

    So first order Primary Energy Ratio for electricity

    = 3323.1/(1343.8 – 162.1) = 2.81

    assumes that the PER for coal, oil and gas is 1.0

    Similar first order analysis gives a PER of 1.11 for oil.

    Using an iterative approach second order estimates are obtained as follows.

    However, what about fuel extracted overseas. This second order analysis assumes that the PERs in those countries are same as UK.

    Energy Conversion

    Pumped Storage

    10


    Exercise on energy balance tables

    Exercise on Energy Balance Tables

    • Download the Electricity Balance Table Spreadsheet

    • Using the following approximate carbon factors work out the overall carbon emission factor for the countries allocated to you:

    • coal ~ 900 gms / kWh

    • oil ~ 800 gms / kWh

    • gas ~ 430 gms / kWh

    • nuclear ~ 15 gms /kWh

    • These factors vary according to efficiency of the plant and to some extent the actualgrade of the fuel.


    N k tovey m a phd ceng mice cenv

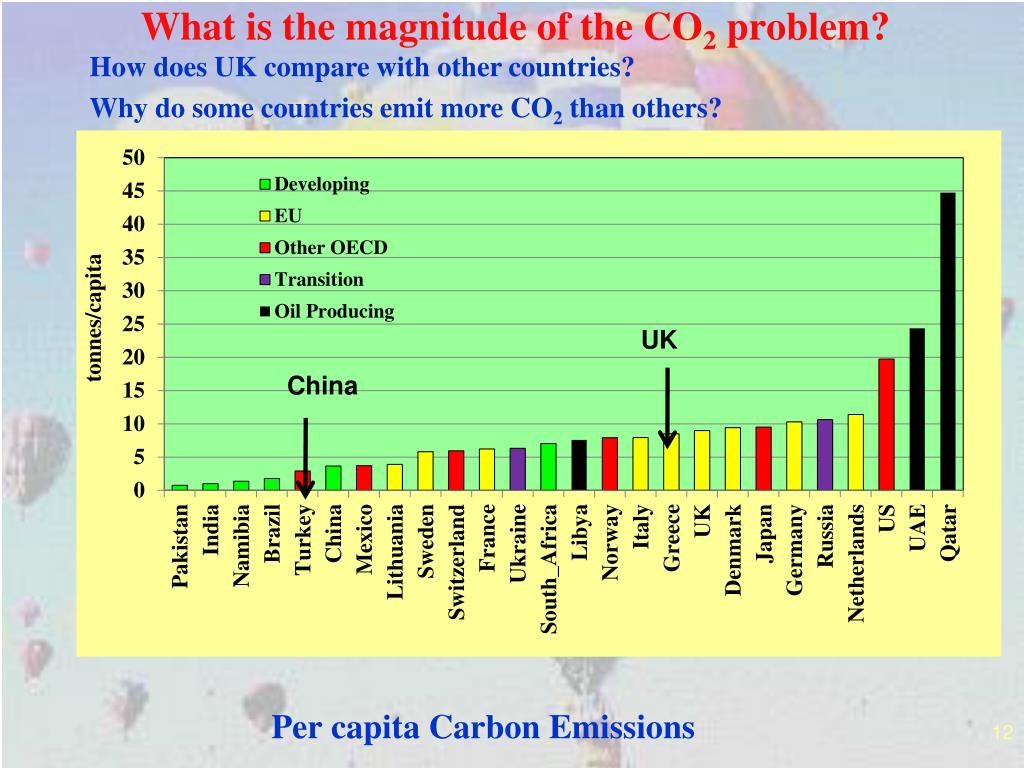

    What is the magnitude of the CO2 problem?

    How does UK compare with other countries?

    Why do some countries emit more CO2 than others?

    China

    UK

    Per capita Carbon Emissions

    12


    N k tovey m a phd ceng mice cenv

    13


    N k tovey m a phd ceng mice cenv

    r

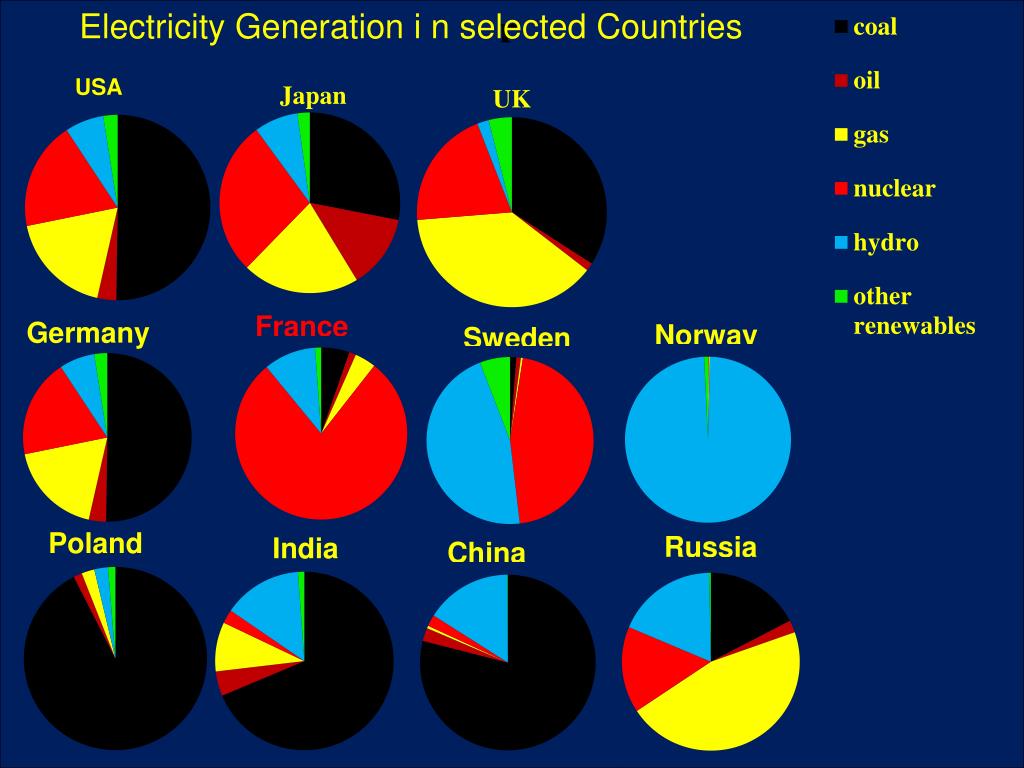

    Electricity Generation i n selected Countries


    A more accurate estimate of emission factor in electricity generation

    A more accurate estimate of emission factor in electricity generation

    • Emission factor in electricity generation depends on:

    • Carbon emission factor of burning fuel

    • Efficiency of power station

    • Transmission losses

    • Example Japan

    Data from IEA data base for Coal for Japan


    A more accurate estimate of emission factor in electricity generation1

    A more accurate estimate of emission factor in electricity generation

    Total coal based products consumed in power stations = 3096190 TJ

    Total Electricity generated 310796 GWH = 118866 TJ

    Efficiency of coal fired generation = 118866/3096190 = 36.14%

    Transmission Losses 4.50% so overall efficiency = 36.14 * 0.955 = 34.51%

    If carbon factor for direct combustion is ~ 320 g/kWh

    Carbon factor for coal generation = 320/0.3451 = 927 g/kWh

    If efficiency ~ 30% then carbon factor would have been 1067 g/kWh

    Figures in Red from IEA data base for Electricity (Japan)
