Presentation Transcript
Bellwork
Bellwork

  • Copy and complete the following Venn Diagram

Replication

Transcription


October 22 Bellwork: Copy the paragraph on a sheet of paper and fill in the blanks using these words: transcription, uracil, nucleus, DNA, RNA, U, ribose.

______________ is the process in which ____ is used to make ______. This process occurs in the ________ of the cell. RNA contains the nitrogen base ________, also referred to as ___. RNA contains the sugar _______.

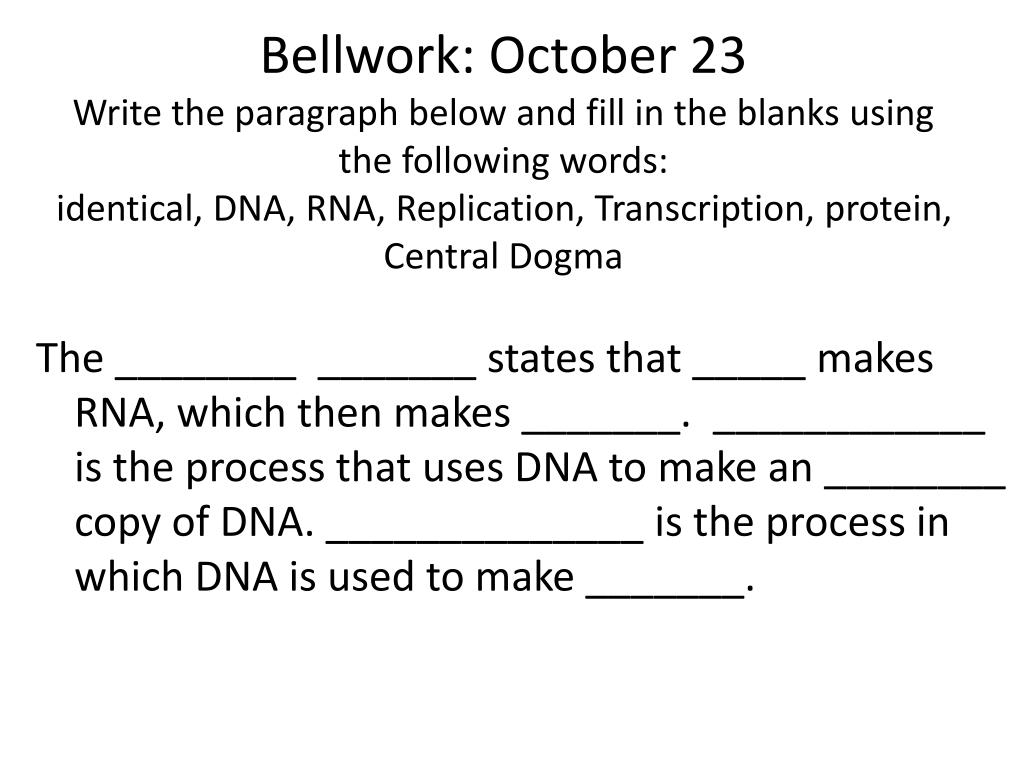

Bellwork: October 23Write the paragraph below and fill in the blanks using the following words:identical, DNA, RNA, Replication, Transcription, protein, Central Dogma

The ________ _______ states that _____ makes RNA, which then makes _______. ____________ is the process that uses DNA to make an ________ copy of DNA. ______________ is the process in which DNA is used to make _______.


Science fact of the day
Science Fact of the Day

  • The largest octopus is the Enteroctopusdofleini, also known as the giant Pacific octopus or North Pacific giant octopus. It has a 16 ft arm span and weighs about 110 pounds.


CO: I will understand and explain the process and purpose of translation.LO: I will write notes about translation. I will play a BINGO using a codon chart.


Central dogma

Copy and label the:

Central Dogma

DNA

RNA

Protein

Transcription

Translation

Ribosome

Nucleus



Remember our analogy from yesterday….DNA = master copy of building plansRNA= blueprint for one room of buildingProtein= actual bricks that make up the buildingNucleus = boss’ officeRibosome = assembly line (where the bricks are laid and a wall is built)

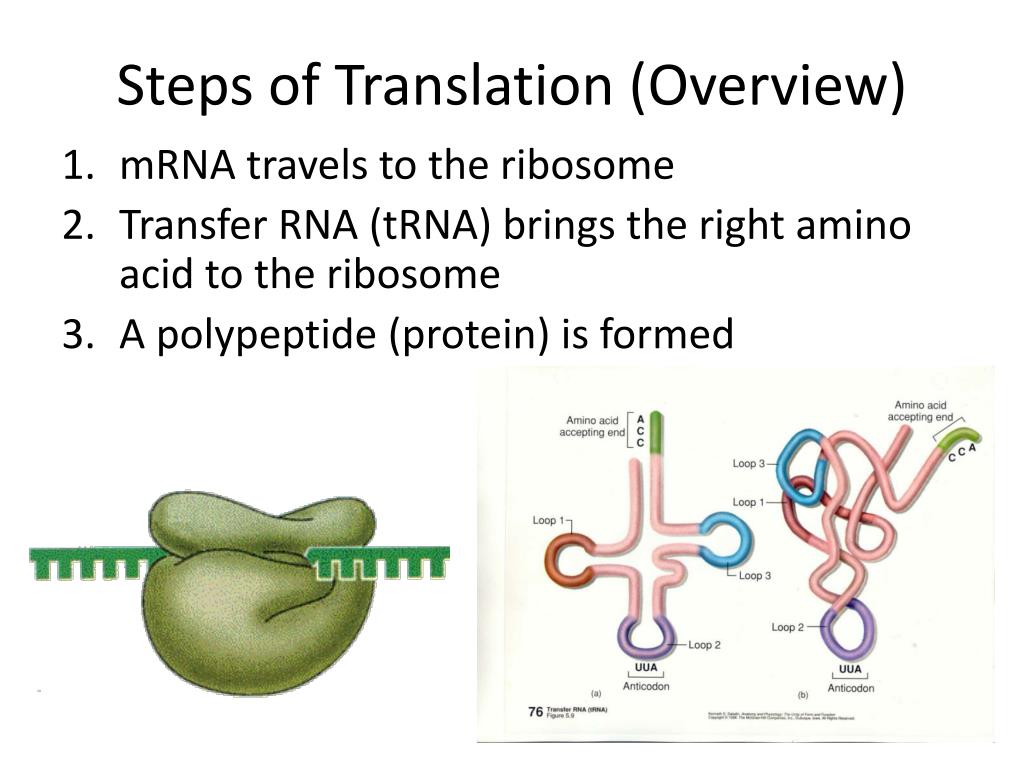

Steps of translation overview
Steps of Translation (Overview) known as

  • mRNA travels to the ribosome

  • Transfer RNA (tRNA) brings the right amino acid to the ribosome

  • A polypeptide (protein) is formed


How does trna know what amino acid to bring
How does known as tRNA “know” what amino acid to bring?


The genetic code (mRNA) is read known as three bases at a time.Each three-letter “word” is known as a codon.tRNA “looks” for the codon that pairs with its 3 nucleotide sequence (called an anticodon).When it connects the ribosome attaches the amino acid that tRNA was carrying to the polypeptide chain


ORDER MATTERS! known as

Order of DNA bases  order of RNA bases  order of amino acids  what protein is made

tRNA

Amino acid

mRNA

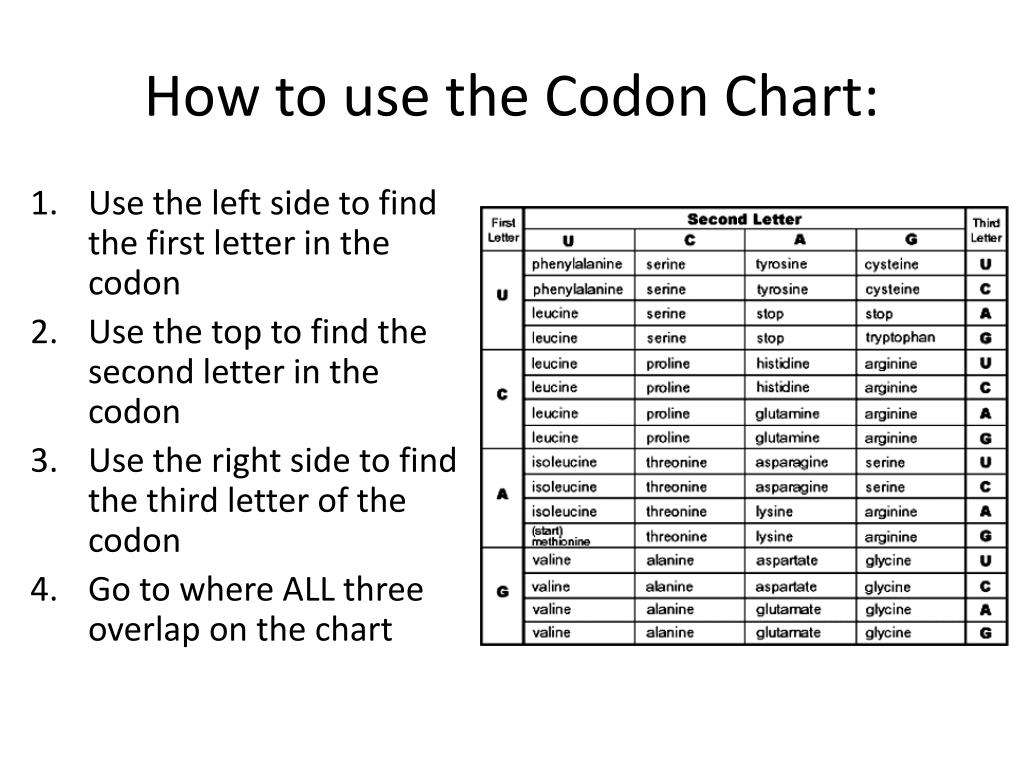

How to use the codon chart
How to use the Codon Chart: known as

  • Use the left side to find the first letter in the codon

  • Use the top to find the second letter in the codon

  • Use the right side to find the third letter of the codon

  • Go to where ALL three overlap on the chart

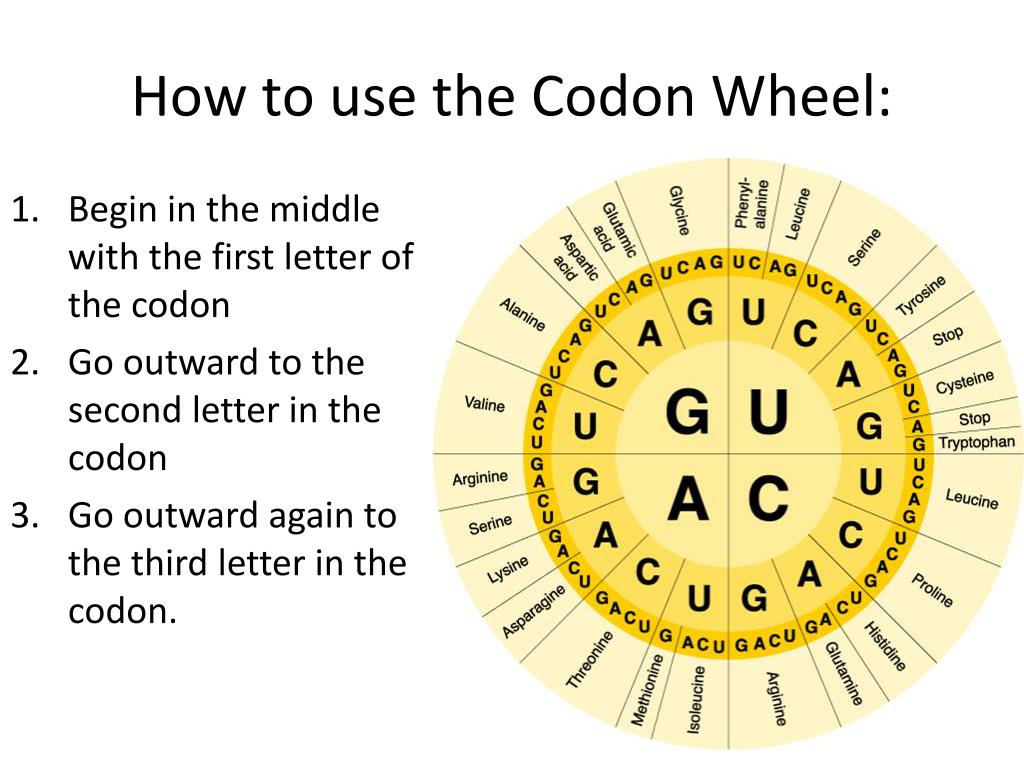

How to use the codon wheel
How to use the Codon Wheel: known as

  • Begin in the middle with the first letter of the codon

  • Go outward to the second letter in the codon

  • Go outward again to the third letter in the codon.


Did you notice?: The known as codon “AUG” can specify methionine or serve as the “start” codon for protein synthesis.


What codon will tell the ribosome to quit putting amino acids together what letters code for this
What known as codon will tell the ribosome to quit putting amino acids together? What letters code for this?


Codon bingo
Codon Bingo! known as

Directions For Playing:

If a codon (example: AAG) is called out, you must find the amino acid.

If an amino acid (example: serine) is called out, you must find the codon.

Hint! When finding a codon, there may be more than one answer…you can count all possible answers on your card!
