Foundry portable grinding and cutting off line

Foundry – Portable Grinding and Cutting-Off Line

  • Specially designed High Performance Foundry Grinding and Cutting-Off Wheels with Zirconium abrasive, for fast removal material and longer wheel life!


Foundry snagging wheels

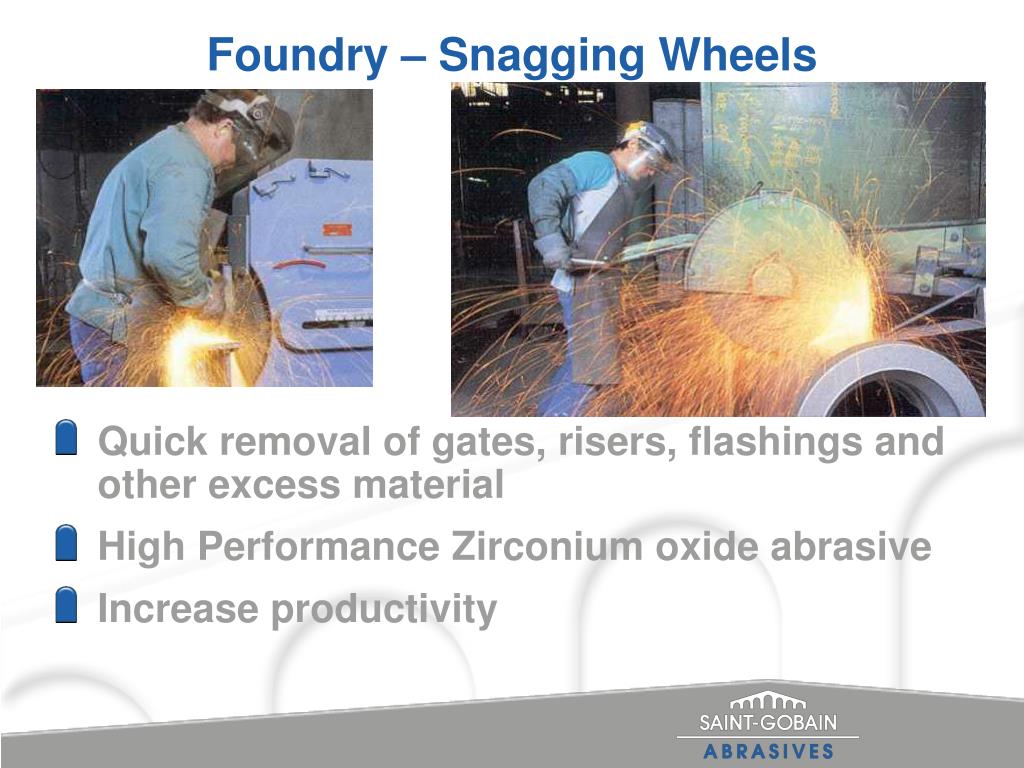

Foundry – Snagging Wheels

  • Quick removal of gates, risers, flashings and other excess material

  • High Performance Zirconium oxide abrasive

  • Increase productivity


Foundry portable snagging line

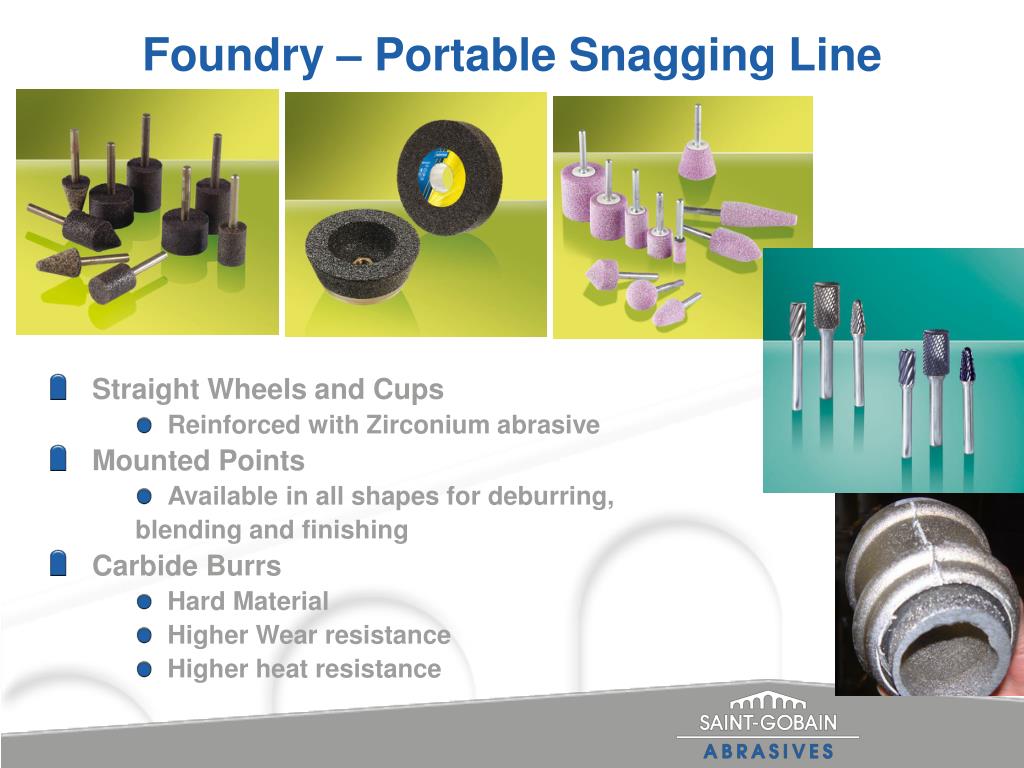

Foundry – Portable Snagging Line

  • Straight Wheels and Cups

    • Reinforced with Zirconium abrasive

  • Mounted Points

    • Available in all shapes for deburring,

      blending and finishing

  • Carbide Burrs

    • Hard Material

    • Higher Wear resistance

    • Higher heat resistance


Foundry coated abrasive sanding line

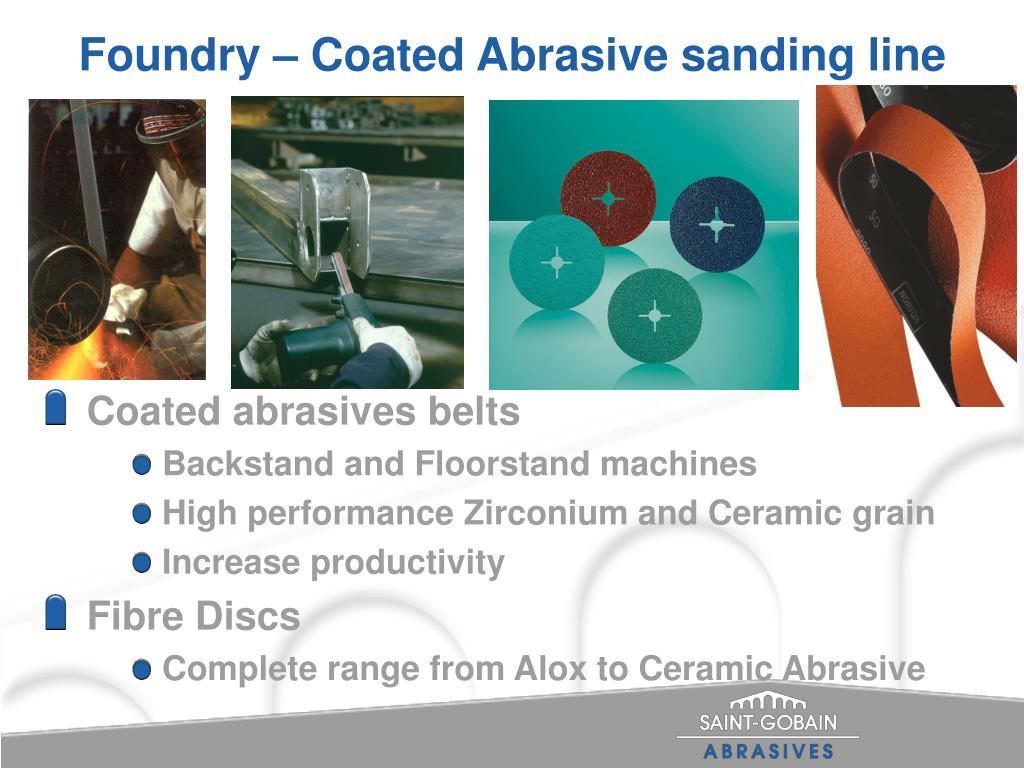

Foundry – Coated Abrasive sanding line

  • Coated abrasives belts

    • Backstand and Floorstand machines

    • High performance Zirconium and Ceramic grain

    • Increase productivity

  • Fibre Discs

    • Complete range from Alox to Ceramic Abrasive


Steel mills large diameter cut off wheels

Steel Mills – Large Diameter Cut Off Wheels

  • Up to 1800mm diameter

  • All materials

    • Carbon, Stainless and Alloyed steel

    • Slabs, Billets, Bars, Pipes, …

    • Cold (below 100°C), Warm (up to 600°C) and Hot (up to 1000°C)

  • Cut Off Machines

    • Chop stroke, Orbital, Traverse, Oscillation, …

    • Low to high power

    • Dry and Wet Cut Off


Steel conditioning hot pressed bzz line

Steel Conditioning – Hot Pressed BZZ line

  • Tailored for surface preparation

  • Improve productivity by 20%

  • Steel Mills

    • Carbon steels, Alloyed steels, Stainless, Titanium, …

    • Cold and Warm grinding up to 400°C

    • Red hot grinding at 800 / 1000°C

    • Slabs, billets, bars… surface or spot grinding.

  • Foundries (Roll Manufacturers)

    • Roughing rolls (Work and Back up) made of cast iron, spin cast high chrome, high speed steels.

  • From diam 405mm up to 915mm


Roll grinding

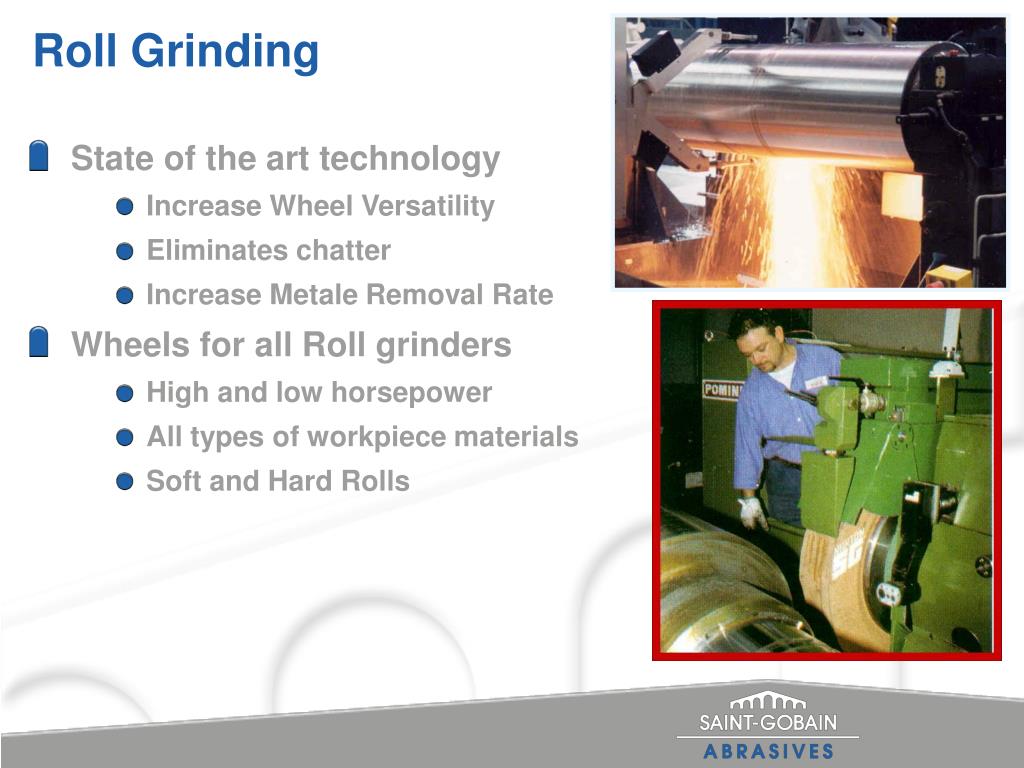

Roll Grinding

  • State of the art technology

    • Increase Wheel Versatility

    • Eliminates chatter

    • Increase Metale Removal Rate

  • Wheels for all Roll grinders

    • High and low horsepower

    • All types of workpiece materials

    • Soft and Hard Rolls


Foundry portable grinding and cutting off line

SGA distributors in Serbia

Mr. Dusan Ranisavljev

Karposeva 89a

11030 Belgrade

Tel.: +381 63 234 058

Mr. Dragan Stojkovic

Vojvode Stepe 164

11000 Belgrade

Tel.: +381 11 309 60 85

PIGMENT TRADE d.o.o.

Conversion

activity

HONE d.o.o.

Conversion

activity


Foundry portable grinding and cutting off line

FOUNDRY SYSTEMS

NORTON MASE ZA MONOLITNE OZIDE INDUKCIONIH PEĆI

40 GODINA ISKUSTVA U PROIZVODNJI NEUTRALNIH SUVIH VIBRACIONIH MASA

125 godina iskustva u proizvodnji vatrostalnih proizvoda

KANALNE INDUKCIONE PEĆI ZA LEGURE GVOZDJA, CINKA, ALUMINIJUMA I BAKRA

LONČASTE INDUKCIONE PEĆI ZA LEGURE GVOZDJA, ČELIKE, CINKA, ALUMINIJUMA, BAKRA i za SPECIFIČNE LEGURE

  • KOMPLETNA RESENJA i SERVIS PRI UGRADNJI

  • Alundum, Magnorite i spinelne, suve vibracione mase

  • Alundum i mulitne livačke mase za monolitne ozide

  • Komplementarne i pomoćne mase od svih uobičajenih materijala

Saint-Gobain High Performance Materials

KAPPELER STRASSE 105

40597 DÜSSELDORF Germany

Tel.[49] 211 9986178

Fax.[49] 2119986161

Zastupnik za SLO, HR, RS, CG, BiH i MK

MASPEKT s.r.o. Šafarikova 11 120 00 Prag Česka Republika +38163 7039524 [email protected]@eunet.rs

Z.Stavric Sept.08


Thank you

THANK YOU
