Daomap a depth optimal area optimization mapping algorithm for fpga designs deming chen jacon cong iccad 2004

DAOmap: A Depth-optimal Area Optimization Mapping Algorithm for FPGA DesignsDeming Chen, Jacon Cong ICCAD 2004

Presented by: Wei Chen


Fpga architecture

FPGA Architecture

K-input LUT can implement

any Boolean function of K

variables.

So called Completeness.


Fpga technology mapping

FPGA Technology Mapping

Given a circuit modeled as a DAG, partitioning the graph

such that every partition has not more than K inputs while

satisfying some objectives.


Terminology

Terminology

  • A Boolean network N can be modeled as a DAG

  • Input(v): the set of fanin nodes of gate v

  • Cone rooted on node v (Ov) is a sub-network of N consisting of v and some of its predecessors, such that for any node w∈Ov, there is a path from w to v that lies entirely in Ov.

  • A cut is partitioning (X, X’) of a cone Ov such X’ is a cone of v.

  • The cut set of the cut V(X,X’) consists of the inputs of cone X’.

  • Cut size is the number of elements in cut set

  • The level of a node v is the length of the longest path from any PI node to v.

  • The depth of a network is the largest node level in the network.

  • A Boolean network is L-bounded if |input(v)| ≤L for each v.


Terminology cont

Terminology cont.

Input(6) = {4,6}

Level(6) = 2

Depth = 2

2-bouned

1

4

2

6

5

3

A cone rooted at node 6

1

4

A cut C

2

6

Cut set (C) = {1,2,5}

Cut size(C) = 3

5

3


Daomap overall view

DAOmap overall view

  • A cut-enumeration-based method that consists of cut generation and cut selection.

  • Cut generation/enumeration: for each node being considered, generate all the K-feasible cuts.

  • Cut selection: Choose the nodes (and their best cuts) for implementation using LUTs

  • Objective: Create a minimum area cover under the timing constraint (Optimal Depth).


Cut enumeration

Cut Enumeration

  • Guided by the following theorem:

f(K,v) represents all the K-feasible cuts rooted at node v

f(4,5) = {1,2}

f(4,6) = {3 ,4}

f(4,7) = [5 + f(4,5)][6 + f(4,6)] = {5,6}

+ {5, f(4,6)} + {f(4,5),6} + {f(4,5) + f(4,6)}

= {5,6} + {5,3,4} + {1,2,6} + {1,2,3,4}

1

5

2

7

3

6

4


Delay propagation

Delay propagation

  • Unit delay model: each cut (LUT) on the paths represents one unit delay.

  • The minimum arrive time for node v is:

0

0

1

1

1

1

1

5

5

5

1

5

2

2

2

2

0

0

7

7

7

7

3

3

3

1

0

3

0

1

6

6

6

6

4

4

4

0

4

0

Xv = the set of cuts that provides minimum arrive time

Arr_5 = 1 Arr_6 = 1 Arr_7 = 1


Area propagation

Area propagation

  • The area of a cut c is calculated as:

2

4

1

3

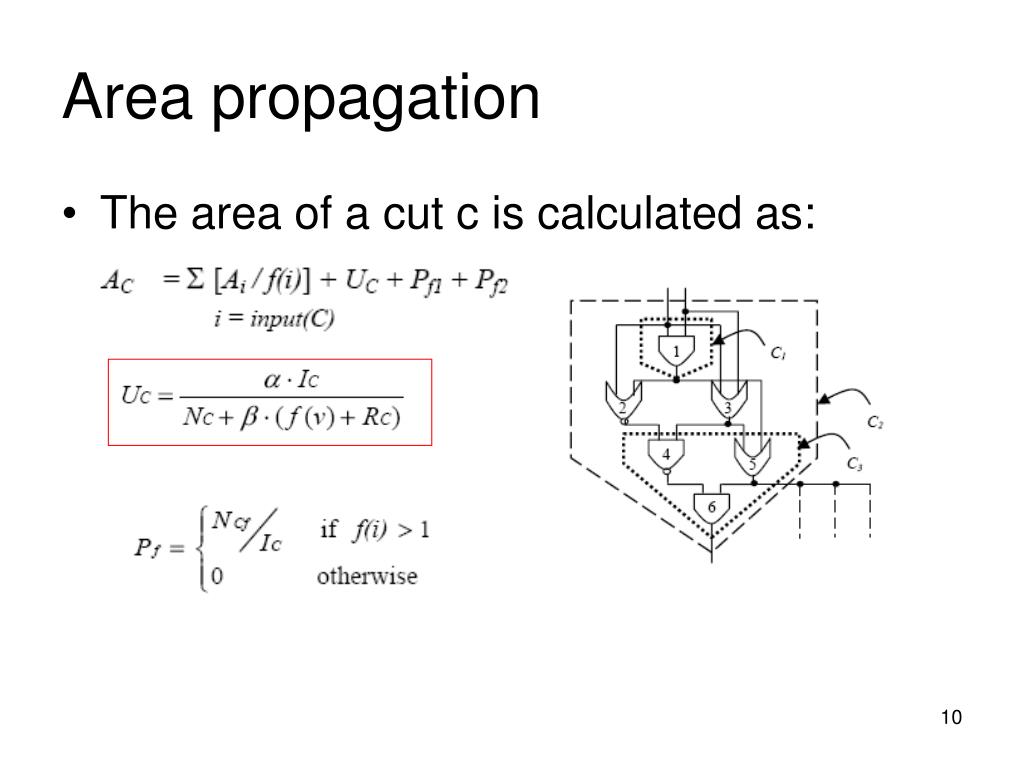

Area propagation1

Area propagation

  • The area of a cut c is calculated as:

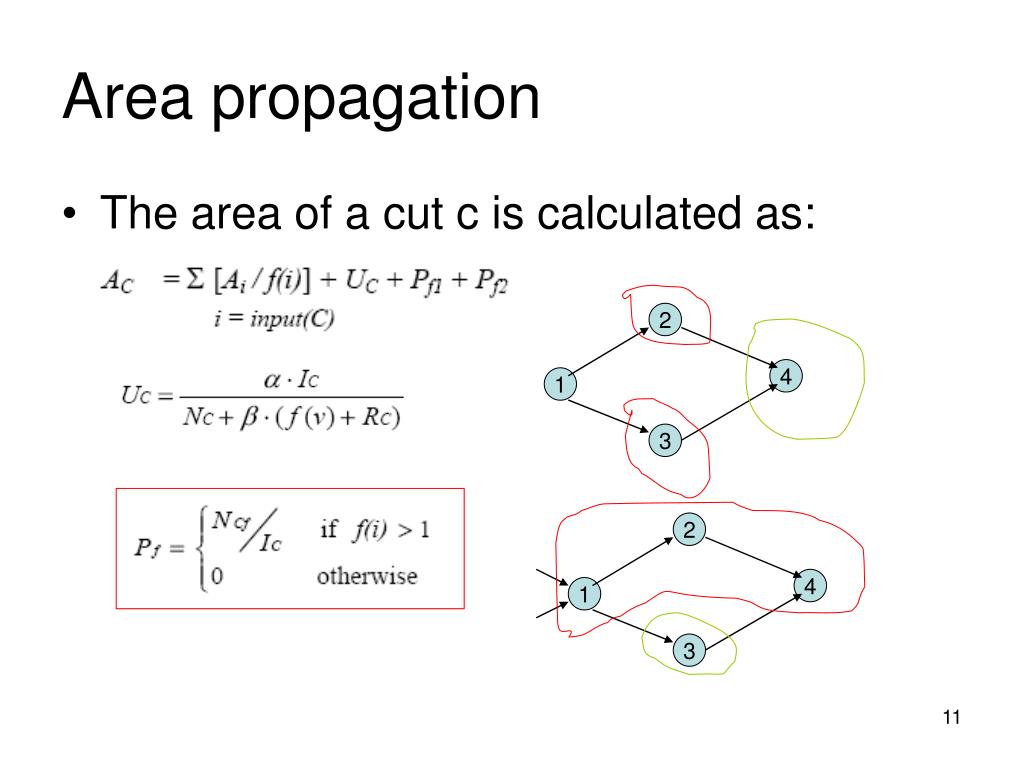

Area propagation2

Area propagation

  • The area of a cut c is calculated as:

2

4

1

3

2

4

1

3


Cut selection

Cut selection

  • After cut enumeration, we obtain the optimal mapping depth of the network.

  • Only critical paths need to use the cuts that lead to minimum delay.

  • Cuts on non-critical paths can be reconstructed to search for a better solution in terms of area.

2

1


Iterative cut selection procedure

Iterative Cut Selection Procedure

Carry out a topological order traversal starting from POs, then the inputs of the generated LUTs are iteratively mapped. The procedure continues until all the PIs are reached.

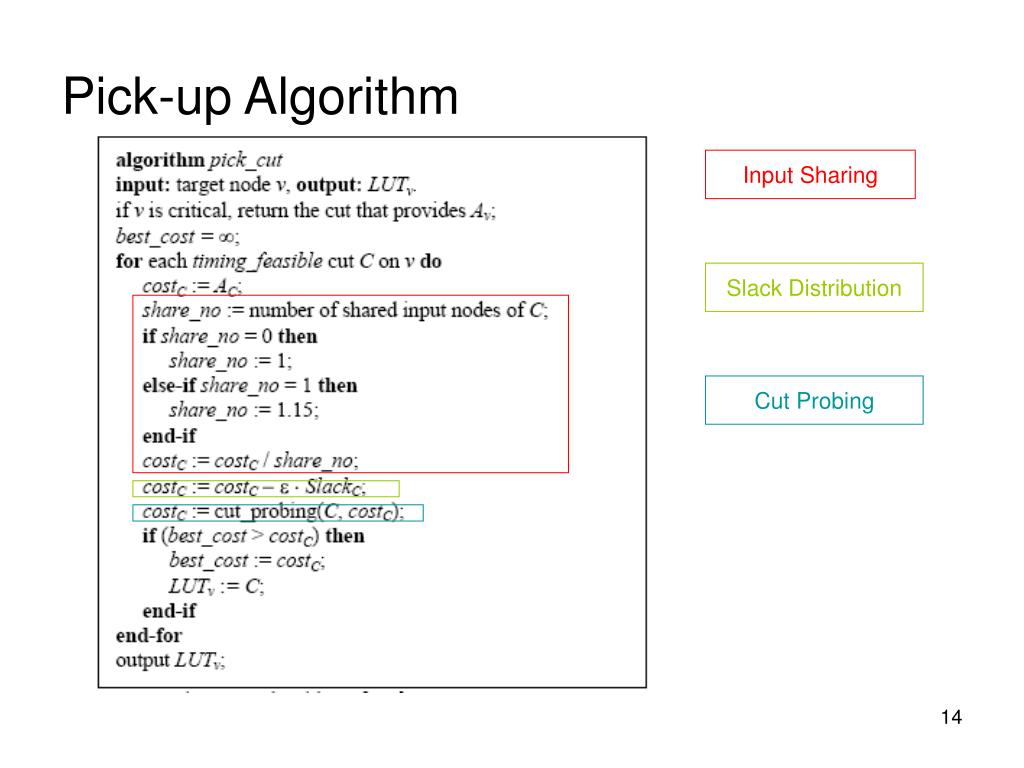

Pick up algorithm

Pick-up Algorithm

Input Sharing

Slack Distribution

Cut Probing

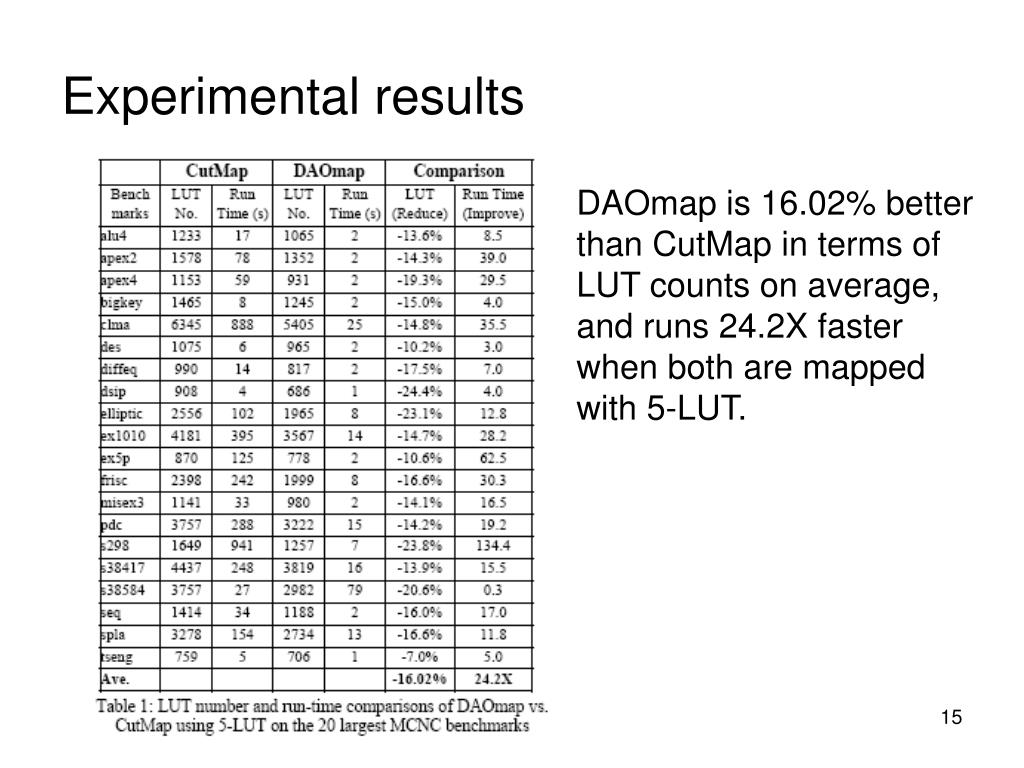

Experimental results

Experimental results

DAOmap is 16.02% better than CutMap in terms of LUT counts on average, and runs 24.2X faster when both are mapped with 5-LUT.


Conclusion

Conclusion

  • This paper presents a technology mapping algorithm, DAOmap, for FPGA architectures to minimize chip area under timing constraints.

  • Algorithm consists of Cut enumeration and Cut Selection.

  • Novel heuristics has been designed to captured the mapping cost accurately with consideration of both local and global optimization information.

  • Experimental results showed that DAOmap produced significant quality and run-time improvements compared to other mapping tools.


Question

Question ???
