  1. QoS-Aware Publish-Subscribe Service for Real-Time Data Acquisition Xinjie Lv, Xin Li, Tian Yang, Zaifei Liao, Wei Liu, Hongan Wang

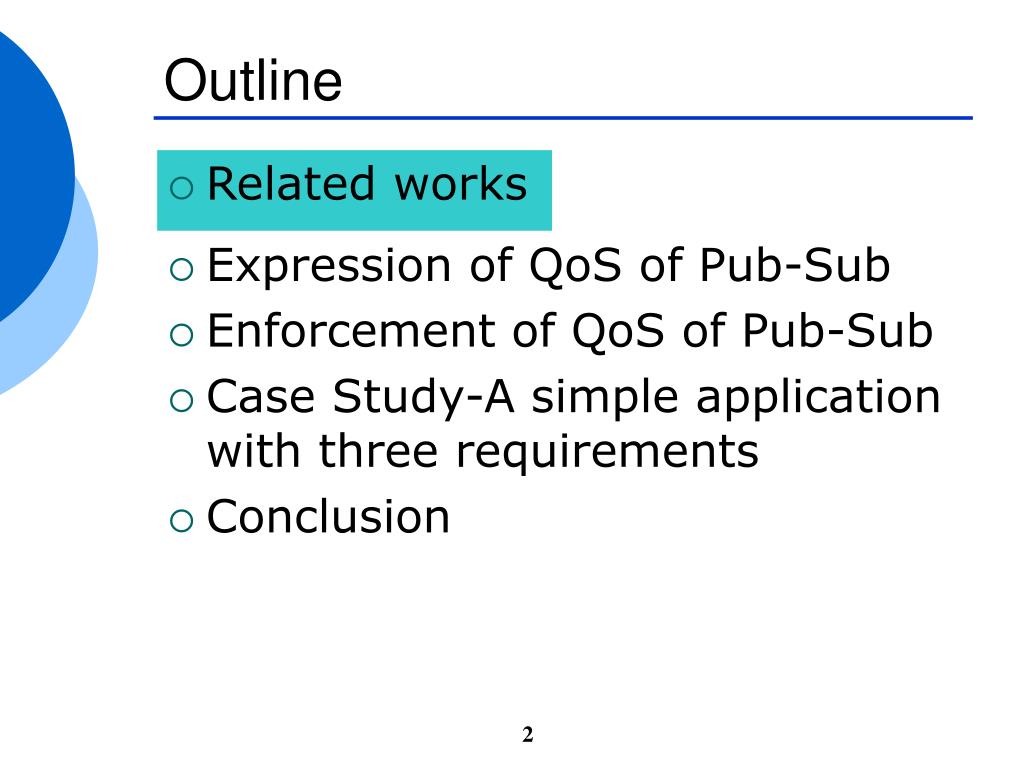

  2. Outline • Expression of QoS of Pub-Sub • Enforcement of QoS of Pub-Sub • Case Study-A simple application with three requirements • Conclusion • Related works

  3. Publish-Subscribe Service • Applications:

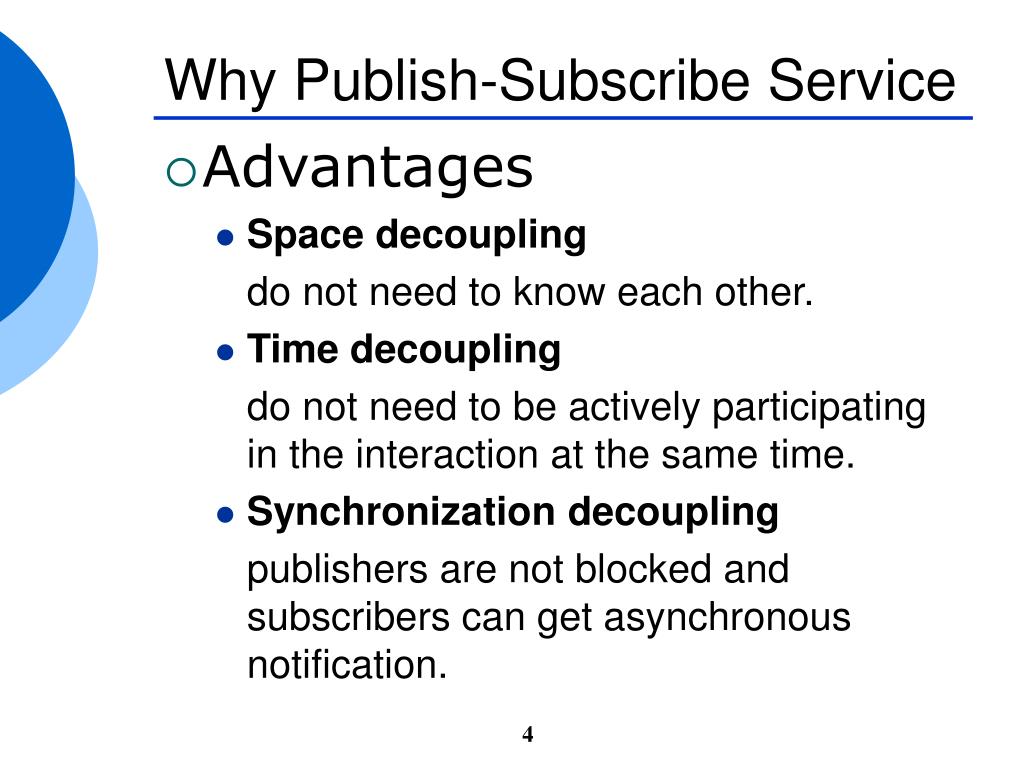

  4. Why Publish-Subscribe Service • Advantages • Space decoupling do not need to know each other. • Time decoupling do not need to be actively participating in the interaction at the same time. • Synchronization decoupling publishers are not blocked and subscribers can get asynchronous notification.

  5. Existing Models and Systems • Models • CORBA Event Service • CORBA Notification Service • Java Message Service (JMS) • Systems • Cambridge Event Architecture (CEA) • Distributed Asynchronous Collections (DAC) • Scalable Internet Event Notification Architectures (SIENA)

  6. Problem • Limited support for the expression of Quality of Service (QoS) parameters • Limited support for the enforcement of QoS parameters • Limited support for the Real-Time and active capabilities

  7. Expression of QoS-DDS • Data Distribution Service • Specification from the Object Management Group (OMG) • Aiming at users requiring data-centric publish-subscribe communications • Enumerating and providing formal definitions for the QoS settings

  8. Outline • Related works • Enforcement of QoS of Pub-Sub • Case Study-A simple application with three requirements • Conclusion • Expression of QoS of Pub-Sub

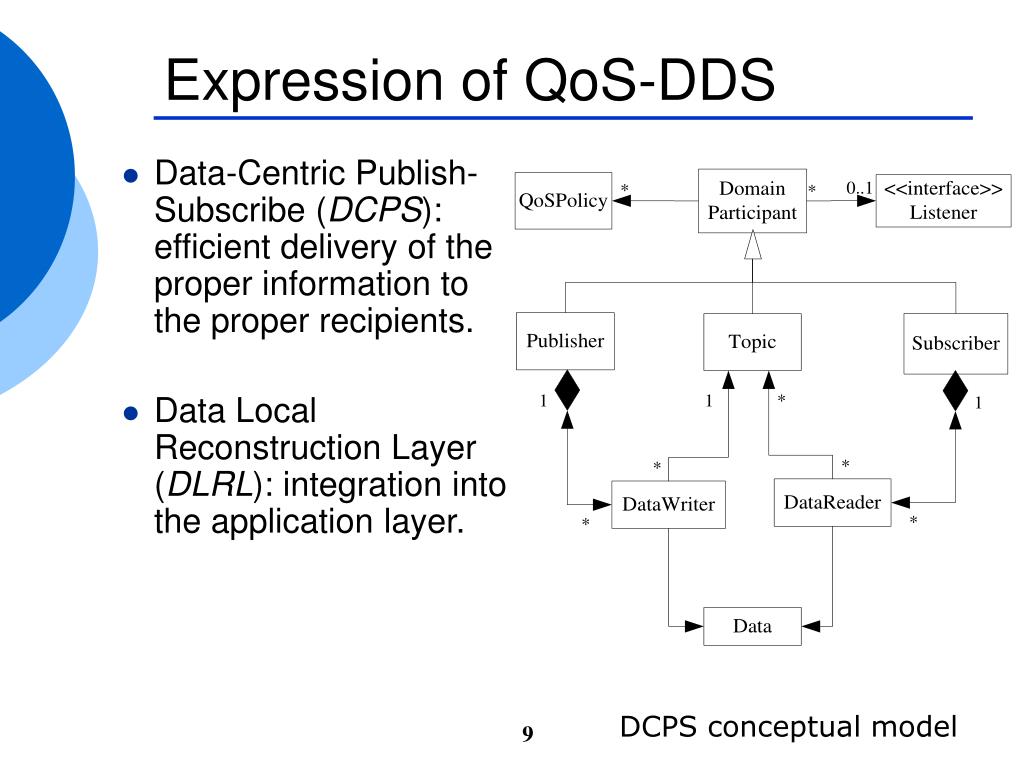

  9. Expression of QoS-DDS • Data-Centric Publish-Subscribe (DCPS): efficient delivery of the proper information to the proper recipients. • Data Local Reconstruction Layer (DLRL): integration into the application layer. DCPS conceptual model

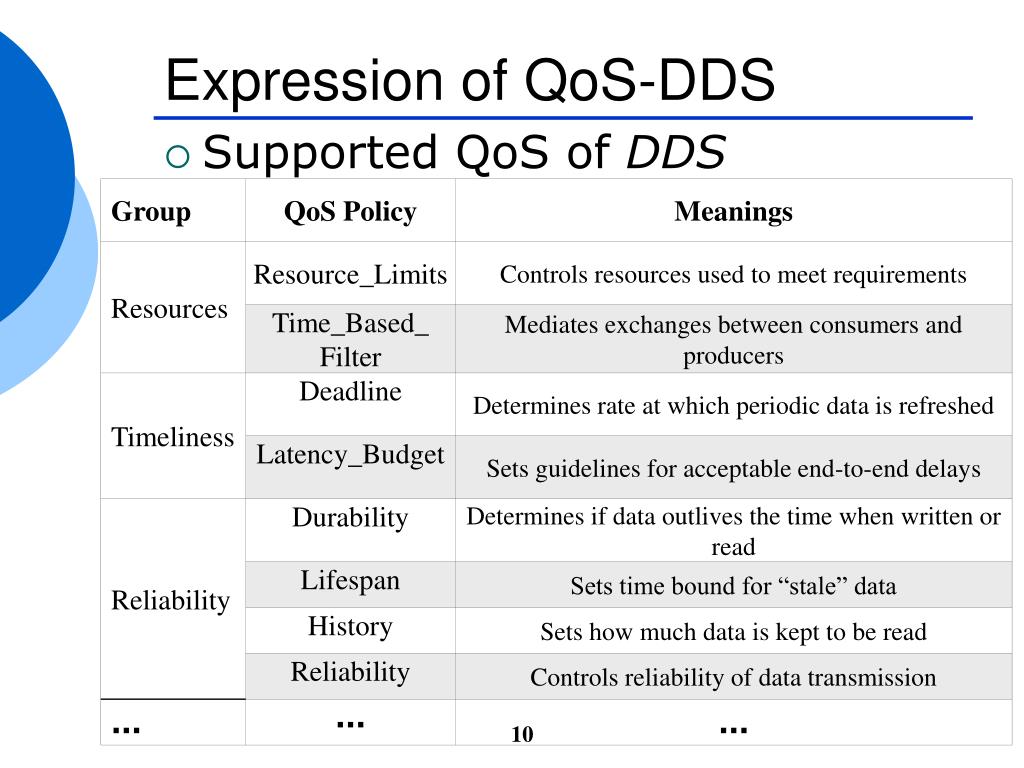

  10. Expression of QoS-DDS • Supported QoS of DDS

  11. Outline • Related works • Expression of QoS of Pub-Sub • Case Study-A simple application with three requirements • Conclusion • Enforcement of QoS of Pub-Sub

  12. Enforcement of QoS-QRTPS • QoS-aware Real-Time Publish-Subscribe (QRTPS) service based on an active real-time database named Agilor • Overview of Agilor • Real-time Event-Condition-Action (RECA)

  13. Enforcement of QoS-Agilor • kernel modules and critical services in Agilor

  14. Enforcement of QoS-RECA • Primitive events in Agilor: • system events • method events • custom events • Extension of Complicated Temporal Events • Durative event, Durative sequence • Durative conjunction, Durative disconjunction • Durative between

  15. Enforcement of QoS-RECA • Primitive conditions in Agilor: • Selection condition: OP.Gas>20 • Aggregation condition: Max(OP.smog)>100 • Join condition: OP1.Pressure= OP2.Pressure • Transition condition: OP1.Gas> OP1.GetLast (Gas) • Application-specific condition

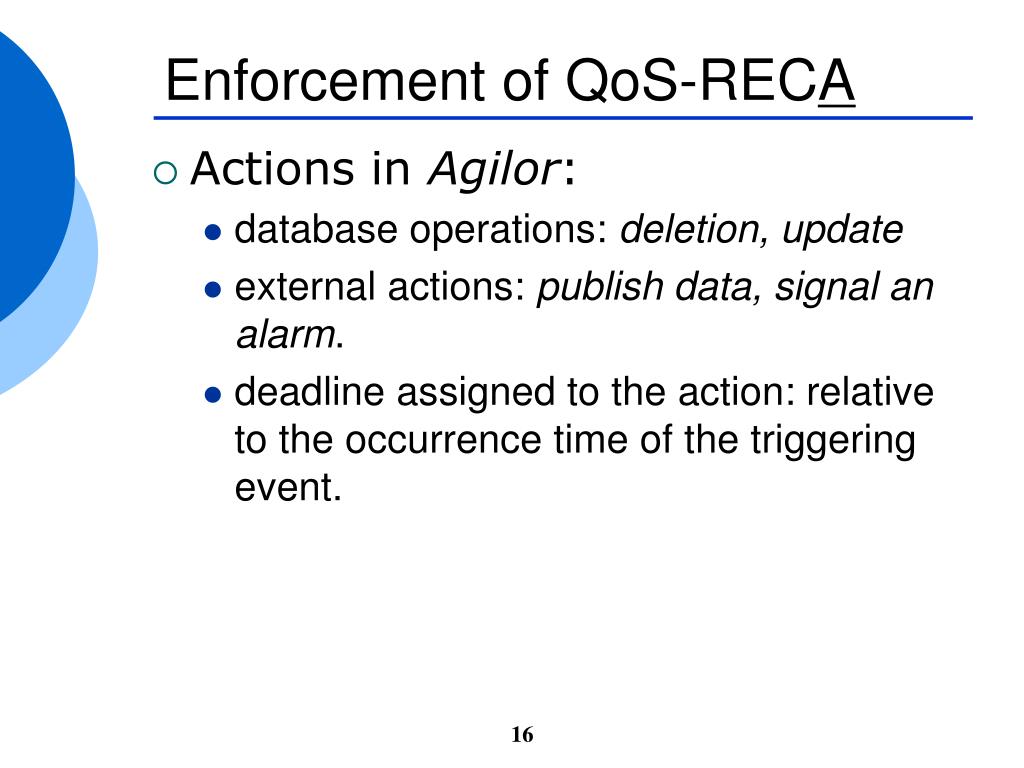

  16. Enforcement of QoS-RECA • Actions in Agilor: • database operations: deletion, update • external actions: publish data, signal an alarm. • deadline assigned to the action: relative to the occurrence time of the triggering event.

  17. Enforcement of QoS-RECA • Coupling Modes in Agilor: CMEC: Event-Condition; CMCA: Condition-Action CMEA: Event-Action; CMRR: Rule-Rule • Semantic for RECA Rules Rule::=BEGIN RULE <RuleName> VALUE <Value> WHEN <Event> IF <Condition> CMEC [immediate|detached] CMEA [immediate|detached] THEN <Action> WITHIN <Deadline> CMCA [immediate|detached] CMRR [immediate|concurrent] END RULE

  18. Outline • Related works • Expression of QoS of Pub-Sub • Enforcement of QoS of Pub-Sub • Conclusion • Case Study-A simple application with three requirements

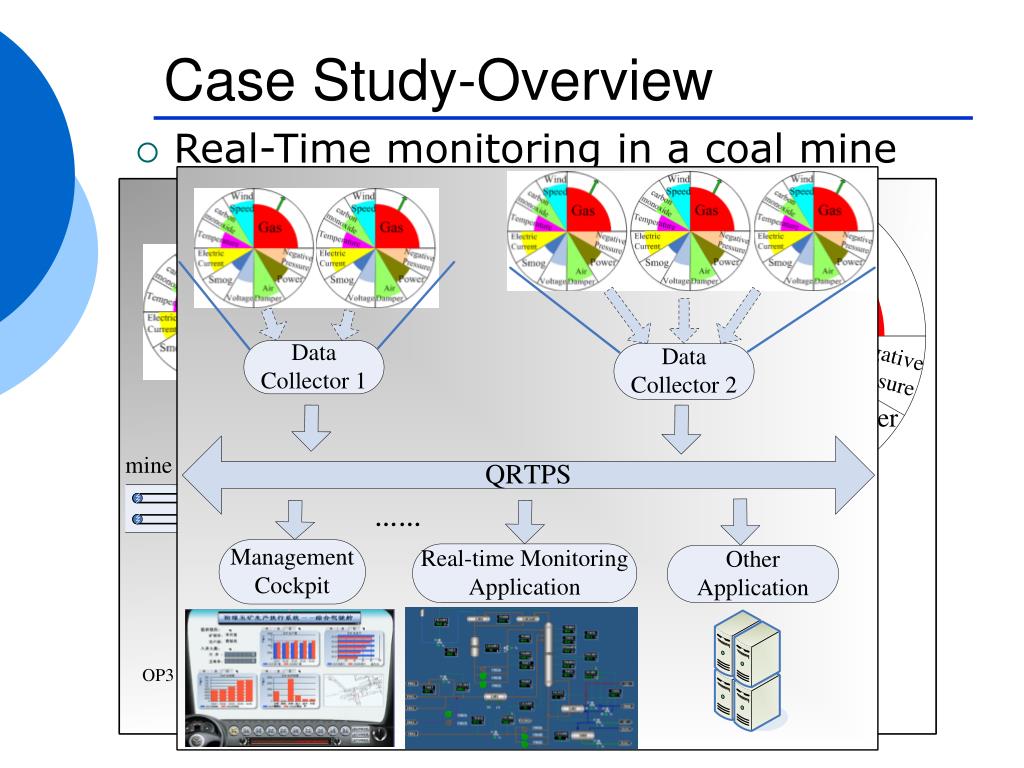

  19. Case Study-Overview • Real-Time monitoring in a coal mine

  20. Case Study-Requirements • Three requirements: 1.Late-joining applications shall receive meta information about its sensors automatically; 2.Receiving gas sensor data every 500ms and temperature data every 1000ms; 3.If no data from most-trusted sensor source is received within 4000ms, temperature data shall automatically be received from another Observation Point (OP).

  21. Case Study-Data Structures • Gas : transmitting the sensor readings • GasSensorlnfo :containing meta-information to interpret the sensor data correctly

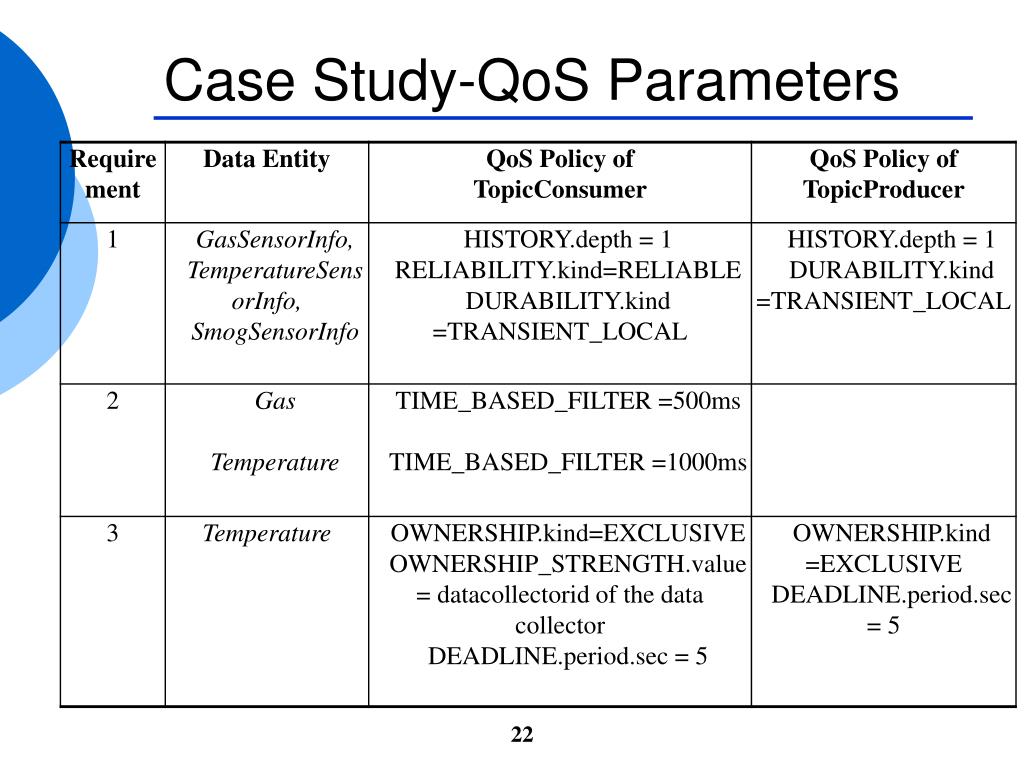

  22. Case Study-QoS Parameters

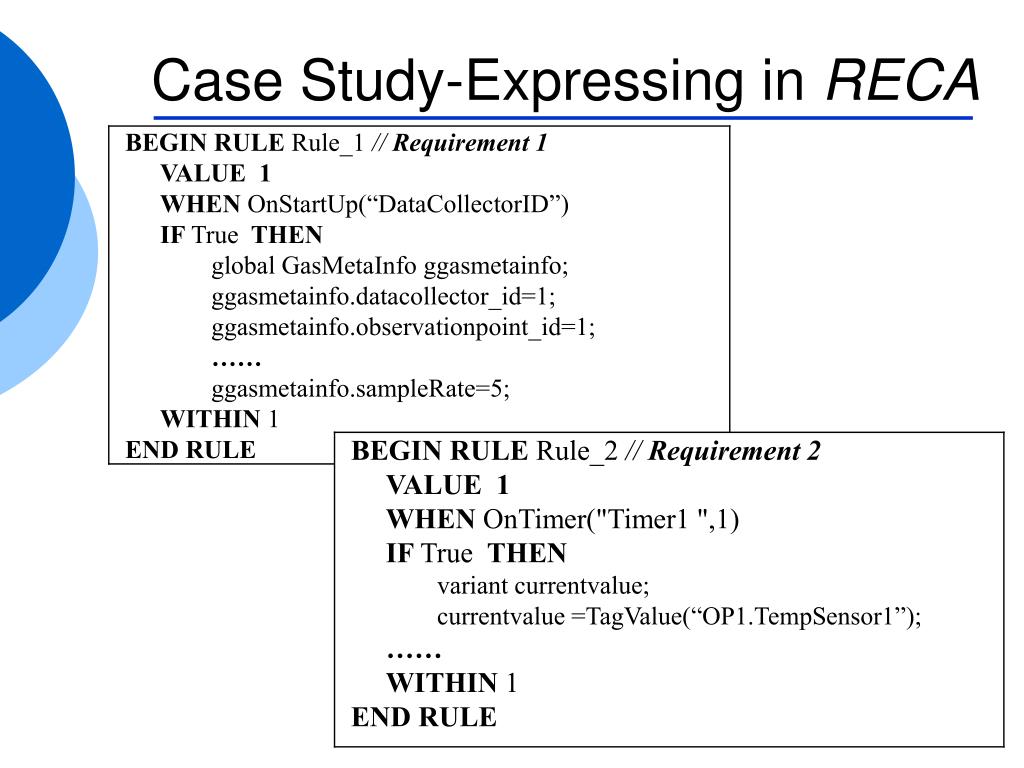

  23. Case Study-Expressing inRECA

  24. Case Study-Expressing inRECA

  25. Case Study-Application Screenshot

  26. Outline • Related works • Expression of QoS of Pub-Sub • Enforcement of QoS of Pub-Sub • Case Study-A simple application with three requirements • Conclusion

  27. Conclusions • Expressing QoS with DDS • Enforcing QoS policy with Agilor • Improving Real-time and active capabilities with RECA • Evaluating QRTPS for a Real-time monitoring

  28. Thank you
