Measuring distances angles and areas

Measuring Distances, Angles and Areas

AGME 1613

Fundamentals of Agricultural Systems Technology


Objectives

Objectives

  • Describe the advantages and disadvantages of four methods of measuring distance.

  • Use each of the four methods in a simulated survey.

  • Determine the area of standard geometric shapes.

  • Determine the area of irregularly shaped fields.


Common units of distance

Common Units of Distance

  • Feet

  • Yards

  • Rods (16.5-ft.)

  • Chain (88-ft.)

  • Mile (5280-ft.)

  • Meters (.3084-ft.)

  • Kilometers (.6214 miles)


Four methods of measuring distance

Four Methods of Measuring Distance

  • Pacing

  • Odometer wheel

  • Taping

  • Stadia Method


Pacing

Pacing

  • Simplest and easiest method of determining distances.

  • Requires only one person.

  • D = Pace factor x # of paces

  • With practice, accuracy of

    + 2% is possible.

  • Measures “surface distance.”


Odometer wheel

Odometer Wheel

  • Mechanical device for measuring distance.

    • Direct reading or

    • Revolution counting

  • D = # Rev x Circumference

  • Only one person required.

  • Accuracy of + 1%.

  • Measures “surface distance.”

Determine the distance if the wheel makes 200.5 revolutions.


Stadia method

Stadia Method

  • Very quick method of determining distance.

  • D = (TSR – BSR) x 100

  • More accurate than chaining.

  • Requires “leveling equipment.”

  • Requires two people.

  • What is the distance from the level to the rod in this example?


Taping

Taping

  • Most accurate method of determining distance.

  • Accuracy + .03 %.

  • Requires:

    • Specialized equipment

    • Minimum of two surveyors

    • Skill

  • Equipment:

    • 100-ft. steel tape,

    • chaining pins,

    • range poles,

    • plumb bobs,

    • hand level


Additional methods

Additional methods

  • Optical range finders

  • Electronic distance measurement

  • Global Positioning System (GPS) receivers

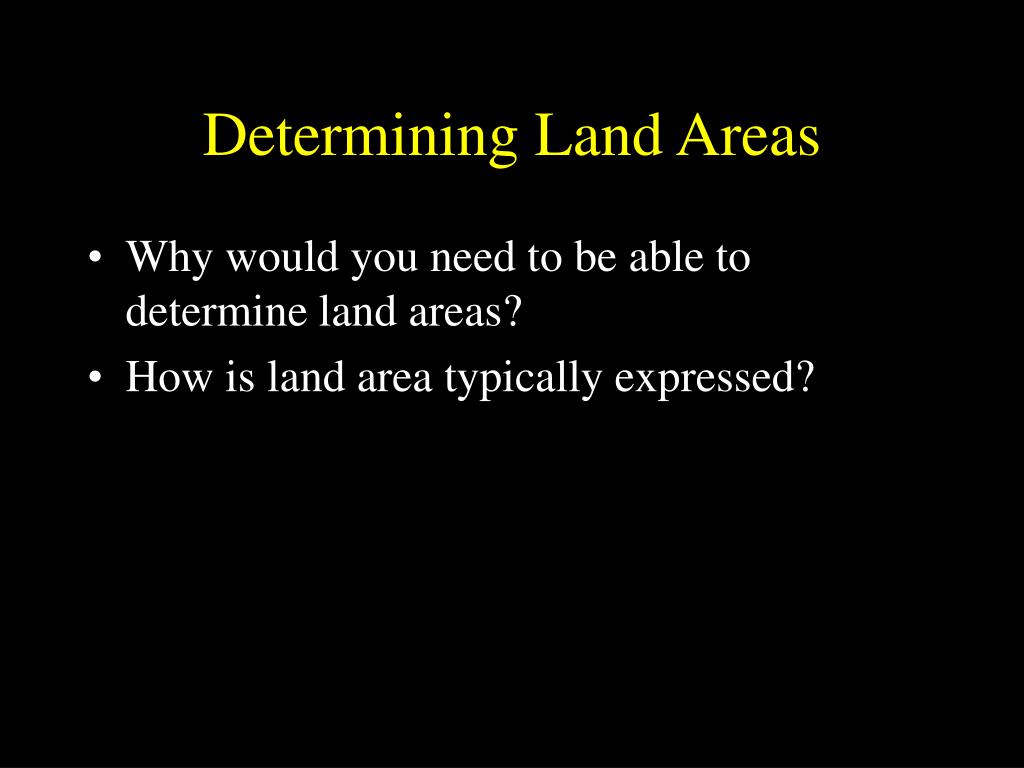

Determining land areas

Determining Land Areas

  • Why would you need to be able to determine land areas?

  • How is land area typically expressed?


Standard geometric shapes

Standard Geometric Shapes

  • Square

  • Rectangle

  • Parallelogram

  • Trapezoid

  • Triangle

  • Circle

  • Sector


Square and rectangle

Square and Rectangle

  • Formula

    • A (ft2) = B’ x H’

    • A (ac) = B’ x H’

43,560

250-ft.

750-ft


Parallelogram

Parallelogram

  • Formula

    • A (ft2) = B’ x H’

    • A (ac) = B’ x H’

43,560

H

B

What is the area (ft2), if the Base = 1200-ft and the Height = 300-ft?


Trapezoid

What is the area of the trapezoid below?

700-ft.

375-ft.

300-ft.

Trapezoid

  • Formula

    • A (ft2) = H x [(a+b)/2]

A

H

B


Triangle

400-ft.

325-ft.

Triangle

  • A (ft2) = ½ x B x H

  • What is the acreage of the field at left?

H

B


Circle

600-ft.

Circle

  • A (ft2) = pi x r2

  • A chemical needs to be applied to this field at a rate of 3.0-lbs/ac. How much chemical should be applied?

r


Sector

600-ft.

Sector

  • A (ft2) = pi x r2 x O

360


Irregularly shaped fields

Irregularly Shaped Fields
