Optical Character Recognition:Using the Ullman Algorithm for Graphical MatchingIddoAviram


Ocr a brief review

OCR- a Brief Review

  • Optical character recognition, usually abbreviated to OCR, is the mechanical or electronic translation of scanned images of handwritten, typewritten or printed text into machine-encoded text.

  • OCR is a task, and not amathematically defined problem.


Ocr a brief review1

OCR- a Brief Review

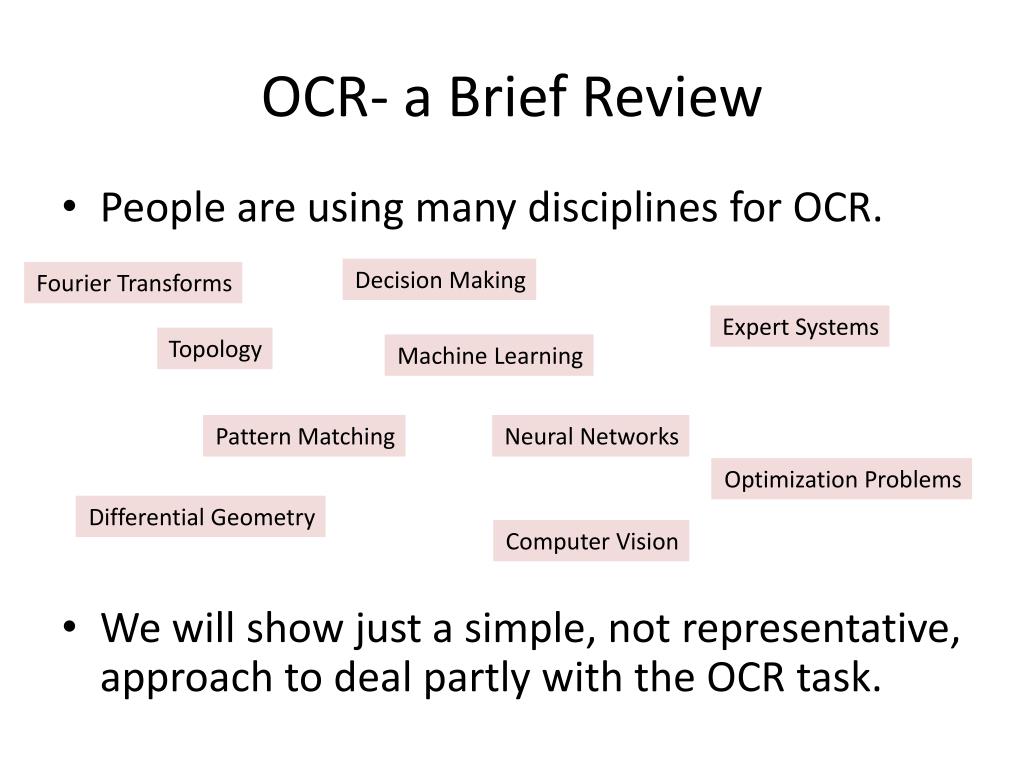

  • People are using many disciplines for OCR.

  • We will show just a simple, not representative, approach to deal partly with the OCR task.

Decision Making

Fourier Transforms

Expert Systems

Topology

Machine Learning

Pattern Matching

Neural Networks

Optimization Problems

Differential Geometry

Computer Vision


Ocr a brief review2

OCR- a Brief Review

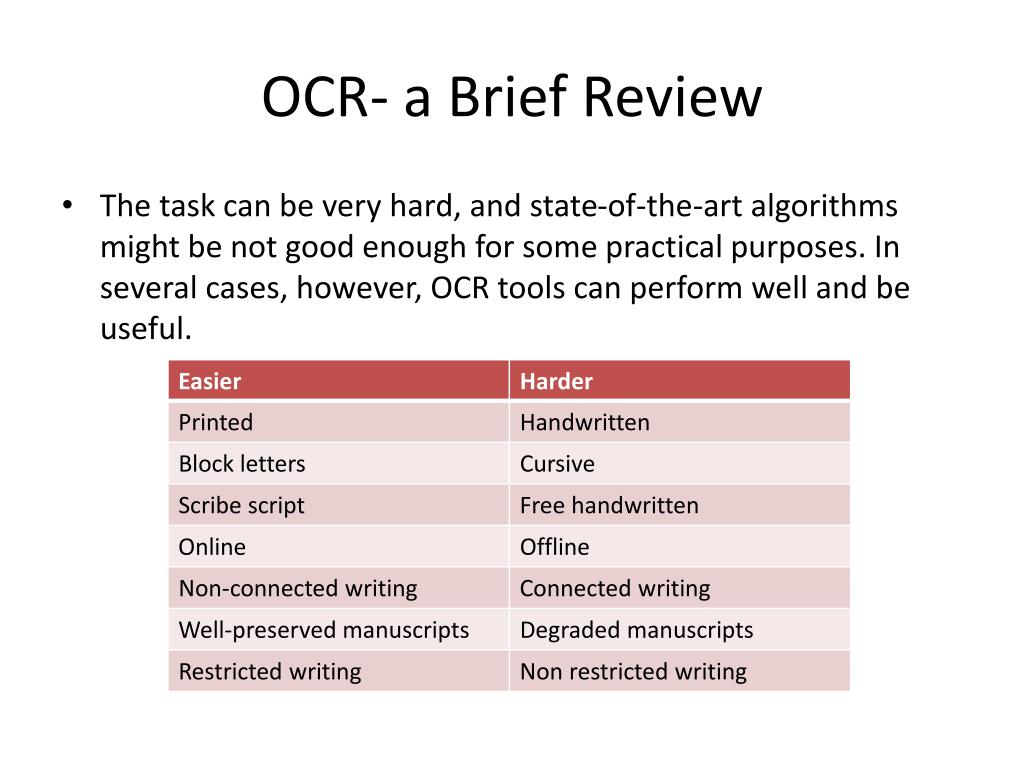

  • The task can be very hard, and state-of-the-art algorithms might be not good enough for some practical purposes. In several cases, however, OCR tools can perform well and be useful.


Ocr a brief review3

OCR- a Brief Review

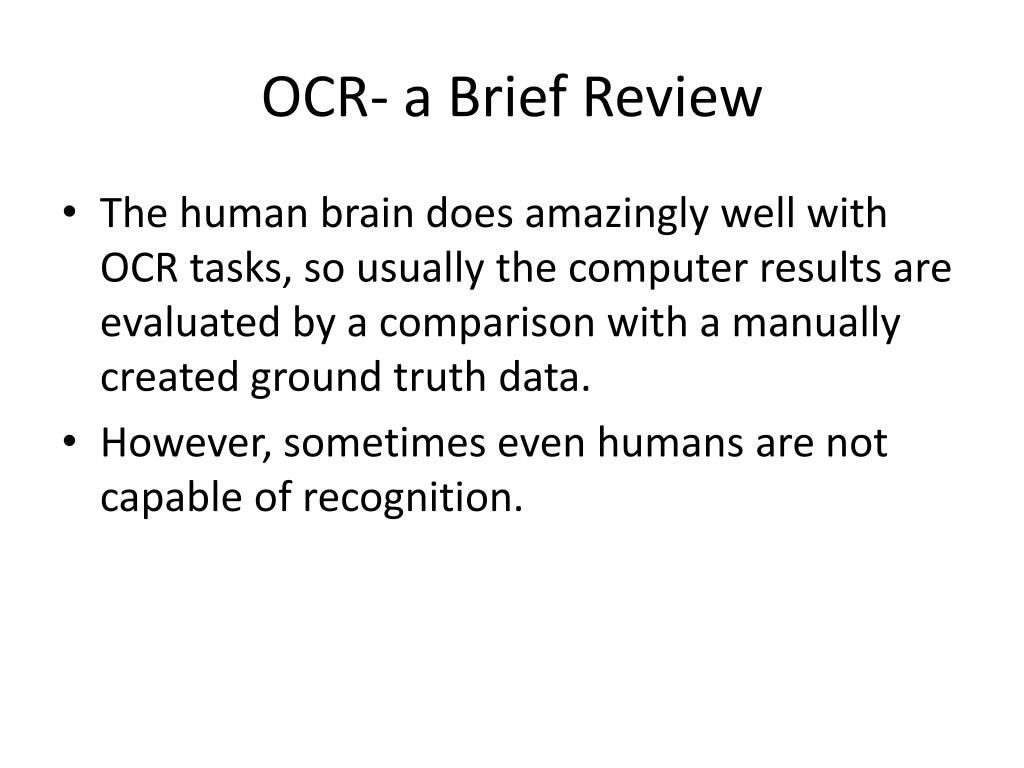

  • The human brain does amazingly well with OCR tasks, so usually the computer results are evaluated by a comparison with a manually created ground truth data.

  • However, sometimes even humans are not capable of recognition.


Ocr a brief review4

OCR- a Brief Review

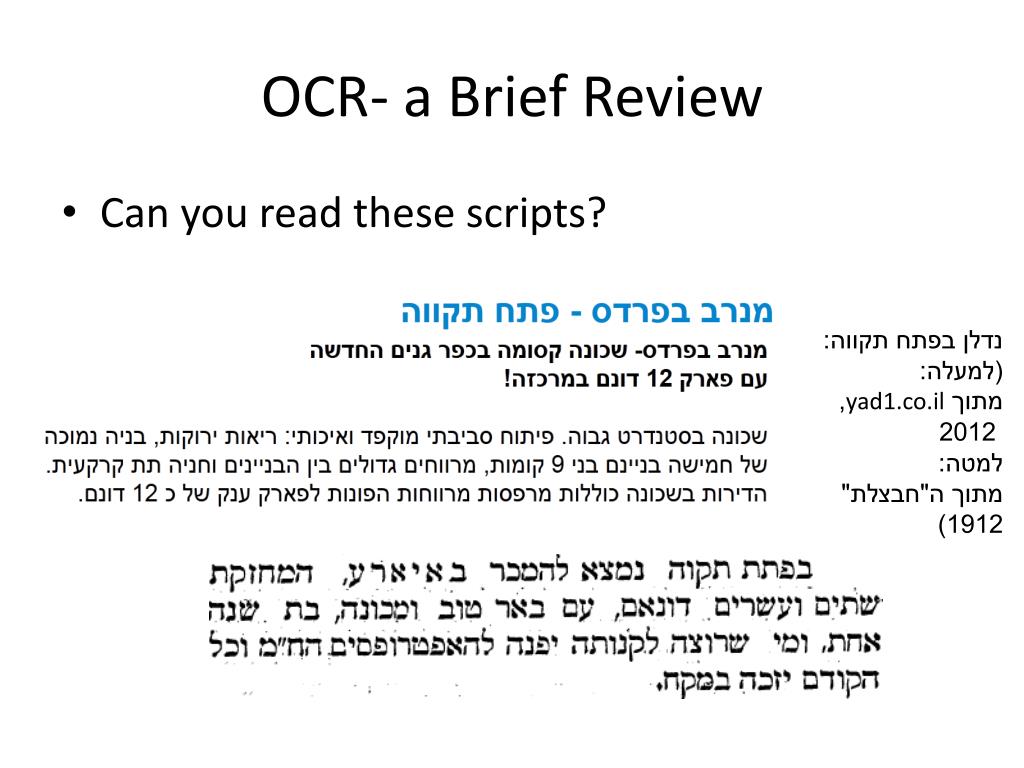

  • Can you read these scripts?

נדלן בפתח תקווה:

(למעלה:

מתוך yad1.co.il,

2012

למטה:

מתוך ה"חבצלת"

1912)


Ocr a brief review5

OCR- a Brief Review

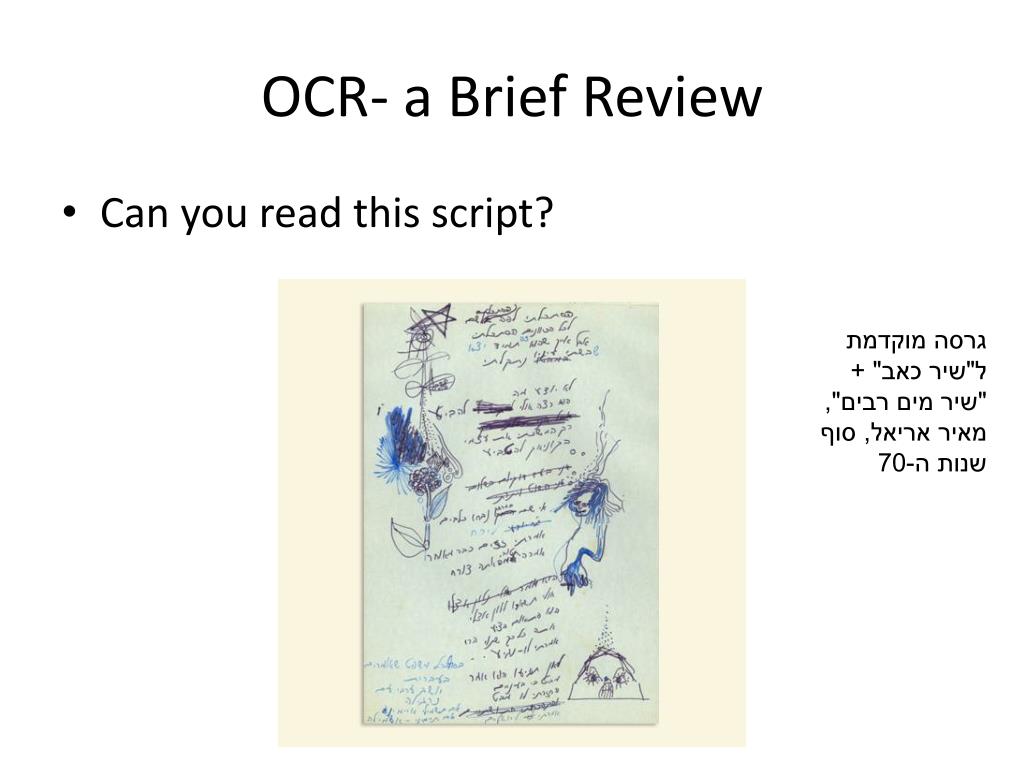

  • Can you read this script?

גרסה מוקדמת ל"שיר כאב" + "שיר מים רבים", מאיר אריאל, סוף שנות ה-70


Ocr a brief review6

OCR- a Brief Review

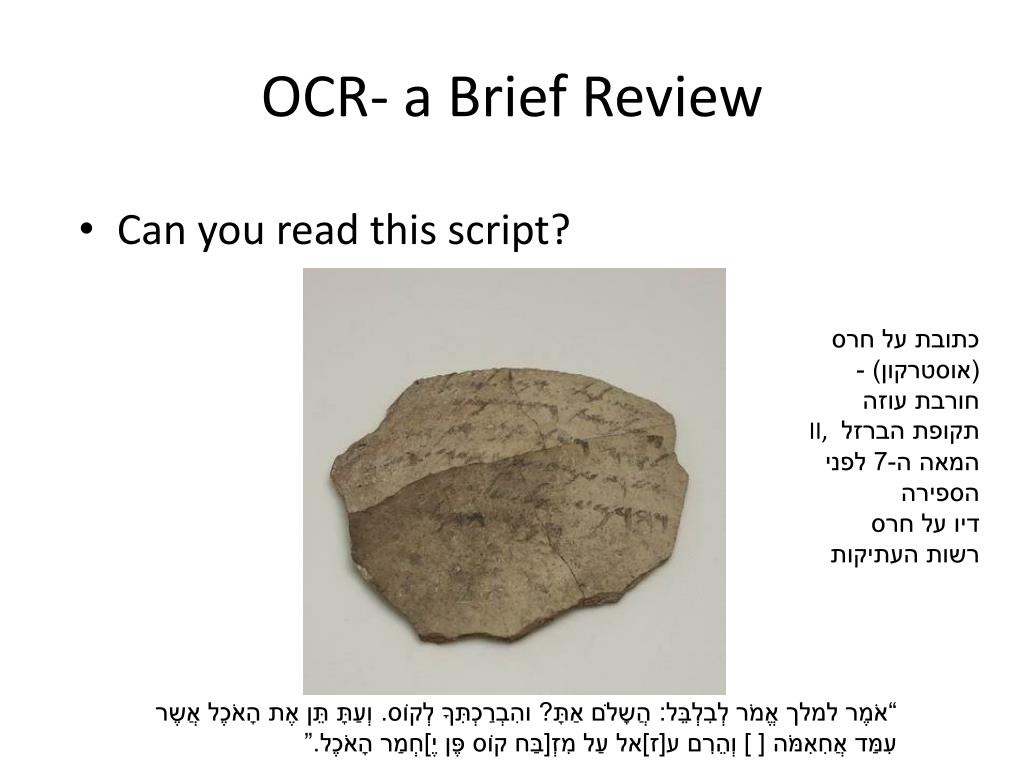

  • Can you read this script?

כתובת על חרס (אוסטרקון) -חורבת עוזה תקופת הברזל II, המאה ה-7 לפני הספירה דיו על חרס רשות העתיקות

“אֹמֶר למלך אֱמֹר לְבִלְבֵּל: הֲשָלֹם אַתָּ? והִבְרַכְתִּךָ לְקוֹס. וְעַתָּ תֵּן אֶת הָאֹכֶל אֲשֶר עִמַּד אֲחִאִמֹּה [ ] וְהֵרִם ע[ז]אל עַל מִזְ[בַּח קוֹס פֶּן יֶ]חְמַר הָאֹכֶל.”


Ocr motivation for graphical matching

OCR- Motivation for Graphical Matching

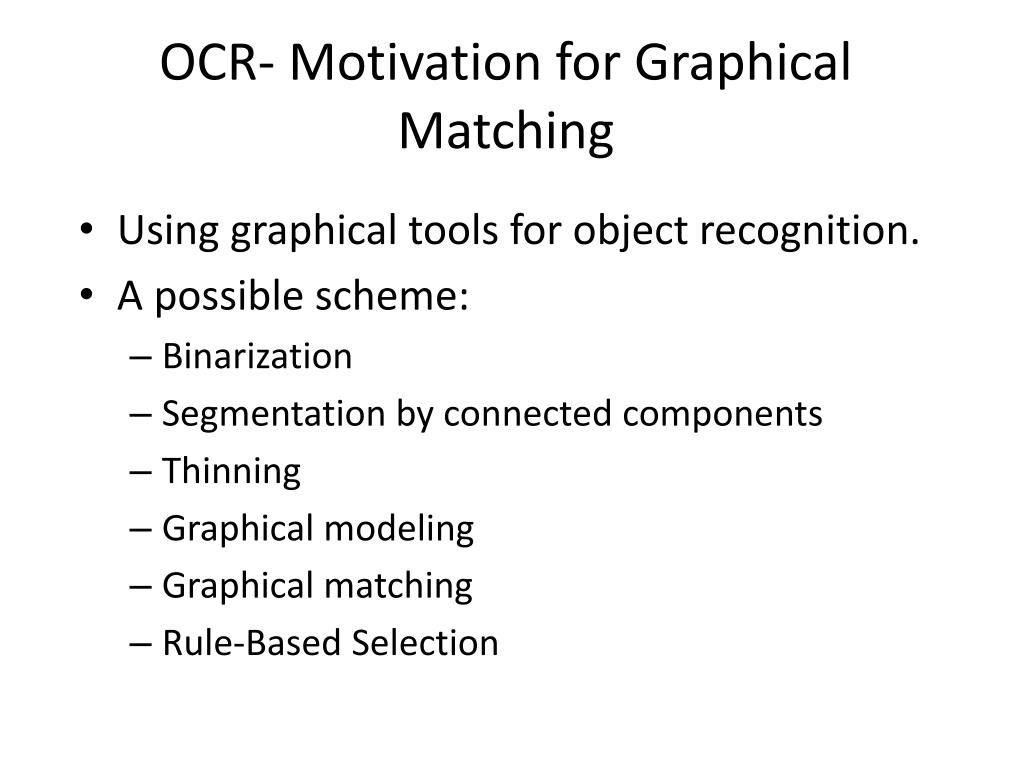

  • Using graphical tools for object recognition.

  • A possible scheme:

    • Binarization

    • Segmentation by connected components

    • Thinning

    • Graphical modeling

    • Graphical matching

    • Rule-Based Selection


Ocr motivation for graphical matching1

OCR- Motivation for Graphical Matching

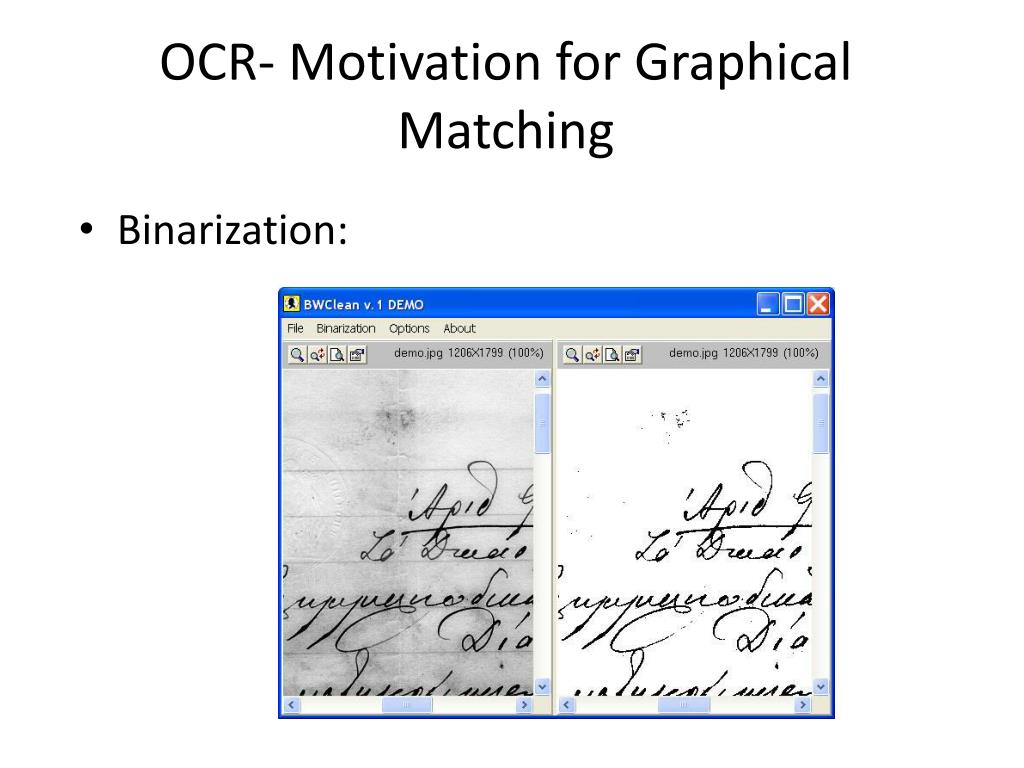

  • Binarization:


Ocr motivation for graphical matching2

OCR- Motivation for Graphical Matching

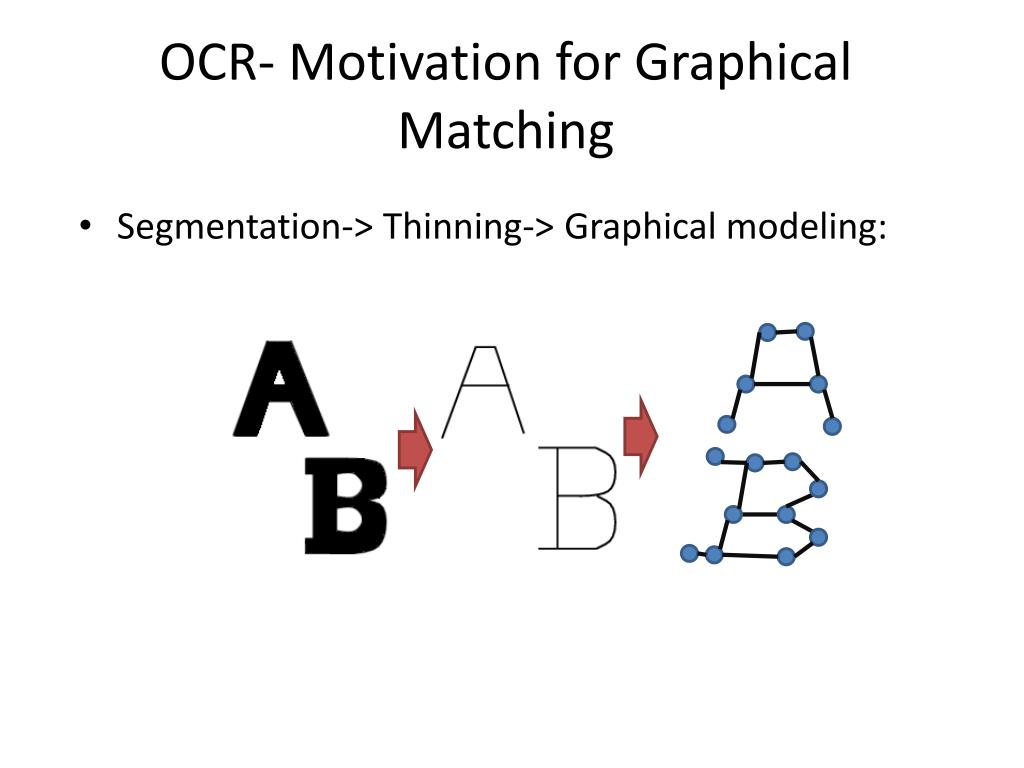

  • Segmentation-> Thinning-> Graphical modeling:


Ocr motivation for graphical matching3

OCR- Motivation for Graphical Matching

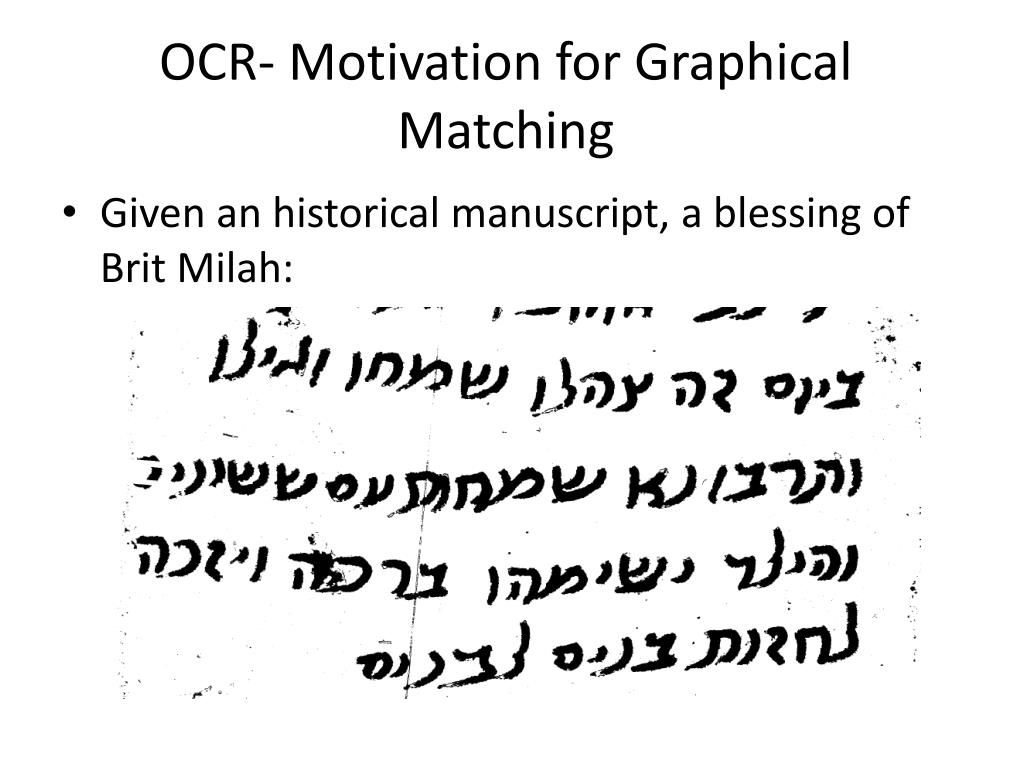

  • Given an historical manuscript, a blessing of Brit Milah:


Ocr motivation for graphical matching4

OCR- Motivation for Graphical Matching

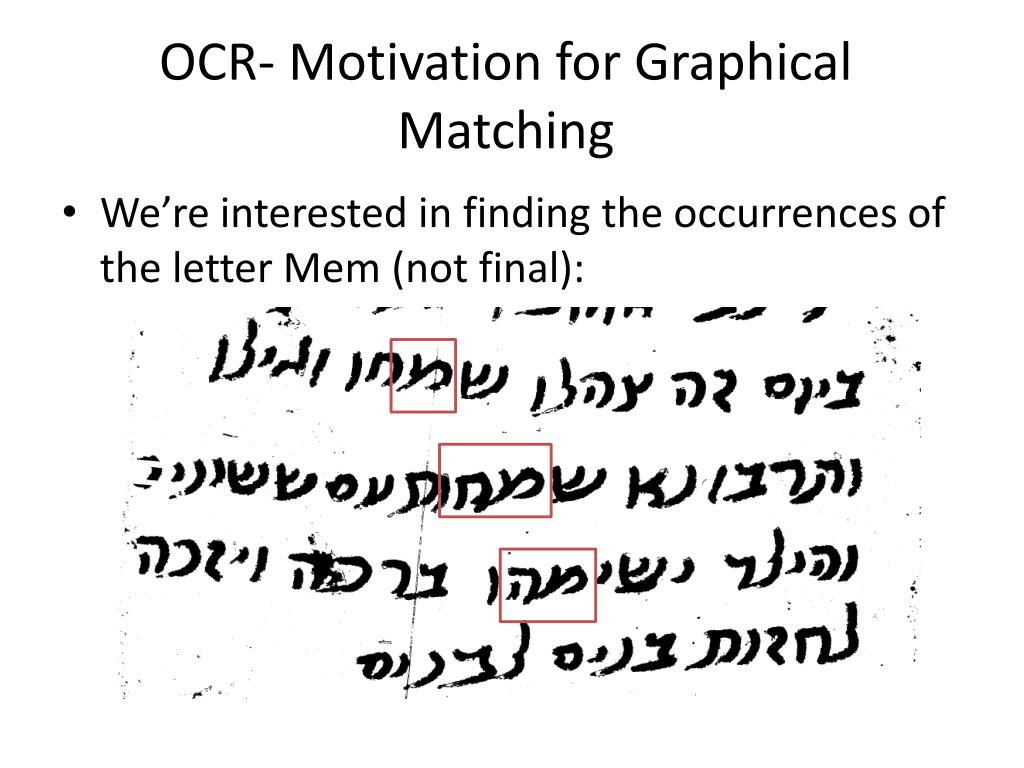

  • We’re interested in finding the occurrences of the letter Mem (not final):


Ocr motivation for graphical matching5

OCR- Motivation for Graphical Matching

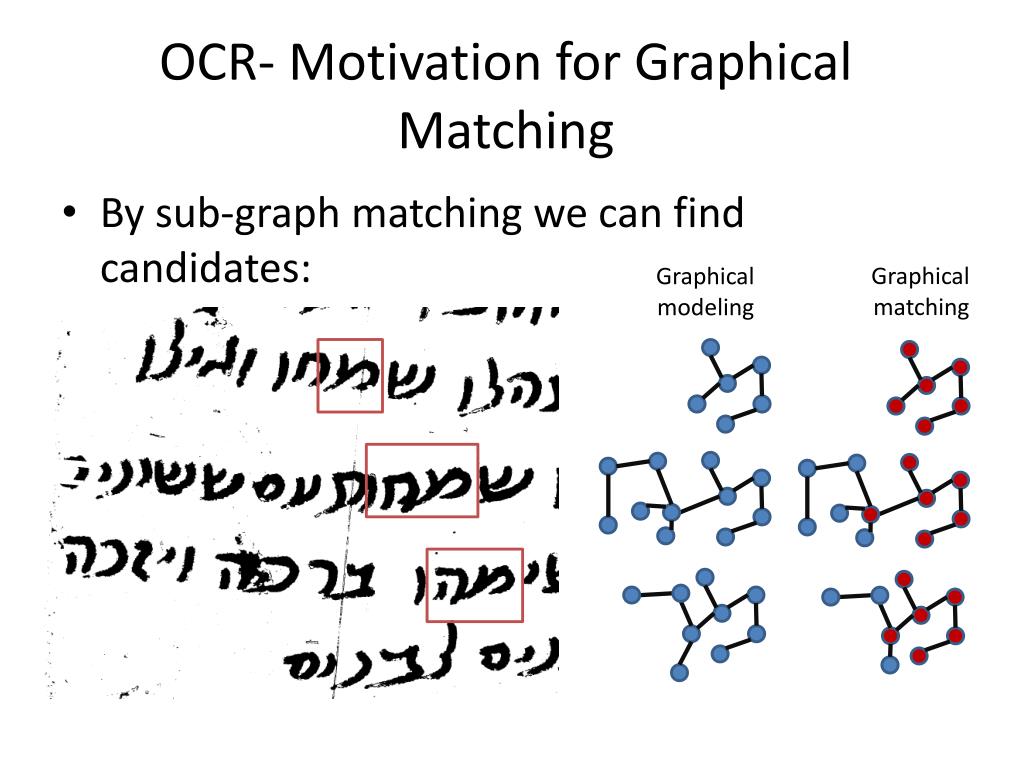

  • By sub-graph matching we can find candidates:

Graphical matching

Graphical modeling


Subgraph isomorphism proble m

Subgraph Isomorphism Problem

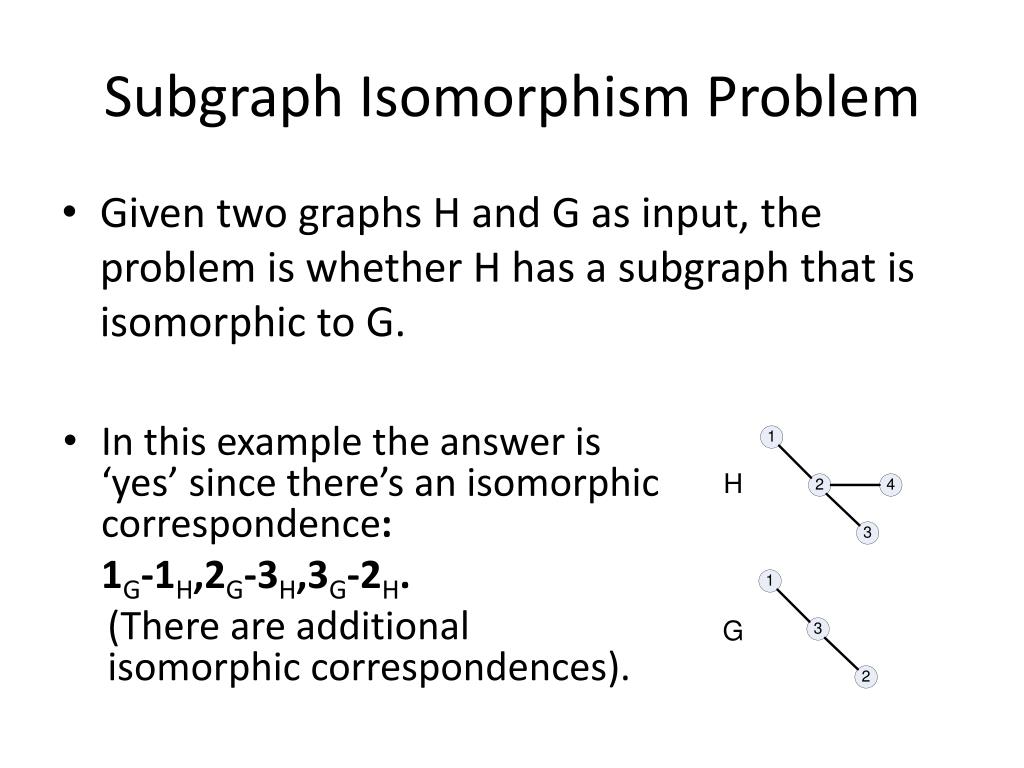

  • Given two graphs H and G as input, the problem is whether H has a subgraph that is isomorphic to G.

  • In this example the answer is ‘yes’ since there’s an isomorphic correspondence:

    1G-1H,2G-3H,3G-2H.

    (There are additional isomorphic correspondences).


Subgraph isomorphism proble m1

Subgraph Isomorphism Problem

  • Graph isomorphism

    • Graphs G(VG,EG) and H(VH,EH) are isomorphic if |VG|=|VH| and there is an invertible function F from VG to VH such that for all nodes u and v in VG, (u,v)∈EG if and only if (F(u),F(v)) ∈EH.

    • Such a function F is said to be an isomorphic correspondence.


Subgraph isomorphism proble m2

Subgraph Isomorphism Problem

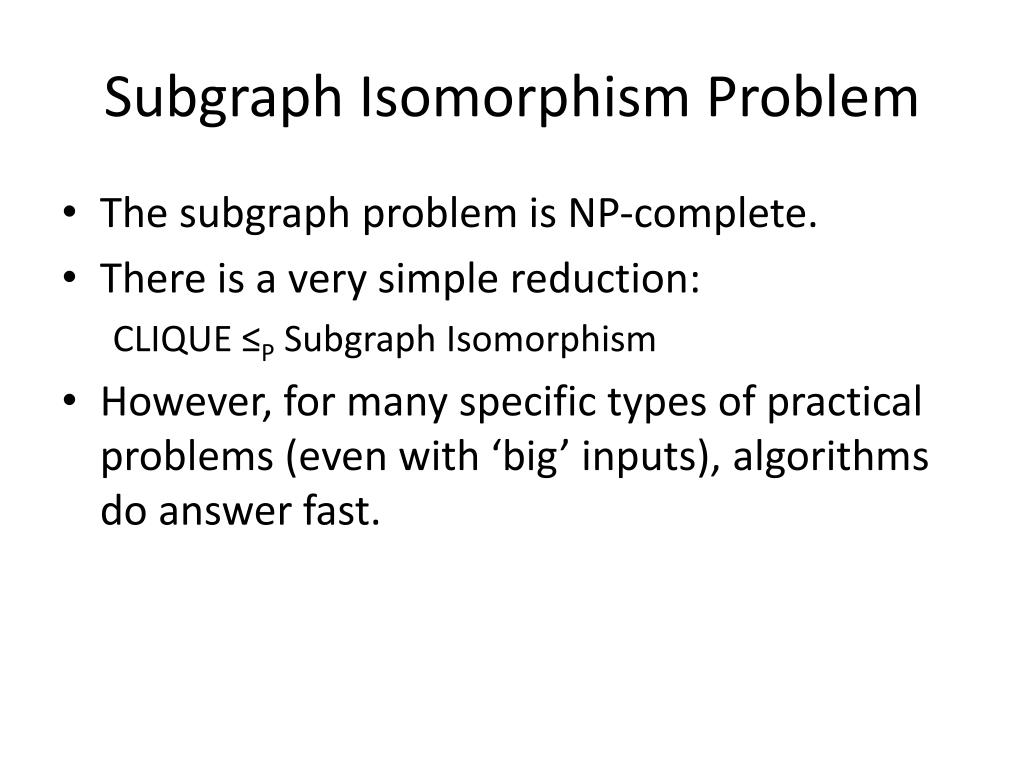

  • The subgraph problem is NP-complete.

  • There is a very simple reduction:

    CLIQUE ≤P Subgraph Isomorphism

  • However, for many specific types of practical problems (even with ‘big’ inputs), algorithms do answer fast.


The ullman algorithm

The Ullman Algorithm

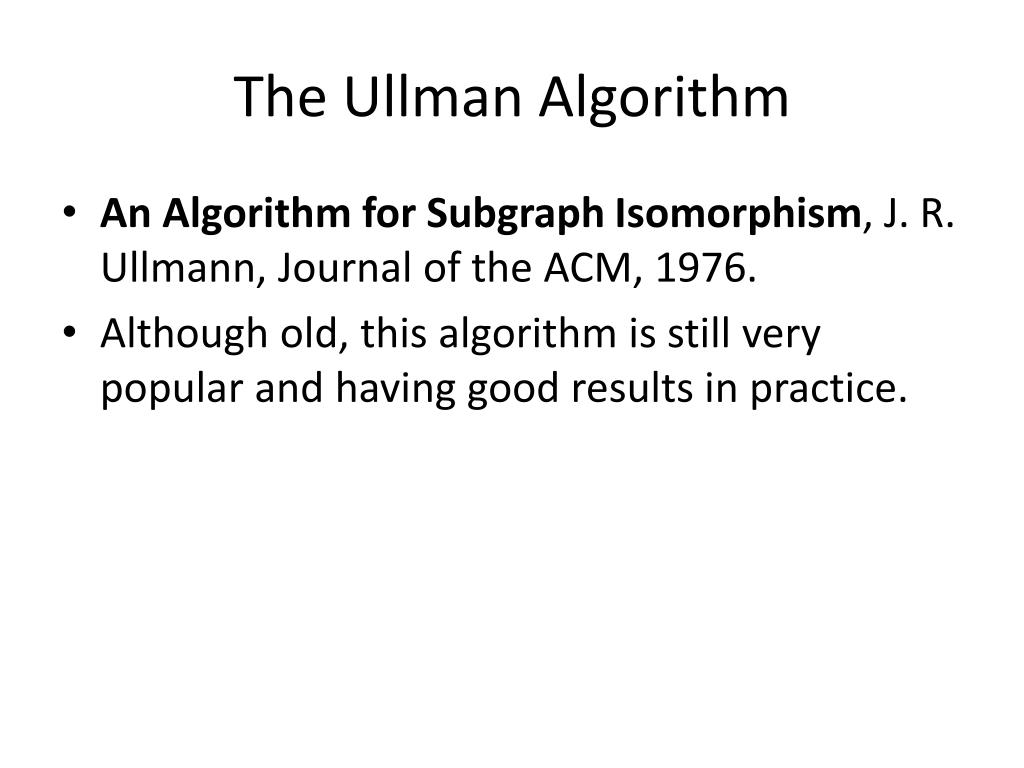

  • An Algorithm for Subgraph Isomorphism, J. R. Ullmann, Journal of the ACM, 1976.

  • Although old, this algorithm is still very popular and having good results in practice.


The ullman algorithm1

The Ullman Algorithm

  • There are algebraic formulations for graph isomorphism and subgraph isomorphism, that we will take use of.

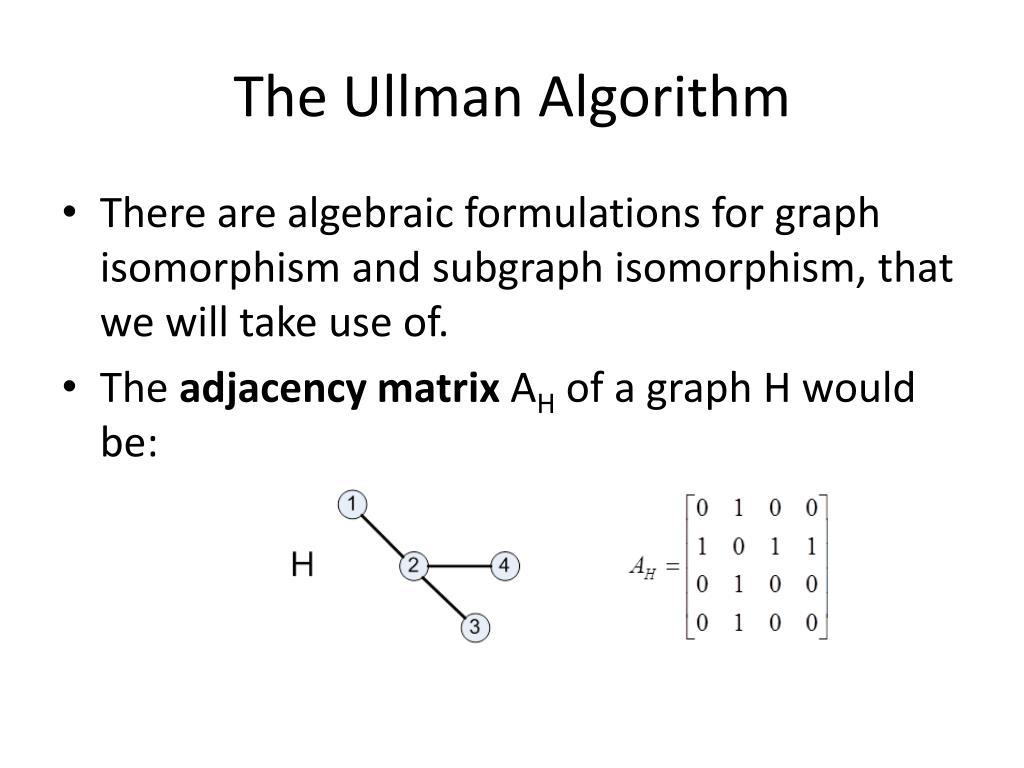

  • The adjacency matrix AH of a graph H would be:


The ullman algorithm2

The Ullman Algorithm

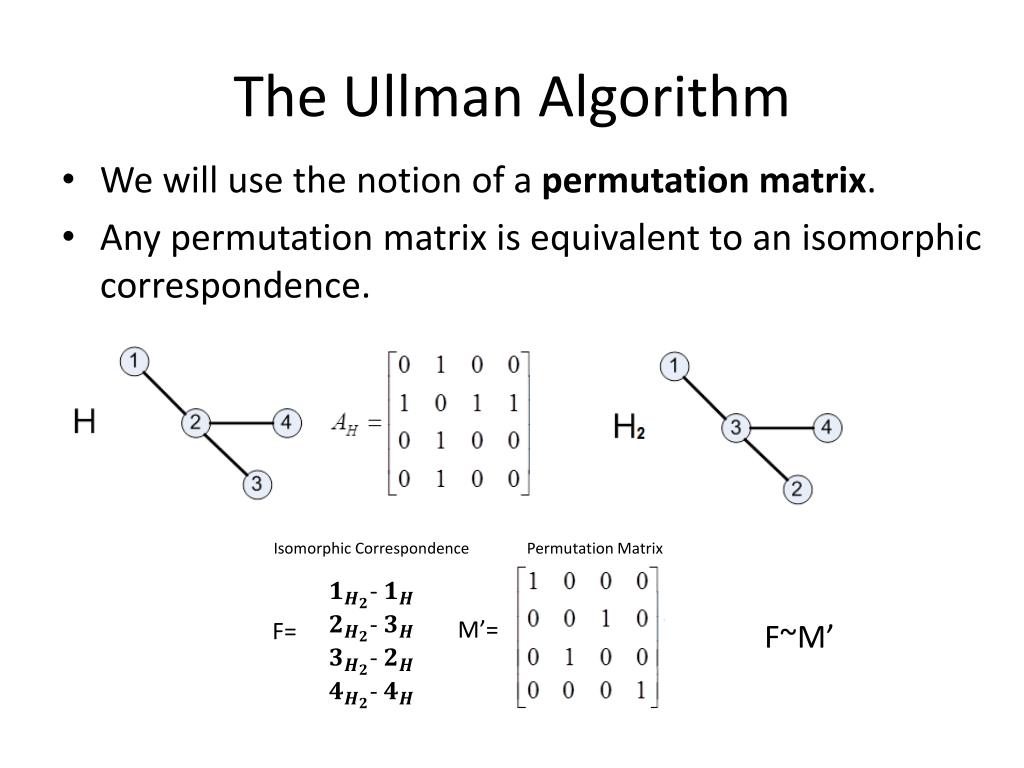

  • We will use the notion ofa permutation matrix.

  • Any permutation matrix is equivalent to an isomorphic correspondence.

Isomorphic Correspondence

Permutation Matrix

-

-

-

-

M’=

F=

F~M’


The ullman algorithm3

The Ullman Algorithm

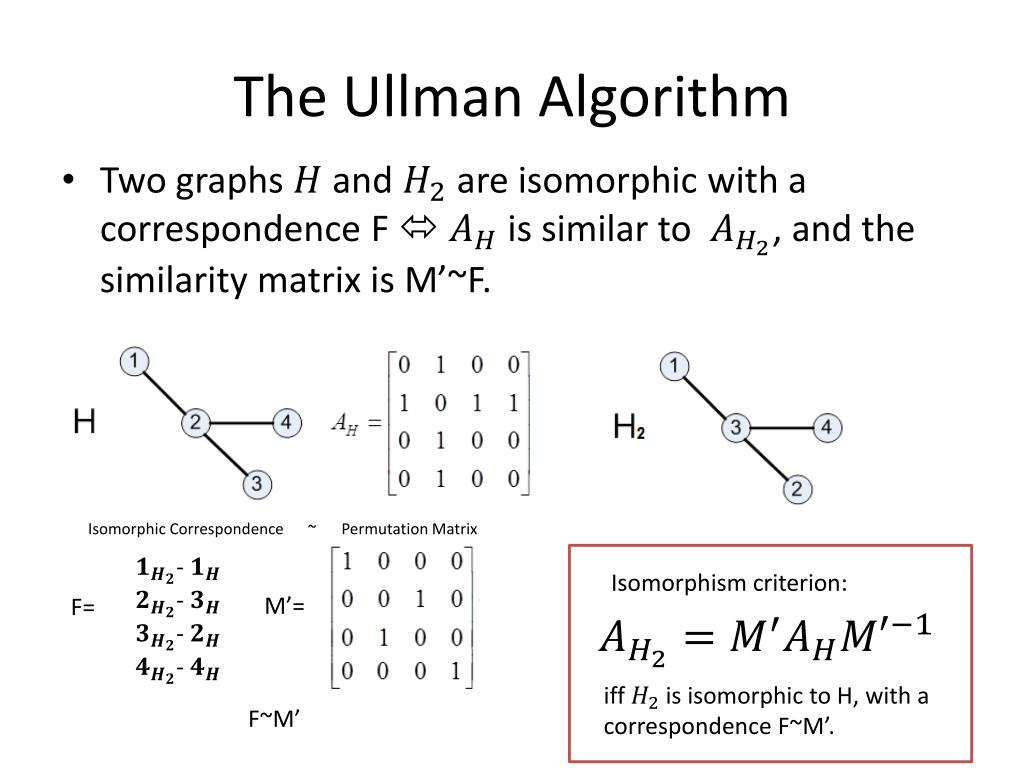

  • Two graphs and are isomorphic with a correspondence F  is similar to , and the similarity matrix is M’~F.

Isomorphic Correspondence

Permutation Matrix

~

-

-

-

-

Isomorphism criterion:

M’=

F=

iff is isomorphic to H, with a correspondence F~M’.

F~M’


The ullman algorithm4

The Ullman Algorithm

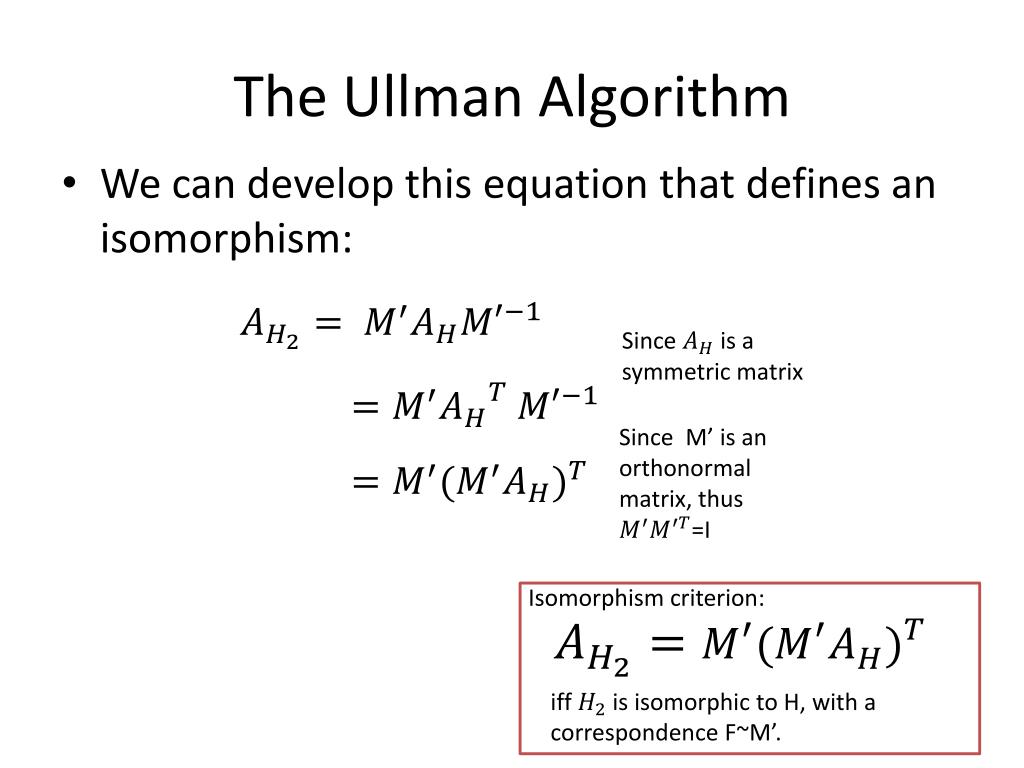

  • We can develop this equation that defines an isomorphism:

Since is a symmetric matrix

Since M’ is an orthonormal matrix, thus =I

Isomorphism criterion:

iff is isomorphic to H, with a correspondence F~M’.


The ullman algorithm5

The Ullman Algorithm

  • In a similar fashion (without proof) we have an algebraic criterion for a subgraphisomorphism.

Isomorphic Correspondence

Permutation Matrix

~

1G-1H

2G-3H

3G-2H

4G-φ

Subgraph isomorphism criterion:

M’=

F=

iff G is subgraph isomorphic to H, with a correspondence F~rectangularM’.


The ullman algorithm6

The Ullman Algorithm

  • We have a graph G and a graph H, and we want to know if G is subgraph isomorphic to H .

  • So, We’ll search for a permutation matrix M* of size

    |x || that satisfies the subgraph isomorphism criterion.

  • We will enumerate over candidate permutation matrices of the same size, denoting a candidate by M’, from a set of candidates that satisfies:

    (The set of all M*-s) (The set of all M’-s) . During the

    enumeration, we check the isomorphism criterion over each

    candidate. If a candidate satisfies the criterion, we will return

    ‘yes’. If we would not find such a candidate, we will return ‘no’.


The ullman algorithm7

The Ullman Algorithm

  • Ullmann’s algorithm I

    • Construction of another matrix M(0) with the same size of the M’-s:

    • Generation of all M’-s by setting to 0all but one 1 in each row of M(0)

    • A subgraph isomorphism has been found if M implies: .


The ullman algorithm8

The Ullman Algorithm

Root - M(0)

  • Ullmann’s algorithm I

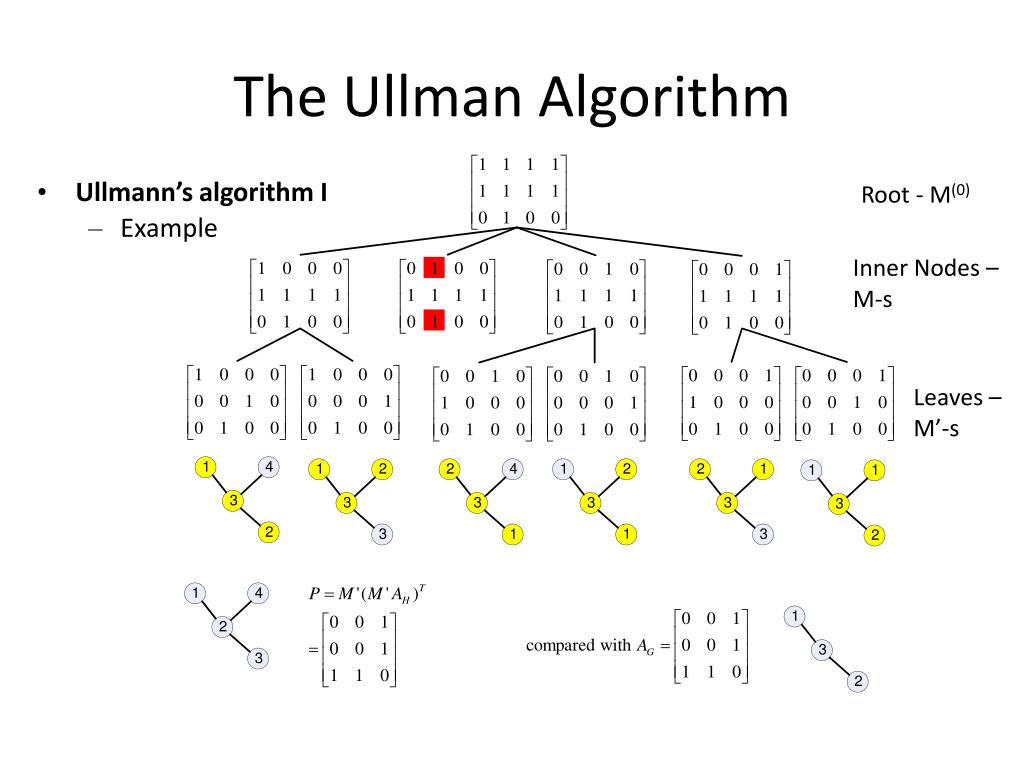

    • Example

Inner Nodes – M-s

Leaves – M’-s


The ullman algorithm9

The Ullman Algorithm

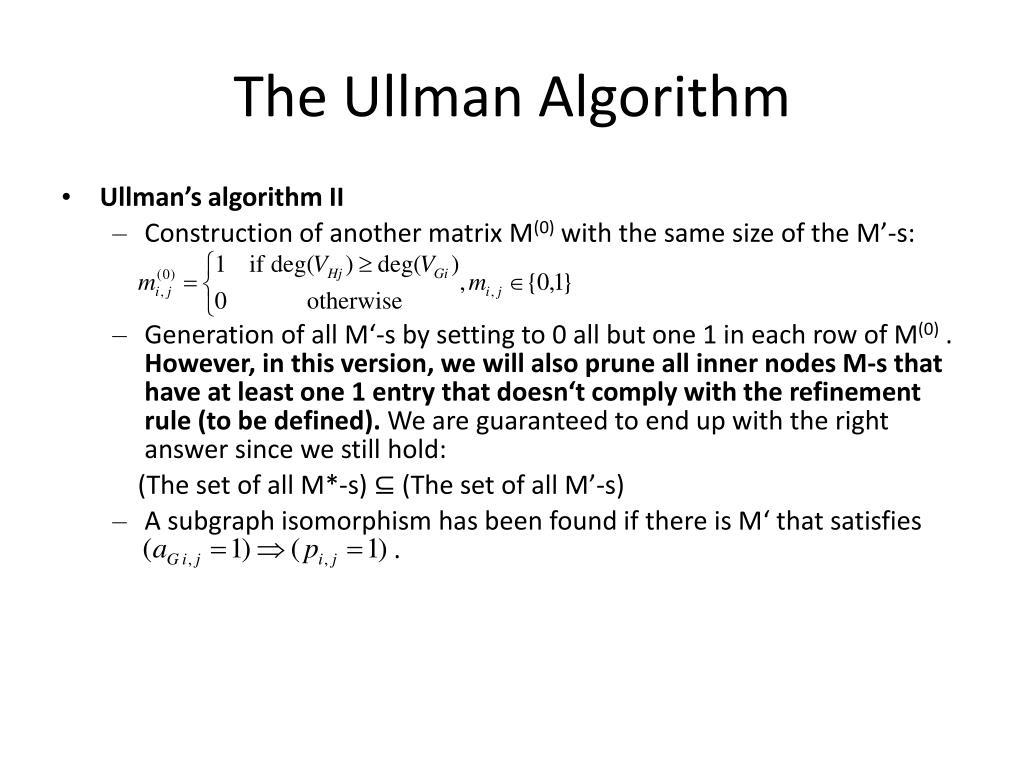

  • Ullman’s algorithm II

    • Construction of another matrix M(0) with the same size of the M’-s:

    • Generation of all M‘-s by setting to 0all but one 1 in each row of M(0) . However, in this version, we will also prune all inner nodes M-s that have at least one 1 entry that doesn‘t comply with the refinement rule (to be defined). We are guaranteed to end up with the right answer since we still hold:

      (The set of all M*-s) (The set of all M’-s)

    • A subgraph isomorphism has been found if there is M‘ that satisfies .


The ullman algorithm10

The Ullman Algorithm

  • Ullmann’s refinement rule for prunning the search tree:

  • Observation:

    • If a vertex of G, , corresponds to a vertex of H, , then for each adjacent vertex of in G, denoted , there must be a vertex in H, denoted , in H that holds:

      • A. is adjacent to in H

      • B. corresponds to


The ullman algorithm11

The Ullman Algorithm

  • Algebraic notation:

    • For all mi,j=1 (that is already fixed):

  • Any inner node M that does not satisfy this rule is prunned, because all of its decendants are not M*-s.
