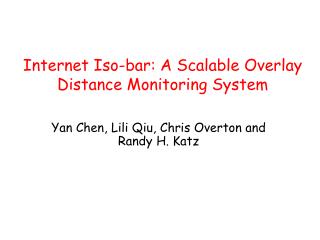

Internet Iso-bar: A Scalable Overlay Distance Monitoring System

Yan Chen, Lili Qiu, Chris Overton and Randy H. Katz


Motivations

Motivations

Applications of end-to-end distance monitoring/estimation

  • Overlay Routing/Location

  • Peer-to-peer Systems

  • VPN Management/Provisioning

  • Service Redirection/Placement

  • Cache-infrastructure Configuration

    Requirements for E2E distance monitoring system

  • Scalable: a small amount of probing traffic and system load

  • Accurate: capture congestion/failures + latency estimation

  • Fast: small computation for real-time estimation

  • Incrementally deployable

  • Easy to use

    Benefit applications

  • Application-driven measurement

  • Inference techniques for trouble shooting, root cause analysis

  • Improve application performance and reliability


E2e estimation monitoring systems comparison

E2E Estimation/Monitoring Systems Comparison


E2e estimation monitoring systems comparison1

E2E Estimation/Monitoring Systems Comparison


E2e estimation monitoring systems comparison2

E2E Estimation/Monitoring Systems Comparison


E2e estimation monitoring systems comparison3

E2E Estimation/Monitoring Systems Comparison


Problem formulation

Problem Formulation

  • Given N end hosts, how to select a subset of them as monitors and build a scalable overlay distance monitoring service without knowing the underlying topology?

  • Distance info desired: report congestion/failure if occurs, otherwise latency


E2e congestion failures analysis

E2E Congestion/Failures Analysis

  • Based on National Lab of Applied Network Research (NLANR) AMP data set

    • 104 sites in US (including Alaska, Hawaii) & Australia, every host ping all other hosts every minute

    • Sliding window of 10 samples, use minimum RTT as latency sample

    • 105M measurements, 6/25/01 – 7/1/01

    • Congestion/failures (uniformly denoted as congestion) defined as measurement “loss” or (latency > geo mean × geo stdev)

  • Congestions not common, only 0.96% samples

  • A few congestion links dominate the E2E congestion

    • Besides those happened at the last mile, E2E congestion exhibit strong spatial correlation


Nlanr amp sites

NLANR AMP Sites


Internet iso bar

Internet Iso-bar

  • Procedures

    • Cluster hosts that perceive similar performance to a small set of sites (landmarks)

    • For each cluster, select a monitor for active and continuous probing

    • Estimate distance between any pair of hosts using inter- and intra-cluster distance


Internet iso bar i host clustering

Internet Iso-bar (I): Host Clustering

  • Define correlationdistance between each pair of hosts

    • Existing work use network proximity:cor_dist(i,j) = net_dist(i,j) (denoted pij)

    • Iso-bar uses network distance vector(k landmarks for clustering only): netVi = [pi1, pi2, …, pik]T

      • Euclidean distance based:

      • Cosine vector similarity based:

  • Apply generic clustering methods

    • Optimize the worst case: minimize the maximum radius of all clusters (limit_num_minRmax)

    • Optimize the average case: minimize the sum of total host-monitor distance (limit_num_minDistSum)


Internet iso bar a scalable overlay distance monitoring system

Diagram of Internet Iso-bar

Cluster C

Cluster B

Cluster A

Landmark

End Host


Internet iso bar a scalable overlay distance monitoring system

Diagram of Internet Iso-bar

Distance probes from monitor to its hosts

Distance probes among monitors

Cluster C

Cluster B

Cluster A

Landmark

Monitor

End Host


Internet iso bar ii distance estimation

j

i

m

j

mj

i

mi

Internet Iso-bar (II): Distance Estimation

  • Intra-cluster estimation

    • If path(m, i) or path(m, j) is congested, report path(i, j) as congestion

    • O/w pDist(i,j) = (mDist(m, i) + mDist(m, j))/ 2

  • Inter-cluster estimation

    • If path(mi, i), path(mi, mj) or path(mj, j) is congested, report path(i, j) as congestion

    • O/w pDist(i,j) = mDist(mi, mj)


Evaluation methodology

Evaluation Methodology

  • Internet measurement data

    • NLANR AMP data set

      • Clustering with geometric mean of training date

      • Estimation dates: 6/25/01 – 7/24/01, 12/06/01

    • Keynote CDN measurement data

      • 63 agents covering all major ISPs in US, Europe, Asia & Australia

      • 2 targets (CDN re-directors) in Boston and Texas

      • Measure TCP connection time (2/3 of handshake) from each agent to target every minute

      • Training date: 10/21/2002

      • Estimation dates: 10/21/2002 – 11/25/2002

  • Similar latency estimation results for both datasets, present NLANR


Evaluation methodology ii

Evaluation Methodology (II)

  • Estimation metric

    • Relative accuracy error for un-congested latency

    • Stability

    • For dynamic monitoring systems, amount of congestion captured and false positive ratio

  • Internet distance estimation techniques evaluated

    • Omniscent: use g-mean data of (source, dest) on training date

    • Global Network Positioning (GNP)

    • Clustering with network distance vector (Iso-bar)

    • Clustering with network proximity

  • 15 clusters vs. 15 landmarks of GNP


Latency prediction accuracy stability

Latency Prediction Accuracy & Stability

  • Training date: 06/25/01

  • Estimation dates: 06/25/01 - 12/06/01

  • Summary of the 90th percentile relative error for various distance estimation methods


Distance estimation results

Distance Estimation Results

  • Latency estimation when un-congested

    • Omniscient is the most accurate, but unscalable

    • GNP and Iso-bar are the second

      • Both have good accuracy and stability for distance estimation

      • GNP unscalable for online monitoring, static approach

    • Iso-bar outperforms proximity-based clustering by 50%

      • 90th percentile < 0.5, if 60ms latency, 45ms < prediction < 90ms

  • Congestion/failures estimation

    • 6/25/01 – 7/01/01, averagely 148K congested measurements per day

    • Iso-bar captures 78% of them, 32% false positive ratio

    • Only 3% of monitoring overhead compared with RON


Conclusions

Conclusions

  • Propose Internet Iso-bar

  • Cluster hosts based on the network similarity

  • Inter- and Intra-cluster latency estimation w/ first-step heuristic for congestion/failure detection

  • Preliminary results promising

    • High accuracy & stability for normal latency estimation

    • Simple heuristics of congestion estimation captures 78% of congestions, with 32% false positive, and only 3% of monitoring overhead of RON


Ongoing work

Ongoing Work

  • Current focus switch from latency estimation to congestion/failures estimation

    • Apply topology information, e.g. lossy link detection with network tomography

    • Cluster and choose monitors based on the lossy links

  • Benefit applications

    • Dynamic node join/leave for P2P systems

      • Joining client pings landmark sites to get distance vector, compare with those of monitors, and choose closest one to join

      • Split/merge clusters

    • Multi-path selection

  • More comprehensive evaluation

    • Simulate with large network

    • Deploy on PlanetLab, and operate at finer level


Internet iso bar1

Internet Iso-bar

Problem formulation:

Given N end hosts, how to select a subset of them as monitors and build a scalable overlay distance monitoring service without knowing the underlying topology?

Distance info desired: report congestion/failure if occurs, o/w latency

Our approach:

  • Cluster hosts that perceive similar performance to a small set of sites (landmarks)

  • For each cluster, select a monitor for active and continuous probing

  • Estimate distance between any pair of hosts using inter- and intra-cluster distance

    Performance evaluation

  • Using real Internet measurement data

  • Compared with other distance estimation services: GNP, RON

  • Performance metrics: accuracy and stability


Internet iso bar ii distance estimation1

Internet Iso-bar (II): Distance Estimation

  • Congestion/failures analysis

    • Congestion/failures (uniformly denoted as congestion) not common

      • Defined as measurement “loss” or (latency > geo mean × geo stdev)

      • Only 0.96% out of 105M NLANR ping measurements over a week

    • Suggest a few congestion links dominate the E2E congestion

      • Besides those happened at the last mile, E2E congestion exhibit strong spatial correlation

  • Estimation algorithms

    • Intra-cluster estimation (i and j use the same monitor m)

      • If path(m, i) or path(m, j) is congested, report path(i, j) as congestion

      • O/w predictedDist(i,j) = (measuredDist(m, i) + measuredDist(m, j))/ 2

    • Inter-cluster distance estimation

      • If path(monitori, i), path(monitori, monitorj) or path(monitorj, j) is congested, report path(i, j) as congestion

      • Otherwise predictedDist(i,j) = measuredDist(monitori, monitorj)

    • Self-diagnostics of monitors, check for last-mile congestion
