Molecular orbitals of heteronuclear diatomic molecules

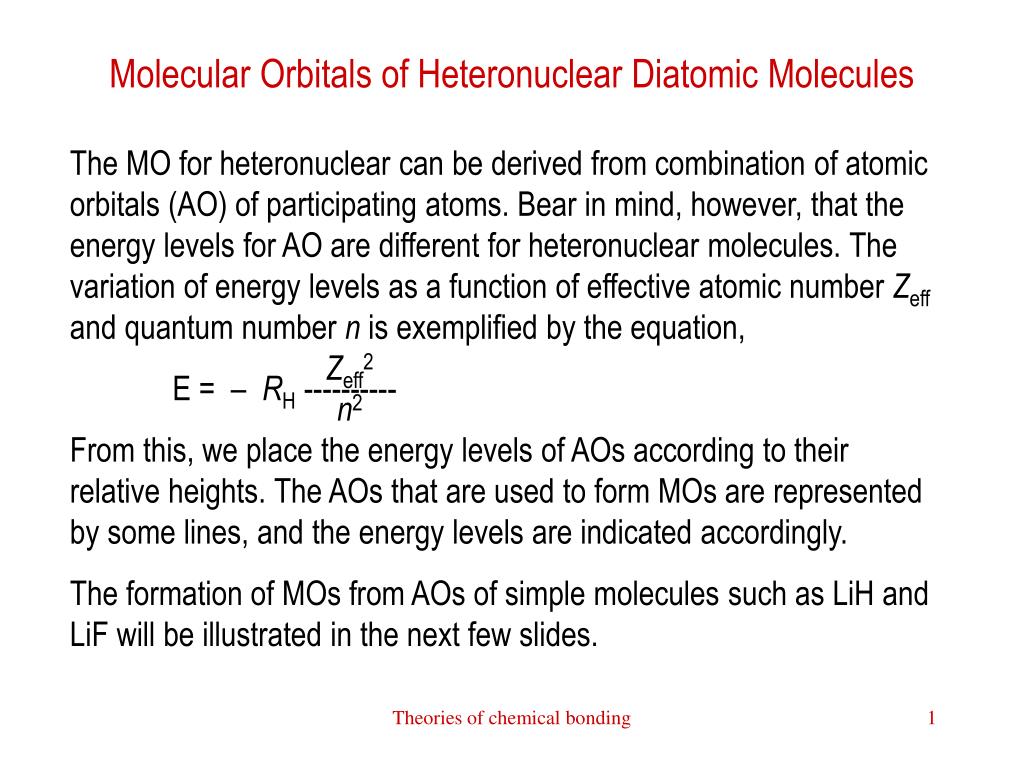

Molecular Orbitals of Heteronuclear Diatomic Molecules

The MO for heteronuclear can be derived from combination of atomic orbitals (AO) of participating atoms. Bear in mind, however, that the energy levels for AO are different for heteronuclear molecules. The variation of energy levels as a function of effective atomic number Zeff and quantum number n is exemplified by the equation,

E = – RH ----------

From this, we place the energy levels of AOs according to their relative heights. The AOs that are used to form MOs are represented by some lines, and the energy levels are indicated accordingly.

The formation of MOs from AOs of simple molecules such as LiH and LiF will be illustrated in the next few slides.

Zeff2n2

Theories of chemical bonding


The mos for lih

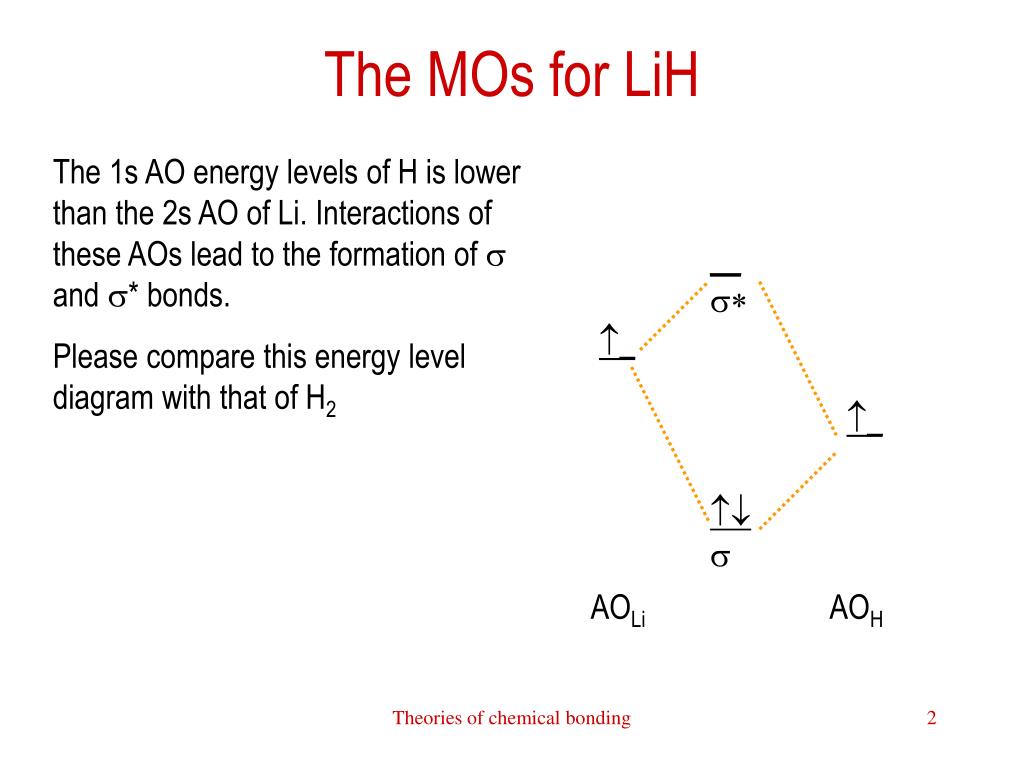

The MOs for LiH

The 1s AO energy levels of H is lower than the 2s AO of Li. Interactions of these AOs lead to the formation of s and s* bonds.

Please compare this energy level diagram with that of H2

__s*

_

_

s

AOLi

AOH

Theories of chemical bonding


Mo for lif

MO for LiF

In the case of LiF, the energy of 2s AO of Li is higher the energy of 2p of F.

The MOs are derived from the combination of 2s AO of Li and 2p AO of F.

A s and a s* are derived from this interaction, and the two 2p orbitals are not involved. These are non-bonding orbitals or pairs.

Theories of chemical bonding


Mo for h 2 o

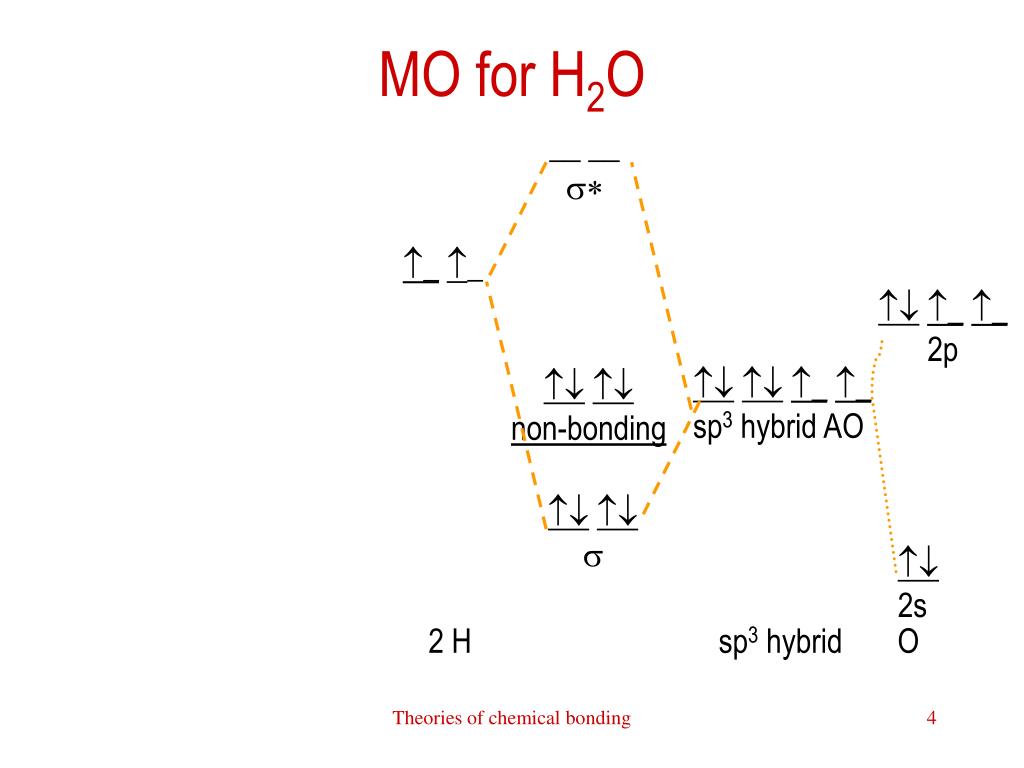

MO for H2O

__ __ s*

__

__2p

__sp3 hybrid AO

non-bonding

s

2s

2 H

sp3 hybrid O

Theories of chemical bonding


Mo for water another approach

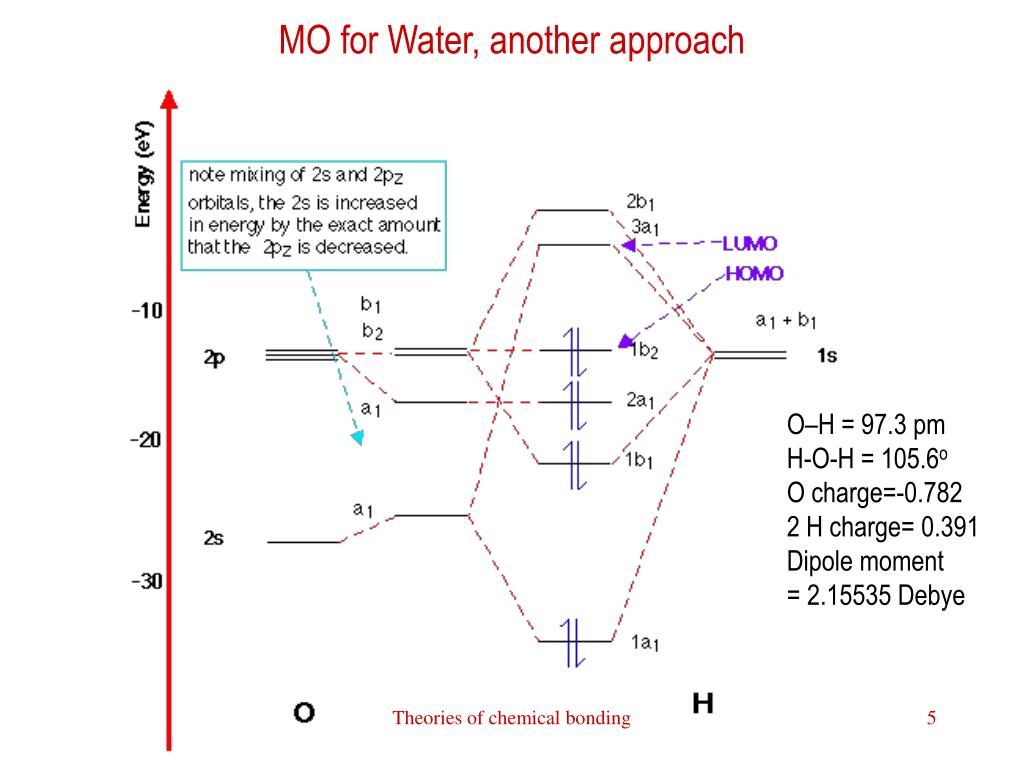

MO for Water, another approach

O–H = 97.3 pmH-O-H = 105.6oO charge=-0.7822 H charge= 0.391Dipole moment = 2.15535 Debye

Theories of chemical bonding


Mo plots of o 2

MO Plots of O2

Theories of chemical bonding


Mo plots for co

MO plots for CO

C0 = 114.6 pmC1 charge= –0 .014O2 charge= 0.014Dipole moment = 0.13196 Debye

Theories of chemical bonding
