  1. PROJECTDevelopment of new actuators, materials and technology for the production of advanced pneumatic and hydraulic valves Тhe activities of the EUREKA project DE_AMATECH in the year 2009

  2. AIMS Analysis and determination of compositematerials for the purpose of the project What the main components for the experimental work are and what the possible problems are when experimental process is started? Тhe activities of the EUREKA project DE_AMATECH in the year 2009

  3. SUMMARY • Literature Research: The research has been aimed at: the raw materials which might be used as potential materials for manufacturing of the piston assembly with detailed analysis of their properties, the technology for their processing into composites and final products. • Based on the target properties which are required by the designer a thorough investigation on existing fiber composites was also made. • Several types of fiber reinforced composites based on the chosen materials have been produced, and their basic mechanical properties nave been determined. • The samples produced were delivered to Plasma for testing coating possibilities. Тhe activities of the EUREKA project DE_AMATECH in the year 2009

  4. Composite materials, which are produced in “11 Oktomvri Eurokompozit" • Composite materials containing cotton fabric as reinforcement and synthetic phenol phormaldehyde resin as matrix. • Several types of composite materials containing glass fabric as reinforcement and synthetic epoxy resin as matrix. • Several types of composite materials containing glass fabric as reinforcement and synthetic phenol phormaldehide resin as matrix. • Several types of molding compounds and moldings: glass/polyester, glass/phenolic, carbon/phenolic. Тhe activities of the EUREKA project DE_AMATECH in the year 2009

  5. AVAILABLE TECHNOLOGIES RELATED TO FIBER COMPOSITES • IMPREGNATION • LAMINATION • MOLDING COMPOUNDS PRODUCTION • OPEN MOLD MOLDING • CLOSED MOLD MOLDING • MACHINING – TRADITIONAL METHODS Тhe activities of the EUREKA project DE_AMATECH in the year 2009

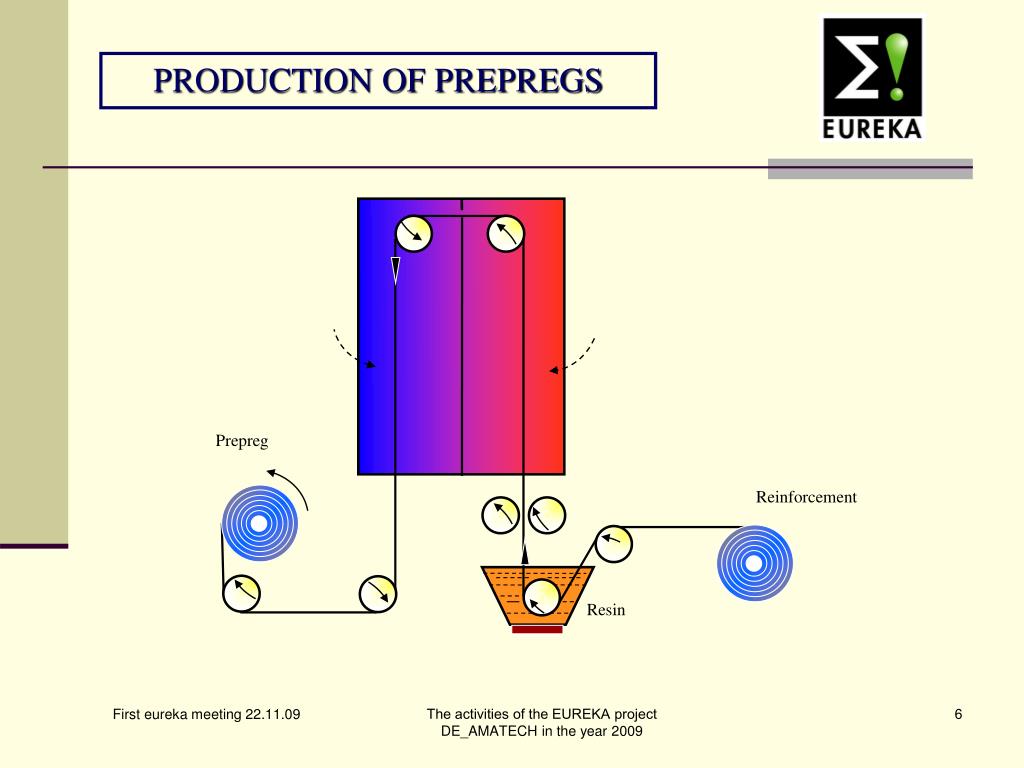

  6. PRODUCTION OF PREPREGS Prepreg Reinforcement Resin Тhe activities of the EUREKA project DE_AMATECH in the year 2009

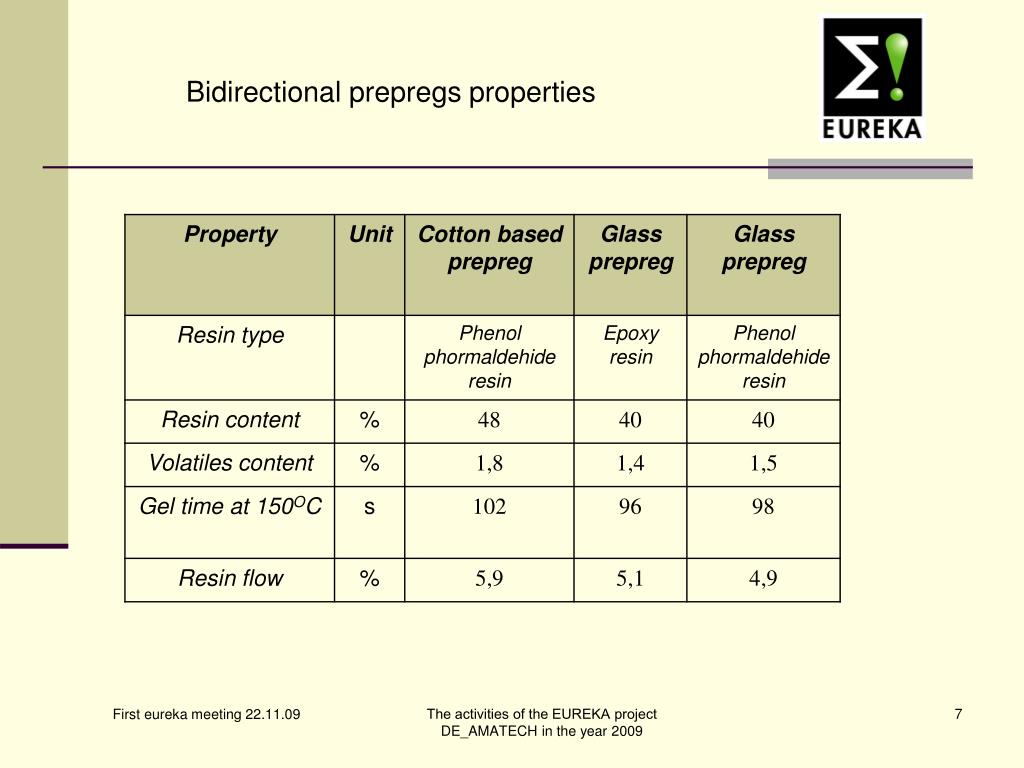

  7. Bidirectional prepregs properties Тhe activities of the EUREKA project DE_AMATECH in the year 2009

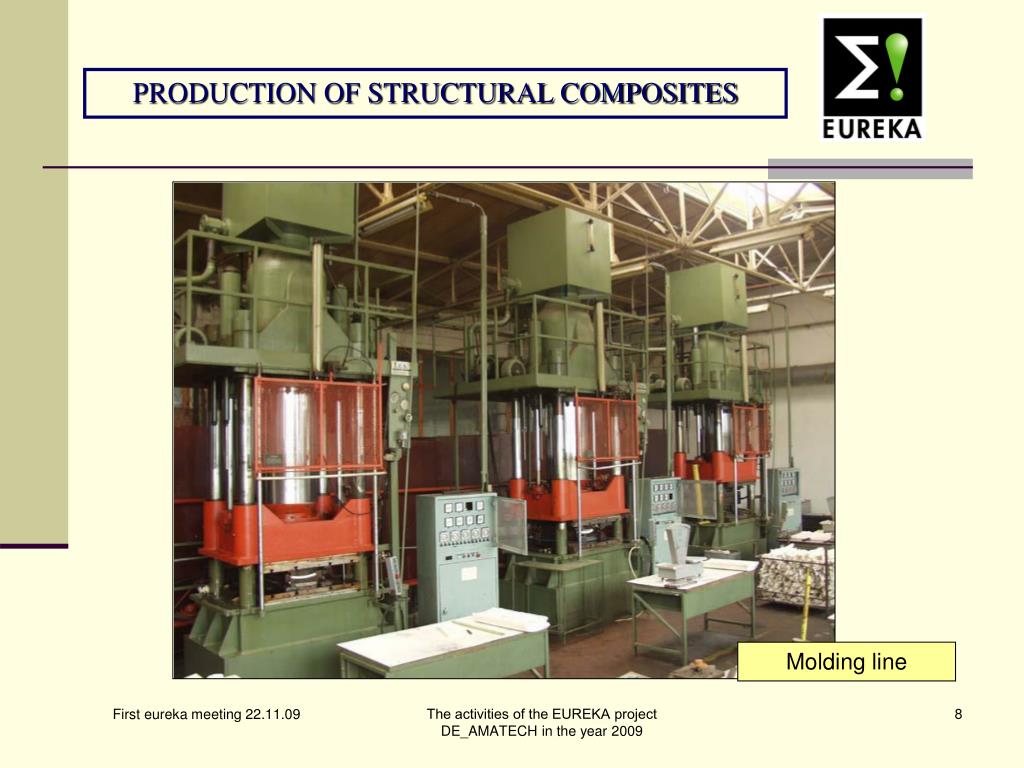

  8. PRODUCTION OF STRUCTURAL COMPOSITES Molding line Тhe activities of the EUREKA project DE_AMATECH in the year 2009

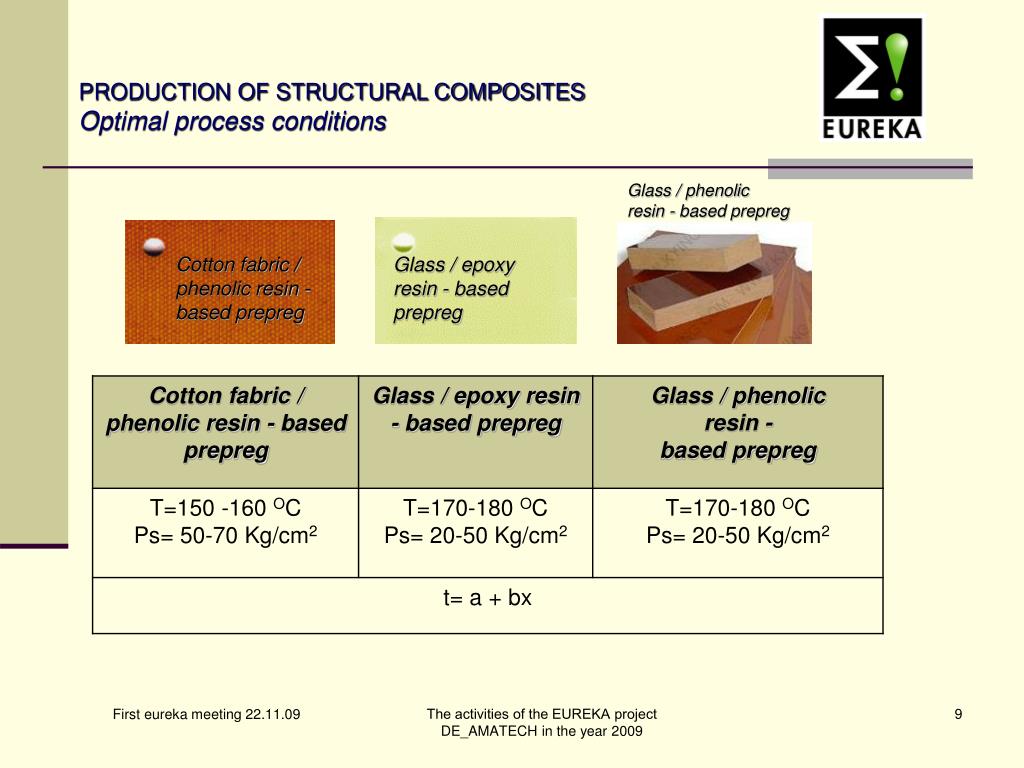

  9. PRODUCTION OF STRUCTURAL COMPOSITES Optimal process conditions Glass / phenolic resin - based prepreg Cotton fabric / phenolic resin - based prepreg Glass / epoxy resin - based prepreg Тhe activities of the EUREKA project DE_AMATECH in the year 2009

  10. PRODUCTION OF MOLDINGS Тhe activities of the EUREKA project DE_AMATECH in the year 2009

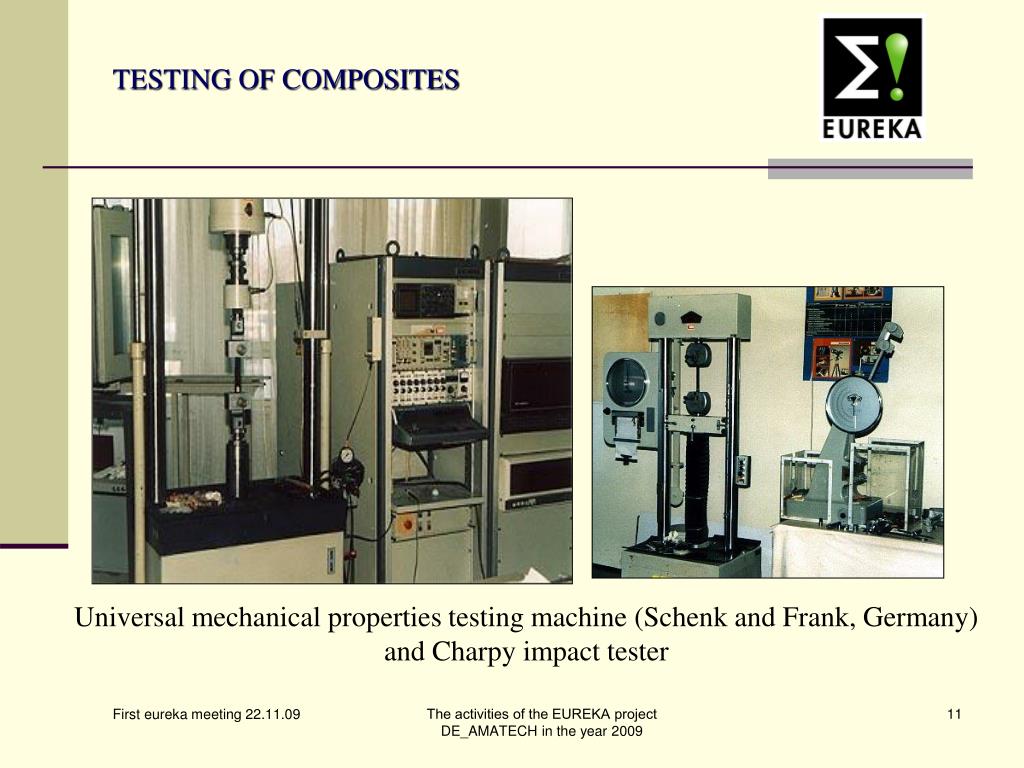

  11. TESTING OF COMPOSITES Universal mechanical properties testing machine (Schenk and Frank, Germany) and Charpy impact tester Тhe activities of the EUREKA project DE_AMATECH in the year 2009

  12. Basic physical and mechanical properties of some structural composites Тhe activities of the EUREKA project DE_AMATECH in the year 2009

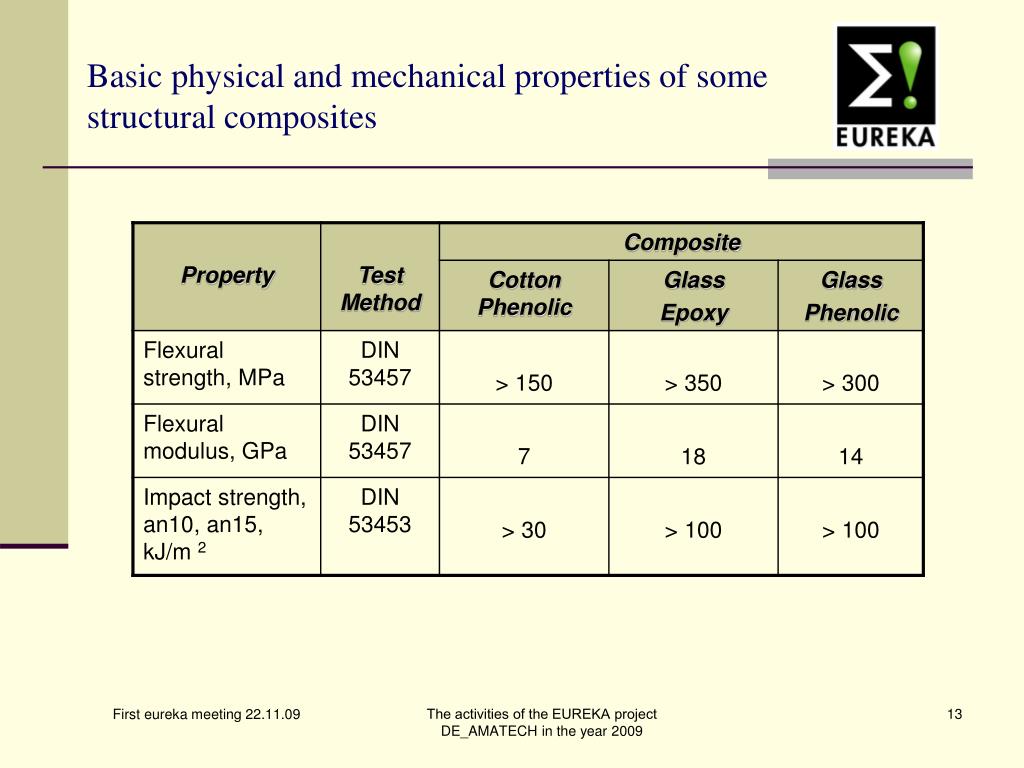

  13. Basic physical and mechanical properties of some structural composites Тhe activities of the EUREKA project DE_AMATECH in the year 2009

  14. Basic physical and mechanical properties of some structural composites • Testing of the surface hardness of the coated composites in the laboratory of Eurokompozit were performed (in October) with Plazma representatives participation in order to evaluate the quality of the coating. Тhe activities of the EUREKA project DE_AMATECH in the year 2009

  15. Basic physical mechanical and electrical properties of some moldings Тhe activities of the EUREKA project DE_AMATECH in the year 2009

  16. THANK YOU FOR YOUR ATTENTION Тhe activities of the EUREKA project DE_AMATECH in the year 2009
