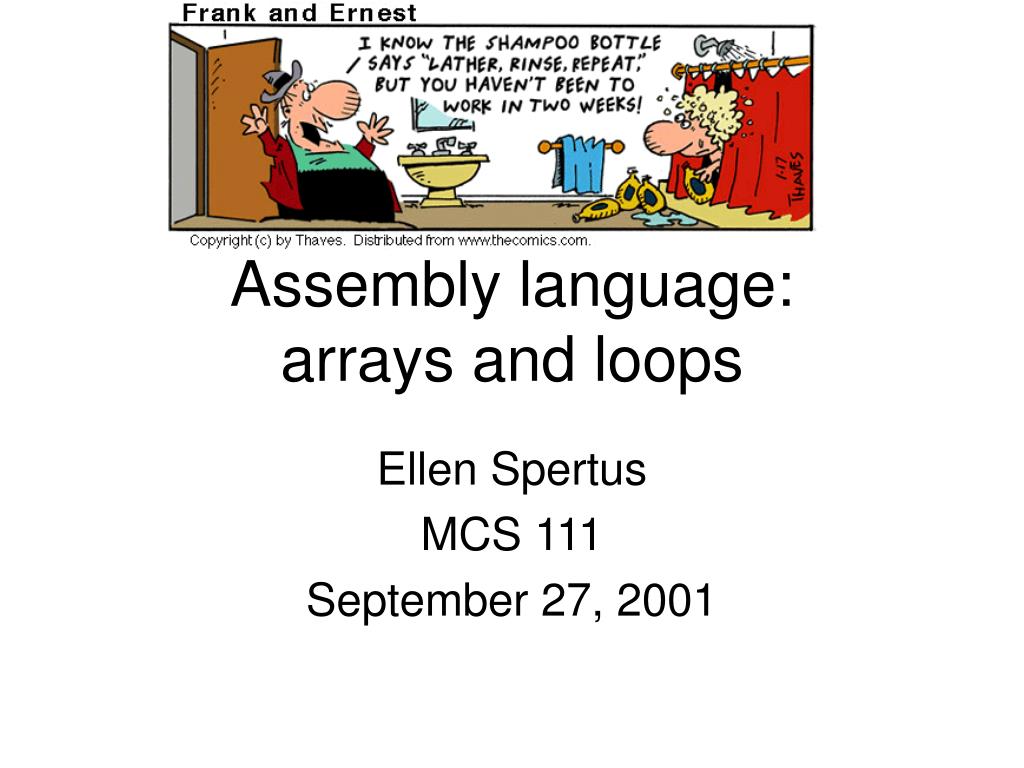

Assembly language arrays and loops

Assembly language:arrays and loops

Ellen Spertus

MCS 111

September 27, 2001


The big picture

The big picture

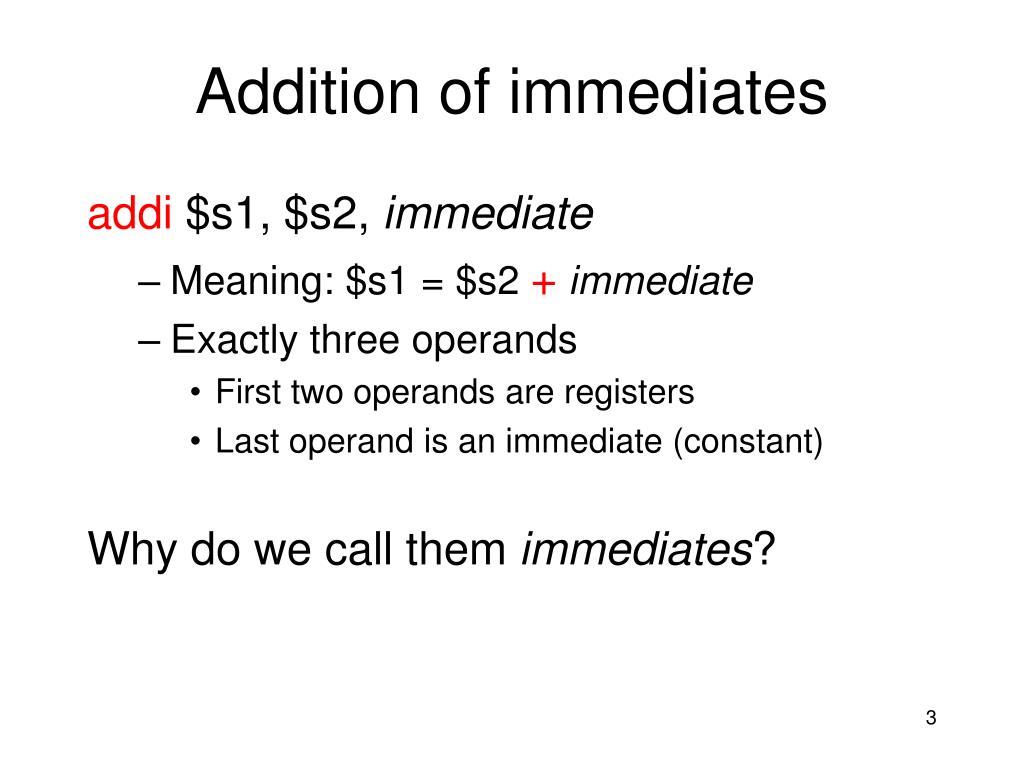

Addition of immediates

Addition of immediates

addi $s1, $s2, immediate

  • Meaning: $s1 = $s2 +immediate

  • Exactly three operands

    • First two operands are registers

    • Last operand is an immediate (constant)

      Why do we call them immediates?

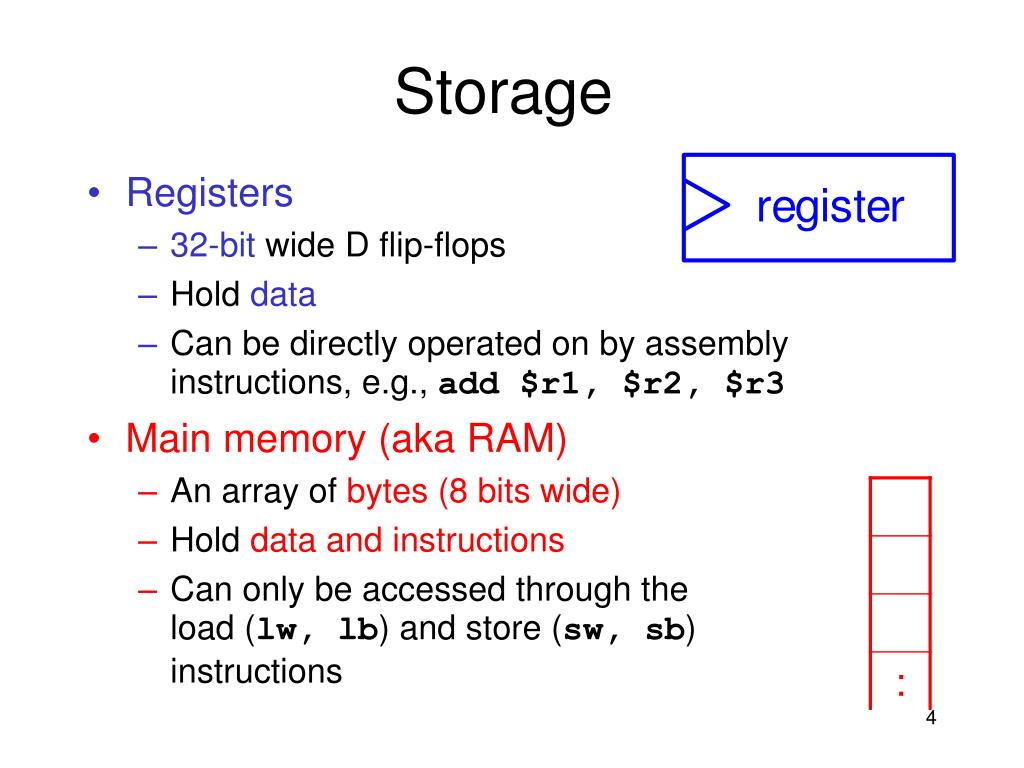

Storage

Storage

  • Registers

    • 32-bit wide D flip-flops

    • Hold data

    • Can be directly operated on by assembly instructions, e.g., add $r1, $r2, $r3

  • Main memory (aka RAM)

    • An array of bytes(8 bits wide)

    • Hold data and instructions

    • Can only be accessed through the load (lw, lb) and store (sw, sb) instructions


Where do we keep variables

Where do we keep variables?

  • Their permanent home is main memory

  • Why?

  • They may temporarily be stored in registers

  • Why?

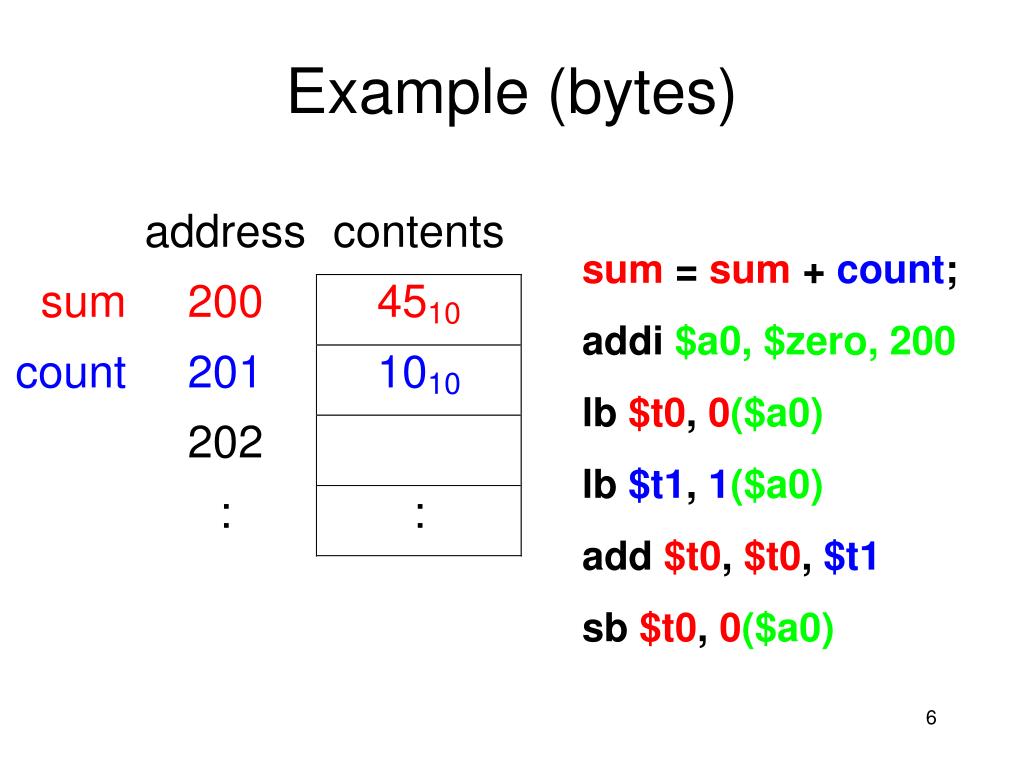

Example bytes

Example (bytes)

sum = sum + count;

addi $a0, $zero, 200

lb $t0, 0($a0)

lb $t1, 1($a0)

add $t0, $t0, $t1

sb $t0, 0($a0)


Example words

Example (words)

sum = sum + count;

addi $a0, $zero, 200

lw $t0, 0($a0)

lw $t1, 4($a0)

add $t0, $t0, $t1

sw $t0, 0($a0)

sum

count

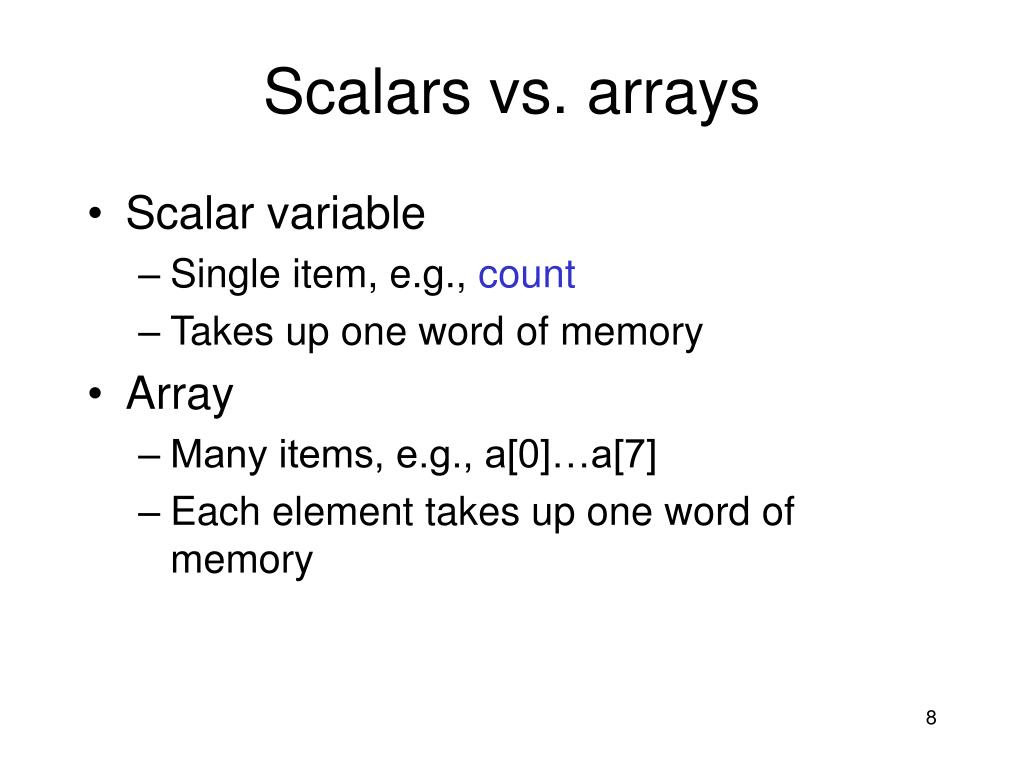

Scalars vs arrays

Scalars vs. arrays

  • Scalar variable

    • Single item, e.g., count

    • Takes up one word of memory

  • Array

    • Many items, e.g., a[0]…a[7]

    • Each element takes up one word of memory

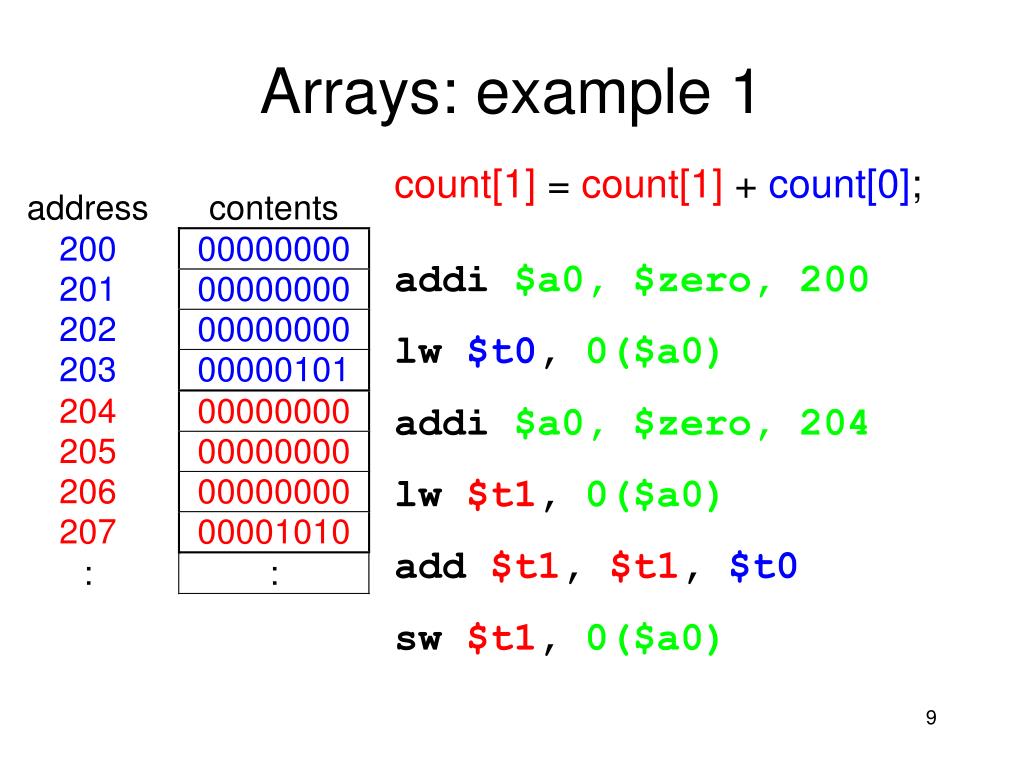

Arrays example 1

Arrays: example 1

count[1] = count[1] +count[0];

addi $a0, $zero, 200

lw $t0, 0($a0)

addi $a0, $zero, 204

lw $t1, 0($a0)

add $t1, $t1, $t0

sw $t1, 0($a0)

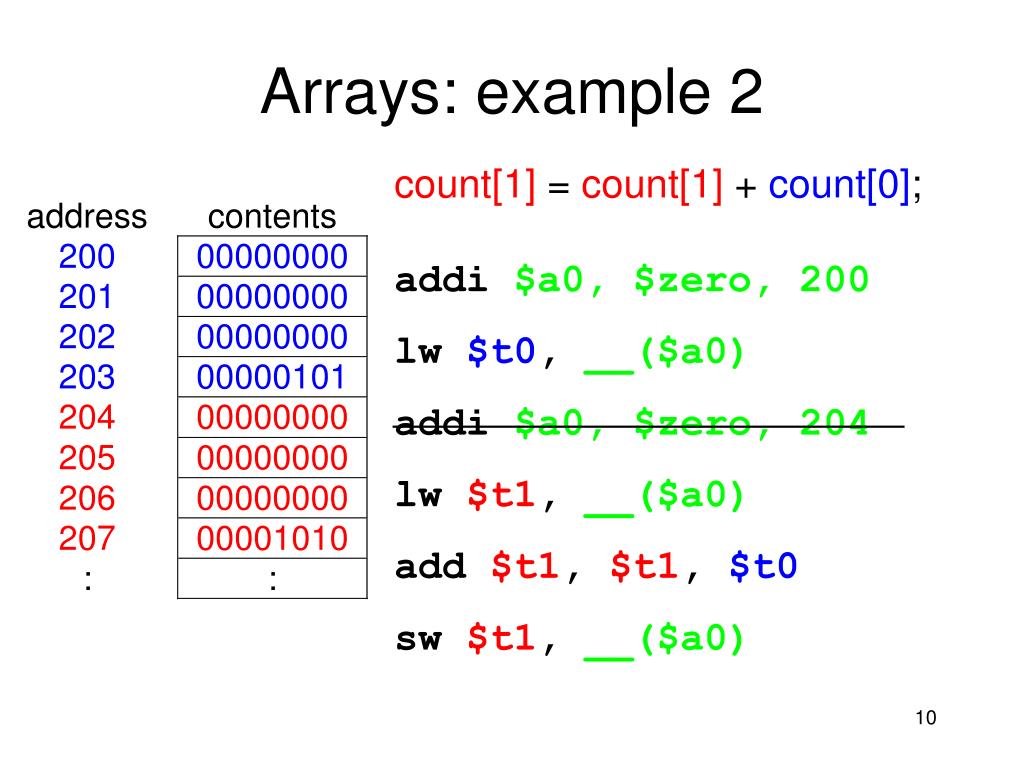

Arrays example 2

Arrays: example 2

count[1] = count[1] +count[0];

addi $a0, $zero, 200

lw $t0, __($a0)

addi $a0, $zero, 204

lw $t1, __($a0)

add $t1, $t1, $t0

sw $t1, __($a0)


Rules for accessing arrays

Rules for accessing arrays

  • The array is stored somewhere in memory. Put the address of the base(beginning) of the array into a register.

  • Assuming each element of the array is one word (4 bytes) long, the offset(distance from base) of element n is 4*n.


Counting from zero

Counting from zero


Arrays example 3

Arrays: example 3

count[2] = count[2] +count[5];

addi $a0, $zero, 200

lw $t0, __($a0)

lw $t1, __($a0)

add $t1, $t1, $t0

sw $t1, __($a0)


Arrays practice

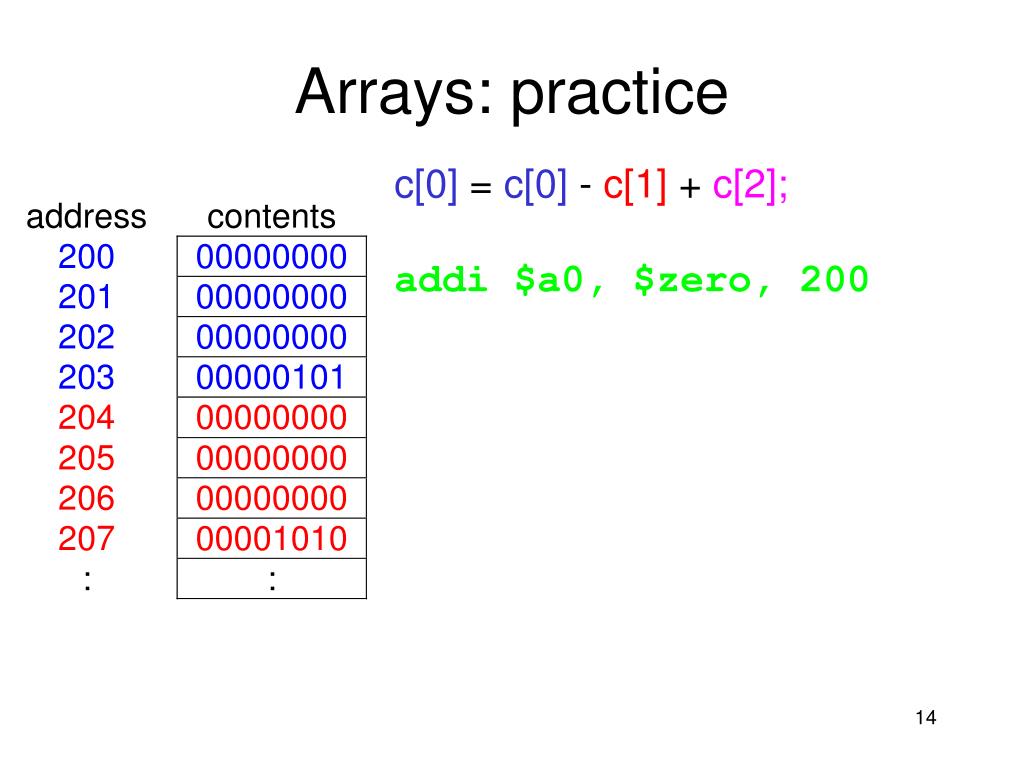

Arrays: practice

c[0]=c[0]- c[1] + c[2];

addi $a0, $zero, 200


Arrays example 4

Arrays: example 4

count[i] =0;

Assume base of array is in $a0

Assumeiis in$t0


Arrays example 5

Arrays: example 5

for (i=0; i < 100; i++)count[i] = 0;

Assume base of array is in $a0

add $t0, $zero, $zero

addi $t1, $zero, 100

addi $t0, $t0, 1

bne $t0, ____, ____

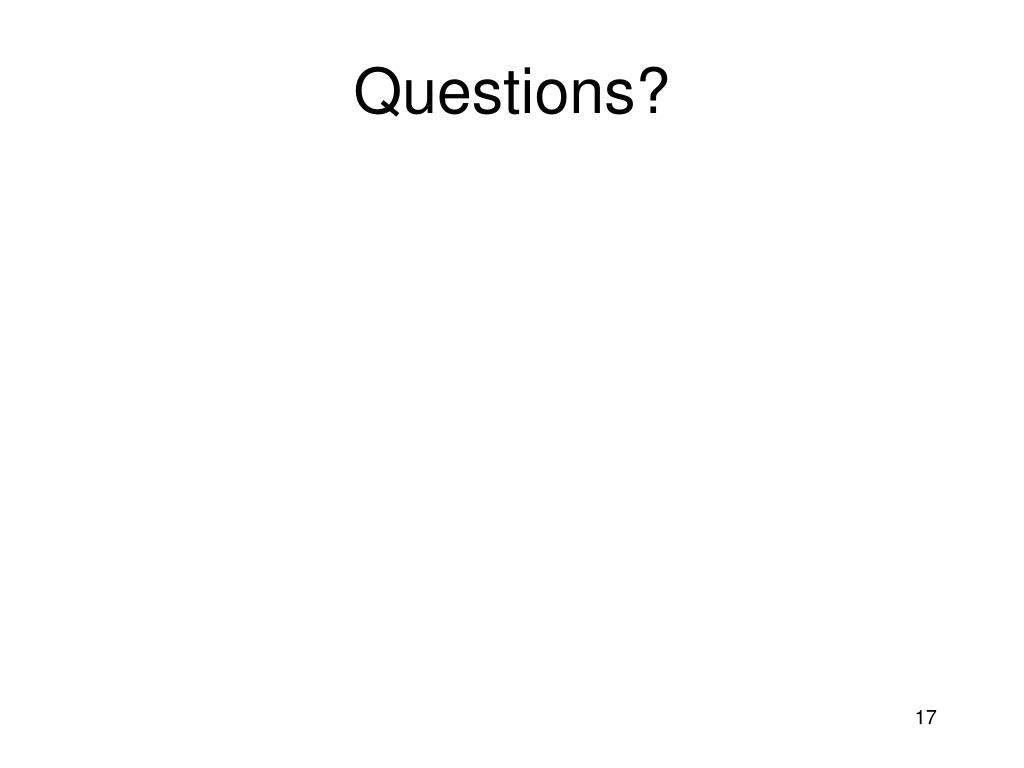

Questions

Questions?

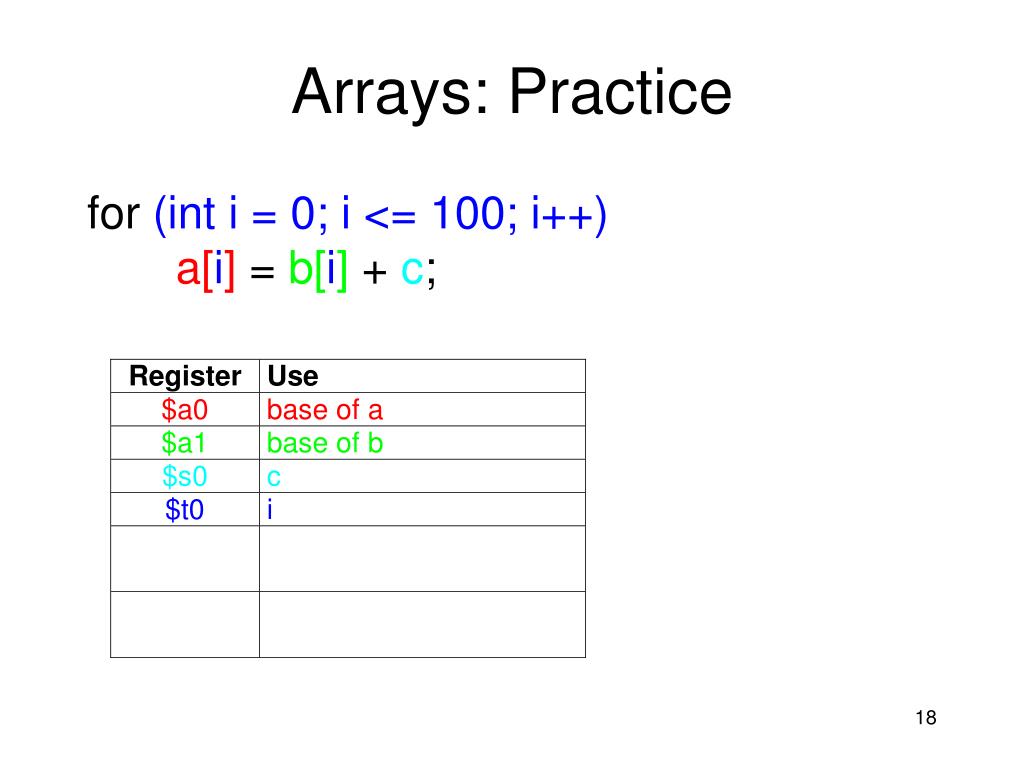

Arrays practice1

Arrays: Practice

for (int i = 0; i <= 100; i++)a[i] = b[i] + c;
